0-41 — FUEL FILTER AND BRACKET (#46754) — 60 parça

40 1 88 6 5 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL SAUDI ARABIA EQUIPMENT(EU2)	8-94250-176-1	01	1	9307-	●
1	FILTER ASM; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94428-242-1	01	1	9307-	●
1	FILTER ASM; FUEL	8-94144-750-1	01	1	9307-9406		●
1	FILTER ASM; FUEL EXC. TURBOCHARGER(K51)	8-94144-750-1	01	1	9407-		●
1	FILTER ASM; FUEL TURBOCHARGER(K51)	8-94122-064-1	01	1	9407-		●
2	ELEMENT KIT; FUEL FILTER	8-94144-613-0	01	1	9307-9406		●
2	ELEMENT KIT; FUEL FILTER EXC. TURBOCHARGER(K51)	8-94144-613-0	01	1	9407-		●
2	ELEMENT KIT; FUEL FILTER TURBOCHARGER(K51)	8-94151-010-0	01	1	9407-		●
3	SENSOR ASM; FUEL FILTER TURBOCHARGER(K51)	8-94132-676-0	01	1	9407-		●
4	GASKET; FUEL FILTER TURBOCHARGER(K51)	8-94125-898-0	01	1	9407-		●
5	BOLT; FUEL FILTER	9-09862-056-0	01	1	9307-9406		●
5	BOLT; FUEL FILTER EXC. TURBOCHARGER(K51)	9-09862-056-0	01	1	9407-		●
5	BOLT; FUEL FILTER TURBOCHARGER(K51)	8-94132-674-0	01	1	9407-		●
6	GASKET; FUEL FILTER ID=14.2 OD=20.0	9-09571-614-0	01	1	9307-9406		●
6	GASKET; FUEL FILTER EXC. TURBOCHARGER(K51) ID=14.2 OD=20.0	9-09571-614-0	01	1	9407-		●
6	GASKET; FUEL FILTER TURBOCHARGER(K51)	8-94132-675-0	01	1	9407-		●
40	BRACKET; FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94239-580-0	01	1	9307-	●
40	BRACKET; FUEL FILTER	8-94248-681-1	01	1	9307-9406		●
40	BRACKET; FUEL FILTER EXC. TURBOCHARGER(K51)	8-94248-681-1	01	1	9407-		●
40	BRACKET; FUEL FILTER TURBOCHARGER(K51)	8-94122-065-2	01	1	9407-		●
88	BOLT; BRKT,FUEL FILTER M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-	●
88	BOLT; BRKT,FUEL FILTER EXC. TURBOCHARGER(K51) M8X16 W/LK WASHER	0-50040-816-0	02	1	9407-9411		●
88	BOLT; BRKT,FUEL FILTER EXC. TURBOCHARGER(K51) M8X16 FLANGE	0-28080-816-0	02	1	9412-		●
88	BOLT; BRKT,FUEL FILTER M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-9406		●
88	BOLT; BRKT,FUEL FILTER TURBOCHARGER(K51) M8X16 W/LK WASHER	0-50040-816-0	02	1	9407-9411		●
88	BOLT; BRKT,FUEL FILTER TURBOCHARGER(K51) M8X16 FLANGE	0-28080-816-0	04	1	9412-		●

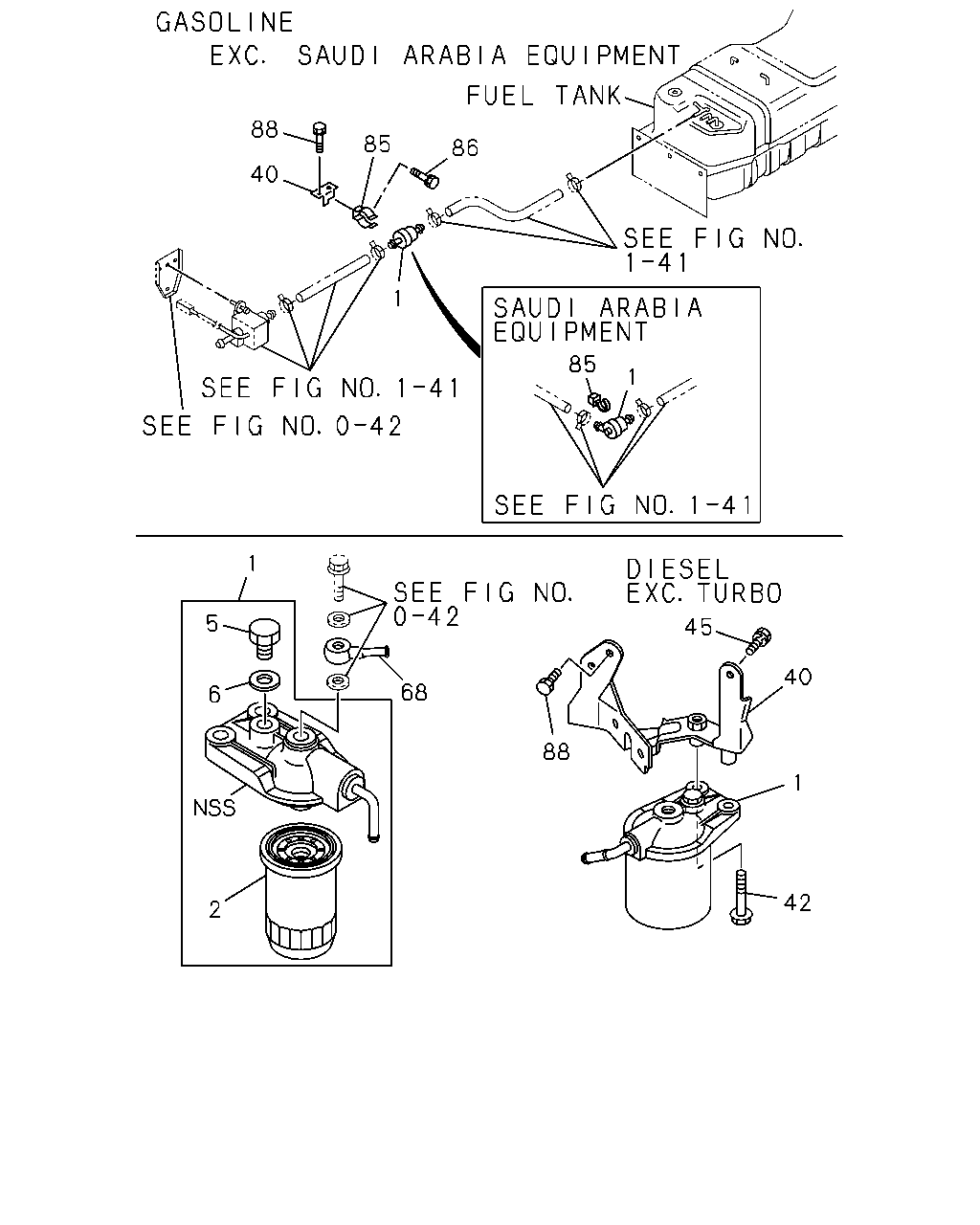

88 85 86 40 1 85 1 1 45 5 40 68 6 88 1 42 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL SAUDI ARABIA EQUIPMENT(EU2)	8-94250-176-1	01	1	9307-	●
1	FILTER ASM; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94428-242-1	01	1	9307-	●
1	FILTER ASM; FUEL	8-94144-750-1	01	1	9307-9406		●
1	FILTER ASM; FUEL EXC. TURBOCHARGER(K51)	8-94144-750-1	01	1	9407-		●
1	FILTER ASM; FUEL TURBOCHARGER(K51)	8-94122-064-1	01	1	9407-		●
2	ELEMENT KIT; FUEL FILTER	8-94144-613-0	01	1	9307-9406		●
2	ELEMENT KIT; FUEL FILTER EXC. TURBOCHARGER(K51)	8-94144-613-0	01	1	9407-		●
2	ELEMENT KIT; FUEL FILTER TURBOCHARGER(K51)	8-94151-010-0	01	1	9407-		●
5	BOLT; FUEL FILTER	9-09862-056-0	01	1	9307-9406		●
5	BOLT; FUEL FILTER EXC. TURBOCHARGER(K51)	9-09862-056-0	01	1	9407-		●
5	BOLT; FUEL FILTER TURBOCHARGER(K51)	8-94132-674-0	01	1	9407-		●
6	GASKET; FUEL FILTER ID=14.2 OD=20.0	9-09571-614-0	01	1	9307-9406		●
6	GASKET; FUEL FILTER EXC. TURBOCHARGER(K51) ID=14.2 OD=20.0	9-09571-614-0	01	1	9407-		●
6	GASKET; FUEL FILTER TURBOCHARGER(K51)	8-94132-675-0	01	1	9407-		●
40	BRACKET; FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94239-580-0	01	1	9307-	●
40	BRACKET; FUEL FILTER	8-94248-681-1	01	1	9307-9406		●
40	BRACKET; FUEL FILTER EXC. TURBOCHARGER(K51)	8-94248-681-1	01	1	9407-		●
40	BRACKET; FUEL FILTER TURBOCHARGER(K51)	8-94122-065-2	01	1	9407-		●
42	BOLT; FUEL FILTER M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9307-9406		●
42	BOLT; FUEL FILTER EXC. TURBOCHARGER(K51) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9407-		●
45	BOLT; FUEL FILTER M8X18 W/LK WASHER	0-50040-818-0	02	1	9307-9406		●
45	BOLT; FUEL FILTER EXC. TURBOCHARGER(K51) M8X18 W/LK WASHER	0-50040-818-0	02	1	9407-9411		●
45	BOLT; FUEL FILTER EXC. TURBOCHARGER(K51) M8X20 FLANGE	0-28680-820-0	02	1	9412-		●
68	JOINT; EYE,FUEL FILTER	5-09674-078-0	01	1	9307-9406		●
68	JOINT; EYE,FUEL FILTER EXC. TURBOCHARGER(K51)	5-09674-078-0	01	1	9407-		●
85	CLIP; FUEL SAUDI ARABIA EQUIPMENT(EU2) ID=40 NYLON	8-94223-523-0	01	1	9307-	●
85	CLIP; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=40 T=1	9-22518-051-0	01	1	9307-	●
86	BOLT; CLIP,FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2) M6X16	0-20800-616-0	01	1	9307-	●
88	BOLT; BRKT,FUEL FILTER M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-	●
88	BOLT; BRKT,FUEL FILTER EXC. TURBOCHARGER(K51) M8X16 W/LK WASHER	0-50040-816-0	02	1	9407-9411		●
88	BOLT; BRKT,FUEL FILTER EXC. TURBOCHARGER(K51) M8X16 FLANGE	0-28080-816-0	02	1	9412-		●
88	BOLT; BRKT,FUEL FILTER M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-9406		●
88	BOLT; BRKT,FUEL FILTER TURBOCHARGER(K51) M8X16 W/LK WASHER	0-50040-816-0	02	1	9407-9411		●
88	BOLT; BRKT,FUEL FILTER TURBOCHARGER(K51) M8X16 FLANGE	0-28080-816-0	04	1	9412-		●
