Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#46753) — 289 parça

32 31 147 140 44 46 43 47 31 33 48 49 143 51 53 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	8-94414-563-3	04	1	9307-9406
31	NOZZLE ASM; INJ EXC. TURBOCHARGER(K51)	8-94414-563-3	04	1	9407-
31	NOZZLE ASM; INJ TURBOCHARGER(K51)	8-97023-226-1	04	1	9407-
32	HOLDER ASM; NOZZLE	8-94220-085-1	04	1	9307-9310
32	HOLDER ASM; NOZZLE WO/NUT,GASKET	8-97069-343-0	04	1	9311-9406
32	HOLDER ASM; NOZZLE EXC. TURBOCHARGER(K51) WO/NUT,GASKET	8-97069-343-0	04	1	9407-
32	HOLDER ASM; NOZZLE TURBOCHARGER(K51) WO/NUT,GASKET	8-94460-005-0	04	1	9407-
33	NOZZLE; INJ	8-94131-143-0	04	1	9307-9406
33	NOZZLE; INJ EXC. TURBOCHARGER(K51)	8-94131-143-0	04	1	9407-
33	NOZZLE; INJ TURBOCHARGER(K51)	8-97023-227-0	04	1	9407-
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-97086-142-0	04	1	9307-9406
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-97086-142-0	04	1	9407-
35	NUT; NOZZLE RET,NOZZLE HOLDER TURBOCHARGER(K51)	8-94482-217-0	04	1	9407-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9307-9310
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9311-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9307-
46	PIN; NOZZLE SET,NOZZLE HOLDER TURBOCHARGER(K51)	8-94174-139-0	08	1	9407-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97083-358-0	04	1	9307-9406
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-97083-358-0	04	1	9407-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51)	8-94482-216-0	04	1	9407-
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.9 OD=17.5	8-94148-392-2	04	1	9307-
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94420-247-0	04	1	9307-
51	SHIELD; HEAT,INJ NOZZLE	8-94416-370-1	04	1	9307-
53	WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9307-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94176-962-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.10	8-94176-962-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94176-963-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.20	8-94176-963-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94176-964-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.30	8-94176-964-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94176-965-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.40	8-94176-965-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-94176-966-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.50	8-94176-966-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-94176-967-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.52	8-94176-967-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-94176-968-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.54	8-94176-968-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-94176-969-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.56	8-94176-969-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-94176-970-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.58	8-94176-970-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	8-94176-971-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.80	8-94176-971-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=0.80	5-15339-010-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.00	8-94176-886-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.01	8-94176-887-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.02	8-94176-888-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.03	8-94176-889-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.04	8-94176-890-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.05	8-94176-891-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.06	8-94176-892-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.07	8-94176-893-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.08	8-94176-894-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.09	8-94176-895-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.10	8-94176-896-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.11	8-94176-897-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.12	8-94176-898-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.13	8-94176-899-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.14	8-94176-900-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.16	8-94176-902-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.17	8-94176-903-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.18	8-94176-904-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.19	8-94176-905-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.20	8-94176-906-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.21	8-94176-907-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.22	8-94176-908-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.23	8-94176-909-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.24	8-94176-910-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.25	8-94176-911-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.26	8-94176-912-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.27	8-94176-913-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.28	8-94176-914-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.29	8-94176-915-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.30	8-94176-916-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.31	8-94176-917-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.32	8-94176-918-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.33	8-94176-919-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.34	8-94176-920-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.35	8-94176-921-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.36	8-94176-922-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.37	8-94176-923-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.38	8-94176-924-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.40	8-94176-925-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.41	8-94176-926-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.42	8-94176-927-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.43	8-94176-928-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.44	8-94176-929-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.45	8-94176-930-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.46	8-94176-931-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.47	8-94176-932-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.48	8-94176-933-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.49	8-94176-934-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.50	8-94176-935-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.51	8-94176-936-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.52	8-94176-937-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.53	8-94176-938-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.54	8-94176-939-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.55	8-94176-940-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.56	8-94176-941-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.57	8-94176-942-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.58	8-94176-943-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.59	8-94176-944-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.60	8-94176-945-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.61	8-94176-946-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.62	8-94176-947-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.63	8-94176-948-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.64	8-94176-949-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.65	8-94176-950-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.66	8-94176-951-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.67	8-94176-952-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.68	8-94176-953-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.69	8-94176-954-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.70	8-94176-955-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.71	8-94176-956-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.72	8-94176-957-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.73	8-94176-958-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.74	8-94176-959-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.75	8-94176-960-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.39	8-94178-796-0	AR	1	9407-
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51)	8-94424-217-0	04	1	9407-
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER M12	8-94174-344-0	04	1	9307-9406
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER EXC. TURBOCHARGER(K51) M12	8-94174-344-0	04	1	9407-
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) M12	8-94174-344-0	04	1	9407-

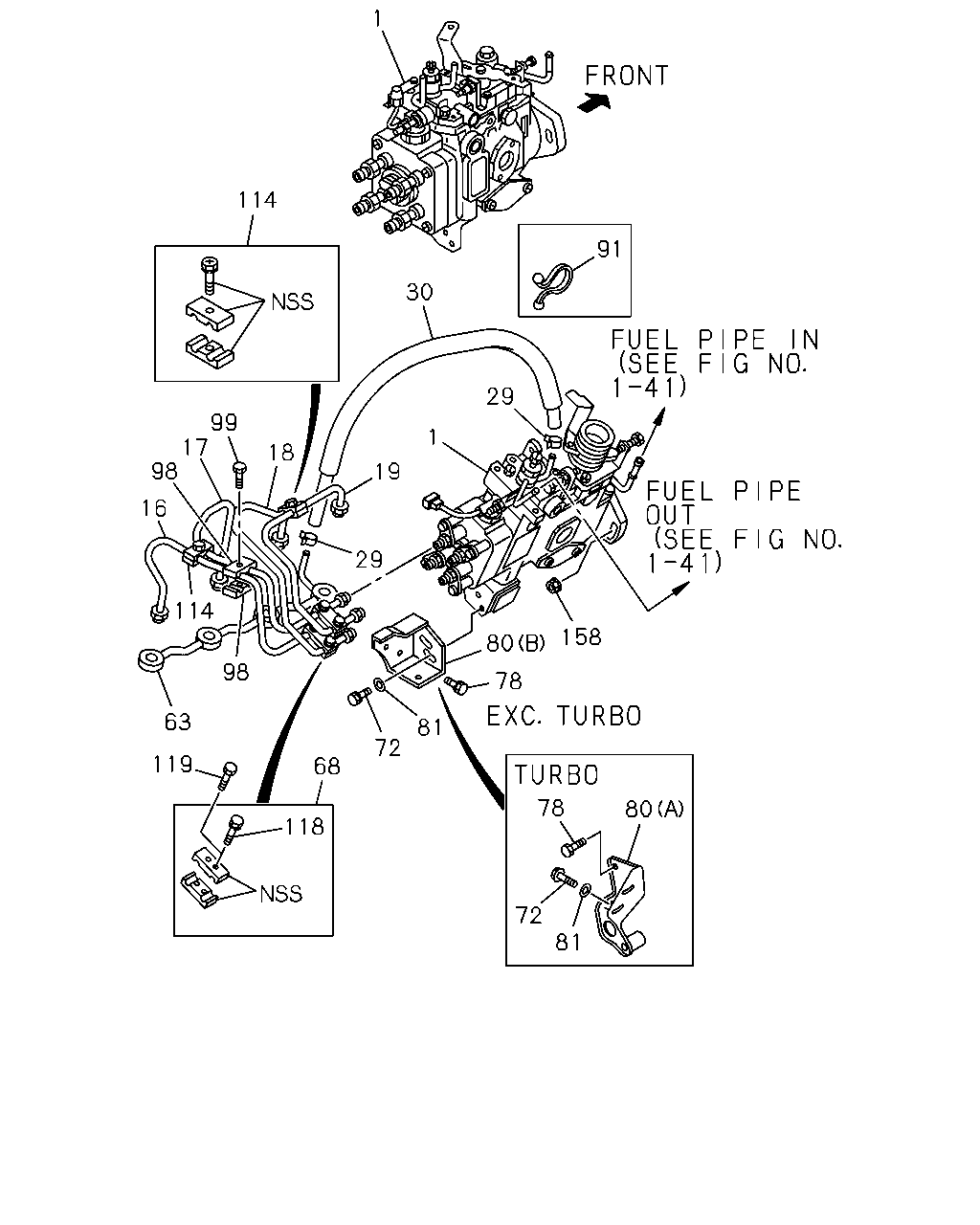

1 114 91 30 29 99 17 98 1 18 19 16 29 114 158 80 98 78 63 81 72 119 68 78 80 118 72 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. HIGH ALTITUDE COMPENSATOR<EE2> W/FICD_ACTUATOR	8-94386-821-0	01	1	9307-9406
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. HIGH ALTITUDE COMPENSATOR<EE2>,GENERATOR 55A<6LF> W/FICD_ACTUATOR	8-94386-821-0	01	1	9407-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR<EE2>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94386-820-0	01	1	9307-9406
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR<EE2>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2),GENERATOR 55A<6LF>	8-94386-820-0	01	1	9407-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TURBOCHARGER(K51)	8-97106-834-0	01	1	9407-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR<EE2> W/FICD_ACTUATOR	8-94386-823-0	01	1	9307-9406
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR<EE2> EXC. GENERATOR 55A<6LF> W/FICD_ACTUATOR	8-94386-823-0	01	1	9407-
16	PIPE; INJ NO.1	8-94449-080-1	01	1	9307-9406
16	PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-94449-080-2	01	1	9407-
16	PIPE; INJ NO.1 TURBOCHARGER(K51)	8-94477-816-3	01	1	9407-
17	PIPE; INJ NO.2	8-94449-081-2	01	1	9307-9406
17	PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-94449-081-3	01	1	9407-
17	PIPE; INJ NO.2 TURBOCHARGER(K51)	8-94477-817-2	01	1	9407-
18	PIPE; INJ NO.3	8-94449-082-1	01	1	9307-9406
18	PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-94449-082-2	01	1	9407-
18	PIPE; INJ NO.3 TURBOCHARGER(K51)	8-94477-818-2	01	1	9407-
19	PIPE; INJ NO.4	8-94449-083-1	01	1	9307-9406
19	PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-94449-083-2	01	1	9407-
19	PIPE; INJ NO.4 TURBOCHARGER(K51)	8-94477-819-1	01	1	9407-
29	CLIP; HOSE	8-94238-570-0	02	1	9307-
30	HOSE; RUBBER,FUEL LEAK	8-94326-319-0	01	1	9307-9406
30	HOSE; RUBBER,FUEL LEAK EXC. TURBOCHARGER(K51)	8-94326-319-0	01	1	9407-
30	HOSE; RUBBER,FUEL LEAK TURBOCHARGER(K51)	8-94134-339-0	01	1	9407-
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97019-197-0	01	1	9307-
68	CLIP; INJ PIPE	8-94241-331-0	02	1	9307-
72	BOLT; BRKT TO INJ PUMP M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9307-
80	BRACKET; PUMP (B)	8-94233-341-2	01	1	9307-9406
80	BRACKET; PUMP EXC. TURBOCHARGER(K51) (B)	8-94233-341-2	01	1	9407-
80	BRACKET; PUMP TURBOCHARGER(K51) (A)	8-94120-990-2	01	1	9407-
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	9307-
91	CLIP; HARNESS,INJ PUMP TURBOCHARGER(K51) ID=20	1-09709-068-0	01	1	9407-
98	CLIP; "A",INJ PIPE	9-15419-613-0	04	1	9307-
99	BOLT; CLIP,INJ,PIPE M5X25	1-09980-004-0	02	1	9307-
114	CLIP; INJ PIPE	5-15419-013-1	02	1	9307-9406
114	CLIP; INJ PIPE EXC. TURBOCHARGER(K51)	5-15419-013-1	02	1	9407-
118	BOLT; CLIP,INJ PIPE M5X22	8-94241-330-0	02	1	9307-
119	BOLT; CLIP,INJ PIPE M5X22	8-94241-330-0	02	1	9307-
158	NUT; INJ PUMP M8 FLANGE	8-94224-829-0	02	1	9307-

147 36 31 32 31 140 44 48 43 49 47 51 33 53 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	8-94414-563-3	04	1	9307-9406
31	NOZZLE ASM; INJ EXC. TURBOCHARGER(K51)	8-94414-563-3	04	1	9407-
31	NOZZLE ASM; INJ TURBOCHARGER(K51)	8-97023-226-1	04	1	9407-
32	HOLDER ASM; NOZZLE	8-94220-085-1	04	1	9307-9310
32	HOLDER ASM; NOZZLE WO/NUT,GASKET	8-97069-343-0	04	1	9311-9406
32	HOLDER ASM; NOZZLE EXC. TURBOCHARGER(K51) WO/NUT,GASKET	8-97069-343-0	04	1	9407-
32	HOLDER ASM; NOZZLE TURBOCHARGER(K51) WO/NUT,GASKET	8-94460-005-0	04	1	9407-
33	NOZZLE; INJ	8-94131-143-0	04	1	9307-9406
33	NOZZLE; INJ EXC. TURBOCHARGER(K51)	8-94131-143-0	04	1	9407-
33	NOZZLE; INJ TURBOCHARGER(K51)	8-97023-227-0	04	1	9407-
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-97086-142-0	04	1	9307-9406
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-97086-142-0	04	1	9407-
35	NUT; NOZZLE RET,NOZZLE HOLDER TURBOCHARGER(K51)	8-94482-217-0	04	1	9407-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FOR DN101 ID=12 W/2-HOLE	8-94104-993-0	04	1	9307-9406
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER(K51) FOR DN101 ID=12 W/2-HOLE	8-94104-993-0	04	1	9407-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FOR DN102 ID=12 W/4-HOLE	8-94173-488-0	04	1	9307-9406
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER(K51) FOR DN102 ID=12 W/4-HOLE	8-94173-488-0	04	1	9407-9502
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9307-9310
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9311-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9307-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97083-358-0	04	1	9307-9406
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-97083-358-0	04	1	9407-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51)	8-94482-216-0	04	1	9407-
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.9 OD=17.5	8-94148-392-2	04	1	9307-
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94420-247-0	04	1	9307-
51	SHIELD; HEAT,INJ NOZZLE	8-94416-370-1	04	1	9307-
53	WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9307-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94176-962-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.10	8-94176-962-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94176-963-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.20	8-94176-963-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94176-964-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.30	8-94176-964-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94176-965-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.40	8-94176-965-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-94176-966-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.50	8-94176-966-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-94176-967-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.52	8-94176-967-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-94176-968-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.54	8-94176-968-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-94176-969-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.56	8-94176-969-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-94176-970-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.58	8-94176-970-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	8-94176-971-0	AR	1	9311-9406
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TURBOCHARGER(K51) T=0.80	8-94176-971-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=0.80	5-15339-010-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.00	8-94176-886-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.01	8-94176-887-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.02	8-94176-888-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.03	8-94176-889-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.04	8-94176-890-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.05	8-94176-891-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.06	8-94176-892-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.07	8-94176-893-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.08	8-94176-894-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.09	8-94176-895-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.10	8-94176-896-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.11	8-94176-897-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.12	8-94176-898-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.13	8-94176-899-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.14	8-94176-900-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.16	8-94176-902-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.17	8-94176-903-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.18	8-94176-904-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.19	8-94176-905-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.20	8-94176-906-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.21	8-94176-907-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.22	8-94176-908-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.23	8-94176-909-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.24	8-94176-910-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.25	8-94176-911-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.26	8-94176-912-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.27	8-94176-913-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.28	8-94176-914-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.29	8-94176-915-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.30	8-94176-916-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.31	8-94176-917-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.32	8-94176-918-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.33	8-94176-919-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.34	8-94176-920-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.35	8-94176-921-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.36	8-94176-922-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.37	8-94176-923-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.38	8-94176-924-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.40	8-94176-925-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.41	8-94176-926-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.42	8-94176-927-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.43	8-94176-928-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.44	8-94176-929-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.45	8-94176-930-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.46	8-94176-931-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.47	8-94176-932-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.48	8-94176-933-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.49	8-94176-934-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.50	8-94176-935-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.51	8-94176-936-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.52	8-94176-937-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.53	8-94176-938-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.54	8-94176-939-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.55	8-94176-940-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.56	8-94176-941-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.57	8-94176-942-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.58	8-94176-943-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.59	8-94176-944-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.60	8-94176-945-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.61	8-94176-946-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.62	8-94176-947-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.63	8-94176-948-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.64	8-94176-949-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.65	8-94176-950-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.66	8-94176-951-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.67	8-94176-952-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.68	8-94176-953-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.69	8-94176-954-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.70	8-94176-955-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.71	8-94176-956-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.72	8-94176-957-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.73	8-94176-958-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.74	8-94176-959-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.75	8-94176-960-0	AR	1	9407-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TURBOCHARGER(K51) T=1.39	8-94178-796-0	AR	1	9407-
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER M12	8-94174-344-0	04	1	9307-9406
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER EXC. TURBOCHARGER(K51) M12	8-94174-344-0	04	1	9407-
147	NUT; RETURN CONNECTOR,NOZZLE HOLDER EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) M12	8-94174-344-0	04	1	9407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
