0-33 — FAN AND FAN BELT (#46750) — 67 parça

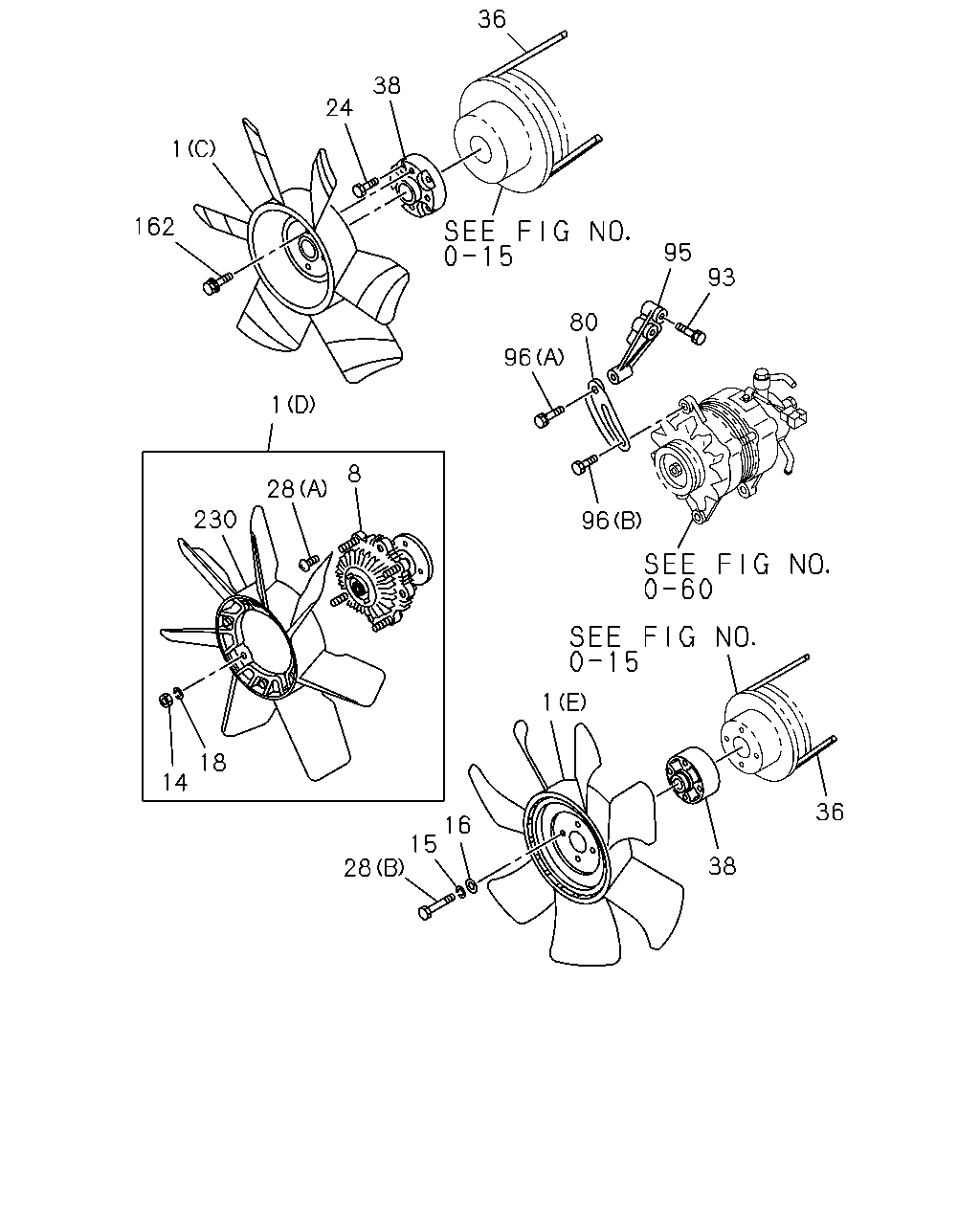

çizim 67694
36 38 24 1 162 95 93 80 96 1 8 28 230 96 1 18 14 36 16 15 28 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RADIATOR HEAVY DUTY(V05) (B) 4-BLADE OD=330 		8-94158-764-1 01 1 9307- ●
1 FAN; COOLING
RADIATOR HEAVY DUTY(V05) (A) 7-BLADE 		8-94411-714-1 01 1 9307- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. RADIATOR HEAVY DUTY(V05) (A) 7-BLADE 		8-94411-714-1 01 1 9307- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TORRID ZONE<S6C> (C) 6-BLADE WO/CLUTCH 		8-94114-051-0 01 1 9307- ●
1 FAN; COOLING
TORRID ZONE<S6C> (C) 6-BLADE WO/CLUTCH 		8-94114-051-0 01 1 9307- ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> (E) 7-BLADE WO/CLUTCH 		8-94236-811-0 01 1 9307- ●
1 FAN; COOLING
EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (D) 7-BLADE W/CLUTCH 		8-94428-651-0 01 1 9407- ●
1 FAN; COOLING
FAN FLUID DRIVE<KA3> (D) 7-BLADE W/CLUTCH 		8-97045-314-0 01 1 9307-9406 ●
1 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) (D) 7-BLADE W/CLUTCH 		8-97045-314-0 01 1 9407- ●
8 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94429-573-0 01 1 9307- ●
14 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> M6 		9-09110-506-0 04 1 9307- ●
15 WASHER; LK,COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> ID=6.1 		9-09150-506-0 04 1 9307- ●
16 WASHER; PL,COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> ID=6.4 OD=18 		9-09160-706-0 04 1 9307- ●
18 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> ID=6.1 		9-09150-506-0 04 1 9307- ●
24 BOLT; FAN
TORRID ZONE<S6C> EXC. FAN FLUID DRIVE<KA3> M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9307- ●
24 BOLT; FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. FAN FLUID DRIVE<KA3>,TORRID ZONE<S6C> M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9307- ●
28 BOLT; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> (B) M6X50 		0-10805-650-0 04 1 9307- ●
28 BOLT; COOLING FAN
FAN FLUID DRIVE<KA3> (A) M6X18 W/LK WASHER 		0-50040-618-0 04 1 9307-9406 ●
28 BOLT; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) (A) M6X18 W/LK WASHER 		0-50040-618-0 04 1 9407- ●
36 BELT; COOLING FAN 8-94225-209-0 01 1 9307- ●
36 BELT; COOLING FAN
POWER STEERING<N40> 		8-94257-037-1 01 1 9307-9409 ●
36 BELT; COOLING FAN
POWER STEERING<N40> 		8-97119-227-0 01 1 9410- ●
36 BELT; COOLING FAN
EXC. POWER STEERING<N40> 		8-94218-574-1 01 1 9307-9409 ●
36 BELT; COOLING FAN
EXC. POWER STEERING<N40> 		8-97119-226-0 01 1 9410- ●
38 SPACER; FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> 		9-13642-073-0 01 1 9307- ●
38 SPACER; FAN
TORRID ZONE<S6C> EXC. FAN FLUID DRIVE<KA3> 		8-94114-230-0 01 1 9307- ●
38 SPACER; FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. FAN FLUID DRIVE<KA3>,TORRID ZONE<S6C> 		8-94114-230-0 01 1 9307- ●
80 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) 		8-94175-164-1 01 1 9307- ●
80 PLATE; ADJ
CATALYSIS CONTROL<6MZ> 		8-94175-164-1 01 1 9307- ●
80 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> 		8-94175-165-2 01 1 9307- ●
80 PLATE; ADJ 8-94322-813-0 01 1 9307- ●
93 BOLT; ADJ PLATE BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X45 W/LK WASHER 		0-50041-045-0 03 1 9307-9406 ●
93 BOLT; ADJ PLATE BRKT
HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) M10X45 W/LK WASHER 		0-50041-045-0 03 1 9407- ●
93 BOLT; ADJ PLATE BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X45 W/LK WASHER 		0-50041-045-0 03 1 9407- ●
95 BRACKET; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94170-096-0 01 1 9307-9406 ●
95 BRACKET; ADJ PLATE
HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) 		8-94170-096-0 01 1 9407- ●
95 BRACKET; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94170-096-0 01 1 9407- ●
96 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X18 W/LK WASHER 		0-50040-818-0 01 1 9307- ●
96 BOLT; ADJ PLATE
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9307- ●
96 BOLT; ADJ PLATE
(B) M10X25 		8-94160-937-0 01 1 9307- ●
162 BOLT; FAN CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TORRID ZONE<S6C> M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9307- ●
162 BOLT; FAN CLU
TORRID ZONE<S6C> M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9307- ●
230 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-94429-570-0 01 1 9307- ●

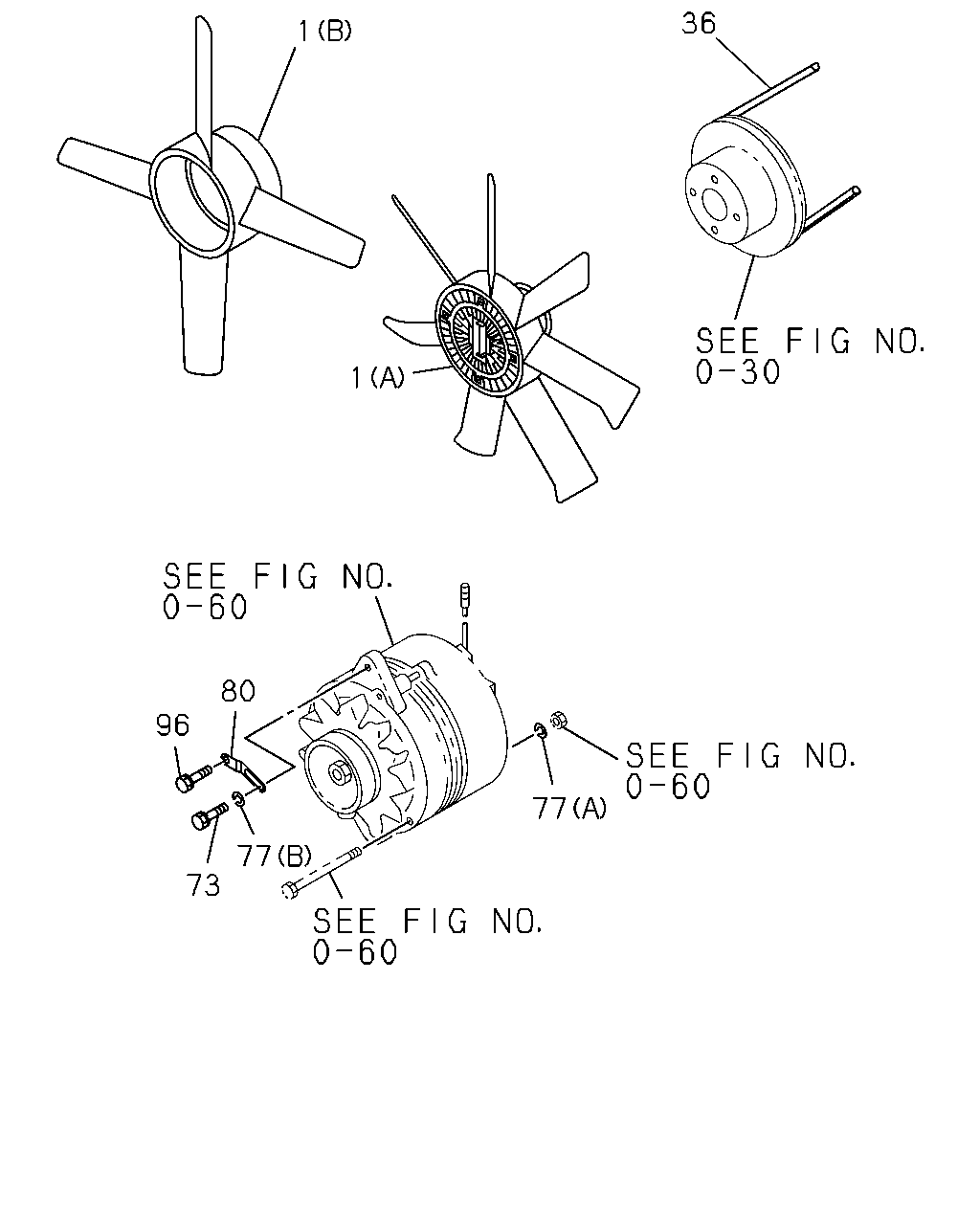

çizim 70772
36 1 1 80 96 77 77 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RADIATOR HEAVY DUTY(V05) (B) 4-BLADE OD=330 		8-94158-764-1 01 1 9307- ●
1 FAN; COOLING
RADIATOR HEAVY DUTY(V05) (A) 7-BLADE 		8-94411-714-1 01 1 9307- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. RADIATOR HEAVY DUTY(V05) (A) 7-BLADE 		8-94411-714-1 01 1 9307- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TORRID ZONE<S6C> (C) 6-BLADE WO/CLUTCH 		8-94114-051-0 01 1 9307- ●
1 FAN; COOLING
TORRID ZONE<S6C> (C) 6-BLADE WO/CLUTCH 		8-94114-051-0 01 1 9307- ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),FAN FLUID DRIVE<KA3>, TORRID ZONE<S6C> (E) 7-BLADE WO/CLUTCH 		8-94236-811-0 01 1 9307- ●
1 FAN; COOLING
EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (D) 7-BLADE W/CLUTCH 		8-94428-651-0 01 1 9407- ●
1 FAN; COOLING
FAN FLUID DRIVE<KA3> (D) 7-BLADE W/CLUTCH 		8-97045-314-0 01 1 9307-9406 ●
1 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) (D) 7-BLADE W/CLUTCH 		8-97045-314-0 01 1 9407- ●
36 BELT; COOLING FAN 8-94225-209-0 01 1 9307- ●
36 BELT; COOLING FAN
POWER STEERING<N40> 		8-94257-037-1 01 1 9307-9409 ●
36 BELT; COOLING FAN
POWER STEERING<N40> 		8-97119-227-0 01 1 9410- ●
36 BELT; COOLING FAN
EXC. POWER STEERING<N40> 		8-94218-574-1 01 1 9307-9409 ●
36 BELT; COOLING FAN
EXC. POWER STEERING<N40> 		8-97119-226-0 01 1 9410- ●
73 BOLT; GEN TO ADJ PLATE
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9307- ●
77 WASHER; PL,GEN TO ADJ PLATE
(A) ID=10.2 		9-09150-510-0 01 1 9307- ●
77 WASHER; PL,GEN TO ADJ PLATE
(B) ID=8.4 OD=22 		9-09164-708-0 01 1 9307- ●
80 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) 		8-94175-164-1 01 1 9307- ●
80 PLATE; ADJ
CATALYSIS CONTROL<6MZ> 		8-94175-164-1 01 1 9307- ●
80 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> 		8-94175-165-2 01 1 9307- ●
80 PLATE; ADJ 8-94322-813-0 01 1 9307- ●
96 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X18 W/LK WASHER 		0-50040-818-0 01 1 9307- ●
96 BOLT; ADJ PLATE
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9307- ●
96 BOLT; ADJ PLATE
(B) M10X25 		8-94160-937-0 01 1 9307- ●
