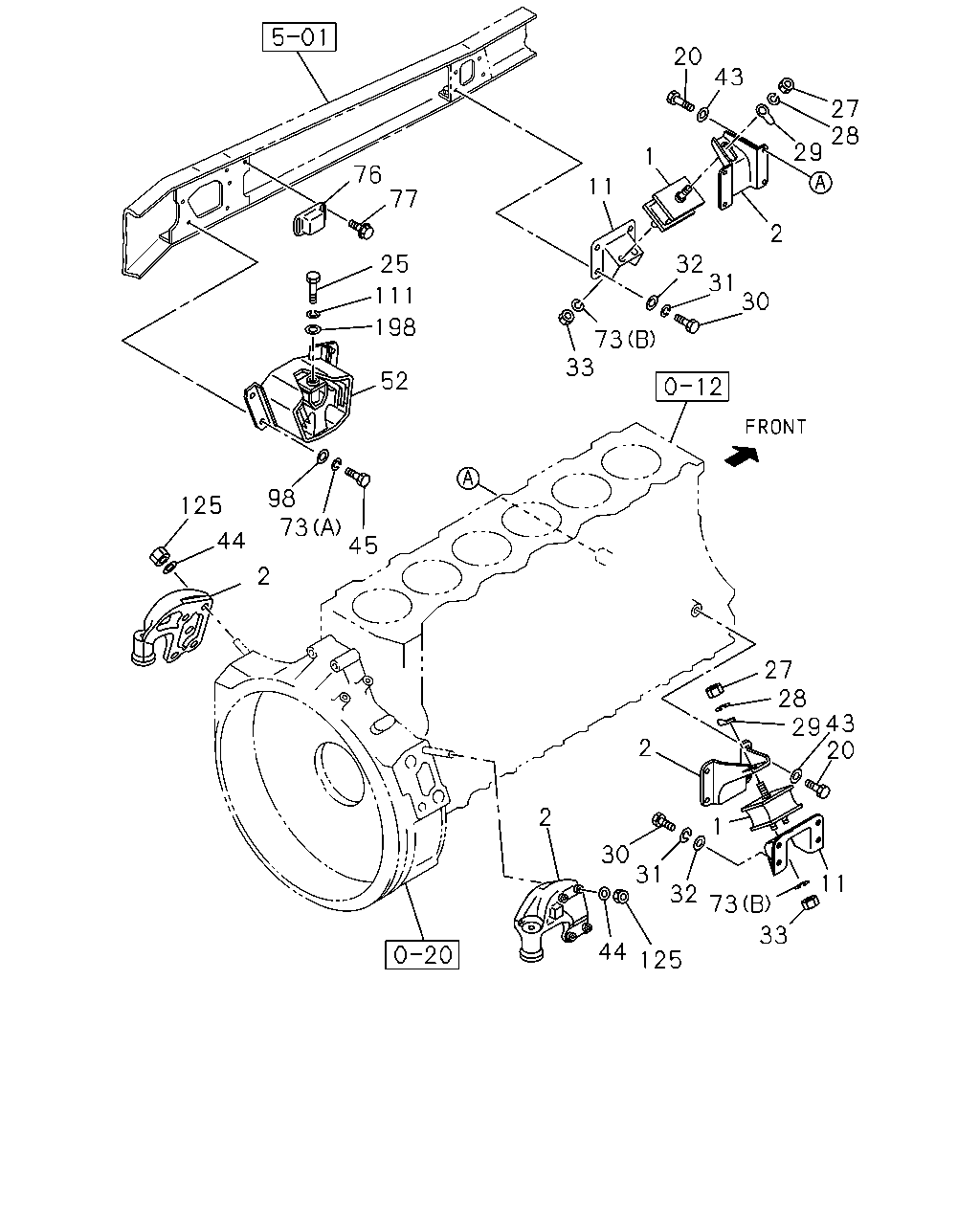

0-22A — ENGINE MOUNTING (#4675) — 119 parça

20 43 27 28 29 1 76 77 11 2 32 31 30 25 111 198 73 33 52 98 73 125 45 44 2 27 28 29 43 20 2 2 1 30 31 32 11 73 33 44 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	9603-9706	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	9905-	●	●	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	9707-9804	●				●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	9805-9904	●		●		●
2	FOOT; ENG FRONT	1-11771-220-0	02	1	9603-9706	●
2	FOOT; ENG FRONT	1-11771-220-0	02	1	9707-9804	●				●
2	FOOT; ENG FRONT	1-11771-220-0	02	1	9805-9904	●		●		●
2	FOOT; ENG REAR	1-11777-197-1	01	1	9603-9706	●
2	FOOT; ENG REAR	1-11777-197-1	01	1	9707-9804	●				●
2	FOOT; ENG REAR	1-11777-189-1	01	1	9603-9706	●
2	FOOT; ENG REAR	1-11777-189-1	01	1	9707-9804	●				●
2	FOOT; ENG REAR	1-11777-189-1	01	1	9805-9903	●		●		●
2	FOOT; ENG REAR	1-11777-197-1	01	1	9805-9904	●		●		●
2	FOOT; ENG REAR	1-11777-189-1	01	1	9904-9904	●		●		●
2	FOOT; ENG FRONT	1-11771-220-0	02	1	9905-	●	●	●	●
2	FOOT; ENG REAR	1-11777-189-1	01	1	9905-	●	●	●	●
2	FOOT; ENG REAR	1-11777-197-1	01	1	9905-	●	●	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	9603-9904	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	9905-	●	●
11	BRACKET; CUSHION RUBBER,FRT EXC. CAB UP +110MM<TGG>	1-53211-222-0	02	1	9905-			●
11	BRACKET; CUSHION RUBBER,FRT CAB UP +110MM<TGG>	1-53211-219-1	02	1	9905-			●
11	BRACKET; CUSHION RUBBER,FRT SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG>	1-53211-219-1	02	1	9905-				●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	9603-9706	●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	9707-9804	●				●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	9805-9904	●		●		●
20	BOLT; ENG FOOT M14X32	9-92361-432-0	08	1	9905-	●	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9603-9706	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9905-	●	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9707-9804	●				●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	9805-9904	●		●		●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-418-0	02	1	9603-9706	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9905-	●	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9707-9804	●				●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9805-9904	●		●		●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9603-9904	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9905-	●	●	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9707-9804	●				●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9805-9904	●		●		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9603-9706	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9905-	●	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9707-9804	●				●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9805-9904	●		●		●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9603-9706	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9905-	●	●	●	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9707-9804	●				●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	9805-9904	●		●		●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9603-9706	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9905-	●	●	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9707-9804	●				●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	9805-9904	●		●		●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9603-9706	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9905-	●	●	●	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9707-9804	●				●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	9805-9904	●		●		●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	9603-9706	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	9905-0006	●	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	0007-	●	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	9707-9804	●				●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	9805-9904	●		●		●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	9603-9706	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	9707-9804	●				●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	9805-9904	●		●		●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	9905-	●	●	●	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	9603-9706	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	9707-9804	●				●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	9805-9904	●		●		●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	9905-	●	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	10	1	9603-9904	●
45	BOLT; CUSHION RUBBER TO FRAME EXC. CAB UP +110MM<TGG> M14X40	9-92061-440-0	10	1	9905-	●	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	10	1	9707-9804	●				●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	10	1	9805-9904	●		●		●
45	BOLT; CUSHION RUBBER TO FRAME CAB UP +110MM<TGG> M14X40	9-92061-440-0	12	1	9905-			●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-261-3	01	1	9603-9706	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CAB UP +110MM<TGG>	1-53225-261-3	01	1	9905-	●	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-261-3	01	1	9707-9804	●				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-262-3	01	1	9603-9706	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CAB UP +110MM<TGG>	1-53225-262-3	01	1	9905-	●	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-262-3	01	1	9707-9804	●				●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-261-3	01	1	9805-9904	●		●		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-262-3	01	1	9805-9904	●		●		●
52	RUBBER; CUSHION,ENG MTG,RR CAB UP +110MM<TGG>	1-53225-327-0	02	1	9905-			●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9603-9706	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9905-	●	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9707-9804	●				●
73	WASHER; LK,CUSHION RUBBER TO FRAME (A) ID=14.2	9-09150-814-0	10	1	9603-9706	●
73	WASHER; LK,CUSHION RUBBER TO FRAME EXC. CAB UP +110MM<TGG> (A) ID=14.2	9-09150-814-0	10	1	9905-	●	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME (A) ID=14.2	9-09150-814-0	10	1	9707-9804	●				●
73	WASHER; LK,CUSHION RUBBER TO FRAME (B) ID=14.2	9-09150-514-0	04	1	9805-9904	●		●		●
73	WASHER; LK,CUSHION RUBBER TO FRAME (A) ID=14.2	9-09150-814-0	10	1	9805-9904	●		●		●
73	WASHER; LK,CUSHION RUBBER TO FRAME CAB UP +110MM<TGG> (A) ID=14.2	9-09150-814-0	12	1	9905-			●	●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	9603-9706	●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	9905-	●	●
76	STOPPER; ENG MTG RUBBER EXC. CAB UP +110MM<TGG>	1-53229-056-1	02	1	9905-			●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	9707-9804	●				●
76	STOPPER; ENG MTG RUBBER	1-53229-056-1	02	1	9805-9904	●		●		●
77	BOLT; STOPPER M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●
77	BOLT; STOPPER M8X20 FLANGE	0-28680-820-0	04	1	9607-9706	●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9905-	●	●
77	BOLT; STOPPER EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	04	1	9905-			●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9712-9804	●				●
77	BOLT; STOPPER M8X16 FLANGE	0-28080-816-0	04	1	9805-9904	●		●		●
77	BOLT; STOPPER M8X20 FLANGE	0-28680-820-0	04	1	9707-9711	●				●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	10	1	9603-9706	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	10	1	9905-	●	●	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	10	1	9707-9804	●				●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	10	1	9805-9904	●		●		●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR CAB UP +110MM<TGG> ID=15	9-09651-069-0	12	1	9905-			●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9603-9706	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9905-	●	●	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9707-9804	●				●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	9805-9904	●		●		●
125	NUT; ENG FOOT M18	9-99110-518-0	08	1	9603-9706	●
125	NUT; ENG FOOT M18	9-99110-518-0	08	1	9707-9804	●				●
125	NUT; ENG FOOT M18	9-99110-518-0	08	1	9805-9904	●		●		●
125	NUT; ENG FOOT M18	9-99110-518-0	08	1	9905-	●	●	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9603-9706	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9905-	●	●	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9707-9804	●				●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	9805-9904	●		●		●
