1 |

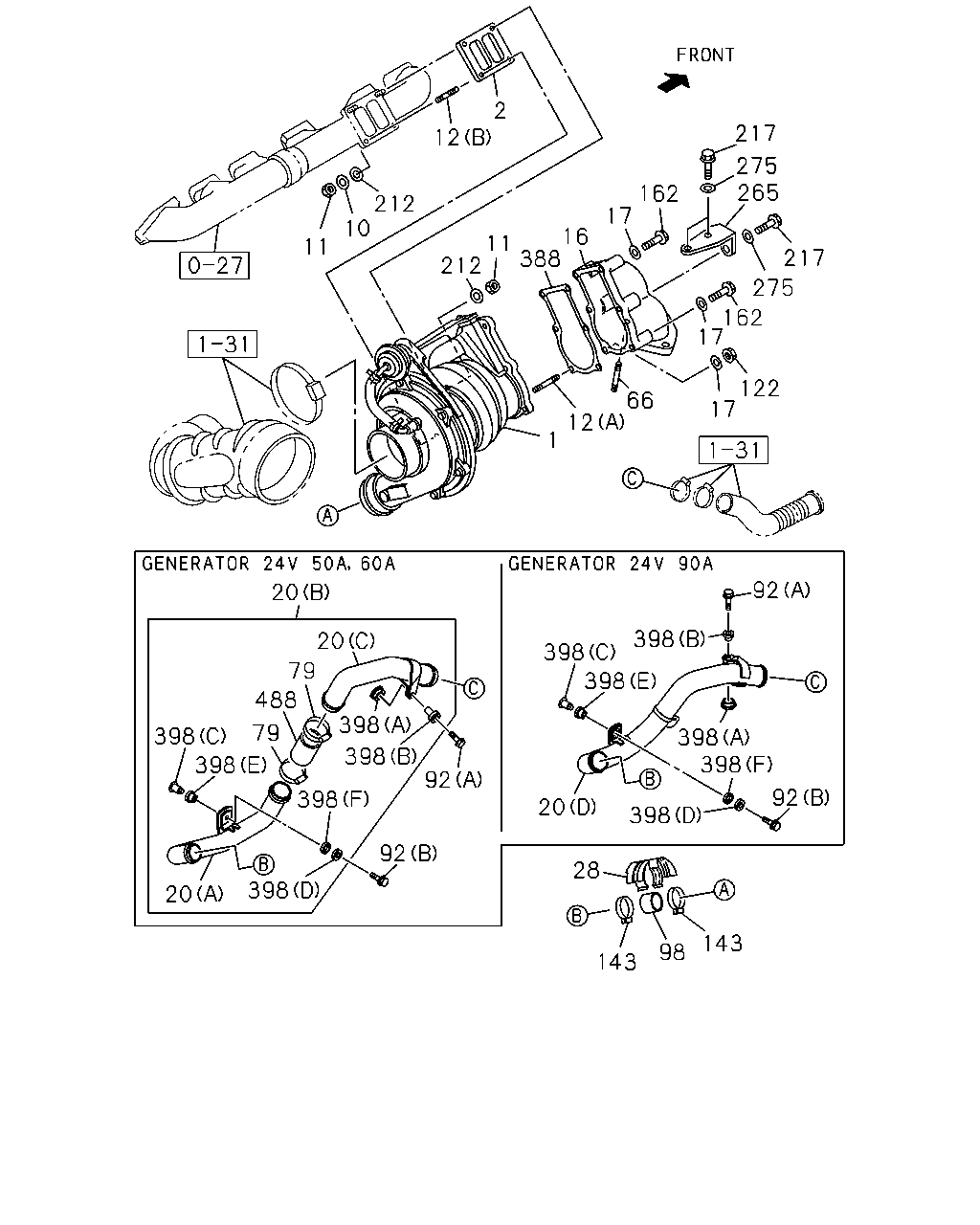

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-98078-779-1 |
01 |
1 |
1110- |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94390-044-0 |
01 |
1 |
1110- |
| |
10 |
WASHER; LK,TURBOCHARGER
T=2.2
|
1-09556-015-0 |
02 |
1 |
1110- |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
04 |
1 |
1110- |
| |
12 |
STUD; TURBOCHARGER
(A)
M8X25
|
9-04130-825-0 |
01 |
1 |
1110- |
| |
12 |
STUD; TURBOCHARGER
(B)
M10X80
|
9-04731-080-0 |
02 |
1 |
1110- |
| |
16 |
ADAPTER; EXH PIPE
|
8-98069-083-0 |
01 |
1 |
1110- |
| |
17 |
WASHER; PL,ADAPTER
T=1.9
|
5-09500-012-0 |
06 |
1 |
1110- |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44)
(D)
|
8-98230-568-0 |
01 |
1 |
1405- |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
(A)
|
8-97606-675-1 |
01 |
1 |
1110- |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
(B)
|
8-97618-726-2 |
01 |
1 |
1110-1408 |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
(B)
|
8-98251-577-0 |
01 |
1 |
1409- |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
(C)
|
8-97618-734-0 |
01 |
1 |
1110- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
|
8-94393-182-0 |
01 |
1 |
1110- |
| |
66 |
STUD; EXH PIPE
M12X30 L=48
|
8-98059-951-0 |
03 |
1 |
1110- |
| |
79 |
CLIP; RUBBER HOSE
ID=58-79
|
1-09707-136-0 |
02 |
1 |
1110- |
| |
92 |
BOLT; INL PIPE
(B)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
1110- |
| |
92 |
BOLT; INL PIPE
(A)
M8X40 FLANGE
|
0-28650-840-0 |
01 |
1 |
1110- |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70
|
1-09360-797-1 |
01 |
1 |
1110-1408 |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70
|
8-98245-240-0 |
01 |
1 |
1409- |
| |
122 |
NUT; ADAPTER
M8
|
1-09400-118-1 |
01 |
1 |
1110- |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
|
8-94126-771-0 |
02 |
1 |
1110- |
| |
162 |
BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
05 |
1 |
1110- |
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
1110- |
| |
217 |
BOLT; BRKT
M12X30
|
8-94394-324-0 |
03 |
1 |
1110- |
| |
265 |
BRACKET; EXH PIPE
|
8-94395-764-2 |
01 |
1 |
1110- |
| |
275 |
WASHER; PL
ID=12.2
|
1-09503-008-0 |
03 |
1 |
1110- |
| |
388 |
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94394-248-2 |
01 |
1 |
1110- |
| |
398 |
MOUNTING
(F)
ID=19 OD=26
|
8-94160-177-0 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(F)
ID=19 OD=26
|
8-94160-177-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(F)
ID=19 OD=26
|
8-94160-177-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
(C)
OD=28
|
8-94390-551-1 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(C)
OD=28
|
8-94390-551-1 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
OD=28
|
8-94390-551-1 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
(D)
ID=13 OD=28
|
8-94394-504-0 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(D)
ID=13 OD=28
|
8-94394-504-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(D)
ID=13 OD=28
|
8-94394-504-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
(E)
OD=26
|
8-94394-529-0 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(E)
OD=26
|
8-94394-529-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(E)
OD=26
|
8-94394-529-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
(A)
OD=32
|
8-94395-766-0 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(A)
OD=32
|
8-94395-766-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
OD=32
|
8-94395-766-0 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
(B)
OD=23
|
8-97105-689-6 |
01 |
1 |
1110-1404 |
| |
398 |
MOUNTING
GENERATOR 24V60A(KG2)
(B)
OD=23
|
8-97105-689-6 |
01 |
1 |
1405- |
| |
398 |
MOUNTING
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
OD=23
|
8-97105-689-6 |
01 |
1 |
1405- |
| |
488 |
HOSE; RUBBER
ID=62 L=70
|
1-09360-797-1 |
01 |
1 |
1110-1408 |
| |
488 |
HOSE; RUBBER
ID=62 L=70
|
8-98245-240-0 |
01 |
1 |
1409- |
