Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

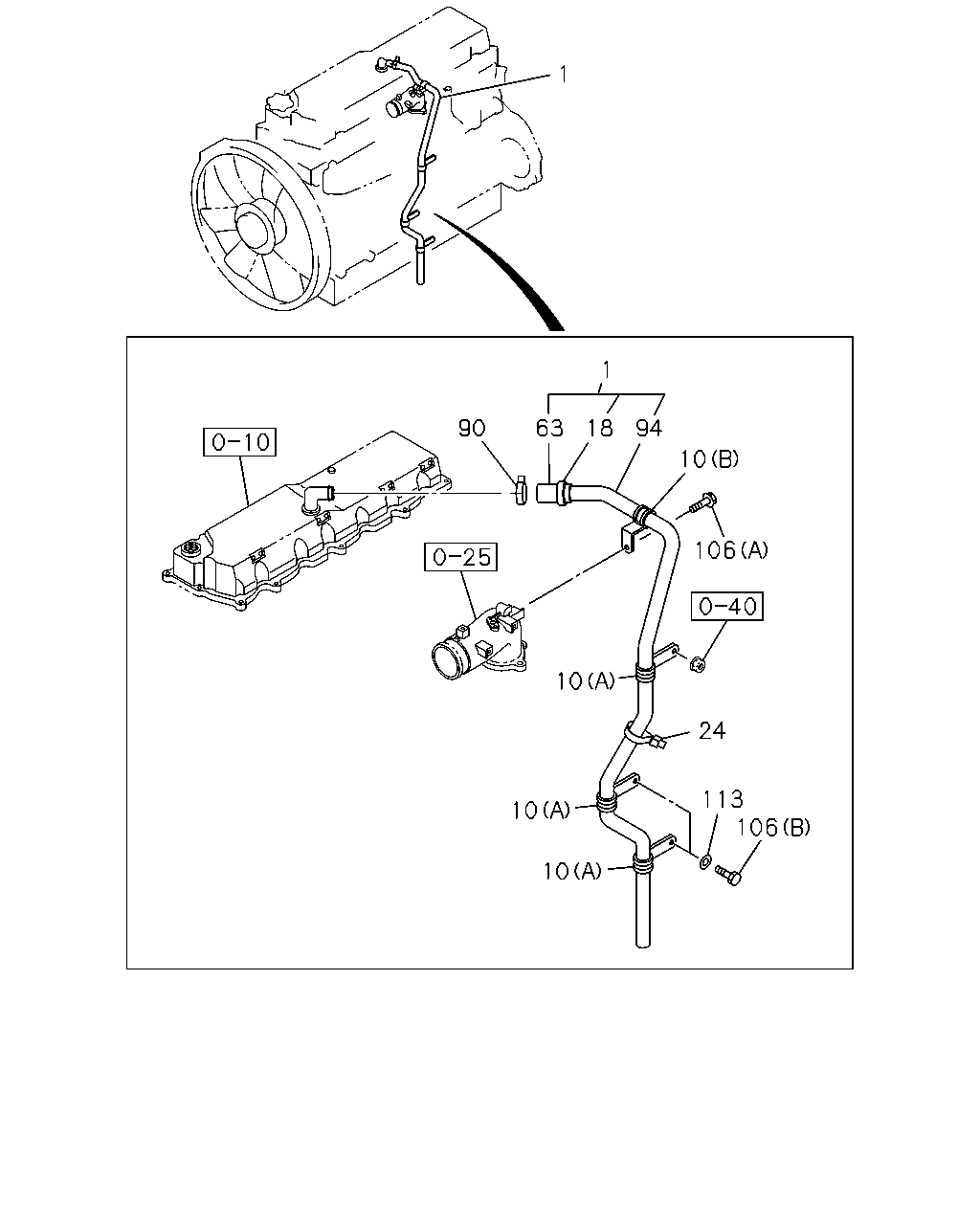

0-28 — VENTILATION SYSTEM
(#46719) — 12 parça
1
1
90
63
18
94
10
106
10
24
113
106
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
8-94392-083-3
01
1
1110-
10
CLIP; AIR BREATHER
(A) ID=32 L=75
1-09700-704-1
03
1
1110-
10
CLIP; AIR BREATHER
(B) ID=31 H=30 L=35
1-09700-994-0
01
1
1110-
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
1110-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
01
1
1110-1205
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1206-
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1110-
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
1110-
94
HOSE; BREATHER TO PIPE
L=1260
8-94392-082-0
01
1
1110-
106
BOLT; DRAIN PIPE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1110-
106
BOLT; DRAIN PIPE
(B) M10X16 FLANGE
0-28151-016-0
02
1
1110-
113
WASHER; PL,CLIP
ID=10.5
0-91610-510-0
02
1
1110-
