3-02 — FRONT DISC BRAKE CALIPER (#46706) — 79 parça

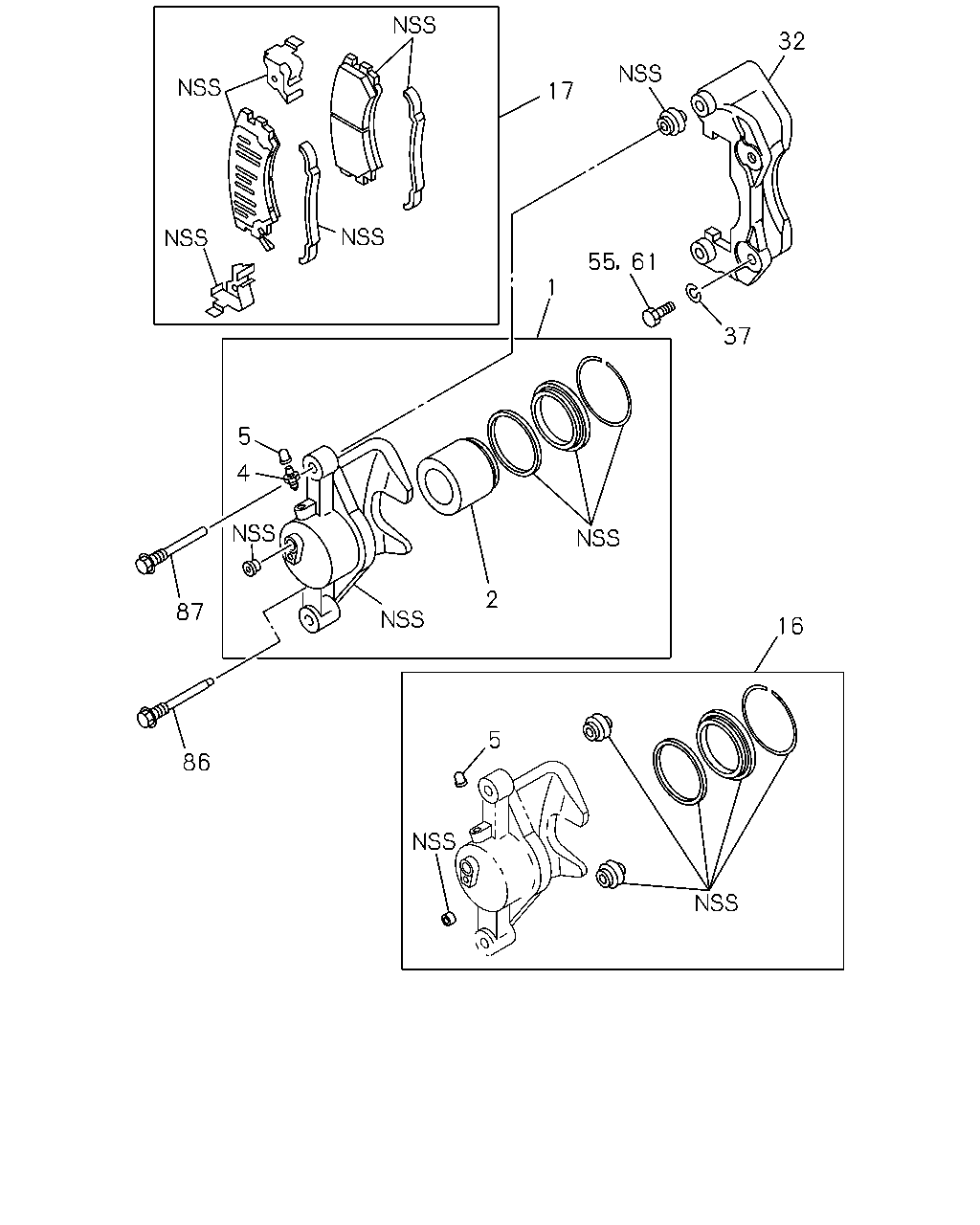

32 17 55 61 1 37 5 4 2 87 16 5 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-973-0	01	1	9811-0012	●	●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-973-0	01	1	0101-0108		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97287-239-0	01	1	0109-		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-972-0	01	1	9811-0012	●	●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-972-0	01	1	0101-0108		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97287-238-0	01	1	0109-		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-94380-136-1	02	1	9811-0012	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-94380-136-1	03	1	0101-0108		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-97287-245-0	04	1	0109-		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-94380-137-0	02	1	9811-0012	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-94380-137-0	03	1	0101-0108		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-97287-247-0	02	1	0109-		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	1-47619-009-0	02	1	9811-0012	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	1-47619-009-0	03	1	0101-0108		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	8-97287-248-0	02	1	0109-		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97127-612-0	01	1	9811-0012	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97127-612-0	01	1	0101-0108		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97287-264-0	01	1	0109-		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT USA	8-97131-748-0	01	1	9811-9909	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97035-257-1	01	1	9910-0012	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97035-257-1	01	1	0101-0108		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97287-263-0	01	1	0109-		●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97065-356-0	02	1	9811-0012	●	●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97065-356-0	02	1	0101-0108		●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97287-249-1	02	1	0109-		●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	9811-0012	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0101-		●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97126-347-0	02	1	9811-0012	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97126-347-0	02	1	0101-0204		●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97327-422-0	02	1	0205-		●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97126-347-0	02	1	9811-0012	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97126-347-0	02	1	0101-0204		●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97327-422-0	02	1	0205-		●
86	04.665 PIN; GUIDE USA	8-97160-820-0	02	1	9811-0012	●	●
86	04.665 PIN; GUIDE USA	8-97160-820-0	02	1	0101-0108		●
86	04.665 PIN; GUIDE USA	8-97287-251-0	02	1	0109-		●
87	04.665 PIN; LOCK USA	8-97160-822-0	02	1	9811-0012	●	●
87	04.665 PIN; LOCK USA	8-97160-822-0	02	1	0101-0108		●
87	04.665 PIN; LOCK USA	8-97287-252-0	02	1	0109-		●

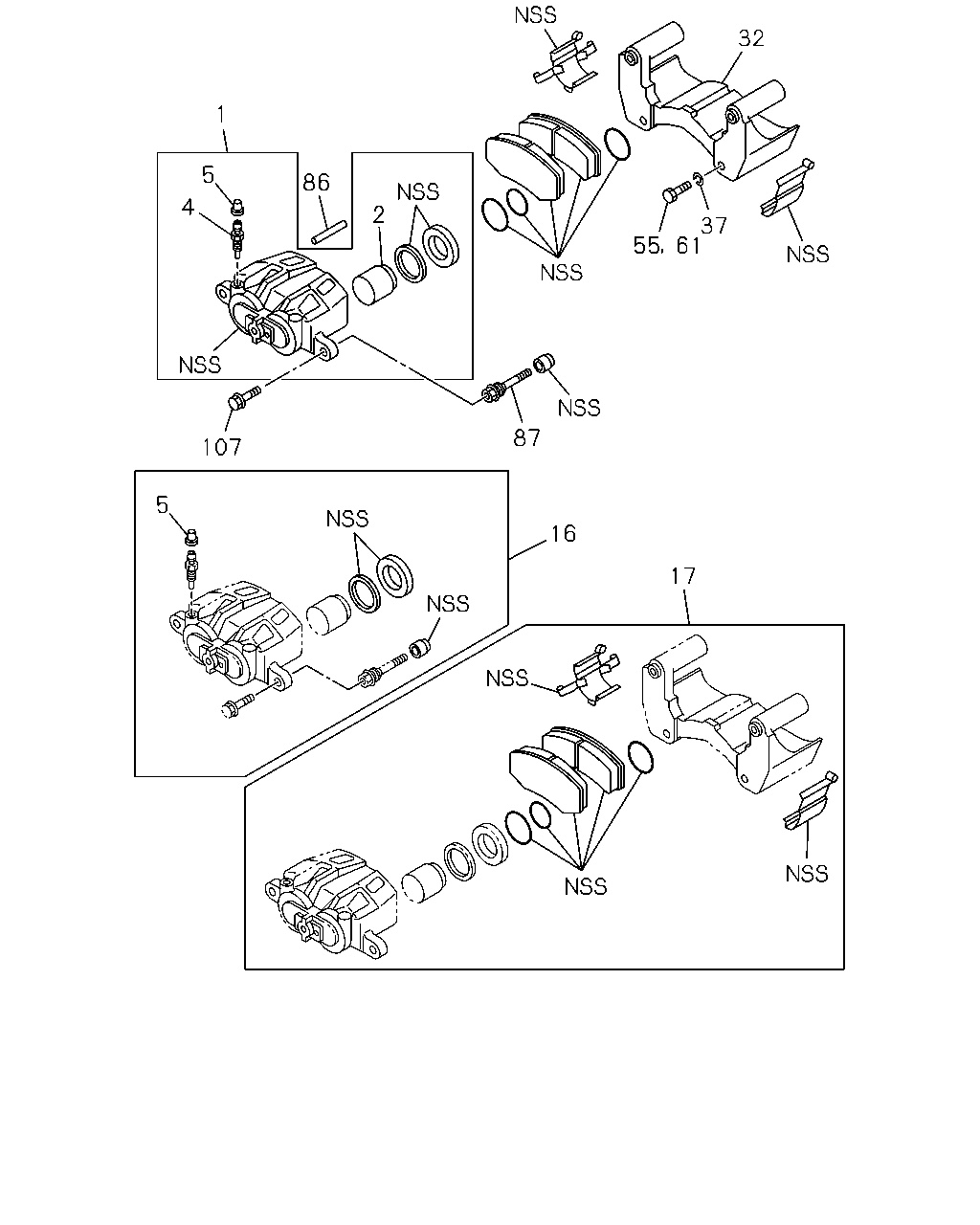

32 1 5 86 4 2 37 61 55 87 107 5 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-973-0	01	1	9811-0012	●	●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-973-0	01	1	0101-0108		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97287-239-0	01	1	0109-		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-972-0	01	1	9811-0012	●	●
1	04.665 CALIPER; FRT DISC BRK USA	8-97125-972-0	01	1	0101-0108		●
1	04.665 CALIPER; FRT DISC BRK USA	8-97287-238-0	01	1	0109-		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-94380-136-1	02	1	9811-0012	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-94380-136-1	03	1	0101-0108		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT USA	8-97287-245-0	04	1	0109-		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-94380-137-0	02	1	9811-0012	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-94380-137-0	03	1	0101-0108		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT USA	8-97287-247-0	02	1	0109-		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	1-47619-009-0	02	1	9811-0012	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	1-47619-009-0	03	1	0101-0108		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT USA	8-97287-248-0	02	1	0109-		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97127-612-0	01	1	9811-0012	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97127-612-0	01	1	0101-0108		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT USA	8-97287-264-0	01	1	0109-		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT USA	8-97131-748-0	01	1	9811-9909	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97035-257-1	01	1	9910-0012	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97035-257-1	01	1	0101-0108		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97287-263-0	01	1	0109-		●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97065-356-0	02	1	9811-0012	●	●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97065-356-0	02	1	0101-0108		●
32	04.665 SUPPORT; FRT DISC BRK USA	8-97287-249-1	02	1	0109-		●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	9811-0012	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0101-		●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97126-347-0	02	1	9811-0012	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97126-347-0	02	1	0101-0204		●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29 USA	8-97327-422-0	02	1	0205-		●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97126-347-0	02	1	9811-0012	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97126-347-0	02	1	0101-0204		●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29 USA	8-97327-422-0	02	1	0205-		●
86	04.665 PIN; GUIDE USA	8-97160-820-0	02	1	9811-0012	●	●
86	04.665 PIN; GUIDE USA	8-97160-820-0	02	1	0101-0108		●
86	04.665 PIN; GUIDE USA	8-97287-251-0	02	1	0109-		●
87	04.665 PIN; LOCK USA	8-97160-822-0	02	1	9811-0012	●	●
87	04.665 PIN; LOCK USA	8-97160-822-0	02	1	0101-0108		●
87	04.665 PIN; LOCK USA	8-97287-252-0	02	1	0109-		●
107	04.665 BOLT; PIN USA	8-97287-410-0	04	1	0109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
