2-66 — MANUAL TRANSFER GEAR; OUTPUT (#46705) — 52 parça

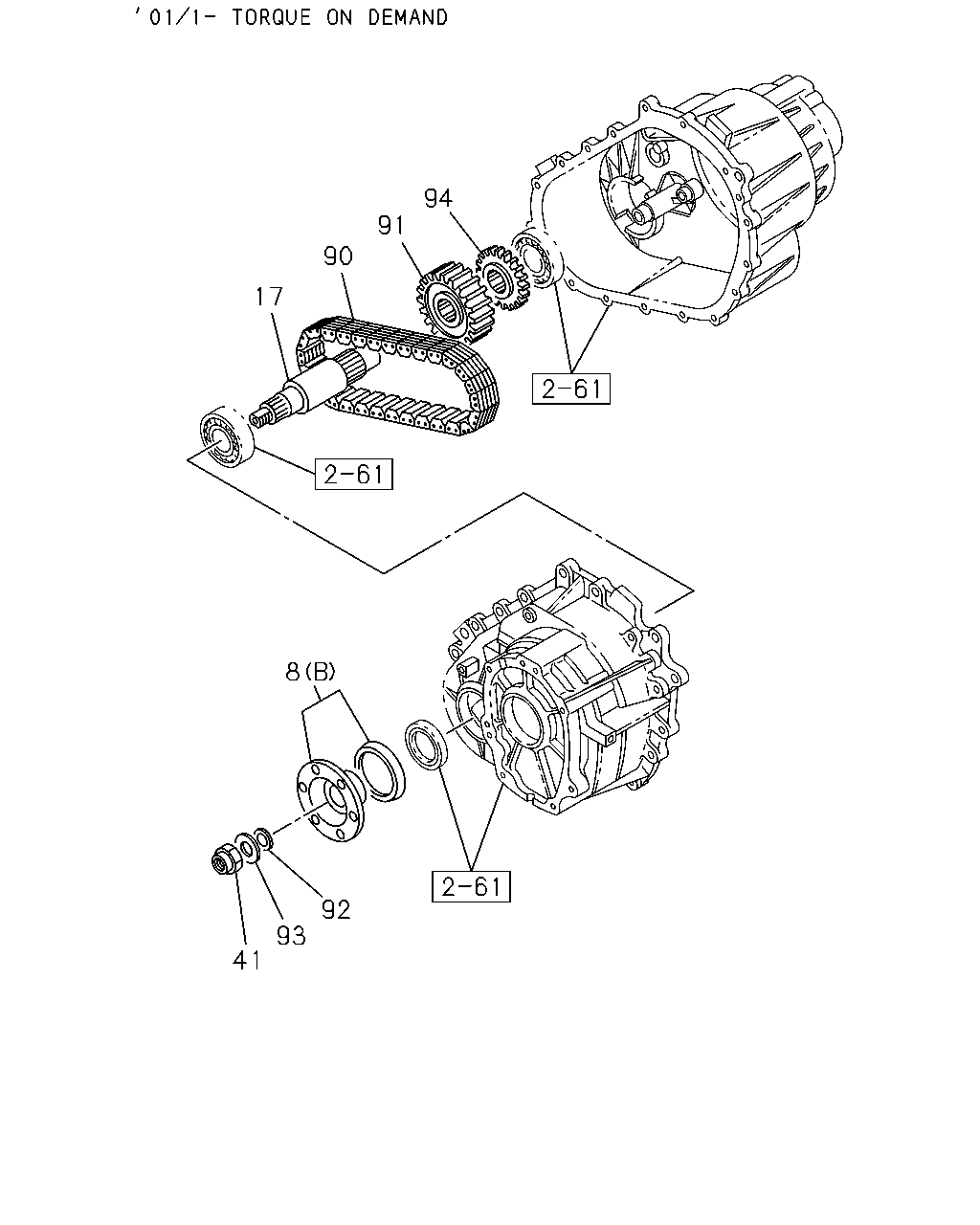

çizim 3546
94 91 90 17 8 92 93 41
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.535 FLANGE; OUTPUT 8-97127-043-1 01 1 9811-0004 ● ●
8 04.535 FLANGE; OUTPUT 8-97251-138-1 01 1 0005-0012 ● ●
8 04.535 FLANGE; OUTPUT
EXC. TORQUE ON DEMAND(7HA) 		8-97251-138-2 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (A) USA 		8-97181-318-0 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (B) USA 		8-97212-954-0 01 1 0101- ●
17 04.555 SHAFT; OUTPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-242-0 01 1 0101- ●
41 04.533 NUT; FLANGE LK,OUTPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-252-0 02 1 0101- ●
90 04.535 CHAIN; DRIVE
TORQUE ON DEMAND(7HA) USA 		8-97224-928-0 01 1 0101-0207 ●
90 04.535 CHAIN; DRIVE
TORQUE ON DEMAND(7HA) USA 		8-97351-067-0 01 1 0208- ●
91 04.535 SPROCKET; LWR DRIVE
TORQUE ON DEMAND(7HA) USA 		8-97129-240-0 01 1 0101- ●
92 04.515 SEAL; FLANGE
TORQUE ON DEMAND(7HA) USA 		8-97129-247-0 02 1 0101- ●
93 04.533 WASHER; FLANGE
TORQUE ON DEMAND(7HA) USA 		8-97129-250-0 02 1 0101- ●
94 04.510 WHEEL; TONE
TORQUE ON DEMAND(7HA) USA 		8-97129-254-0 01 1 0101- ●
çizim 5386
8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.535 FLANGE; OUTPUT 8-97127-043-1 01 1 9811-0004 ● ●
8 04.535 FLANGE; OUTPUT 8-97251-138-1 01 1 0005-0012 ● ●
8 04.535 FLANGE; OUTPUT
EXC. TORQUE ON DEMAND(7HA) 		8-97251-138-2 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (A) USA 		8-97181-318-0 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (B) USA 		8-97212-954-0 01 1 0101- ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		9-09561-326-0 01 1 9811-0012 ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) 		9-09561-326-0 01 1 0101- ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M24 		8-94385-985-1 01 1 9811-0012 ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
EXC. TORQUE ON DEMAND(7HA) M24 		8-94385-985-1 01 1 0101- ●

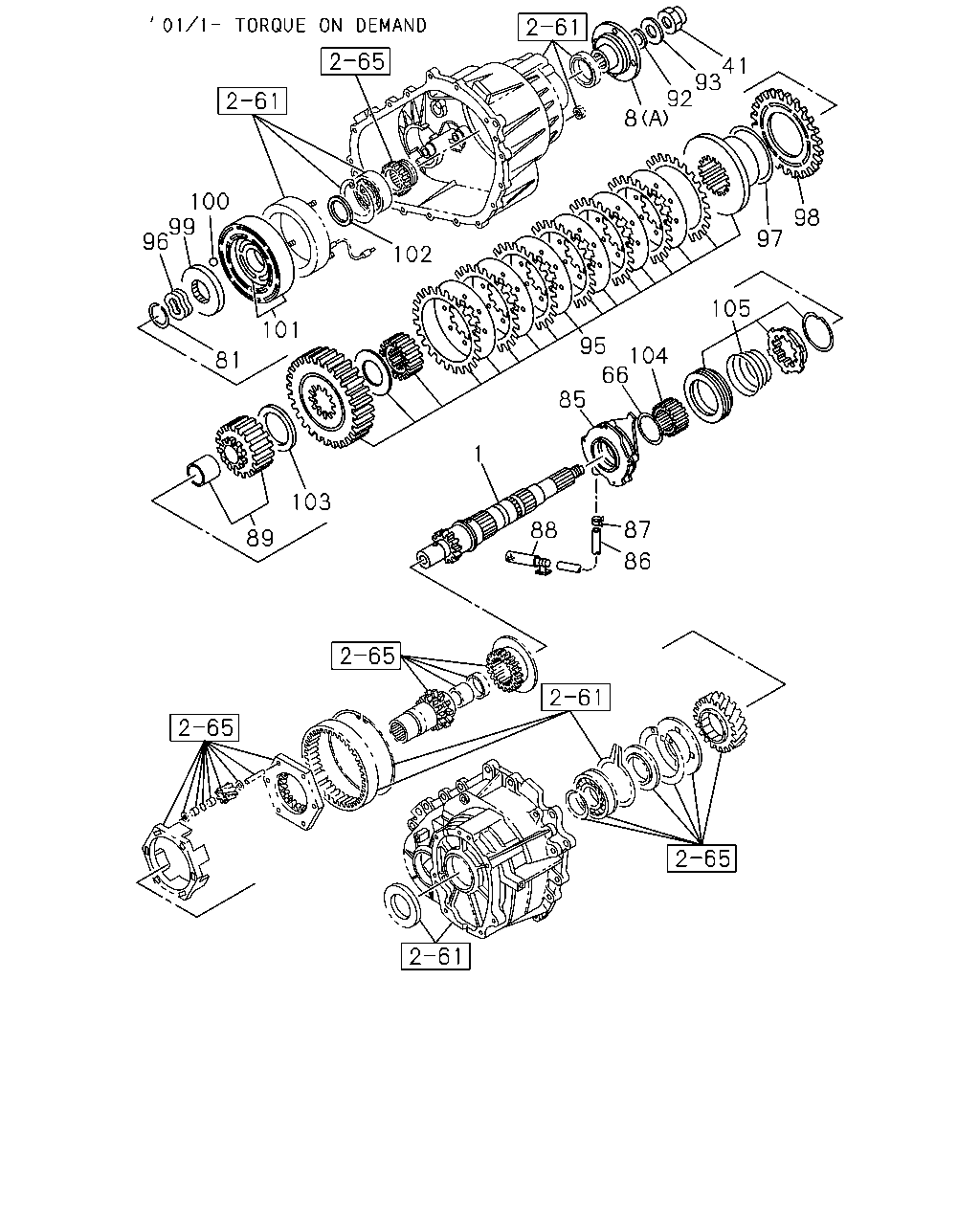

çizim 37430
41 93 92 8 100 99 96 98 97 102 105 101 95 104 66 81 85 1 103 87 88 89 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.555 SHAFT; GEAR,OUTPUT,RR
TORQUE ON DEMAND(7HA) USA 		8-97129-178-0 01 1 0101- ●
8 04.535 FLANGE; OUTPUT 8-97127-043-1 01 1 9811-0004 ● ●
8 04.535 FLANGE; OUTPUT 8-97251-138-1 01 1 0005-0012 ● ●
8 04.535 FLANGE; OUTPUT
EXC. TORQUE ON DEMAND(7HA) 		8-97251-138-2 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (A) USA 		8-97181-318-0 01 1 0101- ●
8 04.535 FLANGE; OUTPUT
TORQUE ON DEMAND(7HA) (B) USA 		8-97212-954-0 01 1 0101- ●
41 04.533 NUT; FLANGE LK,OUTPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-252-0 02 1 0101- ●
66 04.533 WASHER; THRUST,DIST PIECE,TRANSF
TORQUE ON DEMAND(7HA) USA 		8-97238-766-0 01 1 0101- ●
81 04.545 RING; SNAP
TORQUE ON DEMAND(7HA) USA 		8-97129-259-0 01 1 0101- ●
85 04.512 PUMP; OIL,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97129-179-0 01 1 0101- ●
86 04.512 HOSE; OIL PUMP
TORQUE ON DEMAND(7HA) USA 		8-97129-220-0 01 1 0101- ●
87 04.512 CLAMP; HOSE
TORQUE ON DEMAND(7HA) USA 		8-97129-230-0 01 1 0101- ●
88 04.512 FILTER; OIL PUMP
TORQUE ON DEMAND(7HA) USA 		8-97129-232-0 01 1 0101- ●
89 04.535 SPROCKET; DRIVE
TORQUE ON DEMAND(7HA) USA 		8-97129-236-0 01 1 0101- ●
92 04.515 SEAL; FLANGE
TORQUE ON DEMAND(7HA) USA 		8-97129-247-0 02 1 0101- ●
93 04.533 WASHER; FLANGE
TORQUE ON DEMAND(7HA) USA 		8-97129-250-0 02 1 0101- ●
95 04.537 CLUTCH ASM; TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97181-588-0 01 1 0101- ●
96 04.537 SPRING; WAVE,CLUTCH
TORQUE ON DEMAND(7HA) USA 		8-97129-258-0 01 1 0101- ●
97 04.537 WASHER; CLUTCH
TORQUE ON DEMAND(7HA) USA 		8-97129-260-0 01 1 0101- ●
98 04.537 ARMATURE; CLUTCH
TORQUE ON DEMAND(7HA) USA 		8-97129-261-0 01 1 0101- ●
99 04.537 CAM; APPLY
TORQUE ON DEMAND(7HA) USA 		8-97129-262-0 01 1 0101-0207 ●
99 04.537 CAM; APPLY
TORQUE ON DEMAND(7HA) USA 		8-97351-066-0 01 1 0208- ●
100 04.537 BALL; CAM
TORQUE ON DEMAND(7HA) USA 		8-97129-263-0 03 1 0101- ●
101 04.537 HOUSING; COIL,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97129-264-0 01 1 0101-0207 ●
101 04.537 HOUSING; COIL,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97351-065-0 01 1 0208- ●
102 04.537 WASHER; THRUST,CLUTCH
TORQUE ON DEMAND(7HA) USA 		8-97129-265-0 01 1 0101- ●
103 04.537 SPACER; CLUTCH
TORQUE ON DEMAND(7HA) USA 		8-97129-286-0 01 1 0101- ●
104 04.535 HUB; LOCKUP
TORQUE ON DEMAND(7HA) USA 		8-97238-810-0 01 1 0101-0207 ●
104 04.535 HUB; LOCKUP
TORQUE ON DEMAND(7HA) USA 		8-97351-068-0 01 1 0208- ●
105 04.535 SLEEVE; LOCKUP
TORQUE ON DEMAND(7HA) USA 		8-97238-811-0 01 1 0101- ●
