2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#46704) — 27 parça

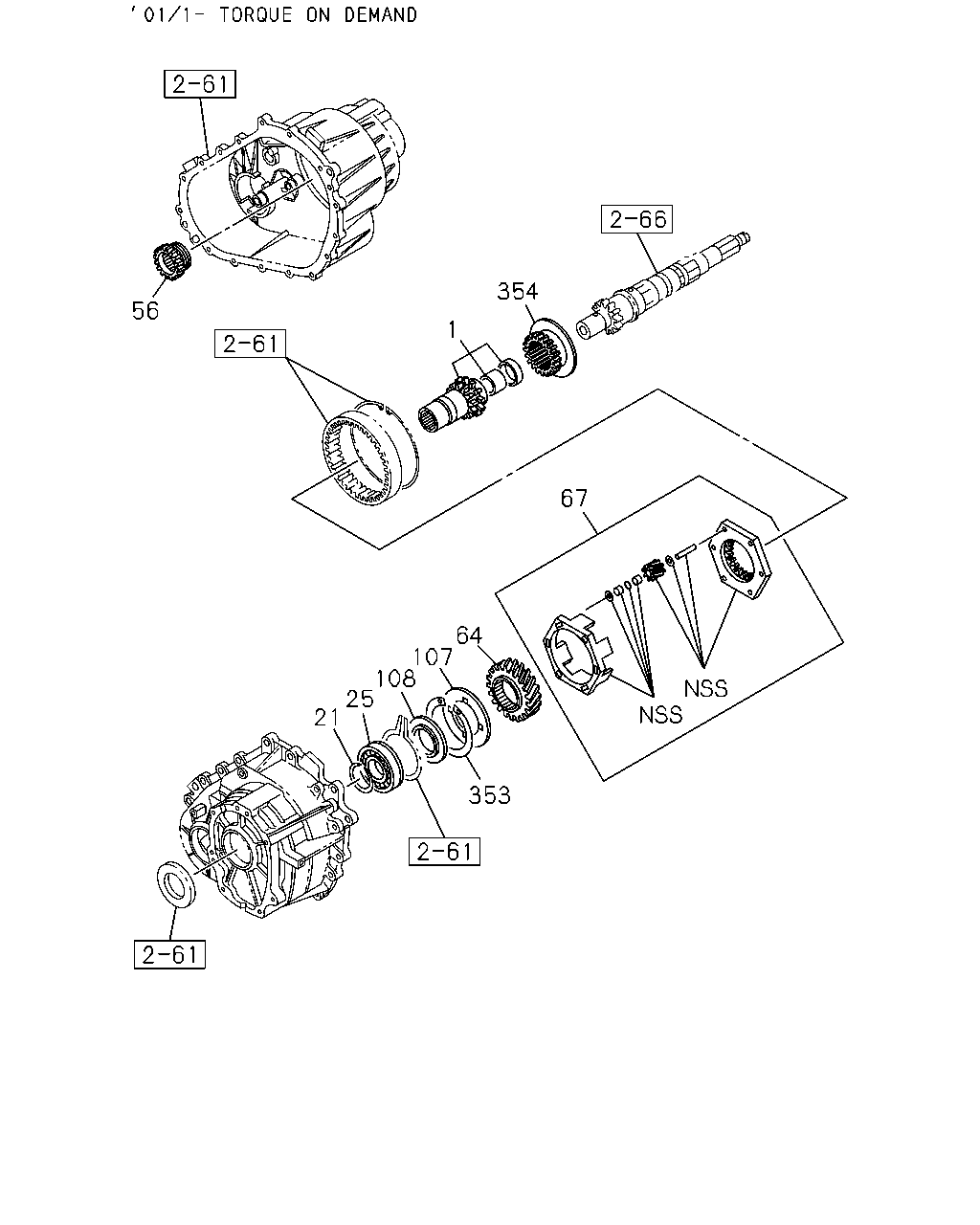

çizim 38232
354 56 1 67 64 107 108 25 21 353
BalonParca AdiParca NoAdetTipApplied Date
1 04.162 SHAFT; GEAR,INPUT
A/T THM 4 SPEED(RMQ) 		8-94381-284-2 01 1 9811-0012
1 04.162 SHAFT; GEAR,INPUT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94381-284-2 01 1 0101-
1 04.162 SHAFT; GEAR,INPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-043-0 01 1 0101-
21 04.162 RING; SNAP,PILOT BRG
A/T THM 4 SPEED(RMQ) 		8-94368-832-0 01 1 9811-0012
21 04.162 RING; SNAP,PILOT BRG
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94368-832-0 01 1 0101-
21 04.162 RING; SNAP,PILOT BRG
TORQUE ON DEMAND(7HA) USA 		8-97129-047-0 01 1 0101-
25 04.164 BEARING; BALL,INPUT SHAFT
A/T THM 4 SPEED(RMQ) 04.520 NSK 		8-94422-052-0 01 1 9811-0012
25 04.164 BEARING; BALL,INPUT SHAFT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 04.520 NSK 		8-94422-052-0 01 1 0101-
25 04.164 BEARING; BALL,INPUT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97129-001-0 01 1 0101-
56 04.343 GEAR; SPD DRIVE,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97129-270-0 01 1 0101-
64 04.532 GEAR; SUN,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97129-044-0 01 1 0101-
67 04.532 CARRIER; TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97129-048-0 01 1 0101-
107 04.533 PLATE; THRUST,SUN GEAR
TORQUE ON DEMAND(7HA) USA 		8-97129-045-0 01 1 0101-
108 04.535 HUB; INPUT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97129-046-0 01 1 0101-
353 04.545 RING; SNAP,CARRIER
TORQUE ON DEMAND(7HA) USA 		8-97129-049-0 01 1 0101-
354 04.535 HUB; REDUCTION
TORQUE ON DEMAND(7HA) USA 		8-97129-050-0 01 1 0101-
çizim 38501
21 25 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 04.162 SHAFT; GEAR,INPUT
A/T THM 4 SPEED(RMQ) 		8-94381-284-2 01 1 9811-0012
1 04.162 SHAFT; GEAR,INPUT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94381-284-2 01 1 0101-
1 04.162 SHAFT; GEAR,INPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-043-0 01 1 0101-
7 04.163 SPACER; INPUT SHAFT BRG
A/T THM 4 SPEED(RMQ) 		8-94368-834-3 01 1 9811-0012
7 04.163 SPACER; INPUT SHAFT BRG
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94368-834-3 01 1 0101-
21 04.162 RING; SNAP,PILOT BRG
A/T THM 4 SPEED(RMQ) 		8-94368-832-0 01 1 9811-0012
21 04.162 RING; SNAP,PILOT BRG
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94368-832-0 01 1 0101-
21 04.162 RING; SNAP,PILOT BRG
TORQUE ON DEMAND(7HA) USA 		8-97129-047-0 01 1 0101-
25 04.164 BEARING; BALL,INPUT SHAFT
A/T THM 4 SPEED(RMQ) 04.520 NSK 		8-94422-052-0 01 1 9811-0012
25 04.164 BEARING; BALL,INPUT SHAFT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 04.520 NSK 		8-94422-052-0 01 1 0101-
25 04.164 BEARING; BALL,INPUT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97129-001-0 01 1 0101-
