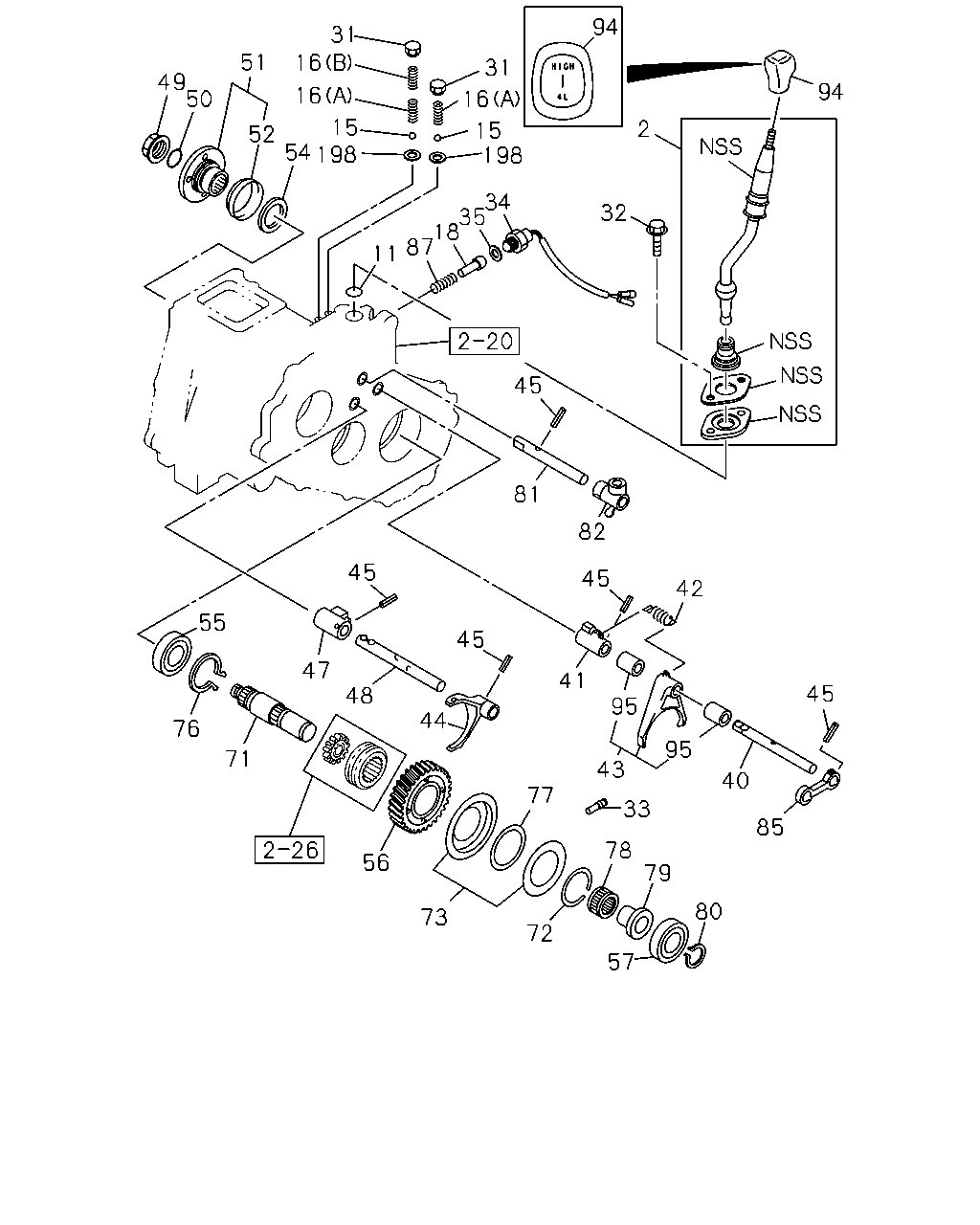

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#46703) — 133 parça

94 31 16 51 31 49 50 94 16 16 15 54 198 2 15 198 52 34 35 18 87 32 11 45 81 82 45 45 42 55 45 47 41 45 48 95 44 76 95 71 43 40 77 33 85 78 56 79 80 73 72 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.570 LEVER ASM; CHANGE,TRANSFER	8-97178-619-1	01	1	9811-0012	●
2	04.570 LEVER ASM; CHANGE,TRANSFER A/T THM 4 SPEED(RMQ)	8-97178-623-0	01	1	9811-0012		●
2	04.570 LEVER ASM; CHANGE,TRANSFER A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA)	8-97178-623-2	01	1	0101-		●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97178-620-0	01	1	9811-0012		●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97178-620-2	01	1	0101-		●
11	04.570 GASKET; CHANGE LEVER 04.435 ID=33.2 USA	1-09623-378-0	01	1	9811-0012	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2 USA	1-09623-378-0	01	1	9811-0012		●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2 USA	1-09623-378-0	01	1	0101-		●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	9811-0012	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-94435-335-0	02	1	0101-		●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (A) L=23.4	8-97145-374-0	02	1	9811-0005	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE 04.311 (A) L=26.8	8-94320-193-0	02	1	0006-0012	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND(7HA) 04.311 (A) L=26.8	8-94320-193-0	02	1	0101-		●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (B) L=23.2	8-97241-351-0	01	1	0006-0012	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE EXC. TORQUE ON DEMAND(7HA) (B) L=23.2	8-97241-351-0	01	1	0101-		●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF	8-94461-898-0	01	1	9811-0012	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF EXC. TORQUE ON DEMAND(7HA)	8-94461-898-0	01	1	0101-		●
31	04.520 PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	9811-0012	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER EXC. TORQUE ON DEMAND(7HA) M12X9	9-99202-312-0	02	1	0101-		●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE USA	0-28680-820-0	02	1	9811-0012	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE EXC. TORQUE ON DEMAND(7HA) 02.664 M8X20 FLANGE USA	0-28680-820-0	02	1	0101-		●
33	04.557 SCREW; STOPPER,TRANSFER M6X18	8-94448-812-1	01	1	9811-9903	●	●
33	04.557 SCREW; STOPPER,TRANSFER A/T THM 4 SPEED(RMQ) M6X18	8-94448-812-1	01	1	9904-0012		●
33	04.557 SCREW; STOPPER,TRANSFER A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) M6X18	8-94448-812-2	01	1	0101-		●
34	04.075 SWITCH; TRANSFER INDICATOR	8-97138-632-1	01	1	9811-0012	●	●
34	04.075 SWITCH; TRANSFER INDICATOR EXC. TORQUE ON DEMAND(7HA)	8-97138-632-1	01	1	0101-		●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-0012	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE EXC. TORQUE ON DEMAND(7HA) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0101-		●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER	8-97127-547-0	01	1	9811-0012	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97127-547-0	01	1	0101-		●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97210-555-0	01	1	9811-0012	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97210-555-0	01	1	0101-		●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF L=30	8-94422-188-0	01	1	9811-0012	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF EXC. TORQUE ON DEMAND(7HA) L=30	8-94422-188-0	01	1	0101-		●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	9811-0012	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97100-915-2	01	1	0101-		●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	9811-0012	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-94421-922-3	01	1	0101-		●
45	04.303 PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	05	1	9811-0012	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD EXC. TORQUE ON DEMAND(7HA) D=4.2 L=25	8-94171-541-0	05	1	0101-		●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	9811-0012	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97141-883-1	01	1	0101-		●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-1	01	1	9811-0012	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97182-406-1	01	1	0101-		●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	9811-0012	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT EXC. TORQUE ON DEMAND(7HA) M27 FLANGE	8-94422-073-0	01	1	0101-		●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP ID=29.7 OD=36.1	8-94483-035-0	01	1	9811-0012	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP EXC. TORQUE ON DEMAND(7HA) ID=29.7 OD=36.1	8-94483-035-0	01	1	0101-		●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-97131-911-3	01	1	9811-0012	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-94453-699-7	01	1	9811-0012		●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN EXC. TORQUE ON DEMAND(7HA)	8-94453-699-7	01	1	0101-		●
52	05.545 COVER; DUST,TRANSFER FLANGE	8-94320-867-2	01	1	9811-0012	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE EXC. TORQUE ON DEMAND(7HA)	8-94320-867-3	01	1	0101-		●
54	04.515 SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	9811-0010	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	9811-0012	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-703-2	01	1	0101-		●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR NSK	8-94422-172-1	01	1	9811-0012	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-172-1	01	1	0101-		●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	9811-0012	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER EXC. TORQUE ON DEMAND(7HA) Z=49	8-97126-101-1	01	1	0101-		●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR NSK	8-94422-052-0	01	1	9811-0012	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-052-0	01	1	0101-		●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94377-437-5	01	1	9811-0012	●	●
71	05.555 SHAFT; TRANSFER OUTPUT EXC. TORQUE ON DEMAND(7HA)	8-94377-437-5	01	1	0101-		●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O	8-94482-501-0	01	1	9811-0012	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9811-0012		●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	0101-		●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE	8-97164-346-0	01	1	9811-0012	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9811-0012		●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	0101-		●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	9811-0012	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER EXC. TORQUE ON DEMAND(7HA) OD=77.0	8-94422-092-0	01	1	0101-		●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA	8-94482-499-0	01	1	9811-0012	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9811-0012		●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	0101-		●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 NSK	8-94422-064-0	01	1	9811-0012	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE EXC. TORQUE ON DEMAND(7HA) 04.419 NSK	8-94422-064-0	01	1	0101-		●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 KOYO	8-94422-065-1	01	1	9811-0012	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE EXC. TORQUE ON DEMAND(7HA) 04.419 KOYO	8-94422-065-1	01	1	0101-		●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER 04.419	8-94422-076-1	01	1	9811-0012	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER EXC. TORQUE ON DEMAND(7HA) 04.419	8-94422-076-1	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.55 WHITE	8-94422-180-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.60 YELLOW	8-94422-181-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.65 BLUE	8-94422-182-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.70 PINK	8-94422-183-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.75 GREEN	8-94422-184-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.80 BROWN	8-94422-185-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.85 RED	8-94422-186-0	01	1	0101-		●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	9811-0012	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA) T=1.90 ORANGE	8-94422-187-0	01	1	0101-		●
81	04.309 ROD; TRANSFER SELECT	8-94370-499-2	01	1	9811-0012	●	●
81	04.309 ROD; TRANSFER SELECT EXC. TORQUE ON DEMAND(7HA)	8-94370-499-2	01	1	0101-		●
82	04.555 BLOCK; TRANSFER	8-97033-092-1	01	1	9811-0012	●	●
82	04.555 BLOCK; TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97033-092-1	01	1	0101-		●
85	04.555 BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	9811-0012	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97128-522-0	01	1	0101-		●
87	04.515 SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	9811-0012	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-94461-897-0	01	1	0101-		●
94	04.570 KNOB; TRANSFER LEVER	8-97143-755-0	01	1	9811-0012	●	●
94	04.570 KNOB; TRANSFER LEVER EXC. TORQUE ON DEMAND(7HA)	8-97143-755-0	01	1	0101-		●
95	04.570 BUSHING	8-97103-115-0	02	1	9811-0012	●	●
95	04.570 BUSHING EXC. TORQUE ON DEMAND(7HA)	8-97103-115-0	02	1	0101-		●
198	04.520 GASKET; PLUG,DETENT 01.531 ID=12.2	1-09630-084-0	02	1	0006-0012	●	●
198	04.520 GASKET; PLUG,DETENT EXC. TORQUE ON DEMAND(7HA) 01.531 ID=12.2	1-09630-084-0	02	1	0101-		●

195 196 197 195 196 195 196 191 197 193 195 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

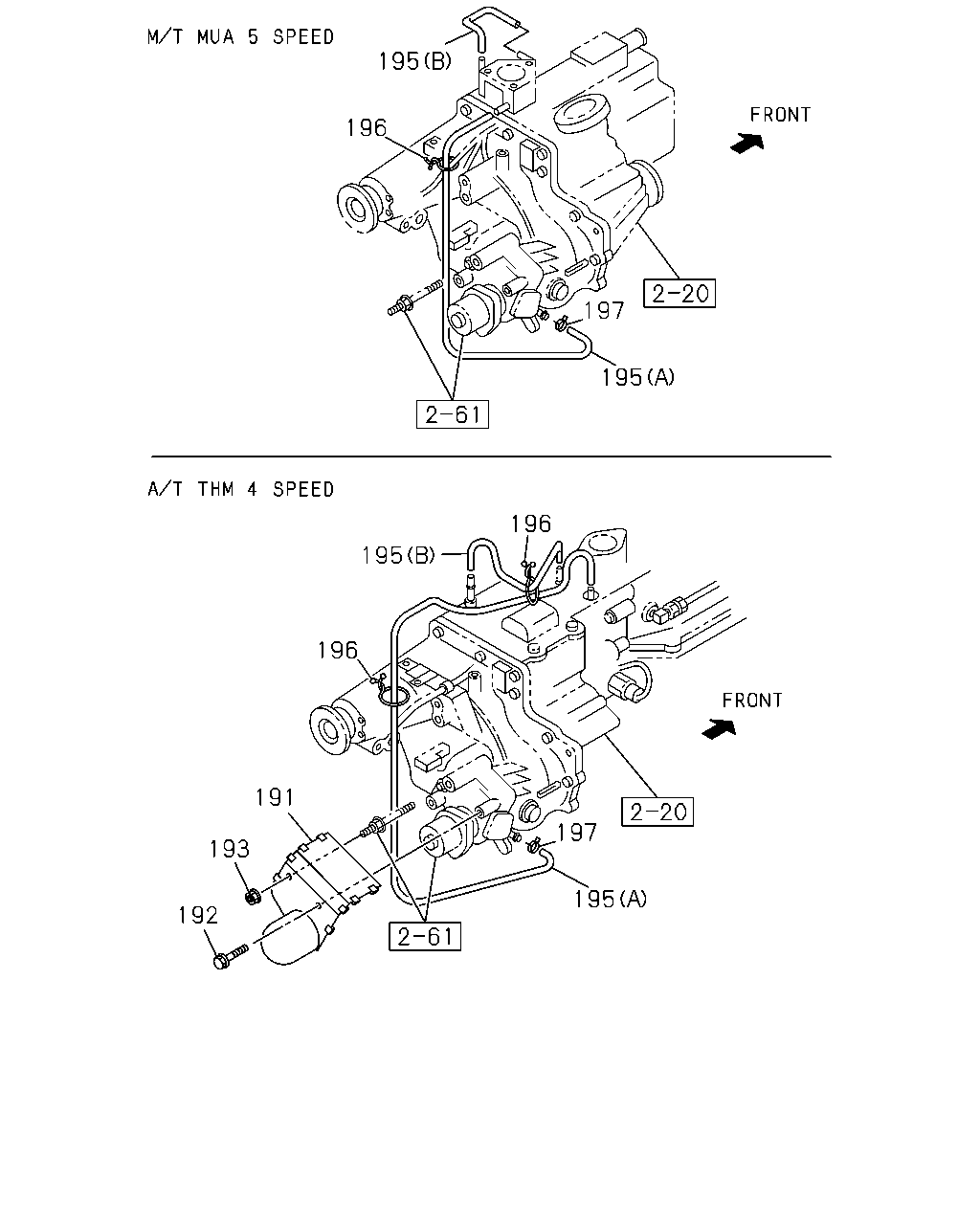

191	04.510 PROTECTOR; HEAT A/T THM 4 SPEED(RMQ)	8-97161-461-0	01	1	9811-0012		●
191	04.510 PROTECTOR; HEAT A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA)	8-97161-461-0	01	1	0101-		●
192	04.510 BOLT; PROTECTOR A/T THM 4 SPEED(RMQ) 01.062 M8X16 FLANGE USA	0-28080-816-0	01	1	9811-0012		●
192	04.510 BOLT; PROTECTOR A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 01.062 M8X16 FLANGE USA	0-28080-816-0	01	1	0101-		●
193	04.510 NUT; PROTECTOR A/T THM 4 SPEED(RMQ) 07.633 M8 FLANGE USA	0-91150-108-0	01	1	9811-0012		●
193	04.510 NUT; PROTECTOR A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 07.633 M8 FLANGE USA	0-91150-108-0	01	1	0101-		●
195	04.510 HOSE; AIR (A)	8-97165-010-0	01	1	9811-0012	●
195	04.510 HOSE; AIR M/T MUA 5 SPEED(RMN) (A)	8-97165-010-0	01	1	9811-0012		●
195	04.510 HOSE; AIR M/T MUA 5 SPEED(RMN) (A)	8-97165-010-0	01	1	0101-		●
195	04.510 HOSE; AIR (B)	8-97172-683-0	01	1	9811-0012	●
195	04.510 HOSE; AIR M/T MUA 5 SPEED(RMN) (B)	8-97172-683-0	01	1	9811-0012		●
195	04.510 HOSE; AIR M/T MUA 5 SPEED(RMN) (B)	8-97172-683-0	01	1	0101-		●
195	04.510 HOSE; AIR A/T THM 4 SPEED(RMQ) (A)	8-97172-682-0	01	1	9811-0012		●
195	04.510 HOSE; AIR A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) (A)	8-97172-682-0	01	1	0101-		●
195	04.510 HOSE; AIR A/T THM 4 SPEED(RMQ) (B)	8-97173-553-0	01	1	9811-0012		●
195	04.510 HOSE; AIR A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) (B)	8-97173-553-0	01	1	0101-		●
196	04.510 CLIP; HOSE 02.559 ID=16	8-94336-291-0	01	1	9811-0012	●
196	04.510 CLIP; HOSE M/T MUA 5 SPEED(RMN) 02.559 ID=16	8-94336-291-0	01	1	9811-0012		●
196	04.510 CLIP; HOSE M/T MUA 5 SPEED(RMN) 02.559 ID=16	8-94336-291-0	01	1	0101-		●
196	04.510 CLIP; HOSE A/T THM 4 SPEED(RMQ) 02.559 ID=16	8-94336-291-0	02	1	9811-0012		●
196	04.510 CLIP; HOSE A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 02.559 ID=16	8-94336-291-0	02	1	0101-		●
197	04.510 CLAMP; HOSE 03.278	8-97031-674-0	01	1	9811-9901	●	●
