◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#46702) — 87 parça

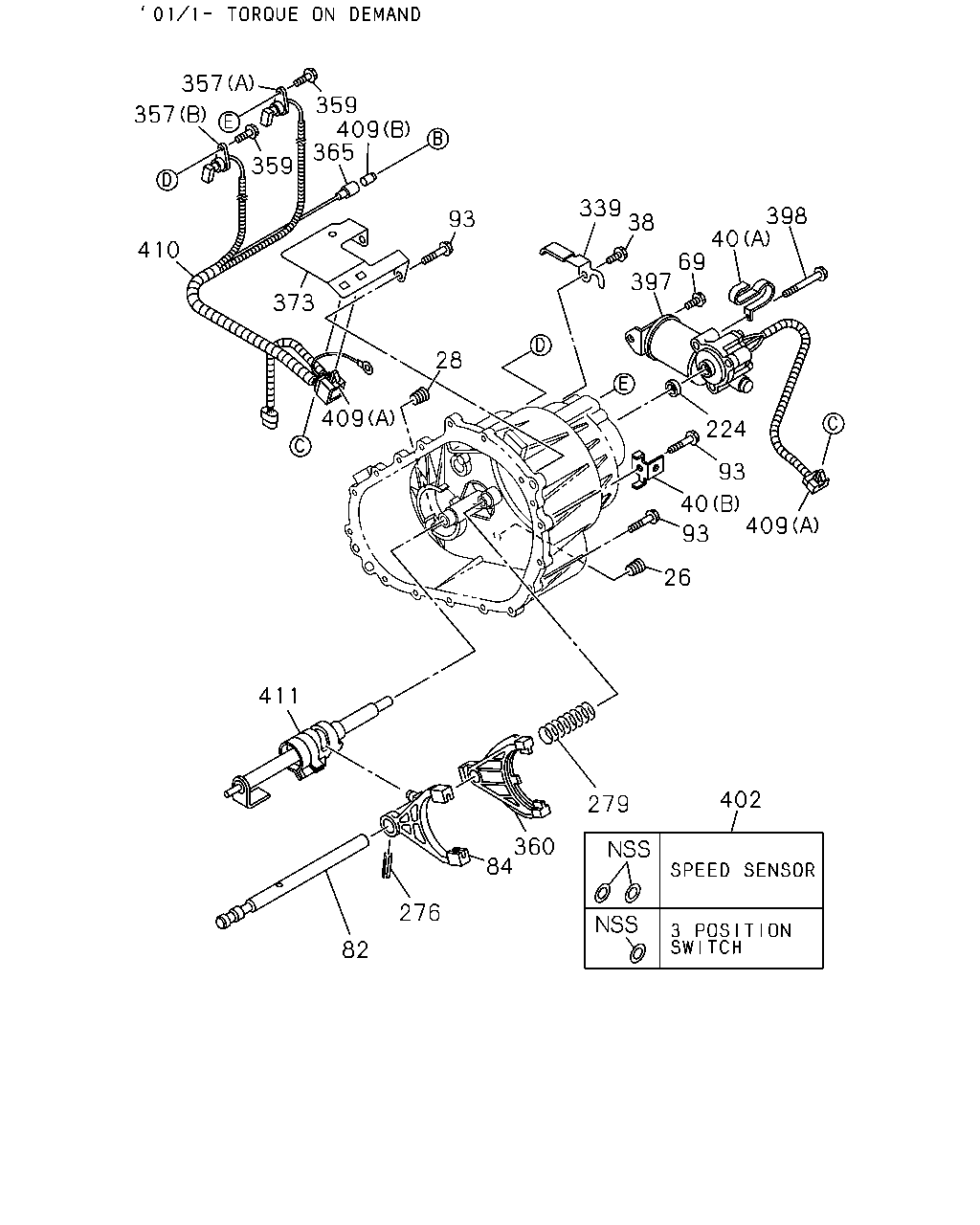

çizim 36813
357 359 409 365 357 359 339 38 398 93 40 69 397 410 373 28 409 224 93 40 409 93 26 411 402 279 360 84 276 82
BalonParca AdiParca NoAdetTipApplied Date A B
26 04.510 PLUG; FILLER,TRANSFER CASE
TORQUE ON DEMAND(7HA) USA 		8-97129-280-0 01 1 0101- ●
28 04.510 PLUG; DRAIN,TRANSFER CASE
TORQUE ON DEMAND(7HA) USA 		8-97129-280-0 01 1 0101- ●
38 04.128 BOLT; CLIP
TORQUE ON DEMAND(7HA) 04.319 USA 		8-97129-279-0 01 1 0101- ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND(7HA) (A) USA 		8-97238-820-0 01 1 0101- ●
40 04.128 CLIP; HARNESS
TORQUE ON DEMAND(7HA) (B) USA 		8-97238-822-0 01 1 0101- ●
69 04.525 BOLT; BRKT
TORQUE ON DEMAND(7HA) 04.319 USA 		8-97129-279-0 01 1 0101- ●
82 04.309 ROD; SHIFT,LOW & HIGH
TORQUE ON DEMAND(7HA) USA 		8-97238-756-0 01 1 0101- ●
84 04.555 FORK; SHIFT,LOW & HIGH
TORQUE ON DEMAND(7HA) USA 		8-97238-755-0 01 1 0101- ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND(7HA) USA 		8-97238-806-0 16 1 0101-0207 ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND(7HA) USA 		8-97351-063-0 16 1 0208- ●
224 04.027 SEAL; OIL,TRANSFER CONT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97238-802-0 01 1 0101- ●
276 04.107 PIN; SHIFT FORK
TORQUE ON DEMAND(7HA) USA 		8-97129-052-0 01 1 0101- ●
279 04.198 SPRING; SHIFT ROD
TORQUE ON DEMAND(7HA) USA 		8-97238-809-0 01 1 0101- ●
339 04.128 BRACKET; HARNESS
TORQUE ON DEMAND(7HA) USA 		8-97238-818-0 01 1 0101- ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND(7HA) (A) USA 		8-97251-687-0 01 1 0101- ●
357 04.510 SENSOR; SPEED
TORQUE ON DEMAND(7HA) (B) USA 		8-97251-689-0 01 1 0101- ●
359 04.319 BOLT; SENSOR
TORQUE ON DEMAND(7HA) USA 		8-97129-279-0 02 1 0101- ●
360 04.555 FORK; SHIFT,LOCKUP
TORQUE ON DEMAND(7HA) USA 		8-97238-808-0 01 1 0101- ●
365 04.510 CONNECTOR; HARNESS
TORQUE ON DEMAND(7HA) USA 		8-97238-804-0 01 1 0101- ●
373 04.510 BRACKET; HARNESS
TORQUE ON DEMAND(7HA) USA 		8-97238-817-0 01 1 0101- ●
397 04.550 MOTOR; SHIFT,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-819-0 01 1 0101-0207 ●
397 04.550 MOTOR; SHIFT,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97358-502-0 01 1 0208- ●
398 04.550 BOLT; MOTOR,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-821-0 03 1 0101- ●
402 04.318 GASKET SET; SWITCH
TORQUE ON DEMAND(7HA) USA 		8-97232-474-0 01 1 0101- ●
409 04.550 CLIP; CONNECTOR
TORQUE ON DEMAND(7HA) (A) USA 		8-97129-207-0 02 1 0101- ●
409 04.550 CLIP; CONNECTOR
TORQUE ON DEMAND(7HA) (B) USA 		8-97238-805-0 01 1 0101- ●
410 04.550 HARNESS ASM; TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-816-0 01 1 0101- ●
411 04.550 SHAFT ASM; SHIFT CONT
TORQUE ON DEMAND(7HA) USA 		8-97238-813-0 01 1 0101- ●

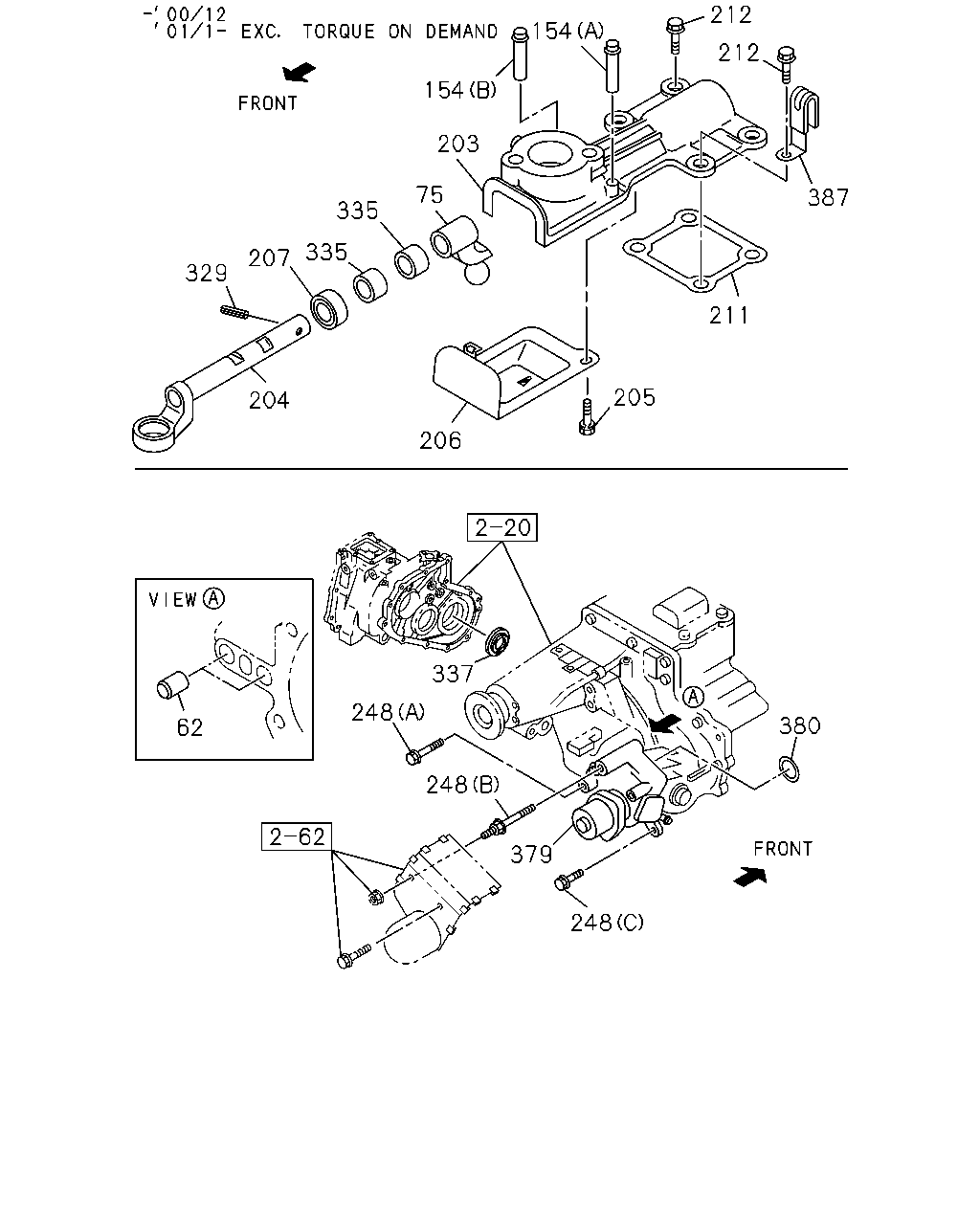

çizim 37431
212 154 212 154 203 75 387 335 335 207 329 211 205 204 206 337 248 380 62 248 379 248
BalonParca AdiParca NoAdetTipApplied Date A B
62 04.510 CAP; SHIFT ROD
A/T THM 4 SPEED(RMQ) 		8-94321-479-1 02 1 9811-9906 ●
62 04.510 CAP; SHIFT ROD
A/T THM 4 SPEED(RMQ) 		8-97221-078-0 02 1 9907-0012 ●
62 04.510 CAP; SHIFT ROD
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97221-078-0 02 1 0101- ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
A/T THM 4 SPEED(RMQ) 		8-94367-929-2 01 1 9811-0012 ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94367-929-2 01 1 0101- ●
154 04.510 PIPE; BREATHER
A/T THM 4 SPEED(RMQ) (A) 		8-97173-544-0 01 1 9811-0012 ●
154 04.510 PIPE; BREATHER
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) (A) 		8-97173-544-0 01 1 0101- ●
154 04.510 PIPE; BREATHER
A/T THM 4 SPEED(RMQ) (B) 		8-97173-545-0 01 1 9811-0012 ●
154 04.510 PIPE; BREATHER
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) (B) 		8-97173-545-0 01 1 0101- ●
203 04.510 BOX; TRANSFER CONT
A/T THM 4 SPEED(RMQ) 		8-97173-546-1 01 1 9811-0012 ●
203 04.510 BOX; TRANSFER CONT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97173-546-1 01 1 0101- ●
204 04.246 ROD; SHIFT,TRANSFER CONT
A/T THM 4 SPEED(RMQ) 		8-97176-249-2 01 1 9811-0012 ●
204 04.246 ROD; SHIFT,TRANSFER CONT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97176-249-2 01 1 0101- ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
A/T THM 4 SPEED(RMQ) 09.775 M6X8 		9-03490-608-0 01 1 9811-0012 ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 09.775 M6X8 		9-03490-608-0 01 1 0101- ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) 		8-97106-784-1 01 1 9811-0012 ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97106-784-1 01 1 0101- ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
A/T THM 4 SPEED(RMQ) 		8-94221-533-1 01 1 9811-0012 ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94221-533-1 01 1 0101- ●
211 04.109 GASKET; CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) 04.019 		8-94368-327-0 01 1 9811-0012 ●
211 04.109 GASKET; CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 04.019 		8-94368-327-0 01 1 0101- ●
212 04.105 BOLT; CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) 02.559 M8X25 FLANGE USA 		0-28680-825-0 04 1 9811-0012 ●
212 04.105 BOLT; CONT BOX,TRANSFER
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 02.559 M8X25 FLANGE USA 		0-28680-825-0 04 1 0101- ●
248 04.105 BOLT
01.840 (A) M8X70 FLANGE 		0-28080-870-0 01 1 9811-0012 ● ●
248 04.105 BOLT
EXC. TORQUE ON DEMAND(7HA) 01.840 (A) M8X70 FLANGE 		0-28080-870-0 01 1 0101- ●
248 04.105 BOLT
02.559 (C) M8X25 FLANGE USA 		0-28680-825-0 01 1 9811-0012 ● ●
248 04.105 BOLT
EXC. TORQUE ON DEMAND(7HA) 02.559 (C) M8X25 FLANGE USA 		0-28680-825-0 01 1 0101- ●
248 04.105 BOLT
04.570 (B) M8 		8-97161-466-0 01 1 9811-0012 ● ●
248 04.105 BOLT
EXC. TORQUE ON DEMAND(7HA) 04.570 (B) M8 		8-97161-466-0 01 1 0101- ●
329 04.107 PIN; SPRING,SHIFT ROD
A/T THM 4 SPEED(RMQ) 04.042 OD=5.4 		9-09678-510-0 01 1 9811-0012 ●
329 04.107 PIN; SPRING,SHIFT ROD
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 04.042 OD=5.4 		9-09678-510-0 01 1 0101- ●
335 04.105 BUSHING
A/T THM 4 SPEED(RMQ) 		8-94388-205-1 02 1 9811-0012 ●
335 04.105 BUSHING
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-94388-205-1 02 1 0101- ●
337 04.500 PLATE; LOCK
04.422 		8-97102-940-0 01 1 9811-0012 ●
337 04.500 PLATE; LOCK
M/T MUA 5 SPEED(RMN) 04.422 		8-97102-940-0 01 1 9811-0012 ●
337 04.500 PLATE; LOCK
M/T MUA 5 SPEED(RMN) 04.422 		8-97102-940-0 01 1 0101- ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97182-672-0 01 1 9811-0012 ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
EXC. TORQUE ON DEMAND(7HA) 		8-97182-672-0 01 1 0101- ●
380 04.505 GASKET; ACTUATOR
04.570 		8-97171-385-0 01 1 9811-0012 ● ●
380 04.505 GASKET; ACTUATOR
EXC. TORQUE ON DEMAND(7HA) 04.570 		8-97171-385-0 01 1 0101- ●
387 04.319 CLAMP; HOSE
A/T THM 4 SPEED(RMQ) 02.313 		5-09700-359-0 01 1 9811-0012 ●
387 04.319 CLAMP; HOSE
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 02.313 		5-09700-359-0 01 1 0101- ●

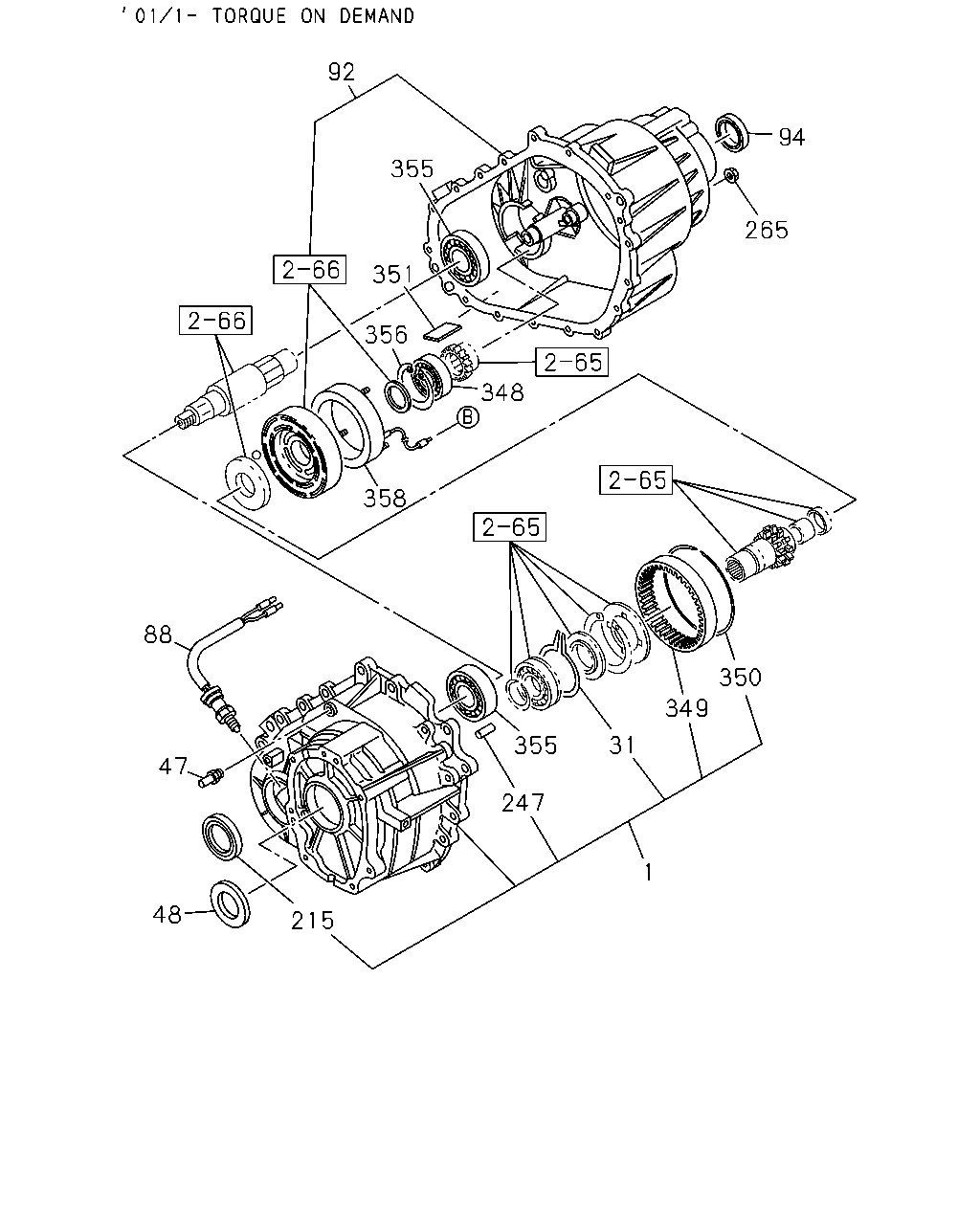

çizim 38233
92 94 355 265 351 356 348 358 88 350 349 31 355 47 247 1 48 215
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.510 CASE; TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-708-0 01 1 0101- ●
31 04.525 RING; SNAP,INPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-002-0 01 1 0101- ●
47 04.510 BREATHER; TRANSFER CASE
TORQUE ON DEMAND(7HA) USA 		8-97238-757-0 01 1 0101- ●
48 04.515 SEAL; OIL,INPUT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97129-041-0 01 1 0101- ●
88 04.538 SWITCH; 4WD,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97181-620-0 01 1 0101- ●
92 04.552 COVER; RR,TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-771-0 01 1 0101- ●
94 04.515 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TORQUE ON DEMAND(7HA) 04.318 USA 		8-97129-040-0 01 1 0101- ●
215 04.318 SEAL; OIL,TRANSFER CASE,FRT
TORQUE ON DEMAND(7HA) USA 		8-97129-040-0 01 1 0101- ●
247 04.105 PIN; DOWEL,TRANSFER CASE COVER
TORQUE ON DEMAND(7HA) USA 		8-97129-039-0 02 1 0101- ●
265 04.510 NUT; TRANSFER CASE
TORQUE ON DEMAND(7HA) USA 		8-97129-272-0 03 1 0101- ●
348 04.520 BEARING; FRT OUTPUT
TORQUE ON DEMAND(7HA) USA 		8-97129-037-0 01 1 0101- ●
349 04.210 GEAR; RING
TORQUE ON DEMAND(7HA) USA 		8-97129-038-0 01 1 0101- ●
350 04.525 RING; SNAP,RING GEAR
TORQUE ON DEMAND(7HA) USA 		8-97238-754-0 01 1 0101- ●
351 04.105 MAGNET; CASE
TORQUE ON DEMAND(7HA) USA 		8-97129-228-0 01 1 0101- ●
355 04.520 BEARING; OUTPUT SHAFT
TORQUE ON DEMAND(7HA) USA 		8-97129-037-0 02 1 0101- ●
356 04.525 RING; SNAP,BEARING
TORQUE ON DEMAND(7HA) USA 		8-97129-268-0 01 1 0101- ●
358 04.510 COIL; TRANSFER
TORQUE ON DEMAND(7HA) USA 		8-97238-803-0 01 1 0101- ●
