◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#46701) — 28 parça

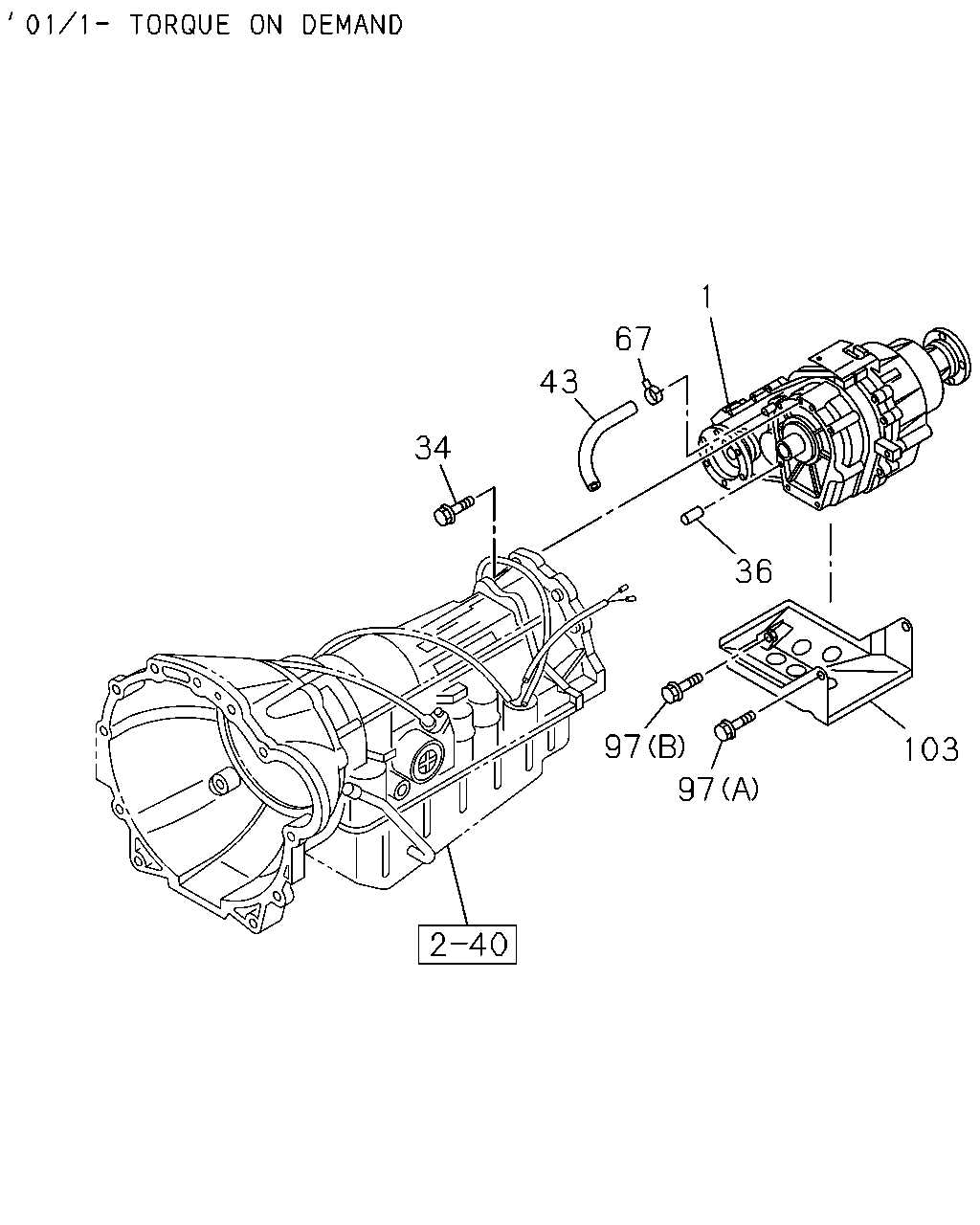

çizim 4766
1 67 43 34 36 97 103 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
A/T THM 4 SPEED(RMQ) 		8-97124-738-0 01 1 9811-0012 ●
1 04.505 TRANSFER ASM
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97124-738-0 01 1 0101- ●
1 04.505 TRANSFER ASM
TORQUE ON DEMAND(7HA) USA 		8-97239-903-1 01 1 0101- ●
34 04.510 BOLT; TRANSFER
A/T THM 4 SPEED(RMQ) 00.685 M10X35 FLANGE 		0-28081-035-0 07 1 9811- ●
36 04.510 PIN; KNOCK,TRANSFER
A/T THM 4 SPEED(RMQ) OD=10 L=20 USA 		8-97135-423-0 02 1 9811- ●
43 04.510 HOSE; RUBBER,BREATHER
TORQUE ON DEMAND(7HA) 04.104 L=90 SERVICED BY L=3000 		0-02857-300-0 01 1 0101- ●
67 04.510 CLIP; BAND
TORQUE ON DEMAND(7HA) 01.219 ID=12 		8-94238-610-0 01 1 0101- ●
97 04.512 BOLT
03.611 M10X20 FLANGE 		0-28681-020-0 01 1 9811-0012 ● ●
97 04.512 BOLT
EXC. TORQUE ON DEMAND(7HA) 03.611 M10X20 FLANGE 		0-28681-020-0 01 1 0101- ●
97 04.512 BOLT
TORQUE ON DEMAND(7HA) 01.062 (A) M8X16 FLANGE USA 		0-28080-816-0 02 1 0101- ●
97 04.512 BOLT
TORQUE ON DEMAND(7HA) 03.704 (B) M8X40 FLANGE 		0-28680-840-0 01 1 0101- ●
103 04.510 GUARD; TRANSFER
USA 		8-97124-717-3 01 1 9811-0012 ● ●
103 04.510 GUARD; TRANSFER
EXC. TORQUE ON DEMAND(7HA) USA 		8-97124-717-3 01 1 0101- ●
103 04.510 GUARD; TRANSFER
TORQUE ON DEMAND(7HA) 		8-97178-825-0 01 1 0101- ●

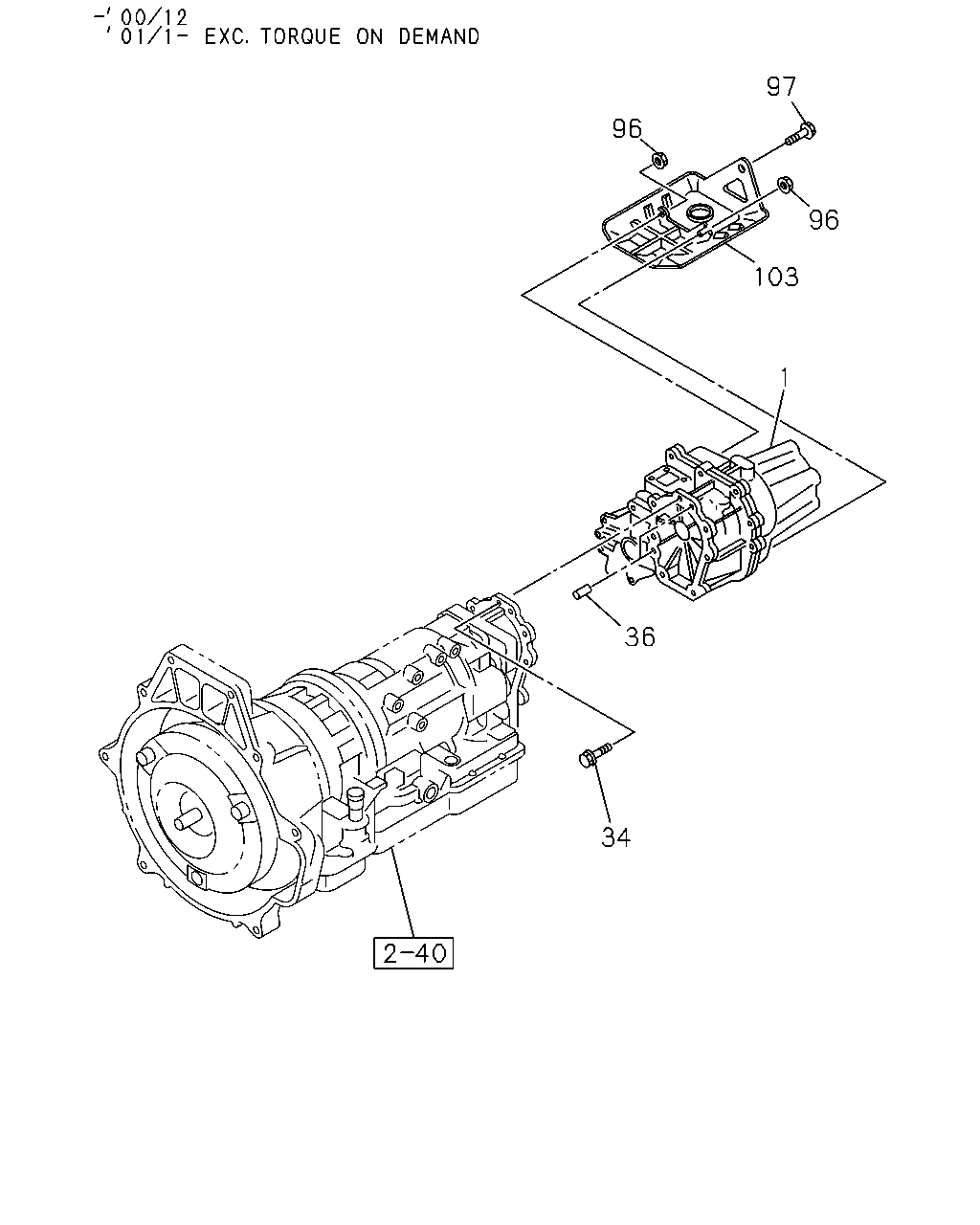

çizim 36442
97 96 96 103 1 36 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
A/T THM 4 SPEED(RMQ) 		8-97124-738-0 01 1 9811-0012 ●
1 04.505 TRANSFER ASM
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 		8-97124-738-0 01 1 0101- ●
1 04.505 TRANSFER ASM
TORQUE ON DEMAND(7HA) USA 		8-97239-903-1 01 1 0101- ●
34 04.510 BOLT; TRANSFER
A/T THM 4 SPEED(RMQ) 00.685 M10X35 FLANGE 		0-28081-035-0 07 1 9811- ●
36 04.510 PIN; KNOCK,TRANSFER
A/T THM 4 SPEED(RMQ) OD=10 L=20 USA 		8-97135-423-0 02 1 9811- ●
96 04.512 NUT
08.917 M10 FLANGE 		0-91150-210-0 02 1 9811-0012 ● ●
96 04.512 NUT
EXC. TORQUE ON DEMAND(7HA) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0101- ●
97 04.512 BOLT
03.611 M10X20 FLANGE 		0-28681-020-0 01 1 9811-0012 ● ●
97 04.512 BOLT
EXC. TORQUE ON DEMAND(7HA) 03.611 M10X20 FLANGE 		0-28681-020-0 01 1 0101- ●
97 04.512 BOLT
TORQUE ON DEMAND(7HA) 01.062 (A) M8X16 FLANGE USA 		0-28080-816-0 02 1 0101- ●
97 04.512 BOLT
TORQUE ON DEMAND(7HA) 03.704 (B) M8X40 FLANGE 		0-28680-840-0 01 1 0101- ●
103 04.510 GUARD; TRANSFER
USA 		8-97124-717-3 01 1 9811-0012 ● ●
103 04.510 GUARD; TRANSFER
EXC. TORQUE ON DEMAND(7HA) USA 		8-97124-717-3 01 1 0101- ●
103 04.510 GUARD; TRANSFER
TORQUE ON DEMAND(7HA) 		8-97178-825-0 01 1 0101- ●
