◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#46700) — 13 parça

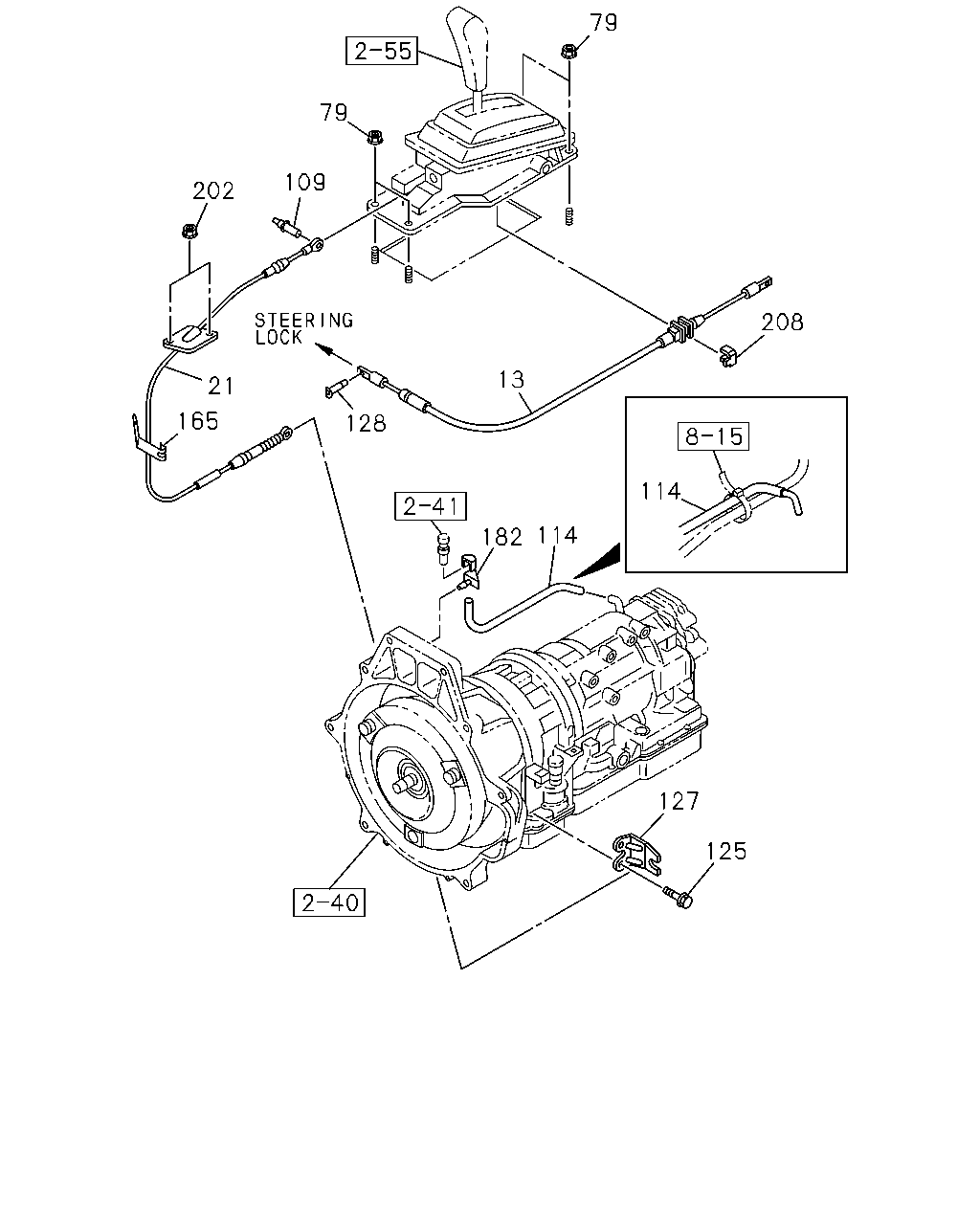

çizim 38200
79 79 109 202 208 13 21 165 128 114 114 182 127 125
BalonParca AdiParca NoAdetTipApplied Date
13 04.047 CABLE; SAFETY LK
USA 		8-97124-858-1 01 1 9811-0202
13 04.047 CABLE; SAFETY LK
USA 		8-97350-559-0 01 1 0203-
21 04.047 CABLE; A/T
USA 		8-97124-855-3 01 1 9811-
79 04.047 NUT; CONT CABLE
07.833 M6 FLANGE 		8-97063-399-0 04 1 9811-
109 04.047 PIN; CONT CABLE
USA 		8-97130-722-0 01 1 9811-
114 08.962 HOSE; BREATHER
04.104 L=640 SERVICED BY L=3000 		0-02857-300-0 01 1 9811-
125 04.047 BOLT; BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 02 1 9811-
127 04.047 BRACKET; A/T CONT CABLE
USA 		8-97124-859-0 01 1 9811-
128 04.047 PIN; SNAP,STRG LK TO CABLE 8-94170-423-0 01 1 9811-
165 04.047 CLIP; SHIFT LOCK CABLE
USA 		8-97142-317-1 01 1 9811-
182 04.104 CLIP; BREATHER HOSE 8-97164-817-1 01 1 9811-
202 04.047 NUT; GROMMET
07.833 M6 FLANGE 		8-97063-399-0 02 1 9811-
208 04.045 LOCK; CABLE ADJ
USA 		8-97141-777-2 01 1 9811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
