1-10B — RADIATOR (#467) — 56 parça

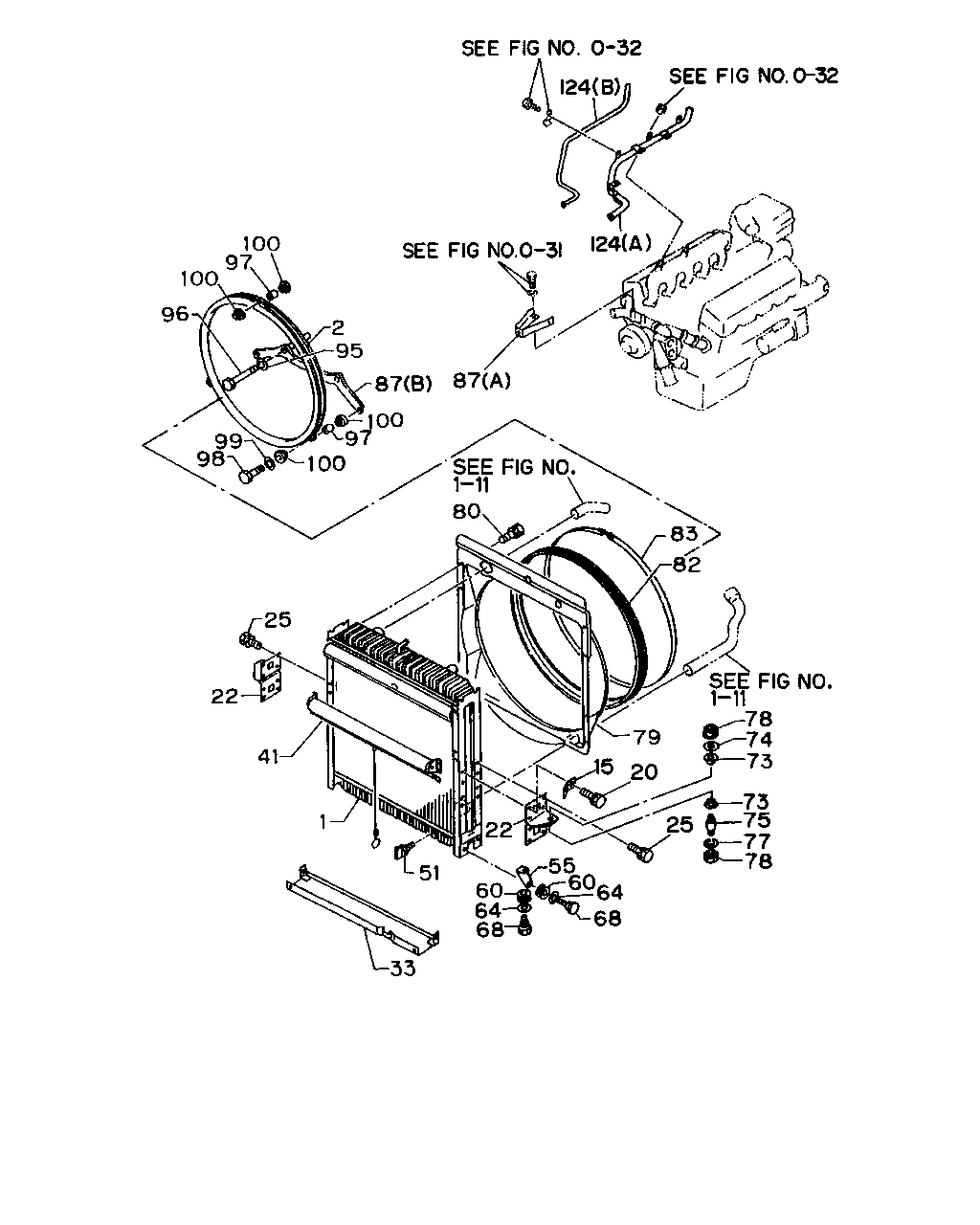

çizim 29378
124 124 100 97 100 96 2 95 87 87 100 97 100 99 98 80 83 82 78 74 73 73 75 77 78 25 79 20 15 22 55 60 64 68 60 64 68 33 51 1 41 22 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-489-0 01 1 8712-8912 ●
1 RADIATOR ASM 1-21410-647-0 01 1 9001-9001 ●
1 RADIATOR ASM 1-21410-569-0 01 1 9002- ●
2 GUIDE; FAN 1-21551-235-3 01 1 8712- ● ●
15 BRACKET; PIPE,RAD 1-21464-243-0 01 1 8712-9001 ●
15 BRACKET; PIPE,RAD 1-21464-283-0 01 1 9002-9404 ●
15 BRACKET; PIPE,RAD 1-21469-088-0 01 1 9405- ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 8712-9404 ● ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9405- ●
22 BRACKET; RAD MTG 1-21464-094-1 01 1 8712- ● ●
22 BRACKET; RAD MTG 1-21464-093-1 01 1 8712- ● ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 15 1 8712-9404 ● ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		0-50140-818-0 15 1 9405- ●
33 PROTECTOR; RAD
L=120 		1-21419-030-2 01 1 8712- ● ●
41 SHUTTER ASM; RAD 1-21511-090-1 01 1 8712-9306 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 8712- ● ●
55 STAY; RAD TO UPR MBR 1-21464-079-2 01 1 8712- ● ●
55 STAY; RAD TO UPR MBR 1-21464-078-2 01 1 8712- ● ●
60 GROMMET 9-09575-512-0 04 1 8712-8901 ●
60 GROMMET 1-09332-117-0 04 1 8902- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 8712- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 8712- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 8712- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 8712- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-001-0 02 1 8712-8812 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 8901- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 8712- ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-410-0 02 1 8712-9001 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9002- ●
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 8712- ● ●
79 GUIDE; FAN,RAD 1-21551-313-0 01 1 8712- ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 8712-9306 ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 8712-9306 ● ●
80 BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9307-9404 ●
80 BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER 		0-50140-816-0 12 1 9405- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 8712- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 8712- ● ●
87 STAY; FAN GUIDE
(B) 		1-21559-105-1 01 1 8712-9001 ●
87 STAY; FAN GUIDE
(A) 		1-21559-104-2 01 1 8712- ● ●
87 STAY; FAN GUIDE
(B) 		1-21559-285-0 01 1 9002- ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 8712- ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 01 1 8712- ● ●
96 BOLT; STAY FIX
M12X20 		9-02341-220-0 01 1 8712-9204 ● ●
96 BOLT; STAY FIX
M12X20 		0-23801-220-0 01 1 9205- ●
97 TUBE; DIST,FAN GUIDE 1-21559-071-0 03 1 9002-9310 ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9311- ●
98 BOLT; RAD FAN GUIDE
M8X50 		9-01055-850-0 03 1 8712-9005 ● ●
98 BOLT; RAD FAN GUIDE
M8X50 		0-10805-850-0 03 1 9006-9310 ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9311- ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9311- ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 06 1 8712-9310 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 8712- ● ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-453-1 01 1 8712-9001 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-324-0 01 1 8712-9001 ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-479-1 01 1 9002- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-375-0 01 1 9002- ●
