Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

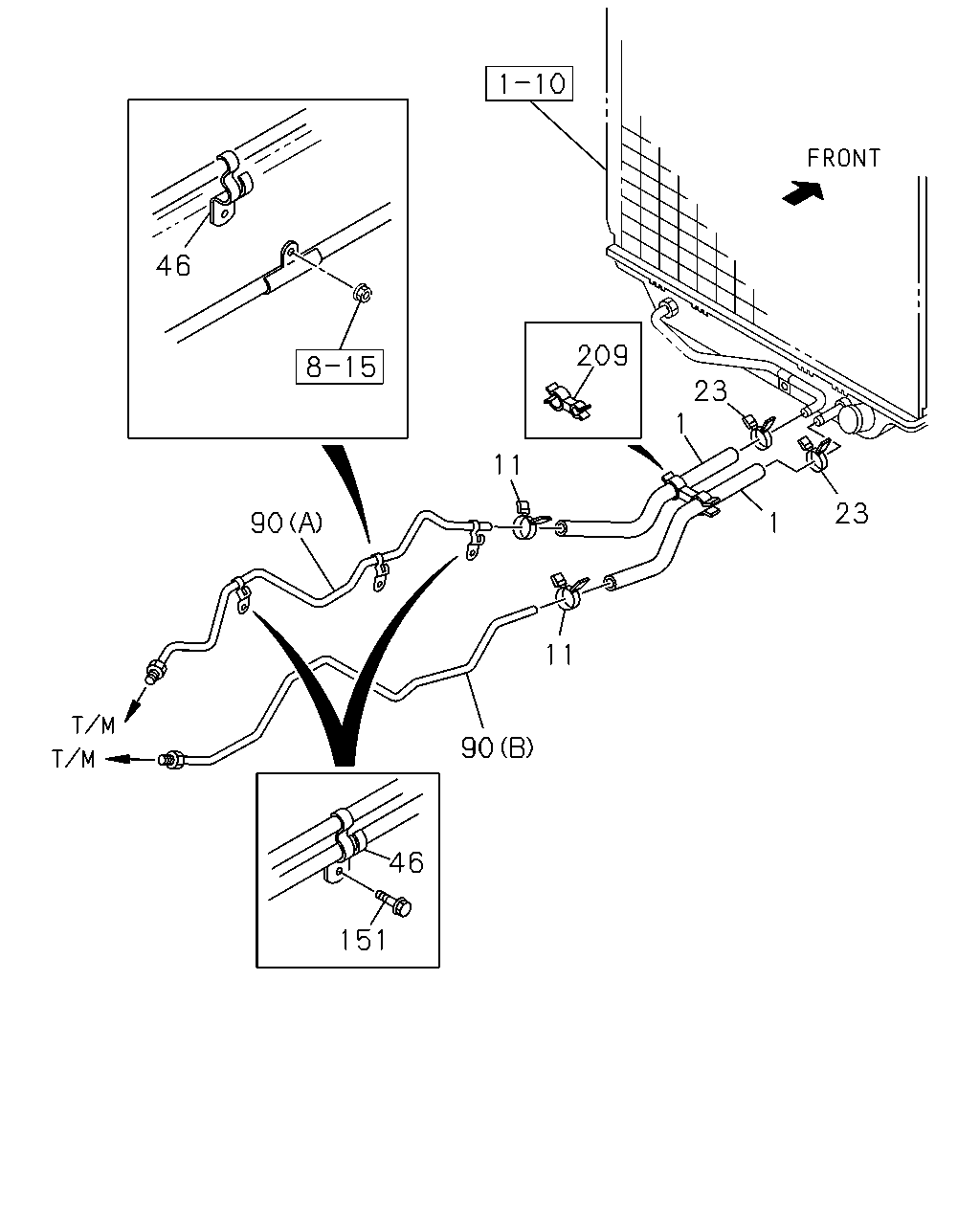

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#46698) — 12 parça
46
209
23
1
11
23
90
1
11
90
46
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
9811-
11
04.128 CLIP; PIPE
00.034 ID=13.5
8-97015-754-1
02
1
9811-
23
04.128 CLIP; OIL PIPE
00.034 ID=13.5
8-97015-754-1
02
1
9811-
46
04.128 BRACKET; OIL PIPE
USA
8-97140-394-0
03
1
9811-
90
04.128 PIPE ASM; ATF
(A) USA
8-97143-775-1
01
1
9811-0003
90
04.128 PIPE ASM; ATF
(A) USA
8-97219-978-0
01
1
0004-0006
90
04.128 PIPE ASM; ATF
(A) USA
8-97234-067-0
01
1
0007-
90
04.128 PIPE ASM; ATF
(B) USA
8-97143-776-3
01
1
9811-0003
90
04.128 PIPE ASM; ATF
(B) USA
8-97219-979-0
01
1
0004-0006
90
04.128 PIPE ASM; ATF
(B) USA
8-97234-064-0
01
1
0007-
151
04.128 BOLT; BRKT,OIL PIPE
01.062 M8X16 FLANGE USA
0-28080-816-0
02
1
9811-
209
04.128 CLIP; HOSE
USA
8-97174-271-0
01
1
9811-
