◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-52 - AUTO TRANS OVERDRIVE GEAR ▶
2-52 — AUTO TRANS OVERDRIVE GEAR (#46697) — 26 parça

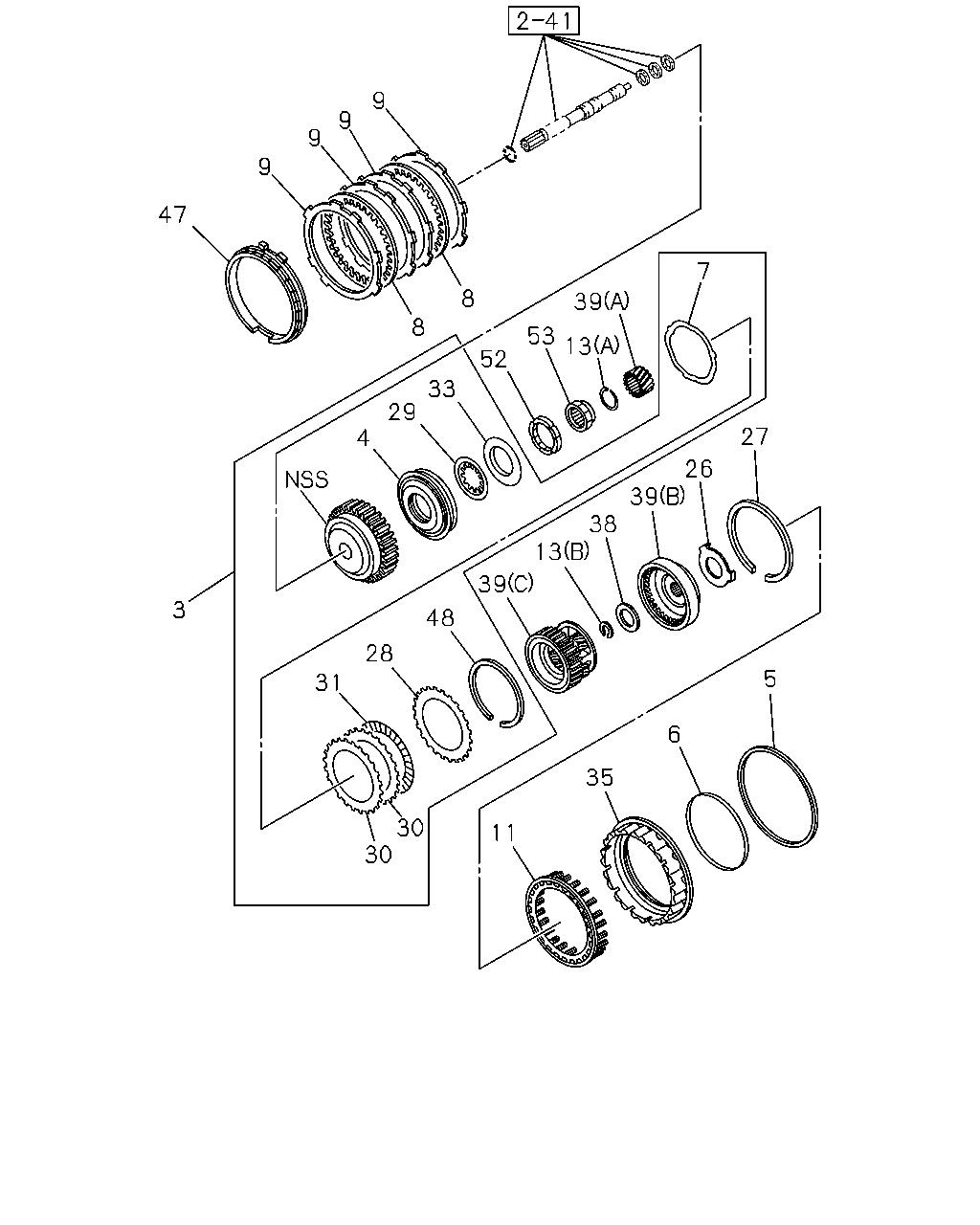

çizim 36699
9 9 9 9 47 7 8 39 8 53 13 52 33 29 27 4 26 39 38 13 39 3 48 28 5 31 6 35 30 30 11
BalonParca AdiParca NoAdetTipApplied Date
3 04.468 DRUM; CLU,OVERDRIVE,A/T
USA 		8-96041-100-0 01 1 9811-
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T
USA 		8-96017-401-0 01 1 9811-
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI
USA 		8-96017-561-0 01 1 9811-
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI
USA 		8-96014-321-0 01 1 9811-
7 04.468 PLATE; CLU CUSHION
USA 		8-96014-983-0 01 1 9811-
8 04.455 DISC; CLU,OVERDRIVE,A/T
USA 		8-96014-459-0 02 1 9811-
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE
USA 		8-96014-187-0 04 1 9811-
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T
USA 		8-08635-244-0 01 1 9811-
13 04.472 RING; SNAP,OVERDRIVE,A/T
(A) USA 		8-08634-274-0 01 1 9811-
13 04.472 RING; SNAP,OVERDRIVE,A/T
(B) USA 		8-96014-389-0 01 1 9811-
26 04.472 WASHER; THRUST,OVERDRIVE,A/T
USA 		8-96014-390-0 01 1 9811-
27 04.472 RING; RET,OVERDRIVE,A/T
USA 		8-08634-023-0 01 1 9811-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
USA 		8-08634-864-0 01 1 9811-
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE
USA 		8-96014-902-0 01 1 9811-
30 04.455 DISC; CLU,OVERDRIVE,A/T
USA 		8-96014-194-0 02 1 9811-
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T
USA 		8-96014-195-0 01 1 9811-
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI
USA 		8-96015-601-0 01 1 9811-
35 04.468 PISTON; BRK,OVERDRIVE,A/T
USA 		8-96017-559-0 01 1 9811-
38 04.472 WASHER; THRUST,OVERDRIVE,A/T
USA 		8-08634-035-0 01 1 9811-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) USA 		8-96014-199-0 01 1 9811-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) USA 		8-96014-202-0 01 1 9811-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(C) USA 		8-96014-376-0 01 1 9811-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
USA 		8-96015-385-0 01 1 9811-
48 04.472 RING; SNAP,PLANETARY RING GEAR,O
USA 		8-08634-056-0 01 1 9811-
52 04.180 ROLLER; OVERDRIVE CLU
USA 		8-00930-660-0 01 1 9811-
53 04.180 CAM; OVERDRIVE ROLLER CLU
USA 		8-08634-038-0 01 1 9811-
