Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

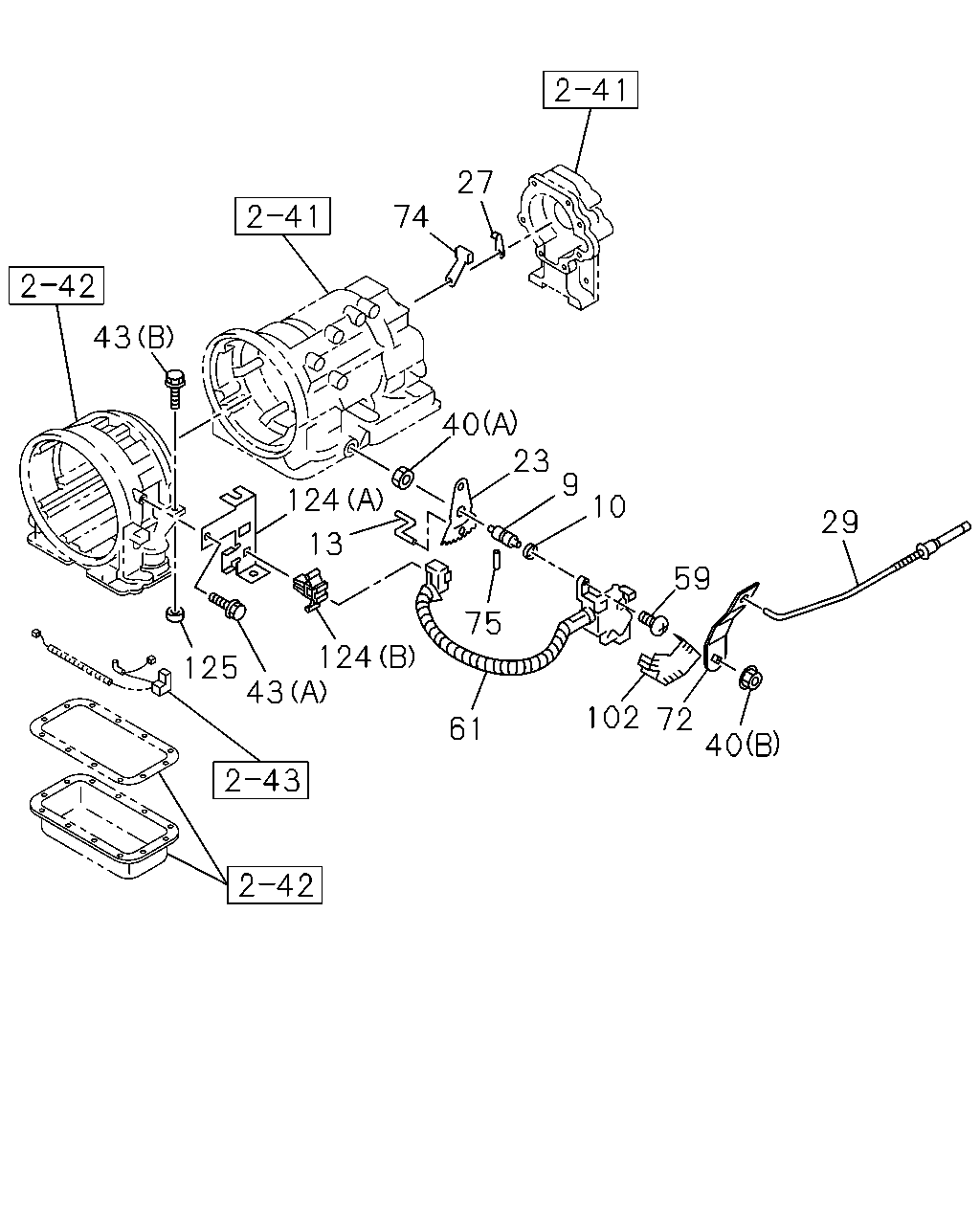

2-49 — AUTO TRANS INHIBITOR SWITCH
(#46696) — 20 parça
27
74
43
124
40
23
9
10
29
13
59
75
124
125
43
102
72
40
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
04.275 SHAFT; MANUAL,A/T
USA
8-96014-268-0
01
1
9811-
10
04.265 GASKET; MANUAL SHIFT,A/T
USA
8-08644-709-0
01
1
9811-
13
04.294 LEVER; SELECT,MANUAL SHAFT,A/T
USA
8-05258-243-0
01
1
9811-
23
04.290 LEVER; PARKING ROD,A/T
USA
8-96018-274-0
01
1
9811-
27
04.295 SPRING; PAWL RETURN,A/T
USA
8-05258-076-0
01
1
9811-
29
04.290 ROD ASM; CONT,A/T
USA
8-96017-286-0
01
1
9811-
40
04.037 NUT; LEVER TO SHAFT
(B) M10 FLANGE
0-91250-110-0
01
1
9811-
40
04.037 NUT; LEVER TO SHAFT
(A) USA
8-11067-223-0
01
1
9811-
43
04.290 BOLT; BRKT
(A) USA
8-11041-238-0
01
1
9811-
43
04.290 BOLT; BRKT
(B) USA
8-96017-499-0
01
1
9811-
59
04.265 SCREW; SW,A/T
USA
8-96014-453-0
02
1
9811-0012
59
04.265 SCREW; SW,A/T
USA
8-96024-064-0
02
1
0101-
61
04.265 SWITCH ASM; MODE
USA
8-96017-511-0
01
1
9811-
72
04.035 LEVER; SELECT CONT
USA
8-97125-175-1
01
1
9811-
74
04.294 PAWL; PARKING BRK LK,A/T
USA
8-96016-620-0
01
1
9811-
75
04.290 PIN; PARKING BRK LK,A/T
USA
8-05259-654-0
01
1
9811-
102
04.265 SHIELD; MODE SWITCH,A/T
USA
8-96014-454-0
01
1
9811-
124
04.057 BRACKET; MODE SWITCH
(B) USA
8-90414-915-0
01
1
9811-
124
04.057 BRACKET; MODE SWITCH
(A) USA
8-96018-450-0
01
1
9811-
125
04.057 NUT; BRKT
USA
8-96017-663-0
01
1
9811-
