Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH
▶

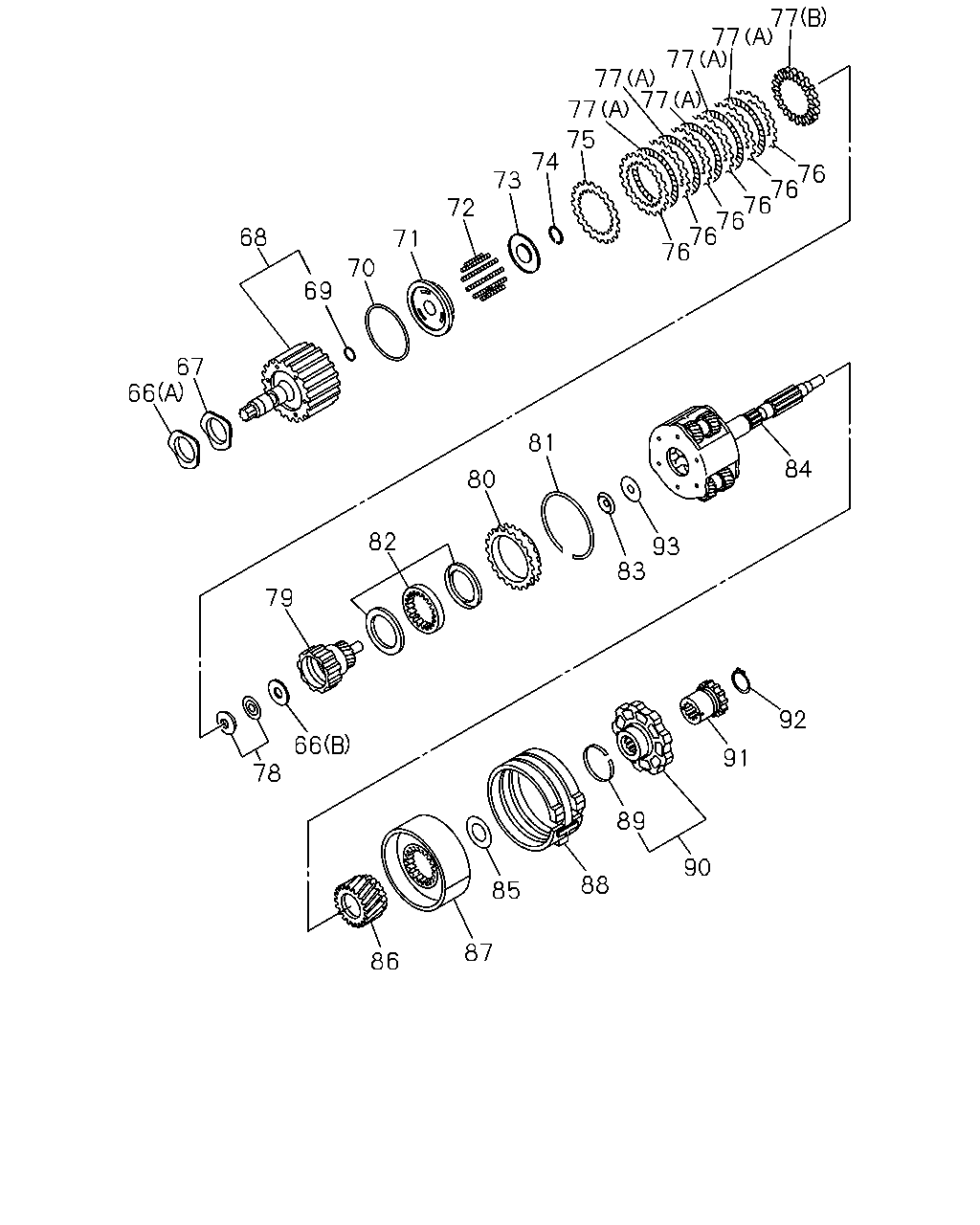

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH
(#46695) — 30 parça
77
77
77
77
77
77
75
74
76
76
76
76
76
76
73
72
68
71
70
69
67
66
81
84
80
82
93
83
79
92
66
91
78
89
90
88
85
87
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
04.169 WASHER; THRUST,3RD CLU
(A) USA
8-96013-403-0
01
1
9811-
66
04.169 WASHER; THRUST,3RD CLU
04.158 (B) USA
8-96015-459-0
01
1
9811-
67
04.169 WASHER; THRUST,CLU HUB
USA
8-05258-945-0
01
1
9811-
68
04.169 DRUM; 3RD CLU
USA
8-96041-095-0
01
1
9811-
69
04.262 SEAL; 3RD CLU PISTON INNER
USA
8-96018-543-0
01
1
9811-
70
04.262 SEAL; 3RD CLU PISTON OUTER
USA
8-96014-296-0
01
1
9811-
71
04.262 PISTON; 3RD CLU
04.116 USA
8-96016-223-0
01
1
9811-
72
04.262 SPRING; PISTON CLU
USA
8-08958-719-0
12
1
9811-
73
04.262 SEAT; SPR,3RD CLU
USA
8-05258-039-0
01
1
9811-
74
04.262 RING; RET
USA
8-05258-094-0
01
1
9811-
75
04.262 PLATE; SPR,CLU
USA
8-96017-603-0
01
1
9811-
76
04.262 PLATE; 3RD CLU
USA
8-05258-955-0
06
1
9811-
77
04.262 PLATE ASM; 3RD CLU
(B) USA
8-96017-370-0
01
1
9811-
77
04.262 PLATE ASM; 3RD CLU
(A) USA
8-96017-371-0
05
1
9811-
78
04.262 WASHER & THRUST BEARING KIT
USA
8-96040-078-0
01
1
9811-
79
04.262 GEAR ASM; INPUT SUN
USA
8-96016-253-0
01
1
9811-
80
04.262 RACE; SPRAG
USA
8-96017-373-0
01
1
9811-
81
04.262 RING; RET,SPRAG
USA
8-08958-684-0
01
1
9811-
82
04.256 SPRAG KIT
USA
8-96017-149-0
01
1
9811-
83
04.256 BEARING; OUTPUT SHAFT
USA
8-96014-602-0
01
1
9811-
84
04.256 CARRIER ASM; PLANETARY
USA
8-96017-348-0
01
1
9811-
85
04.256 THRUST BEARING & WASHER KIT
USA
8-96016-084-0
01
1
9811-
86
04.256 GEAR; REACTION SUN
USA
8-96015-037-0
01
1
9811-
87
04.256 DRUM; REACTION SUN
USA
8-96018-009-0
01
1
9811-
88
04.256 BAND; BRAKE
USA
8-96014-805-0
01
1
9811-
89
04.256 SEAL; RING,PARKING LOCK
USA
8-05258-837-0
01
1
9811-
90
04.256 WHEEL; PARKING LOCK
USA
8-96016-669-0
01
1
9811-
91
04.256 WHEEL; SPD
USA
8-96015-053-0
01
1
9811-
92
04.256 RING; RET
USA
8-96015-123-0
01
1
9811-
93
04.008 WASHER; OUTPUT SHAFT
04.262 USA
8-96014-607-0
01
1
9811-
