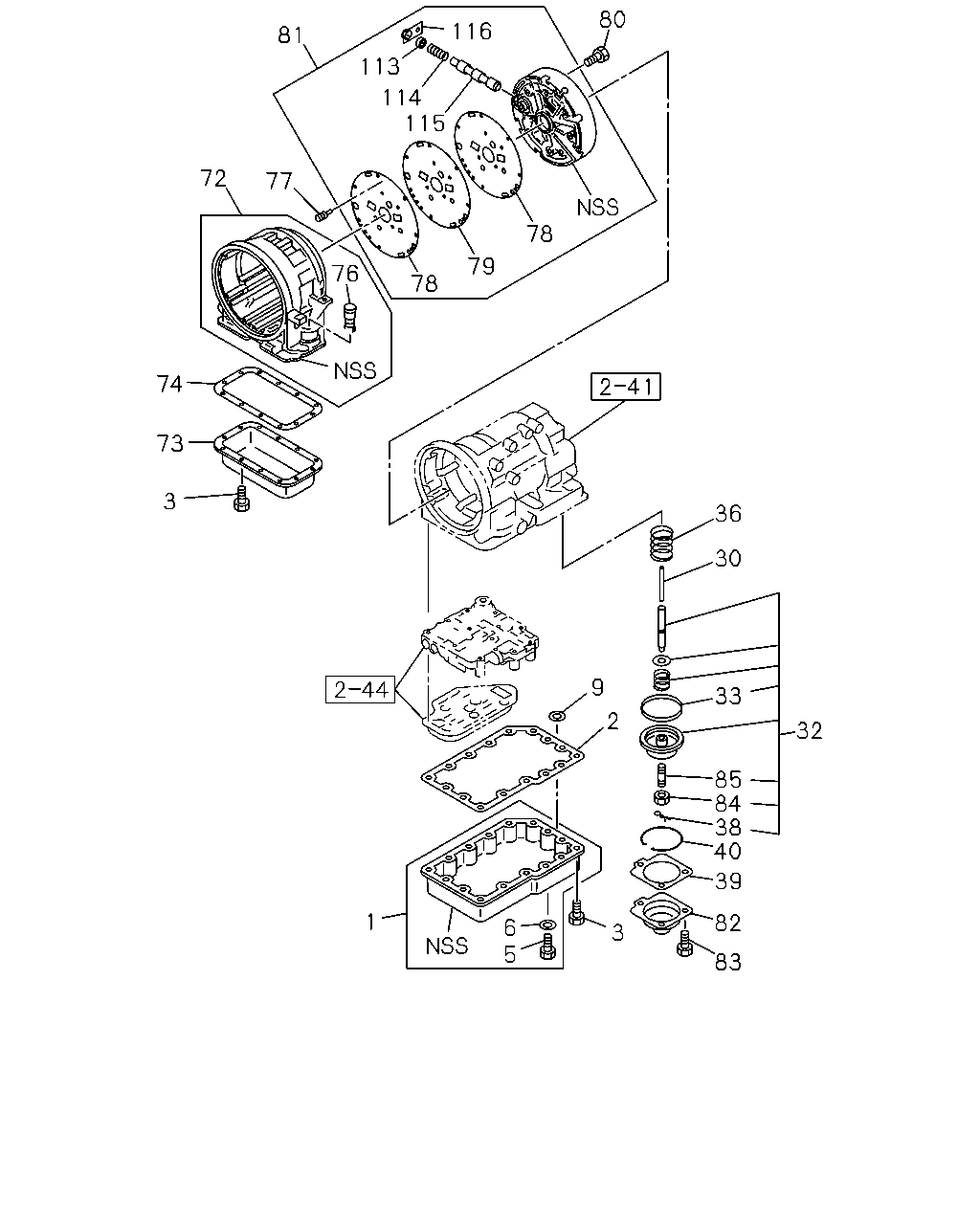

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#46691) — 36 parça

80 116 81 113 114 115 72 77 78 79 76 78 74 73 3 36 30 9 33 2 32 85 84 38 40 39 1 82 6 5 3 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.195 PAN ASM; OIL,A/T USA	8-96017-876-0	01	1	9811-9912
1	04.195 PAN ASM; OIL,A/T USA	8-96023-707-0	01	1	0001-
2	04.196 GASKET; OIL PAN,A/T USA	8-96014-234-0	01	1	9811-
3	04.196 BOLT; OIL PAN TO CASE USA	8-96017-023-0	28	1	9811-
5	04.195 PLUG; OIL PAN USA	8-96015-481-0	02	1	9811-
6	04.195 GASKET; OIL PAN TO PLUG USA	8-11023-580-0	02	1	9811-9912
6	04.195 GASKET; OIL PAN TO PLUG 01.456 USA	8-11023-582-0	02	1	0001-
9	04.195 MAGNET; OIL PAN USA	8-96013-938-0	01	1	9811-
30	04.265 ROD; VAC DIAPH,A/T USA	8-05258-182-0	01	1	9811-
32	04.228 PISTON ASM; SERVO,A/T USA	8-96017-601-0	01	1	9811-
33	04.229 SEAL; RING,SERVO PISTON,A/T USA	8-05258-159-0	01	1	9811-
36	04.233 SPRING; RETURN,SERVO PISTON,A/T USA	8-08958-931-0	01	1	9811-
38	04.233 RING; SNAP,SERVO PISTON,A/T USA	8-05258-185-0	01	1	9811-
39	04.212 GASKET; SERVO COVER USA	8-96014-414-0	01	1	9811-
40	04.233 RETAINER; SERVO PISTON,A/T USA	8-05258-121-0	01	1	9811-
72	04.195 CASE ASM; ADAPTER USA	8-96017-512-0	01	1	9811-0012
72	04.195 CASE ASM; ADAPTER USA	8-96017-508-0	01	1	0101-
73	04.195 PAN ASM; ADAPTER USA	8-96014-186-0	01	1	9811-
74	04.195 GASKET; ADAPTER PAN USA	8-96014-235-0	01	1	9811-
76	04.195 CONNECTOR; ADAPTER CASE USA	8-96015-408-0	01	1	9811-0012
76	04.195 CONNECTOR; ADAPTER CASE 04.226 USA	8-96018-330-0	01	1	0101-
77	04.195 RESTRICTOR; OIL USA	8-96014-353-0	01	1	9811-
78	04.195 GASKET; ADAPTER PLATE USA	8-96016-514-0	02	1	9811-
79	04.195 PLATE; ADAPTER,CTR SUPPORT USA	8-96016-833-0	01	1	9811-0012
79	04.195 PLATE; ADAPTER,CTR SUPPORT USA	8-96018-405-0	01	1	0101-
80	04.195 SCREW; CTR SUPPORT USA	8-96013-316-0	08	1	9811-
81	04.233 SUPPORT ASM; CENTER USA	8-96041-282-0	01	1	9811-0012
81	04.233 SUPPORT ASM; CENTER USA	8-96041-645-0	01	1	0101-
82	04.233 COVER; SERVO PISTON USA	8-96014-413-0	01	1	9811-
83	04.233 SCREW; SERVO COVER 04.195 USA	8-96013-316-0	04	1	9811-
84	04.233 NUT; SERVO SCREW USA	8-96017-231-0	01	1	9811-
85	04.233 SCREW; SERVO PISTON USA	8-96018-235-0	01	1	9811-
113	04.105 PLUG; LOCKOUT 04.052 USA	8-96017-027-0	01	1	9811-
114	04.256 SPRING; LOCKOUT 04.052 USA	8-96014-961-0	01	1	9811-
115	04.256 VALVE; LOCKOUT 04.052 USA	8-96014-967-0	01	1	9811-
116	04.256 PLATE; RETAINER 04.052 USA	8-96017-026-0	01	1	9811-
