◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#46690) — 65 parça

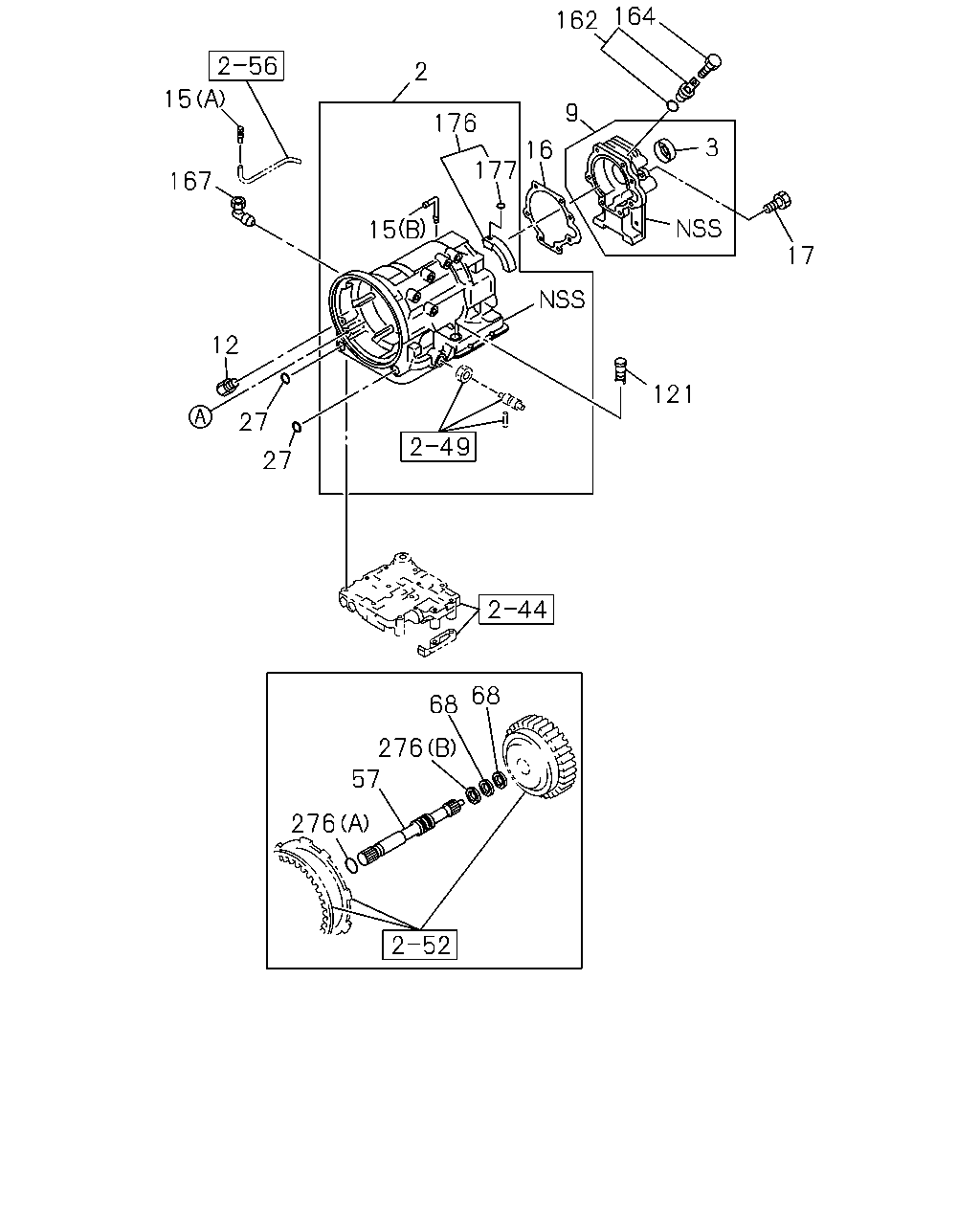

çizim 36273
164 162 2 15 9 176 3 16 177 167 15 17 12 121 27 27 68 276 57 276 68
BalonParca AdiParca NoAdetTipApplied Date
2 04.103 CASE ASM; A/T
USA 		8-96041-374-0 01 1 9811-0012
2 04.103 CASE ASM; A/T
USA 		8-96041-537-0 01 1 0101-
3 04.241 SEAL; OIL,RR COVER,A/T
USA 		8-96014-416-0 01 1 9811-
9 04.317 COVER ASM; RR,A/T
USA 		8-96042-194-0 01 1 9811-
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
USA 		8-96015-476-0 01 1 9811-
15 04.104 BREATHER; A/T CASE
(B) USA 		8-96015-793-0 01 1 9811-
15 04.104 BREATHER; A/T CASE
(A) 		8-97164-362-0 01 1 9811-
16 04.318 GASKET; EXT HSG
USA 		8-96014-417-0 01 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
USA 		8-96015-271-0 07 1 9811-
27 04.217 GASKET; HSG TO CASE
USA 		8-96014-270-0 02 1 9811-
57 04.175 SHAFT; TURBINE,A/T
USA 		8-96018-034-0 01 1 9811-9811
57 04.175 SHAFT; TURBINE,A/T
USA 		8-96023-043-0 01 1 9812-
68 04.175 RING; OIL SEAL,TURBINE SHAFT
USA 		8-96017-484-0 02 1 9811-
121 04.226 CONNECTOR; ELEC
USA 		8-96015-409-0 01 1 9811-0012
121 04.226 CONNECTOR; ELEC
USA 		8-96018-330-0 01 1 0101-
162 04.054 SENSOR; REVOLUTION,A/T CONT
USA 		8-96014-422-0 01 1 9811-
164 04.054 BOLT; REV SENSOR,A/T
USA 		8-96014-809-0 01 1 9811-
167 04.052 CONNECTOR; CASE,A/T
USA 		8-96015-477-0 01 1 9811-0012
167 04.052 CONNECTOR; CASE,A/T
USA 		8-96023-299-0 01 1 0101-
176 04.052 RESERVOIR; MAIN CASE
USA 		8-96014-865-0 01 1 9811-
177 04.052 SEAL; MAIN CASE
USA 		8-96017-547-0 01 1 9811-
276 04.103 GASKET; SHAFT
04.175 (A) USA 		8-96013-953-0 01 1 9811-
276 04.103 GASKET; SHAFT
04.175 (B) USA 		8-96041-327-0 01 1 9811-

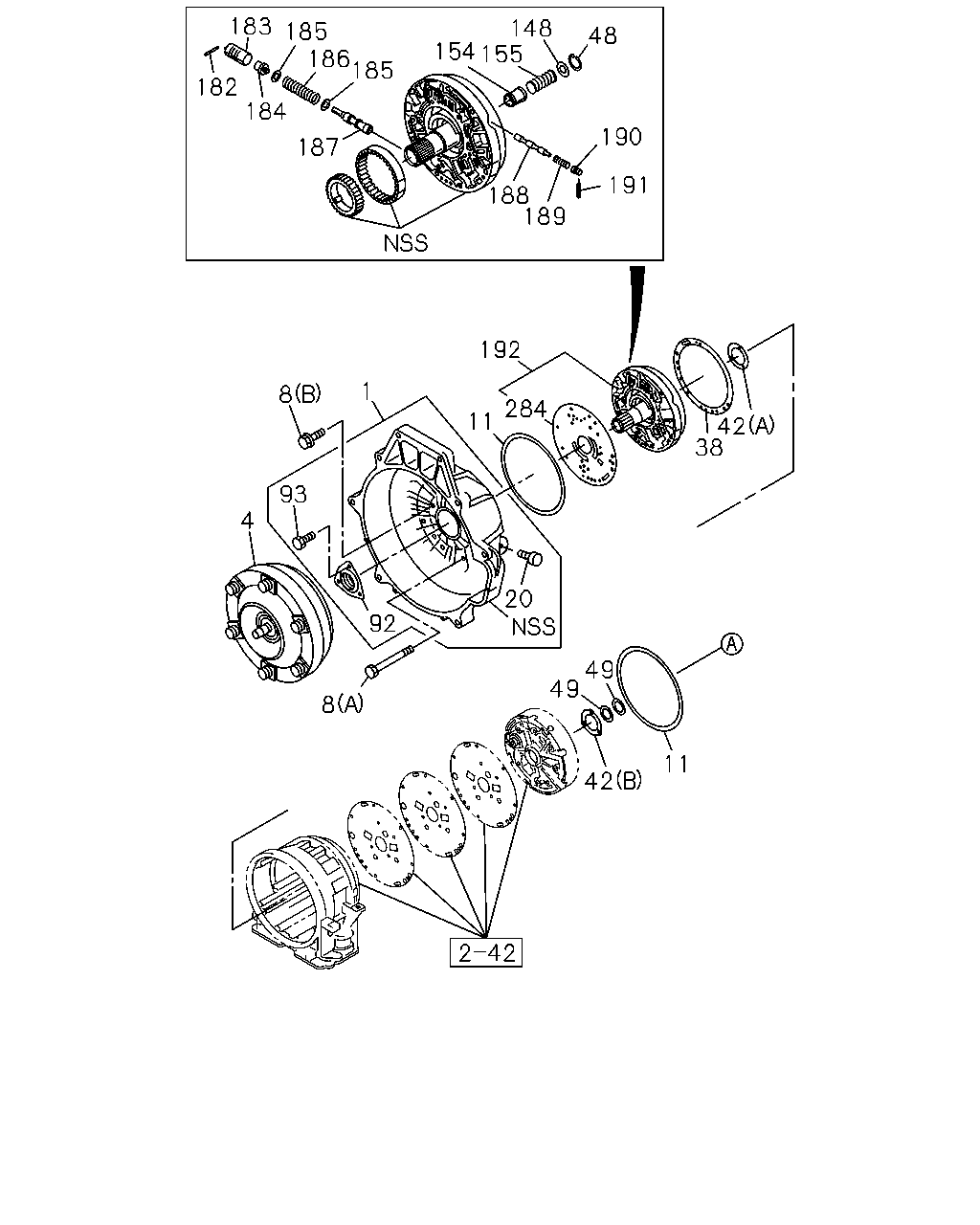

çizim 37785
183 148 154 155 185 186 185 48 182 184 190 187 188 189 191 192 1 8 284 42 38 11 93 4 20 92 49 49 8 11 42
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T
USA 		8-96042-233-0 01 1 9811-0012
1 04.103 HOUSING; CONV,A/T
USA 		8-96041-653-0 01 1 0101-
4 04.115 CONVERTER ASM; TORQUE,A/T
USA 		8-24210-868-0 01 1 9811-0012
4 04.115 CONVERTER ASM; TORQUE,A/T
USA 		8-24211-228-0 01 1 0101-
8 04.217 BOLT; HSG TO CASE
(B) USA 		8-96013-210-0 05 1 9811-
8 04.217 BOLT; HSG TO CASE
(A) USA 		8-96018-559-0 07 1 9811-
11 04.104 RING; SEALING,TRANS CASE
USA 		8-96017-189-0 02 1 9811-
20 04.105 PLUG; TAPER,A/T CASE
USA 		8-08662-173-0 01 1 9811-
38 04.226 GASKET; OIL PUMP,A/T
USA 		8-96014-973-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) YELLOW USA 		8-96013-761-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) RED USA 		8-96013-762-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) BLACK USA 		8-96013-763-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) NATURAL USA 		8-96013-764-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) GREEN USA 		8-96013-765-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) BLUE USA 		8-96013-766-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) YELLOW USA 		8-96017-289-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) RED USA 		8-96017-290-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) BLACK USA 		8-96017-291-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) WHITE USA 		8-96017-292-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) GREEN USA 		8-96017-293-0 01 1 9811-
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) BLUE USA 		8-96017-294-0 01 1 9811-
48 04.175 RING; SNAP,OIL PUMP,A/T
USA 		8-96014-406-0 01 1 9811-
49 04.226 RING; OIL SEAL
USA 		8-96017-553-0 02 1 9811-
92 04.226 COVER ASM; A/T
USA 		8-96015-187-0 01 1 9811-
93 04.226 BOLT; COVER & BUSHING,A/T
USA 		8-96015-215-0 03 1 9811-
148 04.226 RETAINER; SPRING,CAM RING,OIL PU
USA 		8-96014-405-0 01 1 9811-
154 04.166 PISTON; ACCUMLATOR,OIL PUMP
USA 		8-96014-403-0 01 1 9811-
155 04.164 SPRING; SERVO,ACCUMLATOR PISTON,
USA 		8-96014-404-0 01 1 9811-
182 04.052 PIN; BOOST VALVE SLEEVE
USA 		8-08958-824-0 01 1 9811-
183 04.052 SLEEVE; BOOST VALVE
USA 		8-96014-996-0 01 1 9811-
184 04.205 VALVE; BOOST
USA 		8-96014-997-0 01 1 9811-
185 04.205 SEAT; SPR,REG VALVE
USA 		8-05258-219-0 02 1 9811-
186 04.205 SPRING; REG VALVE
USA 		8-96017-526-0 01 1 9811-
187 04.205 VALVE; PRESSURE REG
USA 		8-96016-072-0 01 1 9811-
188 04.205 VALVE; CONV CLU CONT
USA 		8-96014-396-0 01 1 9811-
189 04.205 SPRING; CONV CLU CONT VALVE
USA 		8-96014-397-0 01 1 9811-
190 04.205 PLUG; CONV CLU CONT VALVE
USA 		8-96013-218-0 01 1 9811-
191 04.205 PIN; SPR,PLUG
USA 		8-96013-658-0 01 1 9811-
192 04.200 PUMP KIT; OIL
USA 		8-96042-234-0 01 1 9811-0012
192 04.200 PUMP KIT; OIL
USA 		8-96041-664-0 01 1 0101-
284 04.224 PLATE; WEAR,OIL PUMP
04.226 USA 		8-96017-926-0 01 1 9811-0012
284 04.224 PLATE; WEAR,OIL PUMP
USA 		8-96023-507-0 01 1 0101-
