1 |

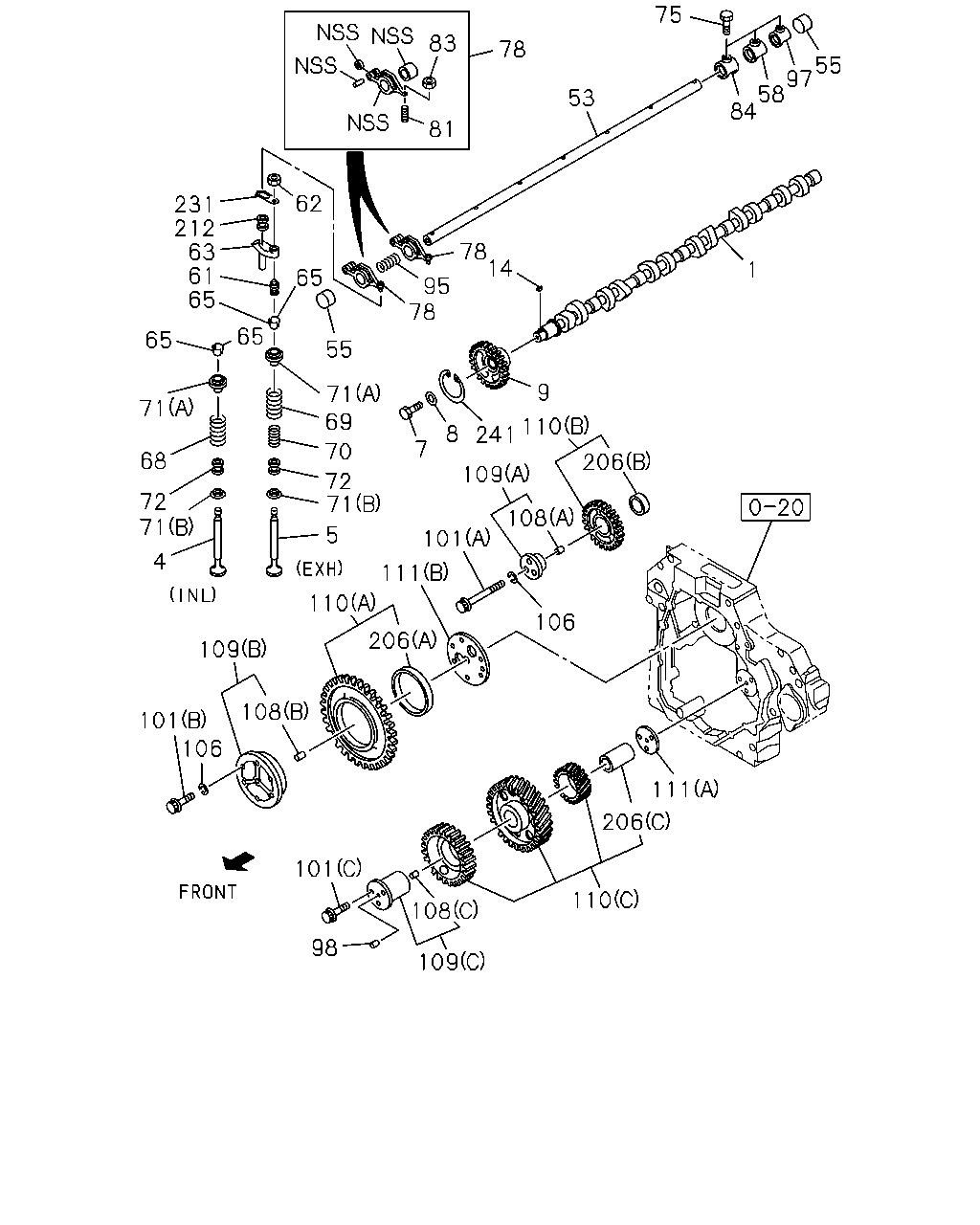

CAMSHAFT
|
1-12511-255-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
1 |
CAMSHAFT
|
1-12511-255-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
1 |
CAMSHAFT
|
1-12511-255-1 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
1 |
CAMSHAFT
|
1-12511-255-2 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
4 |
VALVE; INL
|
1-12551-145-2 |
12 |
1 |
9603-9804 |
● |
|
|
|
|
| |
4 |
VALVE; INL
|
1-12551-145-2 |
12 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
4 |
VALVE; INL
|
1-12551-145-5 |
12 |
1 |
9905- |
● |
|
● |
● |
|
| |
4 |
VALVE; INL
|
1-12551-151-0 |
12 |
1 |
9707-9904 |
|
● |
|
|
|
| |
4 |
VALVE; INL
|
1-12551-151-3 |
12 |
1 |
9905- |
|
|
|
|
● |
| |
5 |
VALVE; EXH
|
1-12552-095-0 |
12 |
1 |
9603-9710 |
● |
|
|
|
|
| |
5 |
VALVE; EXH
|
1-12552-102-0 |
12 |
1 |
9711-9804 |
● |
|
|
|
|
| |
5 |
VALVE; EXH
|
1-12552-102-0 |
12 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
5 |
VALVE; EXH
|
1-12552-102-1 |
12 |
1 |
9905- |
● |
|
● |
● |
|
| |
5 |
VALVE; EXH
|
1-12552-098-0 |
12 |
1 |
9707-9902 |
|
● |
|
|
|
| |
5 |
VALVE; EXH
|
1-12552-109-0 |
12 |
1 |
9903-9904 |
|
● |
|
|
|
| |
5 |
VALVE; EXH
|
1-12552-109-1 |
12 |
1 |
9905- |
|
|
|
|
● |
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-035-3 |
01 |
1 |
9603-9604 |
● |
|
|
|
|
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-043-1 |
01 |
1 |
9605-9706 |
● |
|
|
|
|
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-043-1 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-043-1 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-043-1 |
01 |
1 |
9905-9910 |
● |
|
● |
● |
● |
| |
9 |
GEAR; CM/SHF
Z=54
|
1-12522-055-2 |
01 |
1 |
9911- |
● |
|
● |
● |
● |
| |
14 |
KEY; CM/SHF
|
9-08055-516-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
14 |
KEY; CM/SHF
|
9-08055-516-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
14 |
KEY; CM/SHF
|
9-08055-516-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
14 |
KEY; CM/SHF
|
9-08055-516-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-074-2 |
01 |
1 |
9603-9610 |
● |
|
|
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-085-1 |
01 |
1 |
9611-9706 |
● |
|
|
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-085-1 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-085-1 |
01 |
1 |
9805-9806 |
● |
● |
● |
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-090-0 |
01 |
1 |
9807-9904 |
● |
● |
● |
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-090-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
55 |
PLUG; ROCKER SHAFT END
OD=18
|
9-11129-082-0 |
02 |
1 |
9603-9706 |
● |
|
|
|
|
| |
55 |
PLUG; ROCKER SHAFT END
OD=18
|
9-11129-082-0 |
02 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
55 |
PLUG; ROCKER SHAFT END
OD=18
|
9-11129-082-0 |
02 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
55 |
PLUG; ROCKER SHAFT END
OD=18
|
9-11129-082-0 |
02 |
1 |
9905- |
● |
|
● |
● |
● |
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-058-2 |
01 |
1 |
9603-9711 |
● |
|
|
|
|
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-071-0 |
01 |
1 |
9712-9804 |
● |
|
|
|
|
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-071-0 |
01 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-071-0 |
01 |
1 |
9905- |
● |
|
● |
● |
|
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-070-1 |
01 |
1 |
9707-9904 |
|
● |
|
|
|
| |
58 |
BRACKET; ROCKER SHAFT,FRT
|
1-12628-070-3 |
01 |
1 |
9905- |
|
|
|
|
● |
| |
61 |
SCREW; ADJ,BRIDGE
|
9-12616-053-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
61 |
SCREW; ADJ,BRIDGE
|
9-12616-053-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
61 |
SCREW; ADJ,BRIDGE
|
9-12616-053-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
61 |
SCREW; ADJ,BRIDGE
|
9-12616-053-0 |
12 |
1 |
9905-0012 |
● |
|
● |
● |
● |
| |
61 |
SCREW; ADJ,BRIDGE
|
9-12616-053-0 |
12 |
1 |
0101- |
● |
|
● |
● |
|
| |
61 |
SCREW; ADJ,BRIDGE
|
1-12616-042-0 |
12 |
1 |
0101- |
|
|
|
|
● |
| |
62 |
NUT; ADJ SCREW LK BRIDGE
M10
|
9-09840-310-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
62 |
NUT; ADJ SCREW LK BRIDGE
M10
|
9-09840-310-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
62 |
NUT; ADJ SCREW LK BRIDGE
M10
|
9-09840-310-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
62 |
NUT; ADJ SCREW LK BRIDGE
M10
|
9-09840-310-0 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
63 |
BRIDGE
|
1-12611-257-0 |
12 |
1 |
9603-9710 |
● |
|
|
|
|
| |
63 |
BRIDGE
|
1-12611-281-0 |
12 |
1 |
9711-9804 |
● |
|
|
|
|
| |
63 |
BRIDGE
|
1-12611-281-0 |
12 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
63 |
BRIDGE
|
1-12611-277-1 |
12 |
1 |
9707-9904 |
|
● |
|
|
|
| |
63 |
BRIDGE
|
1-12611-277-3 |
12 |
1 |
9905- |
|
|
|
|
● |
| |
63 |
BRIDGE
|
1-12611-281-0 |
12 |
1 |
9905- |
● |
|
● |
● |
|
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
48 |
1 |
9603-9706 |
● |
|
|
|
|
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
48 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
48 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
48 |
1 |
9905- |
● |
|
● |
● |
● |
| |
68 |
SPRING; VLV
|
1-12561-092-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
68 |
SPRING; VLV
|
1-12561-092-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
68 |
SPRING; VLV
|
1-12561-092-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
68 |
SPRING; VLV
|
1-12561-092-0 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
69 |
SPRING; VLV,OUTER
|
1-12561-093-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
69 |
SPRING; VLV,OUTER
|
1-12561-093-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
69 |
SPRING; VLV,OUTER
|
1-12561-093-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
69 |
SPRING; VLV,OUTER
|
1-12561-093-0 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
70 |
SPRING; VLV,INNER
|
1-12562-060-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
70 |
SPRING; VLV,INNER
|
1-12562-060-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
70 |
SPRING; VLV,INNER
|
1-12562-060-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
70 |
SPRING; VLV,INNER
|
1-12562-060-0 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
71 |
SEAT; SPR
(A)
|
1-12563-055-0 |
24 |
1 |
9603-9706 |
● |
|
|
|
|
| |
71 |
SEAT; SPR
(A)
|
1-12563-055-0 |
24 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
71 |
SEAT; SPR
(A)
|
1-12563-055-0 |
24 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-056-2 |
24 |
1 |
9603-9706 |
● |
|
|
|
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-056-2 |
24 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-056-2 |
24 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-056-2 |
24 |
1 |
9905- |
● |
|
● |
● |
● |
| |
71 |
SEAT; SPR
(A)
|
1-12563-055-0 |
24 |
1 |
9905- |
● |
|
● |
● |
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
24 |
1 |
9603-9604 |
● |
|
|
|
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-019-1 |
24 |
1 |
9605-9706 |
● |
|
|
|
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-019-1 |
24 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-019-1 |
24 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-019-1 |
24 |
1 |
9905-0005 |
● |
|
● |
● |
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-020-0 |
24 |
1 |
0006- |
● |
|
● |
● |
● |
| |
75 |
BOLT; BRKT
M12X97 FLANGE
|
1-09044-087-1 |
07 |
1 |
9603-9706 |
● |
|
|
|
|
| |
75 |
BOLT; BRKT
M12X97 FLANGE
|
1-09044-087-1 |
07 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
75 |
BOLT; BRKT
M12X97 FLANGE
|
1-09044-087-1 |
07 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
75 |
BOLT; BRKT
M12X97 FLANGE
|
1-09044-087-1 |
07 |
1 |
9905- |
● |
|
● |
● |
● |
| |
78 |
ARM; ROCKER
|
1-12610-062-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
78 |
ARM; ROCKER
|
1-12610-061-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
78 |
ARM; ROCKER
|
1-12610-061-1 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
78 |
ARM; ROCKER
|
1-12610-061-1 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-034-1 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-034-1 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-034-1 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-034-1 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
83 |
NUT; ADJ SCREW,LK
M12
|
9-99110-512-0 |
12 |
1 |
9603-9706 |
● |
|
|
|
|
| |
83 |
NUT; ADJ SCREW,LK
M12
|
9-99110-512-0 |
12 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
83 |
NUT; ADJ SCREW,LK
M12
|
9-99110-512-0 |
12 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
83 |
NUT; ADJ SCREW,LK
M12
|
9-99110-512-0 |
12 |
1 |
9905- |
● |
|
● |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-055-2 |
05 |
1 |
9603-9711 |
● |
|
|
|
|
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-069-0 |
05 |
1 |
9712-9804 |
● |
|
|
|
|
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-069-0 |
05 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-069-0 |
05 |
1 |
9905- |
● |
|
● |
● |
|
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-068-1 |
05 |
1 |
9707-9904 |
|
● |
|
|
|
| |
84 |
BRACKET; ROCKER SHAFT,INTER
|
1-12628-068-2 |
05 |
1 |
9905- |
|
|
|
|
● |
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-472-1 |
06 |
1 |
9603-9706 |
● |
|
|
|
|
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-472-1 |
06 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-472-1 |
06 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-472-1 |
06 |
1 |
9905- |
● |
|
● |
● |
● |
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-059-2 |
01 |
1 |
9603-9711 |
● |
|
|
|
|
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-073-0 |
01 |
1 |
9712-9804 |
● |
|
|
|
|
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-073-0 |
01 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-073-0 |
01 |
1 |
9905- |
● |
|
● |
● |
|
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-072-1 |
01 |
1 |
9707-9904 |
|
● |
|
|
|
| |
97 |
BRACKET; ROCKER SHAFT,RR
|
1-12628-072-3 |
01 |
1 |
9905- |
|
|
|
|
● |
| |
98 |
PIN; SHAFT SET
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9603-9705 |
● |
|
|
|
|
| |
98 |
PIN; SHAFT SET
OD=8 L=14
|
9-08160-814-0 |
01 |
1 |
9706-9706 |
● |
|
|
|
|
| |
98 |
PIN; SHAFT SET
OD=8 L=14
|
9-08160-814-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
98 |
PIN; SHAFT SET
OD=8 L=14
|
9-08160-814-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
98 |
PIN; SHAFT SET
OD=8 L=14
|
9-08160-814-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(A)
M10X45
|
0-16806-045-0 |
03 |
1 |
9603-9604 |
● |
|
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9605-9706 |
● |
|
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9905- |
● |
|
● |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(B)
M10X60
|
0-16806-060-0 |
06 |
1 |
9603-9604 |
● |
|
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M10X60 FLANGE
|
0-28181-060-0 |
06 |
1 |
9605-9706 |
● |
|
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X114
|
1-09070-087-2 |
03 |
1 |
9603-9706 |
● |
|
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X114
|
1-09070-087-2 |
03 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X114
|
1-09070-087-2 |
03 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M10X60 FLANGE
|
0-28181-060-0 |
06 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M10X60 FLANGE
|
0-28181-060-0 |
06 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X114
|
1-09070-087-2 |
03 |
1 |
9905- |
● |
|
● |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(B)
M10X60 FLANGE
|
0-28181-060-0 |
06 |
1 |
9905- |
● |
|
● |
● |
● |
| |
106 |
WASHER; IDLE GEAR SHAFT
ID=10
|
1-09503-033-1 |
09 |
1 |
9603-9604 |
● |
|
|
|
|
| |
108 |
DOWEL; SHAFT
(C)
|
1-12539-024-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
108 |
DOWEL; SHAFT
(C)
|
1-12539-024-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
108 |
DOWEL; SHAFT
(C)
|
1-12539-024-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
108 |
DOWEL; SHAFT
(A)
|
8-94108-075-1 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
108 |
DOWEL; SHAFT
(A)
|
8-94108-075-1 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
108 |
DOWEL; SHAFT
(B)
|
9-08161-225-0 |
01 |
1 |
9603-9606 |
● |
|
|
|
|
| |
108 |
DOWEL; SHAFT
(B)
OD=12 L=32
|
9-08161-232-0 |
01 |
1 |
9607-9706 |
● |
|
|
|
|
| |
108 |
DOWEL; SHAFT
(B)
OD=12 L=32
|
9-08161-232-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
108 |
DOWEL; SHAFT
(B)
OD=12 L=32
|
9-08161-232-0 |
01 |
1 |
9805-9903 |
● |
● |
● |
|
|
| |
108 |
DOWEL; SHAFT
(A)
|
8-94108-075-1 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
108 |
DOWEL; SHAFT
(B)
OD=12 L=32
|
9-08161-232-0 |
01 |
1 |
9904-9904 |
● |
● |
● |
|
|
| |
108 |
DOWEL; SHAFT
(C)
|
1-12539-024-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
108 |
DOWEL; SHAFT
(A)
|
8-94108-075-1 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
108 |
DOWEL; SHAFT
(B)
OD=12 L=32
|
9-08161-232-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
109 |
SHAFT; IDLE GEAR
(C)
|
1-12531-048-4 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(C)
|
1-12531-048-4 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(C)
|
1-12531-048-4 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
109 |
SHAFT; IDLE GEAR
(B)
|
1-12531-049-4 |
01 |
1 |
9603-9606 |
● |
|
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(B)
|
1-12531-076-0 |
01 |
1 |
9607-9706 |
● |
|
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(B)
|
1-12531-076-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(A)
|
1-12531-050-4 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(A)
|
1-12531-050-4 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
109 |
SHAFT; IDLE GEAR
(A)
|
1-12531-050-4 |
01 |
1 |
9805-9903 |
● |
● |
● |
|
|
| |
109 |
SHAFT; IDLE GEAR
(B)
|
1-12531-076-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
109 |
SHAFT; IDLE GEAR
(A)
|
1-12531-050-4 |
01 |
1 |
9904-9904 |
● |
● |
● |
|
|
| |
109 |
SHAFT; IDLE GEAR
(C)
|
1-12531-048-4 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
109 |
SHAFT; IDLE GEAR
(A)
|
1-12531-050-4 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
109 |
SHAFT; IDLE GEAR
(B)
|
1-12531-076-2 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-213-3 |
01 |
1 |
9603-9606 |
● |
|
|
|
|
| |
110 |
GEAR ASM; IDLE
(B)
|
1-12523-215-3 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
110 |
GEAR ASM; IDLE
(B)
|
1-12523-215-3 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
110 |
GEAR ASM; IDLE
(B)
|
1-12523-215-3 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
110 |
GEAR ASM; IDLE
(C)
|
1-12523-232-4 |
01 |
1 |
9603-9804 |
● |
|
|
|
|
| |
110 |
GEAR ASM; IDLE
(C)
|
1-12523-232-4 |
01 |
1 |
9805-9903 |
● |
|
● |
|
|
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-270-0 |
01 |
1 |
9607-9706 |
● |
|
|
|
|
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-270-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-270-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-232-4 |
01 |
1 |
9904-9904 |
● |
|
● |
|
|
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-270-0 |
01 |
1 |
9905-9910 |
● |
|
● |
● |
● |
| |
110 |
GEAR ASM; IDLE
(A)
|
1-12523-313-0 |
01 |
1 |
9911- |
● |
|
● |
● |
● |
| |
110 |
GEAR ASM; IDLE
(C)
|
1-12523-231-5 |
01 |
1 |
9707-9904 |
|
● |
|
|
|
| |
110 |
GEAR ASM; IDLE
(C)
|
1-12523-231-6 |
01 |
1 |
9905- |
|
|
|
|
● |
| |
110 |
GEAR ASM; IDLE
(B)
|
1-12523-215-3 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
110 |
GEAR ASM; IDLE
(C)
|
1-12523-232-6 |
01 |
1 |
9905- |
● |
|
● |
● |
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(A)
|
1-12535-008-1 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(A)
|
1-12535-008-1 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(A)
|
1-12535-008-1 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(B)
|
1-12535-019-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(B)
|
1-12535-019-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(B)
|
1-12535-019-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
(A)
|
1-12535-008-1 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
(B)
|
1-12535-019-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-105-0 |
01 |
1 |
9603-9607 |
● |
|
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-124-0 |
01 |
1 |
9608-9706 |
● |
|
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-124-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-124-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
206 |
BUSHING; IDLE GEAR
(B)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-108-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(B)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-108-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-113-0 |
01 |
1 |
9603-9706 |
● |
|
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-113-0 |
01 |
1 |
9707-9804 |
● |
● |
|
|
|
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-113-0 |
01 |
1 |
9805-9903 |
● |
● |
● |
|
|
| |
206 |
BUSHING; IDLE GEAR
(B)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-108-0 |
01 |
1 |
9805-9904 |
● |
● |
● |
|
|
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-113-0 |
01 |
1 |
9904-9904 |
● |
● |
● |
|
|
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-124-1 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(B)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-108-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
1-09330-113-0 |
01 |
1 |
9905- |
● |
|
● |
● |
● |
| |
212 |
CAP; ADJ SCREW
|
1-12616-037-0 |
12 |
1 |
9603-9804 |
● |
|
|
|
|
| |
212 |
CAP; ADJ SCREW
|
1-12616-037-0 |
12 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
212 |
CAP; ADJ SCREW
|
1-12616-040-0 |
12 |
1 |
9707-9904 |
|
● |
|
|
|
| |
212 |
CAP; ADJ SCREW
|
1-12616-040-0 |
12 |
1 |
9905- |
|
|
|
|
● |
| |
212 |
CAP; ADJ SCREW
|
1-12616-037-0 |
12 |
1 |
9905- |
● |
|
● |
● |
|
| |
231 |
PLATE; CAP
|
1-12619-004-0 |
12 |
1 |
9603-9804 |
● |
|
|
|
|
| |
231 |
PLATE; CAP
|
1-12619-004-0 |
12 |
1 |
9805-9904 |
● |
|
● |
|
|
| |
231 |
PLATE; CAP
|
1-12619-011-2 |
12 |
1 |
9707-9904 |
|
● |
|
|
|
| |
231 |
PLATE; CAP
|
1-12619-011-2 |
12 |
1 |
9905- |
|
|
|
|
● |
| |
231 |
PLATE; CAP
|
1-12619-004-0 |
12 |
1 |
9905- |
● |
|
● |
● |
|
| |
241 |
RING; FRICTION
|
1-12529-003-0 |
01 |
1 |
9707-9904 |
|
● |
|
|
|
| |
241 |
RING; FRICTION
|
1-12529-003-0 |
01 |
1 |
9905- |
|
|
|
|
● |
