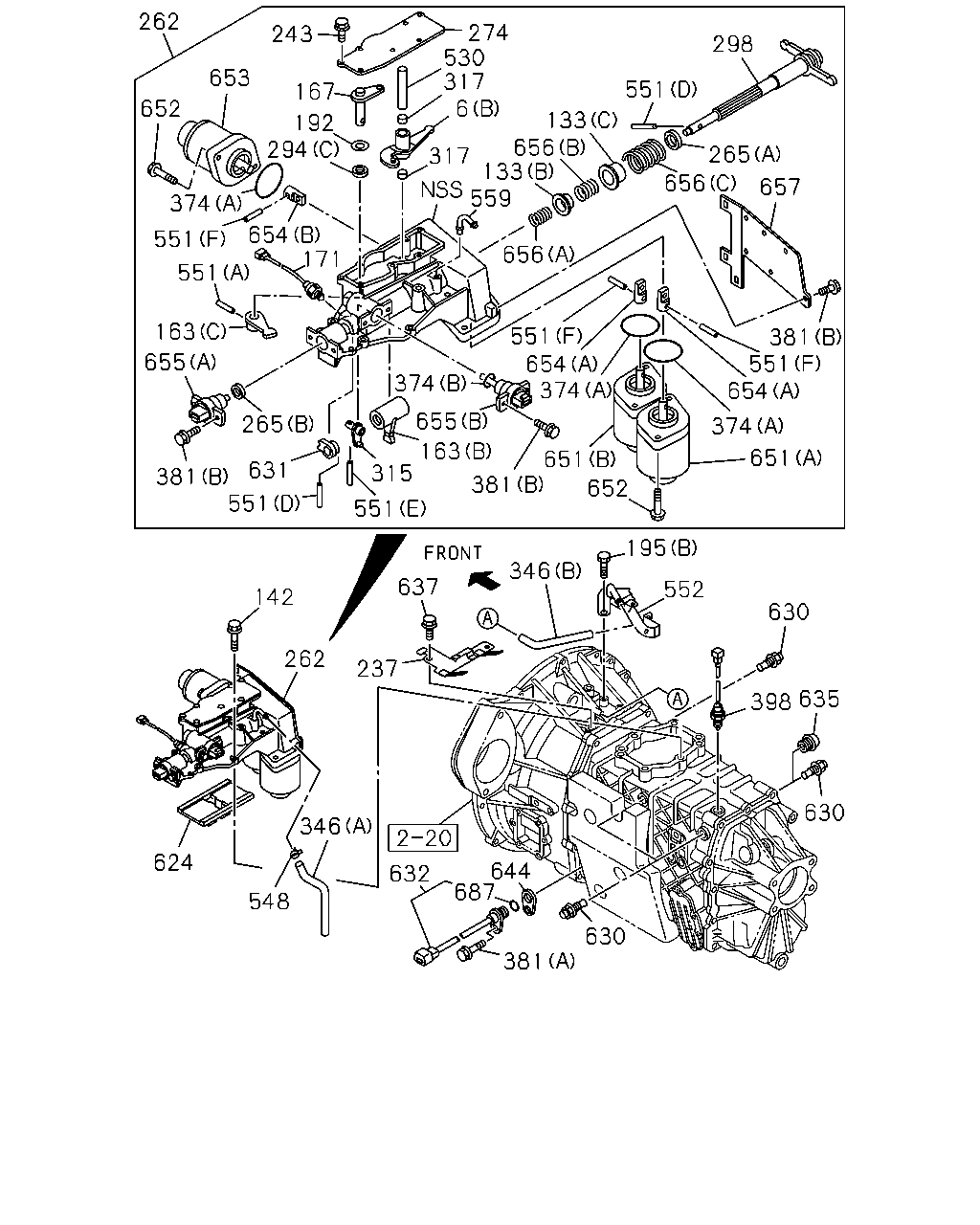

2-30 — GEAR SHIFTER AND QUADRANT BOX (#46687) — 585 parça

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 637 552 142 630 262 237 398 635 630 346 644 687 624 632 548 630 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	0302-	●
6	04.302 LEVER; RELAY 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0507-0507	●
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0508-0606	●	●
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0607-	●	●	●
133	04.027 SEAT; SPR (A)	8-97305-667-0	01	1	0302-0506	●
133	04.027 SEAT; SPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0507-0606	●
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0607-	●
133	04.027 SEAT; SPR 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0507-0507	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0508-0606	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0607-	●	●	●
133	04.027 SEAT; SPR 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0507-0507	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0508-0606	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0607-	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0506	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0507-0604	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0606	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0607-	●	●	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0507-0507	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0508-0606	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0607-0610	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0611-	●	●	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0507-0507	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0508-0606	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0607-0610	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0611-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	0302-0506	●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0507-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0607-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0507-0507	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0508-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0607-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0507-0507	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0508-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0607-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-0612			●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-	●		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0302-0506		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97305-665-0	01	1	0302-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-648-0	01	1	0507-0606	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-596-0	01	1	0607-0611		●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-444-0	01	1	0612-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0507-0507	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0508-0606	●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0607-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97333-847-0	01	1	0302-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0507-0606	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0607-0611	●		●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0612-0612	●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0604	●	●
171	04.054 SWITCH; NEUTRAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0605-0611	●	●
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0605-0606	●	●
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0607-0611	●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0607-0611			●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0612-	●	●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0302-0303	●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0304-0506		●
192	04.309 WASHER; PL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0507-0606		●
192	04.309 WASHER; PL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0607-		●	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	0304-0506	●
192	04.309 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0507-0606	●
192	04.309 WASHER; PL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0607-	●
192	04.309 WASHER; PL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0507-0507	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0508-0606	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0607-	●	●	●
195	04.105 BOLT 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0604	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0606	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0607-	●	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97369-186-1	01	1	0507-0606	●	●
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97369-186-1	01	1	0607-0611	●	●	●
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-905-1	01	1	0612-	●	●	●
243	04.105 BOLT; COVER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 M6X12 FLANGE	0-28080-612-0	11	1	0507-0507	●
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 M6X12 FLANGE	0-28080-612-0	11	1	0508-0512	●	●
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE	0-28050-612-0	11	1	0601-0606	●	●
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE	0-28050-612-0	11	1	0607-0906	●	●	●
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE	1-33739-842-0	11	1	0907-	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-97329-083-1	01	1	0302-0506		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-823-9	01	1	0507-0606		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-592-1	01	1	0607-		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0605-0606		●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0607-0610	●	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-6	01	1	0611-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97329-084-1	01	1	0302-0404	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97362-751-0	01	1	0405-0506	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0507-0507	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0508-0604	●	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0605-0606	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-750-1	01	1	0507-0606	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-591-1	01	1	0607-			●
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97310-609-2	01	1	0302-0404	●
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97362-753-0	01	1	0405-0506	●
262	04.105 BOX ASM; SHIFT CONT 4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-1	01	1	0507-0606	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-2	01	1	0607-	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0507-0507	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0508-0606	●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-	●	●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0507-0507	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0508-0606	●	●
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0607-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-000-0	01	1	0507-0507	●
274	04.105 COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-000-0	01	1	0508-0606	●	●
274	04.105 COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-000-0	01	1	0607-0610	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0611-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0302-0303	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	0304-0506	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0507-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0302-0506	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0507-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0607-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0507-0507	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0508-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0607-	●	●	●
298	04.309 SHAFT; SHIFT LEVER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0507-0507	●
298	04.309 SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0508-0606	●	●
298	04.309 SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0607-	●	●	●
315	04.302 LEVER; SELECT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0507-0507	●
315	04.302 LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0508-0606	●	●
315	04.302 LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0607-	●	●	●
317	04.302 BUSHING; LEVER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0507-0507	●
317	04.302 BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0508-0606	●	●
317	04.302 BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0607-	●	●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0302-0606	●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0607-	●	●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0507-0606	●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0607-	●	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0507-0507	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0508-0606	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0607-	●	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0507-0507	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0508-0606	●	●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0607-	●	●	●
381	04.105 BOLT 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0302-0512	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-0606	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-	●	●
381	04.105 BOLT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-			●
381	04.105 BOLT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0507	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0508-0512	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0601-0606	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0607-0906	●	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●	●	●
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0607-			●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0604	●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0605-0606	●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0607-	●	●	●
530	04.302 SHAFT; SELECT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0507-0507	●
530	04.302 SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0508-0606	●	●
530	04.302 SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0607-	●	●	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0302-0606	●	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0508-		●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0507	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0508-0606	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0607-	●		●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0508-0606	●	●

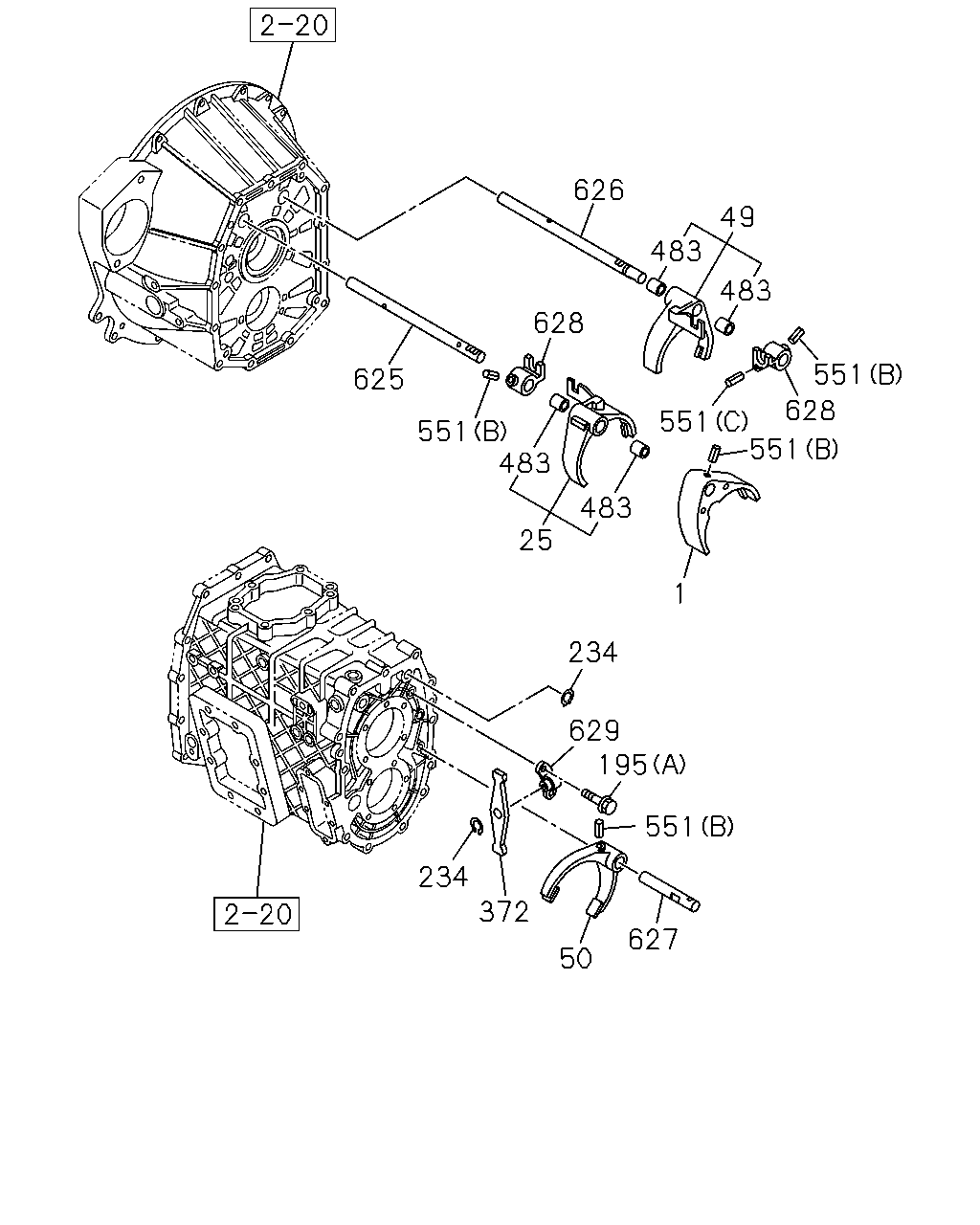

551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0607-			●
552	04.105 BRACKET 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97385-018-2	01	1	0508-0606		●
552	04.105 BRACKET 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97385-018-2	01	1	0607-		●
552	04.105 BRACKET 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-914-1	01	1	0507-0606	●
552	04.105 BRACKET 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-914-1	01	1	0607-	●		●
559	04.302 PIPE; BREATHER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	03	1	0507-0507		●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0302-0506	●	●
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	01	1	0507-0507	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	01	1	0508-0604	●	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0605-0606	●	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0607-	●	●	●
559	04.302 PIPE; BREATHER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0507-0507	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0508-0606	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0607-0610	●	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0611-	●	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0302-0606	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	0607-	●	●	●
630	04.307 DETENT ASM	8-97241-341-0	04	1	0302-0604		●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0605-0606		●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0607-		●	●
630	04.307 DETENT ASM	8-97241-341-0	03	1	0302-0604	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	0605-	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0302-0506	●	●
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0507-0606	●	●
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0607-	●	●	●
631	04.105 STOPPER; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0507-0507	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0508-0606	●	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0607-	●	●	●
632	04.054 SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0507-0606	●	●
632	04.054 SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0607-	●	●	●
635	04.309 PLUG; DETENT 00.206	8-97229-313-2	01	1	0302-0611	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	0612-	●
637	04.105 BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
637	04.105 BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
637	04.105 BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●
644	04.302 SPACER; SENSOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-489-1	01	1	0607-			●
651	04.309 SOLENOID ASM; SHIFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-828-2	01	1	0507-0507	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-828-2	01	1	0508-0606	●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-828-2	01	1	0607-0610	●	●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98002-759-0	01	1	0611-	●	●	●
651	04.309 SOLENOID ASM; SHIFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97365-922-1	01	1	0507-0507	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97365-922-1	01	1	0508-0606	●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97365-922-1	01	1	0607-0610	●	●	●
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98002-760-0	01	1	0611-	●	●	●
652	04.309 BOLT; SORENOID 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X25 FLANGE	0-28181-025-0	06	1	0507-0507	●
652	04.309 BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X25 FLANGE	0-28181-025-0	06	1	0508-0512	●	●
652	04.309 BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	0601-0606	●	●
652	04.309 BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	0607-	●	●	●
653	04.309 SOLENOID ASM; SELECT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97324-830-1	01	1	0507-0507	●
653	04.309 SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97324-830-1	01	1	0508-0606	●	●
653	04.309 SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97324-830-1	01	1	0607-0610	●	●	●
653	04.309 SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0611-	●	●	●
654	04.309 JOINT; SOLENOID,CASE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0507-0507	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0508-0606	●	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0607-	●	●	●
654	04.309 JOINT; SOLENOID,CASE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0507-0507	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0508-0606	●	●
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0607-	●	●	●
655	04.309 SENSOR; STROKE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0507-0507	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0508-0606	●	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0607-	●	●	●
655	04.309 SENSOR; STROKE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0507-0507	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0508-0606	●	●
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0607-	●	●	●
656	04.307 SPRING; SHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0507-0507	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0508-0606	●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0607-	●	●	●
656	04.307 SPRING; SHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0507-0507	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0508-0606	●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0607-	●	●	●
656	04.307 SPRING; SHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0507-0507	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0508-0606	●	●
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0607-	●	●	●
657	04.105 PLATE; SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-001-0	01	1	0507-0507	●
657	04.105 PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-001-0	01	1	0508-0606	●	●
657	04.105 PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-001-0	01	1	0607-0610	●	●	●
657	04.105 PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0611-	●	●	●
687	04.075 GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	0508-0606	●	●
687	04.075 GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	0607-	●	●	●

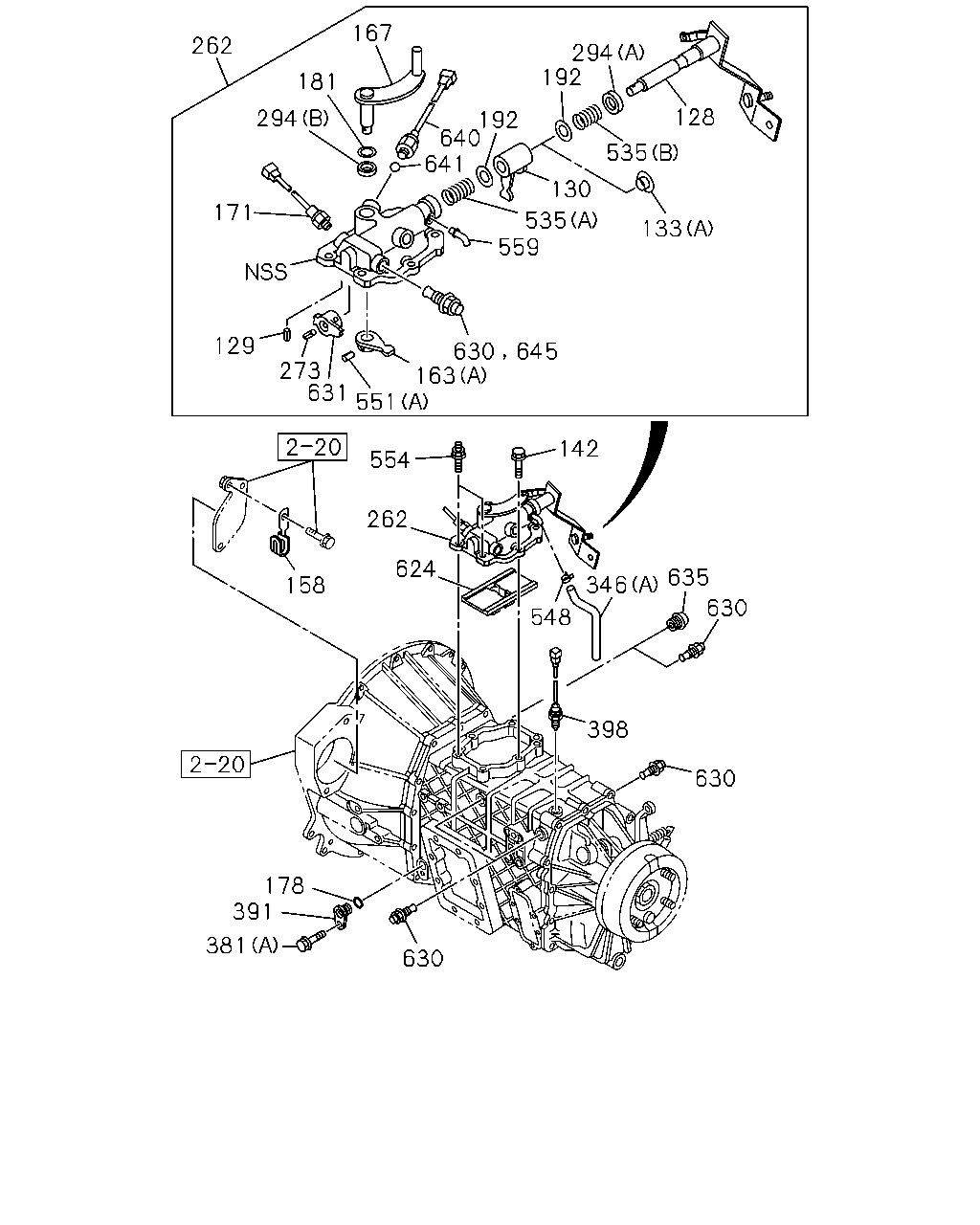

167 262 294 192 181 128 294 192 640 641 535 130 171 535 559 133 129 630 163 551 645 273 631 142 554 262 624 635 346 158 630 548 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0302-0303		●
128	04.030 LEVER; SHIFT,EXTERNAL 4JH1 ENG(RJX)	8-97305-725-0	01	1	0302-0303	●
128	04.030 LEVER; SHIFT,EXTERNAL	8-97363-226-0	01	1	0304-0506		●
128	04.030 LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97363-226-0	01	1	0507-0606		●
128	04.030 LEVER; SHIFT,EXTERNAL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-595-0	01	1	0607-		●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97305-658-0	01	1	0302-0303	●
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0304-0506	●
128	04.030 LEVER; SHIFT,EXTERNAL 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-725-0	01	1	0507-0606	●
128	04.030 LEVER; SHIFT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-725-0	01	1	0607-	●
128	04.030 LEVER; SHIFT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97363-226-0	01	1	0607-			●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0302-0506	●	●
129	04.027 PIN; SPR,SHIFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=30 OD=4	1-09748-031-0	01	1	0507-0606	●	●
129	04.027 PIN; SPR,SHIFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=30 OD=4	1-09748-031-0	01	1	0607-	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0302-0303		●
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-97306-647-0	01	1	0302-0303	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0304-0506	●	●
130	04.302 LEVER; SHIFT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-647-0	01	1	0507-0606	●	●
130	04.302 LEVER; SHIFT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-647-0	01	1	0607-	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0302-0303	●
133	04.027 SEAT; SPR (A)	8-97305-667-0	01	1	0302-0506	●
133	04.027 SEAT; SPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0507-0606	●
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0607-	●
133	04.027 SEAT; SPR 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0507-0507	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0508-0606	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0607-	●	●	●
133	04.027 SEAT; SPR 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0507-0507	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0508-0606	●	●
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0607-	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0506	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0507-0604	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0606	●	●
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0607-	●	●	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0507-0507	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0508-0606	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0607-0610	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0611-	●	●	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0507-0507	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0508-0606	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0607-0610	●	●	●
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0611-	●	●	●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX)	8-97300-317-0	01	1	0302-0302	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	0302-0506	●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0507-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0607-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0507-0507	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0508-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0607-	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0507-0507	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0508-0606	●	●
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0607-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-0612			●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-	●		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0302-0506		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97305-665-0	01	1	0302-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-648-0	01	1	0507-0606	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-596-0	01	1	0607-0611		●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-444-0	01	1	0612-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0507-0507	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0508-0606	●	●
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0607-	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97333-847-0	01	1	0302-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0507-0606	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0607-0611	●		●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0612-0612	●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0604	●	●
171	04.054 SWITCH; NEUTRAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0605-0611	●	●
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0605-0606	●	●
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0607-0611	●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0607-0611			●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0612-	●	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0302-0506	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0507-0606	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0607-	●	●	●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0302-0303	●	●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0304-0506	●	●
181	04.302 WASHER; PL,SELECT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-327-0	01	1	0507-0606	●	●
181	04.302 WASHER; PL,SELECT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-327-0	01	1	0607-	●	●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0302-0303	●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0304-0506		●
192	04.309 WASHER; PL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0507-0606		●
192	04.309 WASHER; PL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0607-		●	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	0304-0506	●
192	04.309 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0507-0606	●
192	04.309 WASHER; PL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0607-	●
192	04.309 WASHER; PL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0507-0507	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0508-0606	●	●
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0607-	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-97329-083-1	01	1	0302-0506		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-823-9	01	1	0507-0606		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-592-1	01	1	0607-		●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0605-0606		●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0607-0610	●	●	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-6	01	1	0611-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97329-084-1	01	1	0302-0404	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97362-751-0	01	1	0405-0506	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0507-0507	●
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0508-0604	●	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97319-536-5	01	1	0605-0606	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-750-1	01	1	0507-0606	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-591-1	01	1	0607-			●
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97310-609-2	01	1	0302-0404	●
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97362-753-0	01	1	0405-0506	●
262	04.105 BOX ASM; SHIFT CONT 4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-1	01	1	0507-0606	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-2	01	1	0607-	●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	0302-0506	●	●
273	04.309 PIN; SPR,STOPPER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0507-0606	●	●
273	04.309 PIN; SPR,STOPPER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0607-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0302-0303	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	0304-0506	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0507-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0302-0506	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0507-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0607-	●	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0507-0507	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0508-0606	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0607-	●	●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0302-0606	●	●
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0607-	●	●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0507-0606	●	●
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0607-	●	●	●
381	04.105 BOLT 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0302-0512	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-0606	●	●
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-	●	●
381	04.105 BOLT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-			●
381	04.105 BOLT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0507	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0508-0512	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0601-0606	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0607-0906	●	●	●
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●	●	●
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0607-			●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0302-0506	●	●
391	04.104 PLUG; SW HOLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-273-1	01	1	0507-0606	●	●
391	04.104 PLUG; SW HOLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-273-1	01	1	0607-	●	●	●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0604	●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0605-0606	●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0607-	●	●	●
535	04.302 SPRING; LEVER (A)	8-97305-659-0	01	1	0302-0506		●
535	04.302 SPRING; LEVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-659-0	01	1	0507-0606		●
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-659-0	01	1	0607-		●	●
535	04.302 SPRING; LEVER (B)	8-97305-660-0	01	1	0302-0506		●
535	04.302 SPRING; LEVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-660-0	01	1	0507-0606		●
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-660-0	01	1	0607-		●	●
535	04.302 SPRING; LEVER (A)	8-97323-771-0	01	1	0302-0506	●
535	04.302 SPRING; LEVER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97323-771-0	01	1	0507-0606	●
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97323-771-0	01	1	0607-	●
535	04.302 SPRING; LEVER (B)	8-97323-772-0	01	1	0302-0506	●
535	04.302 SPRING; LEVER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97323-772-0	01	1	0507-0606	●
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97323-772-0	01	1	0607-	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0302-0606	●	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0508-		●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0507	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0508-0606	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0607-	●		●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0607-			●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0302-0506	●	●
554	04.302 STUD; CONT BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49	8-97352-677-0	02	1	0507-0604	●	●
554	04.302 STUD; CONT BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49	8-97365-378-0	02	1	0605-0606	●	●
554	04.302 STUD; CONT BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49	8-97365-378-0	02	1	0607-	●	●	●
559	04.302 PIPE; BREATHER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	03	1	0507-0507		●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0302-0506	●	●
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	01	1	0507-0507	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-517-0	01	1	0508-0604	●	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0605-0606	●	●
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0607-	●	●	●
559	04.302 PIPE; BREATHER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0507-0507	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0508-0606	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0607-0610	●	●	●
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0611-	●	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0302-0606	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	0607-	●	●	●
630	04.307 DETENT ASM	8-97241-341-0	04	1	0302-0604		●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0605-0606		●
630	04.307 DETENT ASM	8-98019-536-0	04	1	0607-		●	●
630	04.307 DETENT ASM	8-97241-341-0	03	1	0302-0604	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	0605-	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0302-0506	●	●
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0507-0606	●	●
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0607-	●	●	●
631	04.105 STOPPER; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0507-0507	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0508-0606	●	●
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0607-	●	●	●
635	04.309 PLUG; DETENT 00.206	8-97229-313-2	01	1	0302-0611	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	0612-	●
640	04.054 SWITCH; SELECT	8-97316-687-1	01	1	0302-0506		●
640	04.054 SWITCH; SELECT 4HE1 ENG(RLY)	8-97316-687-1	01	1	0302-0506	●
641	04.311 BALL	8-97305-668-0	01	1	0302-0506		●
641	04.311 BALL 4HE1 ENG(RLY)	8-97305-668-0	01	1	0302-0506	●
645	04.311 DETENT ASM 04.307	8-97241-341-0	01	1	0405-0506	●
645	04.311 DETENT ASM 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	8-97241-341-0	01	1	0507-0604	●
645	04.311 DETENT ASM 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	8-98019-536-0	01	1	0605-0606	●
645	04.311 DETENT ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	8-98019-536-0	01	1	0607-	●	●	●

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0302-		●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0302-0606	●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0607-	●		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0302-0507		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-737-1	01	1	0508-		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97355-690-0	01	1	0302-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-1	01	1	0405-0606	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-2	01	1	0607-	●		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0302-0507		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-738-1	01	1	0508-		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0302-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	0607-			●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0302-		●
50	04.302 ARM; SHIFT,6TH	8-97241-325-1	01	1	0607-			●
195	04.105 BOLT 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0604	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0606	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0607-	●	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0302-0507		●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	01	1	0508-0604		●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0605-0606		●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0607-		●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0302-	●
372	04.302 LEVER; RELAY,6TH	8-97241-342-0	01	1	0302-		●
372	04.302 LEVER; RELAY,6TH	8-97241-343-0	01	1	0607-			●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0607-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0606	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0607-	●		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0607-	●		●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0508-		●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0507	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0508-0606	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0607-	●		●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0607-			●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0302-0507		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-735-0	01	1	0508-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-333-3	01	1	0302-0404	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0405-0606	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0607-	●		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-548-0	01	1	0802-		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97241-334-1	01	1	0302-0507		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97383-754-0	01	1	0508-0801		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97383-754-0	01	1	0802-		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97366-024-1	01	1	0607-			●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0302-0606		●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0607-0805		●	●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	0806-		●	●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0302-0606		●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0607-		●	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0302-0606		●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0607-		●	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0302-	●

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0302-		●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0302-0606	●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0607-	●		●
6	04.302 LEVER; RELAY (A)	8-97241-344-0	01	1	0302-	●
6	04.302 LEVER; RELAY 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0507-0507	●
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0508-0606	●	●
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0607-	●	●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0302-0507		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-737-1	01	1	0508-		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97355-690-0	01	1	0302-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-1	01	1	0405-0606	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-2	01	1	0607-	●		●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	0302-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	0302-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0302-0507		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-738-1	01	1	0508-		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0302-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-732-1	01	1	0607-			●
195	04.105 BOLT 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0604	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0606	●	●
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0607-	●	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0302-0507		●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	01	1	0508-0604		●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0605-0606		●
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0607-		●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0302-	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0607-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0606	●	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0607-	●		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	02	1	0607-	●		●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0508-		●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0507	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0508-0606	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0607-	●		●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0606	●	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-	●	●	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0507-0507	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0508-0606	●	●
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-	●	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	01	1	0607-			●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0302-0507		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-735-0	01	1	0508-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-333-3	01	1	0302-0404	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0405-0606	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0607-	●		●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0302-0606		●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0607-		●	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0302-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-518-0	01	1	1202-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97358-832-0	01	1	0302-0404	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97362-743-0	01	1	0405-1201	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-743-0	01	1	1202-	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	0302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
