◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#46678) — 77 parça

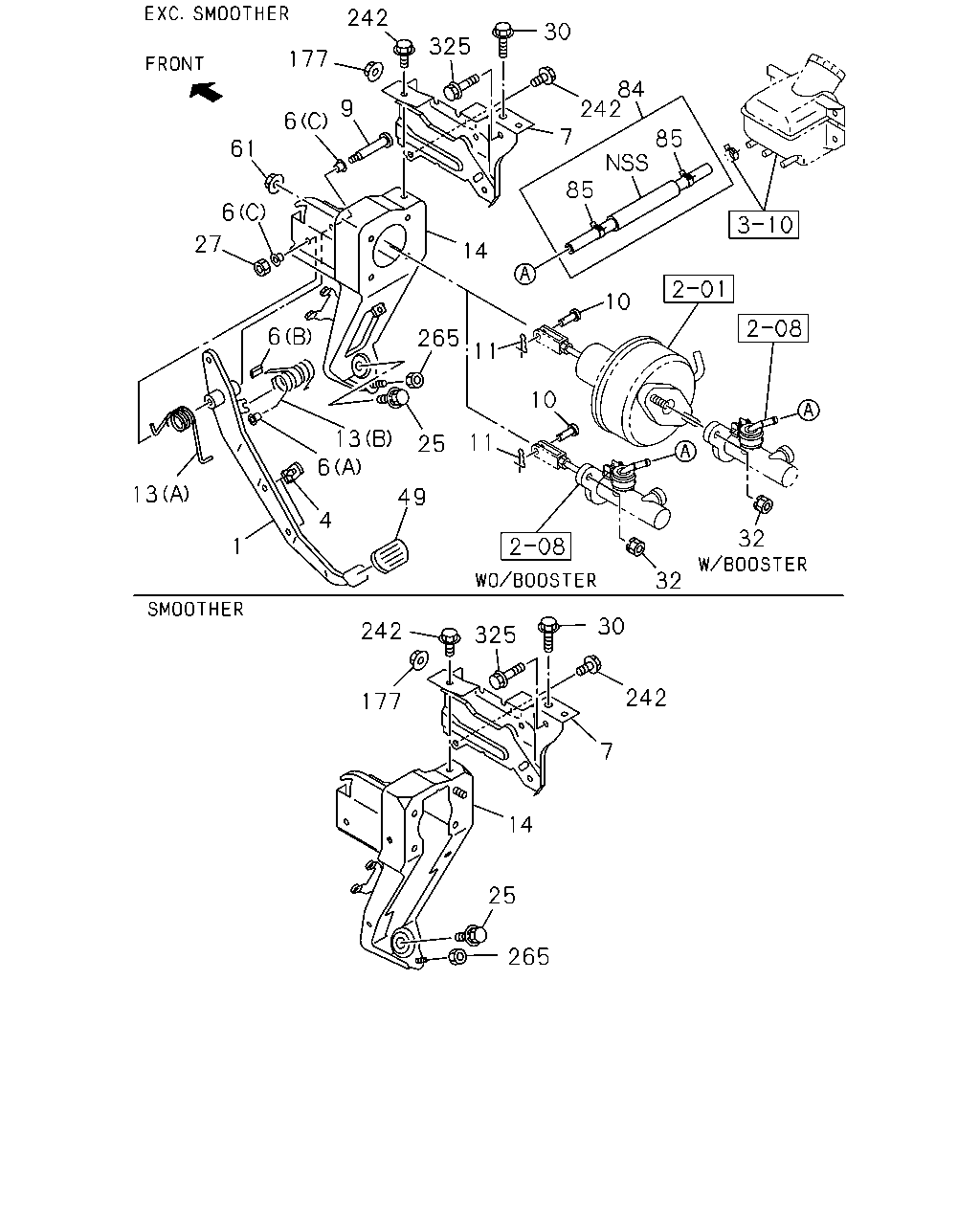

çizim 13295
242 30 325 177 84 242 7 9 6 85 61 85 6 27 14 10 6 265 11 10 11 13 25 6 13 49 4 32 1 32 30 242 325 242 177 7 14 25 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0507-0606 ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0507-0606 ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0607- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97857-984-2 01 1 0507-0606 ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97857-984-2 01 1 0507-0606 ●
1 00.830 PEDAL; CLU
4HK1-TCC ENG(RDV) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97857-984-2 01 1 0607- ● ● ● ●
1 00.830 PEDAL; CLU
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-2 01 1 0302-0506 ●
1 00.830 PEDAL; CLU
4JH1-TC ENG(RDM) 		8-97853-219-2 01 1 0507-0606 ●
1 00.830 PEDAL; CLU
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-2 01 1 0507-0606 ●
1 00.830 PEDAL; CLU
4JJ1 ENG(LFB) EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-219-2 01 1 0607- ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0302-0506 ● ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-534-1 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.792 (C) 		8-94238-596-0 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-619-0 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0302-0506 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97853-620-0 01 1 0507- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0302-0506 ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0507- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0302-0506 ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-97866-667-0 01 1 0507- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0302-0506 ● ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0507- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0302-0506 ● ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0507- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0302-0506 ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0507-0606 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0507-0606 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0607- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0302-0506 ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97853-221-1 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0302-0506 ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97892-849-3 01 1 0507-0606 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97892-849-3 01 1 0507-0606 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97892-849-3 01 1 0607- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0302-0506 ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97892-848-3 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97898-055-1 01 1 0507-0606 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97898-055-1 01 1 0607- ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0302-0506 ● ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0507- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0302-0506 ● ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		1-09440-022-0 01 1 0507- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0302-0506 ● ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0507-0512 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0302-0506 ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0302-0506 ● ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-413-2 01 1 0507- ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0302-0506 ● ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 04 1 0507-0606 ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 04 1 0607- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0302-0506 ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0507-0606 ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-025-0 01 1 0507-0606 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-025-0 01 1 0507-0606 ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-025-0 01 1 0607- ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0302-0506 ● ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0507-0606 ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0507-0606 ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0507-0606 ●
85 00.785 CLIP; HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0607- ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0302-0506 ● ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0302-0506 ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0507-0512 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0302-0506 ● ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0507-0610 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ● ●
