Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#46676) — 205 parça

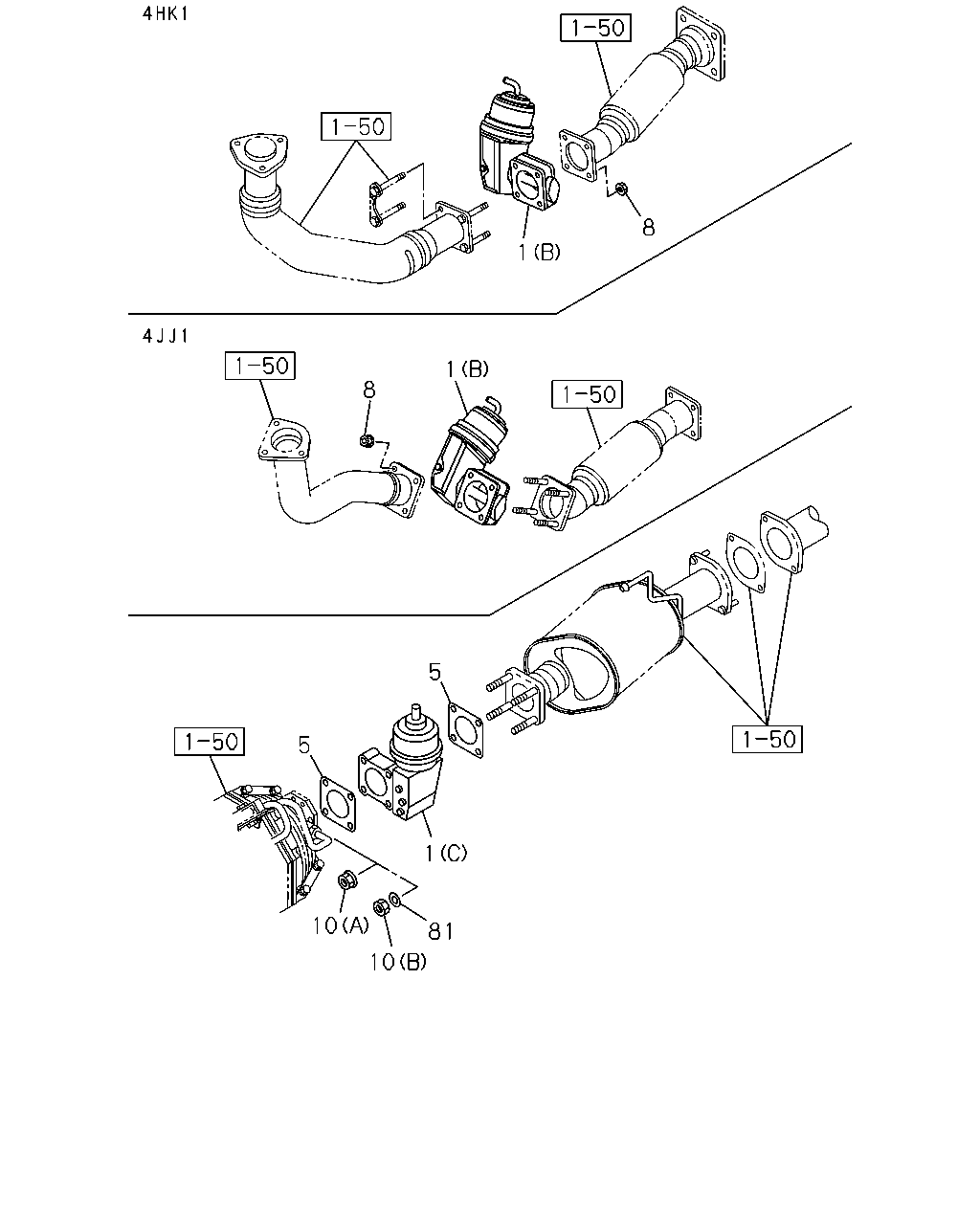

8 1 1 8 5 5 1 81 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY) (A)	8-97308-232-1	01	1	0302-0506	●	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97308-232-1	01	1	0507-0606		●	●		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-97308-232-1	01	1	0507-0606						●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-97384-097-1	01	1	0607-0610	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-97384-097-1	01	1	0607-0610		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-97384-097-1	01	1	0607-0610					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98062-604-0	01	1	0611-0611	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98062-604-0	01	1	0611-0611		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98062-604-0	01	1	0611-0611					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98068-178-1	01	1	0612-1212	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98068-178-1	01	1	0612-1212		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98068-178-1	01	1	0612-1212					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98227-170-0	01	1	1301-	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98227-170-0	01	1	1301-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98227-170-0	01	1	1301-					●		●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) (A)	8-97351-465-0	01	1	0302-0506		●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) (A)	8-97351-465-0	01	1	0507-0606	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-97384-098-2	01	1	0607-1012	●	●	●			●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-98167-677-1	01	1	1101-	●	●	●			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (C)	8-98035-862-2	01	1	0607-1012		●	●		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (C)	8-98167-678-1	01	1	1101-		●	●		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	0302-0506	●	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=64	8-97037-694-0	02	1	0507-0606		●	●		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) ID=64	8-97037-694-0	02	1	0507-0606						●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) ID=54	8-94328-354-0	02	1	0302-0506		●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1-TC ENG(RDM) ID=54	8-94328-354-0	02	1	0507-0606	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0607-	●					●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.611 ID=64	8-97373-108-0	02	1	0607-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCC ENG(RDV) 03.611 ID=64	8-97373-108-0	02	1	0607-					●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0302-0506	●		●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0302-0506		●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	0507-0512	●	●	●		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.334 M8	0-91110-508-0	04	1	0601-0606	●	●	●		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●					●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805		●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805					●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●					●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-		●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-					●		●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCC ENG(RDV) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-	●	●	●		●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●					●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805		●	●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCC ENG(RDV) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805					●		●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0806-1203	●					●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0806-1203		●	●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCC ENG(RDV) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0806-1203					●		●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCC ENG(RDV) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-	●	●	●		●	●	●
81	08.931 WASHER; LK 4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCC ENG(RDV) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-	●	●	●		●	●	●

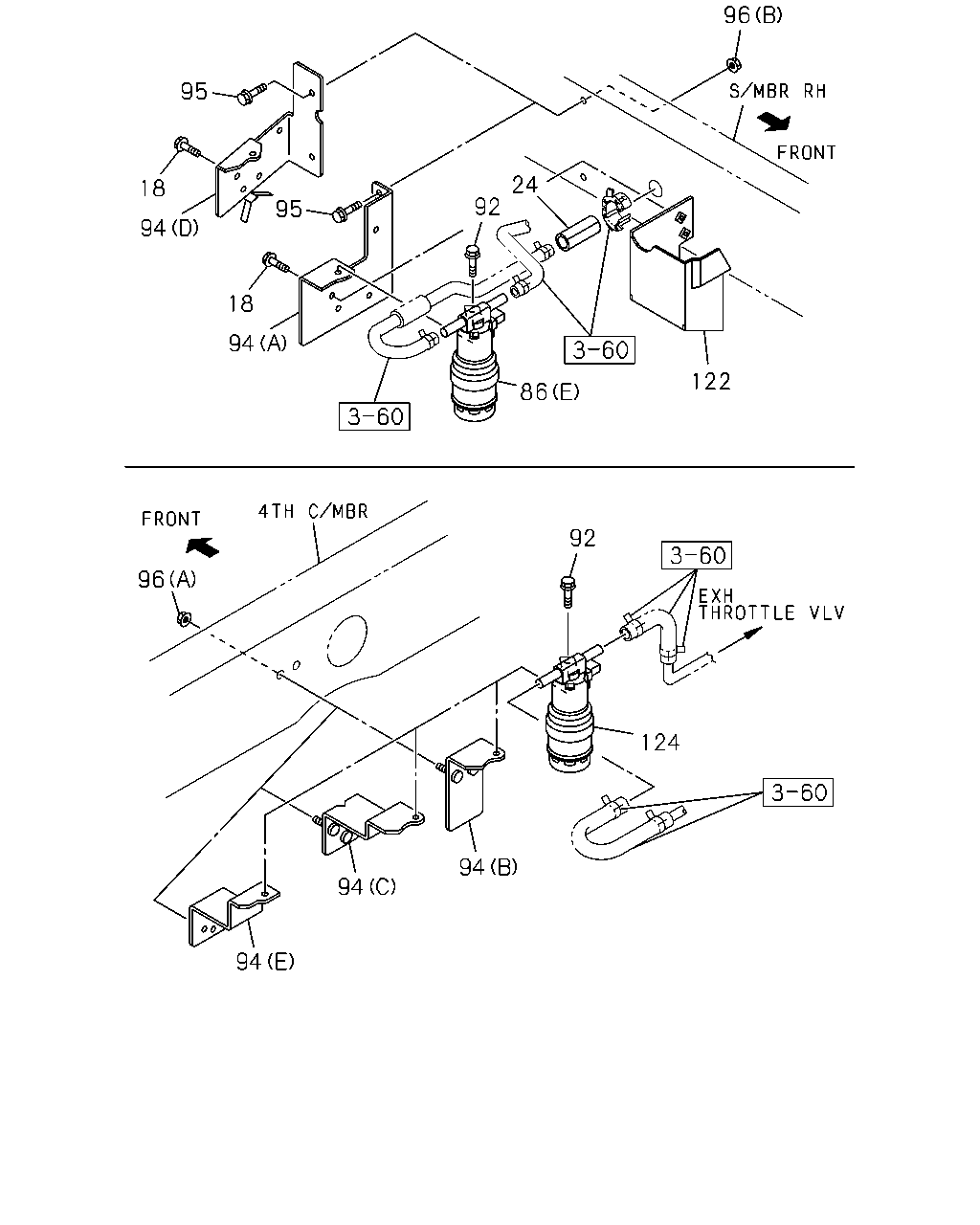

96 95 24 18 92 95 94 18 94 122 86 92 96 124 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
18	03.636 BOLT; PROTECTOR 4JJ1 ENG(LFB) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●					●
18	03.636 BOLT; PROTECTOR 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-		●	●
18	03.636 BOLT; PROTECTOR 4HK1-TCC ENG(RDV) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-					●		●
24	03.008 PROTECTOR; AIR FILTER FRAME STRAIGHT TYPE<7KJ> 03.162 OD=15 L=50	8-97077-629-0	01	1	0607-		●	●
24	03.008 PROTECTOR; AIR FILTER 03.162 OD=15 L=50	8-97077-629-0	01	1	0607-					●		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (A)	8-97090-972-0	01	1	0302-0405	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (A)	8-97374-165-0	01	1	0406-0506	●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) (D)	8-97374-166-0	01	1	0507-0606	●
86	03.636 VALVE; MAG,EXH BRK (E)	8-97328-576-0	01	1	0607-0609	●	●	●		●	●	●
86	03.636 VALVE; MAG,EXH BRK (E)	8-98043-344-0	01	1	0610-	●	●	●		●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>,FRAME STRAIGHTTYPE<7KJ> (C)	8-97374-160-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97374-157-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97374-157-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (C)	8-97239-246-0	01	1	0302-0405			●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97374-152-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (C)	8-97374-152-0	01	1	0406-0506			●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97374-152-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97374-152-0	01	1	0507-0606			●		●		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ) (C)	8-97374-152-0	01	1	0507-0606						●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●		●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●		●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) (B)	8-97375-043-1	01	1	0607-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) (D)	8-98023-731-3	01	1	0607-	●					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98023-731-3	01	1	0607-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97370-884-1	01	1	0607-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) (B)	8-97370-884-1	01	1	0607-						●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98009-722-1	01	1	0607-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98009-722-1	01	1	0607-					●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (E)	8-98019-678-1	01	1	0607-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (E)	8-98019-678-1	01	1	0607-					●		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-835-0	01	1	0607-		●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-	●					●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-		●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-	●					●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-		●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0607-	●					●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
122	03.640 PROTECTOR; MAG VLV 4JJ1 ENG(LFB)	8-98022-052-0	01	1	0607-	●					●
122	03.640 PROTECTOR; MAG VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98022-052-0	01	1	0607-		●	●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCC ENG(RDV)	8-98022-052-0	01	1	0607-					●		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-97328-576-0	01	1	0607-0609	●	●	●		●	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	0610-	●	●	●		●	●	●

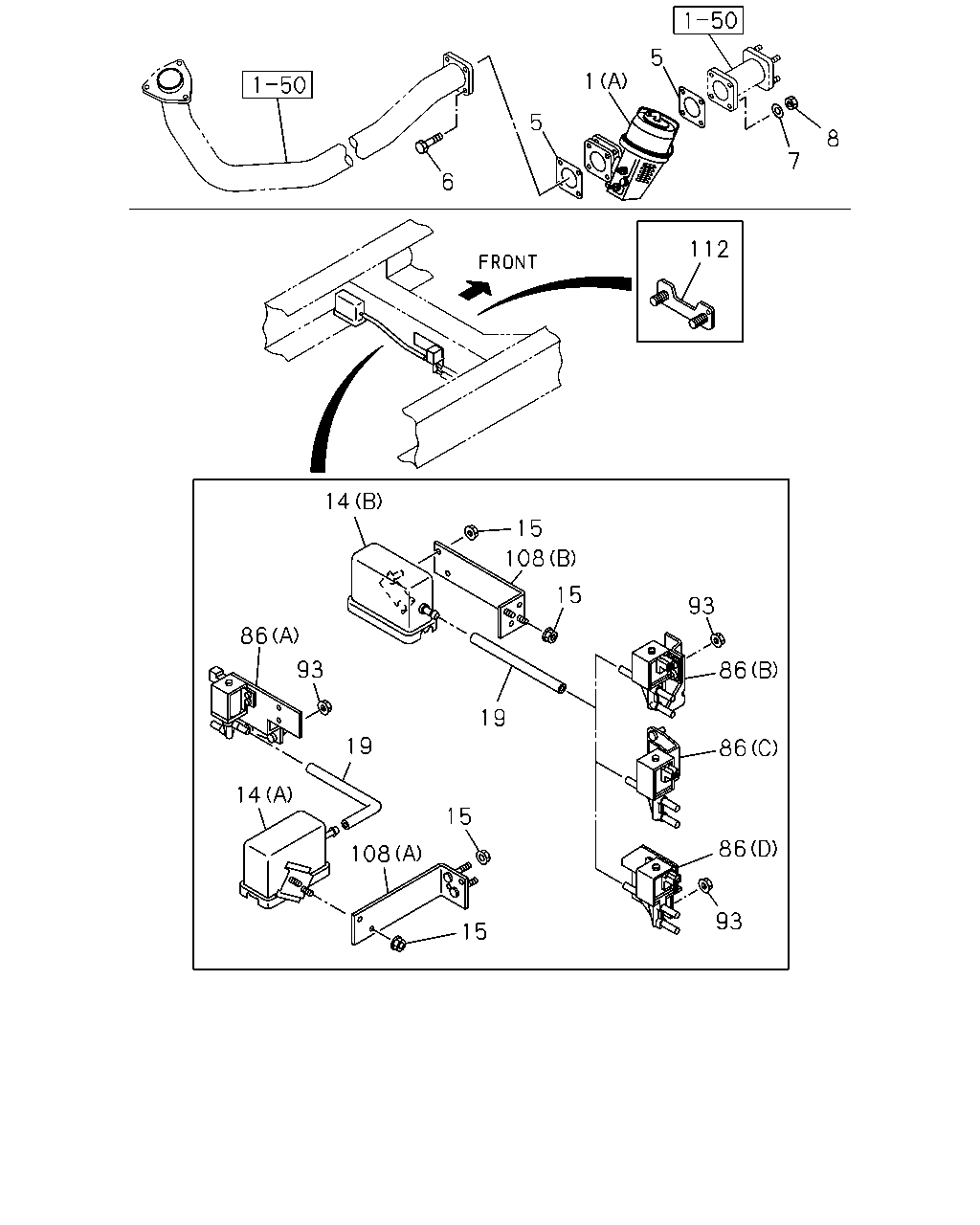

5 1 5 8 7 6 112 14 15 108 15 93 86 93 86 19 19 86 14 15 86 108 93 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY) (A)	8-97308-232-1	01	1	0302-0506	●	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97308-232-1	01	1	0507-0606		●	●		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (A)	8-97308-232-1	01	1	0507-0606						●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-97384-097-1	01	1	0607-0610	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-97384-097-1	01	1	0607-0610		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-97384-097-1	01	1	0607-0610					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98062-604-0	01	1	0611-0611	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98062-604-0	01	1	0611-0611		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98062-604-0	01	1	0611-0611					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98068-178-1	01	1	0612-1212	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98068-178-1	01	1	0612-1212		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98068-178-1	01	1	0612-1212					●		●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98227-170-0	01	1	1301-	●					●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98227-170-0	01	1	1301-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (B)	8-98227-170-0	01	1	1301-					●		●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) (A)	8-97351-465-0	01	1	0302-0506		●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) (A)	8-97351-465-0	01	1	0507-0606	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-97384-098-2	01	1	0607-1012	●	●	●			●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-98167-677-1	01	1	1101-	●	●	●			●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (C)	8-98035-862-2	01	1	0607-1012		●	●		●		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCC ENG(RDV) (C)	8-98167-678-1	01	1	1101-		●	●		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	0302-0506	●	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=64	8-97037-694-0	02	1	0507-0606		●	●		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) ID=64	8-97037-694-0	02	1	0507-0606						●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) ID=54	8-94328-354-0	02	1	0302-0506		●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1-TC ENG(RDM) ID=54	8-94328-354-0	02	1	0507-0606	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0607-	●					●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.611 ID=64	8-97373-108-0	02	1	0607-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCC ENG(RDV) 03.611 ID=64	8-97373-108-0	02	1	0607-					●		●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	0302-0506	●		●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	0302-0506		●
6	03.632 BOLT; EXH BRAKE UNIT FIX 03.708 M8X70	0-10805-870-0	04	1	0507-0512	●	●	●		●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX M8X70	0-10855-870-0	04	1	0601-0606	●	●	●		●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	0302-0506	●		●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JH1 ENG(RJX),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	0302-0506		●
7	03.632 WASHER; EXH BRAKE UNIT FIX T=1.9	5-09500-012-0	04	1	0507-0606	●	●	●		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0302-0506	●		●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0302-0506		●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	0507-0512	●	●	●		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.334 M8	0-91110-508-0	04	1	0601-0606	●	●	●		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●					●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805		●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805					●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●					●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-		●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCC ENG(RDV) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-					●		●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) (A)	8-94419-755-2	01	1	0302-0506	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1-TC ENG(RDM) (B)	8-97033-888-0	01	1	0507-0606	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B)	8-97033-888-0	01	1	0507-0606		●
14	03.634 FILTER; AIR,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97033-888-0	01	1	0507-0606			●		●		●
14	03.634 FILTER; AIR,EXH BRAKE 4HK1-TCN ENG(RDQ) (B)	8-97033-888-0	01	1	0507-0606						●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1 ENG(RJX),4HE1 ENG(RLY) (B)	8-97033-888-0	01	1	0302-0506		●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) (B)	8-97033-888-0	01	1	0302-0506			●	●	●	●	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●		●	●	●	●	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●
15	03.634 NUT; AIR FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●		●	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●
15	03.634 NUT; AIR FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●		●	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) L=360 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●
19	03.630 HOSE; AIR FILTER 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●
19	03.630 HOSE; AIR FILTER 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97289-607-0	01	1	0507-0606	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506		●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506			●	●	●	●	●
19	03.630 HOSE; AIR FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606		●
19	03.630 HOSE; AIR FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606			●		●		●
19	03.630 HOSE; AIR FILTER 4HK1-TCN ENG(RDQ) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606						●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506		●
19	03.630 HOSE; AIR FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606		●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506		●
19	03.630 HOSE; AIR FILTER 4JH1-TC ENG(RDM) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (A)	8-97090-972-0	01	1	0302-0405	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (A)	8-97374-165-0	01	1	0406-0506	●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) (D)	8-97374-166-0	01	1	0507-0606	●
86	03.636 VALVE; MAG,EXH BRK (E)	8-97328-576-0	01	1	0607-0609	●	●	●		●	●	●
86	03.636 VALVE; MAG,EXH BRK (E)	8-98043-344-0	01	1	0610-	●	●	●		●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>,FRAME STRAIGHTTYPE<7KJ> (C)	8-97374-160-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97374-160-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97374-157-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97374-157-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	0302-0405		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (C)	8-97239-246-0	01	1	0302-0405			●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97374-152-0	01	1	0406-0506		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) (C)	8-97374-152-0	01	1	0406-0506			●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97374-152-0	01	1	0507-0606		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97374-152-0	01	1	0507-0606			●		●		●
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ) (C)	8-97374-152-0	01	1	0507-0606						●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●		●	●	●	●	●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●
93	08.917 NUT; MAG VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●		●	●	●
93	08.917 NUT; MAG VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●		●	●	●
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY) (A)	8-97168-156-1	01	1	0302-0506	●
108	03.634 BRACKET; AIR FILTER 4JH1-TC ENG(RDM) (B)	8-97106-474-2	01	1	0507-0606	●
112	03.640 PLATE; BRKT 4JH1-TC ENG(RDM)	8-97091-766-0	01	1	0507-0606	●

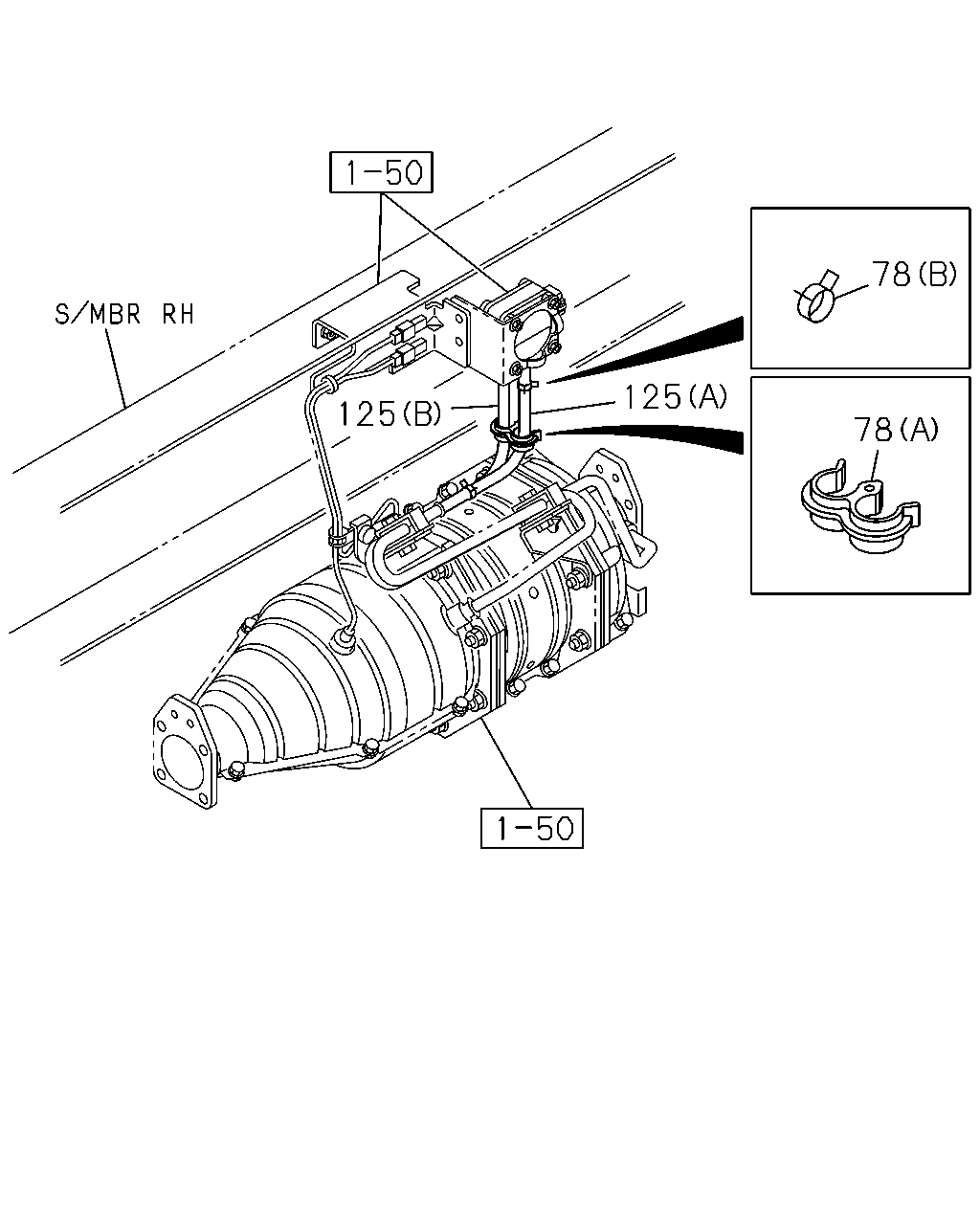

78 125 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F	G
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (A)	8-97173-119-0	01	1	0607-	●	●	●		●
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (B) ID=13	8-97329-627-0	04	1	0607-	●				●
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 (B) ID=13	8-97329-627-0	04	1	0607-		●	●
78	03.636 CLIP; HOSE 4HK1-TCC ENG(RDV) 03.162 (B) ID=13	8-97329-627-0	04	1	0607-				●		●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) 03.163 (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	0607-	●	●	●		●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) 03.163 (A) L=220 SERVICED BY L=3000	0-01560-300-0	01	1	0607-	●	●	●		●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) 03.163 (A) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0607-		●	●	●		●
125	03.630 HOSE; DPD 4HK1-TCC ENG(RDV) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0607-		●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
