Sayfa 1-55 - Isuzu EPC

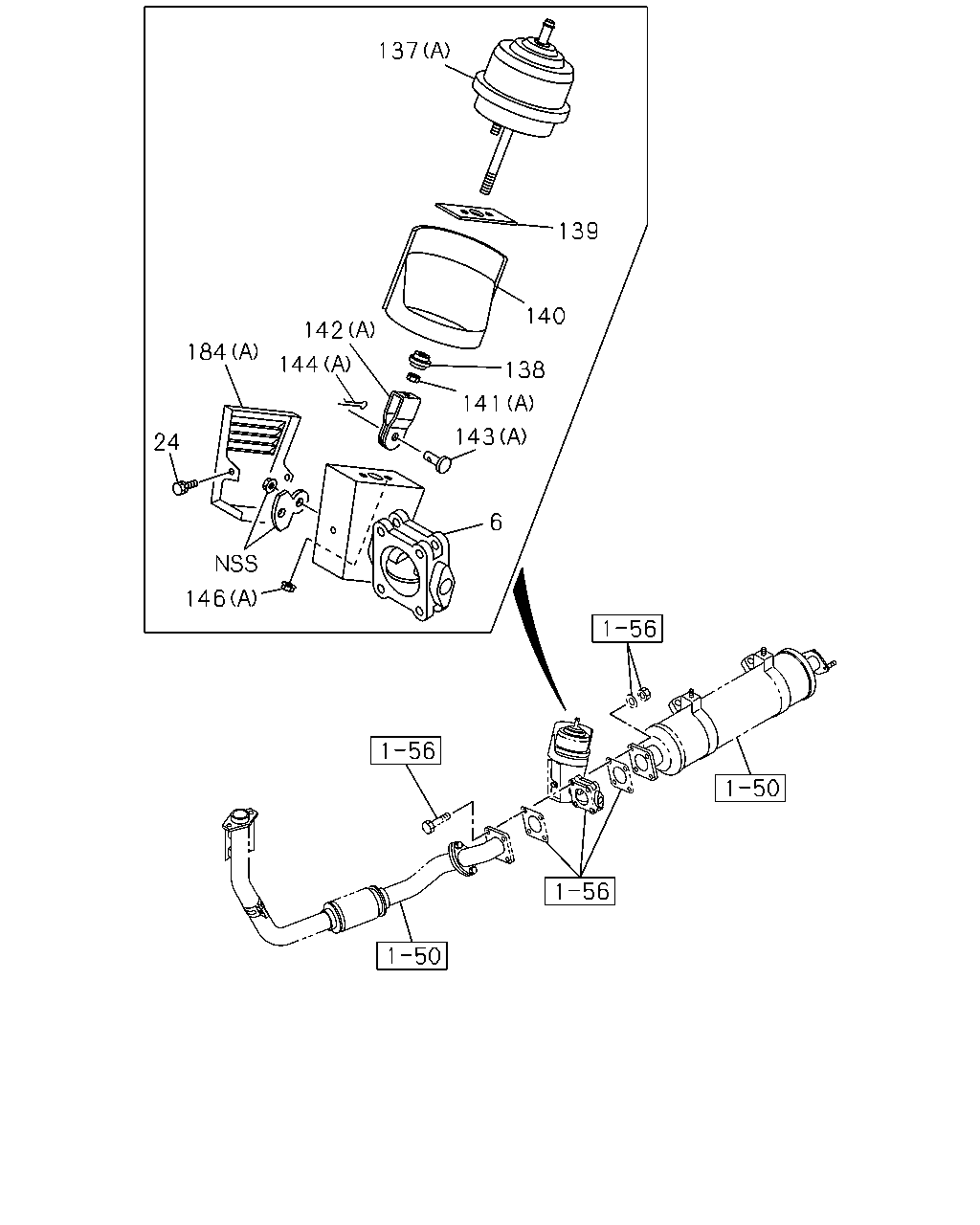

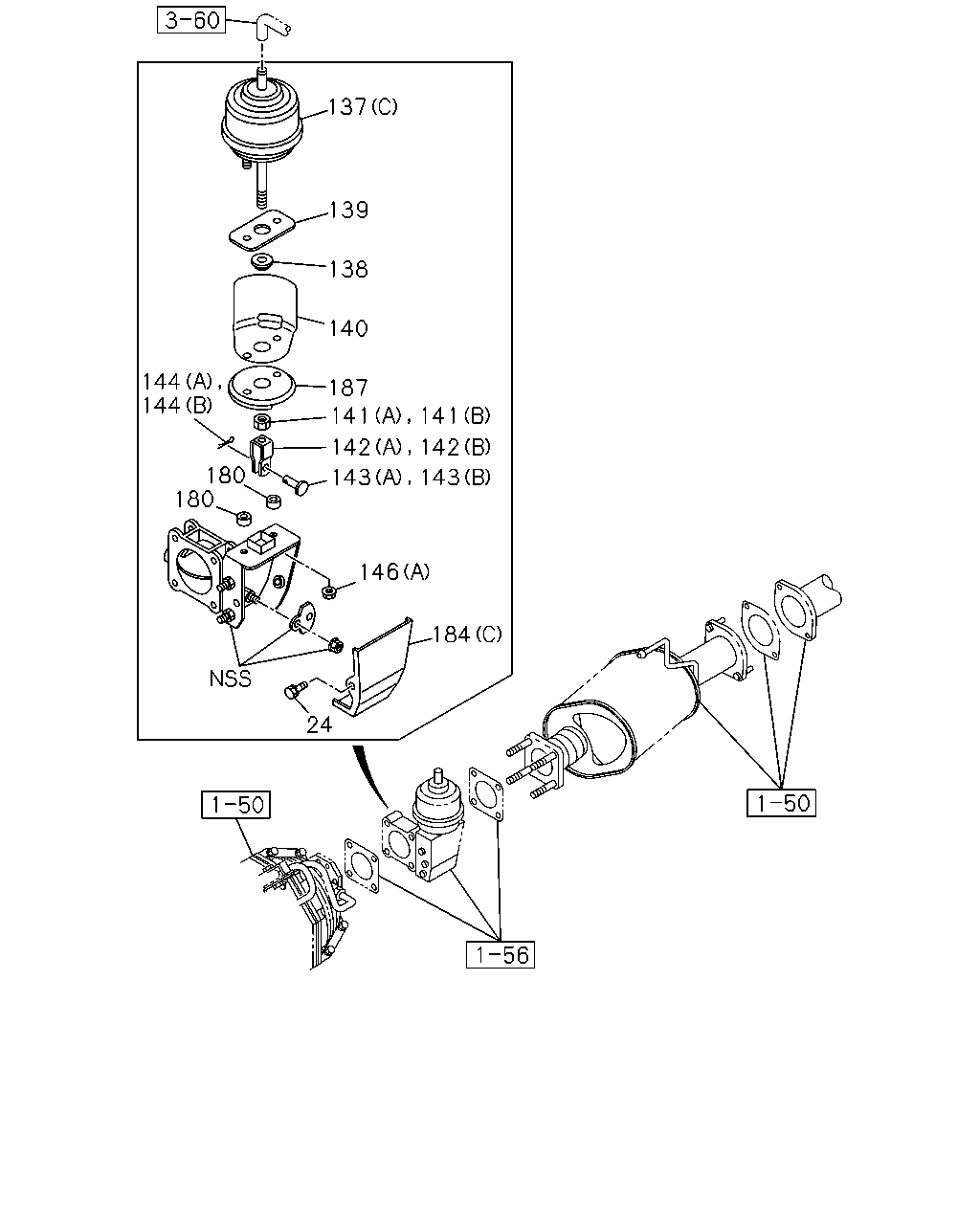

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#46675) — 254 parça

137 139 140 142 184 144 138 141 143 24 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97360-025-0	01	1	0302-0506	●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97360-025-0	01	1	0507-0606	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0607-0610		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98043-594-0	01	1	0607-0610	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98043-594-0	01	1	0607-0610					●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98067-485-0	01	1	0611-0611	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98067-485-0	01	1	0611-0611					●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98069-291-0	01	1	0612-	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98069-291-0	01	1	0612-					●	●
24	03.634 BOLT; COVER 4JH1 ENG(RJX) 03.444	8-97065-029-0	02	1	0302-0506	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) 03.444	8-97065-029-0	02	1	0507-0606	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-1212		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-98229-058-0	01	1	1301-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) (A)	8-97257-279-0	01	1	0302-0506	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) (A)	8-97257-279-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-1012		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-97985-132-0	01	1	1101-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) FRONT	8-98231-608-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) 03.440	8-94311-446-0	01	1	0302-0506	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) 03.440	8-94311-446-0	01	1	0507-0606	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) REAR	5-22189-004-0	01	1	1301-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0302-0506	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0507-0606	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97257-283-0	01	1	0302-0506	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97257-283-0	01	1	0507-0606	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0607-		●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98037-494-0	01	1	0607-	●			●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCC ENG(RDV)	8-98037-494-0	01	1	0607-					●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-128-0	01	1	1101-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) (A)	9-88510-009-0	01	1	0302-0506	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	9-88510-009-0	01	1	0507-0606	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A) FRONT	8-94311-428-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-133-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97177-311-0	01	1	0302-0506	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97177-311-0	01	1	0507-0606	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97177-311-0	01	1	1101-1212	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-609-0	01	1	1301-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-126-0	01	1	1101-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-94311-452-0	01	1	0302-0506	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-94311-452-0	01	1	0507-0606	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-94311-452-0	01	1	1101-1212	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-610-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-124-0	01	1	1101-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97029-428-0	01	1	0302-0506	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97029-428-0	01	1	0507-0606	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97029-428-0	01	1	1101-1212	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-611-0	01	1	1301-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103					●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103					●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-					●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0302-0506	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0507-0606	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-					●	●

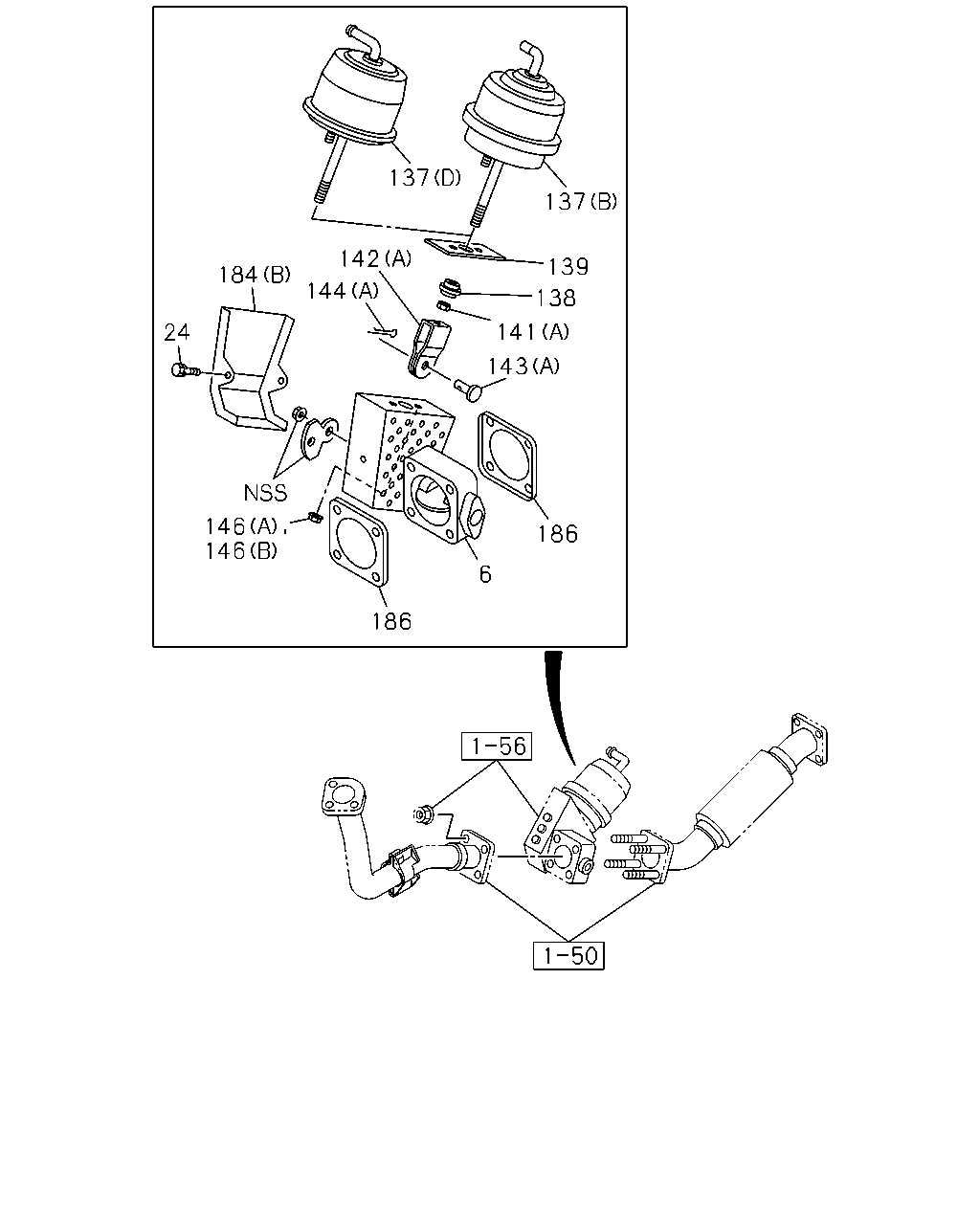

186 6 186 143 141 138 139 137 137 142 144 184 24 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97360-025-0	01	1	0302-0506	●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97360-025-0	01	1	0507-0606	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0607-0610		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98043-594-0	01	1	0607-0610	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98043-594-0	01	1	0607-0610					●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98067-485-0	01	1	0611-0611	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98067-485-0	01	1	0611-0611					●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-		●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98069-291-0	01	1	0612-	●			●
6	03.632 VALVE; EXH BRAKE 4HK1-TCC ENG(RDV)	8-98069-291-0	01	1	0612-					●	●
24	03.634 BOLT; COVER 4JH1 ENG(RJX) 03.444	8-97065-029-0	02	1	0302-0506	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) 03.444	8-97065-029-0	02	1	0507-0606	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-1212		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-98229-058-0	01	1	1301-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) (A)	8-97257-279-0	01	1	0302-0506	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) (A)	8-97257-279-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-1012		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-97985-132-0	01	1	1101-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) FRONT	8-98231-608-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) 03.440	8-94311-446-0	01	1	0302-0506	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) 03.440	8-94311-446-0	01	1	0507-0606	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) REAR	5-22189-004-0	01	1	1301-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0302-0506	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0507-0606	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-128-0	01	1	1101-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) (A)	9-88510-009-0	01	1	0302-0506	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	9-88510-009-0	01	1	0507-0606	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A) FRONT	8-94311-428-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-133-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97177-311-0	01	1	0302-0506	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97177-311-0	01	1	0507-0606	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97177-311-0	01	1	1101-1212	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-609-0	01	1	1301-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-126-0	01	1	1101-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-94311-452-0	01	1	0302-0506	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-94311-452-0	01	1	0507-0606	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-94311-452-0	01	1	1101-1212	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-610-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-124-0	01	1	1101-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97029-428-0	01	1	0302-0506	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97029-428-0	01	1	0507-0606	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97029-428-0	01	1	1101-1212	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-611-0	01	1	1301-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103					●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103					●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-					●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0302-0506	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0507-0606	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-					●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4JJ1 ENG(LFB)	8-98022-713-0	02	1	0607-		●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98022-713-0	02	1	0607-	●			●
186	03.611 GASKET; EXH BRK VLV,BODY 4HK1-TCC ENG(RDV)	8-98022-713-0	02	1	0607-					●	●

137 139 138 140 144 144 187 141 141 142 142 180 180 143 143 146 184 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.634 BOLT; COVER 4JH1 ENG(RJX) 03.444	8-97065-029-0	02	1	0302-0506	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) 03.444	8-97065-029-0	02	1	0507-0606	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.444	8-97065-029-0	02	1	0607-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-1212		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (B)	8-98043-596-0	01	1	0607-1212					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-98229-058-0	01	1	1301-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) (A)	8-97257-279-0	01	1	0302-0506	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) (A)	8-97257-279-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-1012		●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012	●			●
137	03.634 CHAMBER; POWER 4HK1-TCC ENG(RDV) (C)	8-98038-348-0	01	1	0607-1012					●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-97985-132-0	01	1	1101-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) FRONT	8-98231-608-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) 03.440	8-94311-446-0	01	1	0302-0506	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) 03.440	8-94311-446-0	01	1	0507-0606	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	5-22189-004-0	01	1	0607-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) REAR	5-22189-004-0	01	1	1301-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0302-0506	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0507-0606	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-94328-234-0	01	1	0607-	●	●	●	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97257-283-0	01	1	0302-0506	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97257-283-0	01	1	0507-0606	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0607-		●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98037-494-0	01	1	0607-	●			●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCC ENG(RDV)	8-98037-494-0	01	1	0607-					●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-128-0	01	1	1101-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) (A)	9-88510-009-0	01	1	0302-0506	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	9-88510-009-0	01	1	0507-0606	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A)	8-94311-428-0	01	1	0607-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 05.122 (A) FRONT	8-94311-428-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-133-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97177-311-0	01	1	0302-0506	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97177-311-0	01	1	0507-0606	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97177-311-0	01	1	0607-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97177-311-0	01	1	1101-1212	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-609-0	01	1	1301-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-126-0	01	1	1101-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) (A)	8-94311-452-0	01	1	0302-0506	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-94311-452-0	01	1	0507-0606	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-94311-452-0	01	1	0607-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-94311-452-0	01	1	1101-1212	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-610-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) REAR	8-97985-124-0	01	1	1101-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) (A)	8-97029-428-0	01	1	0302-0506	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) (A)	8-97029-428-0	01	1	0507-0606	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	8-97029-428-0	01	1	0607-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-97029-428-0	01	1	1101-1212	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) FRONT	8-98231-611-0	01	1	1301-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-1103					●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0607-0611	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103		●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103	●			●
146	03.634 NUT; EXH BRK VLV 4HK1-TCC ENG(RDV) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-1103					●	●
180	03.640 COLLAR; EXH BRK VLV 4JJ1 ENG(LFB) 03.440	8-97018-597-0	02	1	0912-		●	●
180	03.640 COLLAR; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.440	8-97018-597-0	02	1	0912-	●			●
180	03.640 COLLAR; EXH BRK VLV 4HK1-TCC ENG(RDV) 03.440	8-97018-597-0	02	1	0912-					●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (C)	8-98037-493-0	01	1	0607-					●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0302-0506	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0507-0606	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-		●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-	●			●
184	03.634 COVER; BRKT 4HK1-TCC ENG(RDV) (B)	8-97370-068-0	01	1	0607-					●	●
187	03.685 PROTECTOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-495-0	01	1	0607-		●	●
187	03.685 PROTECTOR; EXH BRK VLV 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98037-495-0	01	1	0607-	●			●
187	03.685 PROTECTOR; EXH BRK VLV 4HK1-TCC ENG(RDV)	8-98037-495-0	01	1	0607-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
