Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#46671) — 229 parça

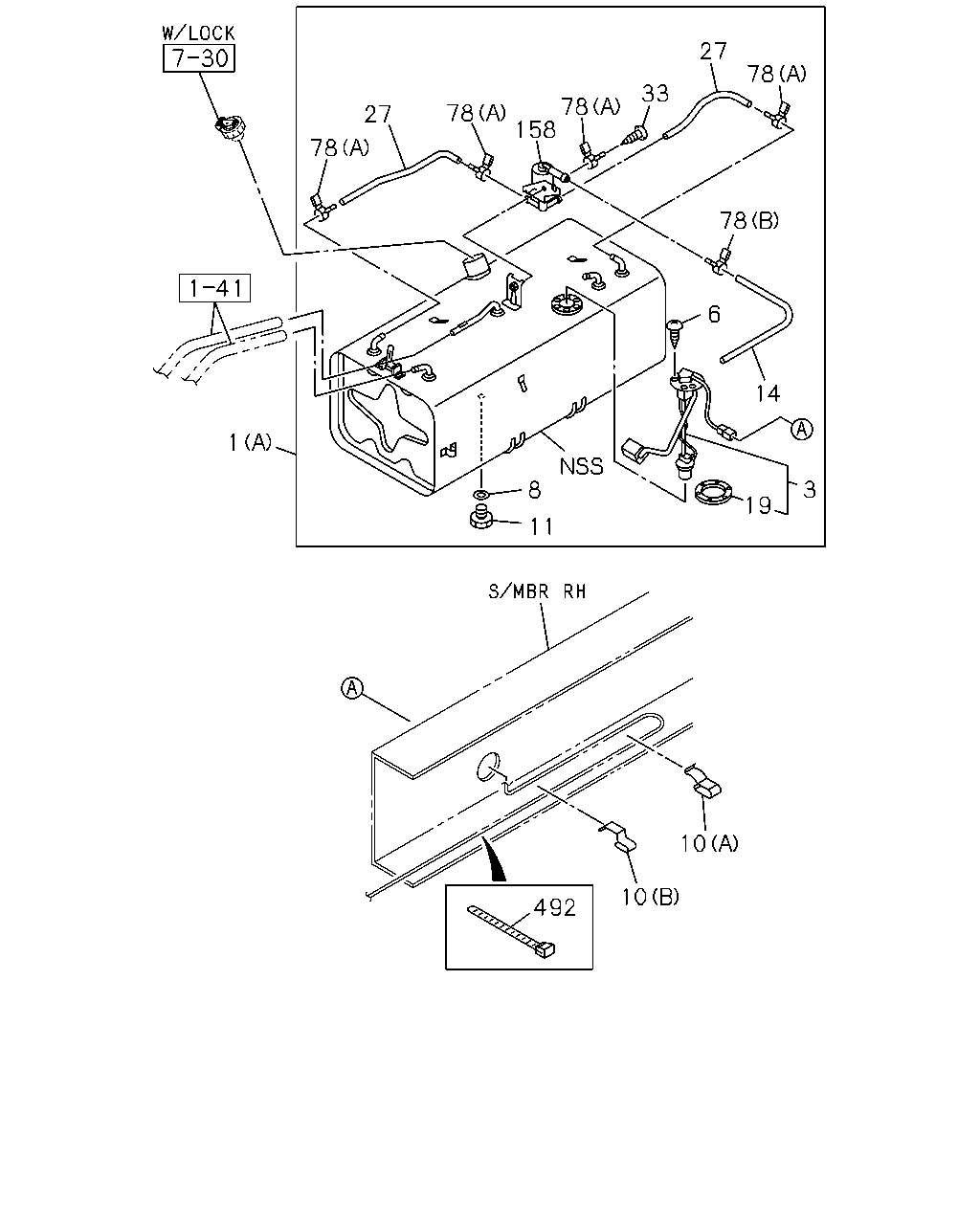

27 78 33 78 158 78 27 78 78 6 14 1 3 8 19 11 10 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.001 TANK; FUEL 4HE1 ENG(RLY) (A) 1000X340X327 100L	8-97350-992-1	01	1	0302-0506	●	●	●	●	●	●	●
1	03.001 TANK; FUEL 4JH1-TC ENG(RDM) (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506		●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 1003X375X380 100L	8-98000-647-4	01	1	0507-0606		●	●		●		●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) (B) 1003X375X380 100L	8-98000-647-4	01	1	0507-0606						●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-	●	●	●		●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HE1 ENG(RLY) 03.001	8-94316-190-0	01	1	0302-0506	●		●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.001	8-94316-190-0	01	1	0302-0506		●
3	03.107 UNIT; FUEL TANK,SUB 4JH1-TC ENG(RDM)	8-97363-006-0	01	1	0507-0606	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98005-215-0	01	1	0507-0606		●	●		●		●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ)	8-98005-215-0	01	1	0507-0606						●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0607-0611	●	●	●		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98050-491-0	01	1	0612-	●	●	●		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HE1 ENG(RLY) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506	●		●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603			●		●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603						●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606			●		●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606						●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0607-	●	●	●		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HE1 ENG(RLY) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0506	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 01.550	1-21729-043-0	01	1	0302-0506		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1-TC ENG(RDM) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606			●		●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606						●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0607-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=6.0	5-09709-012-0	AR	1	0610-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0610-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0507-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0507-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0507-	●	●	●		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HE1 ENG(RLY) 01.453 M14X14	9-09862-156-0	01	1	0302-0506	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506		●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512			●		●		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512						●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606			●		●		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606						●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0607-	●	●	●		●	●	●
14	03.163 HOSE; BREATHER,OUTLET 4HE1 ENG(RLY) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506	●		●	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX),4HE1 ENG(RLY) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506		●
19	03.112 GASKET; FUEL TANK UNIT 4HE1 ENG(RLY) ID=42 OD=71	5-83148-001-0	01	1	0302-0506	●		●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT 4JH1 ENG(RJX),4HE1 ENG(RLY) ID=42 OD=71	5-83148-001-0	01	1	0302-0506		●
19	03.112 GASKET; FUEL TANK UNIT 4JH1-TC ENG(RDM)	8-97363-616-0	01	1	0507-0606	●	●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97222-756-0	01	1	0507-0606		●	●		●		●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ)	8-97222-756-0	01	1	0507-0606						●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0607-	●	●	●		●	●	●
27	03.163 HOSE; BREATHER 4HE1 ENG(RLY) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0302-0506	●		●	●	●	●	●
27	03.163 HOSE; BREATHER 4JH1 ENG(RJX),4HE1 ENG(RLY) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0302-0506		●
33	03.162 SCREW; JOINT TO FUEL TANK 4HE1 ENG(RLY) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0302-0506	●		●	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 4JH1 ENG(RJX),4HE1 ENG(RLY) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0302-0506		●
78	03.003 CLIP; BREATHER HOSE 4HE1 ENG(RLY) 03.162 (A) ID=8.5	8-94166-071-0	04	1	0302-0506	●		●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 (A) ID=8.5	8-94166-071-0	04	1	0302-0506		●
78	03.003 CLIP; BREATHER HOSE 4HE1 ENG(RLY) 01.166 (B) ID=14	8-94238-572-0	01	1	0302-0506	●		●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX),4HE1 ENG(RLY) 01.166 (B) ID=14	8-94238-572-0	01	1	0302-0506		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HE1 ENG(RLY)	8-94437-368-0	01	1	0302-0506	●		●	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-94437-368-0	01	1	0302-0506		●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1-TC ENG(RDM)	8-97179-645-0	01	1	0507-0606	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97179-645-0	01	1	0507-0606		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97179-645-0	01	1	0507-0606			●		●		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ)	8-97179-645-0	01	1	0507-0606						●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0607-	●	●	●		●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	0302-0506	●		●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	0302-0506		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0507-0609	●	●	●		●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	01	1	0610-	●

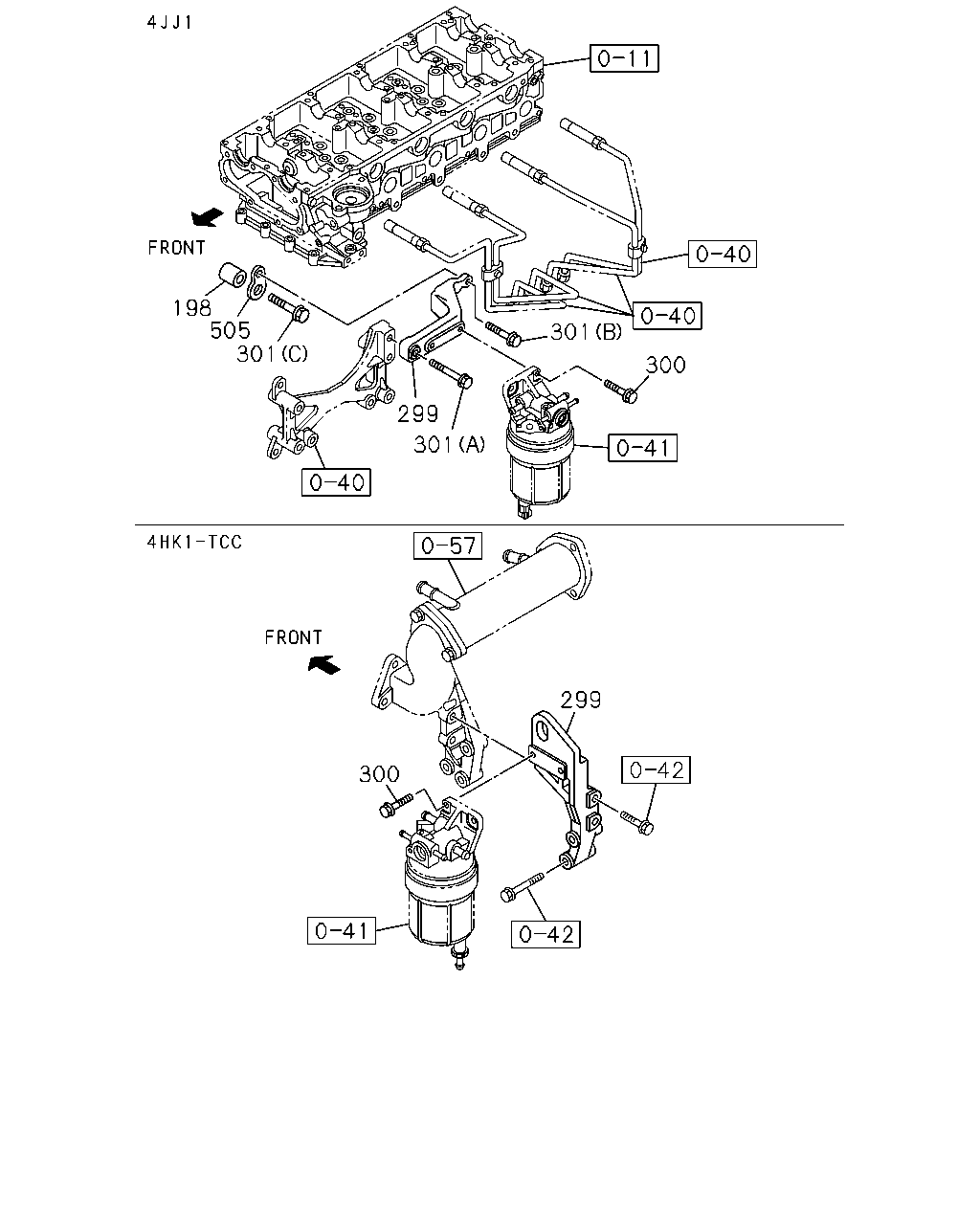

198 505 301 301 300 299 301 299 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F	G
198	03.107 SPACER 4JJ1 ENG(LFB)	8-98081-509-0	01	1	0704-1001	●	●	●		●
299	03.162 BRACKET; FUEL FILTER 4JJ1 ENG(LFB)	8-98009-087-4	01	1	0607-1001	●	●	●		●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCC ENG(RDV)	8-98038-359-2	01	1	0607-		●	●	●		●
300	03.162 BOLT; BRKT TO BODY 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (C) M14X58 FLANGE	8-98081-508-0	01	1	0704-1001	●	●	●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	01	1	0607-0703	●	●	●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (B) M8X40 FLANGE	0-28060-840-0	01	1	0704-1001	●	●	●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0607-0703	●	●	●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (A) M8X66 FLANGE	8-98081-507-0	01	1	0704-1001	●	●	●		●
505	03.163 BRACKET 4JJ1 ENG(LFB)	8-98081-486-0	01	1	0704-1001	●	●	●		●

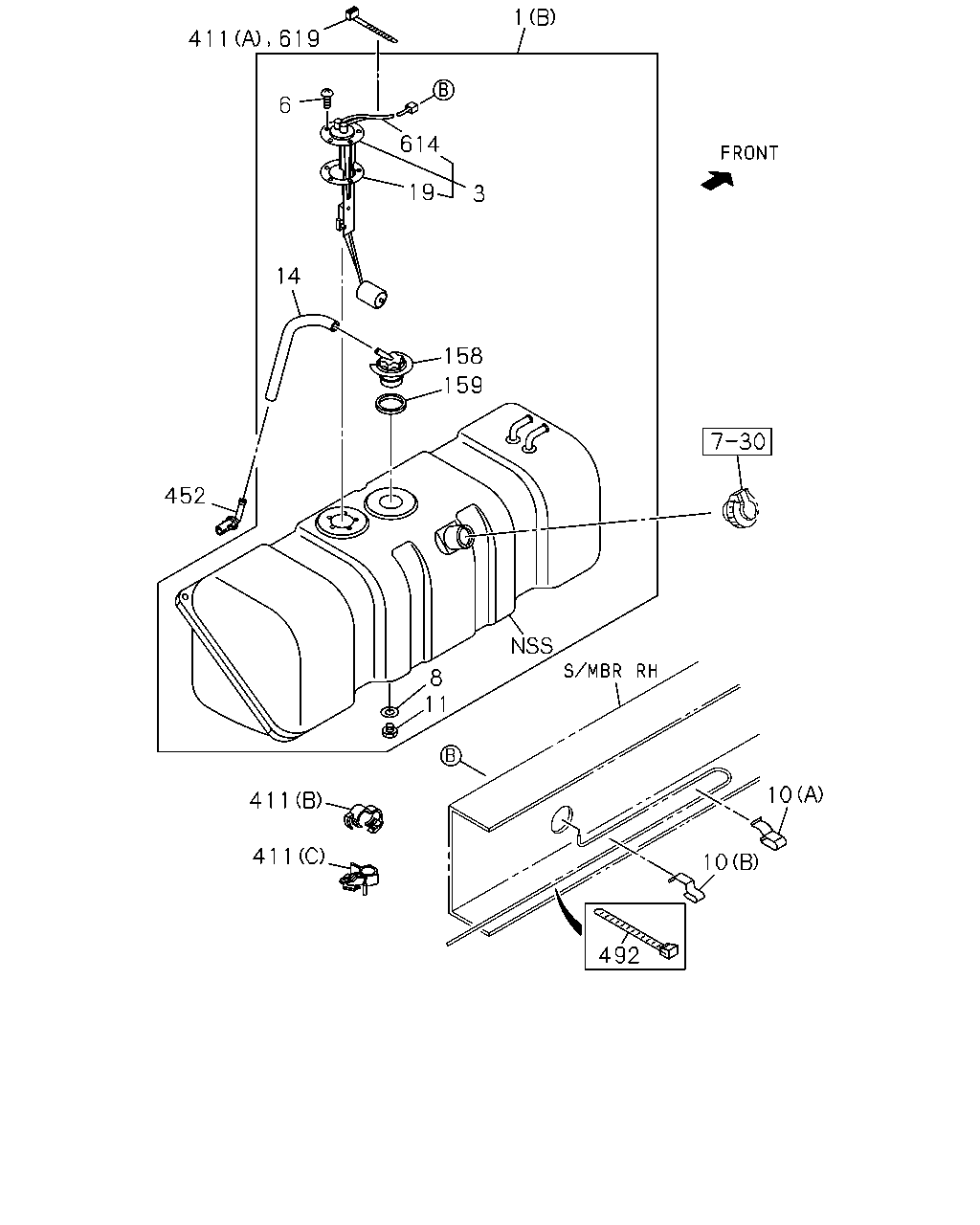

1 619 411 6 614 19 3 14 158 159 452 8 11 10 411 411 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.001 TANK; FUEL 4HE1 ENG(RLY) (A) 1000X340X327 100L	8-97350-992-1	01	1	0302-0506	●	●	●	●	●	●	●
1	03.001 TANK; FUEL 4JH1-TC ENG(RDM) (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506		●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 1003X375X380 100L	8-98000-647-4	01	1	0507-0606		●	●		●		●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) (B) 1003X375X380 100L	8-98000-647-4	01	1	0507-0606						●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-	●	●	●		●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HE1 ENG(RLY) 03.001	8-94316-190-0	01	1	0302-0506	●		●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.001	8-94316-190-0	01	1	0302-0506		●
3	03.107 UNIT; FUEL TANK,SUB 4JH1-TC ENG(RDM)	8-97363-006-0	01	1	0507-0606	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98005-215-0	01	1	0507-0606		●	●		●		●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ)	8-98005-215-0	01	1	0507-0606						●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0607-0611	●	●	●		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98050-491-0	01	1	0612-	●	●	●		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HE1 ENG(RLY) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506	●		●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603			●		●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603						●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606			●		●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HK1-TCN ENG(RDQ) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0606						●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0607-	●	●	●		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HE1 ENG(RLY) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0506	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 01.550	1-21729-043-0	01	1	0302-0506		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1-TC ENG(RDM) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606			●		●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0507-0606						●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0607-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=6.0	5-09709-012-0	AR	1	0610-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0610-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0507-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0507-	●	●	●		●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0302-0506	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0507-	●	●	●		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HE1 ENG(RLY) 01.453 M14X14	9-09862-156-0	01	1	0302-0506	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506		●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512			●		●		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512						●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606			●		●		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606						●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0607-	●	●	●		●	●	●
14	03.163 HOSE; BREATHER,OUTLET 4HE1 ENG(RLY) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506	●		●	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX),4HE1 ENG(RLY) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506		●
19	03.112 GASKET; FUEL TANK UNIT 4HE1 ENG(RLY) ID=42 OD=71	5-83148-001-0	01	1	0302-0506	●		●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT 4JH1 ENG(RJX),4HE1 ENG(RLY) ID=42 OD=71	5-83148-001-0	01	1	0302-0506		●
19	03.112 GASKET; FUEL TANK UNIT 4JH1-TC ENG(RDM)	8-97363-616-0	01	1	0507-0606	●	●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97222-756-0	01	1	0507-0606		●	●		●		●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ)	8-97222-756-0	01	1	0507-0606						●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0607-	●	●	●		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4HE1 ENG(RLY)	8-94437-368-0	01	1	0302-0506	●		●	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-94437-368-0	01	1	0302-0506		●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1-TC ENG(RDM)	8-97179-645-0	01	1	0507-0606	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97179-645-0	01	1	0507-0606		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97179-645-0	01	1	0507-0606			●		●		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ)	8-97179-645-0	01	1	0507-0606						●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0607-	●	●	●		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4JH1-TC ENG(RDM)	8-97326-488-0	01	1	0507-0606	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97326-488-0	01	1	0507-0606		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97326-488-0	01	1	0507-0606			●		●		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HK1-TCN ENG(RDQ)	8-97326-488-0	01	1	0507-0606						●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0607-	●	●	●		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0610-						●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.890 (C) ID=4.8	1-09701-218-0	01	1	0607-	●	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0607-0609	●	●	●		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0610-	●	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1 ENG(LFB) (B) ID=20	8-94241-972-0	01	1	0607-	●					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0607-		●	●		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0607-		●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCC ENG(RDV) (B) ID=20	8-94241-972-0	01	1	0607-					●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0302-0506	●	●	●	●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0507-	●	●	●		●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	0302-0506	●		●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	0302-0506		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0507-0609	●	●	●		●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	01	1	0610-	●
614	03.028 HARNESS; FUEL 4JH1-TC ENG(RDM)	8-97363-614-0	01	1	0507-0606	●	●
619	03.028 CLIP; FUEL TANK UNIT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	02	1	0507-0606		●	●		●		●
619	03.028 CLIP; FUEL TANK UNIT CABLE 4HK1-TCN ENG(RDQ) 03.162 L=140	5-09707-031-1	02	1	0507-0606						●

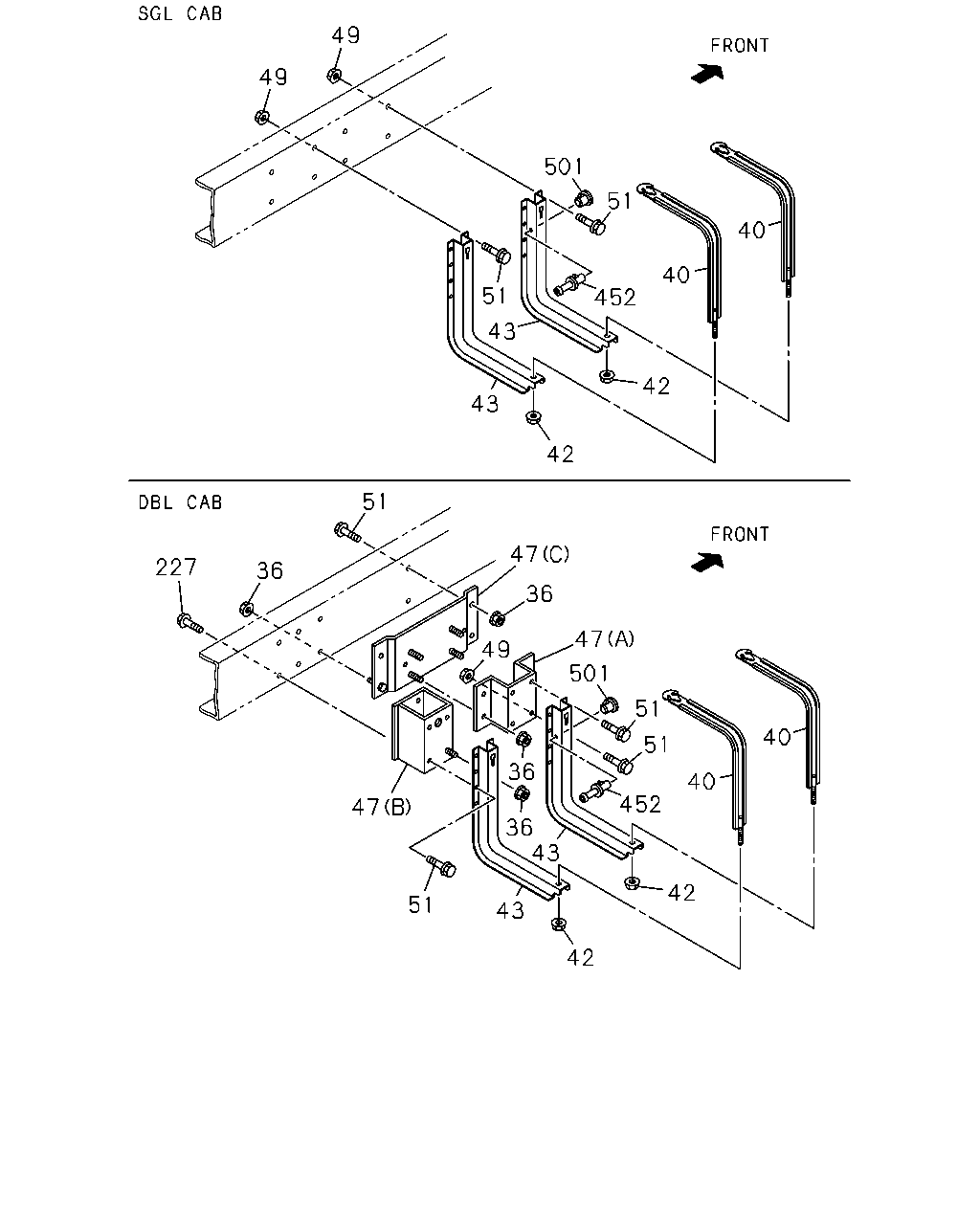

49 49 501 51 40 40 51 452 43 42 43 42 51 47 227 36 36 47 49 501 51 40 51 36 40 452 47 36 43 42 51 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
36	03.015 NUT; SPACER,FUEL TANK 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	09	1	0302-0506						●
36	03.015 NUT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	09	1	0507-0602						●
36	03.015 NUT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	09	1	0603-0606						●
36	03.015 NUT; SPACER,FUEL TANK 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-						●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0507-	●	●	●		●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0302-0506	●	●	●	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0507-	●	●	●		●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0507-	●	●	●		●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0507-	●	●	●		●	●	●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) (B)	8-97043-960-0	01	1	0302-0506						●
47	03.023 SPACER; FUEL TANK 4HK1-TCN ENG(RDQ) (B)	8-97043-960-0	01	1	0507-0606						●
47	03.023 SPACER; FUEL TANK (B)	8-97043-960-0	01	1	0607-						●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) (C)	8-97219-252-2	01	1	0302-0506						●
47	03.023 SPACER; FUEL TANK 4HK1-TCN ENG(RDQ) (C)	8-97219-252-2	01	1	0507-0606						●
47	03.023 SPACER; FUEL TANK (A)	8-97289-108-0	01	1	0607-						●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) (A)	8-97223-013-0	01	1	0302-0506						●
47	03.023 SPACER; FUEL TANK 4HK1-TCN ENG(RDQ) (A)	8-97223-013-0	01	1	0507-0606						●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0302-0506	●	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0507-0602	●	●	●		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-0606	●	●	●		●
49	03.023 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	0607-	●
49	03.023 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	07	1	0607-		●	●
49	03.023 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506						●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602						●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606						●
49	03.023 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	0607-	●
49	03.023 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	0607-		●	●
49	03.023 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	0607-		●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0607-					●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) M10X30 FLANGE	0-28691-030-0	08	1	0302-0506	●
51	03.023 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X30 FLANGE	0-28691-030-0	06	1	0302-0506		●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28691-030-0	06	1	0507-0512	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0601-0606	●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-	●					●
51	03.023 BOLT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-		●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) M10X30 FLANGE	0-28691-030-0	07	1	0302-0506		●	●	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28691-030-0	07	1	0507-0512		●	●		●		●
51	03.023 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28691-030-0	07	1	0507-0512						●
51	03.023 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0601-0606		●	●		●		●
51	03.023 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0601-0606						●
51	03.023 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0607-		●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0607-					●		●
227	03.015 BOLT; SPACER,FUEL TANK 02.277 M10X35 FLANGE	0-28651-035-0	06	1	0607-						●
227	03.015 BOLT; SPACER,FUEL TANK 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506						●
227	03.015 BOLT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512						●
227	03.015 BOLT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606						●
227	03.015 BOLT; SPACER,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0607-		●	●
227	03.015 BOLT; SPACER,FUEL TANK 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0607-					●		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0302-0506	●	●	●	●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0507-	●	●	●		●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	0302-0506	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
