1-31 — AIR DUCT (#46669) — 731 parça

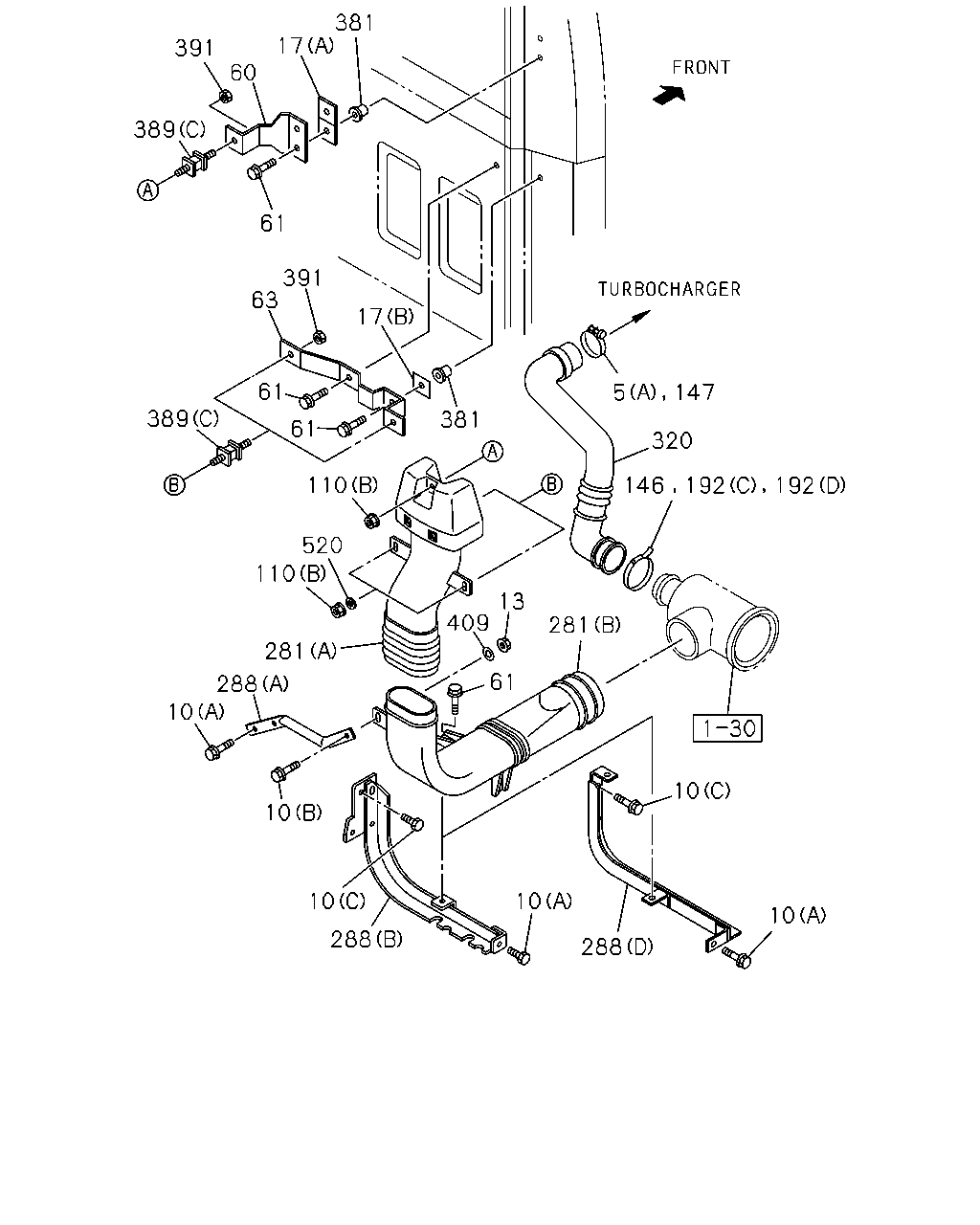

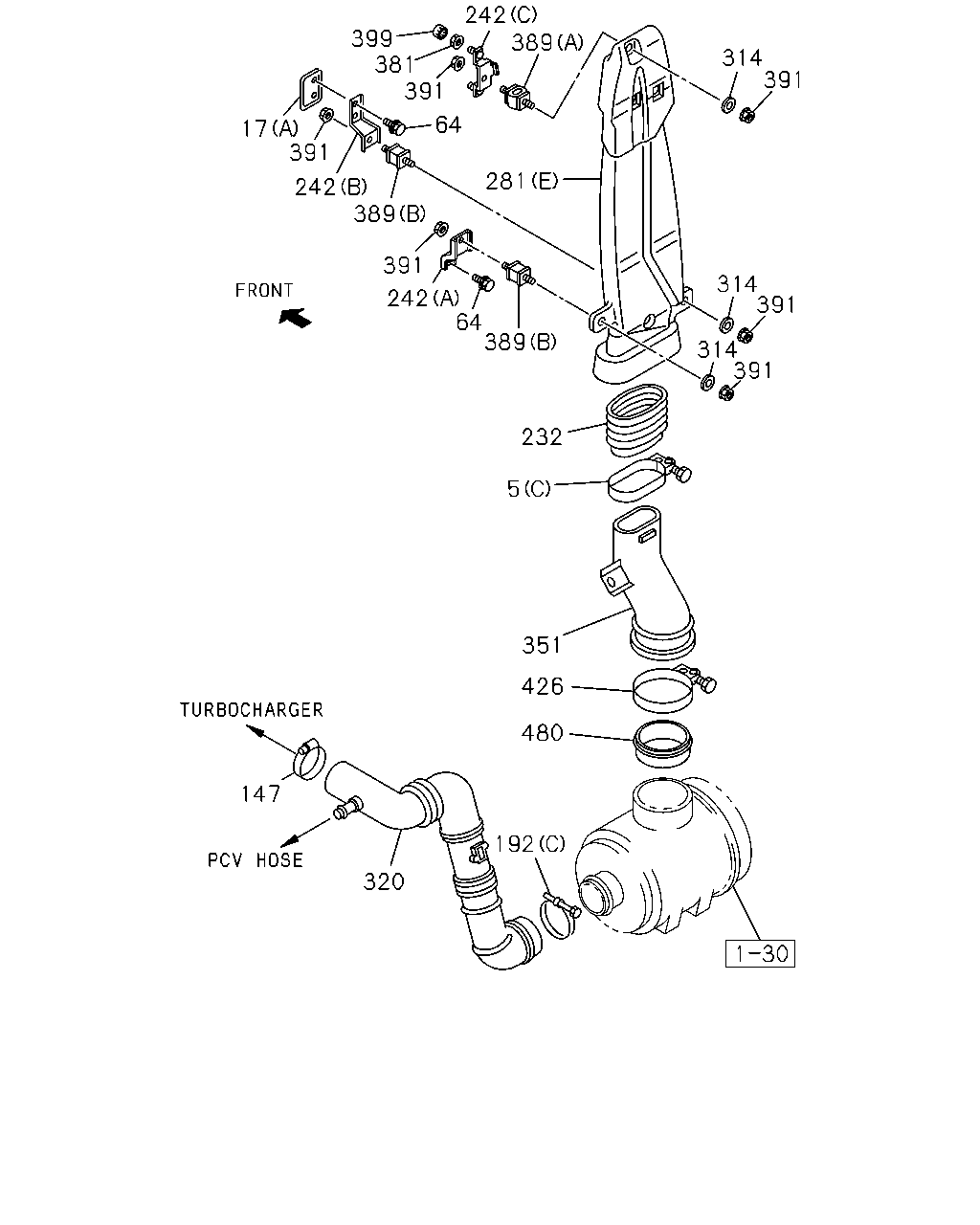

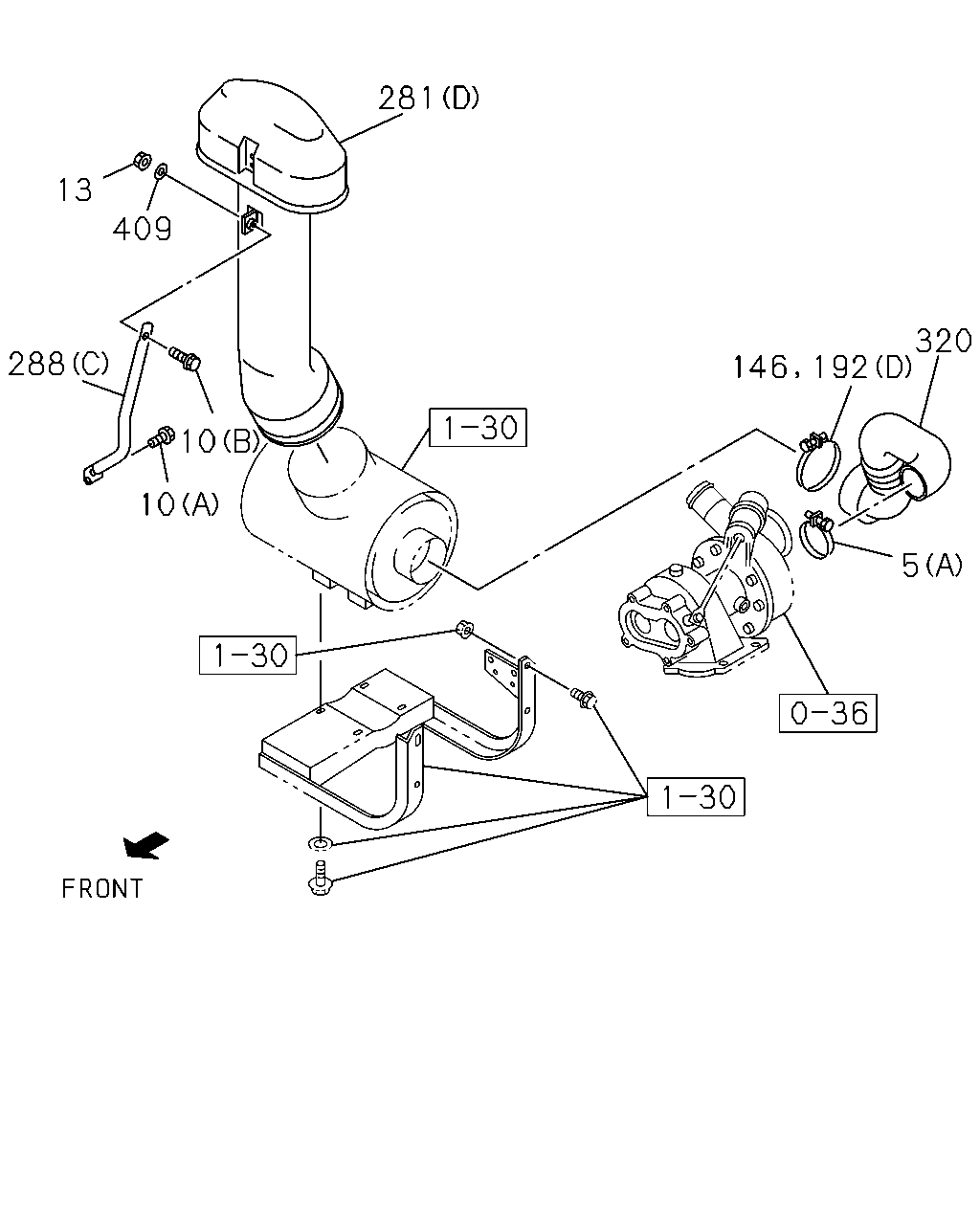

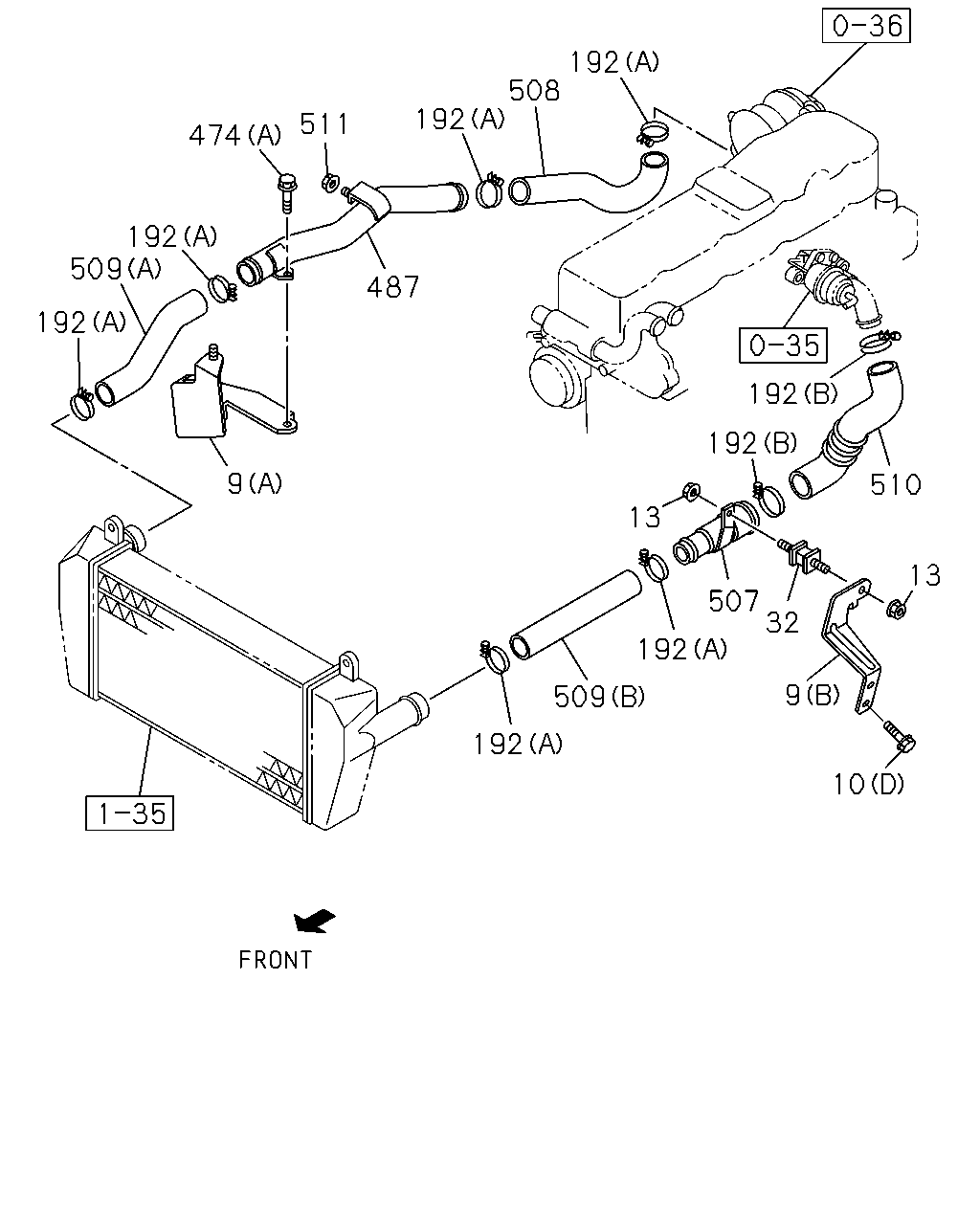

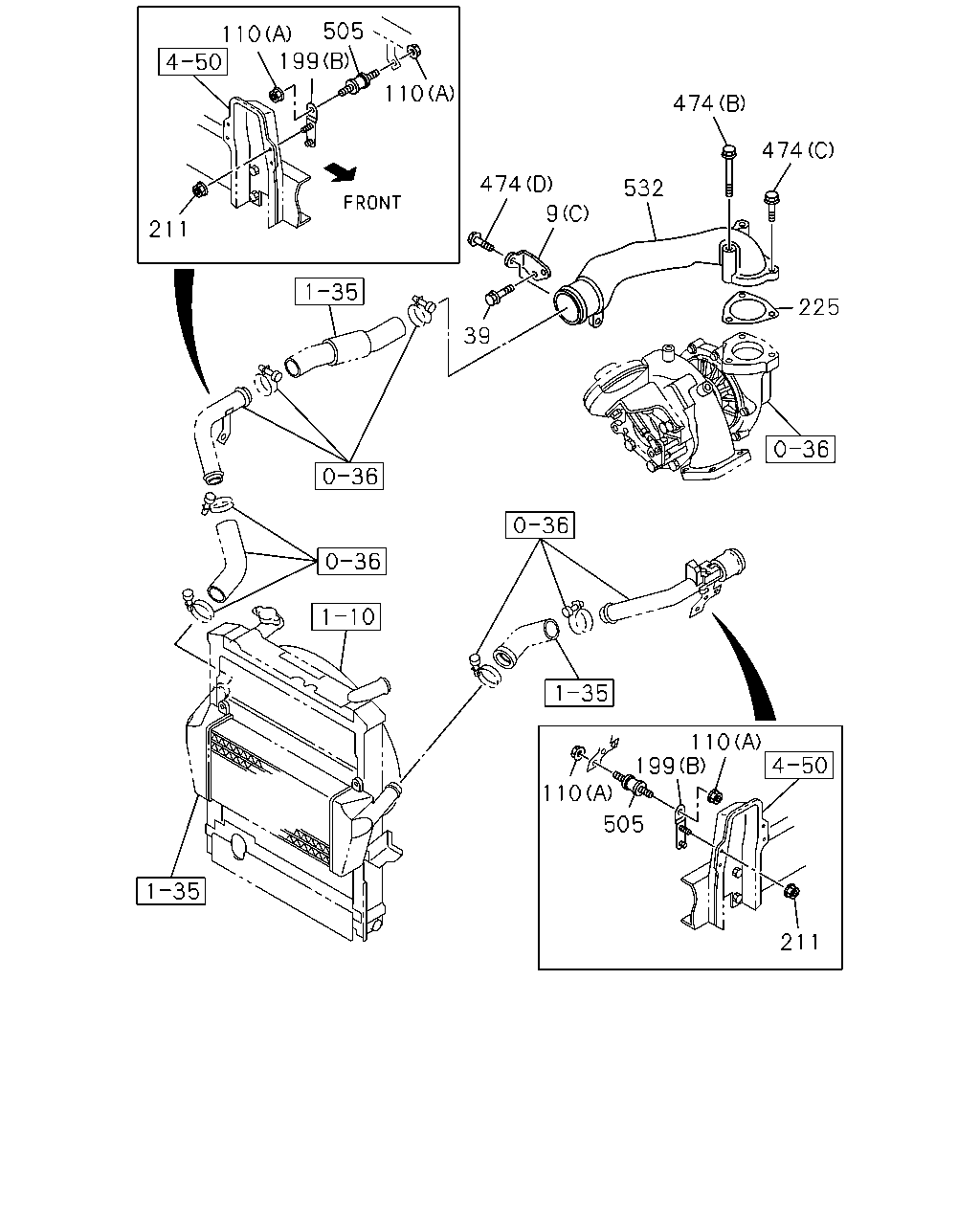

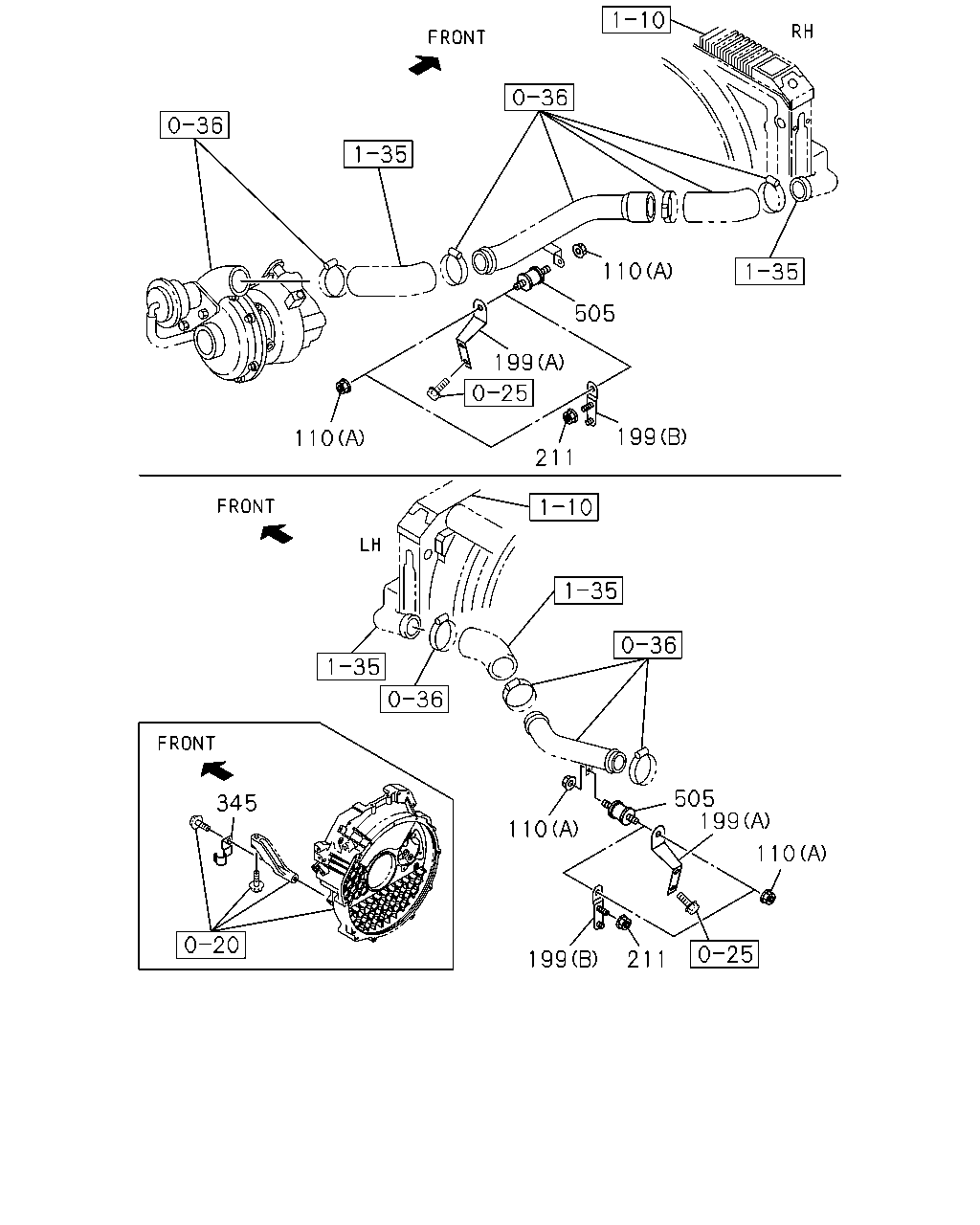

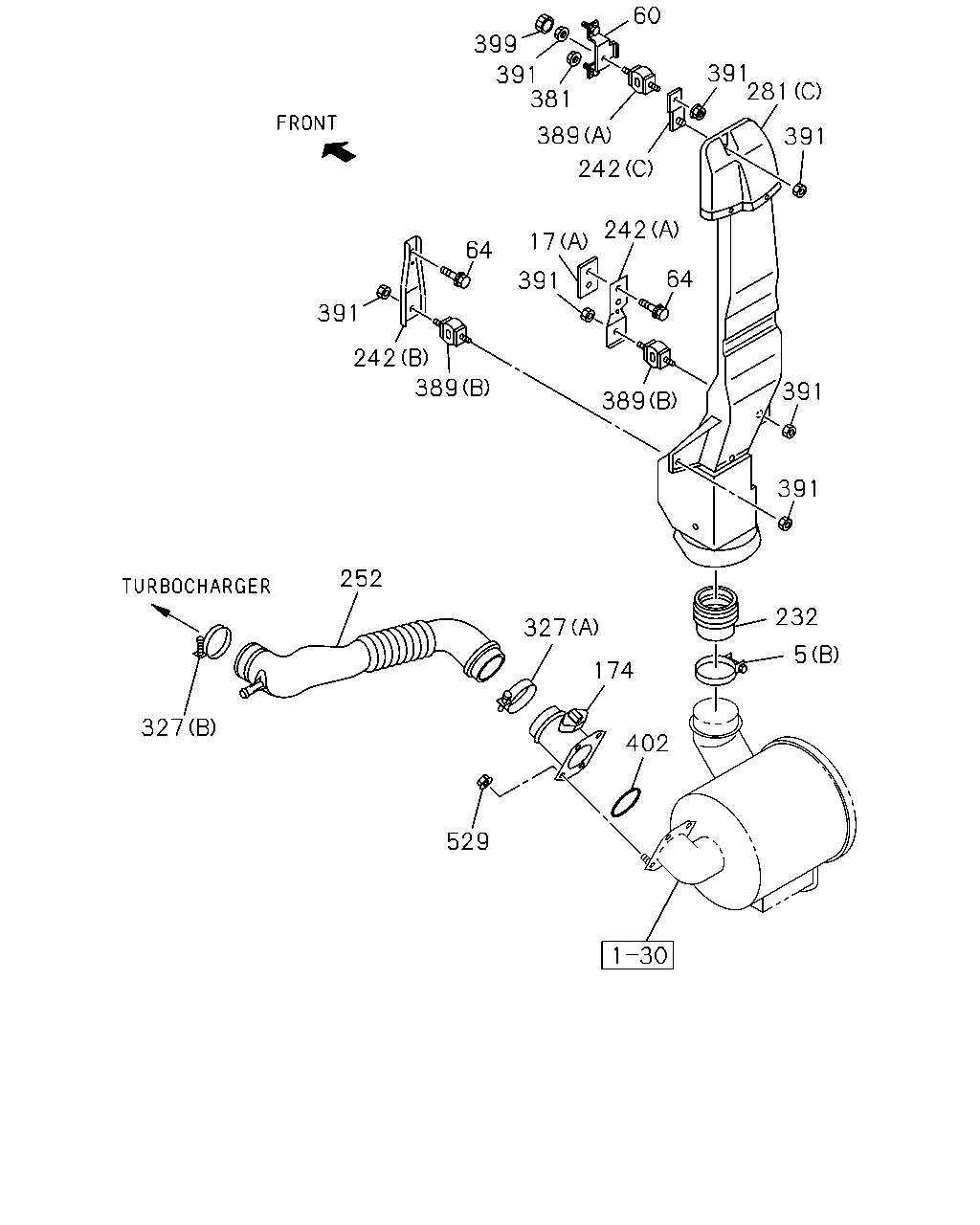

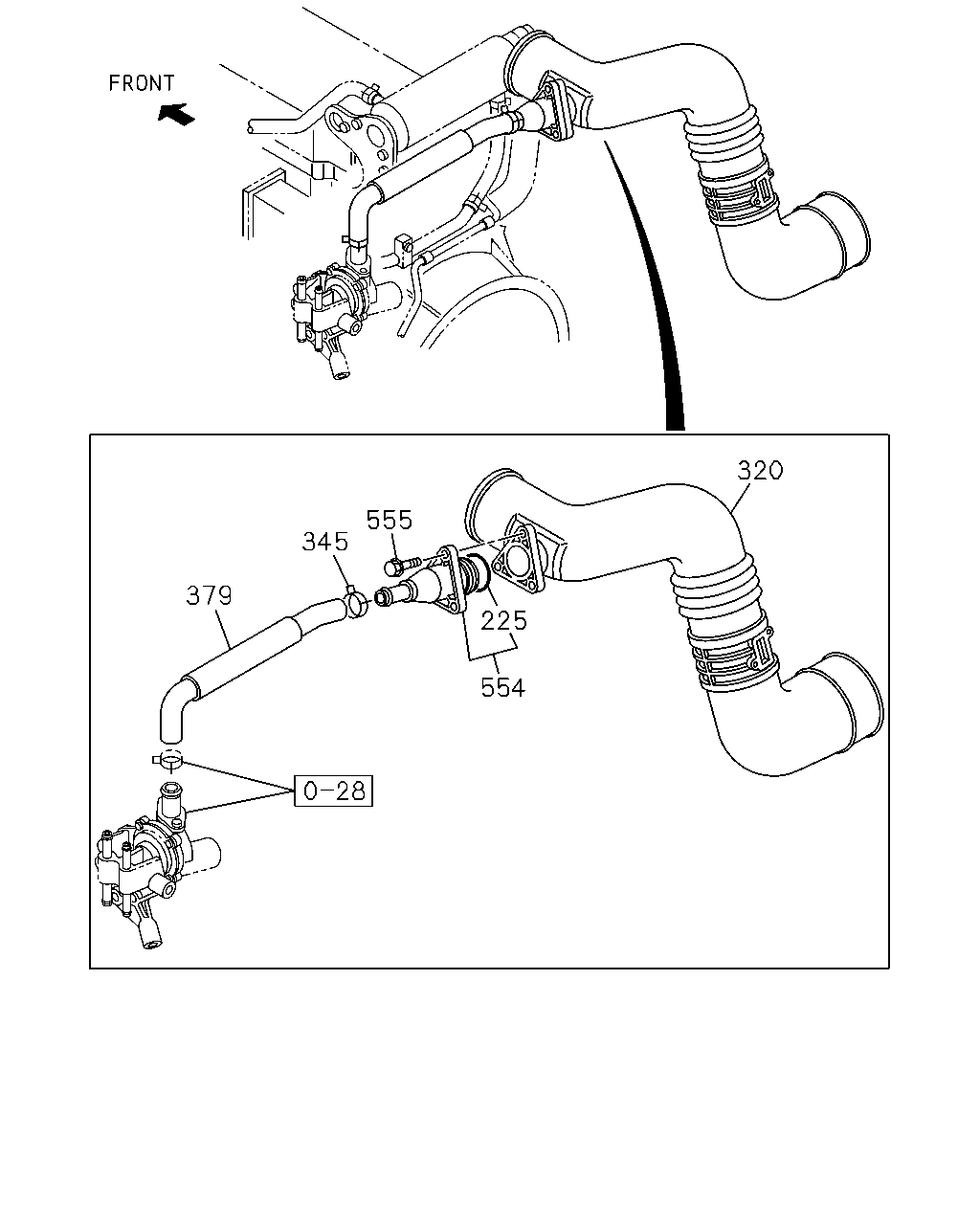

çizim 12105
381 17 391 60 389 61 391 63 17 61 5 147 389 381 61 320 110 146 192 192 520 110 13 409 281 281 61 288 10 10 10 10 10 10 288 288
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) (A) ID=58-79 		1-09707-136-0 01 1 0302-0506 ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (B) ID=112 		9-09915-074-1 01 1 0302-0506 ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) (B) ID=112 		9-09915-074-1 01 1 0507-0606 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) (C) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0608- ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0506 ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0302-0506 ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ● ● ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0302-0506 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97853-699-2 01 1 0507-0606 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (A) 		8-97853-699-2 01 1 0607- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (A) 		8-97853-699-2 01 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (B) 		8-97892-723-0 02 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (B) 		8-97892-723-0 02 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (B) 		8-97892-723-0 02 1 0607- ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0302-0506 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM) 		8-97856-956-0 01 1 0507-0606 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) 		8-97892-525-4 01 1 0302-0506 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCN ENG(RDQ) 		8-97892-525-4 01 1 0507-0606 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97892-525-4 01 1 0507-0606 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JJ1 ENG(LFB) 		8-97892-525-4 01 1 0607- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCC ENG(RDV) 		8-97892-525-4 01 1 0607- ●
61 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0302-0506 ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0507-0606 ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0507-0606 ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0607- ●
61 03.417 BOLT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0607- ●
63 03.417 BRACKET; AIR DUCT,LWR
4HE1 ENG(RLY) 		8-97892-526-3 01 1 0302-0506 ● ●
63 03.417 BRACKET; AIR DUCT,LWR
4HK1-TCN ENG(RDQ) 		8-97892-526-3 01 1 0507-0606 ●
63 03.417 BRACKET; AIR DUCT,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97892-526-3 01 1 0507-0606 ●
63 03.417 BRACKET; AIR DUCT,LWR
4JJ1 ENG(LFB) 		8-97892-526-3 01 1 0607- ●
63 03.417 BRACKET; AIR DUCT,LWR
4HK1-TCC ENG(RDV) 		8-97892-526-3 01 1 0607- ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) 03.407 ID=112 		9-09915-074-1 01 1 0302-0506 ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 ID=112 		9-09915-074-1 01 1 0507-0606 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0507-0606 ●
147 03.417 CLIP; HOSE TO ENG
4JJ1 ENG(LFB) 03.407 ID=68-85 		1-09707-202-0 01 1 0607-0810 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JJ1 ENG(LFB) 03.407 ID=65-85 		8-98133-350-0 01 1 0811- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HK1-TCC ENG(RDV) 03.407 ID=77-95 		1-09707-198-0 01 1 0607-0810 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HK1-TCC ENG(RDV) 03.407 ID=75-95 		8-98133-357-0 01 1 0811- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4HK1-TCC ENG(RDV) (D) ID=112 		9-09915-074-1 01 1 0607- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (D) 		8-97180-995-0 01 1 0302-0506 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97180-995-0 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (D) 		8-97180-995-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (C) 		8-97300-255-0 01 1 0302-0506 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) (C) 		8-97300-255-1 01 1 0507-0606 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (E) 		8-97369-706-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (A) 		8-97213-911-2 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (A) 		8-97213-911-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (A) 		8-97372-358-0 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (B) 		8-97213-912-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (B) 		8-97213-912-3 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (B) 		8-97213-912-3 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) (C) 		8-97183-041-2 01 1 0302-0506 ● ● ● ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97183-041-2 01 1 0507-0606 ● ● ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (C) 		8-97183-041-2 01 1 0607- ● ● ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (D) 		8-98047-142-1 01 1 0607-0706 ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (D) 		8-98082-537-0 01 1 0707- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) (A) 		8-97214-827-1 01 1 0302-0506 ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) (A) 		8-97214-827-1 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97214-827-1 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (A) 		8-97214-827-1 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (A) 		8-97214-827-1 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) 03.405 (B) 		8-97214-828-0 01 1 0302-0506 ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98011-754-0 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-754-0 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (B) 		8-98011-754-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0302-0506 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-873-1 01 1 0507-0606 ● ● ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-137-0 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-689-1 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97211-578-0 01 1 0302-0506 ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-138-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-690-1 01 1 0607- ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0302-0506 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0507-0606 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0607- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0302-0506 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (A) 		8-97080-149-0 01 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (B) 		8-97081-886-0 02 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) 03.417 (C) 		8-97080-149-0 03 1 0302-0506 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCC ENG(RDV) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0302-0506 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0507-0606 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 06 1 0607-0910 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 06 1 0911- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0302-0506 ● ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605 ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0606 ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0606 ●
409 03.417 WASHER; PL,BRKT
4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0607-0607 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0607-0607 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0608- ● ● ● ●
409 03.417 WASHER; PL,BRKT
4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0608- ●
520 03.403 WASHER; RUBBER MTG
4HE1 ENG(RLY) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0302-0506 ● ●
520 03.403 WASHER; RUBBER MTG
4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0507-0605 ●
520 03.403 WASHER; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0507-0605 ●
520 03.403 WASHER; RUBBER MTG
4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0606-0606 ●
520 03.403 WASHER; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0606-0606 ●
520 03.403 WASHER; RUBBER MTG
4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0607- ●
520 03.403 WASHER; RUBBER MTG
4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0607- ●
çizim 12497
320 555 345 379 225 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
225 03.417 GASKET; AIR PIPE
4HK1-TCC ENG(RDV) 01.097 ID=43.7 		9-09561-344-0 01 1 0607- ● ● ● ●
225 03.417 GASKET; AIR PIPE
4JJ1 ENG(LFB) 03.270 		8-97202-328-1 01 1 0607- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0302-0506 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-873-1 01 1 0507-0606 ● ● ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-137-0 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-689-1 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97211-578-0 01 1 0302-0506 ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-138-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-690-1 01 1 0607- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0302-0307 ● ● ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0308-0506 ● ● ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98020-040-0 01 1 0507-0606 ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0507-0606 ●
345 03.417 CLIP; PCV HOSE
4HK1-TCC ENG(RDV) 08.846 ID=21.7 		8-97203-074-0 01 1 0607- ● ● ● ●
379 03.675 HOSE; RUBBER
4HK1-TCC ENG(RDV) 		8-98037-922-0 01 1 0607- ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
4HK1-TCC ENG(RDV) 		8-98038-208-0 01 1 0607- ● ● ● ●
555 03.407 BOLT; FLANGE,PCV
4HK1-TCC ENG(RDV) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0607- ● ● ● ●
çizim 52236
192 508 192 511 474 192 509 487 192 192 192 9 510 13 13 507 32 192 9 509 192 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97300-773-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (B) 		8-97300-773-1 01 1 0507-0606 ● ●
9 03.417 BRACKET; INT PIPE
4JJ1 ENG(LFB) (C) 		8-98009-086-0 01 1 0607- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97312-473-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (A) 		8-97312-473-1 01 1 0507-0606 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0608- ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0506 ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0302-0506 ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ● ● ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1 ENG(RJX) 03.405 		8-94158-155-1 01 1 0302-0506 ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1-TC ENG(RDM) 03.405 		8-94158-155-1 01 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4HK1-TCC ENG(RDV) (D) ID=112 		9-09915-074-1 01 1 0607- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ● ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1 ENG(RJX) 		8-97312-537-0 01 1 0302-0506 ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1-TC ENG(RDM) 		8-97312-537-0 01 1 0507-0606 ● ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1 ENG(RJX) 		8-97240-053-0 01 1 0302-0506 ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1-TC ENG(RDM) 		8-97240-053-0 01 1 0507-0606 ● ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1 ENG(RJX) 		8-97258-837-3 01 1 0302-0506 ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1-TC ENG(RDM) 		8-97258-837-4 01 1 0507-0606 ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (A) 		8-97240-044-4 01 1 0302-0506 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (A) 		8-97240-044-5 01 1 0507-0606 ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (B) 		8-97300-859-3 01 1 0302-0506 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (B) 		8-97300-859-4 01 1 0507-0606 ● ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1 ENG(RJX) 		8-97300-858-3 01 1 0302-0506 ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1-TC ENG(RDM) 		8-97300-858-4 01 1 0507-0606 ● ●
511 03.417 NUT; PIPE
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ●
çizim 54194
281 13 409 320 192 288 146 10 10 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) (A) ID=58-79 		1-09707-136-0 01 1 0302-0506 ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (B) ID=112 		9-09915-074-1 01 1 0302-0506 ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) (B) ID=112 		9-09915-074-1 01 1 0507-0606 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) (C) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0608- ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0506 ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0607-0607 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0608- ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0302-0506 ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0302-0506 ● ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE 		0-28681-030-0 02 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
10 03.417 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0607 ●
13 03.417 NUT; BRKT FIX
4HK1-TCC ENG(RDV) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ● ● ● ●
13 03.417 NUT; BRKT FIX
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0608- ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) 03.407 ID=112 		9-09915-074-1 01 1 0302-0506 ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 ID=112 		9-09915-074-1 01 1 0507-0606 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0507-0606 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4HK1-TCC ENG(RDV) (D) ID=112 		9-09915-074-1 01 1 0607- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (D) 		8-97180-995-0 01 1 0302-0506 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97180-995-0 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (D) 		8-97180-995-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (C) 		8-97300-255-0 01 1 0302-0506 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) (C) 		8-97300-255-1 01 1 0507-0606 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (E) 		8-97369-706-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (A) 		8-97213-911-2 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (A) 		8-97213-911-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (A) 		8-97372-358-0 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (B) 		8-97213-912-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (B) 		8-97213-912-3 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (B) 		8-97213-912-3 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) (C) 		8-97183-041-2 01 1 0302-0506 ● ● ● ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97183-041-2 01 1 0507-0606 ● ● ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (C) 		8-97183-041-2 01 1 0607- ● ● ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (D) 		8-98047-142-1 01 1 0607-0706 ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (D) 		8-98082-537-0 01 1 0707- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) (A) 		8-97214-827-1 01 1 0302-0506 ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) (A) 		8-97214-827-1 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97214-827-1 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4JJ1 ENG(LFB) (A) 		8-97214-827-1 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (A) 		8-97214-827-1 01 1 0607- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) 03.405 (B) 		8-97214-828-0 01 1 0302-0506 ● ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98011-754-0 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-754-0 01 1 0507-0606 ●
288 03.417 BRACKET; DUCT
4HK1-TCC ENG(RDV) (B) 		8-98011-754-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0302-0506 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-873-1 01 1 0507-0606 ● ● ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-137-0 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-689-1 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97211-578-0 01 1 0302-0506 ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-138-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-690-1 01 1 0607- ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0302-0506 ● ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605 ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0606 ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0606 ●
409 03.417 WASHER; PL,BRKT
4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0607-0607 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0607-0607 ●
409 03.417 WASHER; PL,BRKT
4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0608- ● ● ● ●
409 03.417 WASHER; PL,BRKT
4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0608- ●
çizim 54325
110 505 199 199 110 211 505 199 345 110 110 199 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) (A) 		8-97189-604-0 01 1 0302-0506 ● ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-753-1 01 1 0507-0606 ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98011-753-1 01 1 0507-0606 ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HK1-TCC ENG(RDV) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) (A) 		8-97189-603-1 01 1 0302-0506 ● ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-752-1 01 1 0507-0606 ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98011-752-1 01 1 0507-0606 ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) (B) 		8-98011-752-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) 		8-98011-752-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HK1-TCC ENG(RDV) (B) 		8-98011-752-1 01 1 0607- ● ●
211 03.405 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0507-0606 ● ● ● ●
211 03.405 NUT; BRKT
4HK1-TCN ENG(RDQ) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0507-0606 ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4HK1-TCC ENG(RDV) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
211 03.405 NUT; BRKT
4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0302-0307 ● ● ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0308-0506 ● ● ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98020-040-0 01 1 0507-0606 ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0507-0606 ●
345 03.417 CLIP; PCV HOSE
4HK1-TCC ENG(RDV) 08.846 ID=21.7 		8-97203-074-0 01 1 0607- ● ● ● ●
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) 03.405 		8-94158-155-1 02 1 0302-0506 ● ● ● ● ● ● ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 		8-94158-155-1 02 1 0507-0606 ● ● ● ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.405 		8-94158-155-1 02 1 0507-0606 ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4HK1-TCC ENG(RDV) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB) 03.417 		8-98036-826-0 02 1 0612- ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417 		8-98036-826-0 02 1 0612- ● ●
505 03.406 RUBBER; MTG
4HK1-TCC ENG(RDV) 03.417 		8-98036-826-0 02 1 0612- ● ●
çizim 54550
60 399 391 281 391 381 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) (A) ID=58-79 		1-09707-136-0 01 1 0302-0506 ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (B) ID=112 		9-09915-074-1 01 1 0302-0506 ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) (B) ID=112 		9-09915-074-1 01 1 0507-0606 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) (C) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0302-0506 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97853-699-2 01 1 0507-0606 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (A) 		8-97853-699-2 01 1 0607- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (A) 		8-97853-699-2 01 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (B) 		8-97892-723-0 02 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (B) 		8-97892-723-0 02 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (B) 		8-97892-723-0 02 1 0607- ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0302-0506 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM) 		8-97856-956-0 01 1 0507-0606 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) 		8-97892-525-4 01 1 0302-0506 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCN ENG(RDQ) 		8-97892-525-4 01 1 0507-0606 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97892-525-4 01 1 0507-0606 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JJ1 ENG(LFB) 		8-97892-525-4 01 1 0607- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HK1-TCC ENG(RDV) 		8-97892-525-4 01 1 0607- ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0302-0506 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0507-0606 ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0607- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1 ENG(RJX) 		8-97240-057-0 01 1 0302-0506 ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1-TC ENG(RDM) 		8-97240-057-1 01 1 0507-0606 ● ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0302-0506 ●
232 03.417 HOSE; CONN
4JH1-TC ENG(RDM) 		8-94456-844-1 01 1 0507-0606 ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 		8-97109-423-0 01 1 0607-0802 ● ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 03.407 		8-98115-594-0 01 1 0803- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97856-932-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97856-932-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (A) 		8-97312-894-1 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (B) 		8-97856-933-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (B) 		8-97856-933-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (B) 		8-97329-201-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-958-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (C) 		8-97856-958-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (C) 		8-97329-306-0 01 1 0607- ● ● ●
252 03.417 DUCT; AIR INT
4JH1 ENG(RJX) 		8-97312-541-2 01 1 0302-0506 ●
252 03.417 DUCT; AIR INT
4JH1-TC ENG(RDM) 		8-97312-541-3 01 1 0507-0606 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (D) 		8-97180-995-0 01 1 0302-0506 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97180-995-0 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (D) 		8-97180-995-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (C) 		8-97300-255-0 01 1 0302-0506 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) (C) 		8-97300-255-1 01 1 0507-0606 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (E) 		8-97369-706-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (A) 		8-97213-911-2 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (A) 		8-97213-911-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (A) 		8-97372-358-0 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (B) 		8-97213-912-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (B) 		8-97213-912-3 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (B) 		8-97213-912-3 01 1 0607- ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-114-0 01 1 0302-0403 ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0404-0506 ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0507-0606 ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) (B) ID=58-79 		8-94126-771-0 01 1 0302-0403 ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0404-0506 ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0507-0606 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0302-0506 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0507-0606 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0607- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0302-0506 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (A) 		8-97080-149-0 01 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (B) 		8-97081-886-0 02 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) 03.417 (C) 		8-97080-149-0 03 1 0302-0506 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCC ENG(RDV) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0302-0506 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0507-0606 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 06 1 0607-0910 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 06 1 0911- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0302-0506 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 		8-94273-605-0 02 1 0507-0606 ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JJ1 ENG(LFB) 		8-94273-605-0 02 1 0607- ● ● ●
402 03.417 GASKET; RUBBER
4JH1 ENG(RJX) 		8-97240-056-0 01 1 0302-0506 ●
402 03.417 GASKET; RUBBER
4JH1-TC ENG(RDM) 		8-97240-056-0 01 1 0507-0606 ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0302-0506 ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
çizim 54786
242 389 399 381 391 314 391 64 17 391 281 242 389 391 314 391 242 64 389 314 391 232 5 351 426 480 147 192 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) (A) ID=58-79 		1-09707-136-0 01 1 0302-0506 ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (A) ID=68-85 		1-09707-202-0 01 1 0507-0606 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (B) ID=112 		9-09915-074-1 01 1 0302-0506 ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) (B) ID=112 		9-09915-074-1 01 1 0507-0606 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) (C) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0302-0506 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97853-699-2 01 1 0507-0606 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97853-699-2 01 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (A) 		8-97853-699-2 01 1 0607- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (A) 		8-97853-699-2 01 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (B) 		8-97892-723-0 02 1 0302-0506 ● ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97892-723-0 02 1 0507-0606 ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) (B) 		8-97892-723-0 02 1 0607- ●
17 03.403 GASKET; AIR DUCT
4HK1-TCC ENG(RDV) (B) 		8-97892-723-0 02 1 0607- ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0302-0506 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0507-0606 ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0607- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JJ1 ENG(LFB) 03.407 ID=68-85 		1-09707-202-0 01 1 0607-0810 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JJ1 ENG(LFB) 03.407 ID=65-85 		8-98133-350-0 01 1 0811- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HK1-TCC ENG(RDV) 03.407 ID=77-95 		1-09707-198-0 01 1 0607-0810 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HK1-TCC ENG(RDV) 03.407 ID=75-95 		8-98133-357-0 01 1 0811- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4HK1-TCC ENG(RDV) (D) ID=112 		9-09915-074-1 01 1 0607- ● ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ● ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0302-0506 ●
232 03.417 HOSE; CONN
4JH1-TC ENG(RDM) 		8-94456-844-1 01 1 0507-0606 ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 		8-97109-423-0 01 1 0607-0802 ● ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 03.407 		8-98115-594-0 01 1 0803- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97856-932-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97856-932-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (A) 		8-97312-894-1 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (B) 		8-97856-933-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (B) 		8-97856-933-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (B) 		8-97329-201-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-958-0 01 1 0302-0506 ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (C) 		8-97856-958-0 01 1 0507-0606 ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (C) 		8-97329-306-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (D) 		8-97180-995-0 01 1 0302-0506 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97180-995-0 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (D) 		8-97180-995-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (C) 		8-97300-255-0 01 1 0302-0506 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) (C) 		8-97300-255-1 01 1 0507-0606 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (E) 		8-97369-706-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (A) 		8-97213-911-2 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (A) 		8-97213-911-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97372-358-0 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (A) 		8-97372-358-0 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) (B) 		8-97213-912-2 01 1 0302-0506 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97213-912-3 01 1 0507-0606 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) (B) 		8-97213-912-3 01 1 0607- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCC ENG(RDV) (B) 		8-97213-912-3 01 1 0607- ●
314 03.417 WASHER; PL,AIR INT DUCT
4JJ1 ENG(LFB) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0607-1204 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JJ1 ENG(LFB) 00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1205- ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0302-0506 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-873-1 01 1 0507-0606 ● ● ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-137-0 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-689-1 01 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97211-578-0 01 1 0302-0506 ● ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-874-0 01 1 0507-0606 ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-138-0 01 1 0607- ●
320 03.417 HOSE; CONN,ACL
4HK1-TCC ENG(RDV) 		8-98019-690-1 01 1 0607- ●
351 03.407 DUCT; AIR
4JJ1 ENG(LFB) 		8-98019-067-1 01 1 0607- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0302-0506 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0507-0606 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0607- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0302-0506 ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0507-0606 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.570 M8 POP NUT 		8-94279-538-0 03 1 0607-0805 ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCC ENG(RDV) 16.549 M8 POP NUT 		8-98021-404-0 03 1 0806- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (A) 		8-97080-149-0 01 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0302-0506 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0507-0606 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (B) 		8-97081-886-0 02 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) 03.417 (C) 		8-97080-149-0 03 1 0302-0506 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C) 		8-97080-149-0 03 1 0507-0606 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HK1-TCC ENG(RDV) 03.417 (C) 		8-97080-149-0 03 1 0607- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0302-0506 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0507-0606 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 06 1 0607-0910 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 06 1 0911- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HK1-TCC ENG(RDV) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0302-0506 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1-TC ENG(RDM) 		8-94273-605-0 02 1 0507-0606 ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JJ1 ENG(LFB) 		8-94273-605-0 02 1 0607- ● ● ●
426 03.417 CLIP; DUCT
4JJ1 ENG(LFB) 		9-09915-504-1 01 1 0607-0802 ● ● ●
426 03.417 CLIP; DUCT
4JJ1 ENG(LFB) 03.407 ID=127 		1-14239-263-0 01 1 0803- ● ● ●
480 03.417 ADAPTER
4JJ1 ENG(LFB) 		8-97093-075-0 01 1 0607- ● ● ●
çizim 55793
505 110 199 110 474 474 474 532 9 211 225 39 110 199 110 505 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97300-773-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (B) 		8-97300-773-1 01 1 0507-0606 ● ●
9 03.417 BRACKET; INT PIPE
4JJ1 ENG(LFB) (C) 		8-98009-086-0 01 1 0607- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97312-473-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (A) 		8-97312-473-1 01 1 0507-0606 ● ●
39 03.417 BOLT; BRKT
4JJ1 ENG(LFB) 03.613 M8X14 FLANGE 		8-97378-075-0 01 1 0607- ● ● ● ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0302-0506 ● ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0507-0606 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0607-0910 ●
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
110 03.403 NUT; RUBBER MTG
4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER 		8-97581-234-0 03 1 0911- ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) (A) 		8-97189-604-0 01 1 0302-0506 ● ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-753-1 01 1 0507-0606 ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98011-753-1 01 1 0507-0606 ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HK1-TCC ENG(RDV) (B) 		8-98011-753-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) (A) 		8-97189-603-1 01 1 0302-0506 ● ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98011-752-1 01 1 0507-0606 ● ● ● ●
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98011-752-1 01 1 0507-0606 ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) (B) 		8-98011-752-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B) 		8-98011-752-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4HK1-TCC ENG(RDV) (B) 		8-98011-752-1 01 1 0607- ● ●
211 03.405 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0507-0606 ● ● ● ●
211 03.405 NUT; BRKT
4HK1-TCN ENG(RDQ) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0507-0606 ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4HK1-TCC ENG(RDV) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
211 03.405 NUT; BRKT
4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
225 03.417 GASKET; AIR PIPE
4HK1-TCC ENG(RDV) 01.097 ID=43.7 		9-09561-344-0 01 1 0607- ● ● ● ●
225 03.417 GASKET; AIR PIPE
4JJ1 ENG(LFB) 03.270 		8-97202-328-1 01 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0607- ● ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ● ●
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) 03.405 		8-94158-155-1 02 1 0302-0506 ● ● ● ● ● ● ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 		8-94158-155-1 02 1 0507-0606 ● ● ● ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.405 		8-94158-155-1 02 1 0507-0606 ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4HK1-TCC ENG(RDV) 03.405 		8-94158-155-1 02 1 0607-0611 ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB) 03.417 		8-98036-826-0 02 1 0612- ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417 		8-98036-826-0 02 1 0612- ● ●
505 03.406 RUBBER; MTG
4HK1-TCC ENG(RDV) 03.417 		8-98036-826-0 02 1 0612- ● ●
532 03.417 PIPE; INTAKE
4JJ1 ENG(LFB) 		8-97385-203-1 01 1 0607- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
