Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#46668) — 365 parça

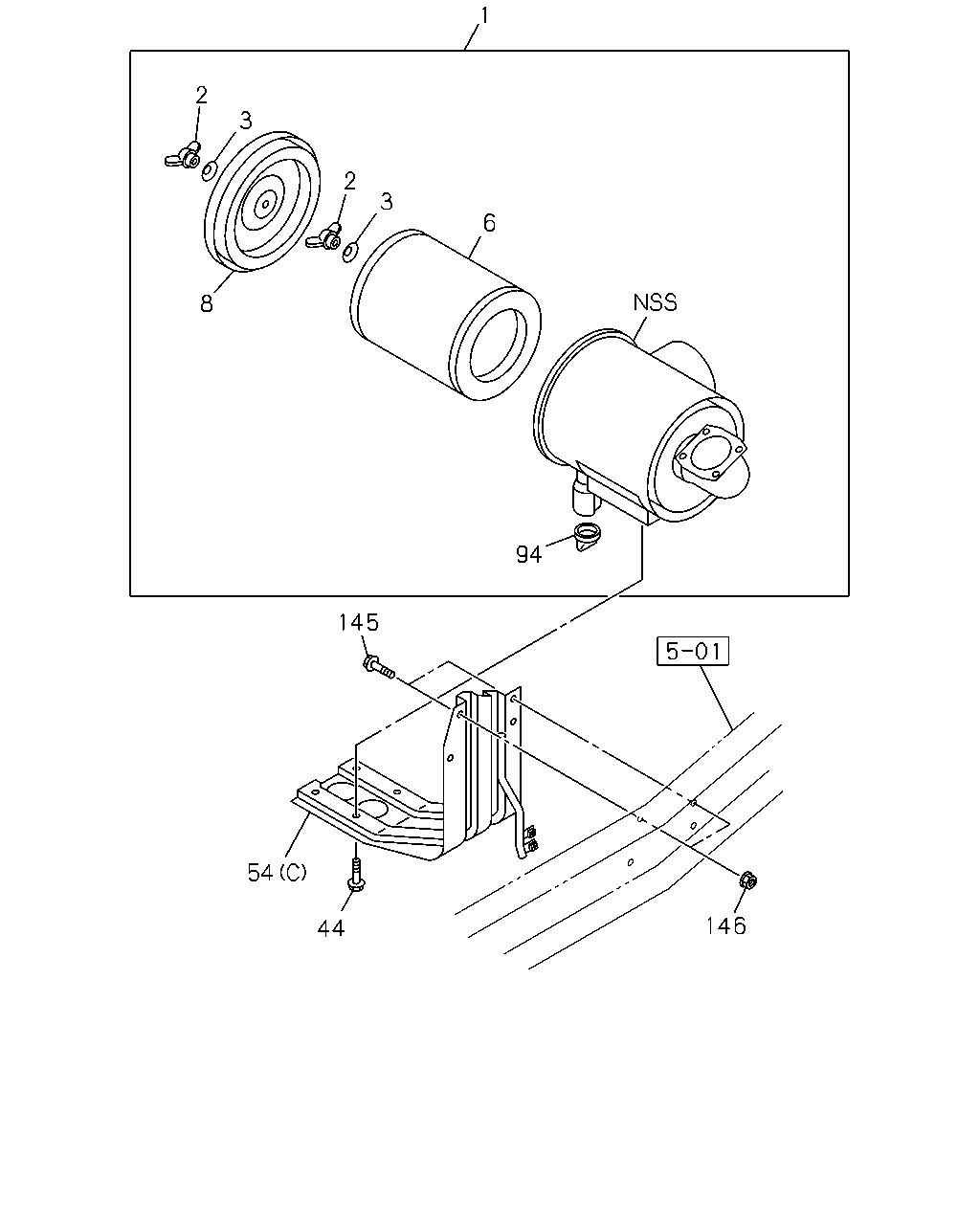

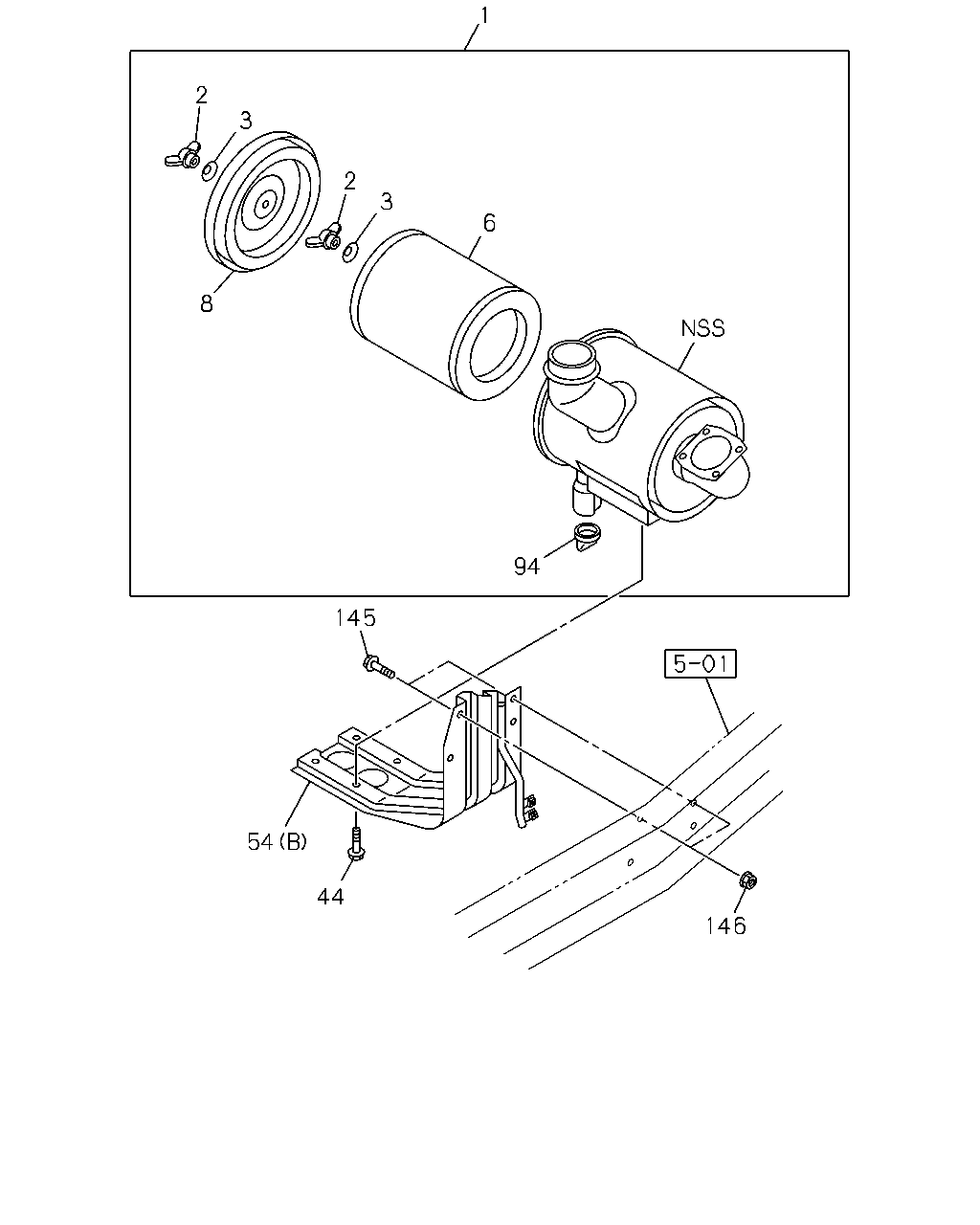

1 2 3 2 3 6 8 94 145 54 44 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0302-0506	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97189-166-4	01	1	0507-0606		●	●		●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0607-		●	●		●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0302-0506		●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-702-4	01	1	0507-0606	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97214-829-3	01	1	0302-0406						●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97378-497-0	01	1	0407-0506						●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97378-497-0	01	1	0507-0606						●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97378-497-0	01	1	0507-0606							●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97378-497-1	01	1	0607-						●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97378-497-1	01	1	0607-							●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY)	8-94447-989-0	01	1	0302-0506	●	●	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-989-0	01	1	0507-0606		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0507-0606						●
2	03.403 NUT; WING,ELEMENT 4HK1-TCC ENG(RDV)	8-94447-989-0	01	1	0607-		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4JJ1 ENG(LFB)	8-94447-989-0	01	1	0607-						●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0302-0506		●
2	03.403 NUT; WING,ELEMENT 4JH1-TC ENG(RDM)	1-14217-068-0	02	1	0507-0606	●	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY)	8-94447-990-0	01	1	0302-0506	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-990-0	01	1	0507-0606		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0507-0606						●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCC ENG(RDV)	8-94447-990-0	01	1	0607-		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4JJ1 ENG(LFB)	8-94447-990-0	01	1	0607-						●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0302-0506		●
3	03.403 WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM)	1-14219-225-0	02	1	0507-0606	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY)	8-94430-250-0	01	1	0302-0506	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94430-250-0	01	1	0507-0606		●	●		●		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0507-0606						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0607-0708		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-94430-250-0	01	1	0607-0708						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-98091-394-0	01	1	0709-						●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506		●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0302-0506		●
8	03.410 COVER ASM; ACL 4JH1-TC ENG(RDM)	8-97313-386-0	01	1	0507-0606	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-97379-849-0	01	1	0607-0607	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0608-	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0302-0506		●
44	03.403 BOLT; ACL 4JH1-TC ENG(RDM) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0507-0512	●	●
44	03.403 BOLT; ACL 4JH1-TC ENG(RDM) M8X20 W/LK&PL WASHER	0-50640-820-0	04	1	0601-0606	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97188-598-1	01	1	0302-0506	●	●	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98012-793-0	01	1	0507-0606		●	●		●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (D)	8-98020-614-0	01	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97312-719-0	01	1	0302-0506		●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97312-719-0	01	1	0507-0606	●	●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98046-708-0	01	1	0607-		●	●		●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97214-833-3	01	1	0302-0506						●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-97214-833-3	01	1	0507-0606						●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-833-3	01	1	0507-0606							●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98020-615-0	01	1	0607-						●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98042-154-0	01	1	0607-							●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY)	1-14219-075-0	01	1	0302-0506	●	●	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-14219-075-0	01	1	0507-0606		●	●		●		●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0507-0606						●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0607-		●	●		●		●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	1-14219-075-0	01	1	0607-						●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506		●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-0907	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●		●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506		●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512						●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606						●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-	●					●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-					●		●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●		●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506		●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602						●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606						●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-	●					●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-		●	●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-					●		●

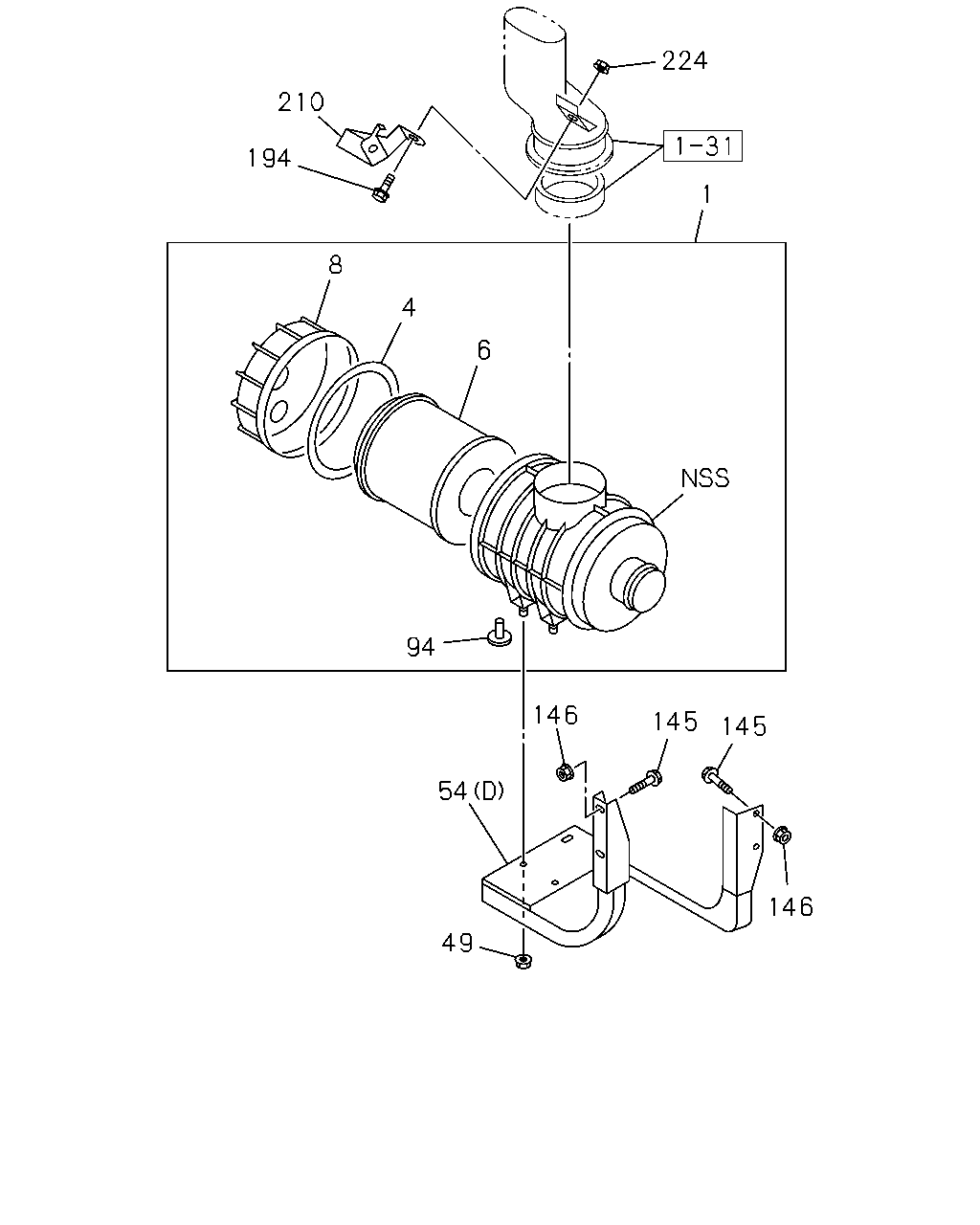

224 210 194 1 8 4 6 94 146 145 145 54 146 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0302-0506	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97189-166-4	01	1	0507-0606		●	●		●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0607-		●	●		●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0302-0506		●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-702-4	01	1	0507-0606	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97214-829-3	01	1	0302-0406						●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97378-497-0	01	1	0407-0506						●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97378-497-0	01	1	0507-0606						●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97378-497-0	01	1	0507-0606							●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97378-497-1	01	1	0607-						●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97378-497-1	01	1	0607-							●
4	03.403 GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0607-	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY)	8-94430-250-0	01	1	0302-0506	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94430-250-0	01	1	0507-0606		●	●		●		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0507-0606						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0607-0708		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-94430-250-0	01	1	0607-0708						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-98091-394-0	01	1	0709-						●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506		●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0302-0506		●
8	03.410 COVER ASM; ACL 4JH1-TC ENG(RDM)	8-97313-386-0	01	1	0507-0606	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-97379-849-0	01	1	0607-0607	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0608-	●	●	●
49	03.403 NUT; ACL 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97188-598-1	01	1	0302-0506	●	●	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98012-793-0	01	1	0507-0606		●	●		●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (D)	8-98020-614-0	01	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97312-719-0	01	1	0302-0506		●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97312-719-0	01	1	0507-0606	●	●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98046-708-0	01	1	0607-		●	●		●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97214-833-3	01	1	0302-0506						●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-97214-833-3	01	1	0507-0606						●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-833-3	01	1	0507-0606							●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98020-615-0	01	1	0607-						●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98042-154-0	01	1	0607-							●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY)	1-14219-075-0	01	1	0302-0506	●	●	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-14219-075-0	01	1	0507-0606		●	●		●		●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0507-0606						●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0607-		●	●		●		●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	1-14219-075-0	01	1	0607-						●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506		●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-0907	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●		●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506		●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512						●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606						●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-	●					●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-					●		●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●		●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506		●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602						●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606						●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-	●					●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-		●	●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-					●		●
194	03.417 BOLT; BRKT 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●			●
210	03.405 BRACKET; ACL MTG 4JJ1 ENG(LFB)	8-98035-295-0	01	1	0607-	●	●	●
224	03.407 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●			●

1 2 3 6 99 100 94 145 146 145 145 54 146 50 130 146 50 54 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0302-0506	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97189-166-4	01	1	0507-0606		●	●		●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0607-		●	●		●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0302-0506		●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-702-4	01	1	0507-0606	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97214-829-3	01	1	0302-0406						●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97378-497-0	01	1	0407-0506						●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97378-497-0	01	1	0507-0606						●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97378-497-0	01	1	0507-0606							●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97378-497-1	01	1	0607-						●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97378-497-1	01	1	0607-							●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY)	8-94447-989-0	01	1	0302-0506	●	●	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-989-0	01	1	0507-0606		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0507-0606						●
2	03.403 NUT; WING,ELEMENT 4HK1-TCC ENG(RDV)	8-94447-989-0	01	1	0607-		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4JJ1 ENG(LFB)	8-94447-989-0	01	1	0607-						●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0302-0506		●
2	03.403 NUT; WING,ELEMENT 4JH1-TC ENG(RDM)	1-14217-068-0	02	1	0507-0606	●	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY)	8-94447-990-0	01	1	0302-0506	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-990-0	01	1	0507-0606		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0507-0606						●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCC ENG(RDV)	8-94447-990-0	01	1	0607-		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4JJ1 ENG(LFB)	8-94447-990-0	01	1	0607-						●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0302-0506		●
3	03.403 WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM)	1-14219-225-0	02	1	0507-0606	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY)	8-94430-250-0	01	1	0302-0506	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94430-250-0	01	1	0507-0606		●	●		●		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0507-0606						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0607-0708		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-94430-250-0	01	1	0607-0708						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-98091-394-0	01	1	0709-						●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506		●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
50	03.403 WASHER; PL,ACL 4HE1 ENG(RLY) 04.085 ID=10.5 OD=22	9-09164-610-0	04	1	0302-0506	●	●	●	●	●	●	●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 ID=10.5 OD=22	9-09164-610-0	04	1	0507-0605		●	●		●		●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ) 04.085 ID=10.5 OD=22	9-09164-610-0	04	1	0507-0605						●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0606-0606		●	●		●		●
50	03.403 WASHER; PL,ACL 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0606-0606						●
50	03.403 WASHER; PL,ACL 4HK1-TCC ENG(RDV) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0607-		●	●		●		●
50	03.403 WASHER; PL,ACL 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	0607-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97188-598-1	01	1	0302-0506	●	●	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98012-793-0	01	1	0507-0606		●	●		●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (D)	8-98020-614-0	01	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97312-719-0	01	1	0302-0506		●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97312-719-0	01	1	0507-0606	●	●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98046-708-0	01	1	0607-		●	●		●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97214-833-3	01	1	0302-0506						●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-97214-833-3	01	1	0507-0606						●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-833-3	01	1	0507-0606							●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98020-615-0	01	1	0607-						●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98042-154-0	01	1	0607-							●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY)	1-14219-075-0	01	1	0302-0506	●	●	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-14219-075-0	01	1	0507-0606		●	●		●		●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0507-0606						●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0607-		●	●		●		●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	1-14219-075-0	01	1	0607-						●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506		●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-0907	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-	●	●	●
99	03.403 CAP; NIPPLE 4HE1 ENG(RLY)	8-94448-008-0	01	1	0302-0506	●	●	●	●	●	●	●
99	03.403 CAP; NIPPLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94448-008-0	01	1	0507-0606		●	●		●		●
99	03.403 CAP; NIPPLE 4HK1-TCN ENG(RDQ)	8-94448-008-0	01	1	0507-0606						●
99	03.403 CAP; NIPPLE 4HK1-TCC ENG(RDV)	8-94448-008-0	01	1	0607-		●	●		●		●
99	03.403 CAP; NIPPLE 4JJ1 ENG(LFB)	8-94448-008-0	01	1	0607-						●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY)	8-94430-259-0	01	1	0302-0506	●	●	●	●	●	●	●
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94430-259-0	01	1	0507-0606		●	●		●		●
100	03.417 ADAPTER; ELBOW 4HK1-TCN ENG(RDQ)	8-94430-259-0	01	1	0507-0606						●
100	03.417 ADAPTER; ELBOW 4HK1-TCC ENG(RDV)	8-94430-259-0	01	1	0607-		●	●		●		●
100	03.417 ADAPTER; ELBOW 4JJ1 ENG(LFB)	8-94430-259-0	01	1	0607-						●
130	03.405 BOLT; BRKT TO ACL 4HE1 ENG(RLY) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0302-0506	●	●	●	●	●	●	●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512		●	●		●		●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512						●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0606		●	●		●		●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0606						●
130	03.405 BOLT; BRKT TO ACL 4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0607-		●	●		●		●
130	03.405 BOLT; BRKT TO ACL 4JJ1 ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0607-						●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●		●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506		●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512						●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606						●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-	●					●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-					●		●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●		●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506		●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602						●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606						●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-	●					●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-		●	●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-					●		●

1 2 3 2 3 6 8 94 145 54 146 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0302-0506	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97189-166-4	01	1	0507-0606		●	●		●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97189-166-5	01	1	0607-		●	●		●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0302-0506		●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-702-4	01	1	0507-0606	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97214-829-3	01	1	0302-0406						●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97378-497-0	01	1	0407-0506						●	●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ)	8-97378-497-0	01	1	0507-0606						●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97378-497-0	01	1	0507-0606							●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97378-497-1	01	1	0607-						●
1	03.402 CLEANER ASM; AIR 4HK1-TCC ENG(RDV)	8-97378-497-1	01	1	0607-							●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY)	8-94447-989-0	01	1	0302-0506	●	●	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-989-0	01	1	0507-0606		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4HK1-TCN ENG(RDQ)	8-94447-989-0	01	1	0507-0606						●
2	03.403 NUT; WING,ELEMENT 4HK1-TCC ENG(RDV)	8-94447-989-0	01	1	0607-		●	●		●		●
2	03.403 NUT; WING,ELEMENT 4JJ1 ENG(LFB)	8-94447-989-0	01	1	0607-						●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0302-0506		●
2	03.403 NUT; WING,ELEMENT 4JH1-TC ENG(RDM)	1-14217-068-0	02	1	0507-0606	●	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY)	8-94447-990-0	01	1	0302-0506	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-990-0	01	1	0507-0606		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCN ENG(RDQ)	8-94447-990-0	01	1	0507-0606						●
3	03.403 WASHER; SEAL,WING NUT 4HK1-TCC ENG(RDV)	8-94447-990-0	01	1	0607-		●	●		●		●
3	03.403 WASHER; SEAL,WING NUT 4JJ1 ENG(LFB)	8-94447-990-0	01	1	0607-						●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0302-0506		●
3	03.403 WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM)	1-14219-225-0	02	1	0507-0606	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY)	8-94430-250-0	01	1	0302-0506	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94430-250-0	01	1	0507-0606		●	●		●		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ)	8-94430-250-0	01	1	0507-0606						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-94430-250-0	01	1	0607-0708		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-94430-250-0	01	1	0607-0708						●
6	03.410 FILTER; ACL 4HK1-TCC ENG(RDV)	8-98091-394-0	01	1	0709-		●	●		●		●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-98091-394-0	01	1	0709-						●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506		●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0302-0506		●
8	03.410 COVER ASM; ACL 4JH1-TC ENG(RDM)	8-97313-386-0	01	1	0507-0606	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-97379-849-0	01	1	0607-0607	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0608-	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0302-0506		●
44	03.403 BOLT; ACL 4JH1-TC ENG(RDM) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0507-0512	●	●
44	03.403 BOLT; ACL 4JH1-TC ENG(RDM) M8X20 W/LK&PL WASHER	0-50640-820-0	04	1	0601-0606	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97188-598-1	01	1	0302-0506	●	●	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98012-793-0	01	1	0507-0606		●	●		●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (D)	8-98020-614-0	01	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97312-719-0	01	1	0302-0506		●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97312-719-0	01	1	0507-0606	●	●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98046-708-0	01	1	0607-		●	●		●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) (A)	8-97214-833-3	01	1	0302-0506						●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (A)	8-97214-833-3	01	1	0507-0606						●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-833-3	01	1	0507-0606							●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98020-615-0	01	1	0607-						●
54	03.405 BRACKET; ACL 4HK1-TCC ENG(RDV) (C)	8-98042-154-0	01	1	0607-							●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY)	1-14219-075-0	01	1	0302-0506	●	●	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-14219-075-0	01	1	0507-0606		●	●		●		●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ)	1-14219-075-0	01	1	0507-0606						●
94	03.415 VALVE; VACUATOR 4HK1-TCC ENG(RDV)	1-14219-075-0	01	1	0607-		●	●		●		●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	1-14219-075-0	01	1	0607-						●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506		●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-0907	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97093-694-0	01	1	0908-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●		●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506		●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512						●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606			●		●		●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606						●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-	●					●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0607-					●		●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●		●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506		●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602						●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606			●		●		●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606						●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-	●					●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-		●	●
146	03.405 NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-					●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
