1-11 — RADIATOR HOSE AND SUB TANK (#46667) — 539 parça
çizim 11923
55 56 56 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) 		8-97216-029-0 01 1 0302-0506 ● ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0507-0606 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCC ENG(RDV) 		8-97330-530-0 01 1 0607- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) 		8-97260-187-1 01 1 0302-0506 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1-TC ENG(RDM) 		8-97260-187-2 01 1 0507-0606 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JJ1 ENG(LFB) 		8-97383-814-1 01 1 0607- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCN ENG(RDQ) 		8-98019-472-0 01 1 0507-0606 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0302-0506 ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=40 		8-97245-216-0 02 1 0507-0606 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ) ID=40 		8-97245-216-0 02 1 0507-0606 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1 ENG(RJX) ID=48 		5-09704-049-0 02 1 0302-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM) ID=48 		5-09704-049-0 02 1 0507-0606 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		8-98133-956-0 02 1 0902- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		8-98133-956-0 02 1 0902- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		8-98133-956-0 02 1 0902- ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) 		8-97160-257-1 01 1 0302-0506 ● ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCN ENG(RDQ) 		8-97160-257-1 01 1 0507-0606 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1 ENG(RJX) 		8-97289-369-0 01 1 0302-0506 ●
128 01.159 HOSE; WATER,RAD INL
4JH1-TC ENG(RDM) 		8-97289-369-1 01 1 0507-0606 ● ●
128 01.159 HOSE; WATER,RAD INL
4JJ1 ENG(LFB) 		8-97383-812-1 01 1 0607- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0507-0606 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCC ENG(RDV) 		8-97330-529-0 01 1 0607- ● ● ● ●

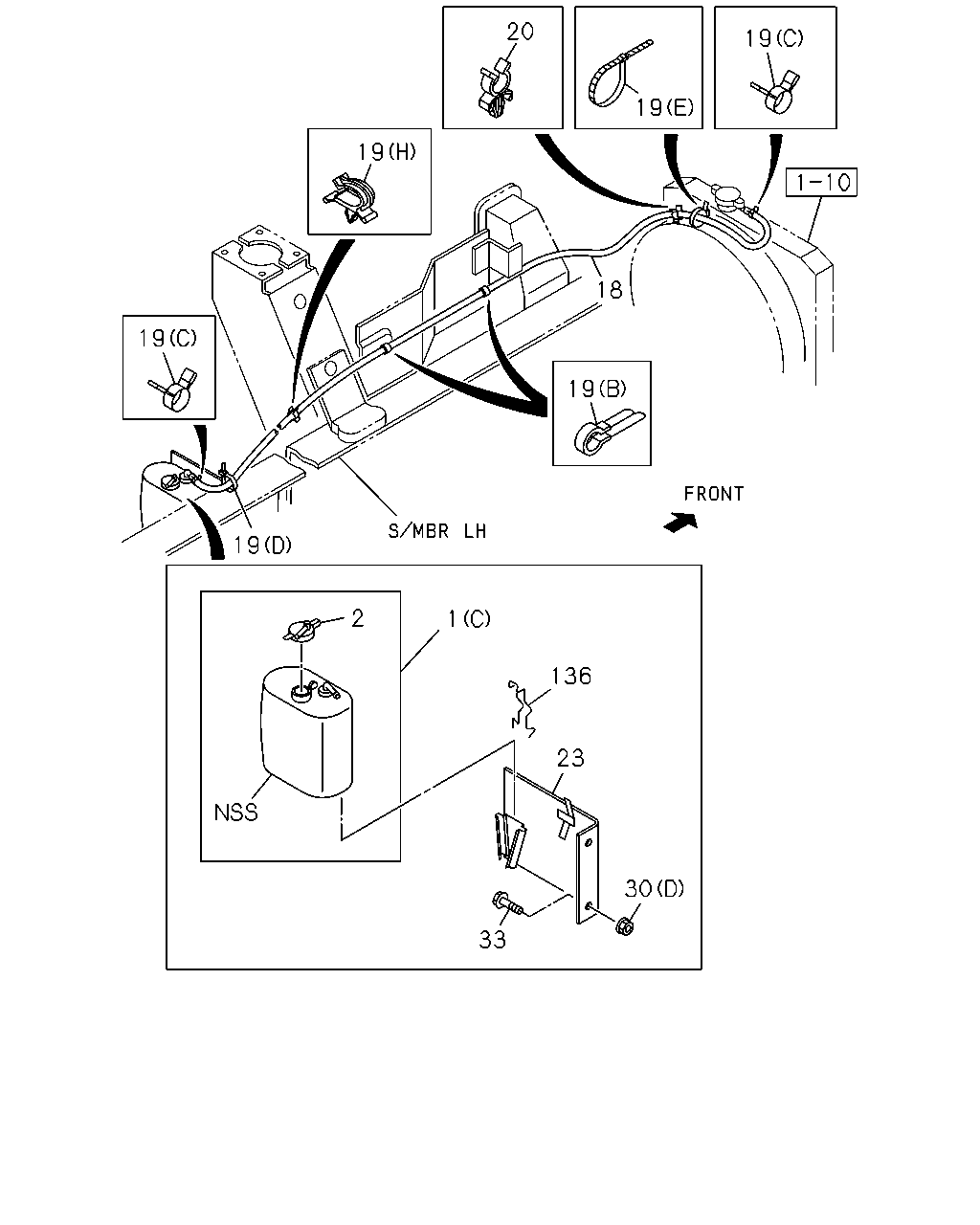

çizim 14042

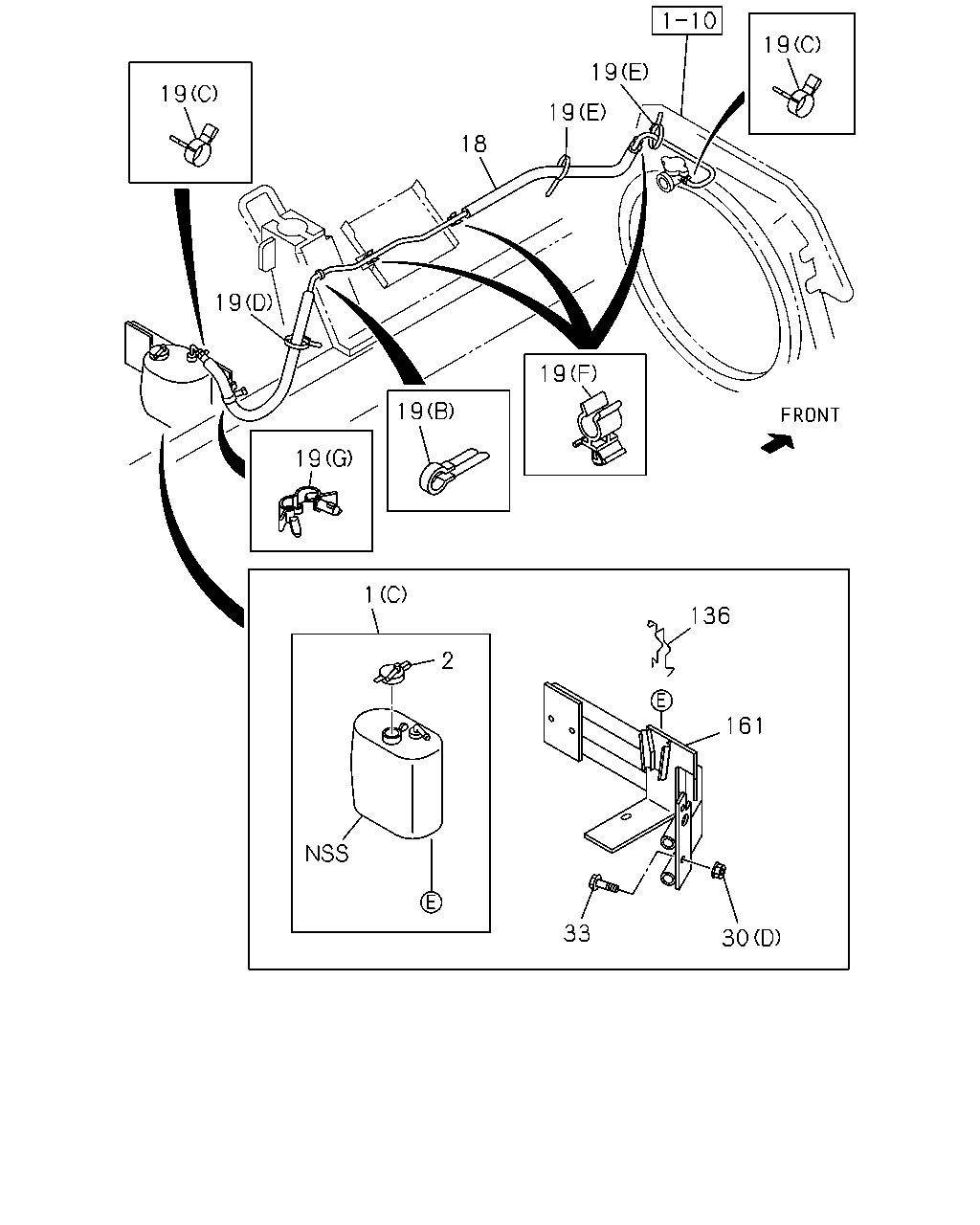

20 19 19 19 18 19 19 19 2 1 136 23 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0302-0506 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-98178-177-0 01 1 1011- ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) (B) 		8-97205-136-0 01 1 0302-0506 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (B) 		8-97205-136-1 01 1 0507-0606 ● ●
1 01.219 TANK; SURGE,RAD
4JJ1 ENG(LFB) (B) 		8-97205-136-1 01 1 0607- ● ● ●
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0302-0506 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0507- ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-97217-796-0 01 1 0302-0506 ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97217-796-0 01 1 0507-0606 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-97217-796-0 01 1 0607-1010 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-98178-074-0 01 1 1011- ● ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-94449-363-0 01 1 0302-0506 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0507- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0302-0506 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1850 		8-98052-184-0 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1750 		8-97356-351-0 01 1 0302-0506 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1750 		8-97356-351-0 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1710 		8-98018-436-2 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1520 		8-97376-968-1 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1850 		8-97214-382-6 01 1 0302-0506 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1960 		8-98012-833-1 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1890 		8-98020-088-2 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1760 		8-97376-969-1 01 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 04.342 (H) ID=14-12 		8-94379-592-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0302-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 02.559 (E) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (F) ID=12 		8-98029-256-0 03 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (B) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.162 (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.430 (D) L=200 		8-94464-835-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 03 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.164 (E) L=217 		8-94235-793-0 01 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) 03.164 (E) L=217 		8-94235-793-0 01 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.164 (E) L=217 		8-94235-793-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.162 (D) L=140 		5-09707-031-1 02 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) L=140 		5-09707-031-1 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.162 (D) L=140 		5-09707-031-1 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) ID=10.8 		8-97354-231-0 01 1 0302-0506 ● ● ● ● ● ● ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ) ID=10.8 		8-97354-231-0 01 1 0507-0606 ● ● ● ● ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX) 		8-97225-271-1 01 1 0302-0506 ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0507-0606 ● ●
23 01.219 BRACKET; RESERVE TANK
4JJ1 ENG(LFB) 		8-97225-271-1 01 1 0607- ● ● ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) 		8-97214-324-1 01 1 0302-0506 ● ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCC ENG(RDV) 		8-97214-324-1 01 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0302-0506 ● ● ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ●
30 01.203 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (E) M8 FLANGE 		0-91180-108-0 07 1 0610- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 03.162 (D) M10 FLANGE 		0-91180-110-0 03 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.785 (D) M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
33 01.277 BOLT; BRKT
4HK1-TCC ENG(RDV) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
136 01.219 STOPPER; SURGE TANK
4HE1 ENG(RLY) 		8-97087-220-0 01 1 0302-0506 ● ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0507- ● ●

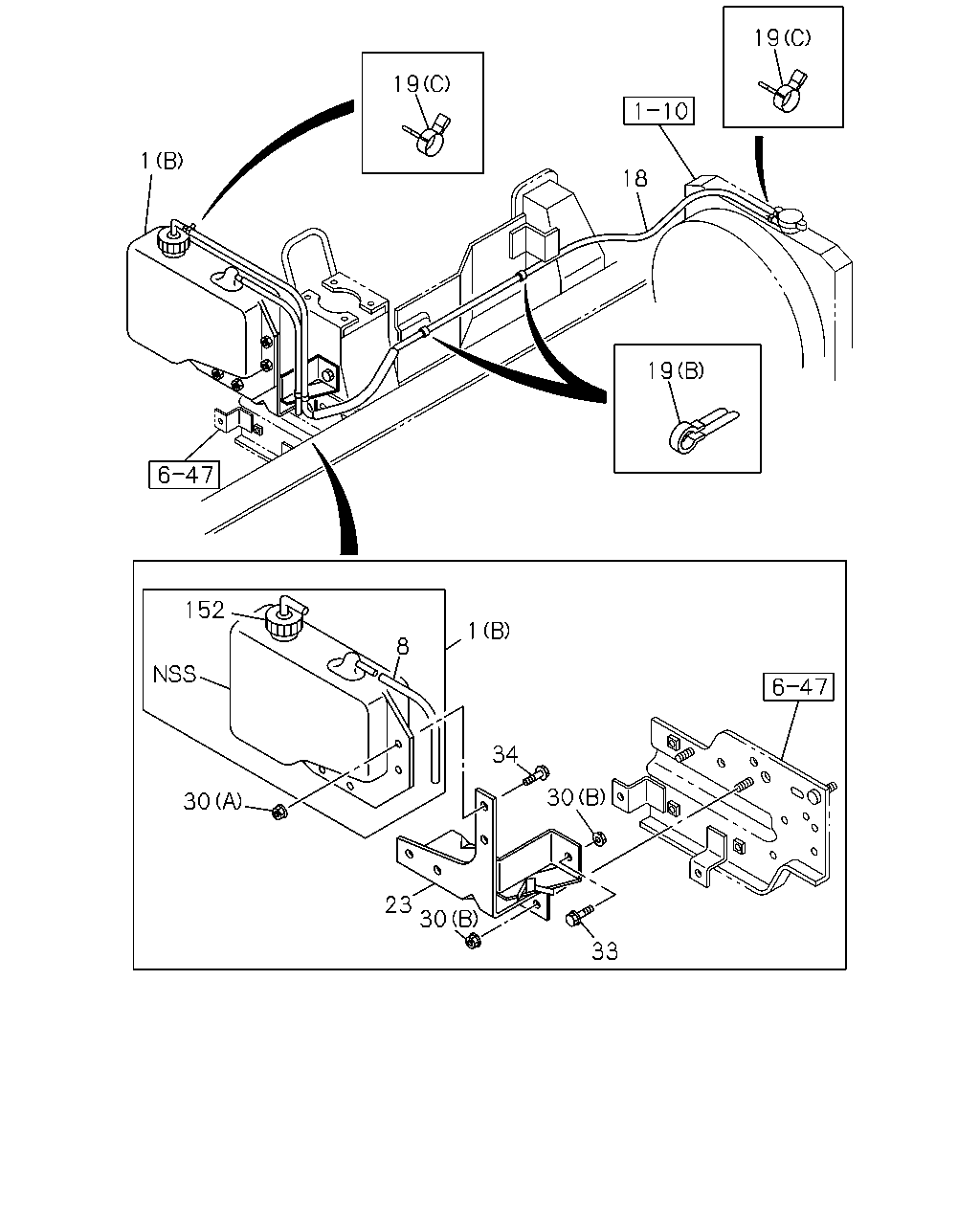

çizim 52106
19 19 1 18 19 152 1 8 34 30 30 23 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0302-0506 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-98178-177-0 01 1 1011- ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) (B) 		8-97205-136-0 01 1 0302-0506 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (B) 		8-97205-136-1 01 1 0507-0606 ● ●
1 01.219 TANK; SURGE,RAD
4JJ1 ENG(LFB) (B) 		8-97205-136-1 01 1 0607- ● ● ●
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0302-0506 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0507- ● ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX) 01.240 L=500 		1-09366-179-0 01 1 0302-0506 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0507-0606 ● ●
8 01.166 HOSE; VINYL
4JJ1 ENG(LFB) 01.240 L=500 		1-09366-179-0 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0302-0506 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1850 		8-98052-184-0 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1750 		8-97356-351-0 01 1 0302-0506 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1750 		8-97356-351-0 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1710 		8-98018-436-2 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1520 		8-97376-968-1 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1850 		8-97214-382-6 01 1 0302-0506 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1960 		8-98012-833-1 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1890 		8-98020-088-2 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1760 		8-97376-969-1 01 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 04.342 (H) ID=14-12 		8-94379-592-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0302-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 02.559 (E) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (F) ID=12 		8-98029-256-0 03 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (B) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.162 (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.430 (D) L=200 		8-94464-835-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 03 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.164 (E) L=217 		8-94235-793-0 01 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) 03.164 (E) L=217 		8-94235-793-0 01 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.164 (E) L=217 		8-94235-793-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.162 (D) L=140 		5-09707-031-1 02 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) L=140 		5-09707-031-1 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.162 (D) L=140 		5-09707-031-1 01 1 0607- ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX) 		8-97225-271-1 01 1 0302-0506 ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0507-0606 ● ●
23 01.219 BRACKET; RESERVE TANK
4JJ1 ENG(LFB) 		8-97225-271-1 01 1 0607- ● ● ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) 		8-97214-324-1 01 1 0302-0506 ● ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCC ENG(RDV) 		8-97214-324-1 01 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0302-0506 ● ● ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ●
30 01.203 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (E) M8 FLANGE 		0-91180-108-0 07 1 0610- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 03.162 (D) M10 FLANGE 		0-91180-110-0 03 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.785 (D) M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
33 01.277 BOLT; BRKT
4HK1-TCC ENG(RDV) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
34 01.203 BOLT; RESERVE TANK
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0302-0506 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601-0606 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0607- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0606 ● ●
34 01.203 BOLT; RESERVE TANK
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0607- ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX) 		8-97217-799-0 01 1 0302-0506 ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM) 		8-97217-799-0 01 1 0507-0606 ● ●
152 01.203 CAP ASM; SURGE TANK
4JJ1 ENG(LFB) 		8-97217-799-0 01 1 0607- ● ● ●

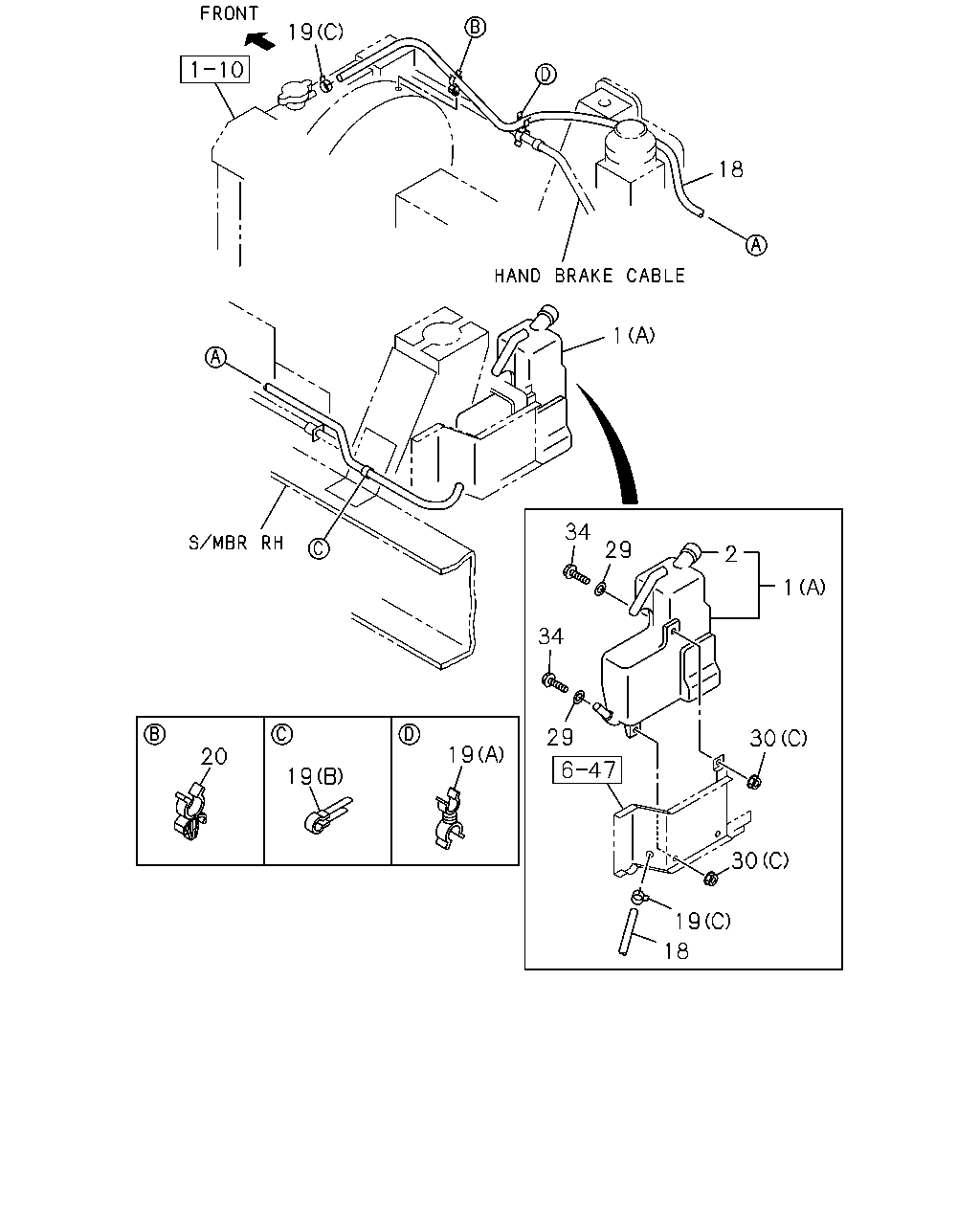

çizim 54111
19 18 1 34 29 2 1 34 29 30 19 20 19 30 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0302-0506 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-98178-177-0 01 1 1011- ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) (B) 		8-97205-136-0 01 1 0302-0506 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (B) 		8-97205-136-1 01 1 0507-0606 ● ●
1 01.219 TANK; SURGE,RAD
4JJ1 ENG(LFB) (B) 		8-97205-136-1 01 1 0607- ● ● ●
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0302-0506 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0507- ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-97217-796-0 01 1 0302-0506 ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97217-796-0 01 1 0507-0606 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-97217-796-0 01 1 0607-1010 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-98178-074-0 01 1 1011- ● ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-94449-363-0 01 1 0302-0506 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0507- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0302-0506 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1850 		8-98052-184-0 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1750 		8-97356-351-0 01 1 0302-0506 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1750 		8-97356-351-0 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1710 		8-98018-436-2 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1520 		8-97376-968-1 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1850 		8-97214-382-6 01 1 0302-0506 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1960 		8-98012-833-1 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1890 		8-98020-088-2 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1760 		8-97376-969-1 01 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 04.342 (H) ID=14-12 		8-94379-592-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0302-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 02.559 (E) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (F) ID=12 		8-98029-256-0 03 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (B) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.162 (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.430 (D) L=200 		8-94464-835-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 03 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.164 (E) L=217 		8-94235-793-0 01 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) 03.164 (E) L=217 		8-94235-793-0 01 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.164 (E) L=217 		8-94235-793-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.162 (D) L=140 		5-09707-031-1 02 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) L=140 		5-09707-031-1 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.162 (D) L=140 		5-09707-031-1 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) ID=10.8 		8-97354-231-0 01 1 0302-0506 ● ● ● ● ● ● ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ) ID=10.8 		8-97354-231-0 01 1 0507-0606 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0302-0506 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0606 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0607- ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0302-0506 ● ● ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ●
30 01.203 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (E) M8 FLANGE 		0-91180-108-0 07 1 0610- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 03.162 (D) M10 FLANGE 		0-91180-110-0 03 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.785 (D) M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ● ●
34 01.203 BOLT; RESERVE TANK
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0302-0506 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601-0606 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0607- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0606 ● ●
34 01.203 BOLT; RESERVE TANK
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0607- ● ● ●

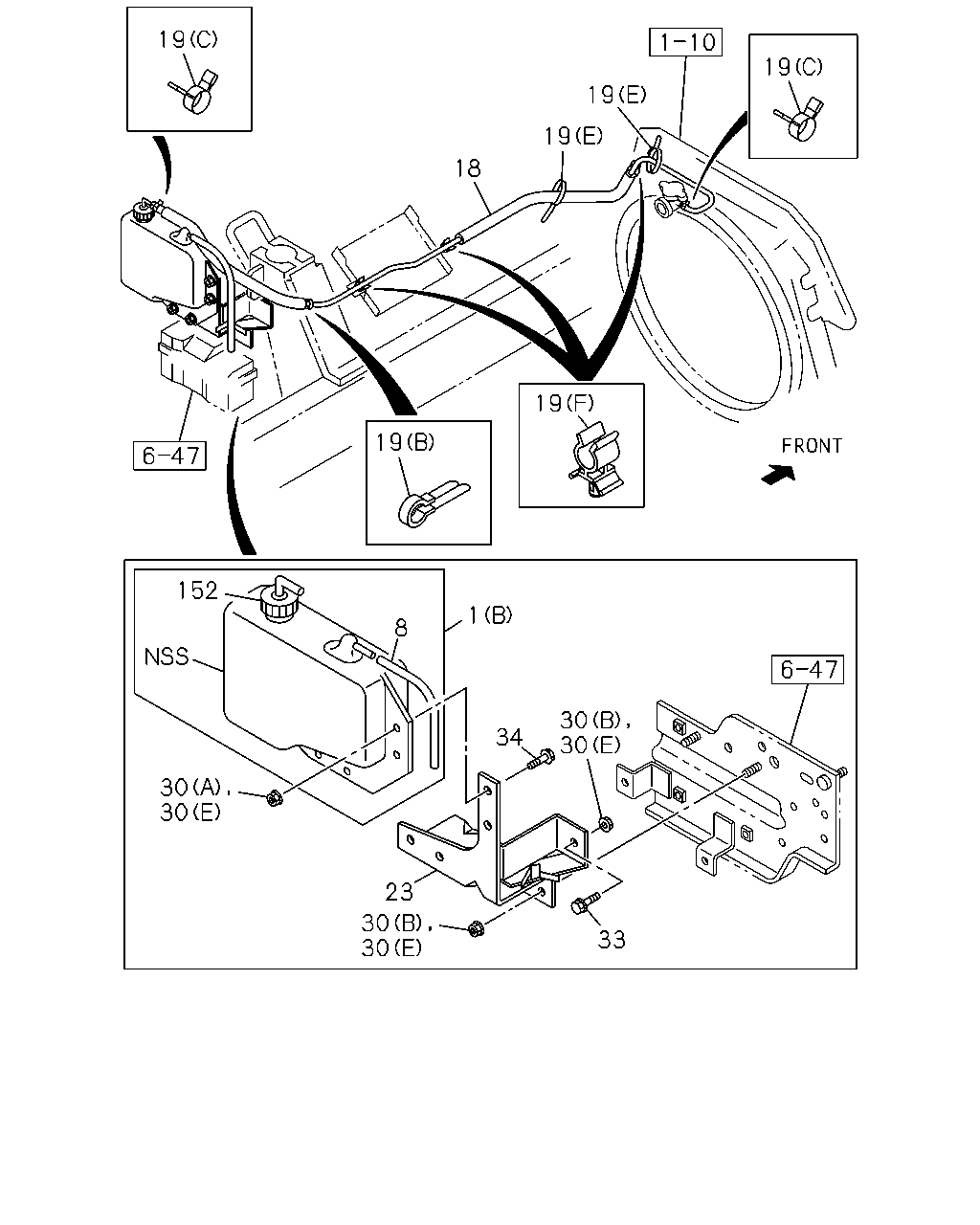

çizim 55481
19 19 19 19 18 19 19 152 1 8 30 30 34 30 30 23 30 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0302-0506 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-98178-177-0 01 1 1011- ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) (B) 		8-97205-136-0 01 1 0302-0506 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (B) 		8-97205-136-1 01 1 0507-0606 ● ●
1 01.219 TANK; SURGE,RAD
4JJ1 ENG(LFB) (B) 		8-97205-136-1 01 1 0607- ● ● ●
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0302-0506 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0507- ● ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX) 01.240 L=500 		1-09366-179-0 01 1 0302-0506 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0507-0606 ● ●
8 01.166 HOSE; VINYL
4JJ1 ENG(LFB) 01.240 L=500 		1-09366-179-0 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0302-0506 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1850 		8-98052-184-0 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1750 		8-97356-351-0 01 1 0302-0506 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1750 		8-97356-351-0 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1710 		8-98018-436-2 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1520 		8-97376-968-1 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1850 		8-97214-382-6 01 1 0302-0506 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1960 		8-98012-833-1 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1890 		8-98020-088-2 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1760 		8-97376-969-1 01 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 04.342 (H) ID=14-12 		8-94379-592-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0302-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 02.559 (E) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (F) ID=12 		8-98029-256-0 03 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (B) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.162 (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.430 (D) L=200 		8-94464-835-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 03 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.164 (E) L=217 		8-94235-793-0 01 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) 03.164 (E) L=217 		8-94235-793-0 01 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.164 (E) L=217 		8-94235-793-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.162 (D) L=140 		5-09707-031-1 02 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) L=140 		5-09707-031-1 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.162 (D) L=140 		5-09707-031-1 01 1 0607- ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX) 		8-97225-271-1 01 1 0302-0506 ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0507-0606 ● ●
23 01.219 BRACKET; RESERVE TANK
4JJ1 ENG(LFB) 		8-97225-271-1 01 1 0607- ● ● ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) 		8-97214-324-1 01 1 0302-0506 ● ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97214-324-1 01 1 0507-0606 ●
23 01.219 BRACKET; RESERVE TANK
4HK1-TCC ENG(RDV) 		8-97214-324-1 01 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0302-0506 ● ● ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ●
30 01.203 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (E) M8 FLANGE 		0-91180-108-0 07 1 0610- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 03.162 (D) M10 FLANGE 		0-91180-110-0 03 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.785 (D) M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
33 01.277 BOLT; BRKT
4HK1-TCC ENG(RDV) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
34 01.203 BOLT; RESERVE TANK
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0302-0506 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601-0606 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCC ENG(RDV) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0607- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0606 ● ●
34 01.203 BOLT; RESERVE TANK
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0607- ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX) 		8-97217-799-0 01 1 0302-0506 ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM) 		8-97217-799-0 01 1 0507-0606 ● ●
152 01.203 CAP ASM; SURGE TANK
4JJ1 ENG(LFB) 		8-97217-799-0 01 1 0607- ● ● ●
çizim 55850
19 19 19 19 18 19 19 19 19 1 136 2 161 33 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0302-0506 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ●
1 01.219 TANK; SURGE,RAD
4HK1-TCC ENG(RDV) (A) 		8-98178-177-0 01 1 1011- ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) (B) 		8-97205-136-0 01 1 0302-0506 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (B) 		8-97205-136-1 01 1 0507-0606 ● ●
1 01.219 TANK; SURGE,RAD
4JJ1 ENG(LFB) (B) 		8-97205-136-1 01 1 0607- ● ● ●
1 01.219 TANK; SURGE,RAD
4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0302-0506 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0507- ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-97217-796-0 01 1 0302-0506 ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97217-796-0 01 1 0507-0606 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-97217-796-0 01 1 0607-1010 ● ● ●
2 01.203 CAP; SURGE TANK
4HK1-TCC ENG(RDV) 		8-98178-074-0 01 1 1011- ● ● ●
2 01.203 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-94449-363-0 01 1 0302-0506 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0507- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0302-0506 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1850 		8-98052-184-0 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1750 		8-97356-351-0 01 1 0302-0506 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1750 		8-97356-351-0 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1710 		8-98018-436-2 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507-0606 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCC ENG(RDV) L=1520 		8-97376-968-1 01 1 0607- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1850 		8-97214-382-6 01 1 0302-0506 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1960 		8-98012-833-1 01 1 0507-0606 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JJ1 ENG(LFB) L=1890 		8-98020-088-2 01 1 0607- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1760 		8-97376-969-1 01 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 04.342 (H) ID=14-12 		8-94379-592-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0302-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 02.559 (E) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (F) ID=12 		8-98029-256-0 03 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0507 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) (B) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.162 (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JJ1 ENG(LFB) 03.430 (D) L=200 		8-94464-835-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0507 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 03 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) (B) ID=14 L=47 		5-09700-319-0 03 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.164 (E) L=217 		8-94235-793-0 01 1 0302-0506 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) 03.164 (E) L=217 		8-94235-793-0 01 1 0507-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.164 (E) L=217 		8-94235-793-0 01 1 0607- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) 03.162 (D) L=140 		5-09707-031-1 02 1 0302-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) L=140 		5-09707-031-1 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCC ENG(RDV) 03.162 (D) L=140 		5-09707-031-1 01 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0302-0506 ● ● ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ●
30 01.203 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.062 (E) M8 FLANGE 		0-91180-108-0 07 1 0610- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0302-0506 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0507-0602 ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0606 ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0607-0609 ● ● ●
30 01.203 NUT
4JJ1 ENG(LFB) 03.162 (D) M10 FLANGE 		0-91180-110-0 03 1 0607- ●
30 01.203 NUT
4HE1 ENG(RLY) 04.785 (D) M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ●
33 01.277 BOLT; BRKT
4JJ1 ENG(LFB) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
33 01.277 BOLT; BRKT
4HK1-TCC ENG(RDV) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
136 01.219 STOPPER; SURGE TANK
4HE1 ENG(RLY) 		8-97087-220-0 01 1 0302-0506 ● ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0507- ● ●
161 01.219 BRACKET; SURGE TANK
4JJ1 ENG(LFB) 		8-98039-535-0 01 1 0607-0609 ●
161 01.219 BRACKET; SURGE TANK
4JJ1 ENG(LFB) 		8-98061-855-0 01 1 0610- ●
çizim 57062
56 128 56 55 56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) 		8-97216-029-0 01 1 0302-0506 ● ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0507-0606 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCC ENG(RDV) 		8-97330-530-0 01 1 0607- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) 		8-97260-187-1 01 1 0302-0506 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1-TC ENG(RDM) 		8-97260-187-2 01 1 0507-0606 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JJ1 ENG(LFB) 		8-97383-814-1 01 1 0607- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCN ENG(RDQ) 		8-98019-472-0 01 1 0507-0606 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0302-0506 ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=40 		8-97245-216-0 02 1 0507-0606 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ) ID=40 		8-97245-216-0 02 1 0507-0606 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1 ENG(RJX) ID=48 		5-09704-049-0 02 1 0302-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM) ID=48 		5-09704-049-0 02 1 0507-0606 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		5-09704-049-0 02 1 0607-0610 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		8-98036-282-0 02 1 0611-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB) ID=48 		8-98133-956-0 02 1 0902- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) ID=48 		8-98133-956-0 02 1 0902- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCC ENG(RDV) ID=48 		8-98133-956-0 02 1 0902- ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) 		8-97160-257-1 01 1 0302-0506 ● ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCN ENG(RDQ) 		8-97160-257-1 01 1 0507-0606 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1 ENG(RJX) 		8-97289-369-0 01 1 0302-0506 ●
128 01.159 HOSE; WATER,RAD INL
4JH1-TC ENG(RDM) 		8-97289-369-1 01 1 0507-0606 ● ●
128 01.159 HOSE; WATER,RAD INL
4JJ1 ENG(LFB) 		8-97383-812-1 01 1 0607- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0507-0606 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCC ENG(RDV) 		8-97330-529-0 01 1 0607- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
