Sayfa 1-10 - Isuzu EPC

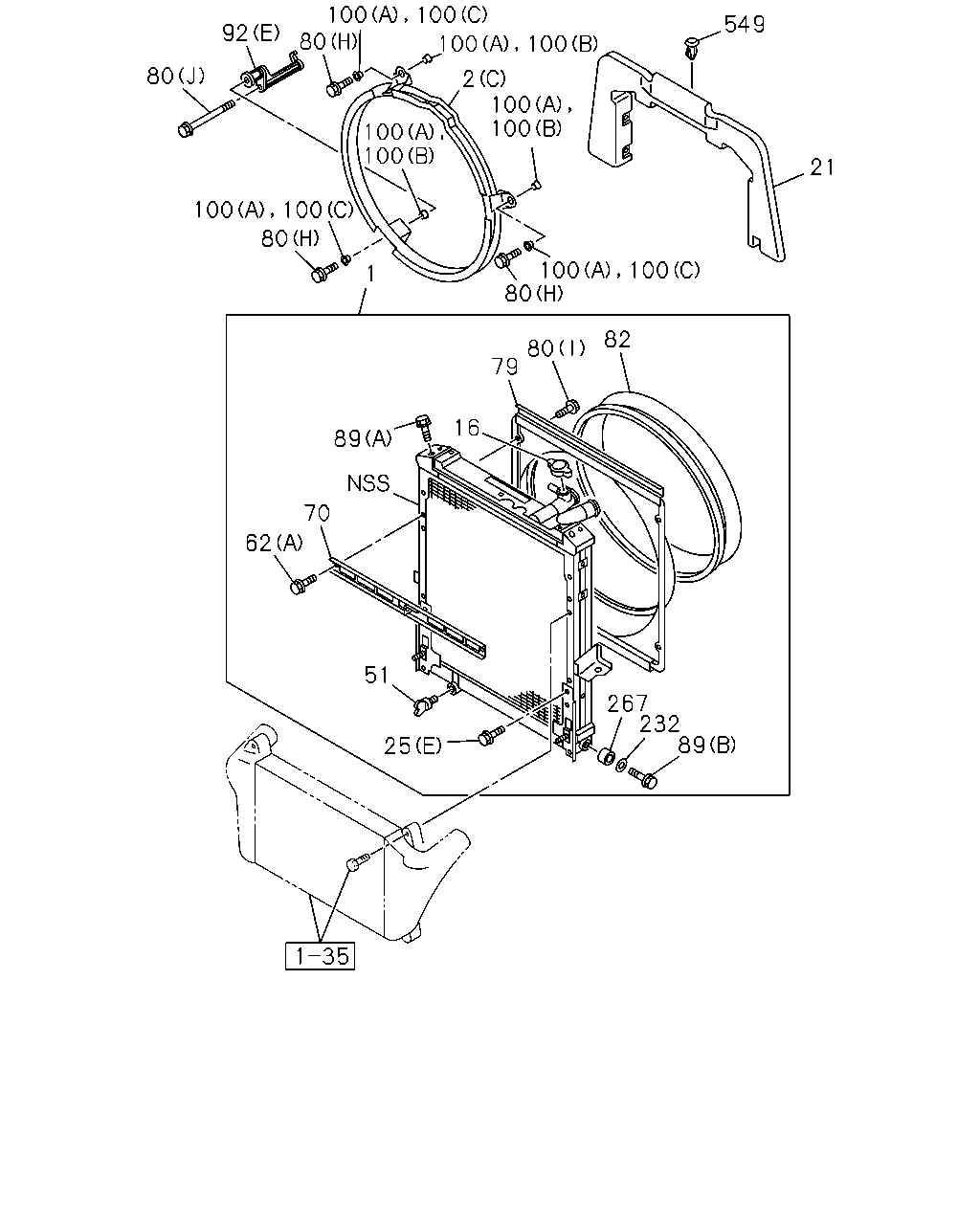

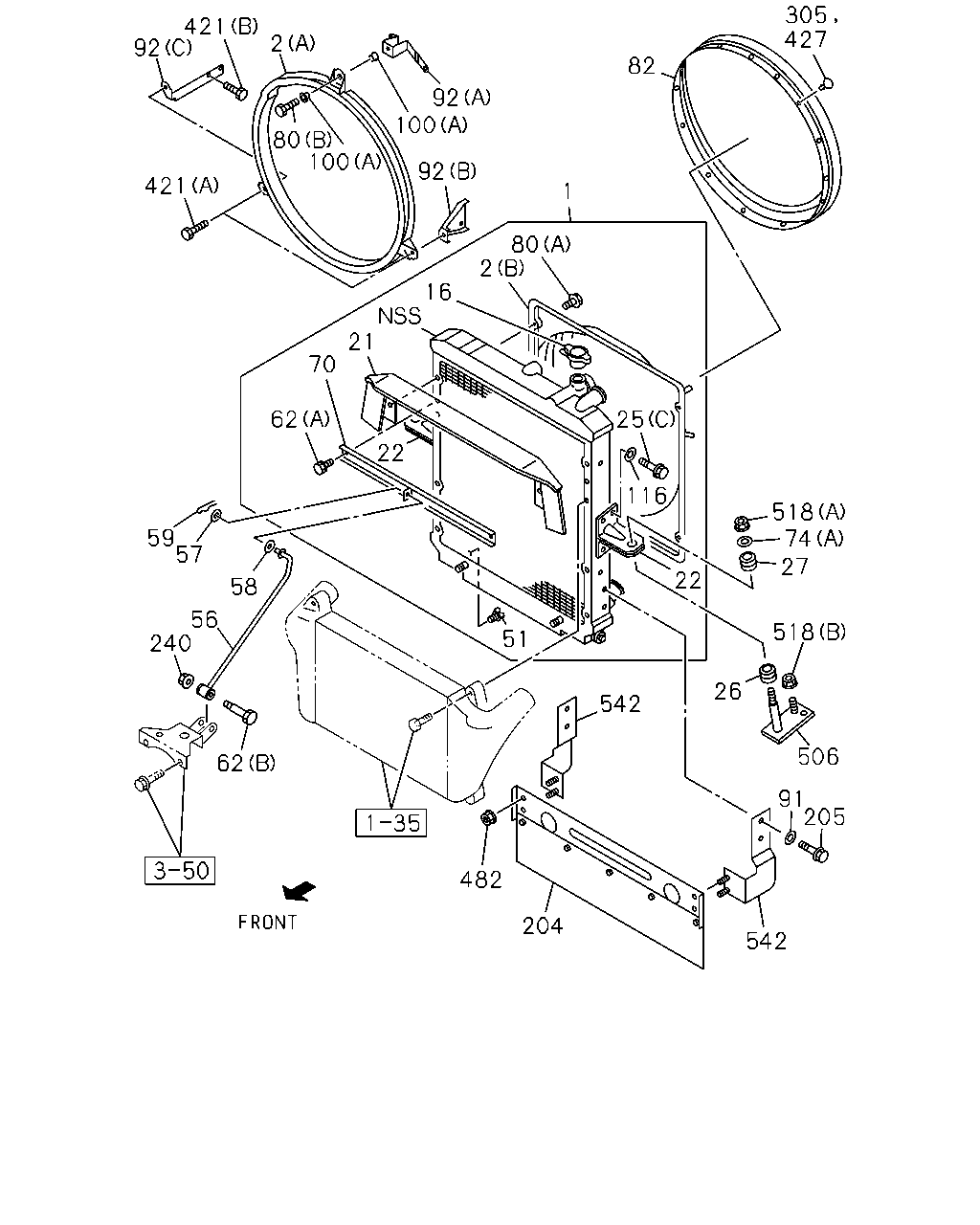

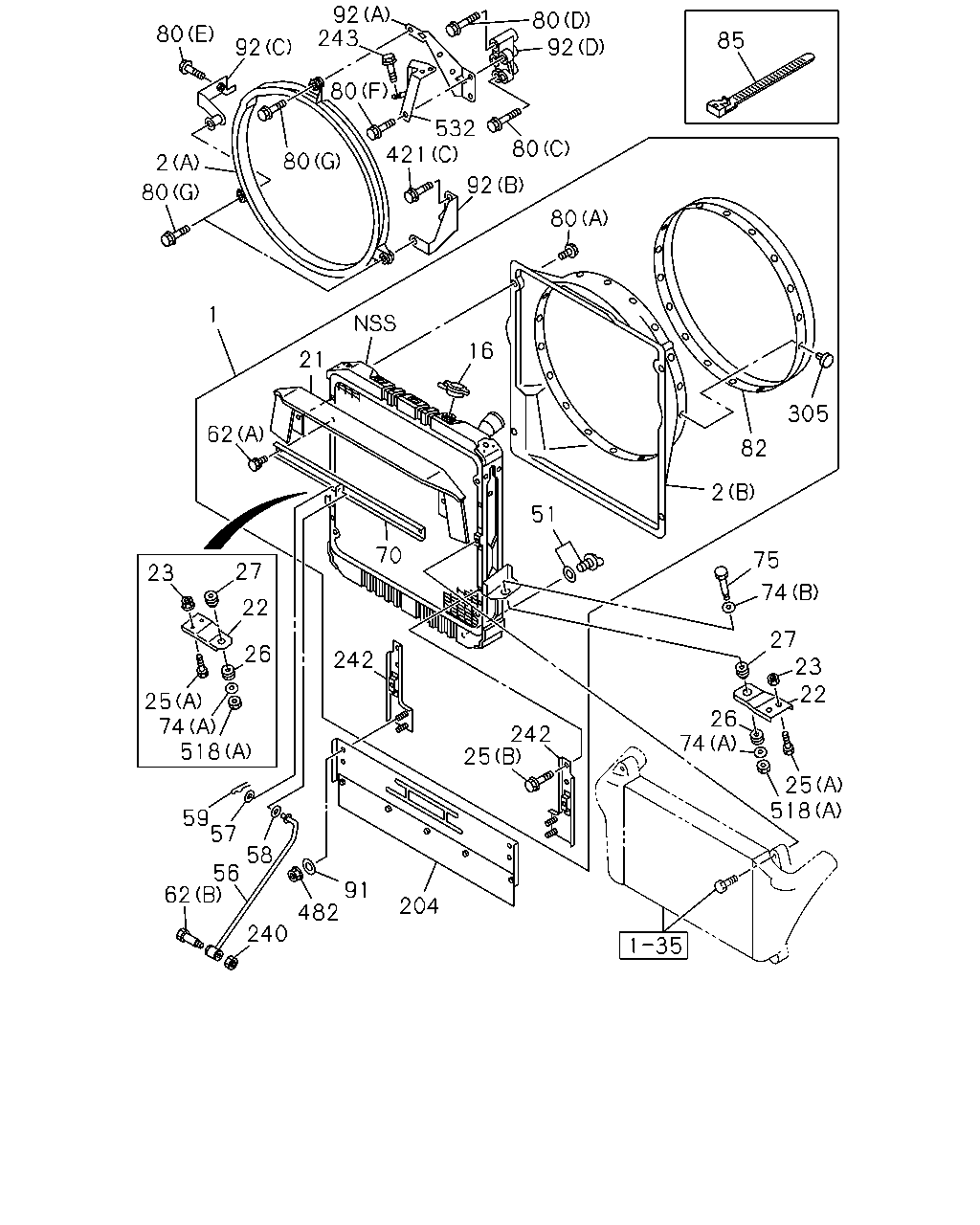

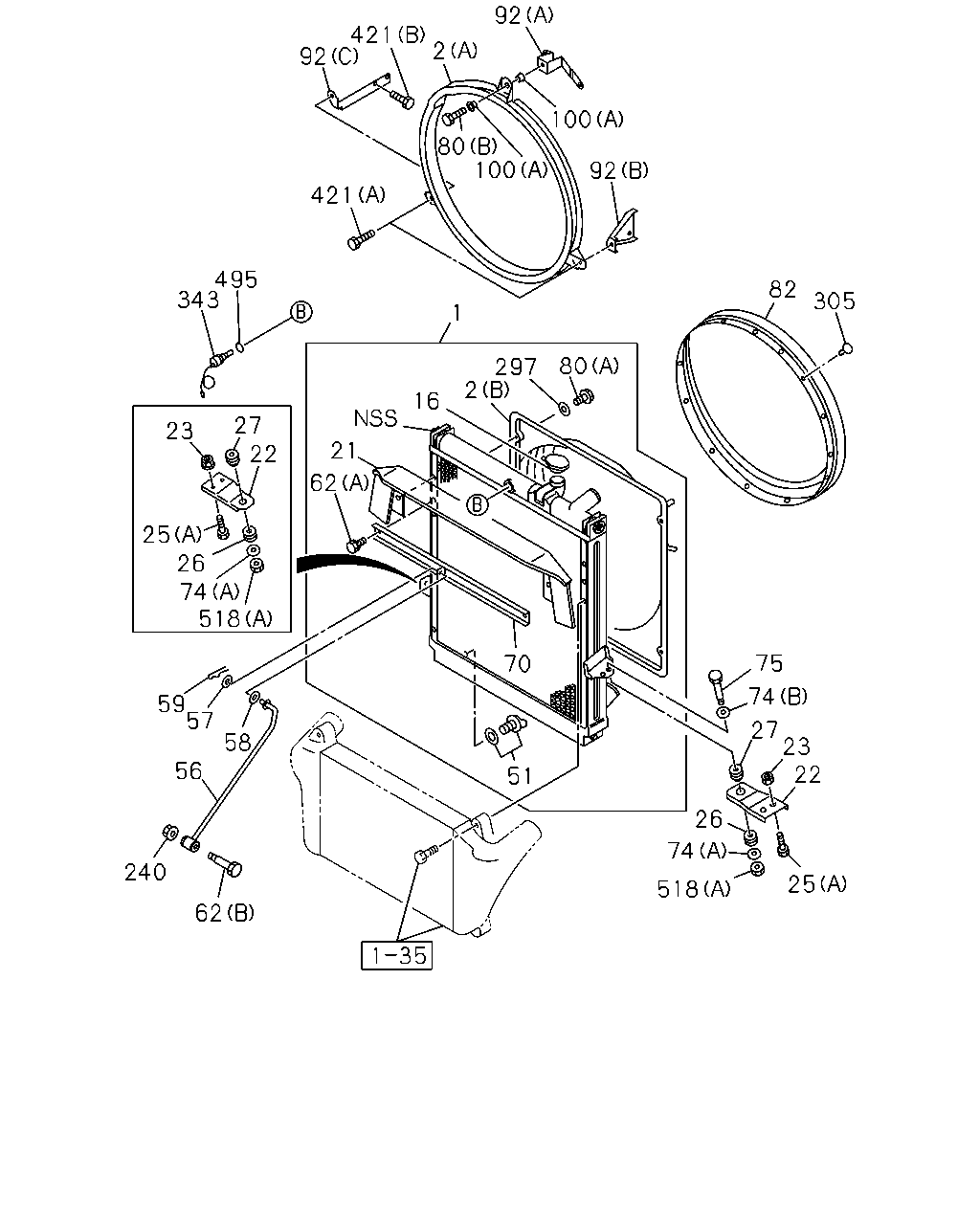

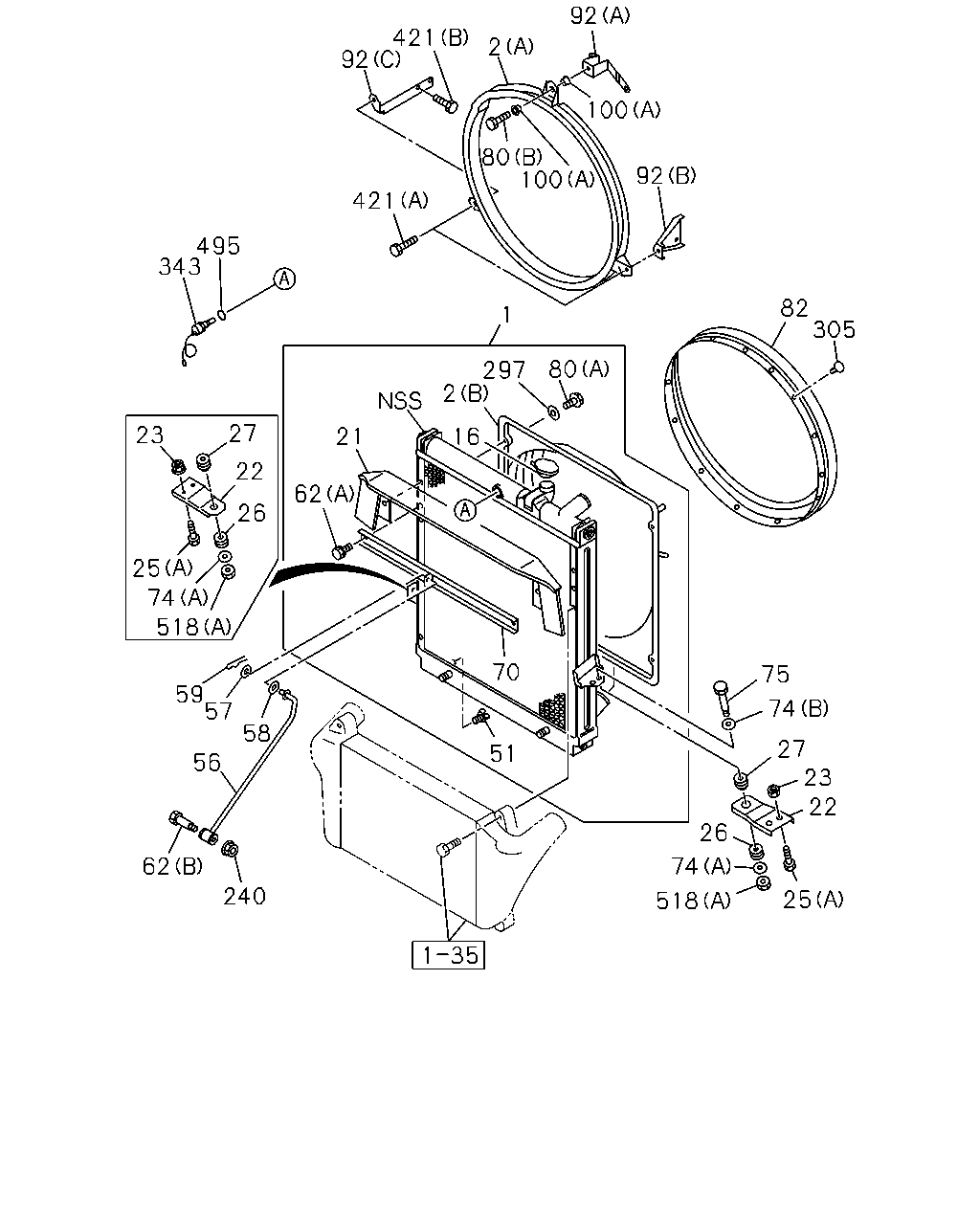

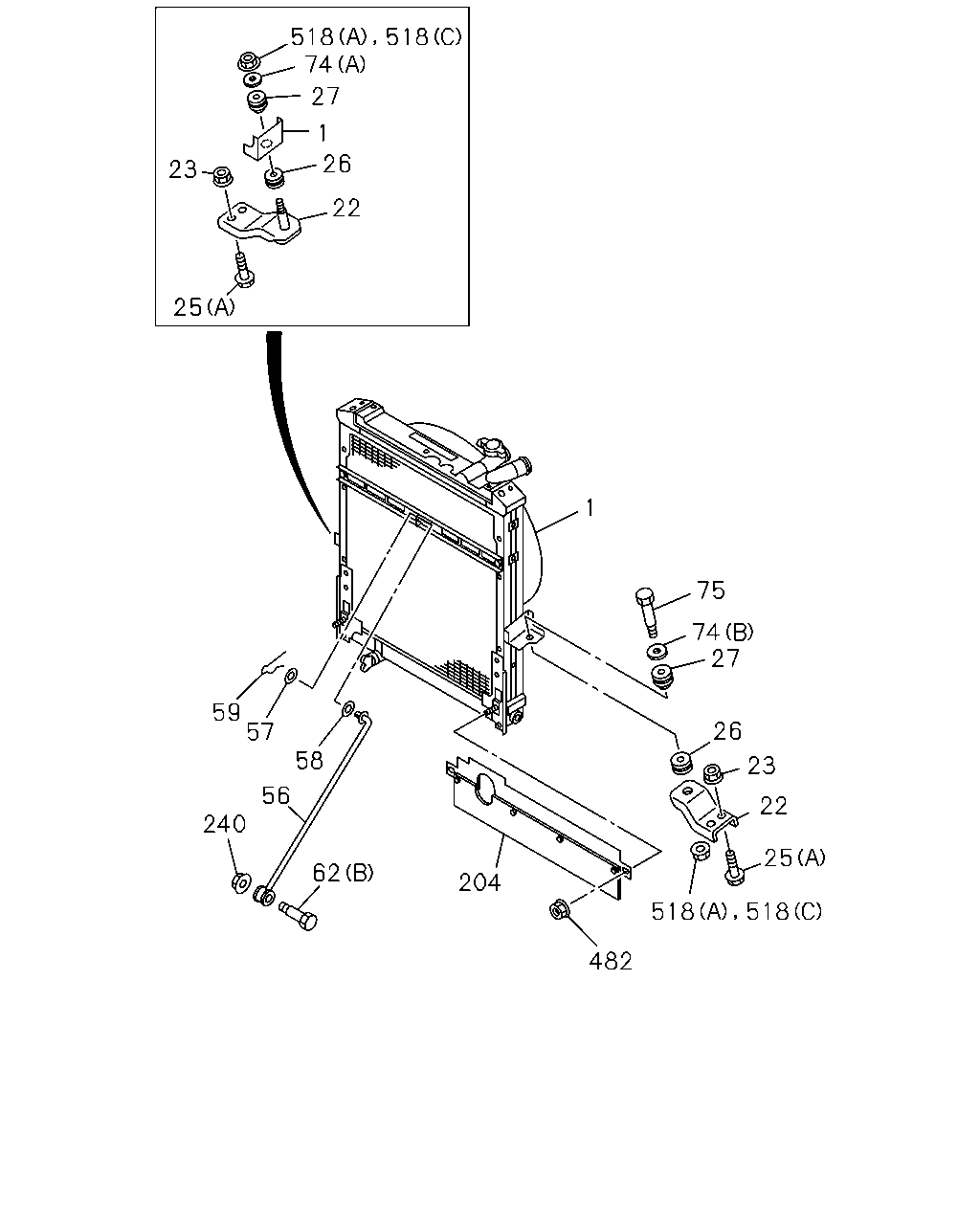

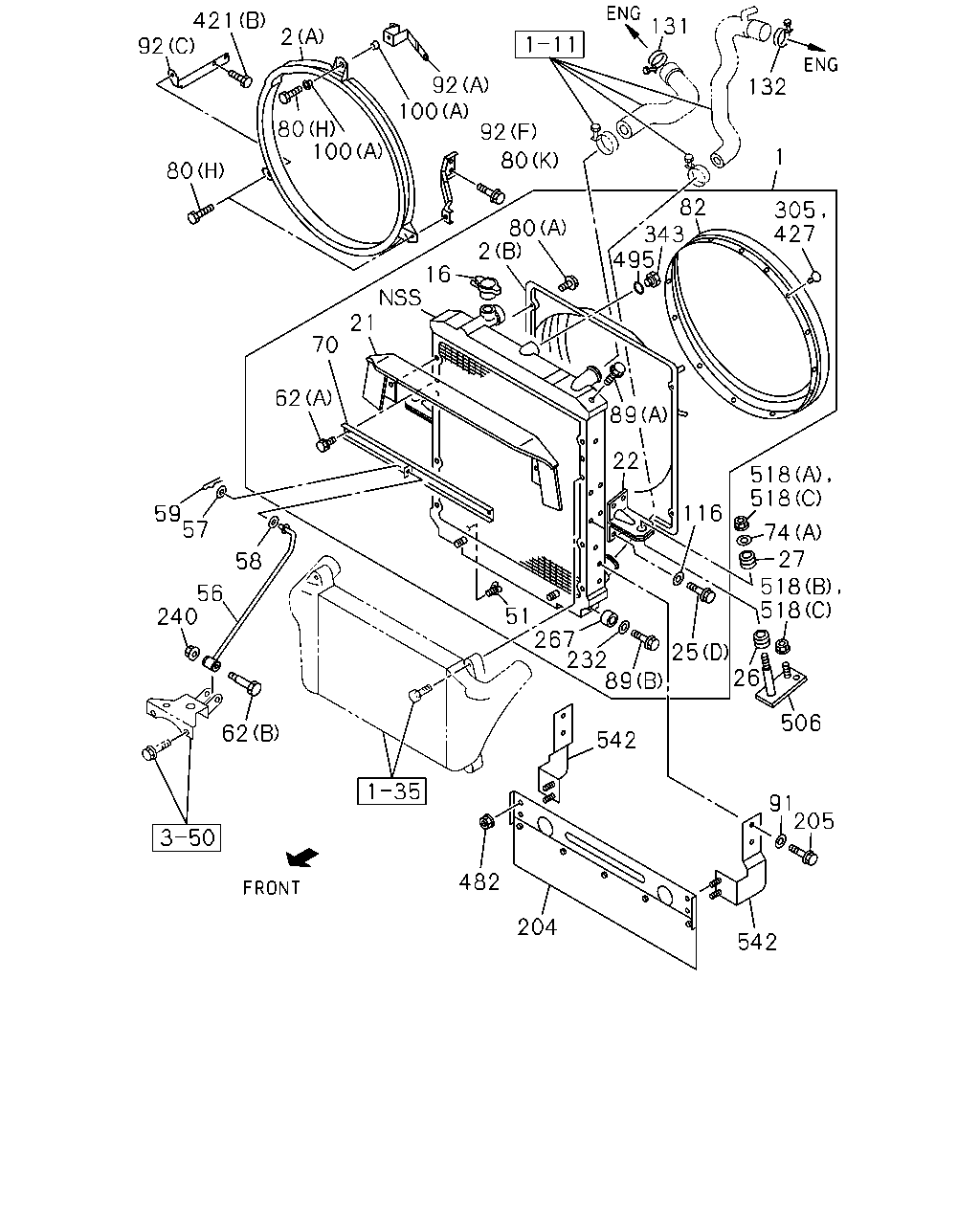

1-10 — RADIATOR (#46666) — 1522 parça

92 421 92 2 100 80 100 92 421 495 343 82 305 1 80 297 2 27 23 21 16 22 62 26 25 74 518 70 75 59 57 74 58 27 23 22 51 56 26 62 74 240 25 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0302-0506	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606		●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606			●		●	●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0909	●	●	●			●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●	●	●			●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0302-0506	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM) 01.274 M8X63	8-94249-446-0	01	1	0507-0606	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606			●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JJ1 ENG(LFB) 01.274 M8X63	8-94249-446-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) (A)	1-09337-027-0	06	1	0302-0506	●	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0507-0606						●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (A)	1-09337-027-0	06	1	0607-0612	●					●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612		●	●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612					●		●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-		●	●		●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0506	●	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506	●		●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX),4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0507-0606	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0607-		●	●		●		●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) M18X12	1-09604-081-0	01	1	0302-0506	●	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0507-0606		●	●		●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCC ENG(RDV) M18X12	1-09604-081-0	01	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0507-0512	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-0606	●	●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) 01.097	1-09623-185-0	01	1	0302-0506	●	●	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0507-0606		●	●		●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCC ENG(RDV) 01.097	1-09623-185-0	01	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●

92 243 80 92 80 85 92 80 532 421 80 80 2 92 80 80 1 16 21 305 62 82 2 51 70 75 27 23 74 22 27 23 22 26 242 25 74 518 26 74 242 25 25 518 59 57 58 56 62 91 482 204 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0302-0506	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606		●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606			●		●	●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0909	●	●	●			●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●	●	●			●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0302-0506	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM) 01.274 M8X63	8-94249-446-0	01	1	0507-0606	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606			●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JJ1 ENG(LFB) 01.274 M8X63	8-94249-446-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
85	01.277 CLIP 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0302-0506		●
85	01.277 CLIP 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	01	1	0507-0606	●	●
91	01.277 WASHER; PL 4JH1 ENG(RJX) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0506		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605			●		●		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606			●		●		●
91	01.277 WASHER; PL 4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX)	8-97260-121-0	01	1	0302-0506		●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM)	8-97260-121-0	01	1	0507-0606	●	●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB)	8-97383-928-1	01	1	0607-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0507-0606		●	●		●		●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV)	8-97332-962-1	01	1	0607-		●	●		●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX)	8-97260-453-0	01	1	0302-0506		●
242	01.219 BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-453-0	01	1	0507-0606	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX)	8-97260-452-0	01	1	0302-0506		●
242	01.219 BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-452-0	01	1	0507-0606	●	●
243	01.219 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506		●
243	01.219 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●
243	01.219 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506	●		●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX),4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0507-0606	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0507-0512	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-0606	●	●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●			●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●		●		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606			●		●		●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●
532	01.219 BRACKET; HEATER PIPE 4JH1 ENG(RJX)	8-97302-265-1	01	1	0302-0506		●
532	01.219 BRACKET; HEATER PIPE 4JH1-TC ENG(RDM)	8-97302-265-1	01	1	0507-0606	●	●

305 427 421 92 2 82 92 100 80 100 92 421 1 80 2 16 21 70 25 62 22 116 518 74 27 59 57 22 58 56 240 518 51 26 542 506 62 91 205 482 204 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
91	01.277 WASHER; PL 4JH1 ENG(RJX) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0506		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605			●		●		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606			●		●		●
91	01.277 WASHER; PL 4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) (A)	1-09337-027-0	06	1	0302-0506	●	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0507-0606						●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (A)	1-09337-027-0	06	1	0607-0612	●					●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612		●	●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612					●		●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-		●	●		●		●
116	01.270 WASHER; PL,BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	08	1	0507-0606		●	●		●		●
116	01.270 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 16.674 ID=8.4	9-09160-508-0	08	1	0607-		●	●		●		●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX)	8-97260-121-0	01	1	0302-0506		●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM)	8-97260-121-0	01	1	0507-0606	●	●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB)	8-97383-928-1	01	1	0607-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0507-0606		●	●		●		●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV)	8-97332-962-1	01	1	0607-		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	0507-0512		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0601-0606		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCC ENG(RDV) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0607-		●	●		●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506	●		●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX),4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0507-0606	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0507-0512	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-0606	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	0507-0606		●	●		●		●
427	01.240 CLIP; FAN GUIDE 4HK1-TCC ENG(RDV) 01.277	1-09470-009-0	01	1	0607-		●	●		●		●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●			●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●		●		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606			●		●		●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0607-		●	●		●		●
506	01.277 PLATE; RAD 4HK1-TCS ENG(RJS)	8-97330-527-1	02	1	0507-0606		●	●		●		●
506	01.277 PLATE; RAD 4HK1-TCC ENG(RDV)	8-97330-527-1	02	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-963-0	01	1	0507-0606		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-963-0	01	1	0607-		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-964-0	01	1	0507-0606		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-964-0	01	1	0607-		●	●		●		●

92 421 2 92 100 80 100 92 421 495 343 82 305 1 80 297 2 16 27 22 23 21 62 25 26 74 518 75 70 74 59 57 27 23 22 58 56 51 26 74 240 25 518 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0302-0506	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606		●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606			●		●	●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0909	●	●	●			●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●	●	●			●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0302-0506	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM) 01.274 M8X63	8-94249-446-0	01	1	0507-0606	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606			●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JJ1 ENG(LFB) 01.274 M8X63	8-94249-446-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) (A)	1-09337-027-0	06	1	0302-0506	●	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0507-0606						●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (A)	1-09337-027-0	06	1	0607-0612	●					●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612		●	●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612					●		●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-		●	●		●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0506	●	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506	●		●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX),4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0507-0606	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0607-		●	●		●		●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) M18X12	1-09604-081-0	01	1	0302-0506	●	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0507-0606		●	●		●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCC ENG(RDV) M18X12	1-09604-081-0	01	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0507-0512	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-0606	●	●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) 01.097	1-09623-185-0	01	1	0302-0506	●	●	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0507-0606		●	●		●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCC ENG(RDV) 01.097	1-09623-185-0	01	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●

421 92 131 2 92 100 132 80 100 92 1 80 80 82 343 495 305 427 80 2 16 21 70 62 89 22 518 518 116 59 57 74 27 518 518 58 56 240 51 267 232 89 25 26 506 62 542 91 205 482 204 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
89	01.277 BOLT 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
89	01.277 BOLT 4JJ1 ENG(LFB) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-	●					●
89	01.277 BOLT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-		●	●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-					●		●
91	01.277 WASHER; PL 4JH1 ENG(RJX) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0506		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605			●		●		●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606		●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-0606			●		●		●
91	01.277 WASHER; PL 4HK1-TCC ENG(RDV) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) (A)	1-09337-027-0	06	1	0302-0506	●	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0507-0606						●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (A)	1-09337-027-0	06	1	0607-0612	●					●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612		●	●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612					●		●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-		●	●		●		●
116	01.270 WASHER; PL,BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	08	1	0507-0606		●	●		●		●
116	01.270 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 16.674 ID=8.4	9-09160-508-0	08	1	0607-		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0302-0506	●	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=40	8-97245-216-0	01	1	0507-0606		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ) ID=40	8-97245-216-0	01	1	0507-0606						●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) ID=52	9-09916-031-1	01	1	0607-0610		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) ID=52	8-98036-283-0	01	1	0611-0901		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) 00.413 ID=52	1-09704-057-0	01	1	0902-		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0302-0506		●
131	01.166 CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0507-0606	●	●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0607-0610	●	●	●			●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0611-0901	●	●	●			●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0302-0506	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=50	8-97245-217-0	01	1	0507-0606		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ) ID=50	8-97245-217-0	01	1	0507-0606						●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	9-09915-068-1	01	1	0607-0610		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98036-284-0	01	1	0611-0901		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98133-957-0	01	1	0902-		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JH1 ENG(RJX) ID=48	5-09704-049-0	01	1	0302-0506		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JH1-TC ENG(RDM) ID=48	5-09704-049-0	01	1	0507-0606	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0607-0610	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0611-0901	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX)	8-97260-121-0	01	1	0302-0506		●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM)	8-97260-121-0	01	1	0507-0606	●	●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB)	8-97383-928-1	01	1	0607-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0507-0606		●	●		●		●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV)	8-97332-962-1	01	1	0607-		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	0507-0512		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0601-0606		●	●		●		●
205	01.267 BOLT; AIR GUIDE 4HK1-TCC ENG(RDV) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0607-		●	●		●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB)	1-87410-723-0	02	1	0607-	●					●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0607-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0607-					●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB)	1-21467-023-0	02	1	0607-	●					●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0607-		●	●
267	01.277 RUBBER; CUSHION 4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0607-					●		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506	●		●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX),4HE1 ENG(RLY)	1-09470-009-0	12	1	0302-0506		●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	1-09470-009-0	12	1	0507-0606	●	●	●		●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCC ENG(RDV)	1-09470-009-0	12	1	0607-		●	●		●		●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) M18X12	1-09604-081-0	01	1	0302-0506	●	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0507-0606		●	●		●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCC ENG(RDV) M18X12	1-09604-081-0	01	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0302-0506	●	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-0606						●
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCC ENG(RDV) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506		●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0507-0512	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-0606	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	0507-0606		●	●		●		●
427	01.240 CLIP; FAN GUIDE 4HK1-TCC ENG(RDV) 01.277	1-09470-009-0	01	1	0607-		●	●		●		●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●			●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●		●		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606			●		●		●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0607-		●	●		●		●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) 01.097	1-09623-185-0	01	1	0302-0506	●	●	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0507-0606		●	●		●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCC ENG(RDV) 01.097	1-09623-185-0	01	1	0607-		●	●		●		●
506	01.277 PLATE; RAD 4HK1-TCS ENG(RJS)	8-97330-527-1	02	1	0507-0606		●	●		●		●
506	01.277 PLATE; RAD 4HK1-TCC ENG(RDV)	8-97330-527-1	02	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-963-0	01	1	0507-0606		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-963-0	01	1	0607-		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-964-0	01	1	0507-0606		●	●		●		●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCC ENG(RDV)	8-97332-964-0	01	1	0607-		●	●		●		●

100 80 100 549 92 100 100 80 2 100 100 100 100 21 100 100 80 1 100 100 80 82 80 79 16 89 70 62 51 267 232 89 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (A)	8-97068-803-0	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97068-803-0	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (B)	8-97218-802-1	01	1	0302-0506	●	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97218-802-1	01	1	0507-0606		●	●		●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-97381-547-2	01	1	0607-0610	●	●	●			●
2	01.277 GUIDE; FAN 4JJ1 ENG(LFB) (C)	8-98054-659-0	01	1	0611-	●	●	●			●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0302-0506		●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0507-0606	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97333-268-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (B)	8-97333-268-0	01	1	0607-		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97350-995-0	01	1	0507-0606		●	●		●		●
2	01.277 GUIDE; FAN 4HK1-TCC ENG(RDV) (A)	8-97350-995-0	01	1	0607-		●	●		●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506	●		●	●	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97239-187-0	01	1	0302-0506		●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97239-187-0	01	1	0507-0606	●	●	●		●	●	●
16	01.203 CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0607-	●					●
16	01.203 CAP; RAD 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-		●	●
16	01.203 CAP; RAD 4HK1-TCC ENG(RDV)	8-97239-187-0	01	1	0607-					●		●
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0302-0506	●	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-0	01	1	0507-0606		●	●		●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97324-577-1	01	1	0302-0506		●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97324-577-1	01	1	0507-0606	●	●
21	01.276 SEAL; RAD 4JJ1 ENG(LFB)	8-98000-817-1	01	1	0607-	●	●	●			●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0507-0606		●	●		●		●
21	01.276 SEAL; RAD 4HK1-TCC ENG(RDV) 01.277	8-97332-382-0	01	1	0607-		●	●		●		●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0302-0506	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-0606		●	●		●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0302-0506		●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0507-0606	●	●	●		●		●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB) W/GASKET	8-97171-437-0	01	1	0607-	●					●
51	08.951 PLUG; DRAIN 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-		●	●
51	08.951 PLUG; DRAIN 4HK1-TCC ENG(RDV) W/GASKET	8-97171-437-0	01	1	0607-					●		●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0302-0506	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0507-0606		●	●		●	●	●
70	01.271 STAY; RAD 4HK1-TCC ENG(RDV)	8-98018-941-0	01	1	0607-		●	●		●		●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0302-0506		●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0507-0606	●	●
70	01.271 STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0607-	●	●	●			●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0507-0606		●	●		●		●
79	01.277 GUIDE; FAN,RAD 4JJ1 ENG(LFB)	8-97387-081-1	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606		●	●		●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) (A) M6X16	1-21559-481-0	04	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0302-0506	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512						●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0606						●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0507-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 01.428 (J) M8X130 FLANGE	0-28055-813-0	01	1	0607-	●	●	●			●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 03.417 (K) M10X20 FLANGE	0-28151-020-0	02	1	0607-		●	●		●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-	●					●
80	01.277 BOLT; FAN GUIDE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-		●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCC ENG(RDV) 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	0607-					●		●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0302-0506		●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (G) M8X41 W/PL WASHER	8-97264-622-0	03	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0302-0506	●	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-0606		●	●		●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0302-0506		●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0507-0606	●	●
82	01.277 COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0607-	●	●	●			●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0507-0606		●	●		●		●
82	01.277 COVER; FAN,RAD 4HK1-TCC ENG(RDV)	8-97332-330-0	01	1	0607-		●	●		●		●
89	01.277 BOLT 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
89	01.277 BOLT 4JJ1 ENG(LFB) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-	●					●
89	01.277 BOLT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-		●	●
89	01.277 BOLT 4HK1-TCC ENG(RDV) 01.271 (B) M8X25	1-21469-153-0	02	1	0607-					●		●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0302-0506	●	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-0606		●	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (E)	8-97381-550-1	01	1	0607-	●	●	●			●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (F)	8-97386-233-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) (C)	8-98032-526-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0302-0506		●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0507-0606	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) (A)	8-97382-827-2	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0507-0606		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	0607-		●	●		●		●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (B)	8-94395-766-0	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (C)	8-98058-502-1	03	1	0701-	●	●	●			●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) (A)	1-09337-027-0	06	1	0302-0506	●	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	0507-0606		●	●		●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	0507-0606						●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB) (A)	1-09337-027-0	06	1	0607-0612	●					●
100	01.277 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612		●	●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0607-0612					●		●
100	01.277 RUBBER; MTG 4HK1-TCC ENG(RDV) (A)	1-09337-027-0	06	1	0701-		●	●		●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB)	1-87410-723-0	02	1	0607-	●					●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0607-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCC ENG(RDV)	1-87410-723-0	02	1	0607-					●		●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB)	1-21467-023-0	02	1	0607-	●					●
267	01.277 RUBBER; CUSHION 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0607-		●	●
267	01.277 RUBBER; CUSHION 4HK1-TCC ENG(RDV)	1-21467-023-0	02	1	0607-					●		●
549	03.438 CLIP; SEAL,RAD 4JJ1 ENG(LFB) 01.276	8-97228-568-0	07	1	0607-	●	●	●			●

518 74 27 1 26 23 22 25 1 75 74 27 59 57 26 58 23 56 22 240 25 62 204 518 482 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY)	8-97354-363-0	01	1	0302-0506	●	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-0	01	1	0507-0606						●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-819-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97350-309-0	01	1	0302-0506		●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97350-309-1	01	1	0507-0606	●	●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-950-2	01	1	0607-	●	●	●			●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-0	01	1	0507-0606		●	●		●	●	●
1	01.219 RADIATOR ASM 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-818-0	01	1	0607-		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0507-0606		●	●		●		●
1	01.219 RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-951-3	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-97074-093-0	02	1	0302-0506	●		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0507-0606			●		●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-343-2	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94175-416-0	02	1	0507-0606		●
22	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX)	8-94101-621-1	02	1	0302-0506		●
22	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM)	8-94101-621-1	02	1	0507-0606	●	●
22	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB)	8-97386-342-1	01	1	0607-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-280-0	01	1	0607-		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0507-0606		●	●		●		●
22	01.270 BRACKET; RAD MTG 4HK1-TCC ENG(RDV)	8-97333-281-0	01	1	0607-		●	●		●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0302-0506	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606	●
23	01.271 NUT; RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606		●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0606			●		●	●	●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0909	●	●	●			●
23	01.271 NUT; RAD MTG 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●	●	●			●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0302-0506	●	●	●	●	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	0507-0512			●		●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606		●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0601-0606			●		●	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0302-0506		●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0507-0606	●	●
25	01.271 BOLT; BRKT 4JJ1 ENG(LFB) 03.162 (E) M6X12 FLANGE	0-28050-612-0	04	1	0607-	●	●	●			●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 (C) M8X12 FLANGE	0-28080-812-0	08	1	0507-0606		●	●		●		●
25	01.271 BOLT; BRKT 4HK1-TCC ENG(RDV) 08.900 (D) M8X12 FLANGE	0-28080-812-0	08	1	0607-		●	●		●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0302-0506	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0507-	●	●	●		●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0302-0506	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0507-	●	●	●		●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97073-424-2	01	1	0302-0506	●	●	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0507-0606		●	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCC ENG(RDV)	8-97032-802-2	01	1	0607-		●	●		●		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0507-0606		●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0507-0606			●		●		●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97350-323-0	01	1	0302-0506		●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97350-323-0	01	1	0507-0606	●	●
56	01.270 STAY; RAD 4JJ1 ENG(LFB)	8-97386-345-0	01	1	0607-	●	●	●			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0302-0506	●	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0507-0605	●	●	●		●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●		●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0302-0506	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0507-	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0302-0506	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0507-0610	●	●	●		●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4JJ1 ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0607-	●	●	●			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0302-0506	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0507-	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●		●	●	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●	●		●	●	●
62	01.271 BOLT; STAY 4HK1-TCC ENG(RDV) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0507-0606	●	●	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0607-0610	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0302-0506	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0606			●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JJ1 ENG(LFB) (B) ID=10.5 OD=36	8-97031-437-0	01	1	0607-	●	●	●			●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0607-0610		●	●		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCC ENG(RDV) (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●		●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0302-0506	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM) 01.274 M8X63	8-94249-446-0	01	1	0507-0606	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0507-0606			●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JJ1 ENG(LFB) 01.274 M8X63	8-94249-446-0	01	1	0607-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX)	8-97260-121-0	01	1	0302-0506		●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM)	8-97260-121-0	01	1	0507-0606	●	●
204	01.267 GUIDE ASM; AIR 4JJ1 ENG(LFB)	8-97383-928-1	01	1	0607-	●	●	●			●
204	01.267 GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0507-0606		●	●		●		●
204	01.267 GUIDE ASM; AIR 4HK1-TCC ENG(RDV)	8-97332-962-1	01	1	0607-		●	●		●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0302-0506	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0507-	●	●	●		●	●	●
482	01.277 NUT; AIR GUIDE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●			●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●		●		●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606		●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606			●		●		●
482	01.277 NUT; AIR GUIDE 4HK1-TCC ENG(RDV) 01.062 M6 FLANGE	0-91180-106-0	04	1	0607-		●	●		●		●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0302-0506	●	●	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0507-0610	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●		●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●		●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-0610		●	●		●		●
518	01.270 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●		●	●	●
518	01.270 NUT 4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●		●		●

131 132 131 132 132 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0302-0506	●	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=40	8-97245-216-0	01	1	0507-0606		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ) ID=40	8-97245-216-0	01	1	0507-0606						●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) ID=52	9-09916-031-1	01	1	0607-0610		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) ID=52	8-98036-283-0	01	1	0611-0901		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCC ENG(RDV) 00.413 ID=52	1-09704-057-0	01	1	0902-		●	●		●		●
131	01.166 CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0302-0506		●
131	01.166 CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0507-0606	●	●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0607-0610	●	●	●			●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0611-0901	●	●	●			●
131	01.166 CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0302-0506	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=50	8-97245-217-0	01	1	0507-0606		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ) ID=50	8-97245-217-0	01	1	0507-0606						●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	9-09915-068-1	01	1	0607-0610		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98036-284-0	01	1	0611-0901		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCC ENG(RDV) ID=62	8-98133-957-0	01	1	0902-		●	●		●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JH1 ENG(RJX) ID=48	5-09704-049-0	01	1	0302-0506		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JH1-TC ENG(RDM) ID=48	5-09704-049-0	01	1	0507-0606	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0607-0610	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98036-282-0	01	1	0611-0901	●	●	●			●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	8-98133-956-0	01	1	0902-	●	●	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
