Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#46665) — 318 parça

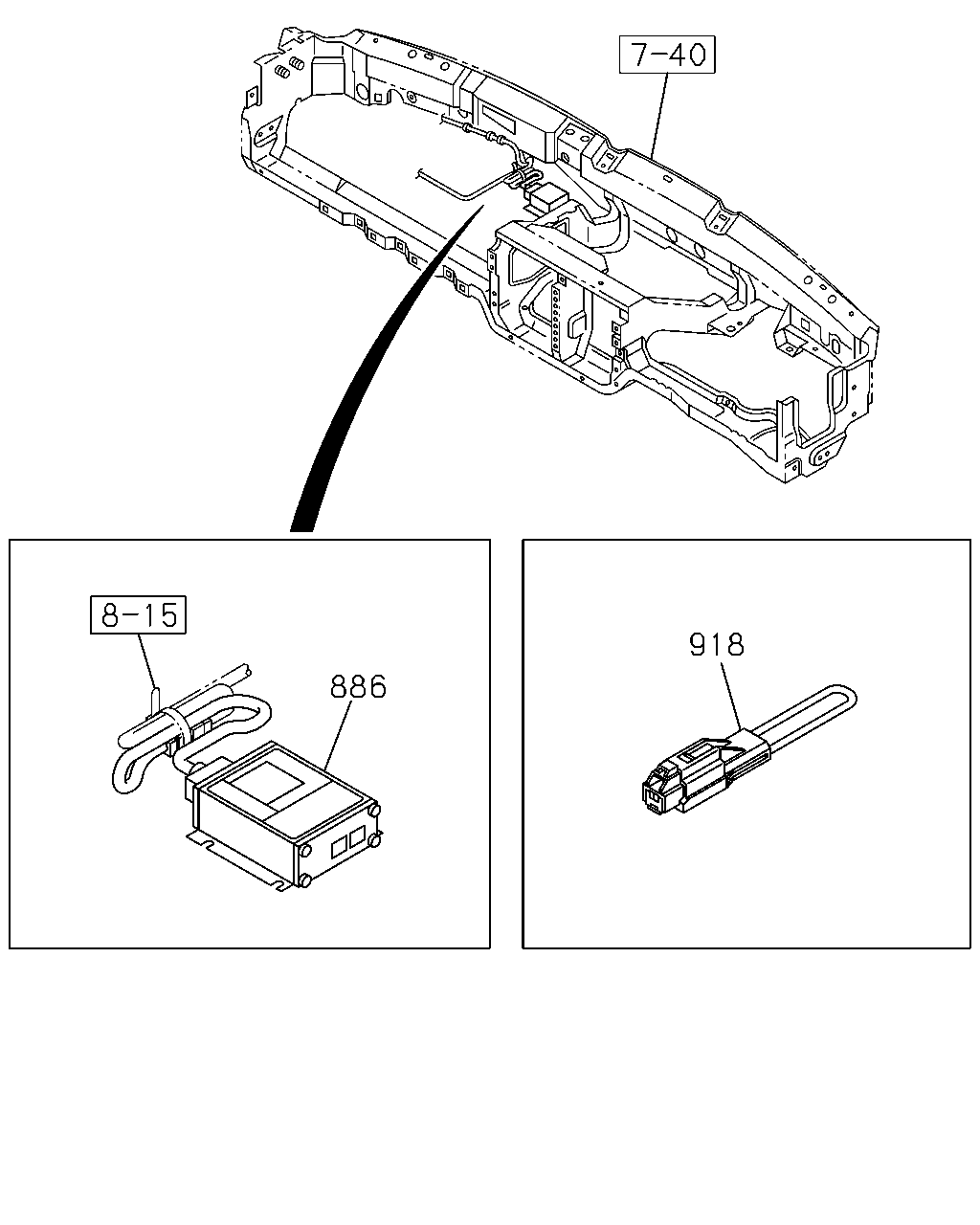

918 886

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
886	02.510 CONTROL UNIT; SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-97376-330-0	01	1	0408-0503	●	●	●	●	●	●	●
886	02.510 CONTROL UNIT; SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>	8-97376-330-0	01	1	0504-0506		●
886	02.510 CONTROL UNIT; SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-98012-490-0	01	1	0504-0506	●		●	●	●	●	●
886	02.510 CONTROL UNIT; SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>	8-98012-490-0	01	1	0504-0506		●
918	02.708 HARNESS; EXT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-98013-002-0	01	1	0504-0506	●		●	●	●	●	●
918	02.708 HARNESS; EXT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>	8-98013-002-0	01	1	0504-0506		●

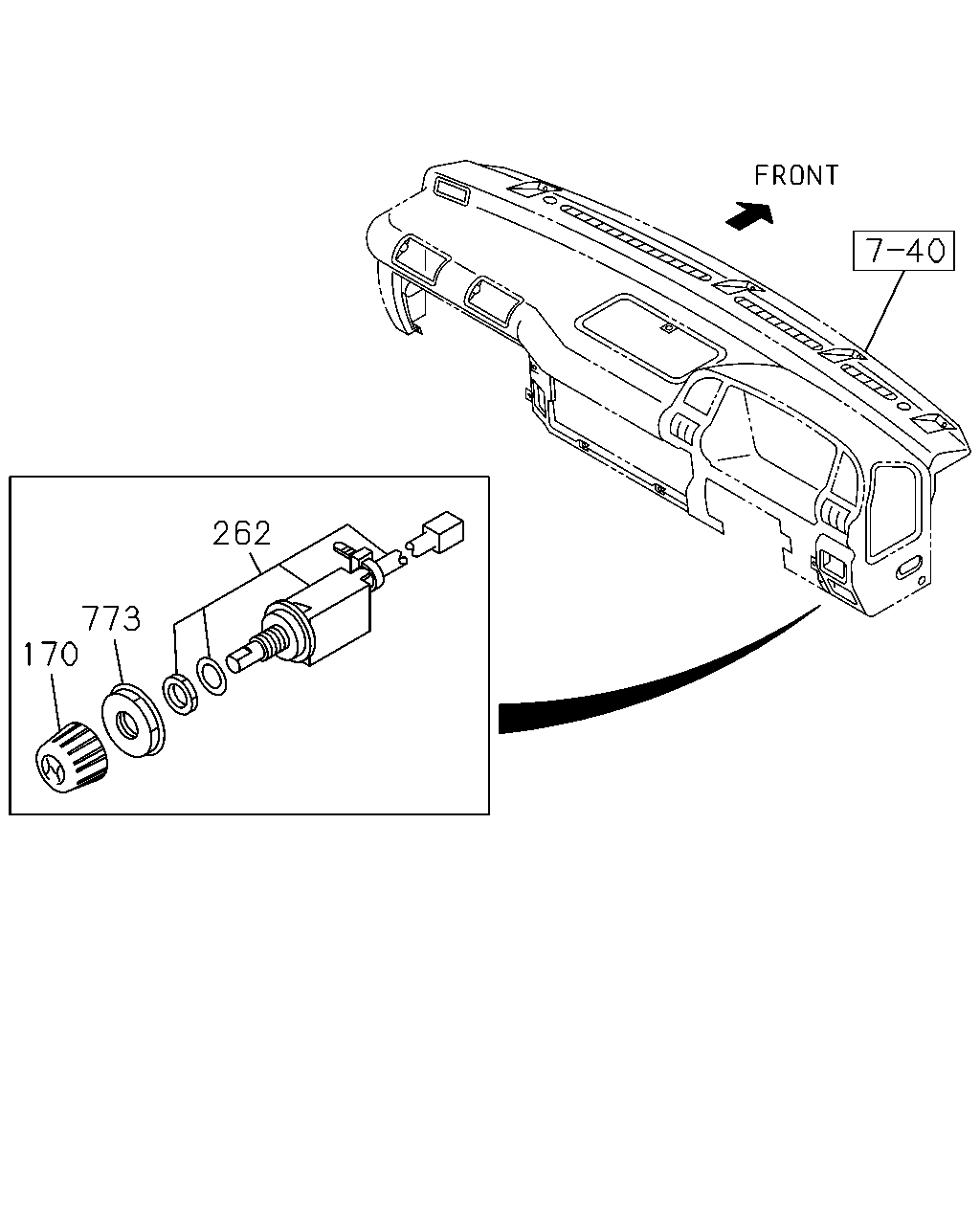

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F	G
170	03.480 KNOB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97310-165-0	01	1	0507-0606		●	●	●		●
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-97310-165-0	01	1	0507-0606					●
170	03.480 KNOB 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97310-165-0	01	1	0607-	●	●	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97215-119-1	01	1	0507-0606		●	●	●		●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-97215-119-1	01	1	0507-0606					●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97215-119-1	01	1	0607-	●	●	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97352-127-0	01	1	0507-0606		●	●	●		●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	0507-0606					●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97352-127-0	01	1	0607-	●	●	●	●	●	●

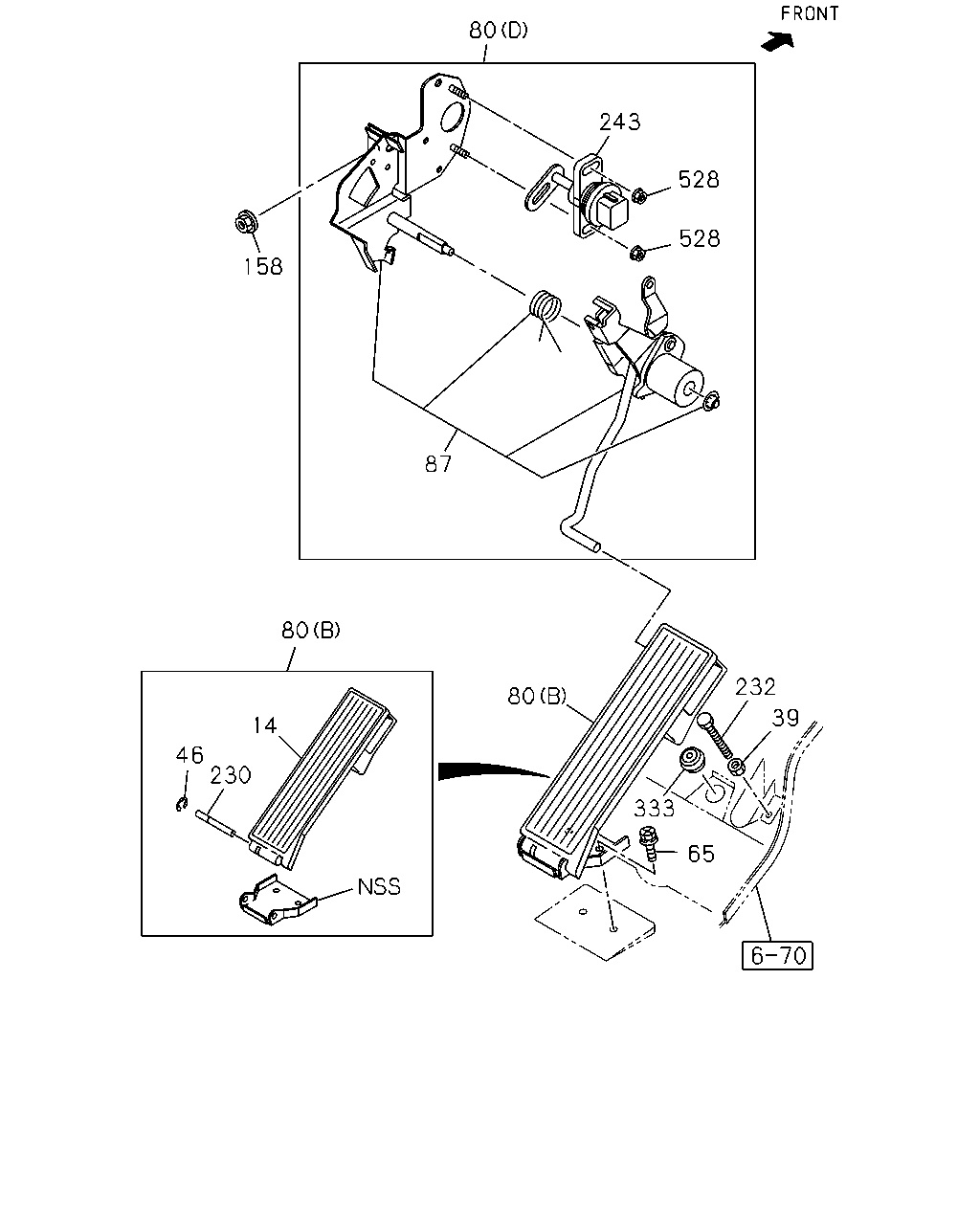

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-0506	●	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0302-0506	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0506	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●		●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0302-0506	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0302-0506	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR) (A)	8-97853-057-9	01	1	0302-0506	●		●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) (A)	8-97853-057-9	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97997-556-5	01	1	0507-0606		●	●		●		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (D)	8-97997-556-5	01	1	0507-0606						●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-97997-556-6	01	1	0607-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-8	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97892-195-9	01	1	0507-0606	●	●
87	03.454 LINK; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97581-415-5	01	1	0607-	●	●	●		●	●	●
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-204-1	01	1	0302-0506	●		●	●	●	●	●
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY)	8-97853-204-1	01	1	0302-0506		●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97581-415-4	01	1	0507-0606		●	●		●		●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-4	01	1	0507-0606						●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-0506	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●		●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-0506	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●		●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0302-0404	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6F(RSR) M8X45	8-97378-461-0	01	1	0405-0506	●		●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4JH1 ENG(RJX),4HE1 ENG(RLY) M8X45	8-97378-461-0	01	1	0405-0506		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-0606	●					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-0606		●	●		●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0607-	●				●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0607-		●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98131-263-0	01	1	1206-	●	●	●		●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0302-0506		●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97200-308-0	01	1	0507-0606	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97602-416-0	01	1	0507-0606		●	●		●		●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-97602-416-0	01	1	0507-0606						●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97602-416-0	01	1	0607-	●	●	●		●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0302-0506		●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606	●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606		●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606			●		●		●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606						●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-	●					●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-		●	●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCC ENG(RDV) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-					●		●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0302-0506		●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0507-0606	●	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 12.183 M5	8-94169-022-0	02	1	0507-0606		●	●		●		●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0507-0606						●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 12.183 M5	8-94169-022-0	02	1	0607-	●	●	●		●	●	●

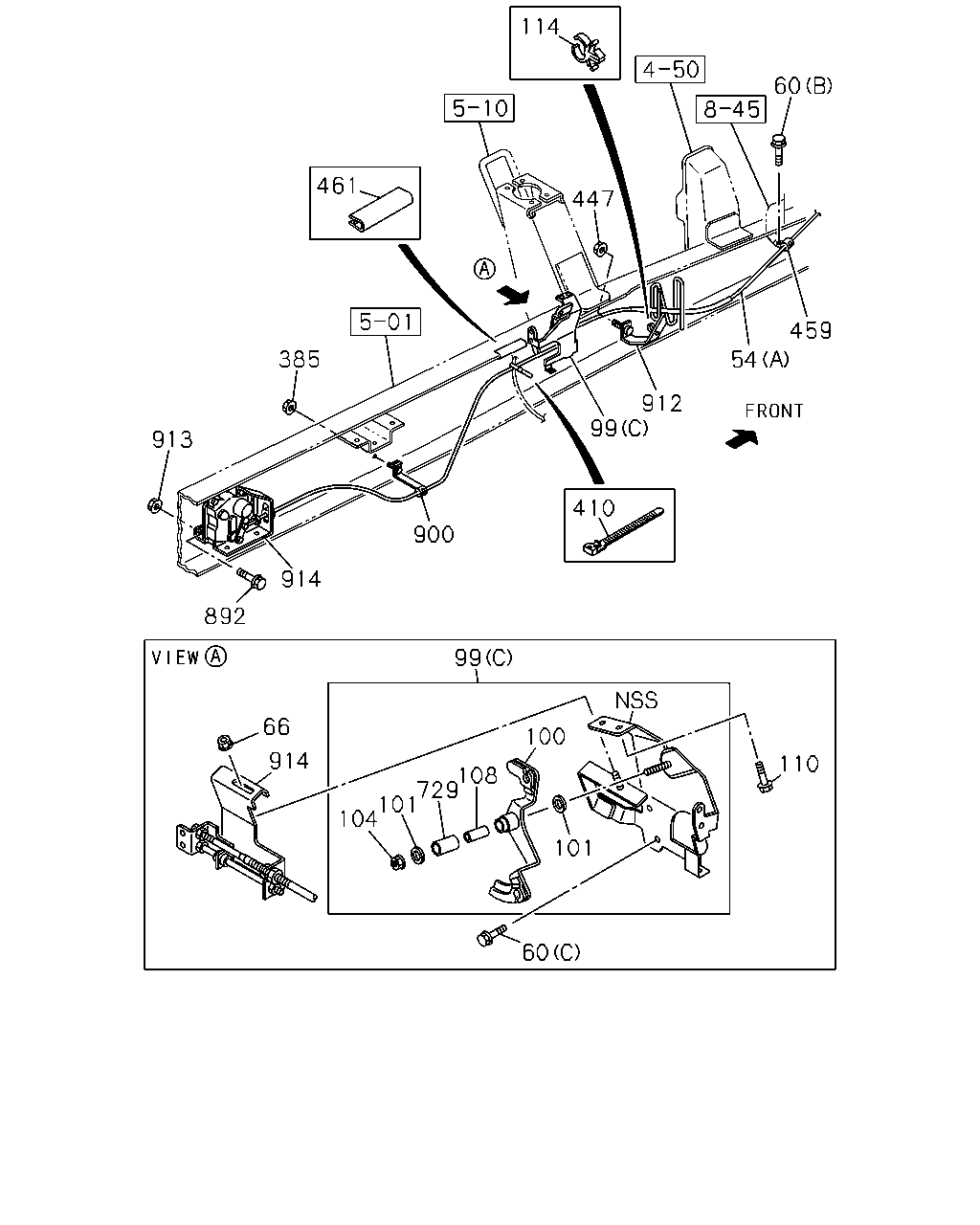

54 99 99 54 114 99 108 729 104 101 101 100 110 99 108 729 104 101 101 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=381	8-97352-082-0	01	1	0302-0506	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97148-584-3	01	1	0302-0407	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0302-0407		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) L=3141	8-97378-111-0	01	1	0408-0506	●		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> FRAME STRAIGHT TYPE<7KJ> (A) L=3141	8-97378-111-0	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0302-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97225-573-1	01	1	0302-0407						●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97225-573-1	01	1	0408-0506						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (A)	8-97302-093-2	01	1	0302-0407	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A)	8-97302-093-2	01	1	0408-0506	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (C)	8-97603-958-0	01	1	0408-0506	●	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (B)	8-97302-112-3	01	1	0302-0407						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (B)	8-97302-112-3	01	1	0408-0506						●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97302-094-0	01	1	0302-0407	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ>	8-97302-094-0	01	1	0408-0506	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-97603-959-0	01	1	0408-0506	●	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0302-0506	●	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0302-0506	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) 02.559 ID=7-10	8-94472-578-0	01	1	0302-0407	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.559 ID=7-10	8-94472-578-0	01	1	0408-0506	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) 02.559 ID=7-10	8-94472-578-0	01	1	0408-0506	●	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0302-0506	●	●	●	●	●	●	●

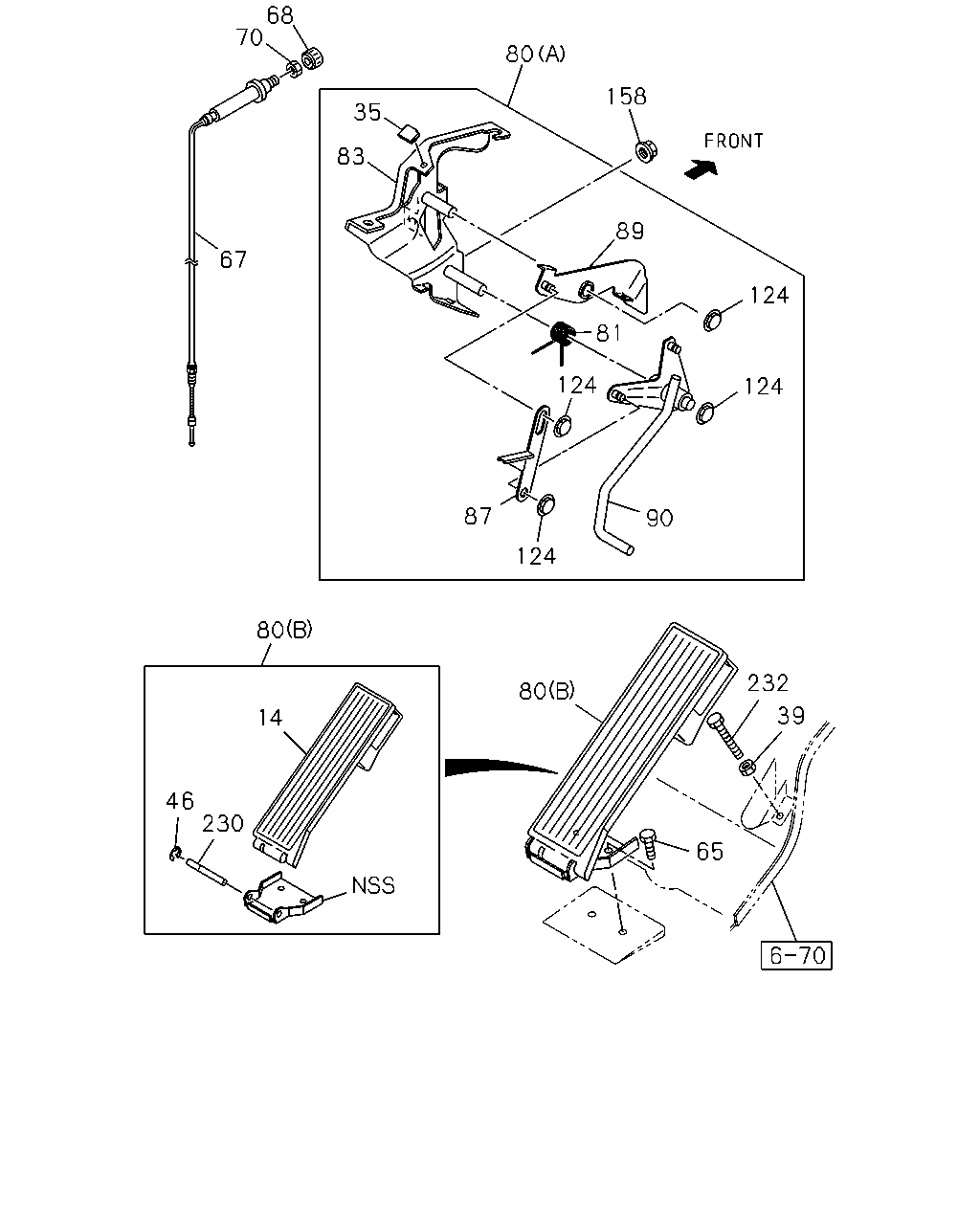

68 70 80 158 35 83 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-0506	●	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●		●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97302-305-0	01	1	0302-0506	●		●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HE1 ENG(RLY)	8-97302-305-0	01	1	0302-0506		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0302-0506	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0506	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●		●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0302-0506	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●		●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0302-0506	●	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT 4HE1 ENG(RLY)	8-97853-765-1	01	1	0302-0506	●	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0302-0506	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0302-0506	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR) (A)	8-97853-057-9	01	1	0302-0506	●		●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) (A)	8-97853-057-9	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97997-556-5	01	1	0507-0606		●	●		●		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (D)	8-97997-556-5	01	1	0507-0606						●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-97997-556-6	01	1	0607-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-8	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97892-195-9	01	1	0507-0606	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-205-1	01	1	0302-0506	●		●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97853-205-1	01	1	0302-0506		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM)	8-97853-205-1	01	1	0507-0606	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-201-4	01	1	0302-0506	●		●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY)	8-97853-201-4	01	1	0302-0506		●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-3	01	1	0302-0506		●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97892-196-4	01	1	0507-0606	●	●
87	03.454 LINK; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97581-415-5	01	1	0607-	●	●	●		●	●	●
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-204-1	01	1	0302-0506	●		●	●	●	●	●
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY)	8-97853-204-1	01	1	0302-0506		●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97581-415-4	01	1	0507-0606		●	●		●		●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-4	01	1	0507-0606						●
89	03.454 LEVER; RELAY 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97868-042-0	01	1	0302-0506	●		●	●	●	●	●
89	03.454 LEVER; RELAY 4HE1 ENG(RLY)	8-97868-042-0	01	1	0302-0506		●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97868-039-0	01	1	0302-0506	●		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY)	8-97868-039-0	01	1	0302-0506		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-3	01	1	0302-0506		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97892-197-4	01	1	0507-0606	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0302-0506	●		●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0302-0506		●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0302-0506	●		●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0302-0506		●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0302-0506		●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0507-0606	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-0506	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●		●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-0506	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●		●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0302-0404	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6F(RSR) M8X45	8-97378-461-0	01	1	0405-0506	●		●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4JH1 ENG(RJX),4HE1 ENG(RLY) M8X45	8-97378-461-0	01	1	0405-0506		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-0606	●					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-0606		●	●		●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0607-	●				●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0607-		●	●

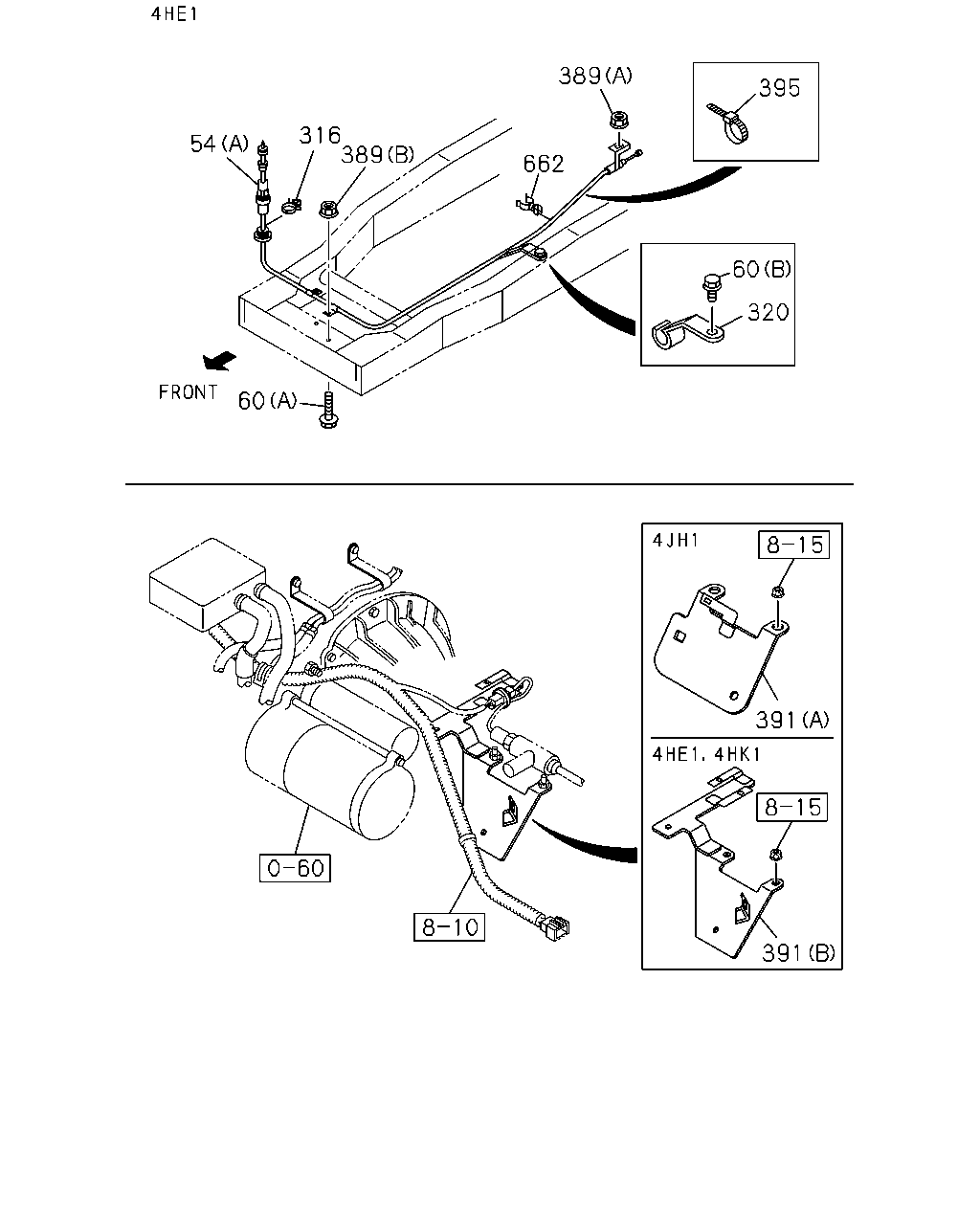

389 395 316 389 54 662 60 320 60 391 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=381	8-97352-082-0	01	1	0302-0506	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97148-584-3	01	1	0302-0407	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0302-0407		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) L=3141	8-97378-111-0	01	1	0408-0506	●		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> FRAME STRAIGHT TYPE<7KJ> (A) L=3141	8-97378-111-0	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0302-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97225-573-1	01	1	0302-0407						●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97225-573-1	01	1	0408-0506						●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0407	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0407	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●		●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●		●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506		●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506		●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0408-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28480-825-0	01	1	0302-0506		●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0302-0506	●	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0302-0506	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0302-0407	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0408-0506	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0302-0506	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0302-0506	●	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) (B)	8-97357-141-0	01	1	0302-0506	●	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0507-0606		●	●		●		●
391	03.452 BRACKET; ENG CONT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0507-0606						●
391	03.452 BRACKET; ENG CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0607-	●					●
391	03.452 BRACKET; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0607-		●	●
391	03.452 BRACKET; ENG CONT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0607-					●		●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX) (A)	8-97352-772-0	01	1	0302-0506		●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM) (A)	8-97352-772-0	01	1	0507-0606	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0302-0407	●	●	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) EXC. SPEED LIMITER 90KM<NMJ> 02.559 L=250	5-09707-030-1	01	1	0408-0506	●		●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> 02.559 L=250	5-09707-030-1	01	1	0408-0506		●
662	03.430 CLIP; ACCEL CONT CABLE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	0302-0506		●

114 60 461 447 459 385 54 912 99 913 410 900 14 892 99 66 100 914 110 108 729 101 104 101 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-0506	●	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=381	8-97352-082-0	01	1	0302-0506	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97148-584-3	01	1	0302-0407	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0302-0407		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506	●		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97148-584-3	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) L=3141	8-97378-111-0	01	1	0408-0506	●		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> FRAME STRAIGHT TYPE<7KJ> (A) L=3141	8-97378-111-0	01	1	0408-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0302-0506		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=3078	8-97225-573-1	01	1	0302-0407						●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) L=3078	8-97225-573-1	01	1	0408-0506						●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0407	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0407	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●		●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506	●		●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506		●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0408-0506		●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0408-0506	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28480-825-0	01	1	0302-0506		●
66	03.452 NUT; BRKT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0408-0506	●	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (A)	8-97302-093-2	01	1	0302-0407	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A)	8-97302-093-2	01	1	0408-0506	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (C)	8-97603-958-0	01	1	0408-0506	●	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (B)	8-97302-112-3	01	1	0302-0407						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (B)	8-97302-112-3	01	1	0408-0506						●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97302-094-0	01	1	0302-0407	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ>	8-97302-094-0	01	1	0408-0506	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-97603-959-0	01	1	0408-0506	●	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0302-0506	●	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0302-0506	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) 02.559 ID=7-10	8-94472-578-0	01	1	0302-0407	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.559 ID=7-10	8-94472-578-0	01	1	0408-0506	●	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) 02.559 ID=7-10	8-94472-578-0	01	1	0408-0506	●	●	●	●	●	●	●
385	03.481 NUT; CLIP 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0408-0506	●	●	●	●	●	●	●
410	03.483 CLIP; BAND 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 03.162 L=140	5-09707-031-1	01	1	0408-0506	●	●	●	●	●	●	●
447	03.452 NUT; BRKT,CONT WIRE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0408-0506	●	●	●	●	●	●	●
459	03.485 CLIP; ACCEL CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 04.047 ID=11 L=20	9-09525-036-0	01	1	0408-0506	●	●	●	●	●	●	●
461	02.343 PROTECTOR; EDGE,CONT CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 03.008 L=80	5-22439-006-0	01	1	0408-0506	●	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0302-0506	●	●	●	●	●	●	●
892	03.483 BOLT; ACTUATOR SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0408-0506	●	●	●	●	●	●	●
900	03.483 CLIP; CABLE SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 02.559 ID=13 L=90	8-97015-782-1	01	1	0408-0506	●	●	●	●	●	●	●
912	04.510 GUIDE; CABLE 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-97377-211-0	01	1	0408-0506	●	●	●	●	●	●	●
913	03.459 NUT; ACTUATOR SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 04.785 M10 FLANGE	0-91150-110-0	04	1	0408-0506	●	●	●	●	●	●	●
914	03.885 ACTUATOR; SLD 4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ>	8-97383-079-0	01	1	0408-0506	●	●	●	●	●	●	●

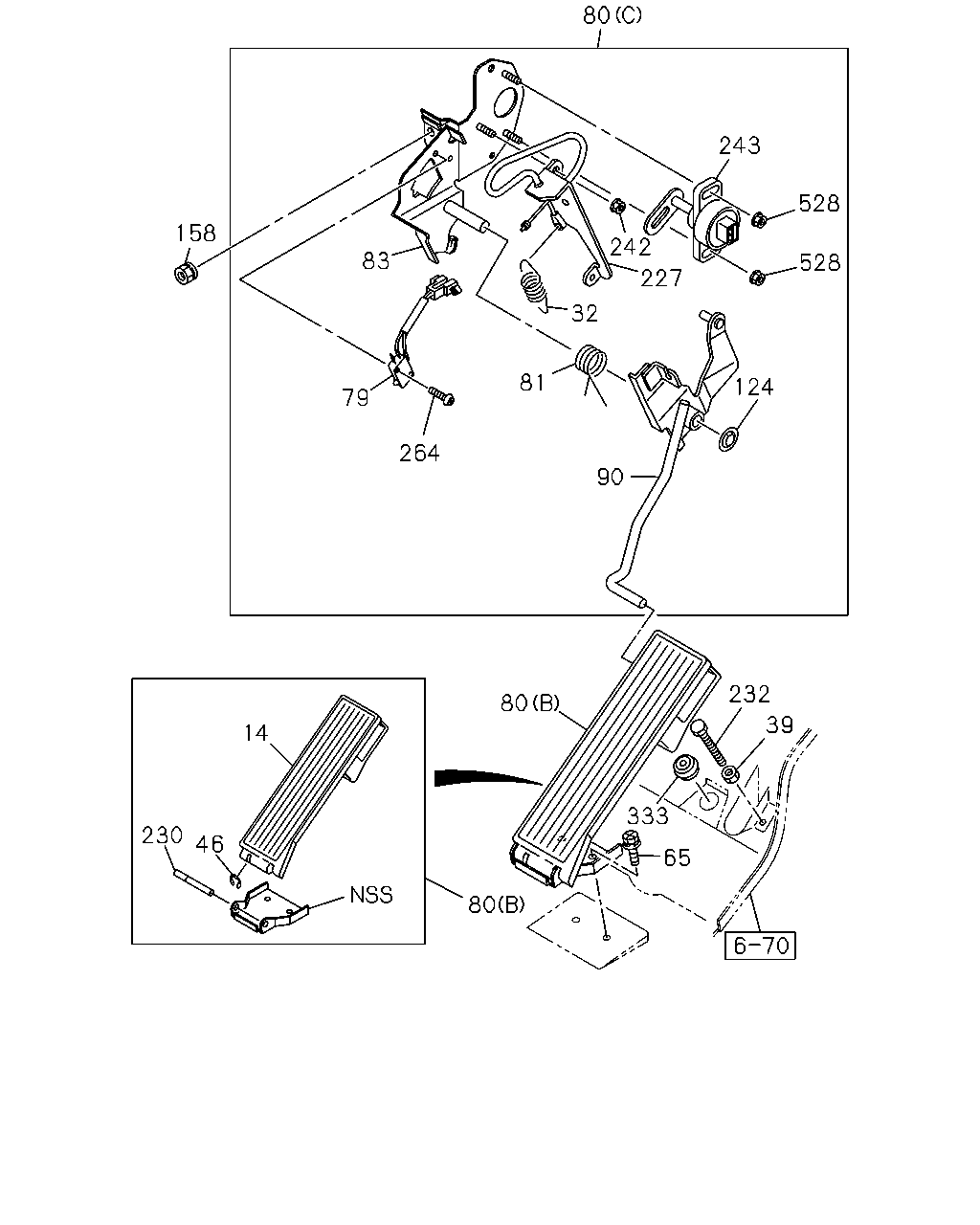

80 243 528 158 242 83 528 227 32 81 124 79 264 90 232 80 39 14 333 230 46 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-0506	●	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●		●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0302-0506		●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0507-0606	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0302-0506	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0506	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●		●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●		●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0302-0506	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●		●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0302-0506		●
79	03.451 SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0507-0606	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0302-0506	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR) (A)	8-97853-057-9	01	1	0302-0506	●		●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) (A)	8-97853-057-9	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97997-556-5	01	1	0507-0606		●	●		●		●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (D)	8-97997-556-5	01	1	0507-0606						●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (D)	8-97997-556-6	01	1	0607-	●	●	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-8	01	1	0302-0506		●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97892-195-9	01	1	0507-0606	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-205-1	01	1	0302-0506	●		●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97853-205-1	01	1	0302-0506		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM)	8-97853-205-1	01	1	0507-0606	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97853-201-4	01	1	0302-0506	●		●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY)	8-97853-201-4	01	1	0302-0506		●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-3	01	1	0302-0506		●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97892-196-4	01	1	0507-0606	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97868-039-0	01	1	0302-0506	●		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY)	8-97868-039-0	01	1	0302-0506		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-3	01	1	0302-0506		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97892-197-4	01	1	0507-0606	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0302-0506	●		●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0302-0506		●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0302-0506	●		●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0302-0506		●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0302-0506		●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0507-0606	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-0506	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●		●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0302-0506		●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0507-0606	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-0506	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●		●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0302-0404	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HE1 ENG(RLY) M/T MZZ6F(RSR) M8X45	8-97378-461-0	01	1	0405-0506	●		●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4JH1 ENG(RJX),4HE1 ENG(RLY) M8X45	8-97378-461-0	01	1	0405-0506		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-0606	●					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-0606		●	●		●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0607-	●				●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0607-		●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0302-0506		●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0507-0606	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-98131-263-0	01	1	1206-	●	●	●		●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0302-0506		●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97200-308-0	01	1	0507-0606	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97602-416-0	01	1	0507-0606		●	●		●		●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-97602-416-0	01	1	0507-0606						●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV)	8-97602-416-0	01	1	0607-	●	●	●		●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0302-0506		●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0507-0603	●	●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-0606	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0302-0506		●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606	●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606		●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606			●		●		●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606						●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-	●					●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-		●	●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCC ENG(RDV) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-					●		●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0302-0506		●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0507-0606	●	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 12.183 M5	8-94169-022-0	02	1	0507-0606		●	●		●		●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0507-0606						●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 12.183 M5	8-94169-022-0	02	1	0607-	●	●	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
