0-87 — COUPLING; INJECTION PUMP (#46664) — 13 parça

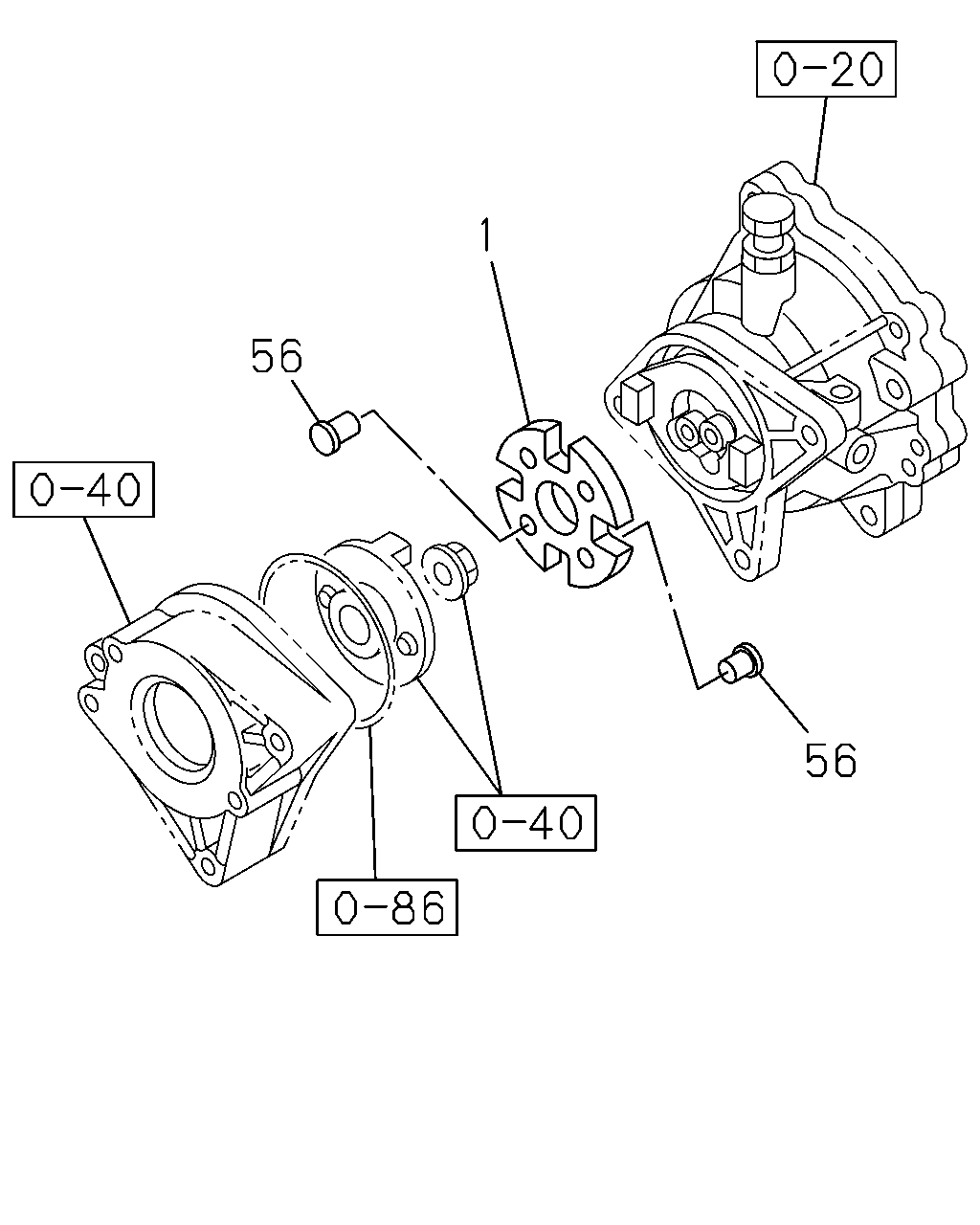

çizim 54450
1 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.340 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0302-0506 ●
1 03.340 COUPLING; INJ PUMP DRIVE 8-97245-202-1 01 1 0607- ●
56 03.440 RUBBER; COUPLING 8-97264-969-0 04 1 0607- ●

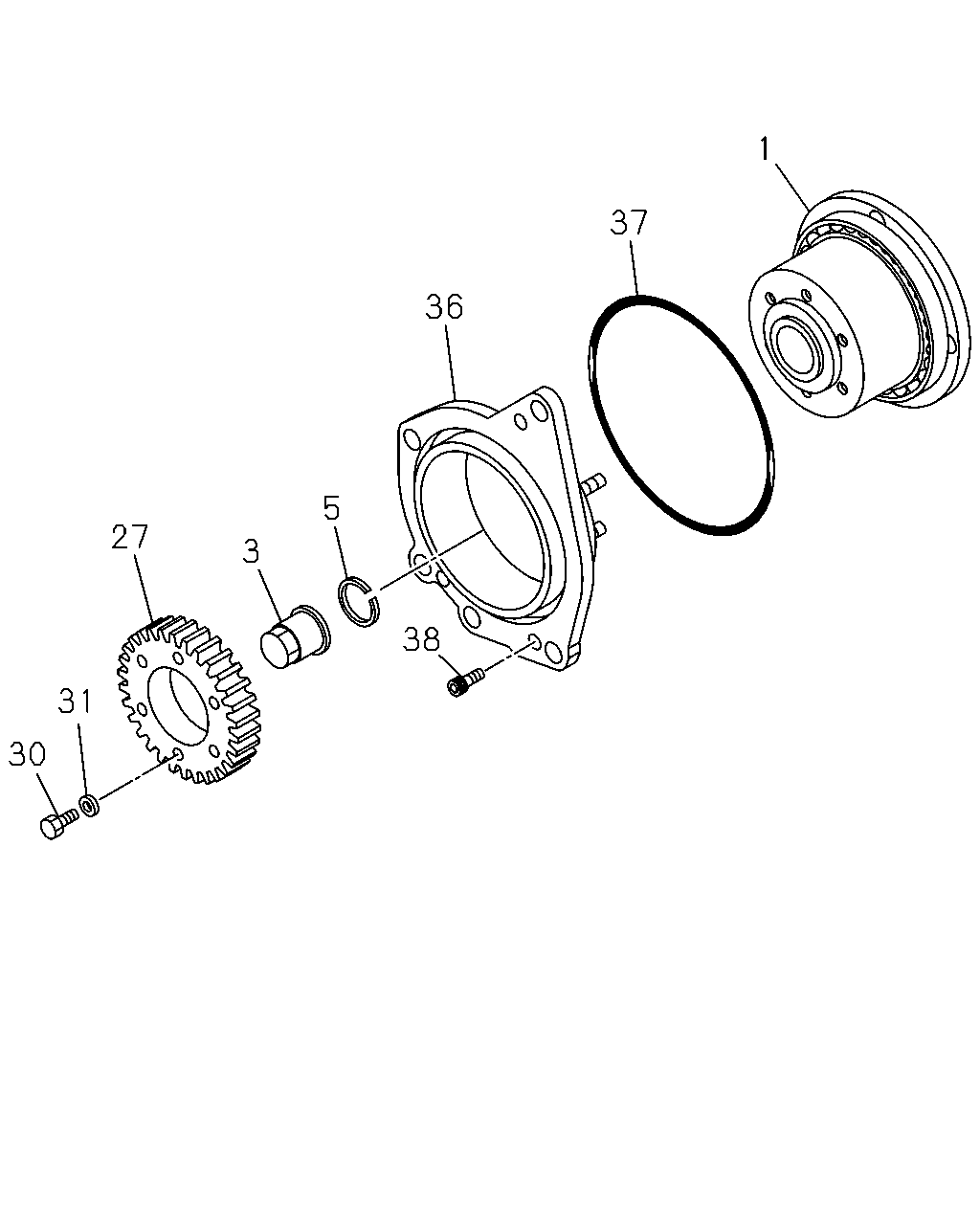

çizim 54984
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.340 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0302-0506 ●
1 03.340 COUPLING; INJ PUMP DRIVE 8-97245-202-1 01 1 0607- ●
3 03.340 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0302-0506 ●
5 03.340 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0302-0506 ●
27 03.340 GEAR; COUPLING 8-97367-803-0 01 1 0302-0506 ●
30 03.340 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0302-0506 ●
31 03.340 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0302-0506 ●
36 03.340 COVER; COUPLING 8-97202-360-2 01 1 0302-0506 ●
37 03.340 GASKET; COUPLING 8-97201-279-0 01 1 0302-0506 ●
38 03.340 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0302-0506 ●
