Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#46654) — 314 parça

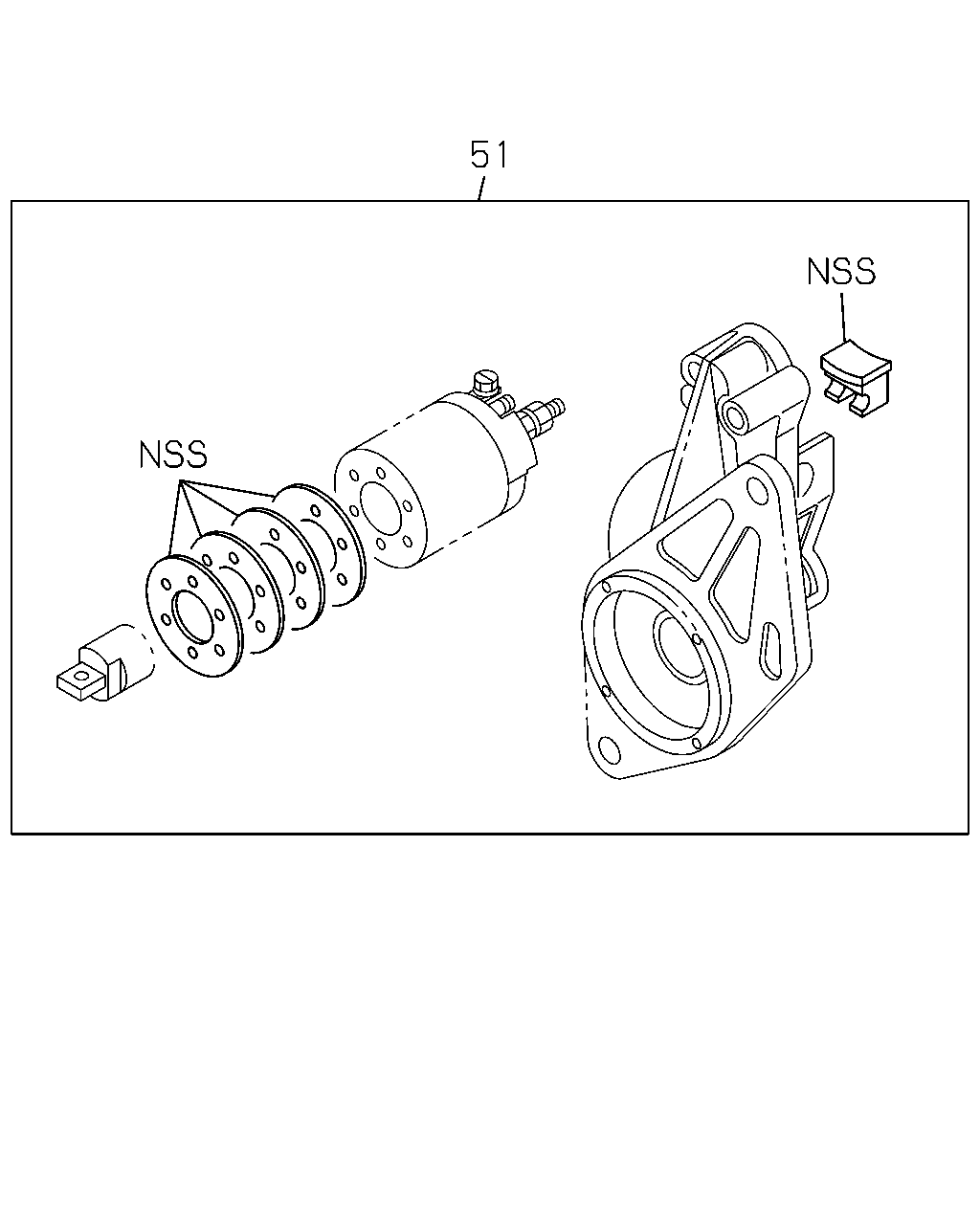

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97030-403-0	01	1	-0405
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-778-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: H = 8-98222-019-0, 98222019	8-97377-690-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97377-690-0	01	1	0406-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-98018-208-1, 98018208	8-98022-789-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97030-403-0	01	1	-0405
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-778-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: H = 8-98222-019-0, 98222019	8-97377-690-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97377-690-0	01	1	0406-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-98018-208-1, 98018208	8-98022-789-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97030-403-0	01	1	-0405
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-778-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: H = 8-98222-019-0, 98222019	8-97377-690-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97323-935-4, 97323935	8-97377-690-0	01	1	0406-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-98018-208-1, 98018208	8-98022-789-0	01	1	-

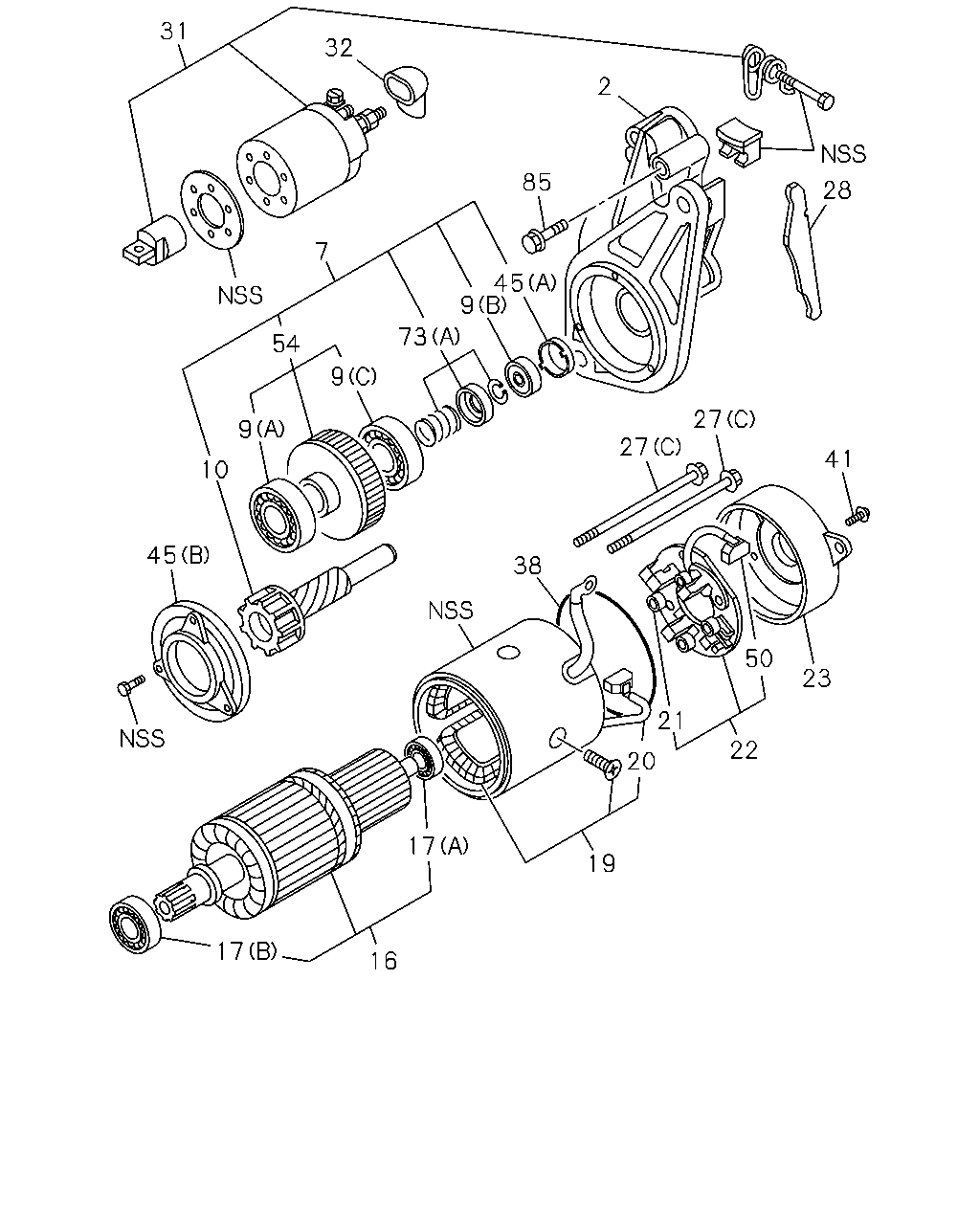

31 32 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 38 50 23 21 22 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-400-0	01	1	-0309
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97329-348-0	01	1	0310-
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-100-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-104-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-734-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97192-301-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-558-0	01	1	-0405
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-688-0	01	1	0406-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-561-0	01	1	-0405
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-689-0	01	1	0406-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1001
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-779-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-690-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1002-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97323-935-4, 97323935, H = 8-98222-019-0, 98222019	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98055-297-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-101-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-106-0	01	1	-
73	02.063 STOPPER SET; PINION (A) ASM PART: C = 8-97323-935-4, 97323935	8-97030-396-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: D = 8-98018-208-1, 98018208	8-97030-398-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: C = 8-97323-935-4, 97323935	8-97030-398-0	01	1	-1008
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94408-500-0	02	1	-

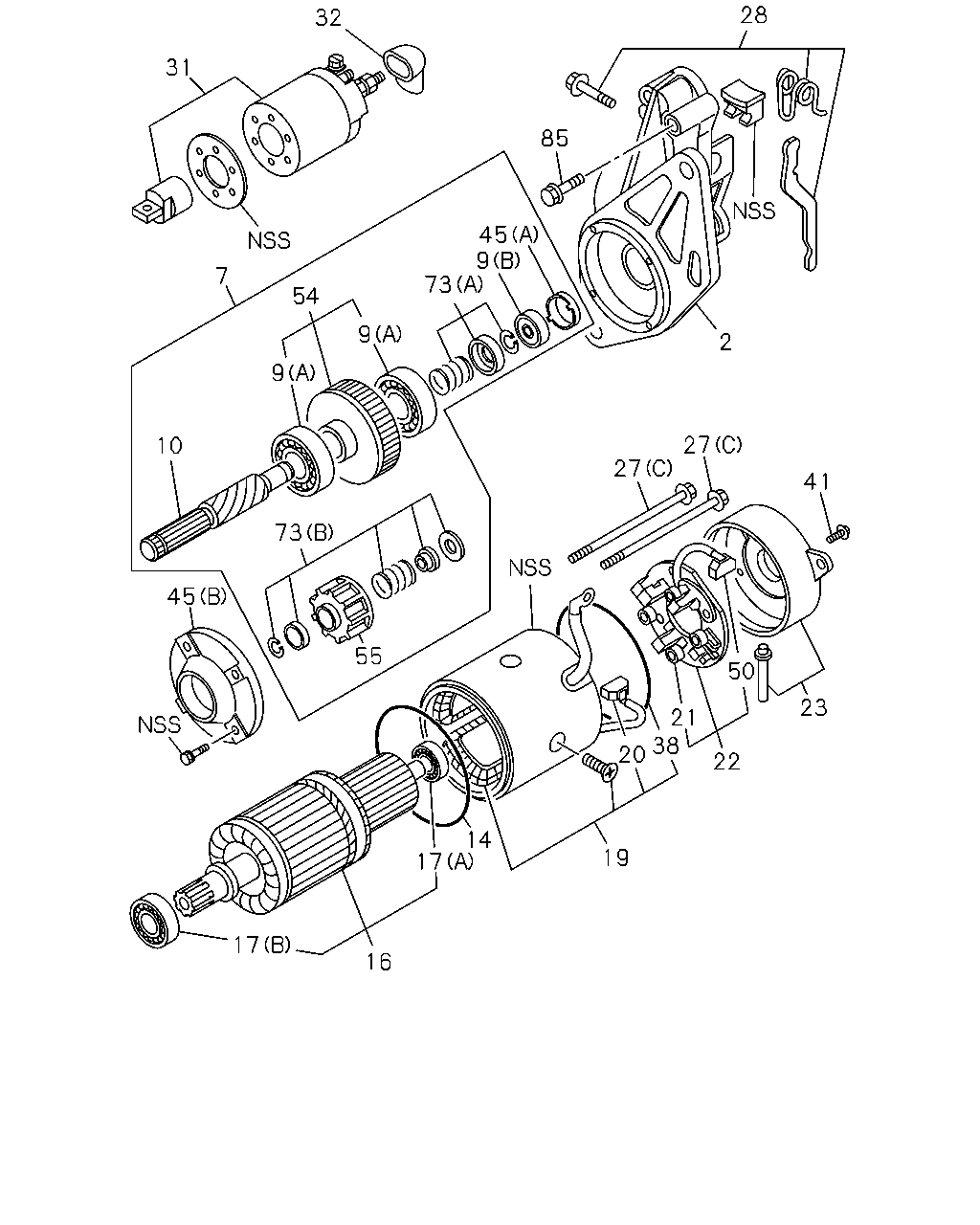

28 32 31 85 45 9 7 73 54 9 2 9 27 10 27 41 73 45 55 50 23 21 38 20 22 14 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-400-0	01	1	-0309
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97329-348-0	01	1	0310-
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-100-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-104-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-734-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-428-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-691-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-691-0	01	1	0406-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97192-301-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-558-0	01	1	-0405
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-688-0	01	1	0406-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-561-0	01	1	-0405
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-689-0	01	1	0406-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1001
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-779-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-690-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1002-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97323-935-4, 97323935, H = 8-98222-019-0, 98222019	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98055-297-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-101-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-106-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-569-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-569-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: C = 8-97323-935-4, 97323935	8-97030-396-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: D = 8-98018-208-1, 98018208	8-97030-398-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: C = 8-97323-935-4, 97323935	8-97030-398-0	01	1	-1008
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94408-500-0	02	1	-

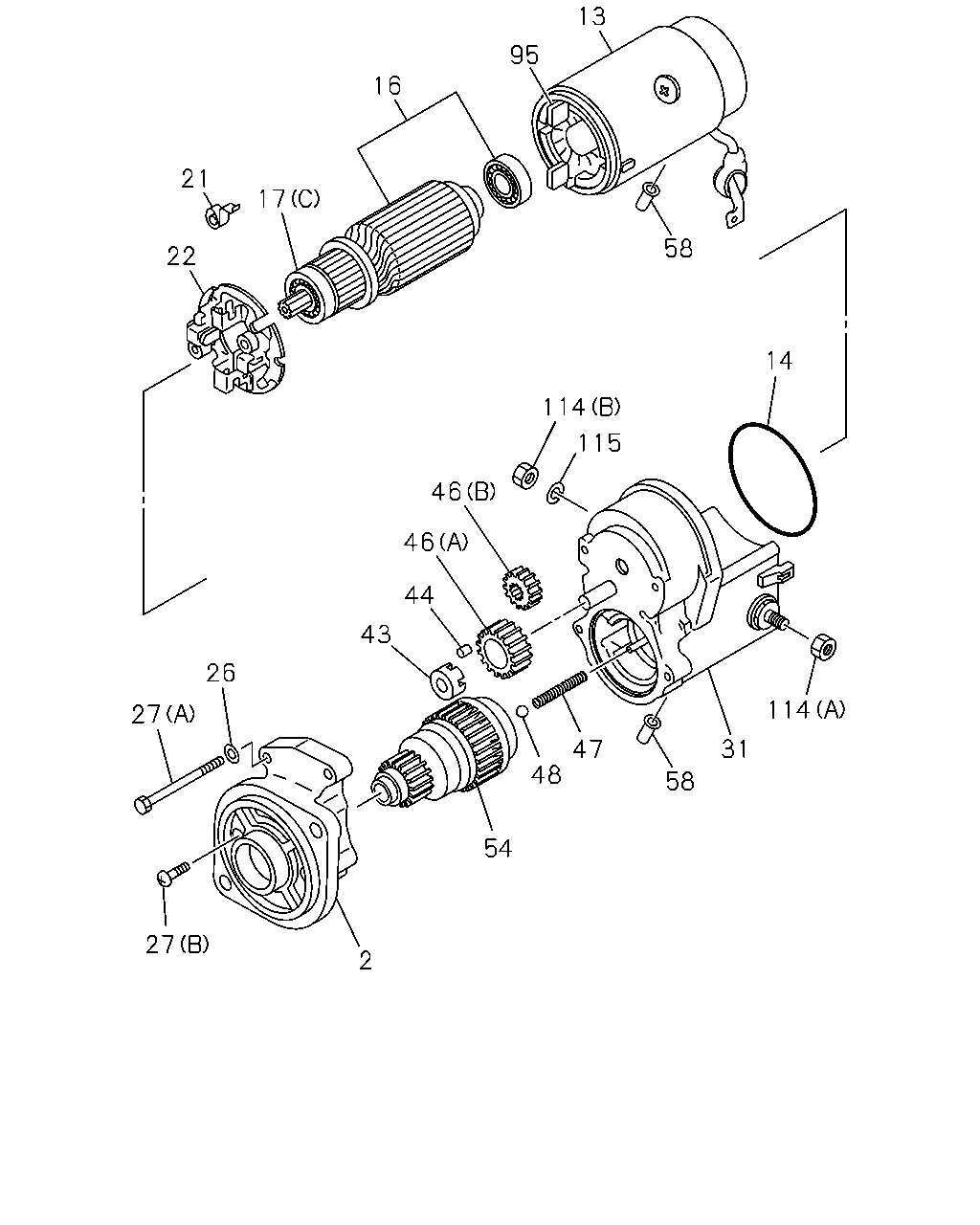

13 95 16 21 17 58 22 14 114 115 46 46 44 43 26 114 27 31 47 48 58 54 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-400-0	01	1	-0309
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97329-348-0	01	1	0310-
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-786-1	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-425-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-428-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-691-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-691-0	01	1	0406-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-298-0	01	1	-
26	02.077 SEAL; THROUGH BOLT STARTER 02.085 ASM PART: A = 8-97042-997-2, 97042997	5-81129-211-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97192-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-569-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81129-100-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: A = 8-97042-997-2, 97042997	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: A = 8-97042-997-2, 97042997	8-94167-427-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: A = 8-97042-997-2, 97042997	5-81129-096-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-101-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-106-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-97042-997-2, 97042997	1-81129-677-0	02	1	-
95	02.051 BRUSH ASM; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-194-0	01	1	-
114	02.055 NUT; TERMINAL 02.042, (A) ASM PART: A = 8-97042-997-2, 97042997	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 00.002, (B) ASM PART: A = 8-97042-997-2, 97042997	9-09110-508-0	01	1	-
115	02.063 WASHER; TERMINAL 00.002, ID=8.2 ASM PART: A = 8-97042-997-2, 97042997	9-09150-508-0	01	1	-

28 32 31 85 7 54 9 2 9 27 10 27 41 45 50 23 21 38 22 20 14 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-400-0	01	1	-0309
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97329-348-0	01	1	0310-
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-100-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-104-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-734-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-428-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-691-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-691-0	01	1	0406-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2, 97042997	8-97083-195-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97192-301-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-558-0	01	1	-0405
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-688-0	01	1	0406-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-97172-211-2, 97172211	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97230-561-0	01	1	-0405
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0, 98222019	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97377-689-0	01	1	0406-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1001
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98018-208-1, 98018208	8-98022-779-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98159-690-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1002-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-97172-211-2, 97172211, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: C = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, H = 8-98222-019-0, 98222019	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-97172-211-2, 97172211	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98018-208-1, 98018208	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97323-935-4, 97323935, H = 8-98222-019-0, 98222019	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98055-297-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2, 97042997	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97172-211-2, 97172211, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-0, 98222018	8-98222-101-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, 98222019	8-98222-106-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-97172-211-2, 97172211, C = 8-97323-935-4, 97323935, D = 8-98018-208-1, 98018208, E = 8-98054-984-0, 98054984, F = 8-98055-279-1, 98055279, G = 8-98222-018-0, 98222018, H = 8-98222-019-0, 98222019	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
