0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#46653) — 449 parça

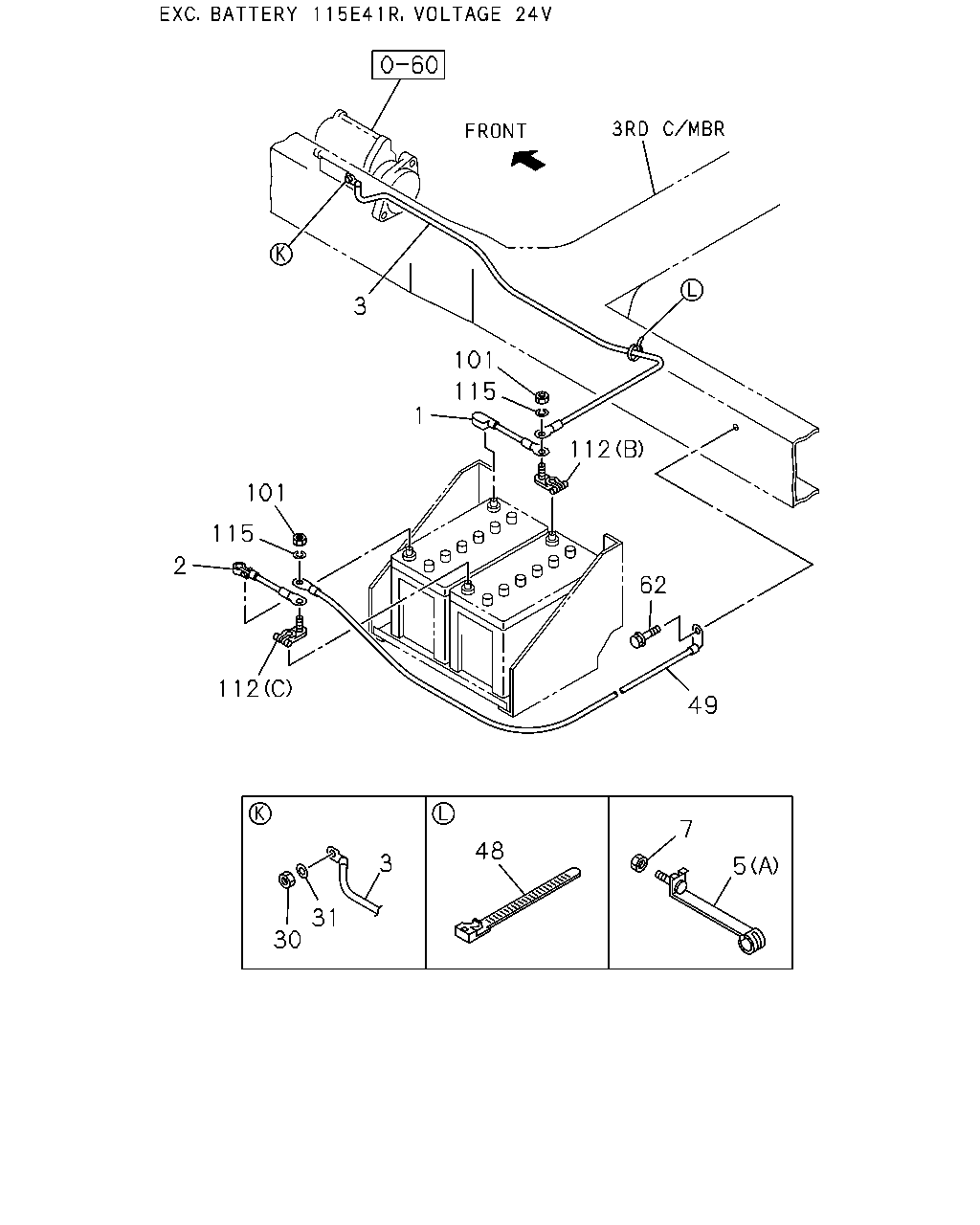

çizim 52160
3 101 115 1 112 101 115 2 62 112 49 7 48 3 5 31 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0507-0606 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-538-1 01 1 0302-0506 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0302-0506 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MZZ6F(RSR) BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-709-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607-0607 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. VOLTAGE 24V<7AE> 		8-97359-629-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97328-795-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-206-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-775-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.280 (E) ID=13 L=16 		9-09525-222-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> (E) ID=13 L=16 		0-95235-222-0 01 1 0607- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NP**SF) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0607- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&SHORT(NPC5SC) NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) NPR DBL CAB&MIDDLE(NPC5WF) EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0302-0303 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SHORT(NP***C) L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&MIDDLE(NP**SF) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
101 02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE> 09.011 M10 		9-09110-410-0 02 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0507-0606 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-003-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-175-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-004-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-176-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0507-0606 ●
115 02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 0302-0506 ●

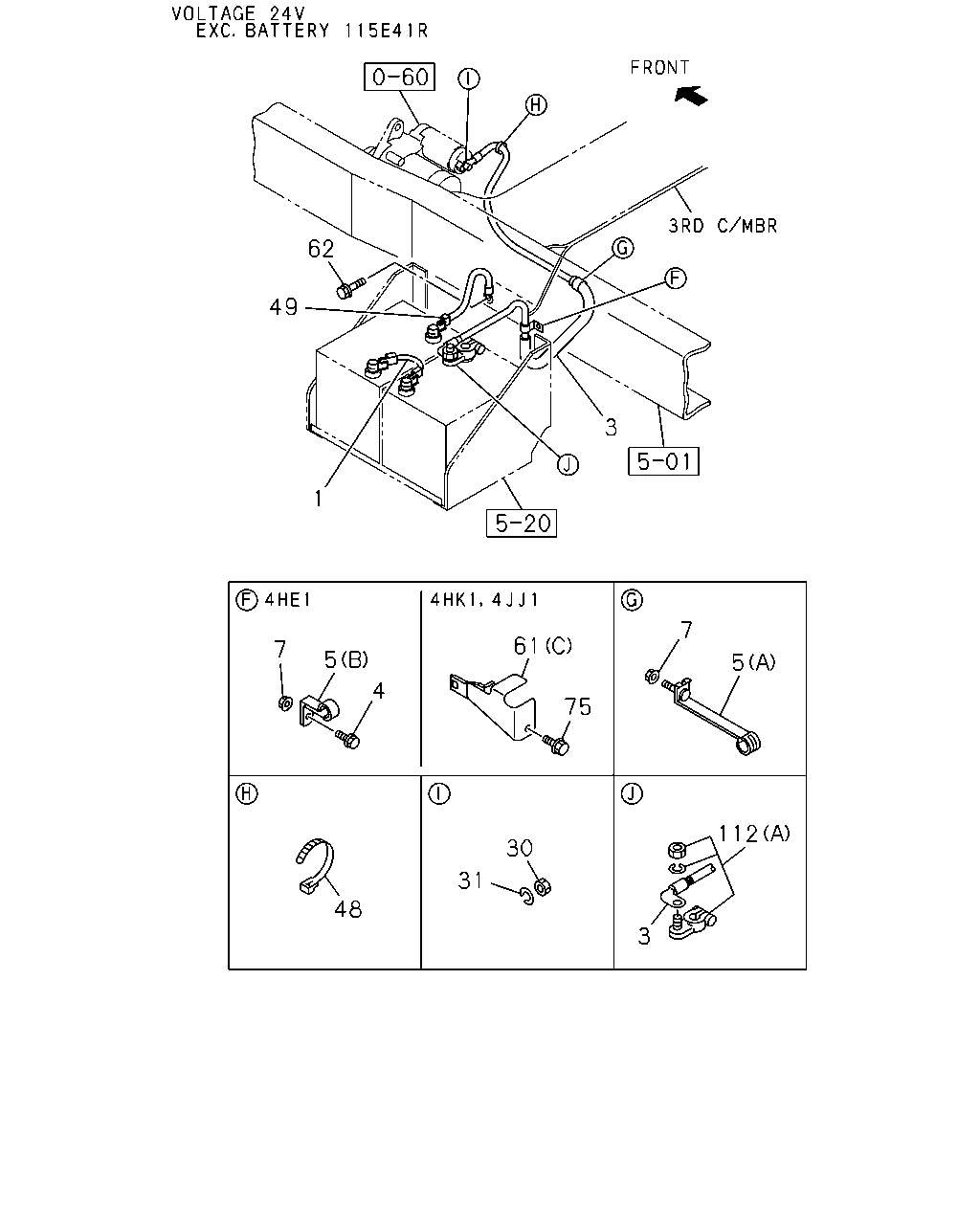

çizim 52998
62 49 3 1 7 61 7 5 5 4 75 112 30 31 48 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0507-0606 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ● ●

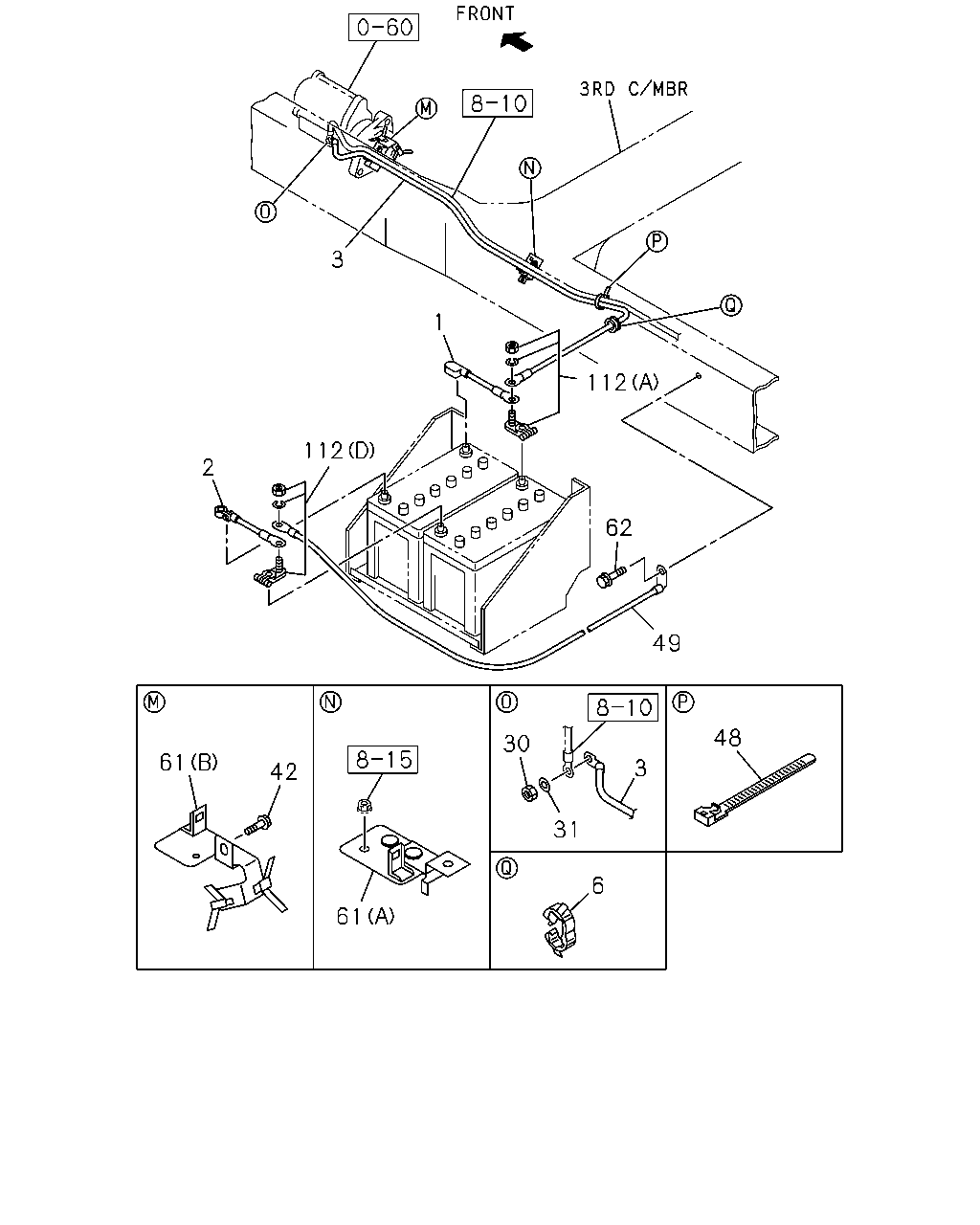

1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE

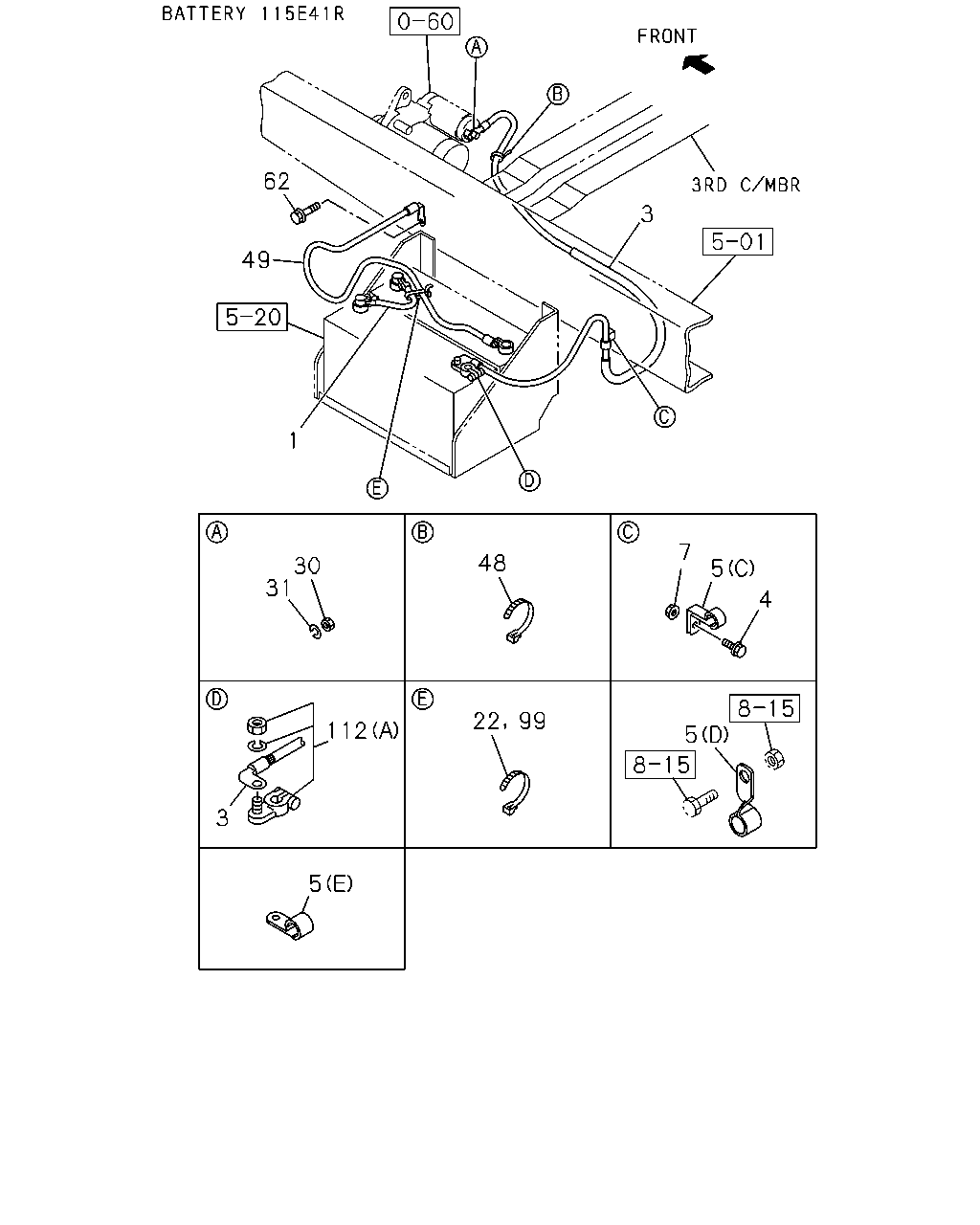

BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MZZ6F(RSR) BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-709-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607-0607 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. VOLTAGE 24V<7AE> 		8-97359-629-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97328-795-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-206-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-775-0 01 1 0607- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0302-0303 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0304-0506 ●
4 02.559 BOLT; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0302-0506 ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0507-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0606 ● ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.280 (E) ID=13 L=16 		9-09525-222-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> (E) ID=13 L=16 		0-95235-222-0 01 1 0607- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NP**SF) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0607- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&SHORT(NPC5SC) NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) NPR DBL CAB&MIDDLE(NPC5WF) EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0302-0303 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SHORT(NP***C) L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&MIDDLE(NP**SF) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-472-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-472-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0507-0606 ● ●
61 02.333 BRACKET; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0607- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
75 02.333 BOLT; BRKT
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ● ●
75 02.333 BOLT; BRKT
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ● ●
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0507-0606 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-003-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-175-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-004-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-176-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0507-0606 ●
çizim 53093
62 3 49 1 7 48 30 31 5 4 5 22 99 112 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0507-0606 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MZZ6F(RSR) BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-709-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607-0607 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. VOLTAGE 24V<7AE> 		8-97359-629-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97328-795-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-206-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-775-0 01 1 0607- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0302-0303 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0304-0506 ●
4 02.559 BOLT; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0302-0506 ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0507-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0606 ● ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.280 (E) ID=13 L=16 		9-09525-222-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> (E) ID=13 L=16 		0-95235-222-0 01 1 0607- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.483 (C) ID=13 H=18 L=20 		1-09700-813-0 01 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 02 1 0607- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> (A) ID=13 L=90 		8-97015-782-1 01 1 0302-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NP**SF) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0304-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0302-0506 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0507-0606 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.166 (D) ID=13 L=50 		1-09700-027-1 01 1 0607- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&SHORT(NPC5SC) NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) NPR DBL CAB&MIDDLE(NPC5WF) EXC. BATTERY 115E41R<6XD> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0506 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) M/T MYY5T(RSM) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NP**SF) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
7 02.343 NUT; (+) CABLE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0302-0303 ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0307-0506 ●
22 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
22 02.343 CLIP; BATTERY CABLE
NQR DBL CAB&SUPER LONG(NP**WS) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0607- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0302-0303 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SHORT(NP***C) L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&MIDDLE(NP**SF) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0302-0506 ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0607- ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0507-0606 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-003-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-175-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-004-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-176-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0507-0606 ●
çizim 54080
3 1 112 112 2 62 49 48 30 61 3 42 31 6 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0507-0606 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=180 		8-97230-538-1 01 1 0302-0506 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0302-0506 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MZZ6F(RSR) BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-816-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-709-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607-0607 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-779-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. VOLTAGE 24V<7AE> 		8-97359-629-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-778-2 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97328-795-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) EXC. BATTERY 115E41R<6XD>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97359-634-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-206-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0507-0606 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB&SUPER LONG(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41R<6XD> 		8-97377-777-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-775-0 01 1 0607- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0302-0506 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0507-0606 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0302-0506 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0507-0512 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601-0606 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0302-0303 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0506 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ● ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
48 02.343 CLIP; CABLE
02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SHORT(NP***C) L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&MIDDLE(NP**SF) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB&LONG(NPC5SK) NPR/NQR SGL CAB&EXTEND LONG(NPC5SN) NQR SGL CAB&SUPER LONG(NPC5SS) EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0507-0606 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-472-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-472-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0507-0606 ● ●
61 02.333 BRACKET; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0607- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (A) <+> 		8-97356-925-1 01 1 0507-0606 ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-003-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <+> 		1-82695-175-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-004-0 01 1 0302-0403 ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (C) <-> 		1-82695-176-0 01 1 0404-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(D) <-> 		8-97356-926-1 01 1 0507-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
