◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#46652) — 600 parça

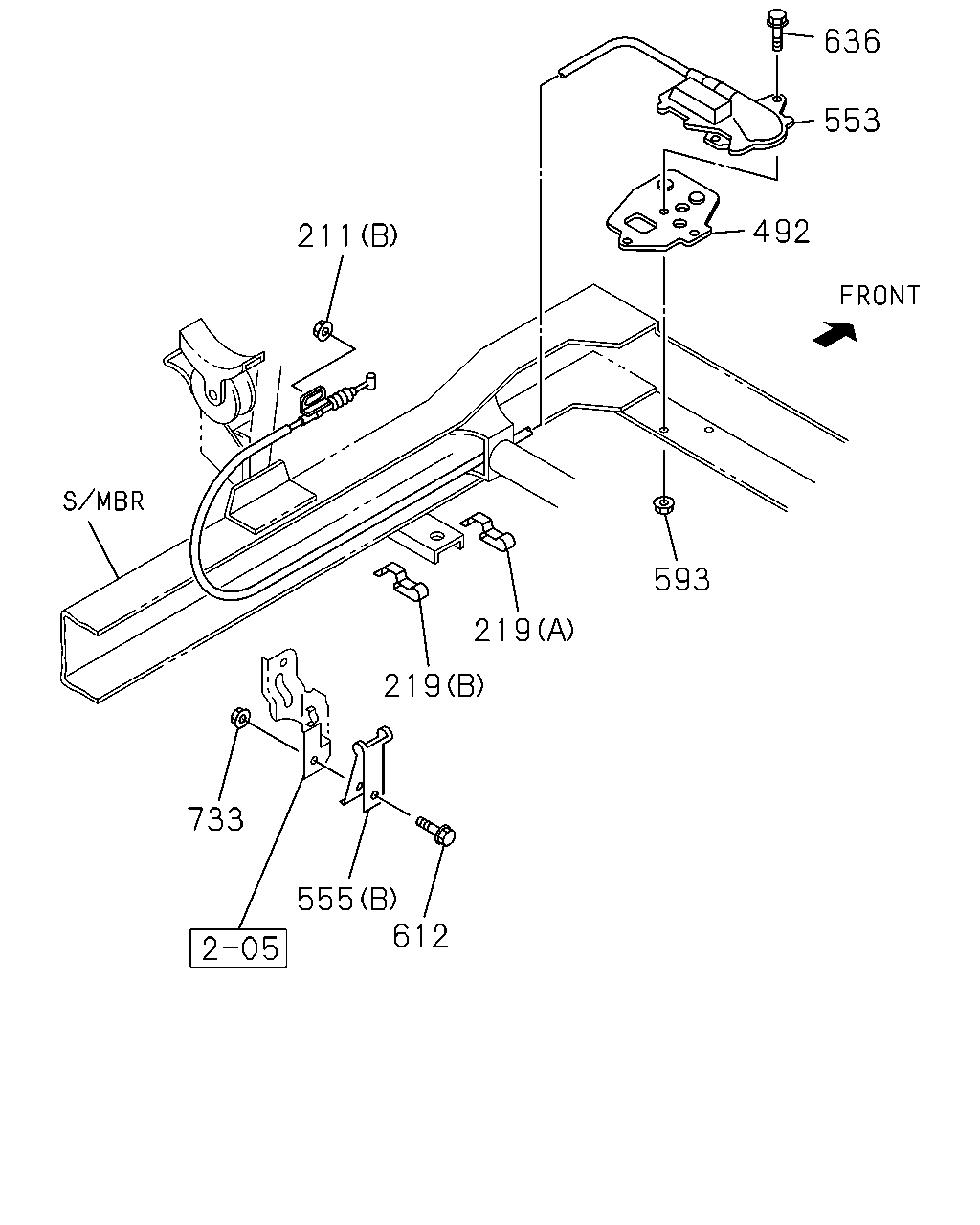

çizim 11375
636 553 492 211 593 219 219 733 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0302-0309 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0310-0506 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (B) T=9 & 10.5 		8-97041-091-0 01 1 0302-0506 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0302-0506 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97255-071-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97255-072-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97119-039-2 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0302-0309 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0310-0506 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0302-0506 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●

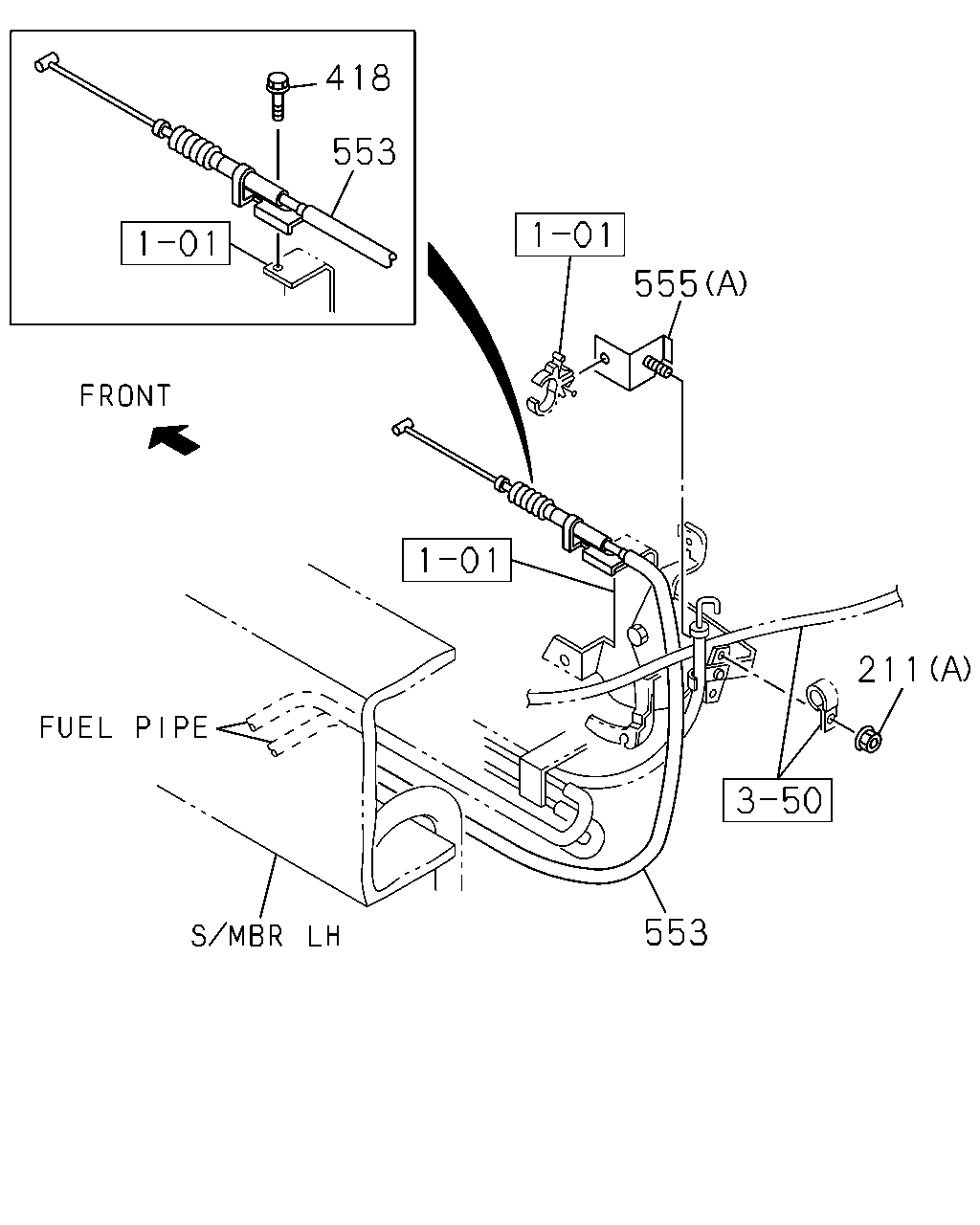

çizim 12609
418 553 555 211 553
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0302-0309 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0310-0506 ●
418 02.559 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0302-0309 ●
418 02.559 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0310-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97255-071-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97255-072-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97119-039-2 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0302-0309 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0310-0506 ●

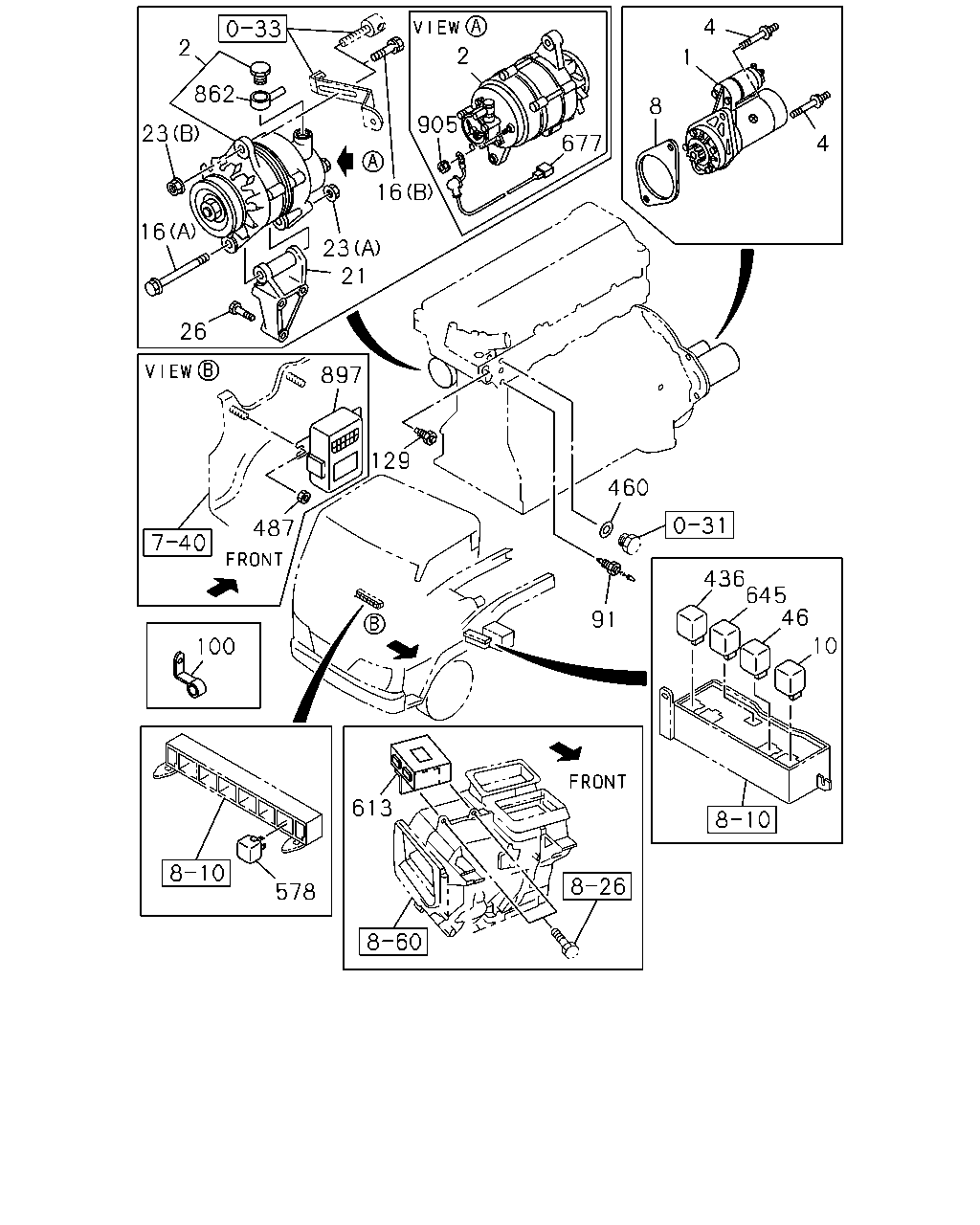

çizim 54119
4 2 2 1 862 8 905 23 677 4 16 16 23 21 26 897 129 460 487 436 645 46 91 10 100 613 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0507-0606 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0302-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-892-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. GENERATOR 24V80A(7YN) 24V 45A 		8-98039-591-1 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-890-2 01 1 0607-0703 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98075-026-0 01 1 0704- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0507-0606 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
8 02.042 SPACER; STARTER
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-947-0 01 1 0507-0606 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0607- ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(E) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0302-0506 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0302-0506 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0507-0606 ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) 		8-97075-884-2 01 1 0607- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) 		8-98036-551-0 01 1 0607- ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0302-0506 ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-0606 ● ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0302-0506 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0607- ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0302-0506 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0507-0512 ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0606 ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) M10X70 FLANGE 		0-28151-070-0 02 1 0607- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 M10X90 FLANGE 		0-28151-090-0 03 1 0607- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0507-0606 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
91 01.150 SWITCH; THERMO HTR
03.883 		8-97038-625-0 01 1 0302-0402 ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0403-0506 ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0507-0606 ● ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0607- ●
100 02.559 CLIP; HARNESS
03.162 L=140 		5-09707-031-1 01 1 0607- ●
100 02.559 CLIP; HARNESS
04.594 L=100 		5-09707-036-1 01 1 0607- ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0507-0606 ● ●
100 02.559 CLIP; HARNESS
L=180 		1-09707-162-1 01 1 0607- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ● ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0302-0506 ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0507-0606 ● ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0607- ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
487 02.343 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0507-0606 ● ● ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-210-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-206-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-208-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-204-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-515-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-579-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-505-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-569-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-516-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-580-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-506-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-570-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-211-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-207-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-209-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-205-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG 8-97261-162-2 01 1 0302-0506 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-593-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-512-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-576-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-591-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-502-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-566-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98037-500-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98202-564-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-597-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98037-510-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98202-574-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-592-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-509-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-573-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-590-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-511-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-575-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-501-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-565-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-596-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-499-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-563-0 01 1 1201- ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0507-0606 ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0607- ● ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0305-0305 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 		8-97367-772-0 01 1 0306-0308 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0309-0506 ●
677 02.277 HARNESS; GEN 8-97367-772-0 01 1 0507-0606 ● ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0309-0506 ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0507-0606 ● ●
897 02.510 DRM 8-98013-144-3 01 1 0507-0606 ● ●
897 02.510 DRM 8-98013-144-7 01 1 0607- ● ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0305-0305 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0306-0308 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0309-0506 ●
905 02.559 NUT; HARNESS
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0507-0606 ● ●

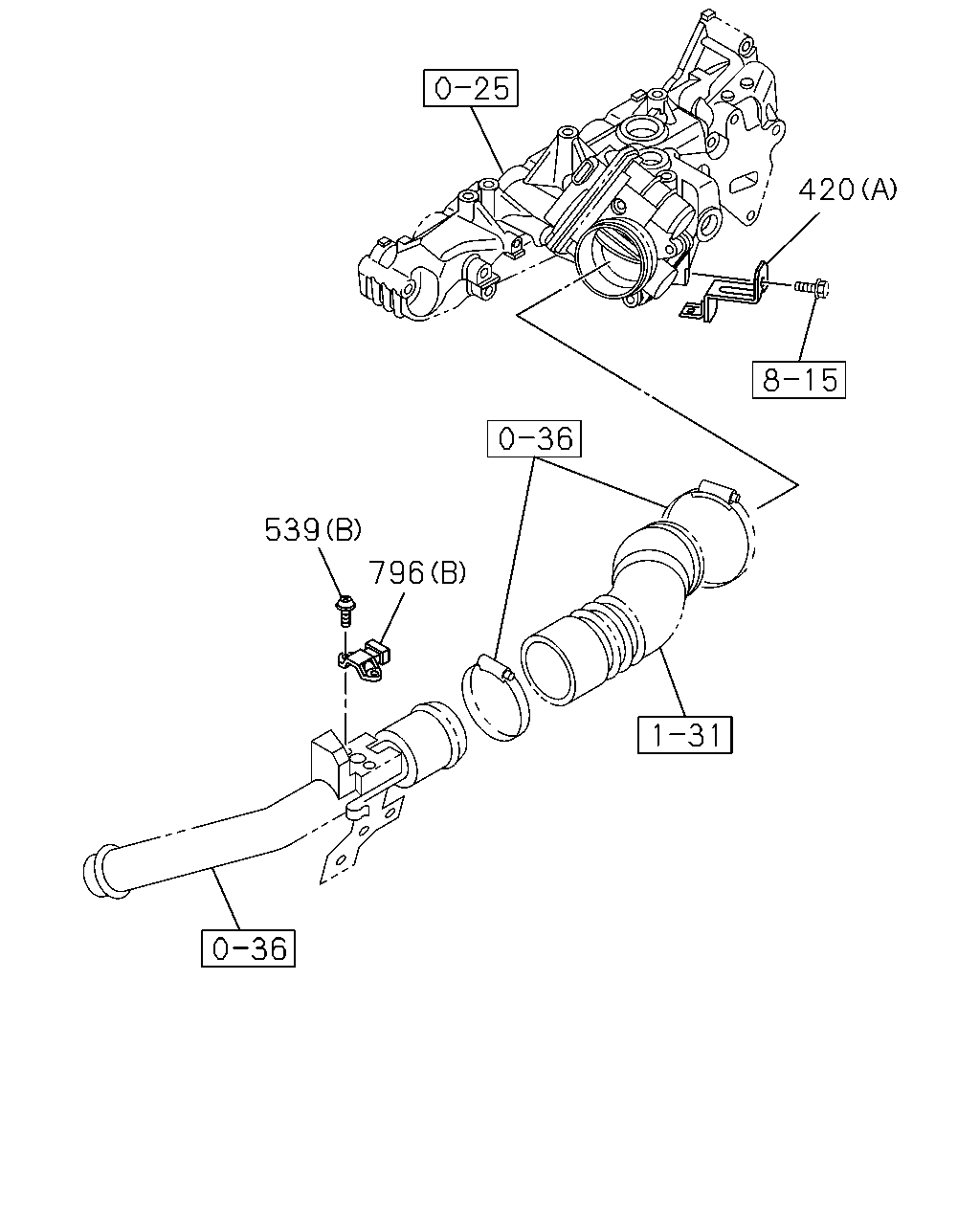

çizim 54387
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
420 02.183 BRACKET; HARNESS
(A) 		8-98024-050-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-725-1 01 1 0607- ●
539 02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0607- ● ●
539 02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0607- ● ●
796 01.150 SENSOR; MAP
(A) 		8-09373-269-1 01 1 0507-0606 ● ●
796 01.150 SENSOR; MAP
(B) 		8-98009-418-0 01 1 0607- ● ●

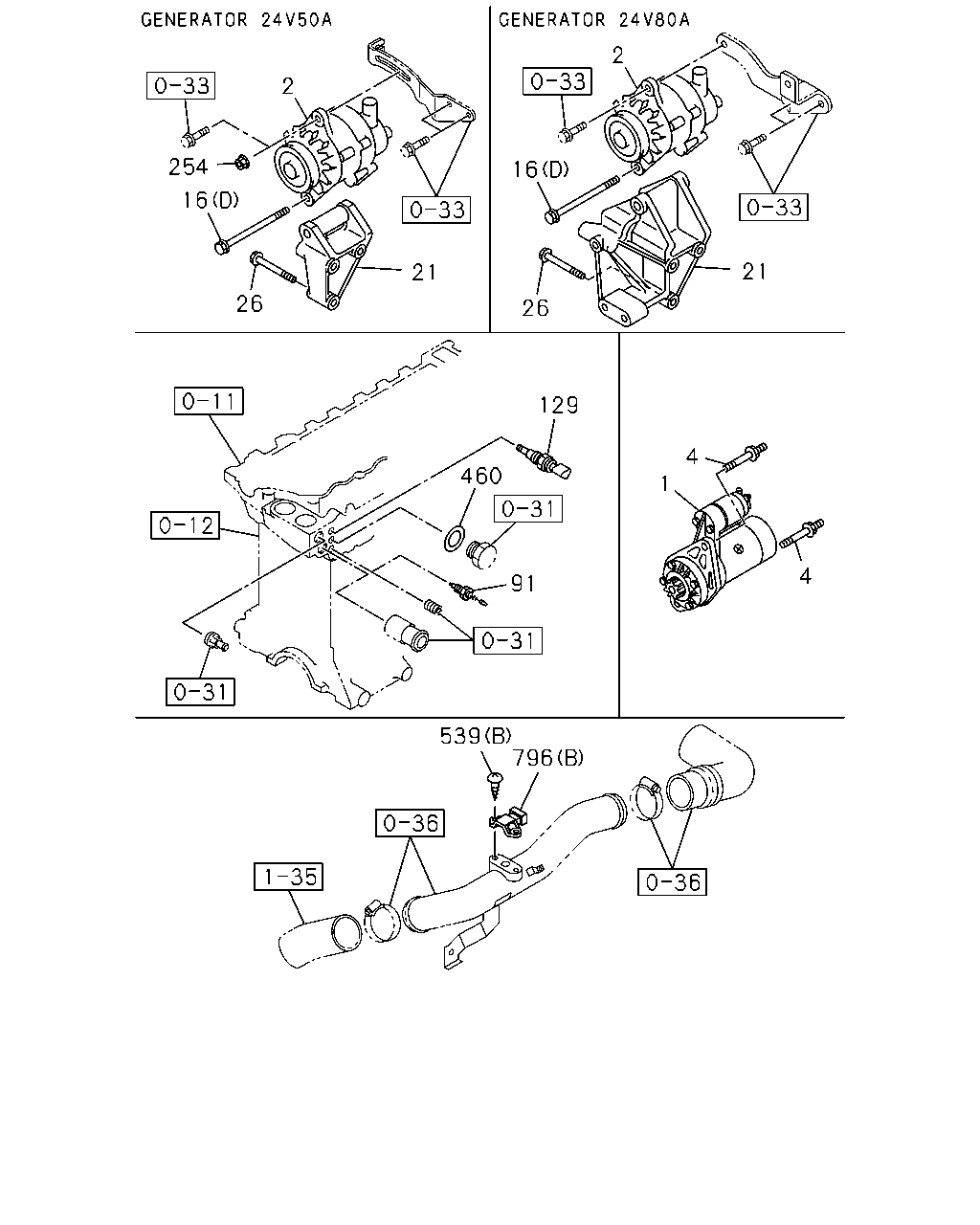

çizim 54414
2 2 254 16 16 21 21 26 26 129 4 460 1 4 91 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0507-0606 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0302-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-892-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. GENERATOR 24V80A(7YN) 24V 45A 		8-98039-591-1 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-890-2 01 1 0607-0703 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98075-026-0 01 1 0704- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0507-0606 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(E) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0302-0506 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0302-0506 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0507-0606 ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) 		8-97075-884-2 01 1 0607- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) 		8-98036-551-0 01 1 0607- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0302-0506 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0607- ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0302-0506 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0507-0512 ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0606 ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) M10X70 FLANGE 		0-28151-070-0 02 1 0607- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 M10X90 FLANGE 		0-28151-090-0 03 1 0607- ●
91 01.150 SWITCH; THERMO HTR
03.883 		8-97038-625-0 01 1 0302-0402 ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0403-0506 ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0507-0606 ● ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0607- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0704- ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0302-0506 ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0507-0606 ● ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0607- ●
539 02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0607- ● ●
539 02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0607- ● ●
796 01.150 SENSOR; MAP
(A) 		8-09373-269-1 01 1 0507-0606 ● ●
796 01.150 SENSOR; MAP
(B) 		8-98009-418-0 01 1 0607- ● ●

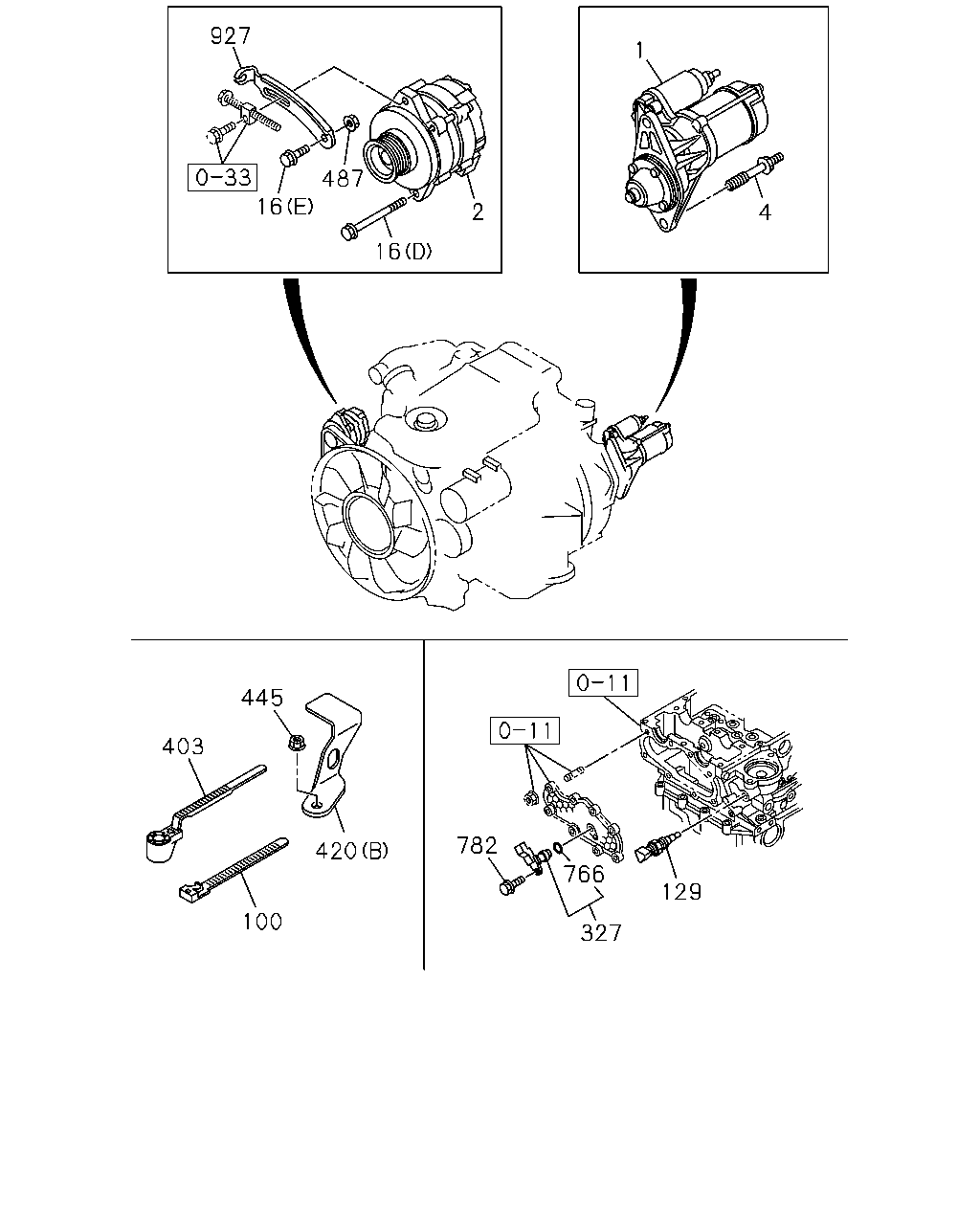

çizim 54415
927 1 487 16 2 4 16 445 403 782 420 766 129 100 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0507-0606 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0302-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-892-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. GENERATOR 24V80A(7YN) 24V 45A 		8-98039-591-1 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-890-2 01 1 0607-0703 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98075-026-0 01 1 0704- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0507-0606 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(E) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0302-0506 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ● ●
100 02.559 CLIP; HARNESS
03.162 L=140 		5-09707-031-1 01 1 0607- ●
100 02.559 CLIP; HARNESS
04.594 L=100 		5-09707-036-1 01 1 0607- ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0507-0606 ● ●
100 02.559 CLIP; HARNESS
L=180 		1-09707-162-1 01 1 0607- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0607- ●
403 02.343 CLIP; CABLE
L=119.5 		1-09707-197-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98024-050-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-725-1 01 1 0607- ●
445 02.483 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
487 02.343 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0607- ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0302-0506 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0507-0512 ● ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606 ● ●
927 02.274 PLATE 8-98039-816-1 01 1 0607- ●

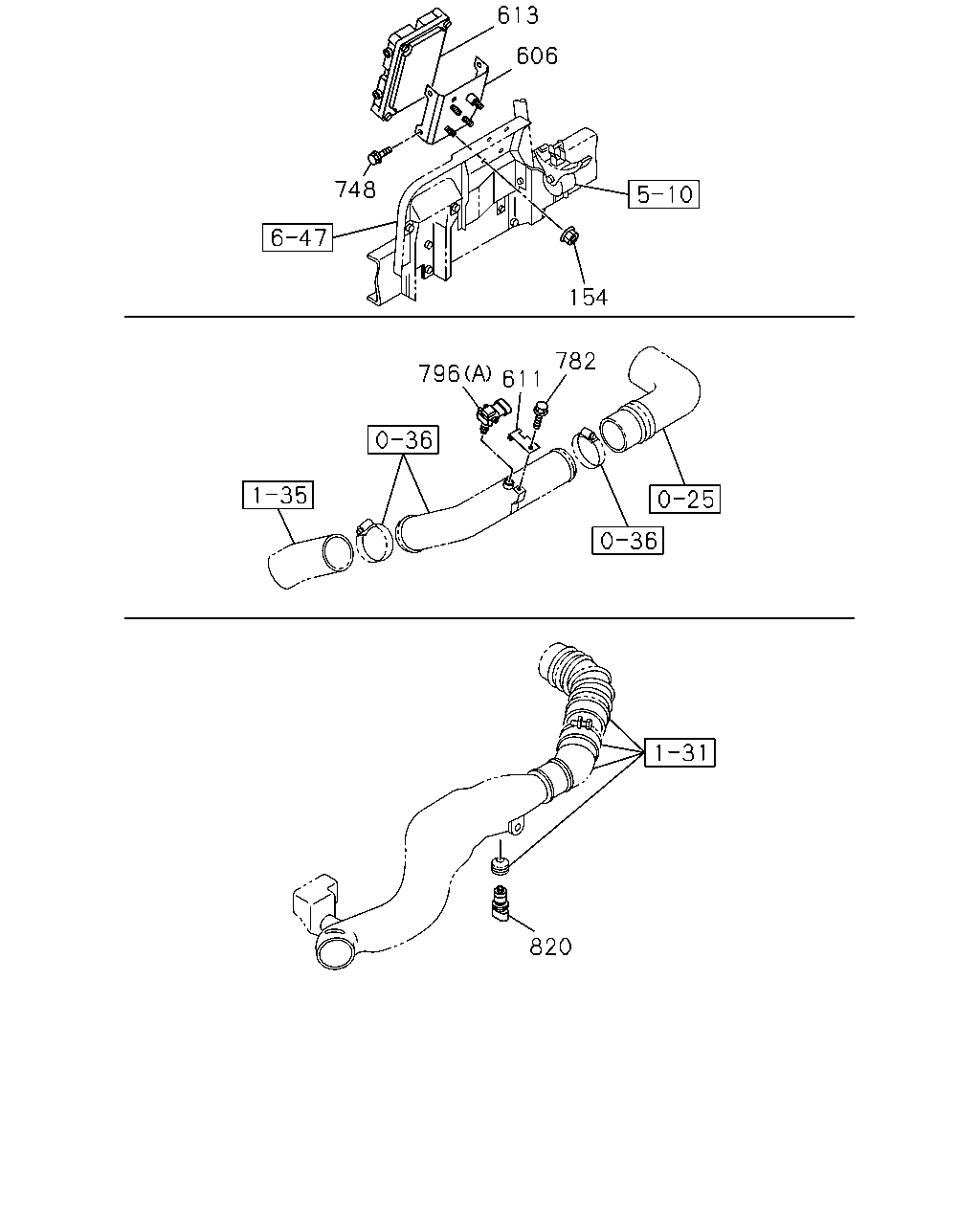

çizim 54424
613 606 748 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0507-0606 ● ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0607-0611 ● ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ● ●
606 03.680 BRACKET; CONT UNIT 8-97369-871-1 01 1 0507-0606 ● ●
606 03.680 BRACKET; CONT UNIT 8-98019-696-2 01 1 0607- ●
606 03.680 BRACKET; CONT UNIT 8-98019-697-1 01 1 0607- ●
611 01.150 BRACKET; SENSOR 8-97368-621-0 01 1 0507-0606 ● ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-210-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-206-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-208-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-204-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-515-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-579-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-505-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-569-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-516-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-580-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-506-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-570-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-211-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-207-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-209-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-205-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG 8-97261-162-2 01 1 0302-0506 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-593-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-512-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-576-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-591-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-502-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-566-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98037-500-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98202-564-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-597-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98037-510-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98202-574-0 01 1 1201- ●

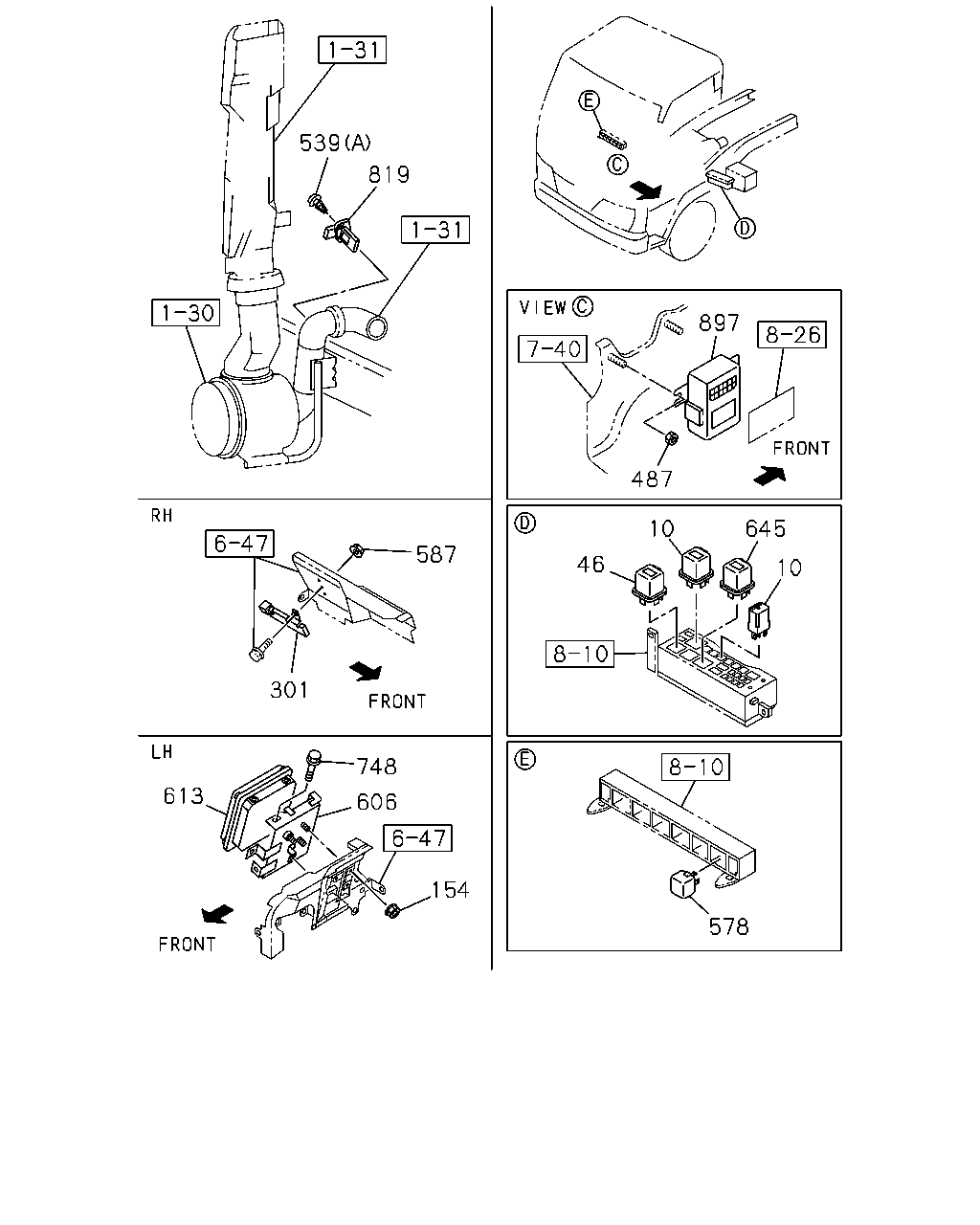

613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-592-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-509-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-573-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-590-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-511-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-575-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-501-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-565-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-596-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-499-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-563-0 01 1 1201- ●
748 02.500 BOLT; CONT UNIT
09.190 M6X30 FLANGE 		0-28680-630-0 06 1 0507-0508 ● ●
748 02.500 BOLT; CONT UNIT
10.450 M6X10 		9-03800-610-0 03 1 0507-0604 ● ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605-0606 ● ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0607- ● ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0302-0506 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0507-0512 ● ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606 ● ●
796 01.150 SENSOR; MAP
(A) 		8-09373-269-1 01 1 0507-0606 ● ●
796 01.150 SENSOR; MAP
(B) 		8-98009-418-0 01 1 0607- ● ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0507-0606 ● ●

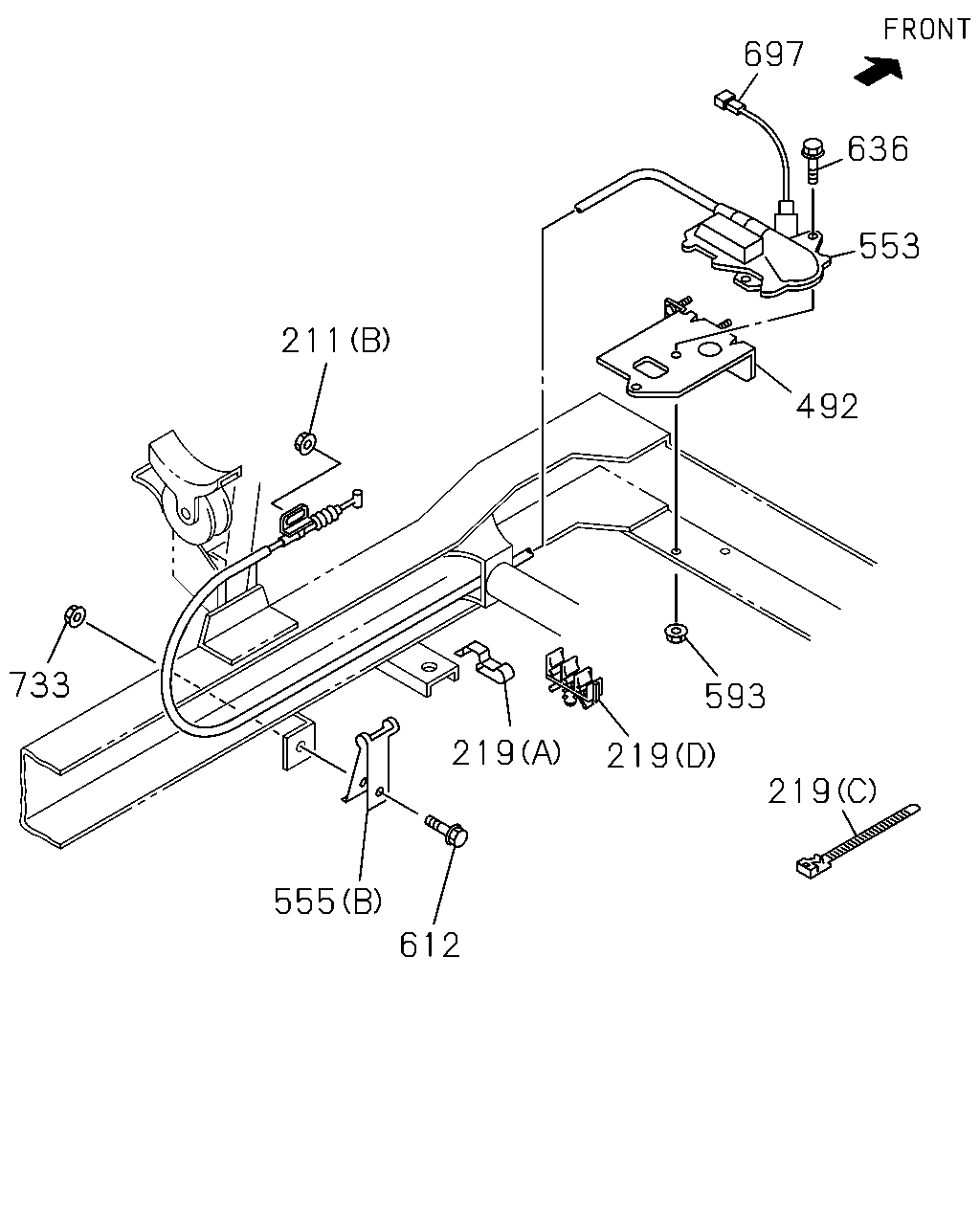

çizim 54881
697 636 553 211 492 733 593 219 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0302-0309 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0310-0506 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0302-0506 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (B) T=9 & 10.5 		8-97041-091-0 01 1 0302-0506 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0302-0506 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97255-071-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97255-072-0 01 1 0302-0506 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97119-039-2 01 1 0302-0506 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0302-0309 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97188-280-0 01 1 0310-0506 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0302-0506 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0302-0506 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●

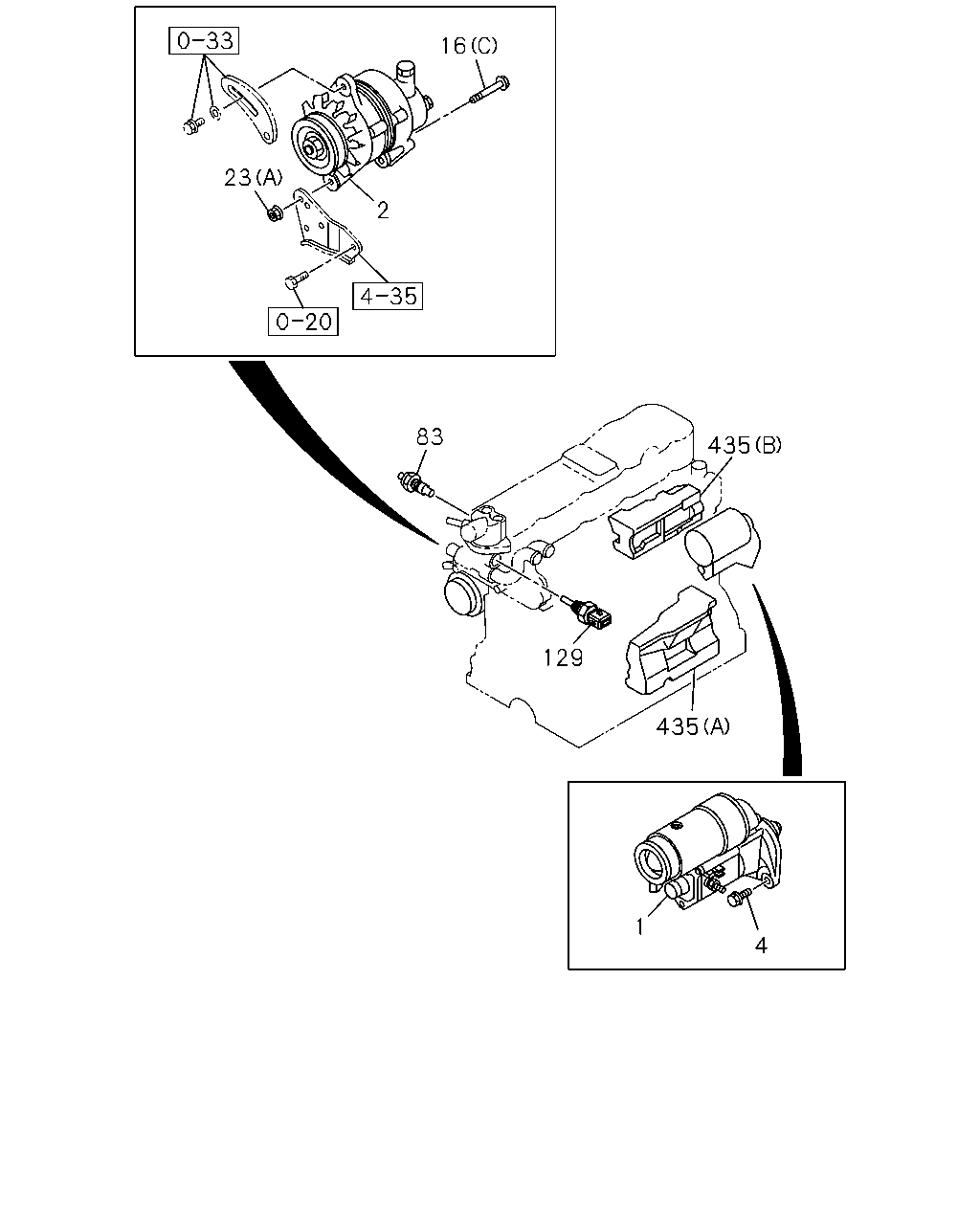

çizim 54889
16 23 2 83 435 129 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0507-0606 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0302-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0507-0606 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-892-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. GENERATOR 24V80A(7YN) 24V 45A 		8-98039-591-1 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-890-2 01 1 0607-0703 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98075-026-0 01 1 0704- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0507-0606 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ● ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(E) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0302-0506 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0507-0606 ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ● ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0302-0506 ● ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ● ● ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603-0606 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0302-0506 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0507-0606 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0302-0506 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0507-0606 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ● ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0302-0506 ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0507-0606 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0302-0506 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0507-0606 ●

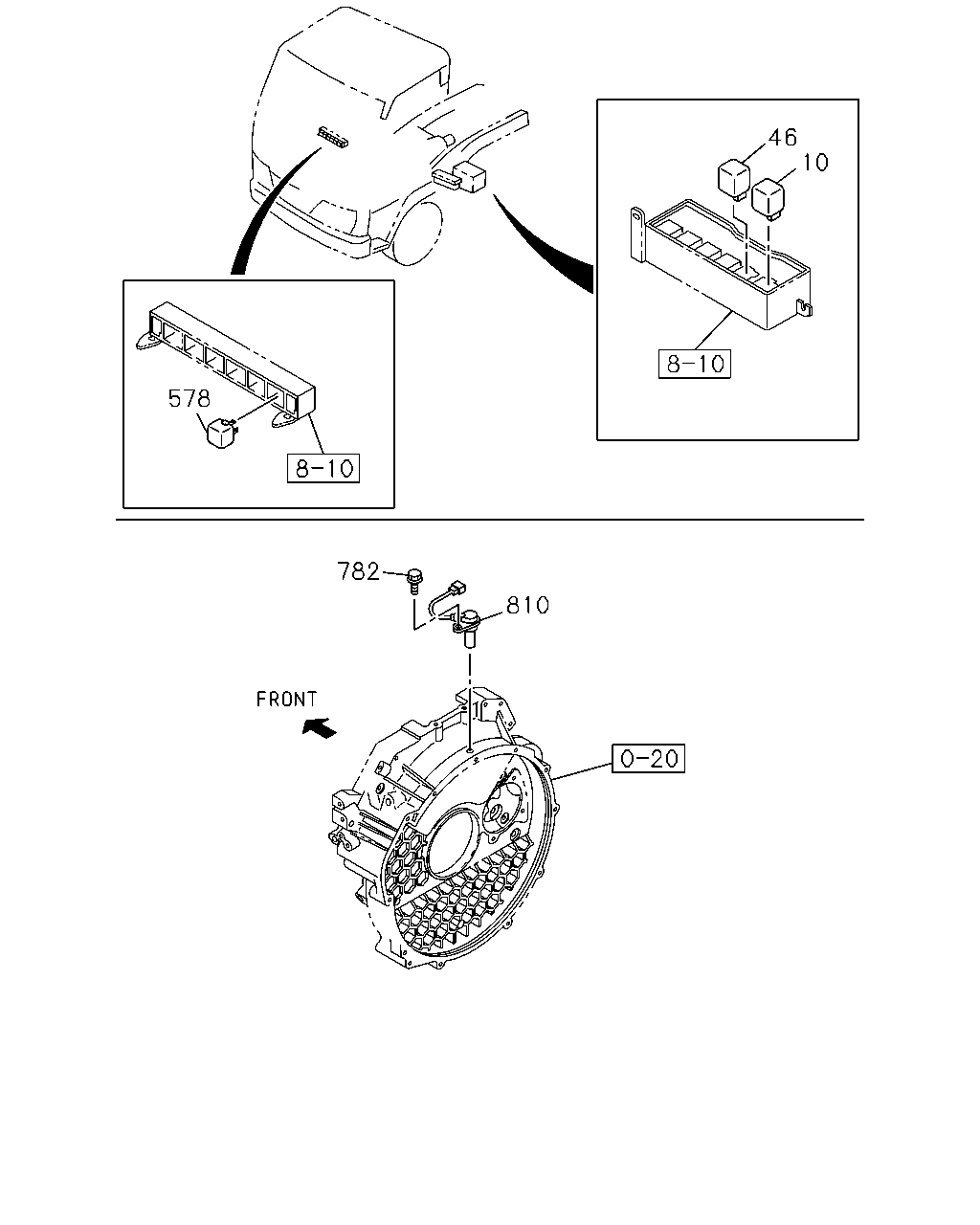

çizim 54993
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0607- ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0507-0606 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0507-0606 ● ● ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0302-0506 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0507-0512 ● ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606 ● ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-1 01 1 0302-0506 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-1 01 1 0507-0606 ●
çizim 55219
539 819 897 487 10 645 587 46 10 301 748 613 606 154 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0607- ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0507-0606 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0507-0606 ● ● ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0507-0606 ● ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0607-0611 ● ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ● ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0607- ● ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
487 02.343 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
539 02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0607- ● ●
539 02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0607- ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0507-0606 ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ● ●
606 03.680 BRACKET; CONT UNIT 8-97369-871-1 01 1 0507-0606 ● ●
606 03.680 BRACKET; CONT UNIT 8-98019-696-2 01 1 0607- ●
606 03.680 BRACKET; CONT UNIT 8-98019-697-1 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-210-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-206-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-208-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-204-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-515-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-579-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-505-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-569-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-516-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-580-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-506-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) M/T MYY6S(RST) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-570-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-211-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-207-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98041-209-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR DBL CAB(NP**W*) EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-205-8 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG 8-97261-162-2 01 1 0302-0506 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-593-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98037-512-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98202-576-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-591-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-502-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-566-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98037-500-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ>,TRANSMISSION C ONTROL-SMOOTHER(8GF) 		8-98202-564-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-597-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98037-510-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM<NMJ> 		8-98202-574-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-592-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-509-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-573-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-590-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-511-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-575-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-3 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-501-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-565-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-596-1 01 1 0507-0606 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-499-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
NPR/NQR SGL CAB(NP**S*) SPEED LIMITER 90KM<NMJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-563-0 01 1 1201- ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0507-0606 ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0607- ● ●
748 02.500 BOLT; CONT UNIT
09.190 M6X30 FLANGE 		0-28680-630-0 06 1 0507-0508 ● ●
748 02.500 BOLT; CONT UNIT
10.450 M6X10 		9-03800-610-0 03 1 0507-0604 ● ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605-0606 ● ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0607- ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
03.682 		8-97601-967-0 01 1 0607- ● ●
897 02.510 DRM 8-98013-144-3 01 1 0507-0606 ● ●
897 02.510 DRM 8-98013-144-7 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
