Isuzu WW
▶
TRUCKS
▶
NPR
▶
50950 - NPR/NQR(EUROPE)-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶
0-56 — EMISSION SYSTEM
(#46650) — 26 parça
Tümü
A - 4HE1 ENG
B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
◀

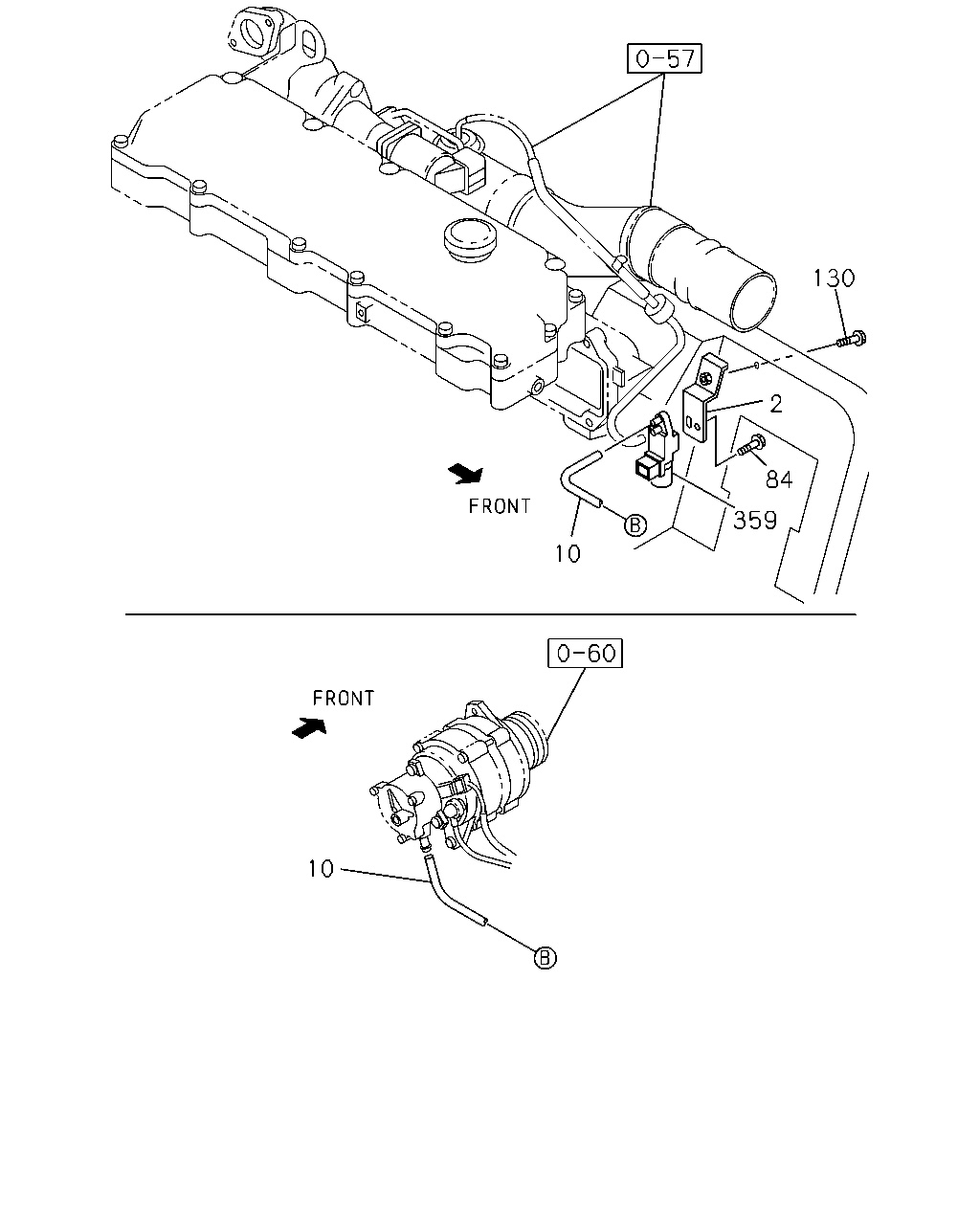

[056A] 4HK1 (7 parça)
[056A] 4HE1 (19 parça)
▶
130
2
84
359
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
03.671 BRACKET; VSV
8-97305-209-1
01
1
0302-0506
●
2
03.671 BRACKET; VSV
8-97373-616-1
01
1
0507-0606
●
●
10
03.675 HOSE; RUBBER,PUMP TO VSV
8-97374-116-0
01
1
0507-0606
●
●
84
03.671 BOLT; VSV
09.655 M5X8 W/LK WASHER
9-03910-508-0
01
1
0507-0604
●
●
84
03.671 BOLT; VSV
M5X8 W/LK WASHER
0-36220-508-0
01
1
0605-0606
●
●
130
03.671 BOLT; VSV BRKT
03.470 M6X22 W/LK&PL WASHER
8-97892-370-0
01
1
0507-0606
●
●
359
03.670 VALVE; VAC SWITCHING,I/THROTTLE
8-97037-165-2
01
1
0507-0606
●
●
32
2
131
15
349
3
15
182
1
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.670 VALVE; VAC SW,EGR
VOLTAGE 24V<7AE>
8-97023-544-2
01
1
0302-0506
●
1
03.670 VALVE; VAC SW,EGR
EXC. VOLTAGE 24V<7AE> 03.130
8-94384-336-0
01
1
0302-0506
●
2
03.671 BRACKET; VSV
8-97305-209-1
01
1
0302-0506
●
2
03.671 BRACKET; VSV
8-97373-616-1
01
1
0507-0606
●
●
3
03.670 BOLT; VSV
09.655 M5X8 W/LK WASHER
9-03910-508-0
02
1
0302-0506
●
3
03.670 BOLT; VSV
09.655 M5X8 W/LK WASHER
9-03910-508-0
03
1
0302-0506
●
14
03.670 VALVE; VAC SW
VOLTAGE 24V<7AE> (A)
8-97023-543-2
01
1
0302-0506
●
14
03.670 VALVE; VAC SW
VOLTAGE 24V<7AE> (B)
8-97023-544-2
01
1
0302-0506
●
14
03.670 VALVE; VAC SW
EXC. VOLTAGE 24V<7AE> (A)
8-94384-335-0
01
1
0302-0506
●
14
03.670 VALVE; VAC SW
EXC. VOLTAGE 24V<7AE> 03.130 (B)
8-94384-336-0
01
1
0302-0506
●
15
03.670 VALVE; VAC SW
VOLTAGE 24V<7AE> (A)
8-97023-543-2
01
1
0302-0506
●
15
03.670 VALVE; VAC SW
VOLTAGE 24V<7AE> (B)
8-97184-183-0
01
1
0302-0506
●
15
03.670 VALVE; VAC SW
EXC. VOLTAGE 24V<7AE> (A)
8-94384-335-0
01
1
0302-0506
●
15
03.670 VALVE; VAC SW
EXC. VOLTAGE 24V<7AE> (B)
8-97137-812-0
01
1
0302-0506
●
32
03.680 CLIP; EGR HOSE
03.162
8-94253-984-0
01
1
0302-0506
●
131
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE>
8-97184-200-2
01
1
0302-0506
●
131
03.670 VALVE; VAC SWITCHING
EXC. VOLTAGE 24V<7AE>
8-97182-889-0
01
1
0302-0506
●
182
03.670 BOLT; VLV
08.900 M8X12 FLANGE
0-28080-812-0
02
1
0302-0506
●
349
03.671 BOLT; CASE
01.062 M8X16 FLANGE
0-28080-816-0
02
1
0302-0506
●
