0-51 — OIL PUMP AND OIL STRAINER (#46648) — 150 parça

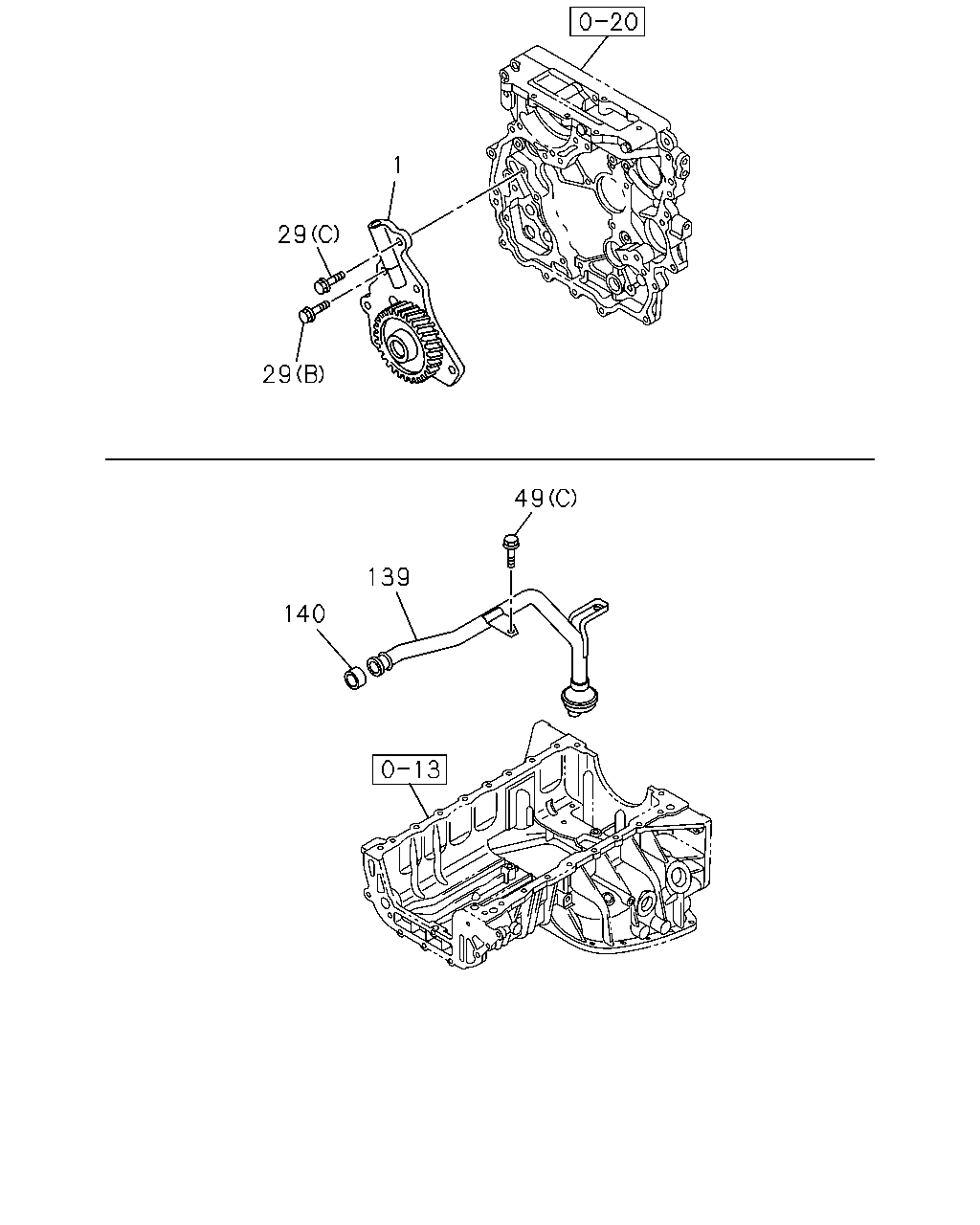

1 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0302-0506	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0507-0606		●	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0607-0906				●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	0907-				●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0302-0407					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0506					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0507-0606						●
1	01.652 PUMP ASM; OIL	8-97381-553-3	01	1	0607-0907							●
1	01.652 PUMP ASM; OIL	8-98128-134-0	01	1	0908-							●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0302-0506					●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0507-0512						●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-0606						●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	0607-							●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0607-							●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0302-0506	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0507-0606		●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0607-				●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X14	8-97073-782-0	01	1	0302-0311	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	01	1	0312-0503	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	02	1	0504-0506	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	02	1	0507-0512		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0601-0606		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0607-				●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0607-							●
139	01.639 PIPE; OIL STRAINER	8-98016-890-0	01	1	0607-1010							●
139	01.639 PIPE; OIL STRAINER	8-98149-035-0	01	1	1011-							●
140	01.639 GASKET; OIL STRAINER	8-97356-150-0	01	1	0607-							●

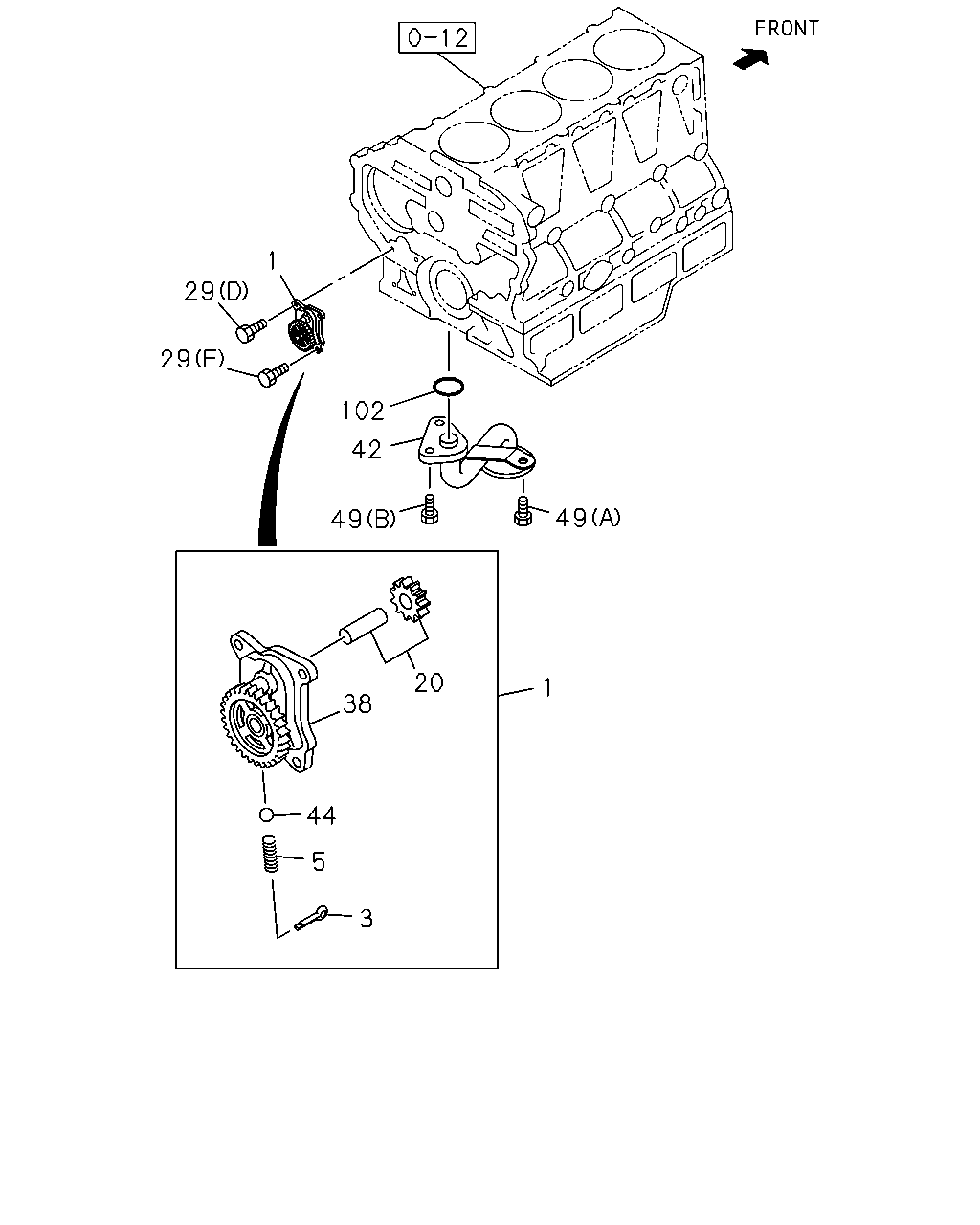

1 29 29 102 42 49 49 20 1 38 44 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0302-0506	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0507-0606		●	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0607-0906				●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	0907-				●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0302-0407					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0506					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0507-0606						●
1	01.652 PUMP ASM; OIL	8-97381-553-3	01	1	0607-0907							●
1	01.652 PUMP ASM; OIL	8-98128-134-0	01	1	0908-							●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	0302-0506	●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	0507-0606		●	●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	0607-0607				●
3	01.639 PIN; SPLIT 05.812 OD=3.7 L=30	0-81124-030-0	01	1	0607-0906				●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	0907-				●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0302-0506	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0507-0606		●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0607-				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0302-0506					●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0507-0606						●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0302-0506	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0507-0606		●	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0607-0906				●
20	01.639 GEAR; DRIVE,OIL PUMP	8-98059-192-0	01	1	0907-				●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0302-0506					●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0507-0512						●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-0606						●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	0607-							●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0607-							●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0302-0506	●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0507-0606		●	●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0607-0906				●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0302-0506					●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0507-0606						●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0302-0506	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97373-119-0	01	1	0507-0606		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97373-119-0	01	1	0607-1203				●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-868-0	01	1	1204-				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0302-0506					●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0507-0606						●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0302-0506	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0507-0606		●	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0607-				●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0302-0506	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0507-0606		●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0607-				●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X14	8-97073-782-0	01	1	0302-0311	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	01	1	0312-0503	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	02	1	0504-0506	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	02	1	0507-0512		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0601-0606		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0607-				●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0607-							●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	0302-0506	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	0507-0606		●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	0607-				●

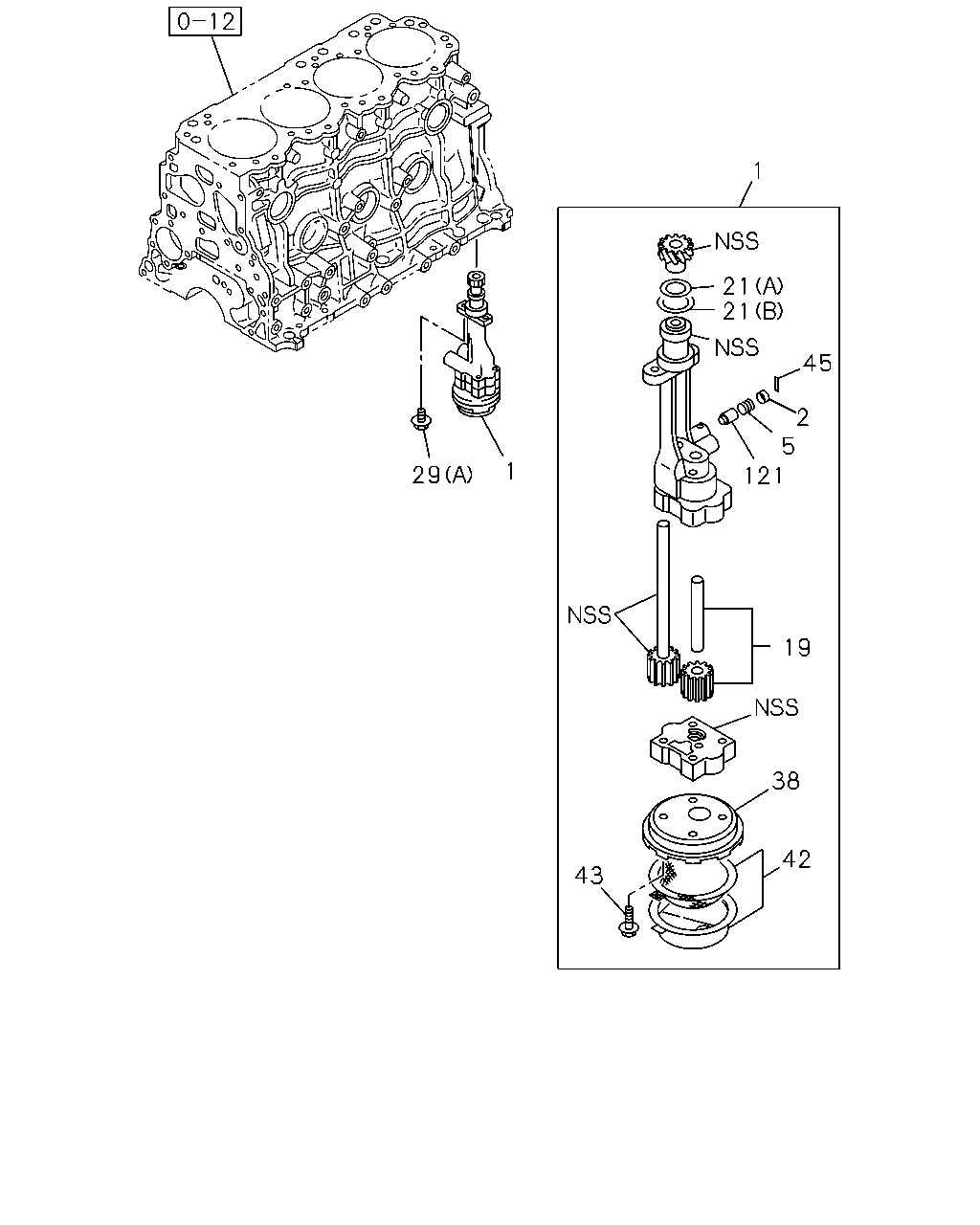

1 21 21 45 2 5 121 1 29 19 38 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0302-0506	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0507-0606		●	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0607-0906				●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	0907-				●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0302-0407					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0506					●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0507-0606						●
1	01.652 PUMP ASM; OIL	8-97381-553-3	01	1	0607-0907							●
1	01.652 PUMP ASM; OIL	8-98128-134-0	01	1	0908-							●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0302-0506					●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0507-0606						●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0302-0506	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0507-0606		●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0607-				●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0302-0506					●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0507-0606						●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0302-0506					●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0507-0606						●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7	1-09623-170-0	01	1	0302-0506					●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7	1-09623-170-0	01	1	0507-0606						●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2	1-09623-220-0	01	1	0302-0506					●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2	1-09623-220-0	01	1	0507-0606						●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 08.155 (D) M8X25 FLANGE	0-28090-825-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0302-0506	●
29	01.652 BOLT; OIL PUMP 07.632 (E) M8X30 FLANGE	0-28090-830-0	02	1	0507-0512		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0601-0606		●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	0607-				●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0302-0506					●
29	01.652 BOLT; OIL PUMP 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0507-0512						●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-0606						●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	0607-							●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0607-							●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0302-0506	●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0507-0606		●	●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0607-0906				●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0302-0506					●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0507-0606						●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0302-0506	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97373-119-0	01	1	0507-0606		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97373-119-0	01	1	0607-1203				●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-868-0	01	1	1204-				●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0302-0506					●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0507-0606						●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0302-0506					●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0507-0606						●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0302-0506					●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0507-0606						●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0302-0506					●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0507-0606						●
