0-41 — FUEL FILTER AND BRACKET (#46645) — 138 parça

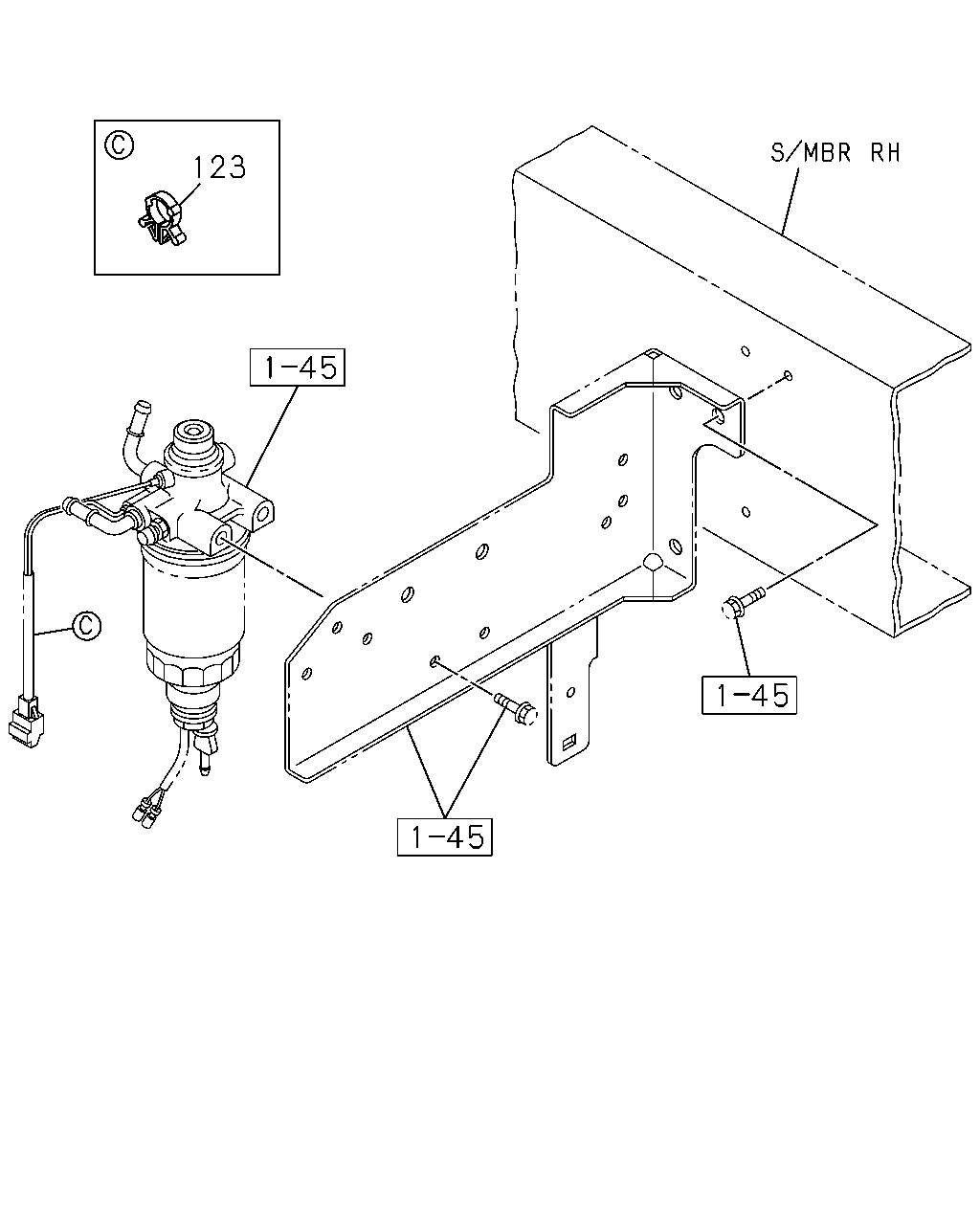

123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	123	03.890 CLIP; HARNESS ID=4.8	1-09701-218-0	01	1	0507-0508	●	●
	123	03.890 CLIP; HARNESS 02.559 ID=9	8-97063-874-0	01	1	0507-0606	●	●

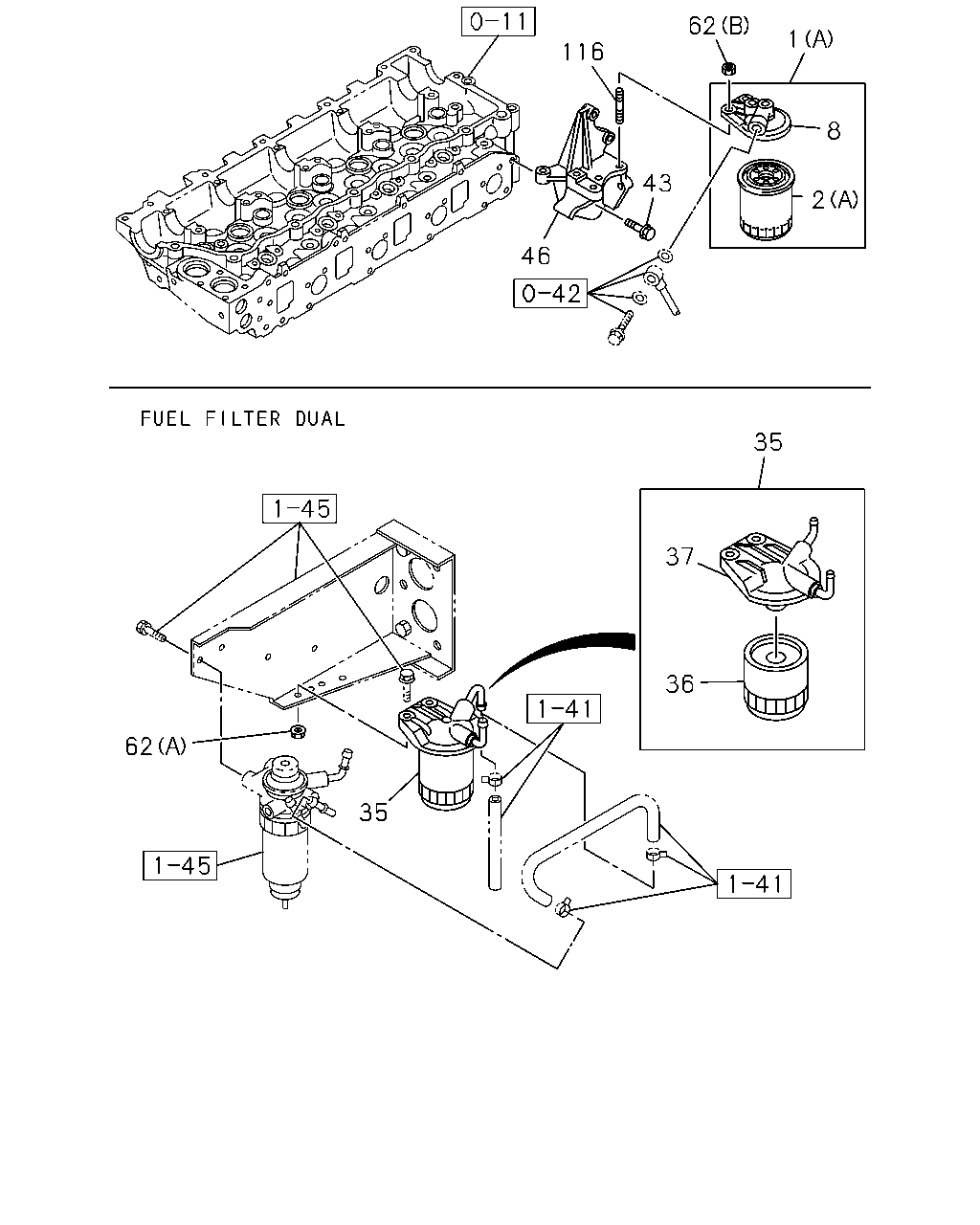

62 1 116 8 43 2 46 35 37 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F	G
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-0	01	1	1001-1002	●
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-2	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-0	01	1	0610-0712		●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	0801-0912	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	1001-1002		●
1	03.890 FILTER ASM; FUEL (A)	1-13200-890-3	01	1	0302-0506			●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0308-0506				●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0302-0506				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0607-0609	●	●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0610-0712	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-1201	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1001-1002	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1201-1201		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	1-13240-079-1	01	1	0302-0506			●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0308-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0302-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	0607-0912	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	1001-1002		●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0302-0506			●
8	03.890 COVER; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13212-149-1	01	1	0308-0506				●
8	03.890 COVER; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13212-149-1	01	1	0507-0606					●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-865-0	01	1	0302-0505			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	0506-0506			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-94246-908-0	01	1	0302-0505			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0506-0506			●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0302-0505			●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0506-0506			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0302-0506			●
46	03.890 BRACKET	8-97241-009-2	01	1	0302-0506			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0506			●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0302-0506			●
116	03.407 STUD; BRKT,FUEL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0302-0506			●

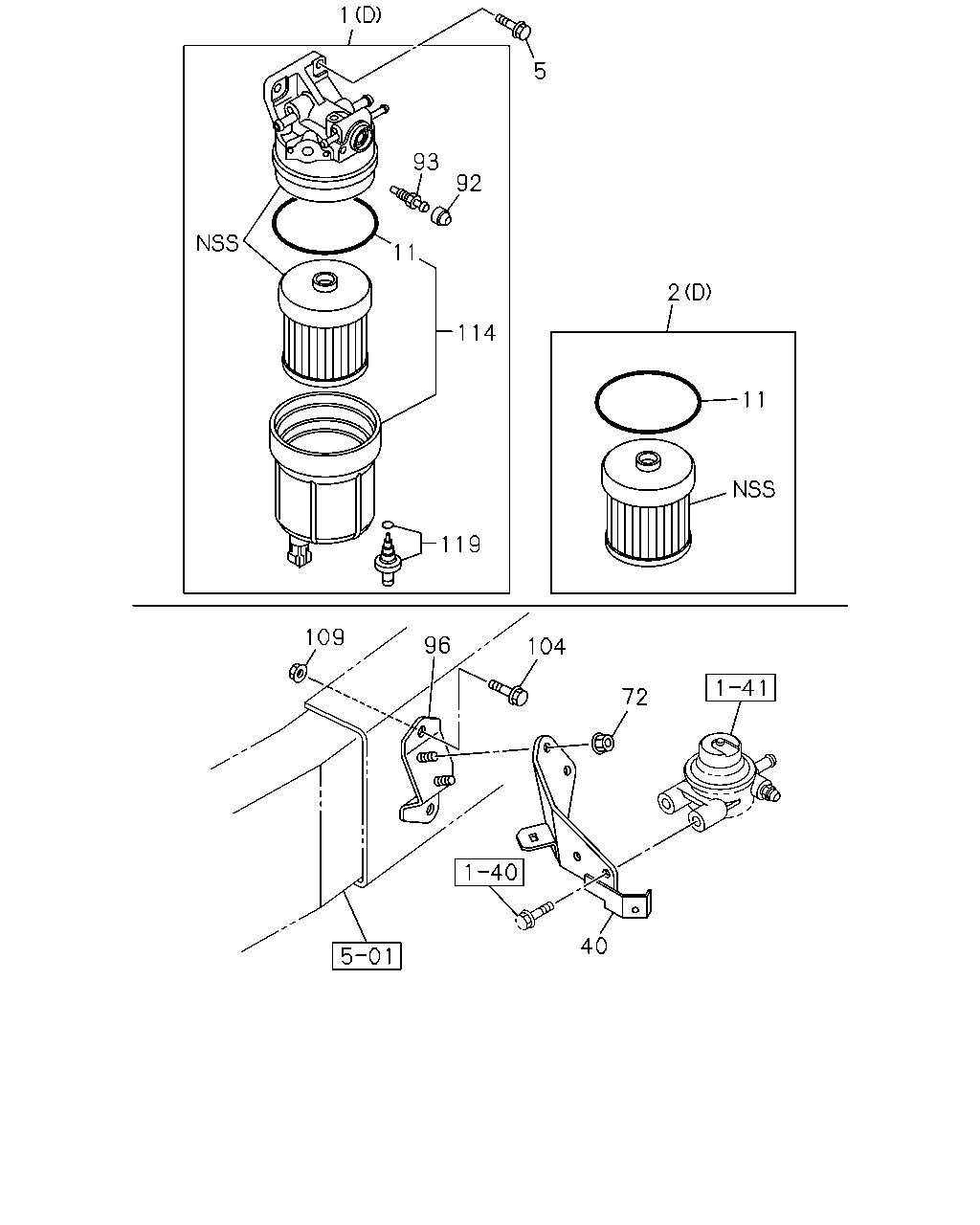

1 5 93 92 11 2 114 11 119 109 96 104 72 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F	G
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-0	01	1	1001-1002	●
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-2	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-0	01	1	0610-0712		●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	0801-0912	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	1001-1002		●
1	03.890 FILTER ASM; FUEL (A)	1-13200-890-3	01	1	0302-0506			●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0308-0506				●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0302-0506				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0607-0609	●	●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0610-0712	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-1201	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1001-1002	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1201-1201		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	1-13240-079-1	01	1	0302-0506			●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0308-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0302-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	0607-0912	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	1001-1002		●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0302-0506				●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0507-0606					●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-1201	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0308-0506				●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0507-0606					●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0607-1112	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1201-1201		●
40	03.890 BRACKET; FUEL FILTER NPR/NQR SGL CAB(NP*S) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97329-135-0	01	1	0607-	●	●
72	03.890 NUT; BRKT,FUEL FILTER NPR/NQR SGL CAB(NP*S) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0607-	●	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0607-	●	●
96	01.516 STAY; FUEL FILTER NPR/NQR SGL CAB(NP*S) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97329-138-0	01	1	0607-	●	●
104	03.890 BOLT; STAY NPR/NQR SGL CAB(NP*S) EXC. FRAME STRAIGHT TYPE<7KJ> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-	●	●
109	03.895 NUT; STAY NPR/NQR SGL CAB(NP*S) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	0607-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0607-	●	●

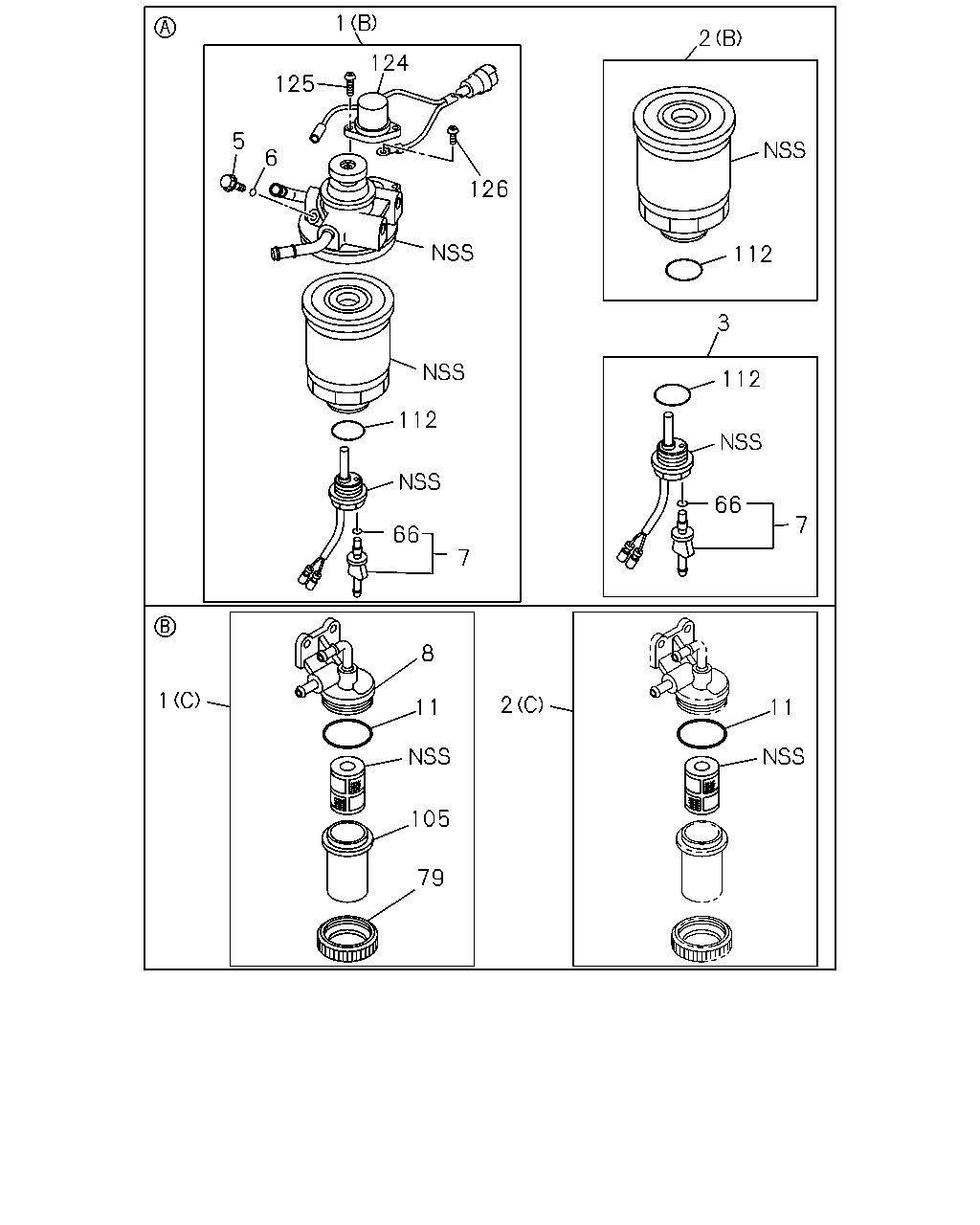

1 2 124 125 5 6 126 11 3 112 112 66 7 66 7 8 1 2 11 11 105 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F	G
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-0	01	1	1001-1002	●
1	03.890 FILTER ASM; FUEL (D)	8-98162-903-2	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-0	01	1	0610-0712		●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	0801-0912	●	●
1	03.890 FILTER ASM; FUEL (D)	8-98060-050-1	01	1	1001-1002		●
1	03.890 FILTER ASM; FUEL (A)	1-13200-890-3	01	1	0302-0506			●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0308-0506				●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (C)	1-13200-793-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0302-0506				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97240-124-1	01	1	0507-0606					●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0607-0609	●	●
1	03.890 FILTER ASM; FUEL (D)	8-97384-049-2	01	1	0610-0712	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-1201	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1001-1002	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98162-897-0	01	1	1201-1201		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	1-13240-079-1	01	1	0302-0506			●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0308-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (C)	1-13240-141-0	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0302-0506				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94369-299-3	01	1	0507-0606					●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	0607-0912	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (D)	8-98037-011-0	01	1	1001-1002		●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0302-0506				●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0507-0606					●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0302-0506				●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0507-0606					●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-	●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0302-0506				●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0507-0606					●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0302-0506				●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0507-0606					●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0302-0506			●
8	03.890 COVER; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13212-149-1	01	1	0308-0506				●
8	03.890 COVER; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13212-149-1	01	1	0507-0606					●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-1201	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0308-0506				●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0507-0606					●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0607-1112	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1201-1201		●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0302-0506				●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0507-0606					●
79	03.890 RING; BODY TO CASE FRIGID ZONE VAR.2(W54)	1-13219-239-0	01	1	0308-0506				●
79	03.890 RING; BODY TO CASE FRIGID ZONE VAR.2(W54)	1-13219-239-0	01	1	0507-0606					●
105	03.890 CASE; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13211-183-0	01	1	0308-0506				●
105	03.890 CASE; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13211-183-0	01	1	0507-0606					●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0302-0506				●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0507-0606					●
124	03.890 SWITCH; PRESSURE,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97378-844-0	01	1	0302-0506				●
124	03.890 SWITCH; PRESSURE,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97378-844-0	01	1	0507-0606					●
125	03.890 BOLT; SWITCH,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-938-0	02	1	0302-0506				●
125	03.890 BOLT; SWITCH,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-938-0	02	1	0507-0606					●
126	03.890 BOLT; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 01.540	1-13219-156-0	01	1	0302-0506				●
126	03.890 BOLT; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 01.540	1-13219-156-0	01	1	0507-0606					●
