0-40 — FUEL INJECTION SYSTEM (#46644) — 1074 parça

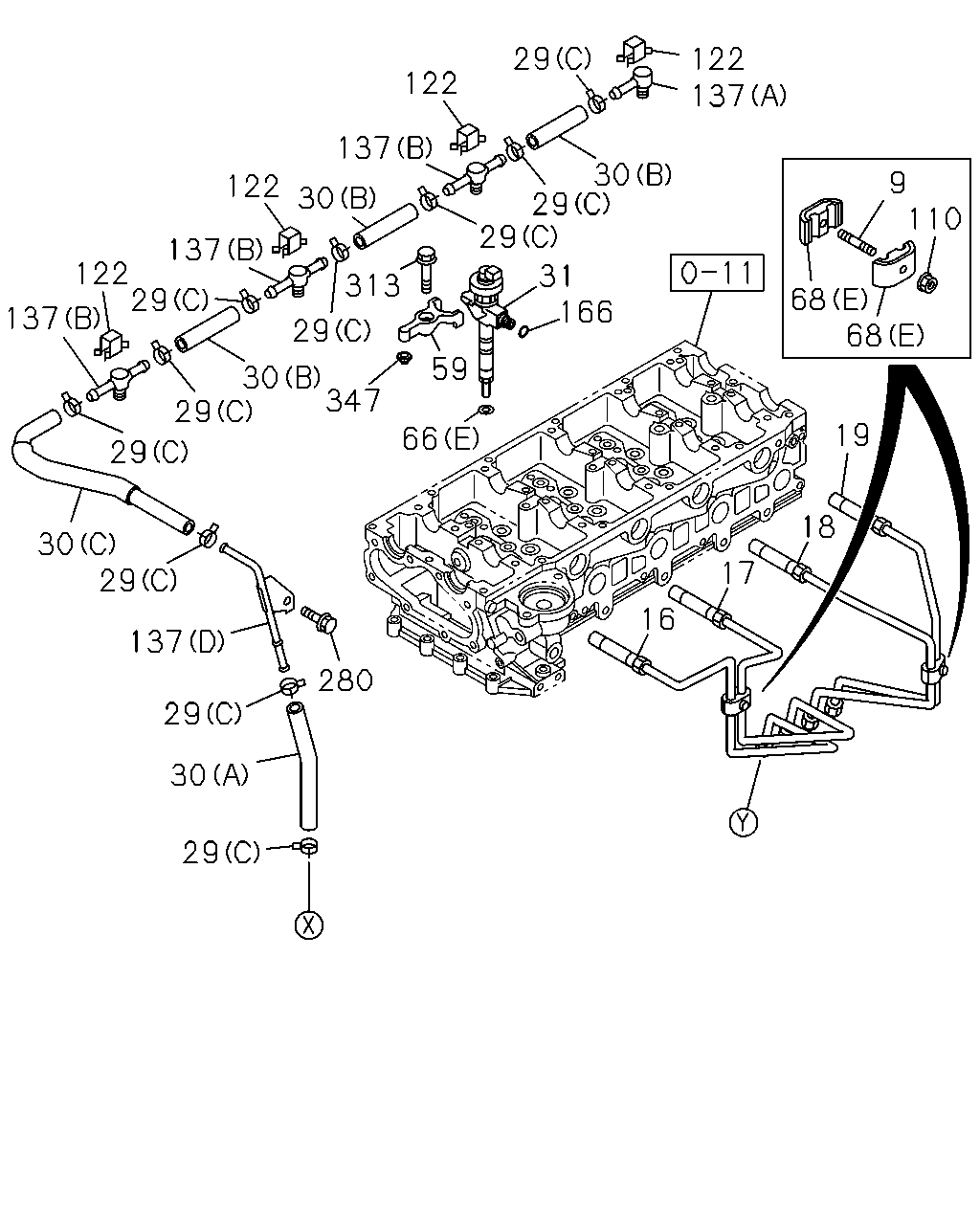

çizim 12688
29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 68 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 280 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.340 STUD; CLIP
00.413 M6X35 L=43 		8-97203-278-0 01 1 0802- ●
9 03.340 STUD; CLIP
03.275 M6X30 L=38 		9-04110-630-0 03 1 0507-0604 ● ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 03 1 0605-0606 ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 03 1 0607-0801 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 0802-1201 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97371-831-0 01 1 0507-0606 ● ●
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0607-0711 ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103- ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97373-417-0 01 1 0507-0606 ● ●
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0607-0711 ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103- ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0507-0606 ●
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0607-0804 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97371-833-0 01 1 0507-0606 ● ●
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0607-0711 ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103- ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0507-0606 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97371-834-0 01 1 0507-0606 ● ●
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0607-0711 ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103- ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0507-0606 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
29 03.162 CLIP; HOSE
01.219 (D) ID=12 		8-94238-610-0 02 1 0302-0302 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0302-0506 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0507-0606 ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0607- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0607- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 W/INSULATOR 		8-94427-501-2 01 1 0302-0302 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0302-0506 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0507-0606 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0607-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98036-320-2 01 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0302-0506 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0507-0606 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0607-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0607- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0607-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-97251-334-0 04 1 0607-0608 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98057-731-0 04 1 0609-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98077-165-0 04 1 0703-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98181-540-0 04 1 1104- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-049-0 06 1 0302-0506 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97330-118-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 04 1 0607-1201 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97330-119-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(F) 		1-09701-195-3 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-196-2 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 06 1 0607-0711 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 06 1 0712- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
122 03.162 CLIP; LEAK OFF PIPE 9-09524-662-0 01 1 0302-0506 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0607- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0607-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0607-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0607- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0607- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0607- ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0607- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0607- ●
347 03.332 PIN 8-97383-286-0 04 1 0607-1011 ●
347 03.332 PIN 8-98165-035-0 04 1 1012- ●

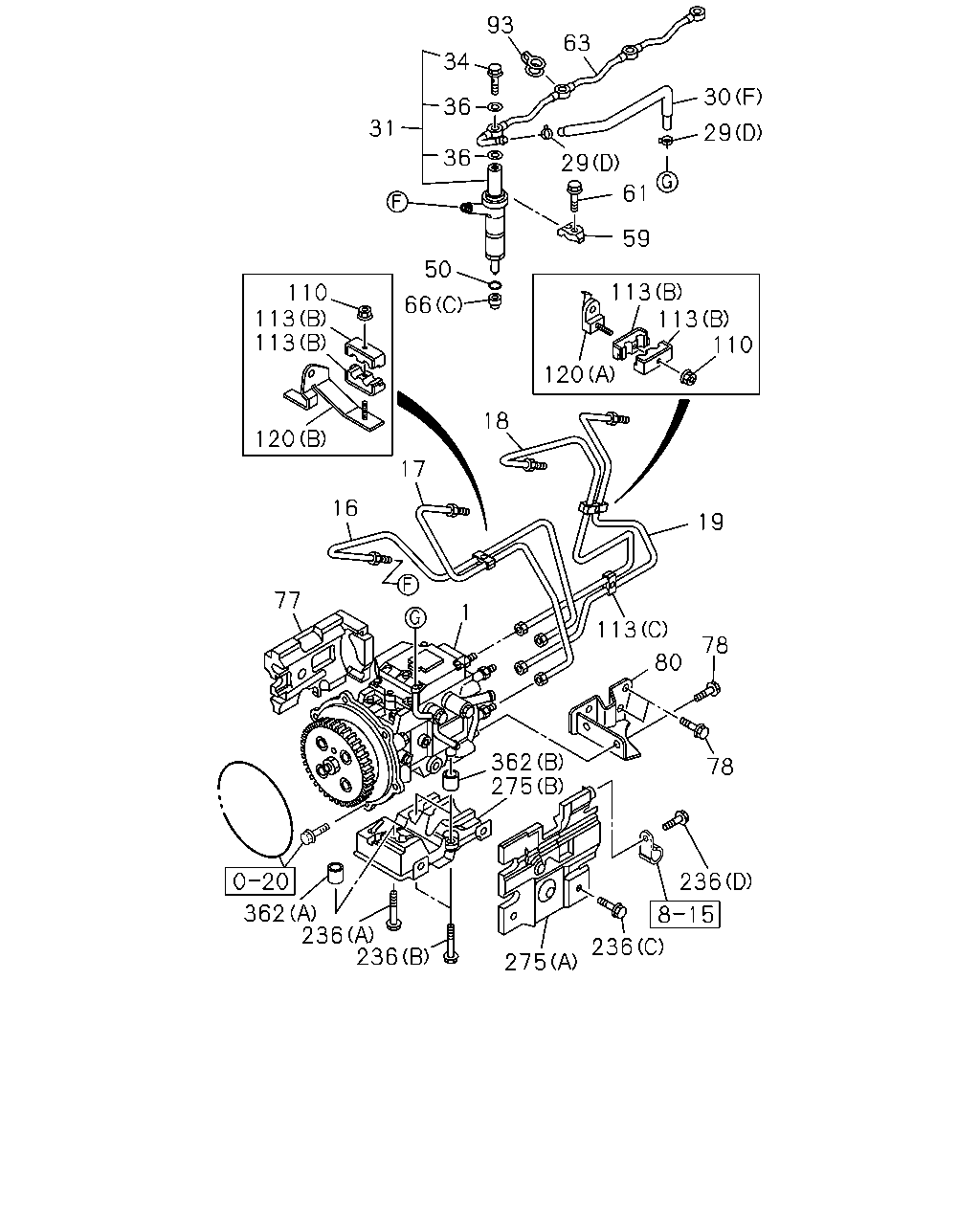

çizim 13492
93 63 34 30 36 31 29 36 29 61 59 50 113 113 110 110 113 113 66 120 18 120 17 16 19 77 1 113 78 80 362 275 78 236 362 236 236 236 275
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97371-831-0 01 1 0507-0606 ● ●
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0607-0711 ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103- ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97373-417-0 01 1 0507-0606 ● ●
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0607-0711 ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103- ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0507-0606 ●
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0607-0804 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97371-833-0 01 1 0507-0606 ● ●
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0607-0711 ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103- ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0507-0606 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97371-834-0 01 1 0507-0606 ● ●
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0607-0711 ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103- ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0507-0606 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
29 03.162 CLIP; HOSE
01.219 (D) ID=12 		8-94238-610-0 02 1 0302-0302 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0302-0506 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0507-0606 ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0607- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0607- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 W/INSULATOR 		8-94427-501-2 01 1 0302-0302 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0302-0506 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0507-0606 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0607-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98036-320-2 01 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0302-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0302-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0507-0606 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0302-0506 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0507-0606 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0607-0908 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 		8-98065-992-0 04 1 0909- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97084-347-0 08 1 0302-0501 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97287-402-1 04 1 0302-0506 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97287-402-2 04 1 0507-0606 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0302-0506 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0507-0606 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0607-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0302-0506 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0507-0606 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0507-0606 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0507-0606 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0607- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0607-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-97251-334-0 04 1 0607-0608 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98057-731-0 04 1 0609-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98077-165-0 04 1 0703-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98181-540-0 04 1 1104- ●
77 03.340 RUBBER; SPACE,INJ PUMP 8-97256-838-1 01 1 0302-0506 ●
77 03.340 RUBBER; SPACE,INJ PUMP 8-97256-838-1 01 1 0507-0606 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0302-0506 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0506 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0606 ●
80 03.306 BRACKET; PUMP 8-97148-958-1 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97601-699-0 01 1 0507-0606 ● ●
80 03.306 BRACKET; PUMP 8-98005-603-1 01 1 0607-0703 ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0704- ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0507-0606 ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0403-0506 ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0507-0606 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(B) 		1-09701-132-1 04 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(B) 		1-09701-132-1 04 1 0507-0606 ●
113 03.162 CLIP; INJ PIPE
(C) 		8-97224-041-1 01 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(C) 		8-97224-041-1 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97224-300-0 01 1 0302-0505 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0506-0506 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0302-0506 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97306-084-2 01 1 0507-0606 ● ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-98041-601-0 01 1 0607- ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0302-0506 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0507-0512 ●
236 03.335 BOLT; COVER
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0601-0606 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0302-0506 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0507-0512 ●
236 03.335 BOLT; COVER
09.181 (A) M10X45 FLANGE 		0-28151-045-0 01 1 0601-0606 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0302-0506 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0507-0512 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601-0606 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97259-887-2 01 1 0302-0302 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0303-0506 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0507-0606 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97259-888-2 01 1 0302-0302 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0303-0506 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0507-0606 ●
362 03.330 PIPE; GUIDE
(A) 		8-97287-007-0 01 1 0302-0506 ●
362 03.330 PIPE; GUIDE
(A) 		8-97287-007-0 01 1 0507-0606 ●
362 03.330 PIPE; GUIDE
(B) 		8-97287-008-0 02 1 0302-0506 ●
362 03.330 PIPE; GUIDE
(B) 		8-97287-008-0 02 1 0507-0606 ●

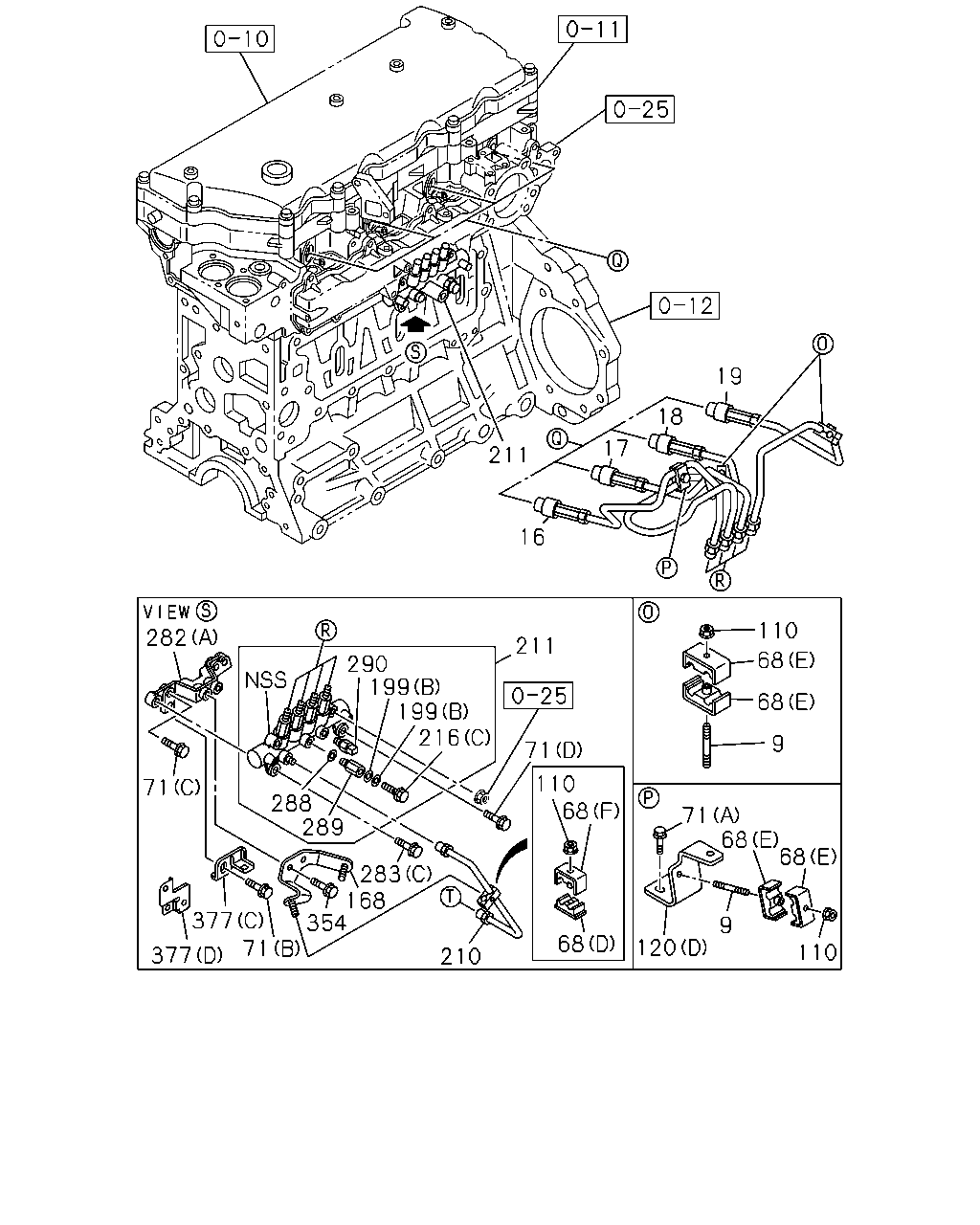

çizim 13502
19 211 18 17 16 282 110 211 68 290 199 199 216 68 9 71 110 68 71 288 289 71 68 68 283 168 377 354 71 9 68 120 110 377 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.340 STUD; CLIP
00.413 M6X35 L=43 		8-97203-278-0 01 1 0802- ●
9 03.340 STUD; CLIP
03.275 M6X30 L=38 		9-04110-630-0 03 1 0507-0604 ● ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 03 1 0605-0606 ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 03 1 0607-0801 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 0802-1201 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97371-831-0 01 1 0507-0606 ● ●
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0607-0711 ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103- ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97373-417-0 01 1 0507-0606 ● ●
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0607-0711 ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103- ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0507-0606 ●
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0607-0804 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97371-833-0 01 1 0507-0606 ● ●
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0607-0711 ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103- ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0507-0606 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97371-834-0 01 1 0507-0606 ● ●
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0607-0711 ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103- ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0507-0606 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-049-0 06 1 0302-0506 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97330-118-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 04 1 0607-1201 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97330-119-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(F) 		1-09701-195-3 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-196-2 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 06 1 0607-0711 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 06 1 0712- ●
71 03.162 BOLT; BRKT
02.500 (B) M6X10 FLANGE 		0-28080-610-0 02 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 03 1 0607- ●
71 03.162 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.780 (D) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97224-300-0 01 1 0302-0505 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0506-0506 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0302-0506 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97306-084-2 01 1 0507-0606 ● ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-98041-601-0 01 1 0607- ●
168 03.890 BRACKET; FUEL PIPE 8-97324-195-0 01 1 0507-0606 ● ●
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
210 03.330 PIPE; INJ,C/R 8-97312-509-3 01 1 0507-0606 ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 0607- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0607- ●
211 03.331 RAIL ASM; COMMON 8-97306-063-2 01 1 0507-0606 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0607- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0507-0606 ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0607-1005 ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1006- ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98009-093-3 01 1 0607-0607 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98053-912-0 01 1 0608-1001 ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98147-694-0 01 1 1002- ●
283 03.330 BOLT; COMMON RAIL
01.531 (C) M8X25 FLANGE 		0-28080-825-0 01 1 0507-0512 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0606 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0607- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0607- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0607- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0507-0606 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0607- ● ●
289 03.331 LIMITER; FUEL PRESS 8-97318-691-0 01 1 0507-0606 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0607- ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0507-0606 ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0607-0809 ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0810- ● ●
354 03.163 BOLT; FUEL PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0607- ●
354 03.163 BOLT; FUEL PIPE
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607- ●
377 03.332 BRACKET; HARNESS
(A) 		8-97374-283-1 01 1 0507-0606 ● ●
377 03.332 BRACKET; HARNESS
(C) 		8-97310-438-1 02 1 0607- ●
377 03.332 BRACKET; HARNESS
(B) 		8-98001-141-0 01 1 0507-0606 ● ●
377 03.332 BRACKET; HARNESS
(D) 		8-97379-783-1 01 1 0607- ●

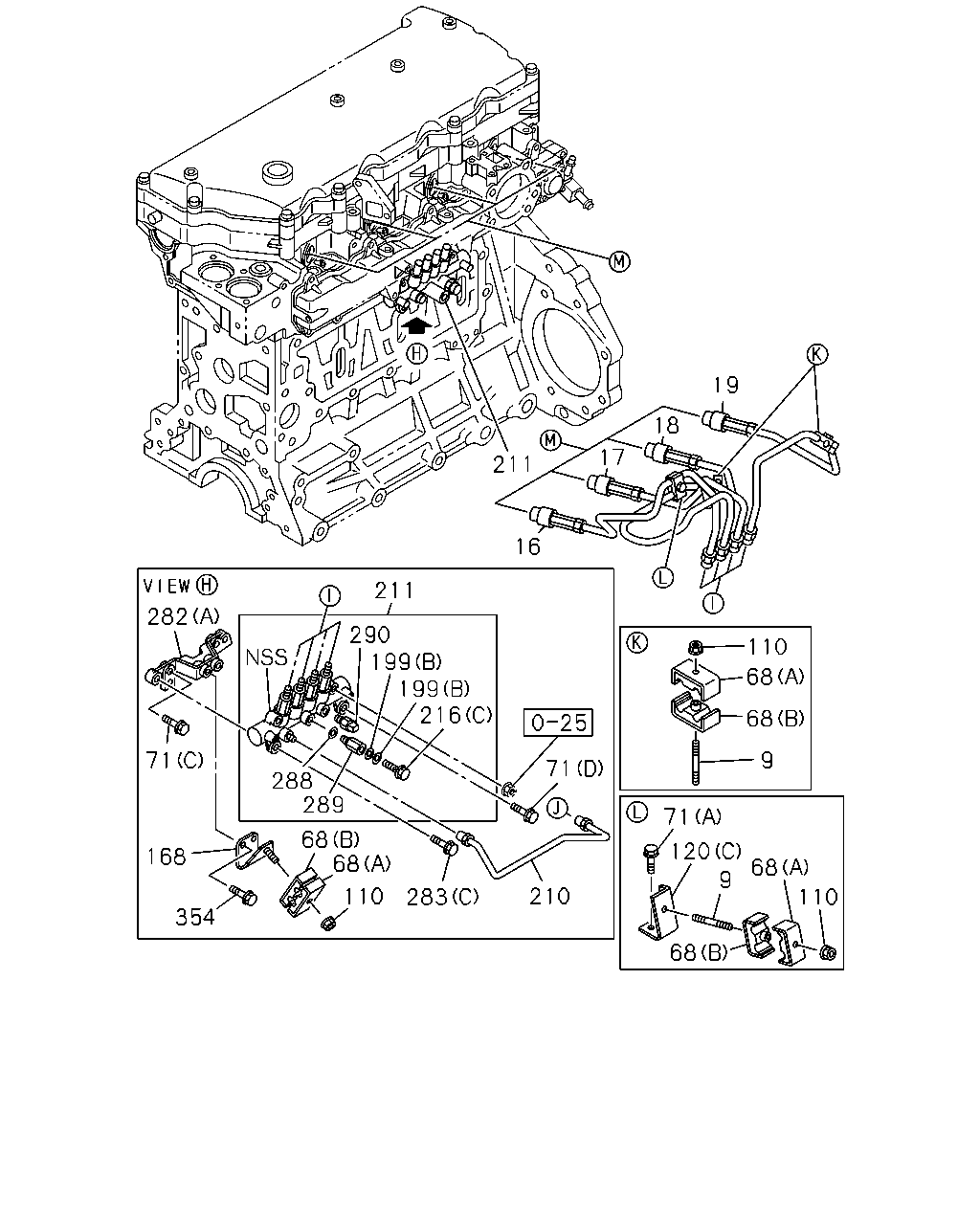

çizim 54145
19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 168 68 9 110 210 283 110 354 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.340 STUD; CLIP
00.413 M6X35 L=43 		8-97203-278-0 01 1 0802- ●
9 03.340 STUD; CLIP
03.275 M6X30 L=38 		9-04110-630-0 03 1 0507-0604 ● ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 03 1 0605-0606 ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 03 1 0607-0801 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 0802-1201 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97371-831-0 01 1 0507-0606 ● ●
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0607-0711 ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103- ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97373-417-0 01 1 0507-0606 ● ●
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0607-0711 ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103- ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0507-0606 ●
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0607-0804 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97371-833-0 01 1 0507-0606 ● ●
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0607-0711 ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103- ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0507-0606 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97371-834-0 01 1 0507-0606 ● ●
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0607-0711 ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103- ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0507-0606 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-049-0 06 1 0302-0506 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97330-118-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 04 1 0607-1201 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97330-119-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(F) 		1-09701-195-3 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-196-2 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 06 1 0607-0711 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 06 1 0712- ●
71 03.162 BOLT; BRKT
02.500 (B) M6X10 FLANGE 		0-28080-610-0 02 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 03 1 0607- ●
71 03.162 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.780 (D) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97224-300-0 01 1 0302-0505 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0506-0506 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-98015-024-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0302-0506 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97257-906-0 01 1 0507-0606 ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97306-084-2 01 1 0507-0606 ● ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-98041-601-0 01 1 0607- ●
168 03.890 BRACKET; FUEL PIPE 8-97324-195-0 01 1 0507-0606 ● ●
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
210 03.330 PIPE; INJ,C/R 8-97312-509-3 01 1 0507-0606 ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 0607- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0607- ●
211 03.331 RAIL ASM; COMMON 8-97306-063-2 01 1 0507-0606 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0607- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0507-0606 ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0607-1005 ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1006- ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98009-093-3 01 1 0607-0607 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98053-912-0 01 1 0608-1001 ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98147-694-0 01 1 1002- ●
283 03.330 BOLT; COMMON RAIL
01.531 (C) M8X25 FLANGE 		0-28080-825-0 01 1 0507-0512 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0606 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0607- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0607- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0607- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0507-0606 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0607- ● ●
289 03.331 LIMITER; FUEL PRESS 8-97318-691-0 01 1 0507-0606 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0607- ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0507-0606 ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0607-0809 ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0810- ● ●
354 03.163 BOLT; FUEL PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0607- ●
354 03.163 BOLT; FUEL PIPE
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607- ●

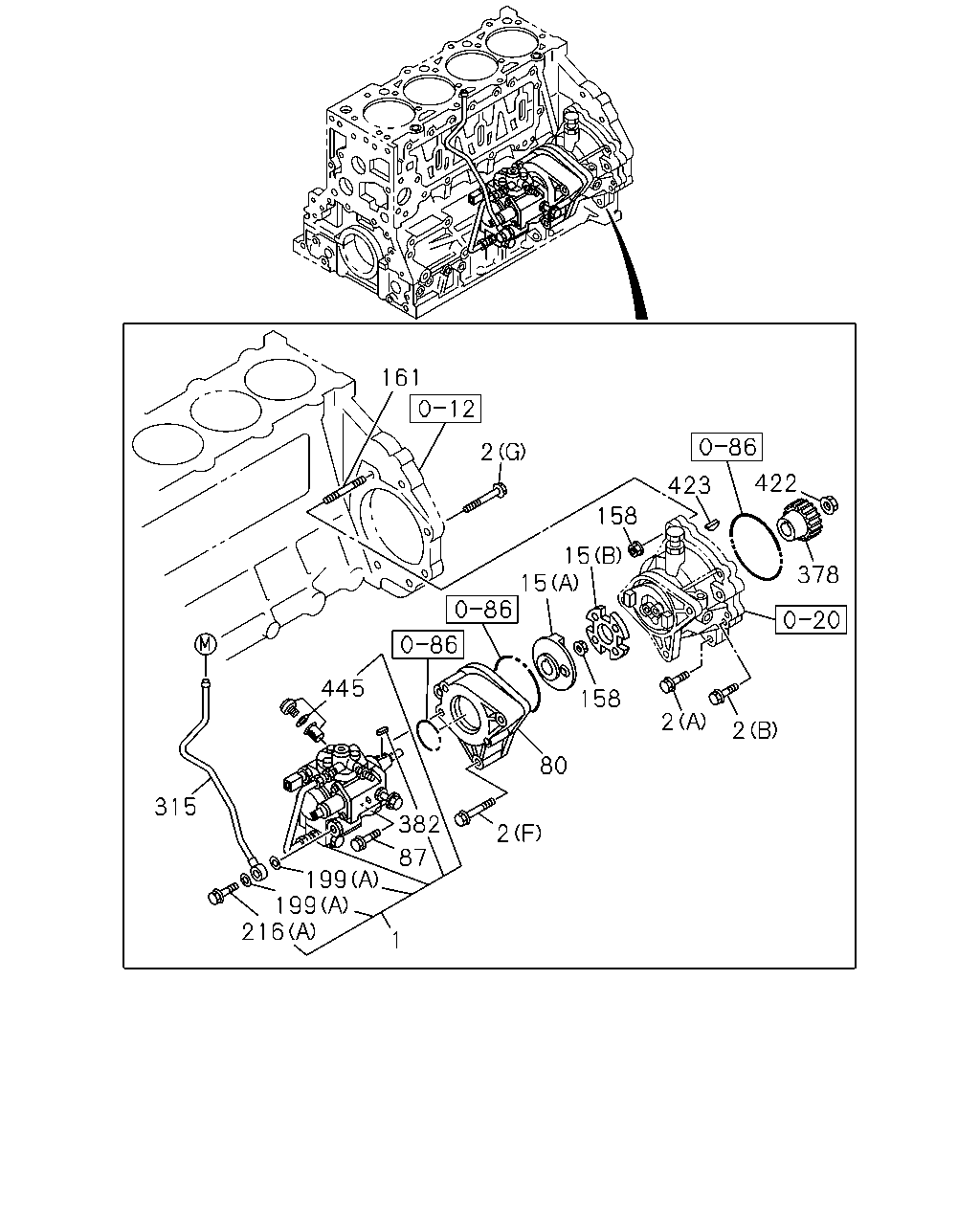

çizim 54203
161 2 15 158 423 422 378 2 2 158 15 80 2 1 445 382 87 199 199 216 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
08.900 (E) M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
02.042 (E) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 0607- ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
02.277 (H) M10X70 FLANGE 		0-28151-070-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 0607- ●
15 03.340 COUPLING ASM; INJ PUMP
(C) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0302-0506 ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0607- ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0607- ●
80 03.306 BRACKET; PUMP 8-97148-958-1 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97601-699-0 01 1 0507-0606 ● ●
80 03.306 BRACKET; PUMP 8-98005-603-1 01 1 0607-0703 ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0704- ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0507-0606 ●
87 03.330 BOLT; PUMP
04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0507-0512 ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0601-0606 ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0607- ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 0607- ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
315 03.163 PIPE; FUEL,SUCTION 8-98036-172-0 01 1 0607-0808 ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 0809- ●
378 03.330 GEAR; PUMP
Z=35 		8-97601-698-1 01 1 0507-0606 ● ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0607- ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0507-0606 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0607-1104 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 0607- ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 0607- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0607- ● ●

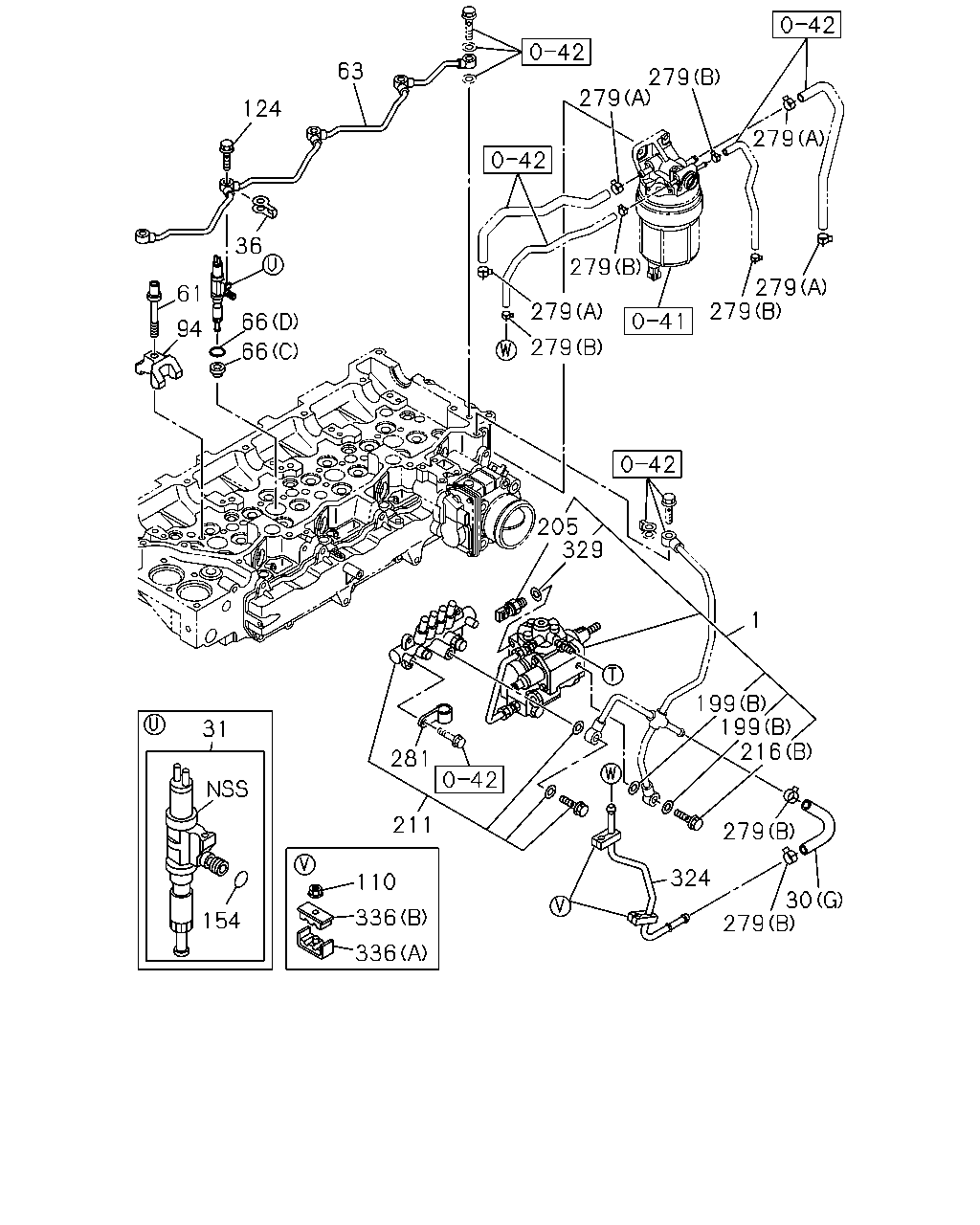

çizim 54224
110 336 336 154 31 211 281 324 279 279 216 199 199 1 329 205 66 66 94 61 36 124 63 279 279 279 279 279 279 279 279 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 W/INSULATOR 		8-94427-501-2 01 1 0302-0302 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0302-0506 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0507-0606 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0607-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98036-320-2 01 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0302-0506 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0507-0606 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0607-0908 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 		8-98065-992-0 04 1 0909- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97084-347-0 08 1 0302-0501 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0302-0506 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0507-0606 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0507-0606 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0507-0606 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0607- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0607-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-97251-334-0 04 1 0607-0608 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98057-731-0 04 1 0609-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98077-165-0 04 1 0703-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98181-540-0 04 1 1104- ●
94 03.330 BRACKET; INJ NOZZLE 8-97306-074-1 04 1 0507-0606 ● ●
94 03.330 BRACKET; INJ NOZZLE 8-97306-074-1 04 1 0607-0607 ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0507-0606 ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0607- ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 0507-0606 ● ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 0607-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0507-0605 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0606-0606 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0607- ● ●
211 03.331 RAIL ASM; COMMON 8-97306-063-2 01 1 0507-0606 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0607- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 0607- ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 06 1 0607- ●
281 03.162 CLIP
02.343 ID=16 H=24 L=20 		9-09527-015-0 01 1 0507-0606 ● ●
281 03.162 CLIP
ID=16 H=24 L=20 		0-95207-315-0 01 1 0607-0804 ●
324 03.330 PIPE; FUEL RETURN 8-98036-173-0 01 1 0607- ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0607-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) 		8-97603-522-0 02 1 0607- ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) 		8-97603-523-0 02 1 0607- ●

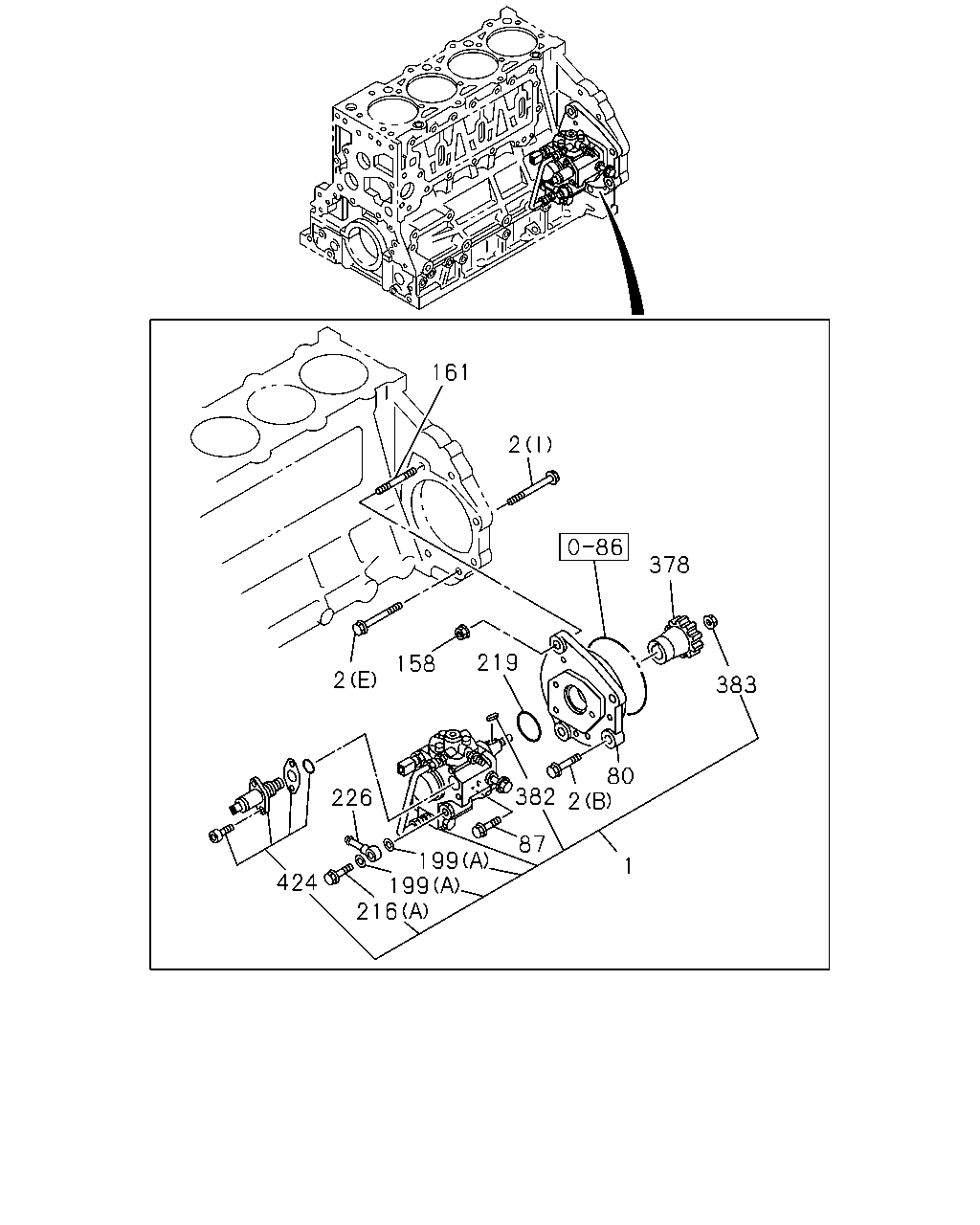

çizim 54280
161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
08.900 (E) M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
02.042 (E) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 0607- ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
02.277 (H) M10X70 FLANGE 		0-28151-070-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 0607- ●
80 03.306 BRACKET; PUMP 8-97148-958-1 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97601-699-0 01 1 0507-0606 ● ●
80 03.306 BRACKET; PUMP 8-98005-603-1 01 1 0607-0703 ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0704- ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0507-0606 ●
87 03.330 BOLT; PUMP
04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0507-0512 ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0601-0606 ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0607- ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 0607- ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52 		1-09623-300-0 01 1 0507-0603 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-98031-844-0 01 1 0604-0606 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0607- ●
226 03.163 PIPE; FUEL 8-97320-019-0 01 1 0507-0606 ● ●
378 03.330 GEAR; PUMP
Z=35 		8-97601-698-1 01 1 0507-0606 ● ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0607- ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0507-0606 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0607-1104 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ●
383 03.162 NUT; DRIVE SHAFT
03.616 		8-97141-469-0 01 1 0507-0606 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0607-0905 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98043-687-0 01 1 0507-0606 ● ●

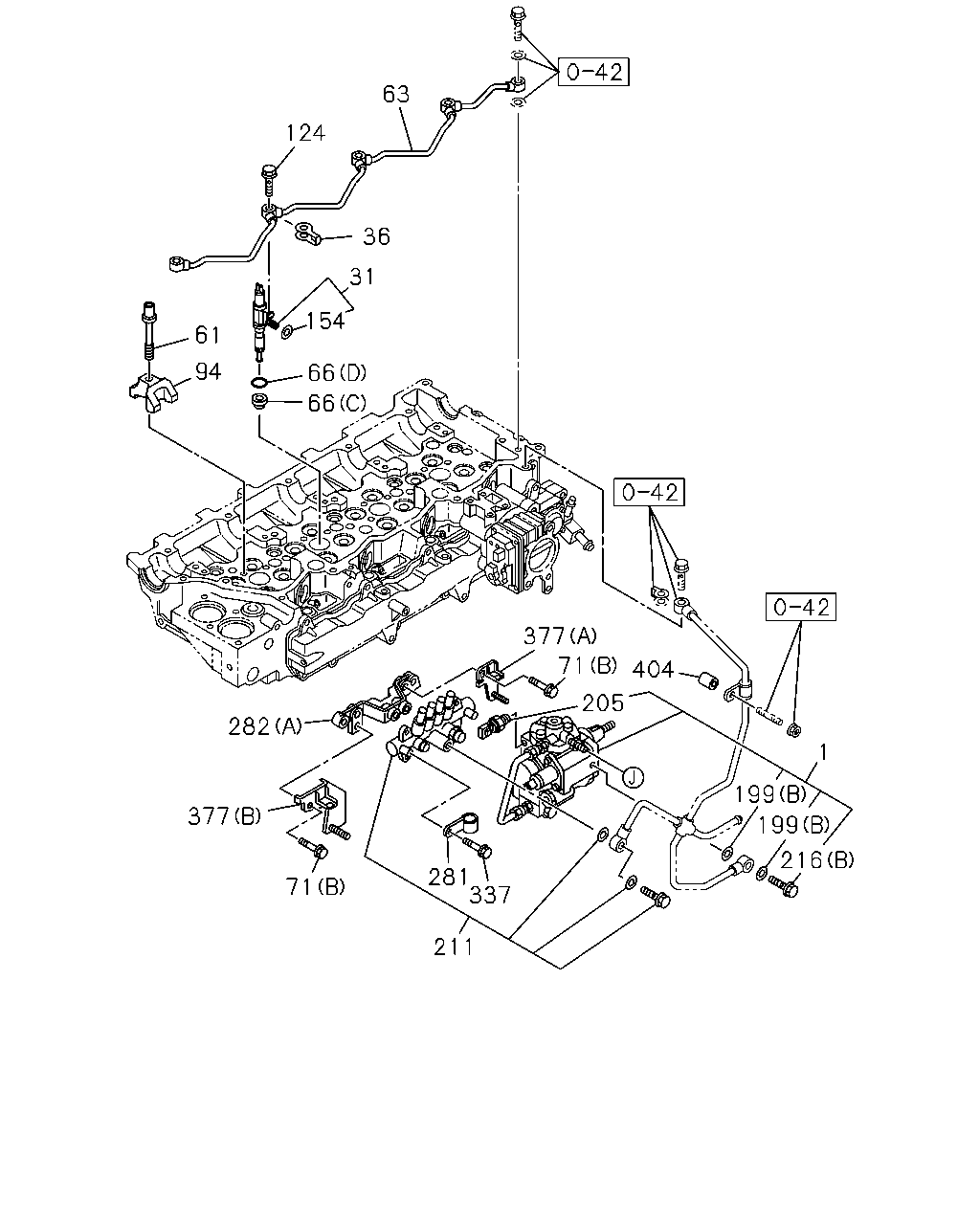

çizim 54423
63 124 36 31 154 61 94 66 66 377 71 404 205 282 1 199 377 199 216 281 337 71 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0302-0506 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0507-0606 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0607-0908 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 		8-98065-992-0 04 1 0909- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97084-347-0 08 1 0302-0501 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0302-0506 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0507-0606 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0507-0606 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0507-0606 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0607- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0607-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-97251-334-0 04 1 0607-0608 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98057-731-0 04 1 0609-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98077-165-0 04 1 0703-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98181-540-0 04 1 1104- ●
71 03.162 BOLT; BRKT
02.500 (B) M6X10 FLANGE 		0-28080-610-0 02 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 03 1 0607- ●
71 03.162 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 0607- ●
71 03.162 BOLT; BRKT
01.780 (D) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0606 ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 0607- ●
94 03.330 BRACKET; INJ NOZZLE 8-97306-074-1 04 1 0507-0606 ● ●
94 03.330 BRACKET; INJ NOZZLE 8-97306-074-1 04 1 0607-0607 ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0607- ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0507-0606 ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0607- ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 0507-0606 ● ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 0607-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0507-0605 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0606-0606 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0607- ● ●
211 03.331 RAIL ASM; COMMON 8-97306-063-2 01 1 0507-0606 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0607- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
281 03.162 CLIP
02.343 ID=16 H=24 L=20 		9-09527-015-0 01 1 0507-0606 ● ●
281 03.162 CLIP
ID=16 H=24 L=20 		0-95207-315-0 01 1 0607-0804 ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0507-0606 ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0607-1005 ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1006- ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98009-093-3 01 1 0607-0607 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98053-912-0 01 1 0608-1001 ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98147-694-0 01 1 1002- ●
337 03.163 BOLT; CLIP
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512 ● ●
337 03.163 BOLT; CLIP
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 0601-0606 ● ●
377 03.332 BRACKET; HARNESS
(A) 		8-97374-283-1 01 1 0507-0606 ● ●
377 03.332 BRACKET; HARNESS
(C) 		8-97310-438-1 02 1 0607- ●
377 03.332 BRACKET; HARNESS
(B) 		8-98001-141-0 01 1 0507-0606 ● ●
377 03.332 BRACKET; HARNESS
(D) 		8-97379-783-1 01 1 0607- ●
404 03.330 SPACER; FUEL LEAK OFF
L=24.5 		1-33659-186-1 01 1 0507-0606 ● ●
çizim 55227
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
32 03.332 HOLDER ASM; NOZZLE 8-97259-840-0 04 1 0302-0506 ●
33 03.332 NOZZLE; INJ 8-97258-926-0 04 1 0302-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0302-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0302-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0507-0606 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0302-0506 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 8-94329-555-0 04 1 0302-0506 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0302-0506 ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0302-0506 ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.10 		8-97116-029-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.20 		8-97116-032-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.30 		8-97116-033-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.40 		8-97116-034-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.50 		8-97116-035-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.51 		8-97116-036-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.52 		8-97116-037-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.53 		8-97116-038-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.54 		8-97116-039-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.55 		8-97116-040-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.56 		8-97116-041-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.57 		8-97116-042-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.58 		8-97116-043-0 AR 1 0302-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.59 		8-97116-044-0 AR 1 0302-0506 ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 0302-0506 ●

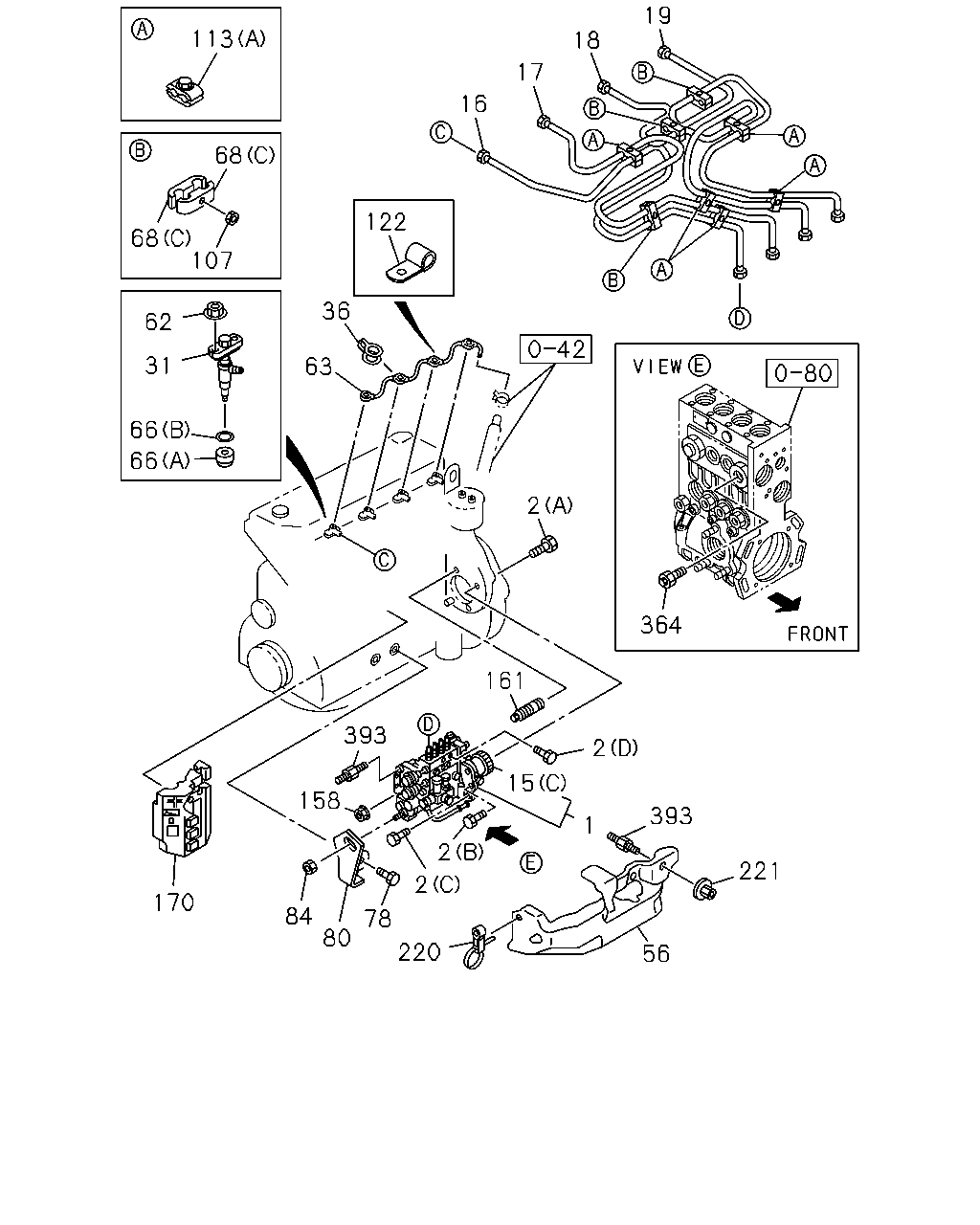

çizim 55512
19 113 18 17 16 68 122 68 107 36 62 31 63 66 66 2 364 161 393 2 15 158 393 1 2 221 2 170 84 80 78 220 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97225-432-2 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ 8-97306-044-8 01 1 0507-0606 ● ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-4 01 1 0302-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . 		8-97252-341-5 01 1 0507-0606 ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
08.900 (E) M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
02.042 (E) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 0607- ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ●
2 03.330 BOLT; INJ PUMP
(I) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ●
2 03.330 BOLT; INJ PUMP
02.277 (H) M10X70 FLANGE 		0-28151-070-0 01 1 0607- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 01 1 0302-0506 ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 0607- ●
15 03.340 COUPLING ASM; INJ PUMP
(C) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0302-0506 ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0607- ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0607- ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97371-831-0 01 1 0507-0606 ● ●
16 03.330 PIPE; INJ NO.1 8-98025-741-0 01 1 0607-0711 ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 0712-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103- ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0302-0506 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0507-0606 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97373-417-0 01 1 0507-0606 ● ●
17 03.330 PIPE; INJ NO.2 8-98025-742-0 01 1 0607-0711 ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 0712-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103- ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0302-0506 ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0507-0606 ●
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0607-0804 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97371-833-0 01 1 0507-0606 ● ●
18 03.330 PIPE; INJ NO.3 8-98025-743-0 01 1 0607-0711 ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 0712-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103- ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0302-0506 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0507-0606 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97371-834-0 01 1 0507-0606 ● ●
19 03.330 PIPE; INJ NO.4 8-98031-712-0 01 1 0607-0711 ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 0712-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103- ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0302-0506 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0507-0606 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
31 03.332 NOZZLE ASM; INJ 8-97241-005-1 04 1 0302-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97602-485-3 04 1 0507-0606 ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0607- ●
31 03.332 NOZZLE ASM; INJ 8-97329-340-0 04 1 0302-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0502-0506 ●
31 03.332 NOZZLE ASM; INJ 8-97382-949-0 04 1 0507-0606 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0607- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0302-0506 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0507-0606 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0607-0908 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 		8-98065-992-0 04 1 0909- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97084-347-0 08 1 0302-0501 ●
56 03.332 COVER
03.306 		8-97170-784-0 01 1 0302-0506 ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0507-0606 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0607- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0302-0506 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 0607- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0507-0606 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-97601-447-2 04 1 0607-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0302-0506 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0507-0606 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-97251-334-0 04 1 0607-0608 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98057-731-0 04 1 0609-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98077-165-0 04 1 0703-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E) 		8-98181-540-0 04 1 1104- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-049-0 06 1 0302-0506 ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97330-118-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 04 1 0607-1201 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97330-119-0 04 1 0507-0606 ● ●
68 03.162 CLIP; INJ PIPE
(F) 		1-09701-195-3 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-196-2 01 1 0607- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-97213-481-0 06 1 0607-0711 ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98039-293-0 06 1 0712- ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0302-0506 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0506 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0606 ●
80 03.306 BRACKET; PUMP 8-97148-958-1 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97601-699-0 01 1 0507-0606 ● ●
80 03.306 BRACKET; PUMP 8-98005-603-1 01 1 0607-0703 ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0704- ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0302-0506 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0507-0606 ●
84 03.330 NUT; BRKT TO BRKT
07.243 M12 FLANGE 		0-91150-212-0 01 1 0302-0506 ●
107 03.162 NUT; INJ PIPE CLIP
03.671 M5 FLANGE 		8-94178-699-0 03 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(B) 		1-09701-132-1 04 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(B) 		1-09701-132-1 04 1 0507-0606 ●
113 03.162 CLIP; INJ PIPE
(C) 		8-97224-041-1 01 1 0302-0506 ●
113 03.162 CLIP; INJ PIPE
(C) 		8-97224-041-1 01 1 0507-0606 ●
122 03.162 CLIP; LEAK OFF PIPE 9-09524-662-0 01 1 0302-0506 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0607- ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 0607- ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0302-0506 ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ●
170 03.332 INSULATOR; INJ PUMP 8-97306-433-2 01 1 0302-0506 ●
220 03.162 CLIP; COVER 8-97037-154-0 01 1 0302-0506 ●
221 03.162 CAP; SCREW 8-97190-450-0 02 1 0302-0506 ●
364 03.900 VALVE; OVER FLOW,INJ PUMP
03.318 		1-15619-321-0 01 1 0302-0506 ●
393 03.340 STUD; COVER
03.335 		8-97212-809-0 02 1 0304-0403 ●

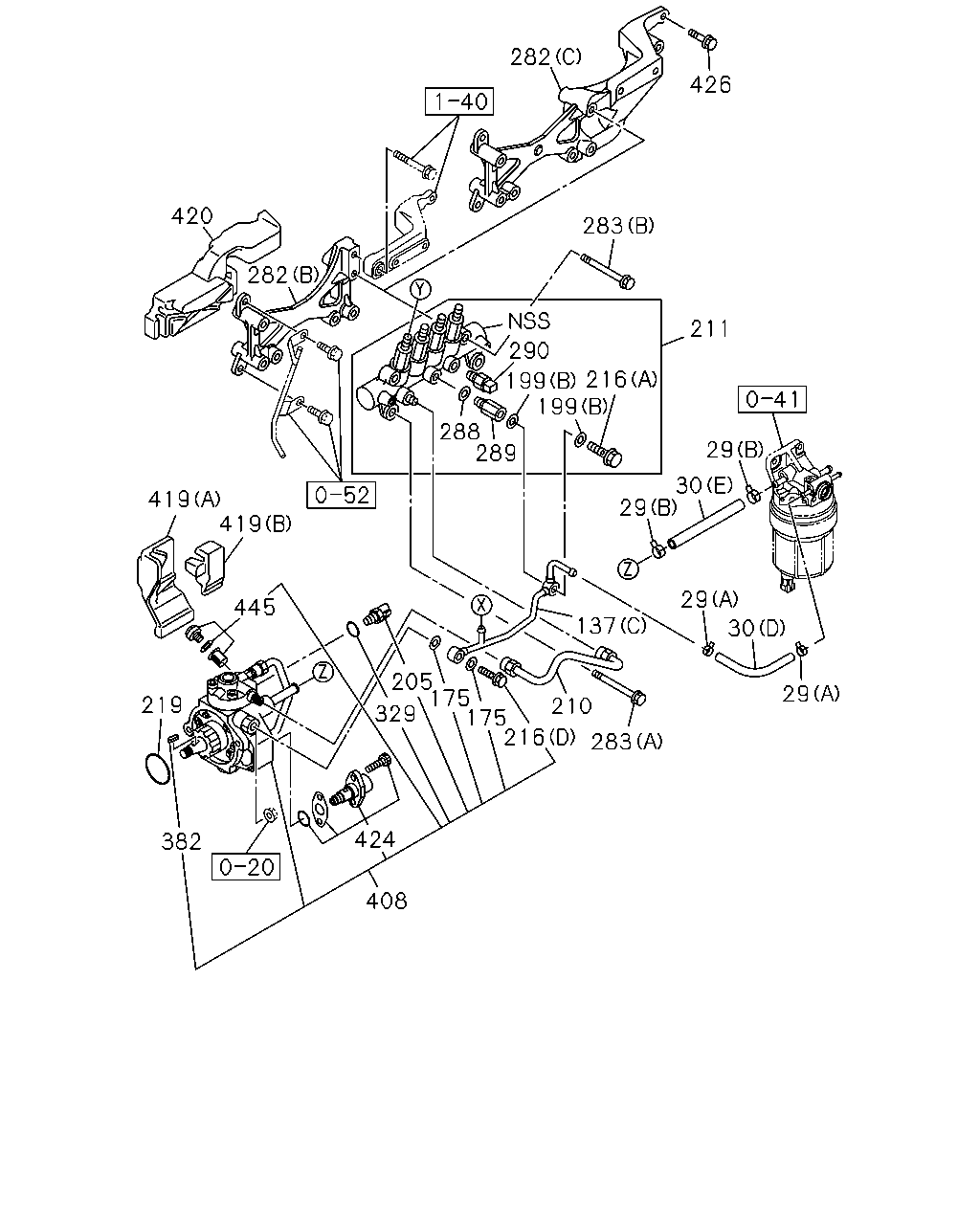

çizim 55851
29 30 29 137 210 283 216 175 175 205 329 424 408 382 219 445 419 419 420 282 290 199 199 216 289 288 29 29 30 211 283 282 426
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 03.162 CLIP; HOSE
01.219 (D) ID=12 		8-94238-610-0 02 1 0302-0302 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0302-0506 ●
29 03.162 CLIP; HOSE
03.163 (D) ID=11 		8-97173-219-0 02 1 0507-0606 ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0607- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0607- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 W/INSULATOR 		8-94427-501-2 01 1 0302-0302 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0302-0506 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=320 		8-97364-773-0 01 1 0507-0606 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0607- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0607-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98036-320-2 01 1 0607- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0607-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0607-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0607- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0607- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0607- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0607- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0507-0606 ● ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0607- ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0507-0605 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0606-0606 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0607- ● ●
210 03.330 PIPE; INJ,C/R 8-97312-509-3 01 1 0507-0606 ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 0607- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0607- ●
211 03.331 RAIL ASM; COMMON 8-97306-063-2 01 1 0507-0606 ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0607- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0607- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0607- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0607- ●
216 03.162 BOLT; EYE
(C) 		8-97602-173-0 01 1 0507-0606 ● ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0607- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52 		1-09623-300-0 01 1 0507-0603 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-98031-844-0 01 1 0604-0606 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0607- ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0507-0606 ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-97324-194-0 01 1 0607-1005 ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1006- ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98009-093-3 01 1 0607-0607 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98053-912-0 01 1 0608-1001 ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98147-694-0 01 1 1002- ●
283 03.330 BOLT; COMMON RAIL
01.531 (C) M8X25 FLANGE 		0-28080-825-0 01 1 0507-0512 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0606 ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 0607- ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0607- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0607- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0507-0606 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0607- ● ●
289 03.331 LIMITER; FUEL PRESS 8-97318-691-0 01 1 0507-0606 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0607- ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0507-0606 ● ●
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0607-0809 ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0810- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0607-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0507-0606 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0607-1104 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 0607- ●
419 03.340 RUBBER; SPACE,PUMP
(A) 		8-98037-442-0 01 1 0607- ●
419 03.340 RUBBER; SPACE,PUMP
(B) 		8-98037-443-0 01 1 0607- ●
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 0607- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0607-0905 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98043-687-0 01 1 0507-0606 ● ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1002- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
