Sayfa 0-36 - Isuzu EPC

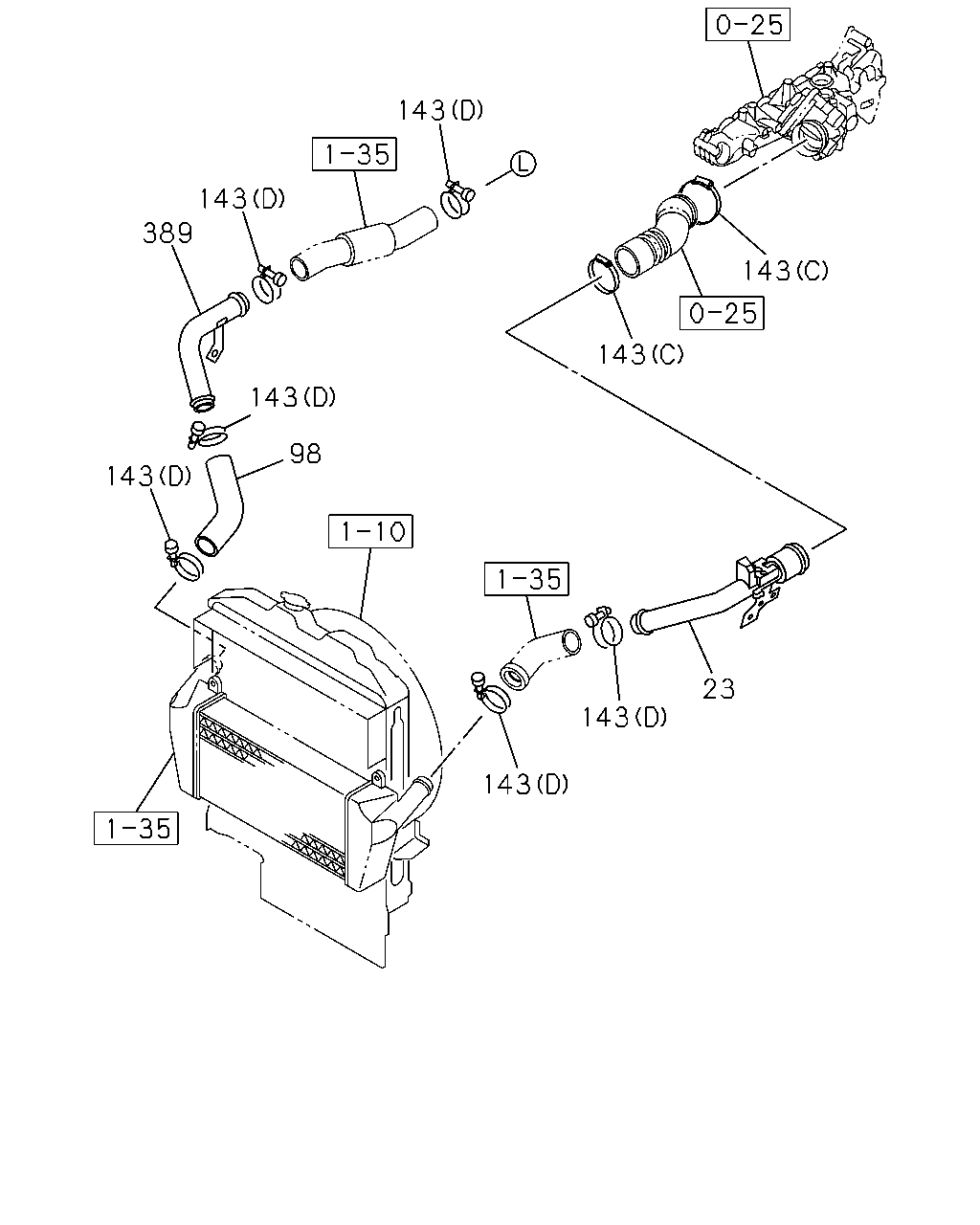

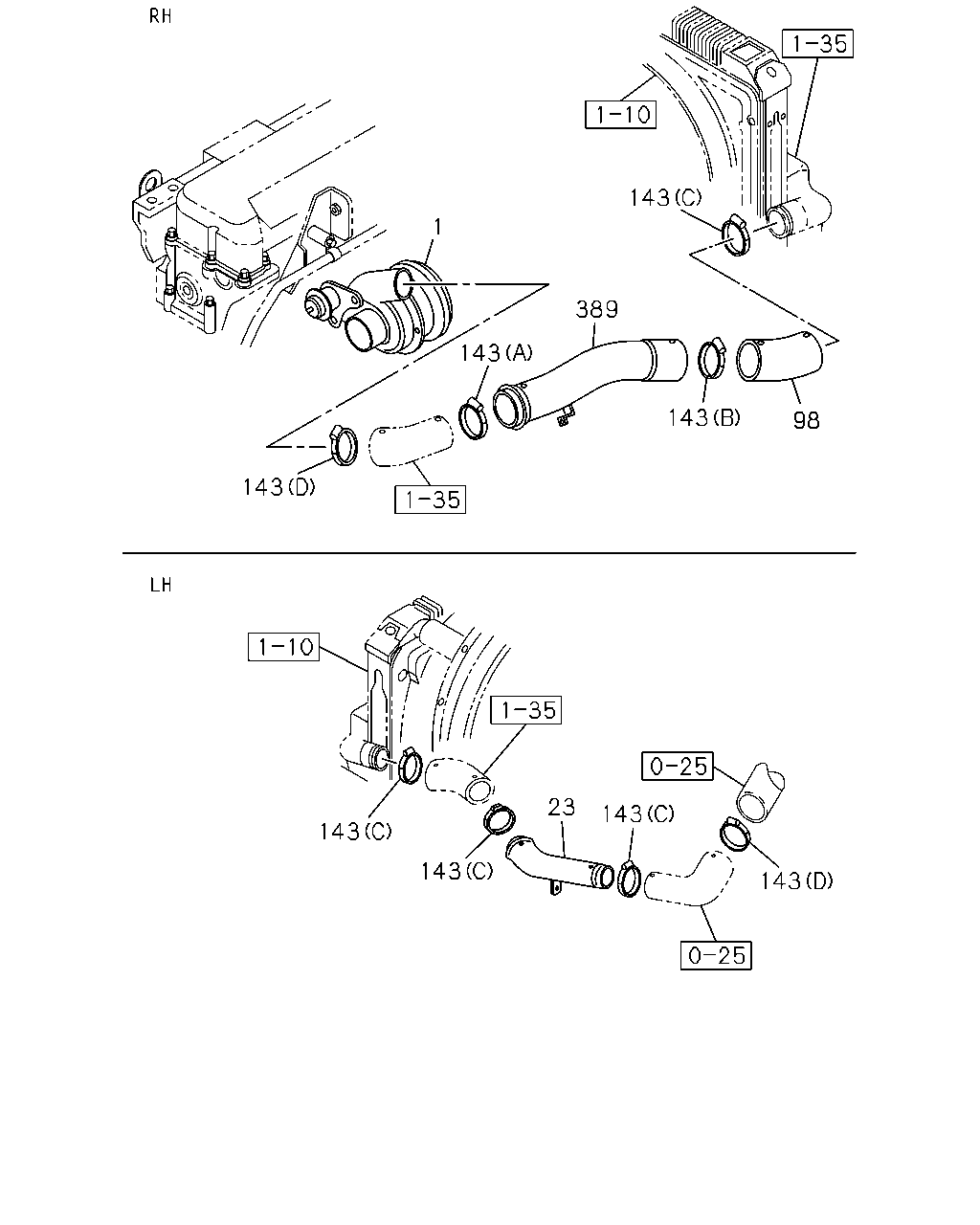

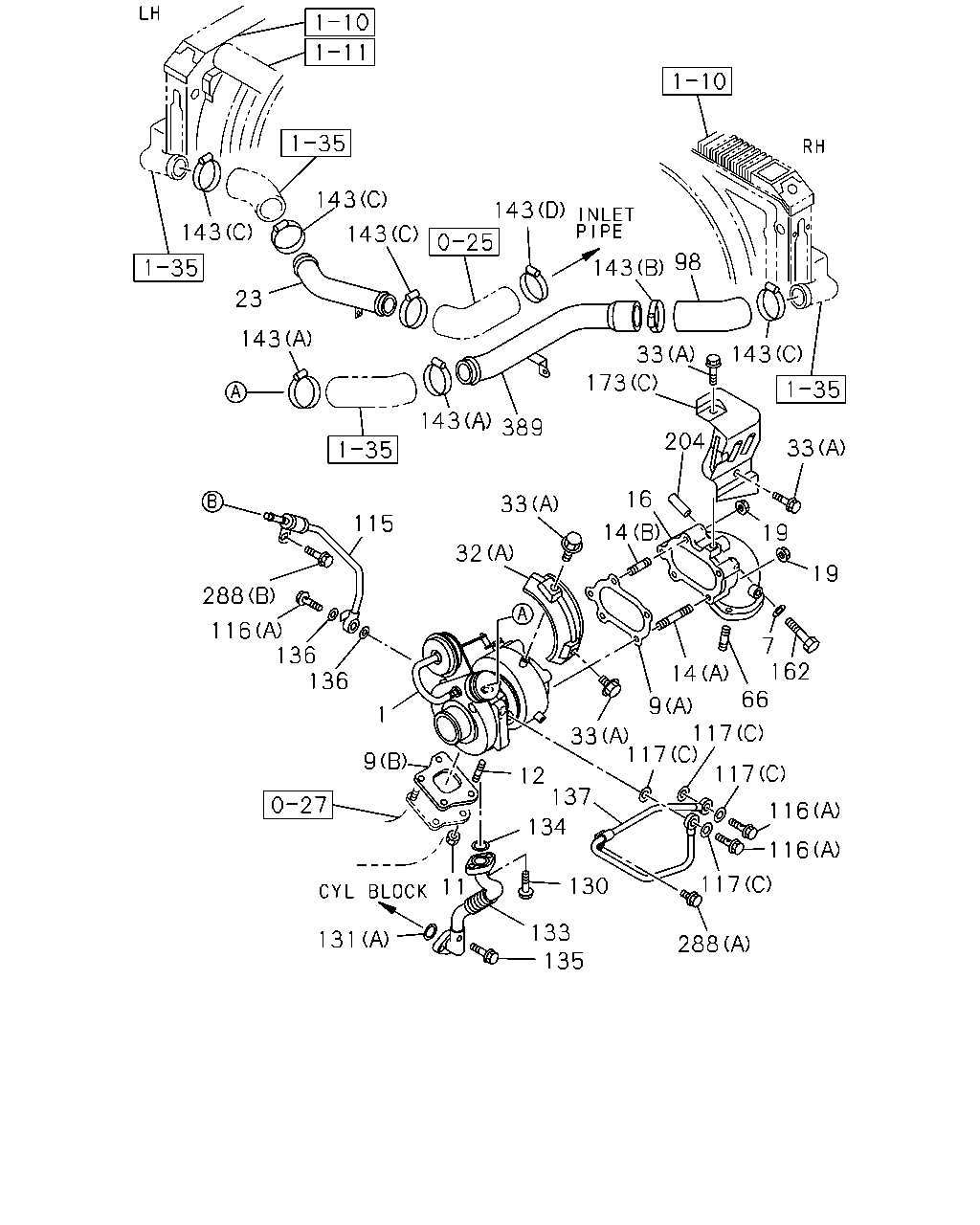

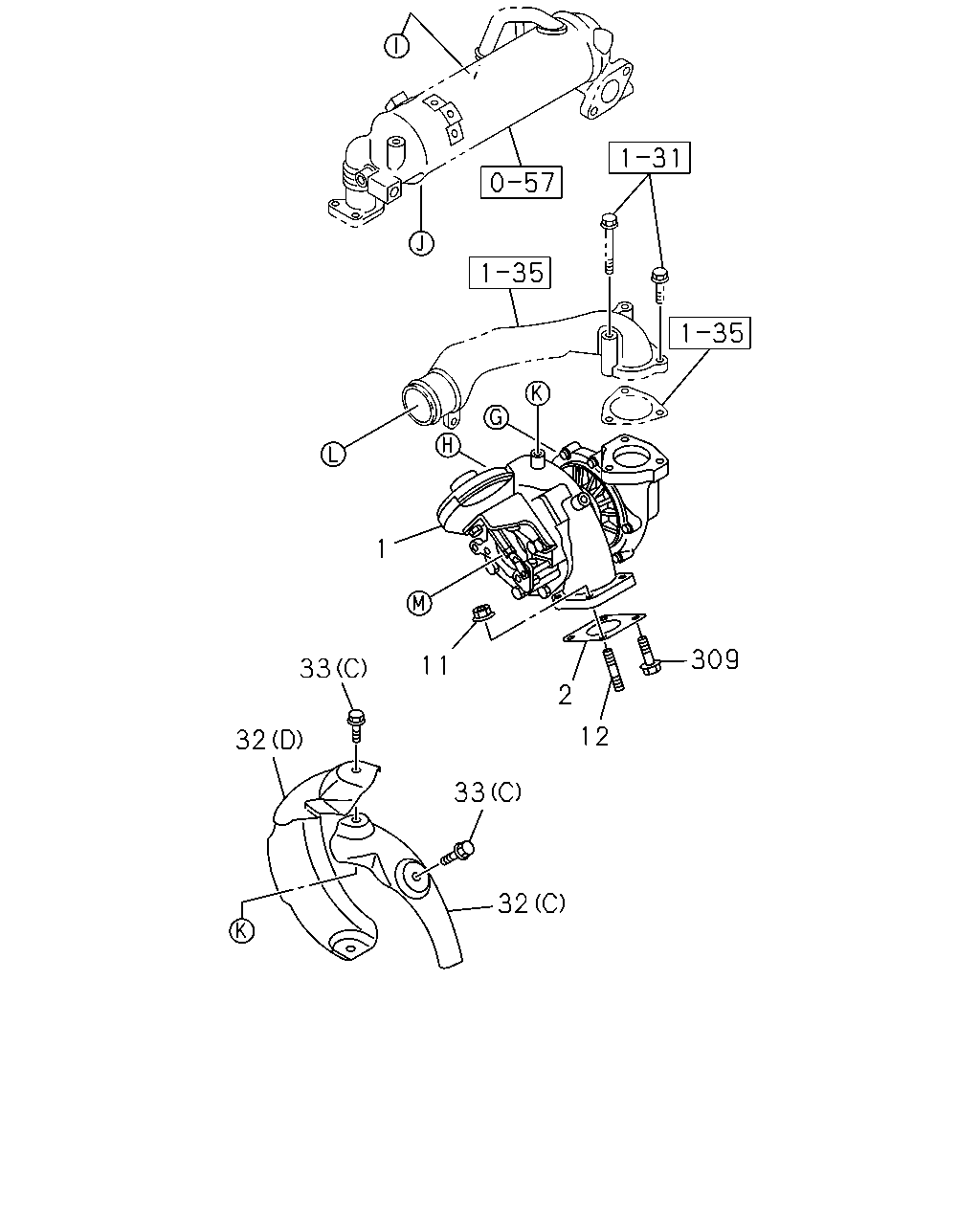

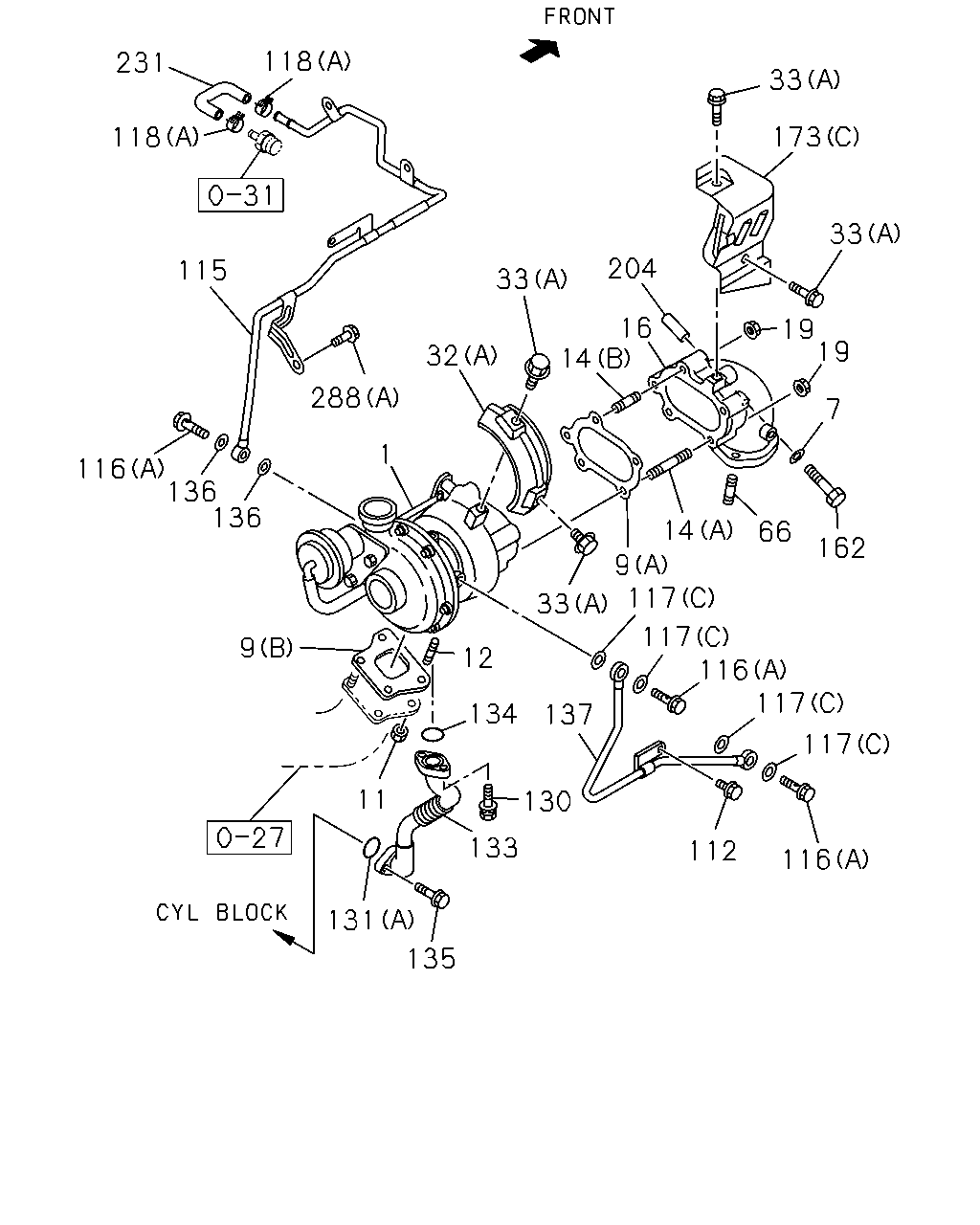

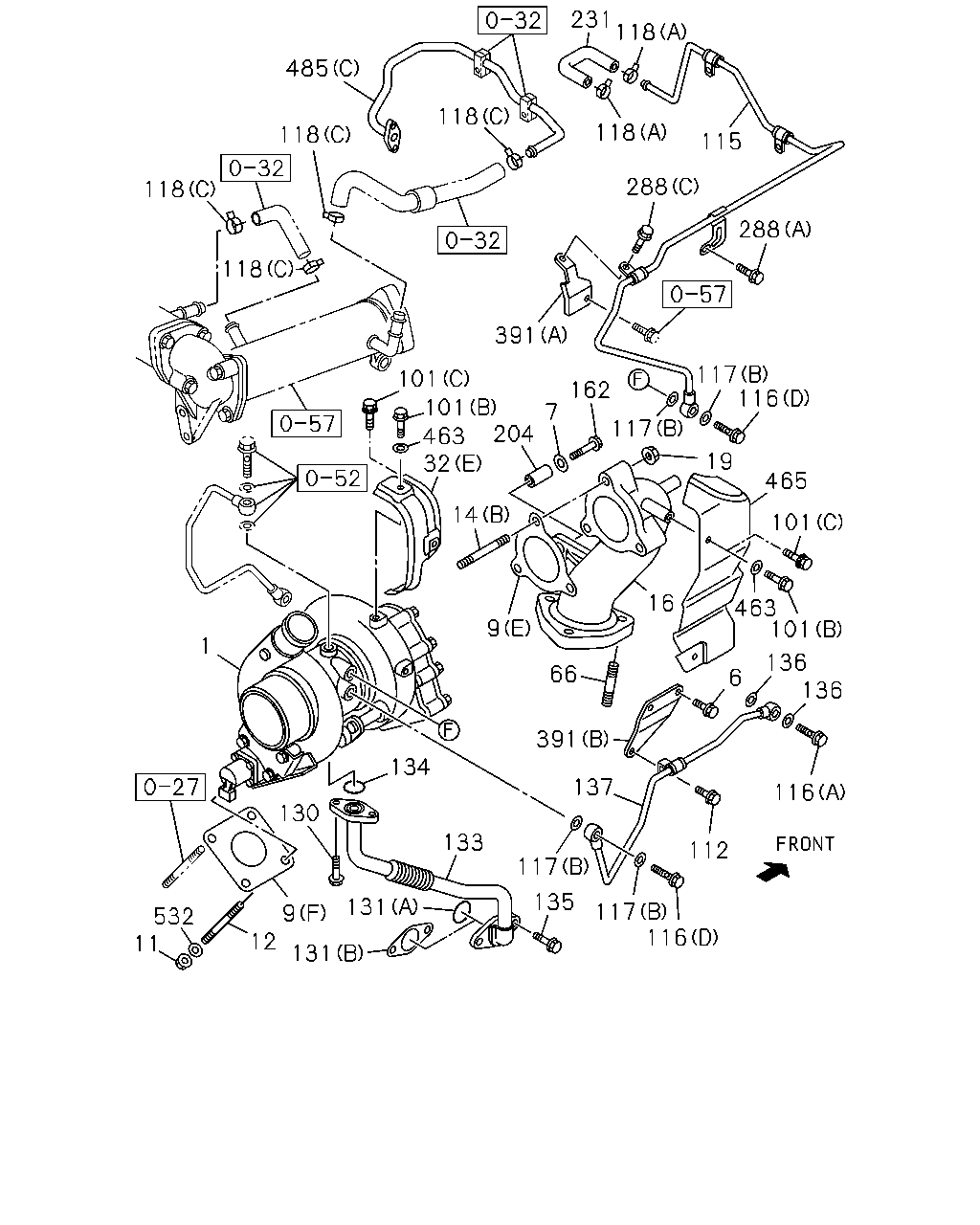

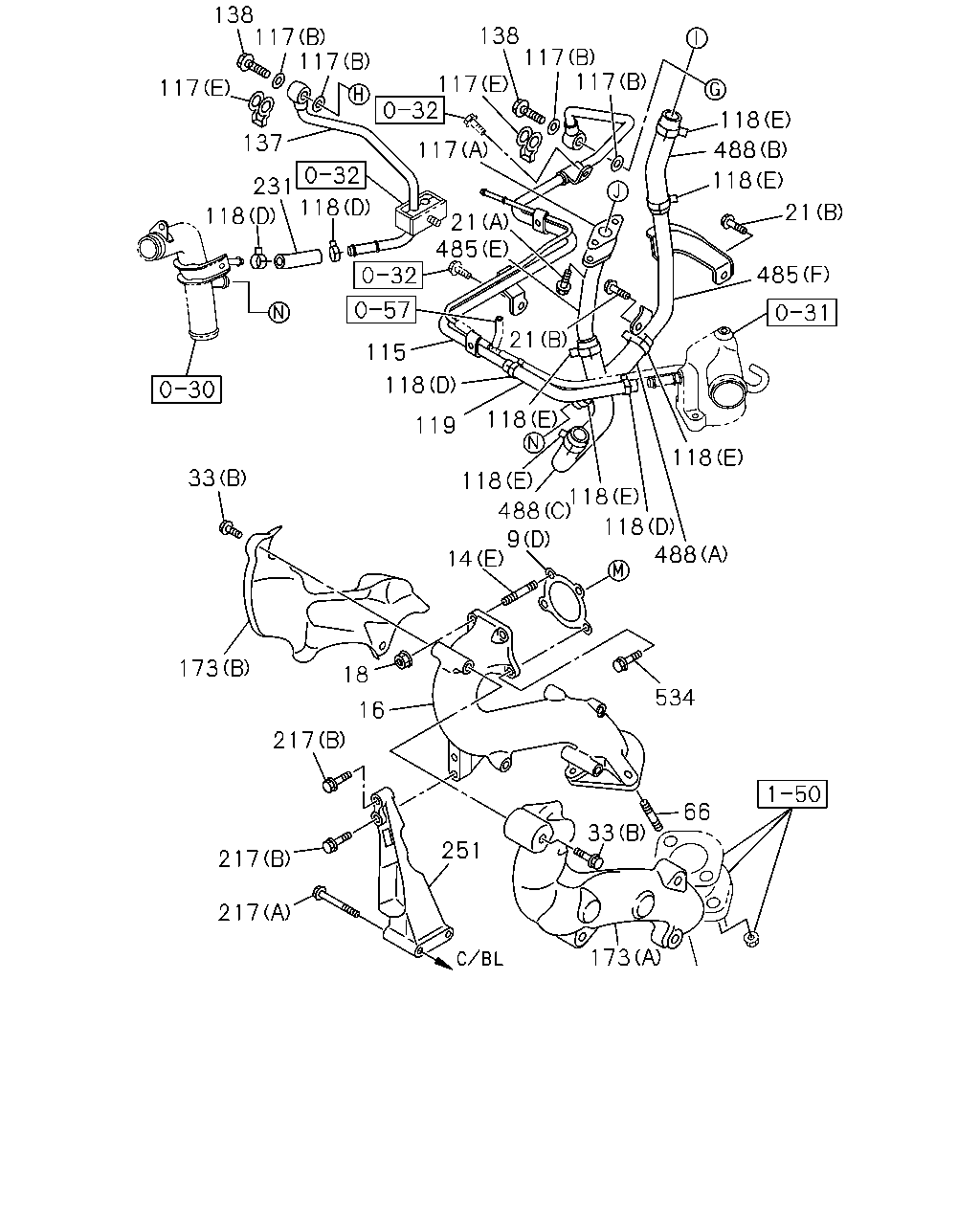

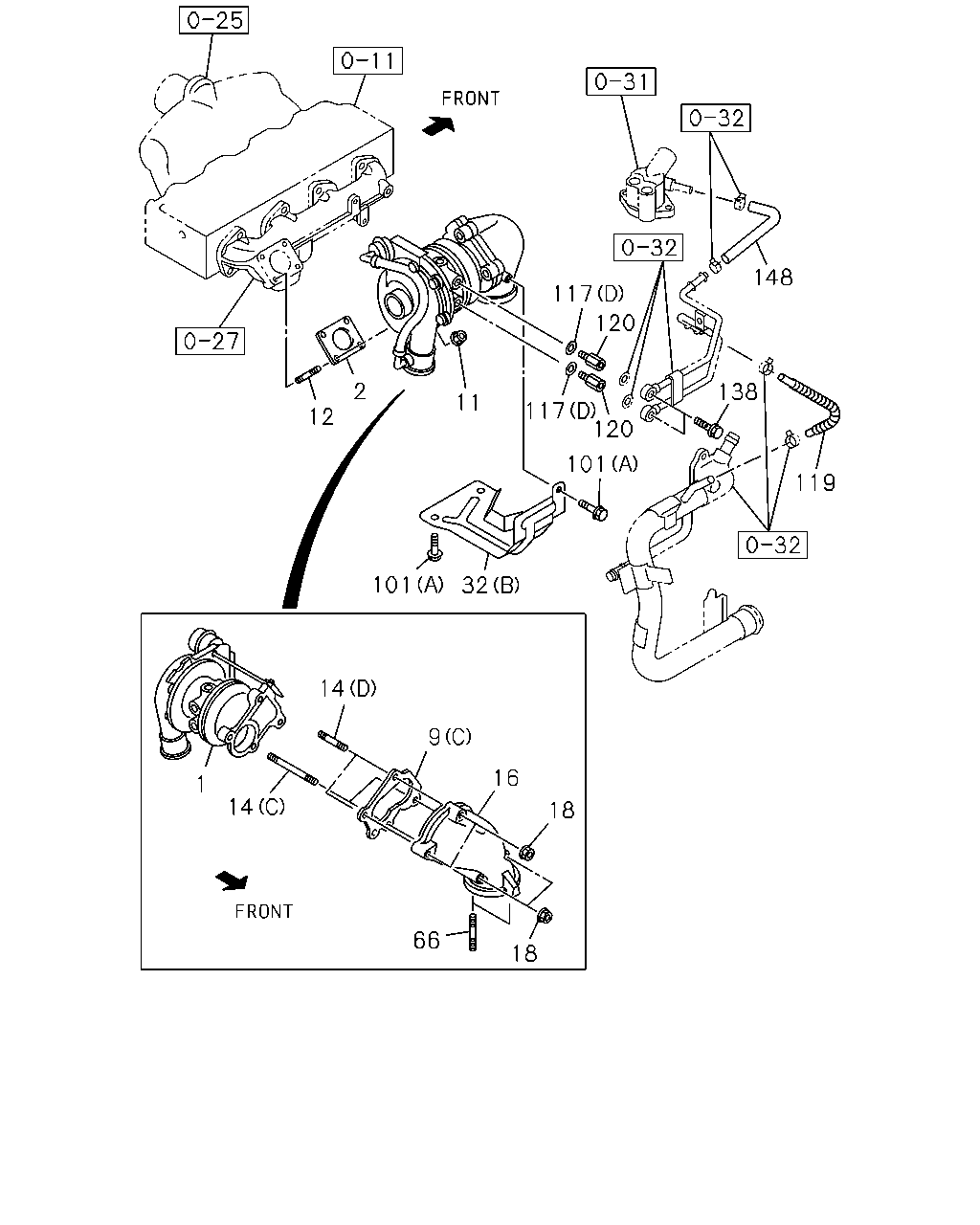

0-36 — TURBOCHARGER SYSTEM (#46642) — 927 parça

143 143 143 143 98 143 23 143 143 33 173 143 389 204 33 16 33 115 14 19 32 19 288 116 136 136 7 162 66 14 9 117 117 1 33 9 117 12 137 116 134 116 117 130 11 133 135 131 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0302-0506	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E)	8-97376-758-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0302-0307	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (F)	8-98046-241-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0302-0506					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0507-0606						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (D)	8-98011-532-0	01	1	0607-							●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606		●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0607-0805				●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-							●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0302-0506	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606		●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0607-0805				●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0302-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	04	1	0302-0406					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	02	1	0407-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0407-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	04	1	0607-0608							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	03	1	0609-0903							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	02	1	0904-							●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606		●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0607-				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506					●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606						●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-0910							●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-							●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0302-0506	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0607-				●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-97189-601-1	01	1	0302-0506	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0507-0606		●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-022-2	01	1	0607-							●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98019-694-2	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0507-0606		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (E)	8-98031-888-3	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0302-0506					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0507-0606						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-990-3	01	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-991-1	01	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0302-0506	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0507-0606		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-							●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606						●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-							●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-1	01	1	0302-0506	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-0606		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0607-							●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0606			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0607-0608				●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97302-224-1	01	1	0302-0506	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0606		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0607-0707				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0607-0708							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-							●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0302-0506	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (E) ID=12.6	8-97331-137-1	02	1	0905-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-0904				●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0302-0506					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0507-0606						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-							●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0302-0506	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0302-0506	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0507-0606		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0607-1006				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0302-0506	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0607-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0302-0506	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0506	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-				●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-0506	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0302-0506	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0507-0606		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0607-							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-114-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	04	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	04	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	02	1	0607-0810							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	02	1	0811-							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=77-99	1-09707-141-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	06	1	0607-0810							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	06	1	0811-							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-				●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0302-0506	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0302-0506	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0507-0606		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0607-							●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0607-							●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0302-0506	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-				●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-0606		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0607-0612				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0701-				●
288	03.342 BOLT; WATER PIPE CLIP 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	0607-				●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0302-0506	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0507-0606		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-097-1	01	1	0607-							●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0507-0606			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98019-693-0	01	1	0607-				●

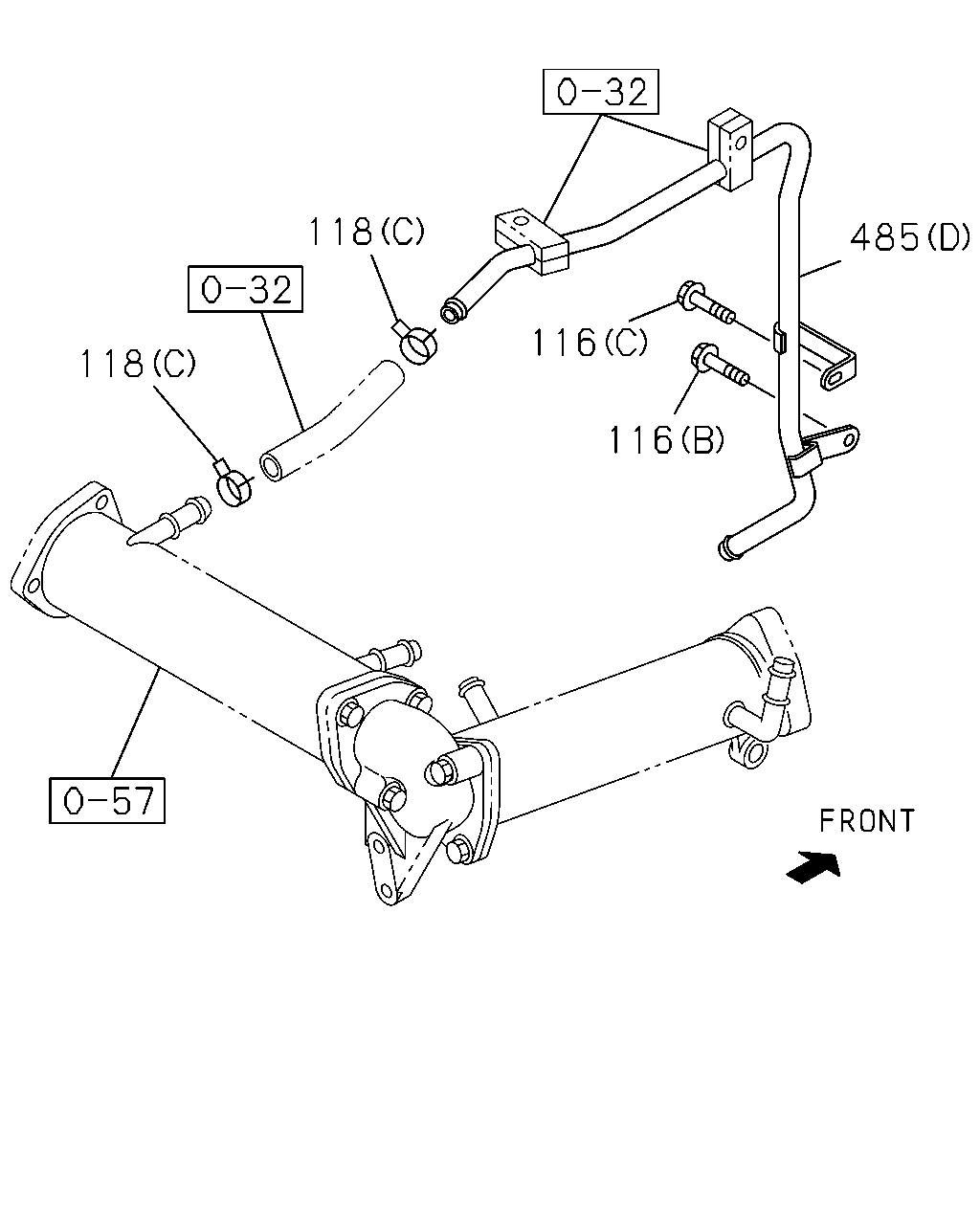

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0302-0506	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-					●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003					●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-					●

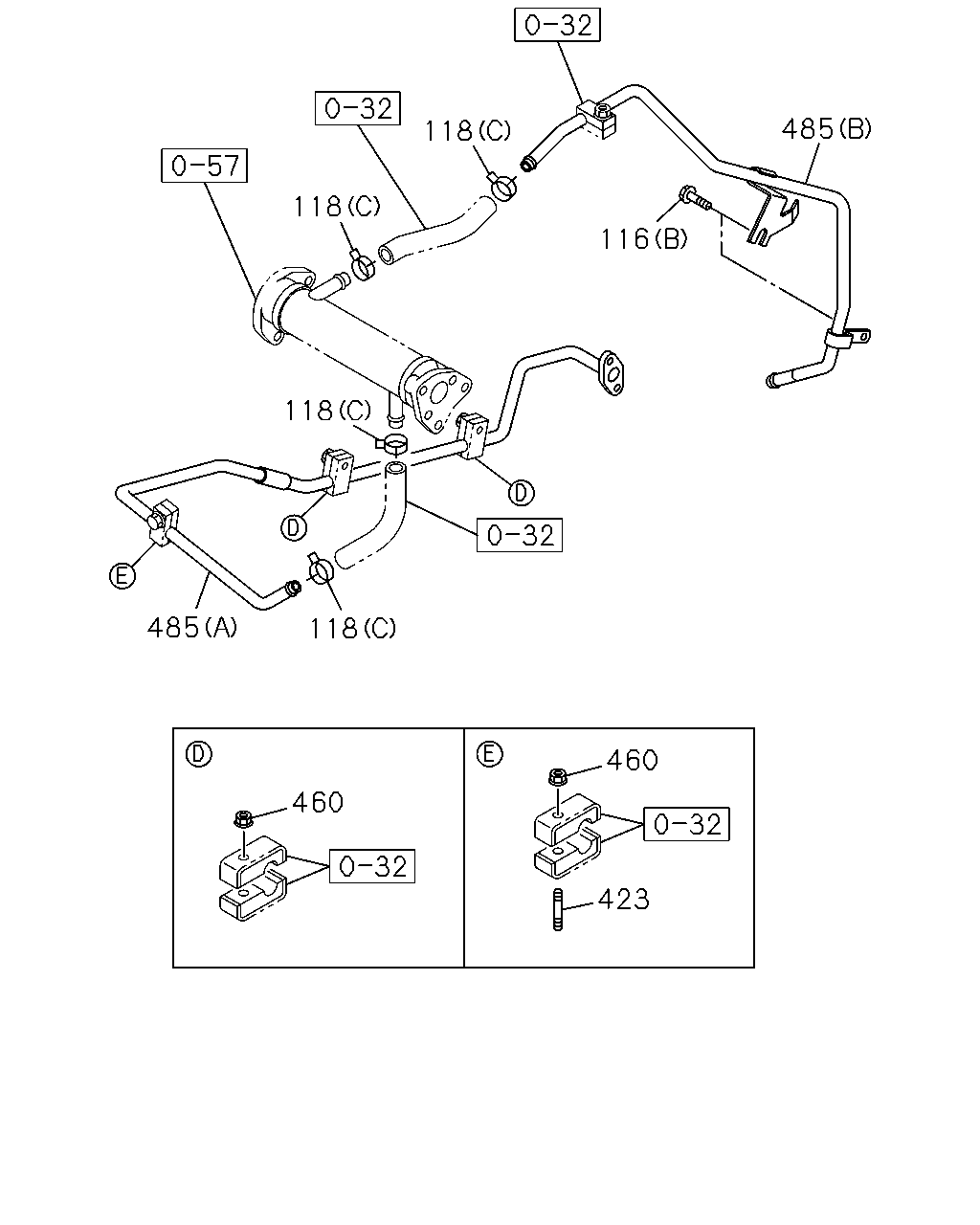

485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0607-					●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0607-					●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0607-				●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0607-				●

118 231 33 173 118 33 204 115 33 16 14 19 19 32 288 7 1 116 136 136 14 66 162 9 117 33 117 116 117 9 12 134 137 117 11 130 133 112 116 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0302-0506	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E)	8-97376-758-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0302-0307	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (F)	8-98046-241-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0302-0506					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0507-0606						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (D)	8-98011-532-0	01	1	0607-							●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606		●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0607-0805				●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-							●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0302-0506	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606		●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0607-0805				●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0302-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	04	1	0302-0406					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	02	1	0407-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0407-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	04	1	0607-0608							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	03	1	0609-0903							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	02	1	0904-							●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606		●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0607-				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506					●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606						●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-0910							●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-							●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0302-0506	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0507-0606		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (E)	8-98031-888-3	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0302-0506					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0507-0606						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-990-3	01	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-991-1	01	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0302-0506	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0507-0606		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-							●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606						●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-							●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97302-224-1	01	1	0302-0506	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0606		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0607-0707				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0607-0708							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-							●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0302-0506	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (E) ID=12.6	8-97331-137-1	02	1	0905-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-0904				●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0302-0506					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0507-0606						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-							●
118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-							●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003							●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-							●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0302-0506	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0302-0506	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0507-0606		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0607-1006				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0302-0506	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0607-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0302-0506	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0506	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-				●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-0506	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0302-0506	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0507-0606		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0607-							●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0302-0506	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0302-0506	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0507-0606		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0607-							●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0607-							●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0302-0506	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0607-							●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-0606		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0607-0612				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0701-				●
288	03.342 BOLT; WATER PIPE CLIP 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	0607-				●

231 118 485 118 118 118 115 288 118 288 118 391 117 116 101 162 101 204 7 117 463 32 19 465 14 101 16 463 101 9 1 136 136 66 6 391 134 137 116 130 133 112 117 135 131 117 116 9 12 532 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0302-0506	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E)	8-97376-758-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0302-0307	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (F)	8-98046-241-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0302-0506					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0507-0606						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (D)	8-98011-532-0	01	1	0607-							●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606		●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0607-0805				●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-							●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0302-0506	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606		●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0607-0805				●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0302-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	04	1	0302-0406					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	02	1	0407-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0407-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	04	1	0607-0608							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	03	1	0609-0903							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	02	1	0904-							●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606		●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0607-				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506					●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606						●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-0910							●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-							●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0302-0506	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0507-0606		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (E)	8-98031-888-3	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0302-0506					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0507-0606						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-990-3	01	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-991-1	01	1	0607-							●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606						●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-							●
101	03.602 BOLT; HEAT PROTECTOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0302-0506					●
101	03.602 BOLT; HEAT PROTECTOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0507-0512						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-0606						●
101	03.602 BOLT; HEAT PROTECTOR 03.604 (B) M6X12 FLANGE	8-97108-669-0	06	1	0607-0708				●
101	03.602 BOLT; HEAT PROTECTOR (C) M6X12 W/PL WASHER	8-98054-289-0	06	1	0709-				●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97302-224-1	01	1	0302-0506	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0606		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0607-0707				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0607-0708							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-							●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0302-0506	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (E) ID=12.6	8-97331-137-1	02	1	0905-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-0904				●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0302-0506					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0507-0606						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-							●

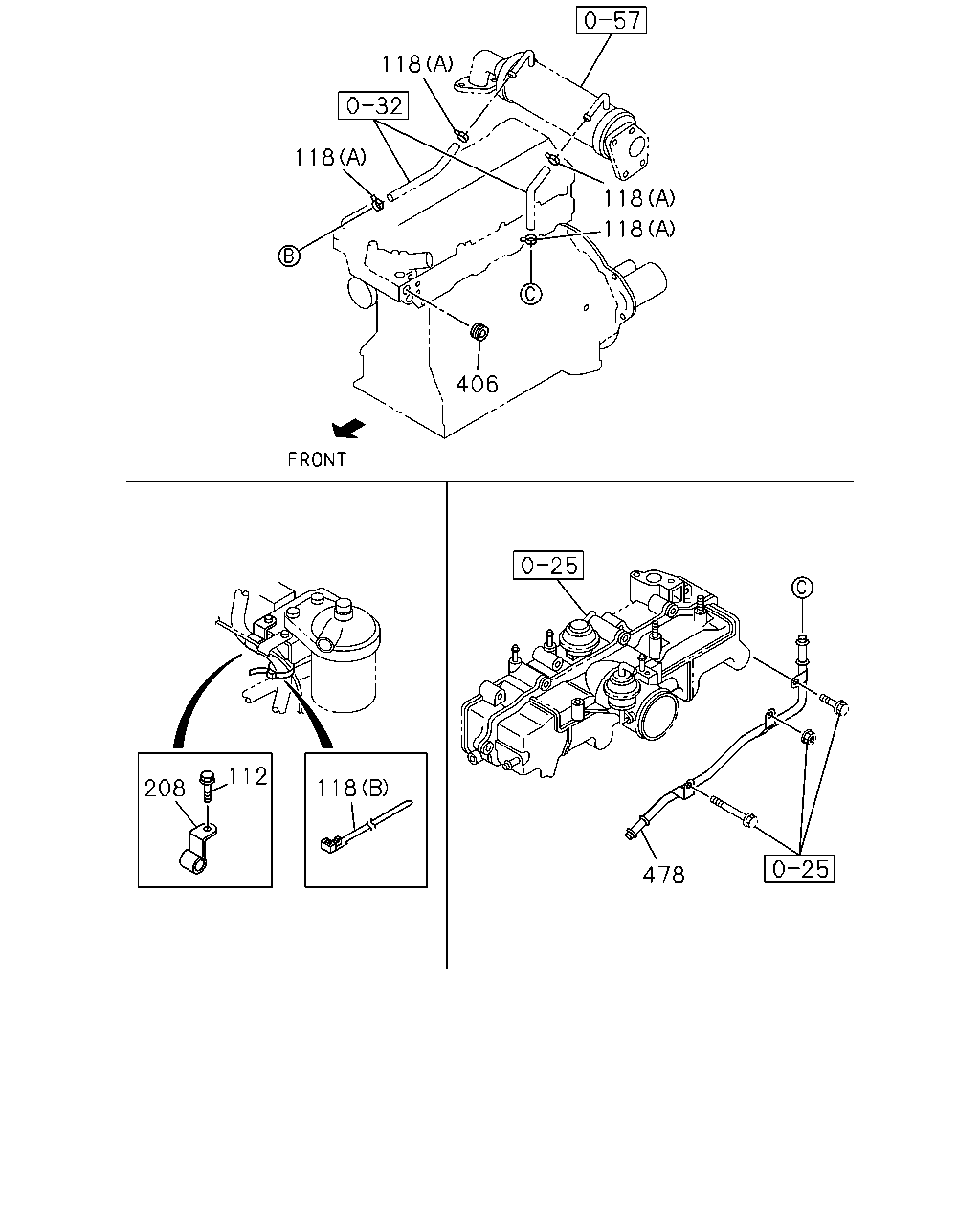

118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-							●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003							●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-							●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0302-0506	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0302-0506	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0507-0606		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0607-1006				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0302-0506	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0607-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0302-0506	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0506	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-				●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-0506	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0302-0506	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0507-0606		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0607-							●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0302-0506	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0302-0506	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0607-							●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-0606		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0607-0612				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0701-				●
288	03.342 BOLT; WATER PIPE CLIP 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	0607-				●
391	03.342 BRACKET; WATER PIPE (B)	8-97371-730-0	01	1	0607-				●
391	03.342 BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	0607-				●
463	03.602 WASHER; PL,HEAT PROTECTOR 00.413 ID=6.4 OD=18	0-91610-706-0	06	1	0607-0708				●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98023-184-2	01	1	0607-0611				●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	0612-				●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0607-							●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0607-							●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0607-				●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0607-				●
532	03.407 WASHER; TURBOCHARGER 03.613 ID=10	1-09503-033-1	04	1	0607-0805				●

138 117 117 138 117 117 117 117 118 117 137 488 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 534 16 217 66 33 251 217 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E)	8-97376-758-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0302-0307	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (F)	8-98046-241-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0302-0506					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0507-0606						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (D)	8-98011-532-0	01	1	0607-							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0302-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	04	1	0302-0406					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	02	1	0407-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0407-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	04	1	0607-0608							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	03	1	0609-0903							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	02	1	0904-							●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606		●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0607-				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506					●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606						●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-0910							●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0607-0608							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0609-0903							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-							●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-							●
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0607-0809							●
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-							●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0302-0506	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0507-0606		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-							●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606						●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97302-224-1	01	1	0302-0506	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0606		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0607-0707				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0607-0708							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802							●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (E) ID=12.6	8-97331-137-1	02	1	0905-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-0904				●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0302-0506					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0507-0606						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-							●
118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-							●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003							●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-							●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0302-0506					●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0507-0606						●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0607-0802							●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-							●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0302-0506	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-035-0	01	1	0507-0606		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0607-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0607-							●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0302-0506					●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0507-0606						●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-							●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0302-0506	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97351-167-0	01	1	0507-0606		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0607-							●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0607-							●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0607-							●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0607-							●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0607-							●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0607-							●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0607-							●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0607-							●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0607-				●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0607-				●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0607-							●
488	03.163 HOSE; RUBBER 01.540 (B) L=120 SERVICED BY L=3000	0-03566-300-0	01	1	0607-0607							●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0608-							●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0607-							●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0609-0903							●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-							●

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-97189-601-1	01	1	0302-0506	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0507-0606		●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-022-2	01	1	0607-							●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98019-694-2	01	1	0607-				●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-1	01	1	0302-0506	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-0606		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0607-							●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0606			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0607-0608				●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-114-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	04	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	04	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	02	1	0607-0810							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	02	1	0811-							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=77-99	1-09707-141-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	06	1	0607-0810							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	06	1	0811-							●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-				●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0302-0506	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0507-0606		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-097-1	01	1	0607-							●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0507-0606			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98019-693-0	01	1	0607-				●

143 143 389 143 143 143 98 143 23 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-97189-601-1	01	1	0302-0506	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0507-0606		●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-022-2	01	1	0607-					●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98019-694-2	01	1	0607-				●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-1	01	1	0302-0506	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-0606		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0607-					●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0606			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0607-0608				●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-114-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	04	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	04	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	02	1	0607-0810					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	02	1	0811-					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=77-99	1-09707-141-0	01	1	0302-0303	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0506	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	06	1	0607-0810					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	06	1	0811-					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-				●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0302-0506	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0507-0606		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-097-1	01	1	0607-					●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0507-0606			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98019-693-0	01	1	0607-				●

118 118 118 118 406 112 118 208 478

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-					●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003					●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-					●
208	03.417 CLIP; WATER HOSE FIX 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0302-0506	●
406	03.417 PLUG 01.073 PT3/8	5-09605-005-0	01	1	0302-0506	●
478	01.097 PIPE; WATER SUCTION	8-97240-999-1	01	1	0302-0506	●

1 309 11 33 2 12 32 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97288-577-0	01	1	0302-0506					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97288-577-0	01	1	0507-0606						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94433-605-0	01	1	0607-							●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606		●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0607-0805				●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-							●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0302-0506	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606		●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0607-0805				●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0507-0606		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (E)	8-98031-888-3	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0302-0506					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0507-0606						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-990-3	01	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-991-1	01	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0302-0506	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0507-0606		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-							●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-							●
309	03.342 BOLT; TURBOCHARGER 02.277 M8X28 FLANGE	8-94396-974-0	02	1	0607-0701							●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0702-							●

148 117 120 138 2 11 117 120 12 101 119 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97258-811-1	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606		●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0607-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606						●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-							●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97288-577-0	01	1	0302-0506					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97288-577-0	01	1	0507-0606						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94433-605-0	01	1	0607-							●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (E)	8-97376-758-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0302-0307	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (F)	8-98046-241-0	01	1	0607-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0302-0506					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (C)	8-97263-123-0	01	1	0507-0606						●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.611 (D)	8-98011-532-0	01	1	0607-							●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606		●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0607-0805				●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-							●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0302-0506	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606		●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0607-0805				●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0302-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0302-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	04	1	0302-0406					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X41 L=52	8-97188-452-0	02	1	0407-0408					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0407-0506					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97104-507-1	02	1	0507-0606						●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	04	1	0607-0608							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	03	1	0609-0903							●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (E) M8X25 L=36	8-97378-062-0	02	1	0904-							●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606		●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0607-				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506					●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606						●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-0910							●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0607-0608							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0609-0903							●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-97351-168-0	01	1	0507-0606		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (E)	8-98031-888-3	01	1	0607-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0302-0506					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-97258-821-0	01	1	0507-0606						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-990-3	01	1	0607-							●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-991-1	01	1	0607-							●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606						●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-							●
101	03.602 BOLT; HEAT PROTECTOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0302-0506					●
101	03.602 BOLT; HEAT PROTECTOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0507-0512						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-0606						●
101	03.602 BOLT; HEAT PROTECTOR 03.604 (B) M6X12 FLANGE	8-97108-669-0	06	1	0607-0708				●
101	03.602 BOLT; HEAT PROTECTOR (C) M6X12 W/PL WASHER	8-98054-289-0	06	1	0709-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (E) ID=12.6	8-97331-137-1	02	1	0905-							●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-0904				●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0302-0506					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) T=2.5	8-94472-584-1	02	1	0507-0606						●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-							●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0302-0506					●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0507-0606						●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0607-0802							●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-							●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0302-0506					●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0507-0606						●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0302-0506					●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0507-0606						●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-							●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0302-0506					●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0507-0606						●

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0302-0506	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	04	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	06	1	0302-0302	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	0302-0506	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0607-					●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0607-1003					●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-					●
423	03.373 STUD; WATER PIPE 01.428 M8X20 L=32	9-04110-820-0	01	1	0507-0604		●	●
423	03.373 STUD; WATER PIPE 02.510 M8X20 L=32	0-41010-820-0	01	1	0605-0606		●	●
460	03.374 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0607-					●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-0606		●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0607-					●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0607-				●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0607-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
