◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#46640) — 332 parça

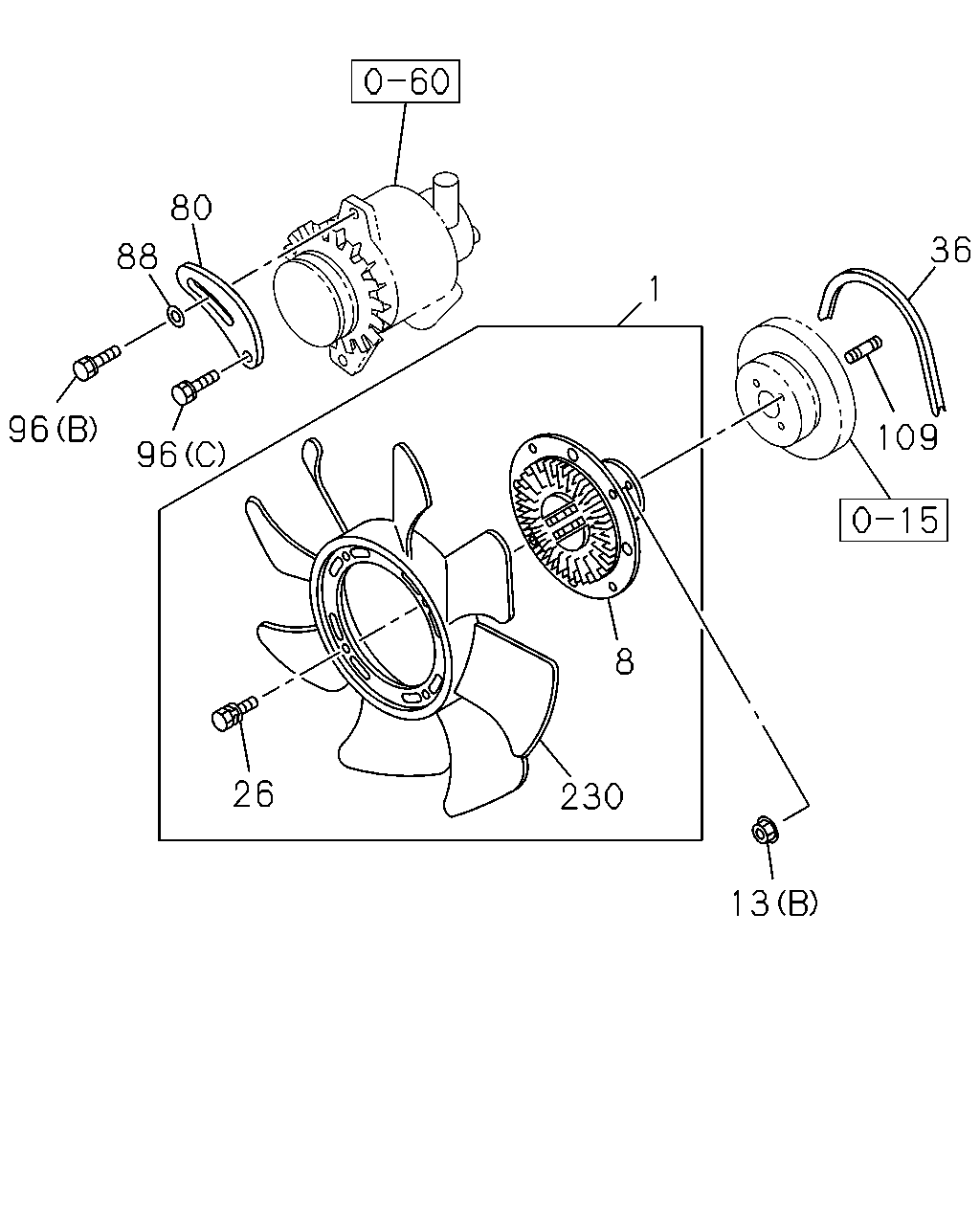

çizim 13768
80 36 88 1 96 109 96 8 26 230 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0607-1108 ●
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 0607- ●
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0507-0606 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0302-0506 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0507-0606 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0302-0506 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0507-0606 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0607- ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 		8-98036-550-1 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0302-0305 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0506 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0507-0606 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) 		8-98035-085-0 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0302-0506 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0507-0606 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0302-0506 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0507-0605 ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0606-0606 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.173 (C) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0302-0506 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0507-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0606 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0607- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0507-0606 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0607- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0302-0506 ●
230 01.055 FAN; COOLING 8-97131-664-1 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97330-207-0 01 1 0607- ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0607-1108 ●
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1109- ●

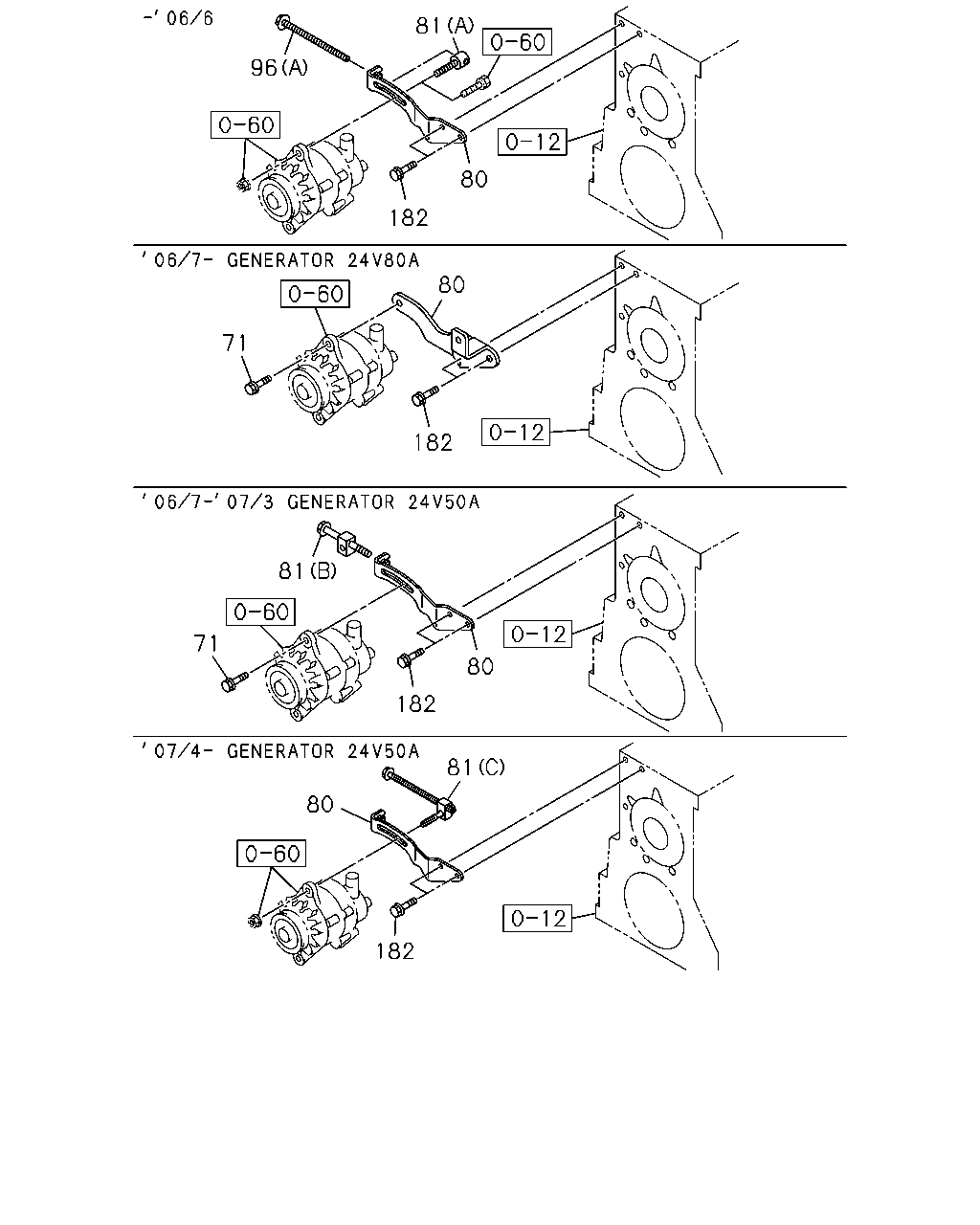

çizim 54200
81 96 80 182 80 71 182 81 71 80 182 81 80 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
71 02.317 BOLT; ADJ PLATE,GEN
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0607-0703 ●
71 02.317 BOLT; ADJ PLATE,GEN
GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0704- ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 		8-98036-550-1 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0302-0305 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0506 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0507-0606 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) 		8-98035-085-0 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0302-0506 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0507-0606 ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (C) 		8-98075-762-0 01 1 0704- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0302-0506 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0507-0606 ● ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0704- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.173 (C) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0302-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0506 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607- ●
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0607- ●

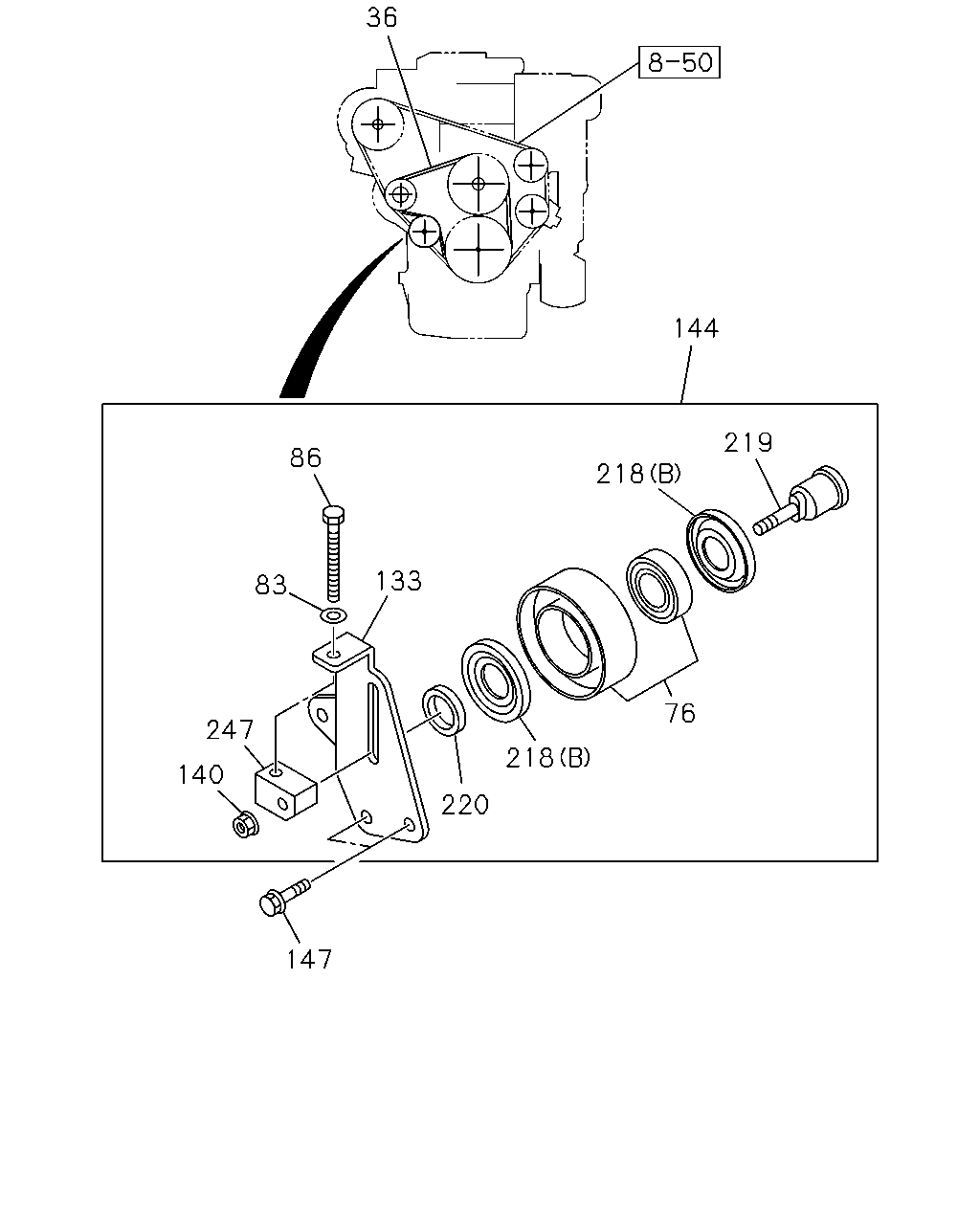

çizim 54228
36 144 219 86 218 133 83 76 247 218 140 220 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0607- ●
76 00.724 PULLEY ASM; IDLE
GENERATOR 24V80A(7YN) 09.180 		8-98049-245-0 01 1 0607-0701 ●
76 00.724 PULLEY ASM; IDLE
GENERATOR 24V80A(7YN) 09.180 		8-98073-261-0 01 1 0702- ●
83 01.060 WASHER; PL
GENERATOR 24V80A(7YN) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0607-0701 ●
86 01.073 BOLT; ADJ
GENERATOR 24V80A(7YN) 09.181 M8X70 		0-20850-870-0 01 1 0607-0701 ●
86 01.073 BOLT; ADJ
GENERATOR 24V80A(7YN) 09.181 M8X84 		8-98073-285-0 01 1 0702- ●
133 01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.180 		8-98049-249-0 01 1 0607-0701 ●
133 01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.180 		8-98054-653-0 01 1 0702- ●
140 01.060 NUT; IDLE PULLEY
GENERATOR 24V80A(7YN) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607-0701 ●
140 01.060 NUT; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 M10 		8-97377-331-0 01 1 0702- ●
144 01.060 TENSIONER; DRIVE BELT
GENERATOR 24V80A(7YN) 09.180 1-GROOVE 		8-98031-811-1 01 1 0607- ●
147 01.060 BOLT; BELT TENSIONER
GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE 		0-28151-020-0 03 1 0607- ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 (B) 		8-98049-246-0 02 1 0607-0701 ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 (B) 		8-98054-654-0 02 1 0702- ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) (A) 		8-98045-582-0 01 1 0607- ●
219 01.064 SHAFT; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 		8-98049-247-0 01 1 0607-0701 ●
219 01.064 SHAFT; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 		8-98073-274-0 01 1 0702- ●
220 03.417 COLLAR; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 		8-98049-248-0 01 1 0607-0701 ●
220 03.417 COLLAR; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 		8-98073-276-0 01 1 0702- ●
247 02.317 SLIDER
GENERATOR 24V80A(7YN) 09.181 		8-98049-250-0 01 1 0607-0701 ●
247 02.317 SLIDER
GENERATOR 24V80A(7YN) 09.181 		8-98073-281-0 01 1 0702- ●

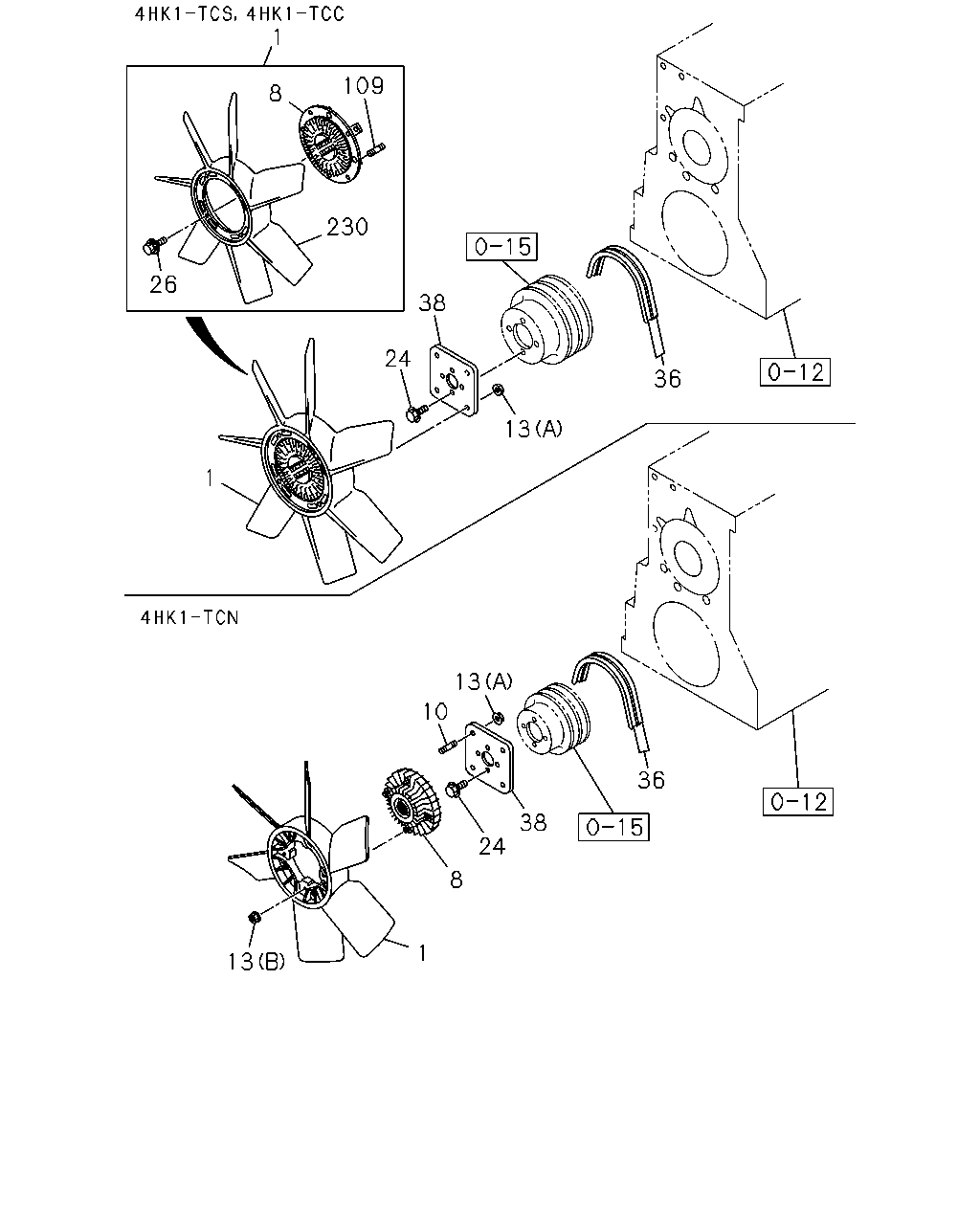

çizim 54420
1 109 8 230 26 38 24 36 13 1 13 10 36 38 24 8 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0607-1108 ●
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 0607- ●
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0507-0606 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0302-0506 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0507-0604 ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0605-0606 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0302-0506 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0507-0606 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0302-0506 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0606 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0607- ●
24 01.062 BOLT; FAN
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0607- ●
24 01.062 BOLT; FAN
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0302-0506 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0507-0606 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0607- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0302-0506 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0507-0606 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0607- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0302-0506 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0507-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0606 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0607- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0507-0606 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0607- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0302-0506 ●
230 01.055 FAN; COOLING 8-97131-664-1 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97330-207-0 01 1 0607- ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0607-1108 ●
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1109- ●

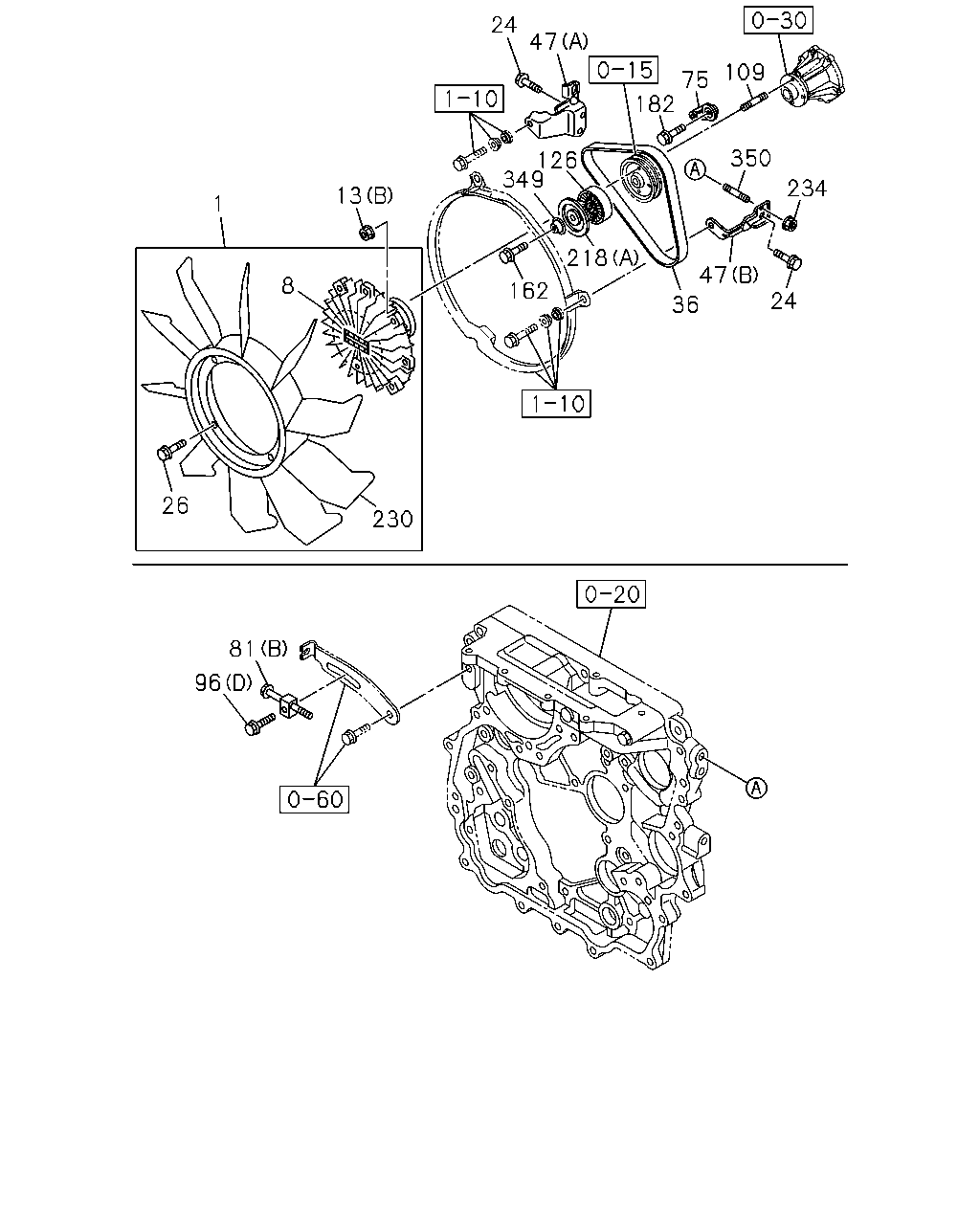

çizim 54887
24 47 109 75 182 350 126 349 234 13 1 218 47 8 162 24 36 26 230 81 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0607-1108 ●
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 0607- ●
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0507-0606 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0302-0506 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0507-0606 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0302-0506 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0606 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0607- ●
24 01.062 BOLT; FAN
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0607- ●
24 01.062 BOLT; FAN
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0302-0506 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0507-0606 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0607- ●
47 01.060 BRACKET; FAN
(A) 		8-97381-548-0 01 1 0607-0802 ●
47 01.060 BRACKET; FAN
(A) 		8-98064-373-0 01 1 0803- ●
47 01.060 BRACKET; FAN
(B) 		8-97381-549-1 01 1 0607- ●
75 01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 		8-97381-570-1 01 1 0607- ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (C) 		8-98075-762-0 01 1 0704- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0302-0506 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0507-0606 ● ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0704- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.173 (C) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0302-0506 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0507-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0606 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0607- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0507-0606 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0607- ●
126 01.062 PULLEY; IDLE
GENERATOR 24V80A(7YN) 00.659 		8-97371-903-1 01 1 0607- ●
162 01.062 BOLT; FAN CLU
GENERATOR 24V80A(7YN) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0607- ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0302-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0506 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607- ●
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0607- ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 (B) 		8-98049-246-0 02 1 0607-0701 ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 (B) 		8-98054-654-0 02 1 0702- ●
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) (A) 		8-98045-582-0 01 1 0607- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0302-0506 ●
230 01.055 FAN; COOLING 8-97131-664-1 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97330-207-0 01 1 0607- ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0507-0606 ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0607-1108 ●
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1109- ●
234 01.060 NUT; FAN BRKT
06.164 M8 FLANGE 		5-09440-010-0 01 1 0607- ●
349 01.252 CAP; IDLE PULLEY
GENERATOR 24V80A(7YN) 00.724 		8-97386-240-0 01 1 0607- ●
350 02.317 STUD; FAN BRKT
01.428 M8X18 L=30 		0-41010-818-0 01 1 0607- ●

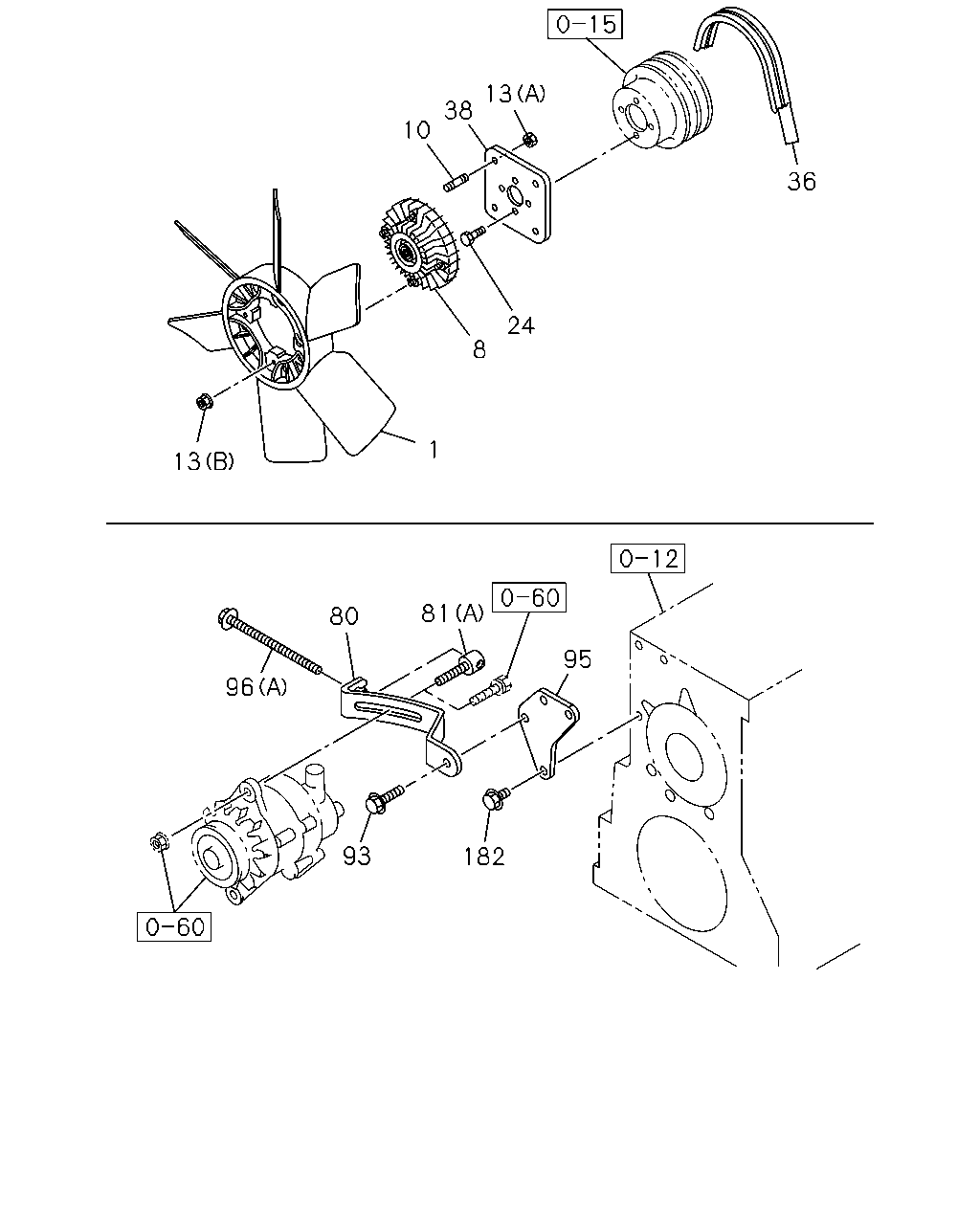

çizim 54949
13 38 10 36 24 8 1 13 81 80 95 96 93 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0607-1108 ●
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0302-0506 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0507-0606 ●
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 0607- ●
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0302-0506 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0507-0606 ●
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0507-0606 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0302-0506 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0507-0604 ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0605-0606 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0302-0506 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0507-0606 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0302-0506 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0606 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0607- ●
24 01.062 BOLT; FAN
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0607- ●
24 01.062 BOLT; FAN
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0302-0506 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0607- ●
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0607- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0302-0506 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0507-0606 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0607- ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 		8-98036-550-1 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0302-0305 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0506 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0507-0606 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) 		8-98035-085-0 01 1 0607- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0302-0506 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0507-0606 ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (C) 		8-98075-762-0 01 1 0704- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0302-0506 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97257-223-0 01 1 0507-0606 ● ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) (B) 		8-97132-048-0 01 1 0607-0703 ●
81 02.317 PIECE; SLIDING
(B) 		8-97132-048-0 01 1 0704- ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0302-0305 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0302-0305 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (A) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.540 (C) M8X45 FLANGE 		0-28080-845-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.173 (C) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0302-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0506 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607- ●
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
