0-11B — CYLINDER HEAD (#4664) — 71 parça

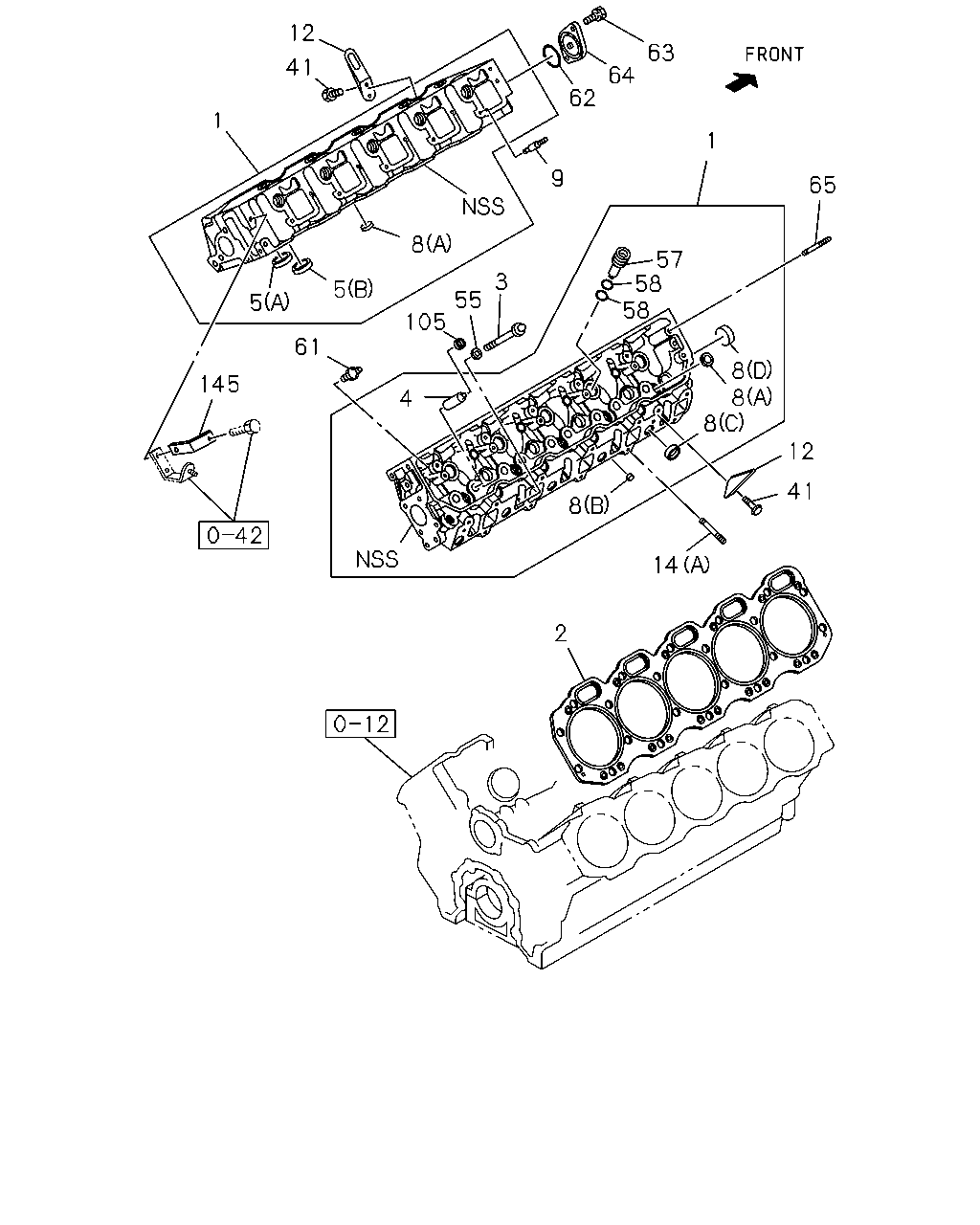

çizim 45127
12 63 41 64 62 1 1 9 65 8 57 58 58 3 5 55 105 5 61 8 8 8 145 4 12 41 8 14 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
RH BANK 		1-11110-793-1 01 1 9603-9705 ●
1 HEAD ASM; CYL
RH BANK 		1-11110-850-0 01 1 9706-9904 ●
1 HEAD ASM; CYL
RH BANK 		1-11110-850-2 01 1 9905- ● ● ●
1 HEAD ASM; CYL
LH BANK 		1-11110-794-1 01 1 9603-9705 ●
1 HEAD ASM; CYL
LH BANK 		1-11110-851-0 01 1 9706-9904 ●
1 HEAD ASM; CYL
LH BANK 		1-11110-851-2 01 1 9905- ● ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-250-0 02 1 9603-9705 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-261-0 02 1 9706-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-261-1 02 1 9905- ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X140 		1-09070-033-1 24 1 9603-9902 ●
3 BOLT; CYL HD TO BLOCK
M14X80 FLANGE 		1-09070-034-0 20 1 9603-9702 ●
3 BOLT; CYL HD TO BLOCK
M14X80 FLANGE 		1-09070-034-1 20 1 9703-9902 ●
3 BOLT; CYL HD TO BLOCK
M14X80 FLANGE 		1-09070-138-0 20 1 9903-9904 ●
3 BOLT; CYL HD TO BLOCK
M14X140 		1-09070-139-0 24 1 9903-9904 ●
3 BOLT; CYL HD TO BLOCK
M14X140 		1-09070-139-0 24 1 9905- ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X80 FLANGE 		1-09070-138-0 20 1 9905- ● ● ●
4 GUIDE; VLV 1-11721-004-0 20 1 9603-9904 ●
4 GUIDE; VLV 1-11721-004-0 20 1 9905- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-054-0 10 1 9603-9705 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-071-0 10 1 9706-9904 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-071-0 10 1 9905- ● ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-078-0 10 1 9603-9904 ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-078-0 10 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-1 01 1 9603-9603 ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-1 01 1 9604-9606 ●
8 CUP; SEALING,WATER JACKET
(B) OD=12 		1-09600-010-1 20 1 9603-9707 ●
8 CUP; SEALING,WATER JACKET
(A) OD=22 		1-09600-011-2 28 1 9603-9702 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 10 1 9603-9606 ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-1 01 1 9607-9801 ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-1 01 1 9802-9802 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 10 1 9607-9709 ●
8 CUP; SEALING,WATER JACKET
(A) OD=22 		1-09600-011-2 28 1 9703-9904 ●
8 CUP; SEALING,WATER JACKET
(B) OD=12 		1-09600-010-1 20 1 9708-9903 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 10 1 9710-9809 ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-1 01 1 9803-9904 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 10 1 9810-9903 ●
8 CUP; SEALING,WATER JACKET
(B) OD=12 		1-09600-010-1 20 1 9904-9904 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 10 1 9904-9904 ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-2 01 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=12 		1-09600-010-2 20 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=22 		1-09600-011-2 28 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 10 1 9905- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 20 1 9603-9904 ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 20 1 9905- ● ● ●
12 HANGER; ENG,RR 1-11777-164-0 02 1 9603-9904 ●
12 HANGER; ENG,RR 1-11777-164-0 02 1 9905- ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 20 1 9603-9804 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 20 1 9905- ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 20 1 9805-9904 ●
41 BOLT; ENG HANGER
M12X26 		1-09000-535-1 04 1 9603-9904 ●
41 BOLT; ENG HANGER
M12X26 		1-09000-535-1 04 1 9905- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=14.2 		1-09503-050-0 44 1 9603-9904 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=14.2 		1-09503-050-0 44 1 9905- ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-017-0 10 1 9603-9904 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-017-0 10 1 9905- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-592-0 20 1 9603-9904 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-592-0 20 1 9905- ● ● ●
61 CONNECTOR; LEAK OFF PIPE 1-09669-015-0 02 1 9603-9904 ●
61 CONNECTOR; LEAK OFF PIPE 1-09669-015-0 02 1 9905- ● ● ●
62 GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-425-0 01 1 9603-9904 ●
62 GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-425-0 01 1 9905- ● ● ●
63 BOLT; CVR,WATER JACKET
M10X25 FLANGE 		0-28181-025-0 02 1 9603-9904 ●
63 BOLT; CVR,WATER JACKET
M10X25 FLANGE 		0-28181-025-0 02 1 9905- ● ● ●
64 COVER; WATER JACKET 1-11119-013-1 01 1 9603-9904 ●
64 COVER; WATER JACKET 1-11119-013-1 01 1 9905- ● ● ●
65 STUD; ROCKER OIL FEED
M10X88 L=103 		1-09300-025-0 02 1 9603-9904 ●
65 STUD; ROCKER OIL FEED
M10X88 L=103 		1-09300-025-0 02 1 9905- ● ● ●
105 SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 20 1 9603-9904 ●
105 SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 20 1 9905- ● ● ●
145 BRACKET 1-09709-072-0 01 1 9603-9904 ●
145 BRACKET 1-09709-072-0 01 1 9905- ● ● ●
