0-31 — THERMOSTAT AND HOUSING (#46638) — 145 parça

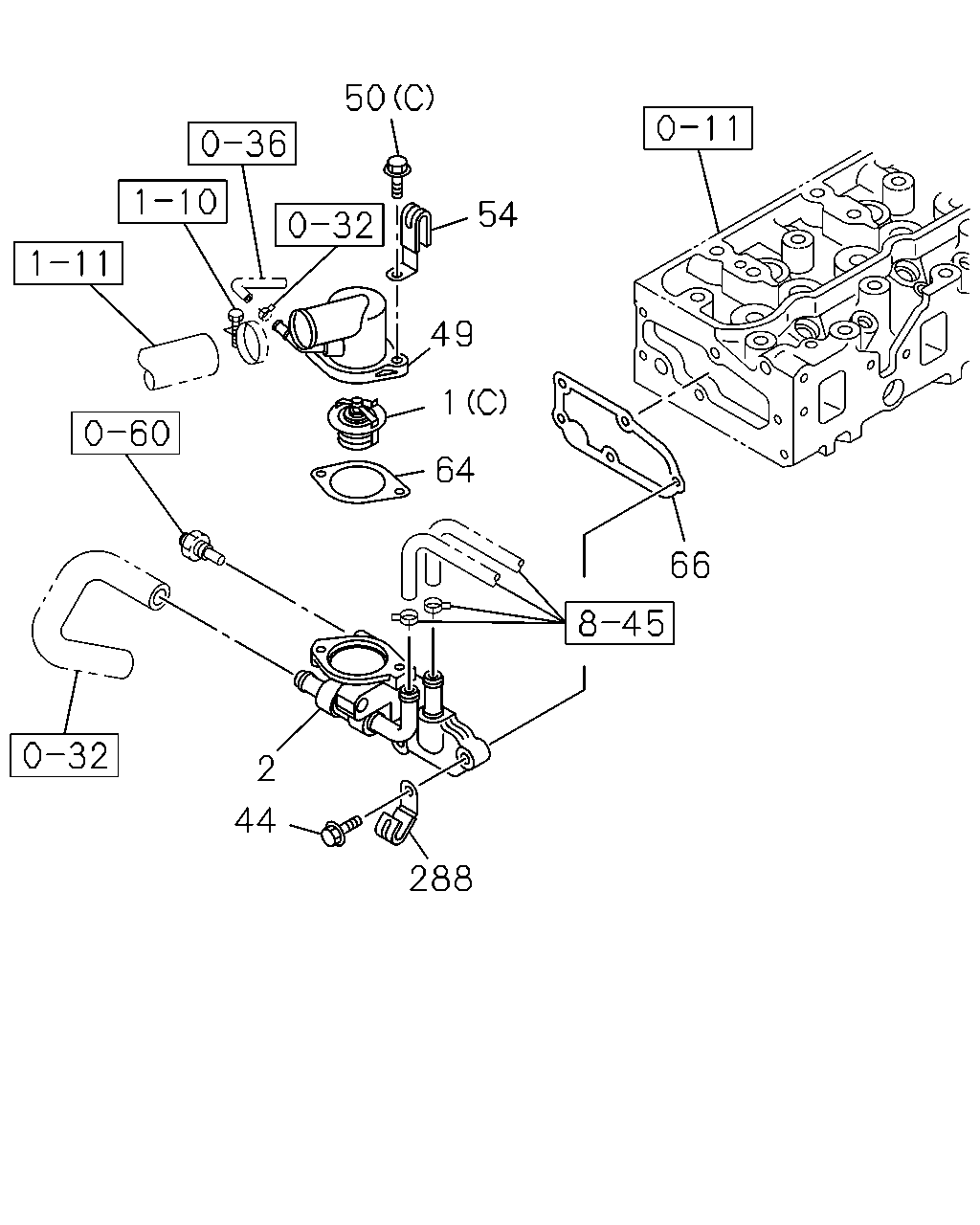

50 54 49 1 64 66 2 44 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0302-0506	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0607-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0302-0506	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-2	01	1	0607-				●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-0506					●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0507-0606						●
1	01.246 THERMOSTAT (D) 85 CELSIUS	8-98017-027-1	01	1	0607-							●
2	01.251 HOUSING; THERMOSTAT	8-97252-416-2	01	1	0302-0312					●
2	01.251 HOUSING; THERMOSTAT	8-97372-989-1	01	1	0401-0506					●
2	01.251 HOUSING; THERMOSTAT	8-97372-989-1	01	1	0507-0606						●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0302-0506					●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0507-0512						●
44	01.252 BOLT; HSG TO HD 09.171 M8X30 W/LK WASHER	0-50540-830-0	05	1	0601-0606						●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	0302-0407	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	0408-0506	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0507-0606		●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0607-				●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0302-0506					●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0507-0606						●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0607-							●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0507-0606		●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0302-0506					●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512						●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0606						●
50	01.252 BOLT; OUTLET PIPE 03.403 (D) M8X30 FLANGE	0-28650-830-0	02	1	0607-							●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0302-0506					●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0507-0606						●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252	8-94365-674-2	01	1	0302-0506					●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252	8-94365-674-2	01	1	0507-0606						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98114-587-0	01	1	0804-							●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0302-0506	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0507-0606		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0607-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0302-0506					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0507-0606						●
288	04.930 CLIP 02.559 ID=12	5-09700-331-0	01	1	0302-0302					●
288	04.930 CLIP 01.150 ID=12	8-97367-983-0	01	1	0303-0506					●
288	04.930 CLIP 01.150 ID=12	8-97367-983-0	01	1	0507-0606						●

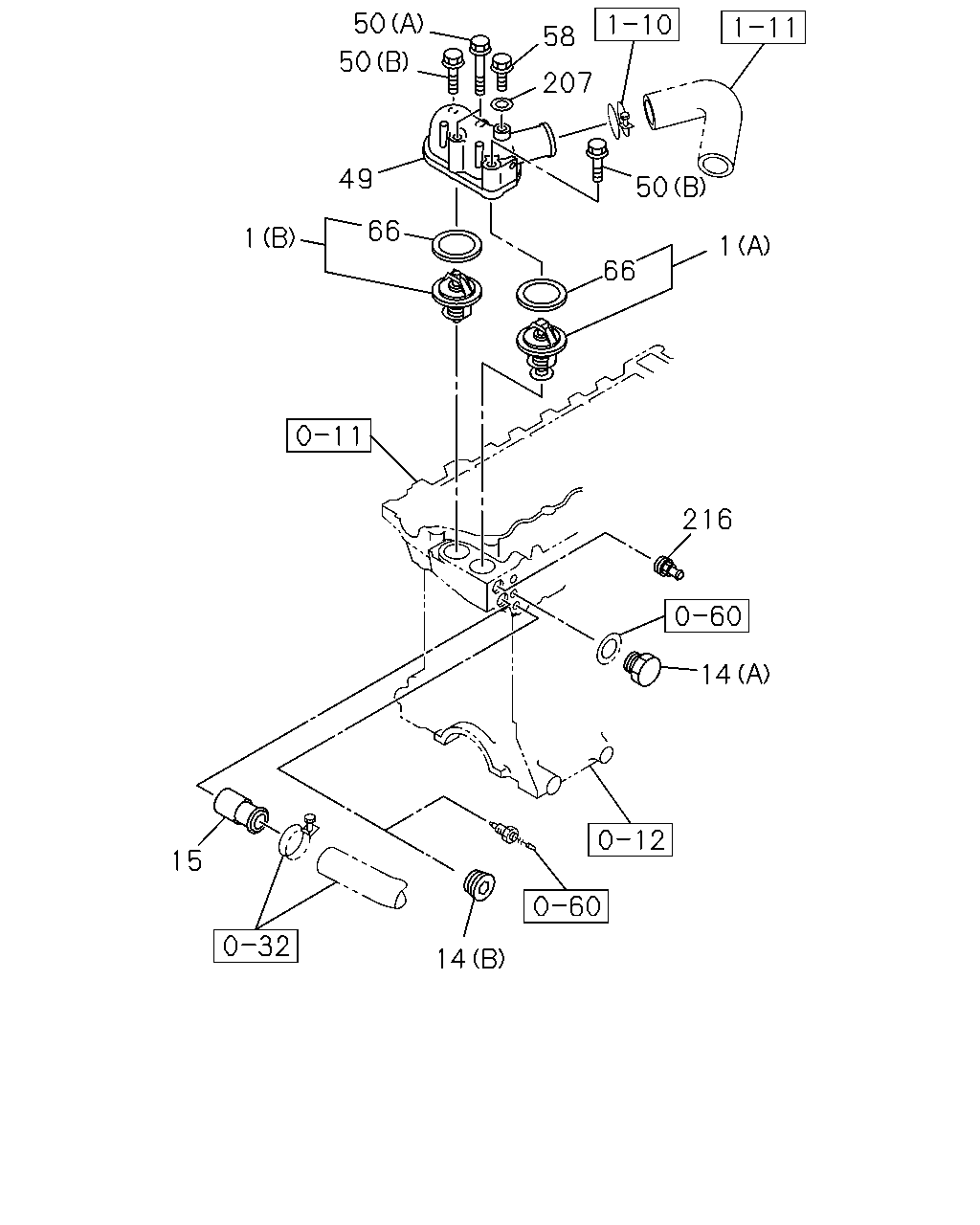

50 58 50 207 49 50 66 1 1 66 216 14 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0302-0506	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0607-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0302-0506	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-2	01	1	0607-				●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-0506					●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0507-0606						●
1	01.246 THERMOSTAT (D) 85 CELSIUS	8-98017-027-1	01	1	0607-							●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	0302-0506	●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	0507-0606		●	●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	0607-				●
14	01.252 PLUG; SW HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> 01.073 (B) PT3/8	5-09605-005-0	01	1	0404-0506	●
14	01.252 PLUG; SW EXC. CERAMIC HEATER<6YX> 01.073 (B) PT3/8	5-09605-005-0	01	1	0507-0606		●	●
14	01.252 PLUG; SW EXC. CERAMIC HEATER<6YX> 01.073 (B) PT3/8	5-09605-005-0	01	1	0607-				●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0302-0506	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0507-0606		●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0607-				●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0607-							●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	0302-0407	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	0408-0506	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0507-0606		●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0607-				●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0302-0506					●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0507-0606						●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0607-							●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0507-0606		●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0302-0506					●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512						●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0606						●
50	01.252 BOLT; OUTLET PIPE 03.403 (D) M8X30 FLANGE	0-28650-830-0	02	1	0607-							●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0302-0506	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0507-0606		●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0607-				●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-							●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98114-587-0	01	1	0804-							●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0302-0506	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0507-0606		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0607-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0302-0506					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0507-0606						●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0302-0506	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0507-0606		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0607-				●			●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	0507-0606		●	●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	0607-				●

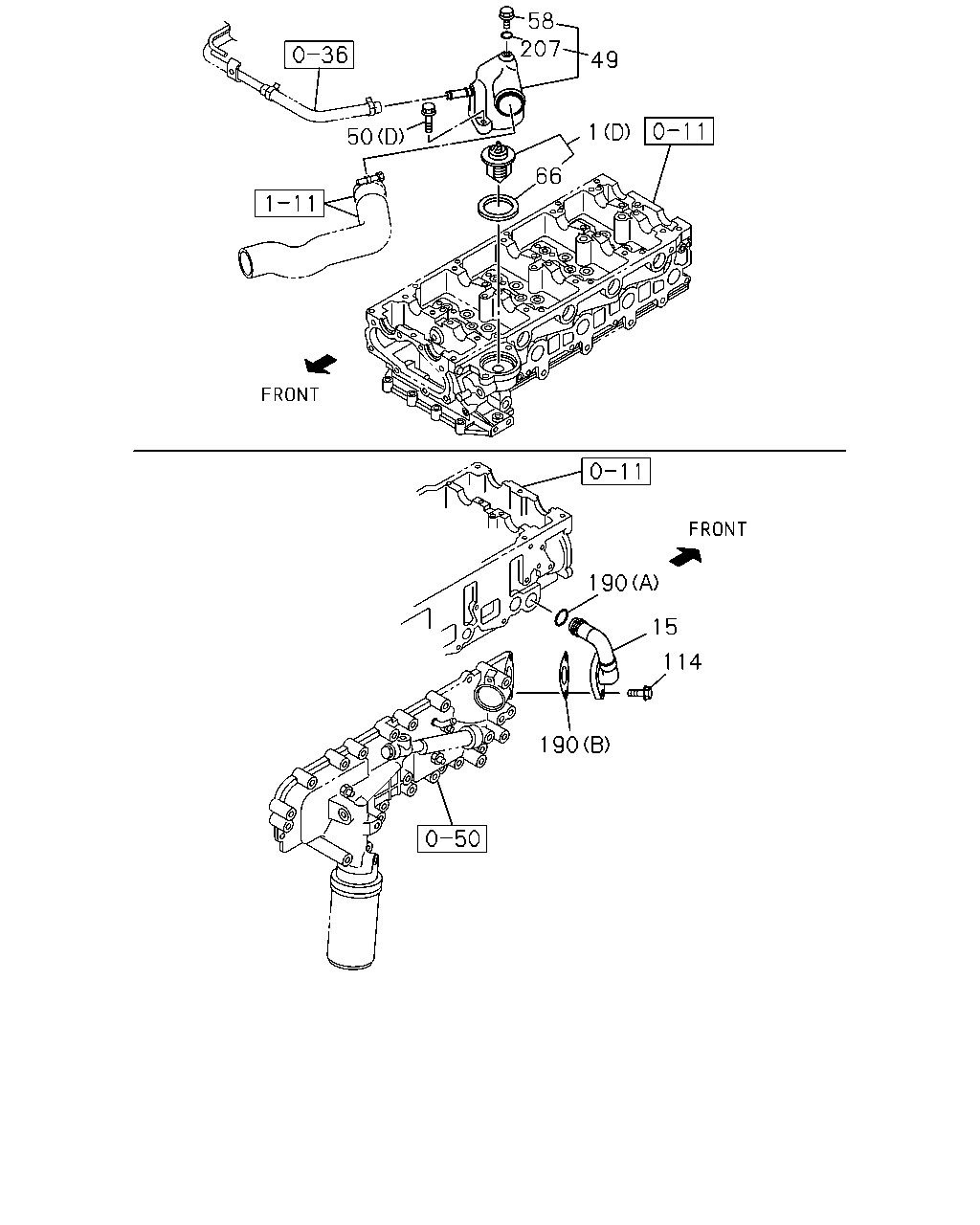

58 207 49 50 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0302-0506	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-2	01	1	0607-				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0302-0506	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-1	01	1	0507-0606		●	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-2	01	1	0607-				●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0302-0506					●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97361-770-0	01	1	0507-0606						●
1	01.246 THERMOSTAT (D) 85 CELSIUS	8-98017-027-1	01	1	0607-							●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0302-0506	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0507-0606		●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0607-				●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0607-							●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	0302-0407	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	0408-0506	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0507-0606		●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0607-				●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0302-0506					●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0507-0606						●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0607-							●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0302-0506	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0507-0606		●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0607-				●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0302-0506					●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0507-0512						●
50	01.252 BOLT; OUTLET PIPE (C) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0606						●
50	01.252 BOLT; OUTLET PIPE 03.403 (D) M8X30 FLANGE	0-28650-830-0	02	1	0607-							●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0302-0506	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0507-0606		●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0607-				●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-							●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98114-587-0	01	1	0804-							●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0302-0506	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0507-0606		●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97300-793-0	02	1	0607-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0302-0506					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97216-156-0	01	1	0507-0606						●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-							●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0607-							●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	0607-							●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0302-0506	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0507-0606		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0607-				●			●
