Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#46634) — 291 parça

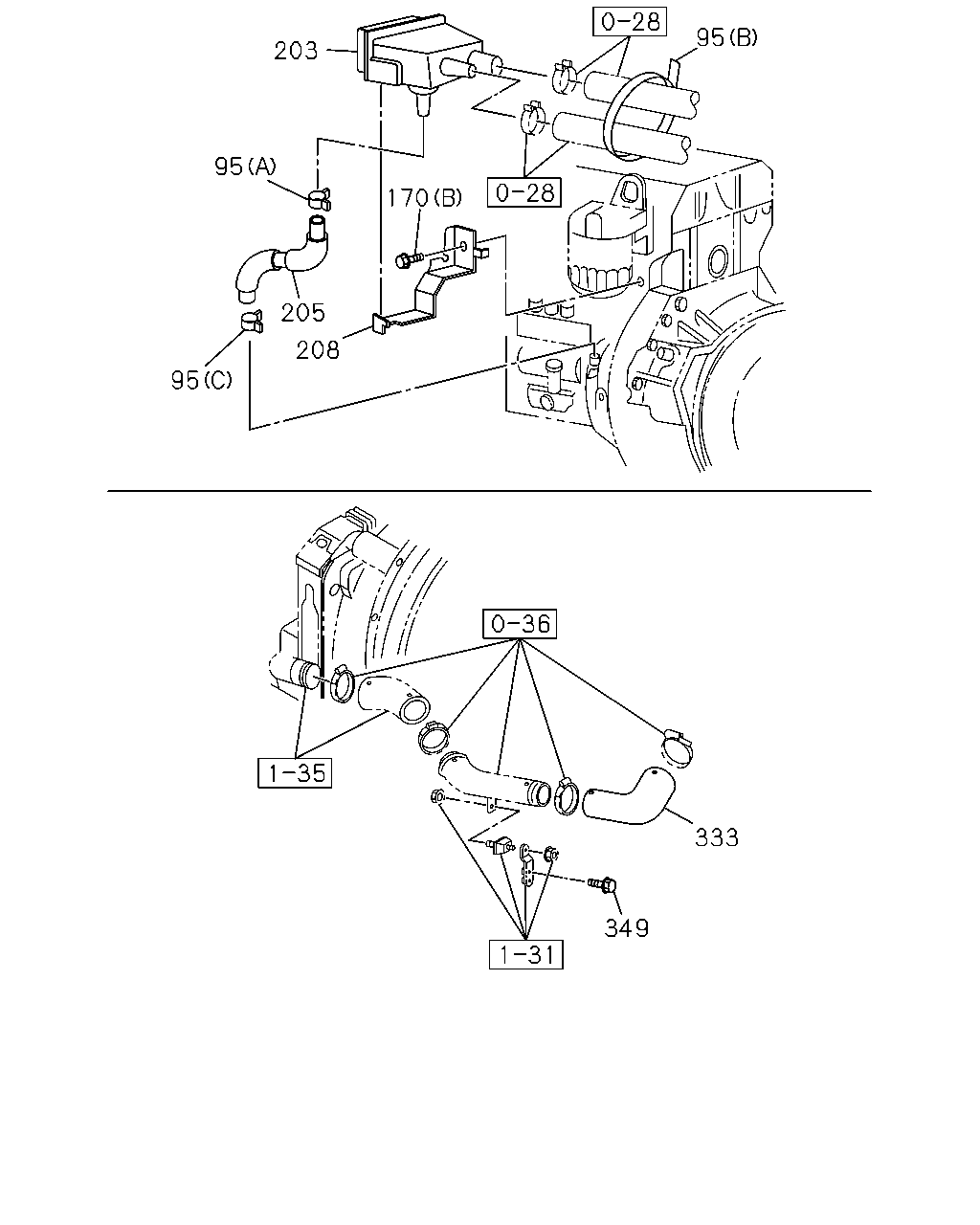

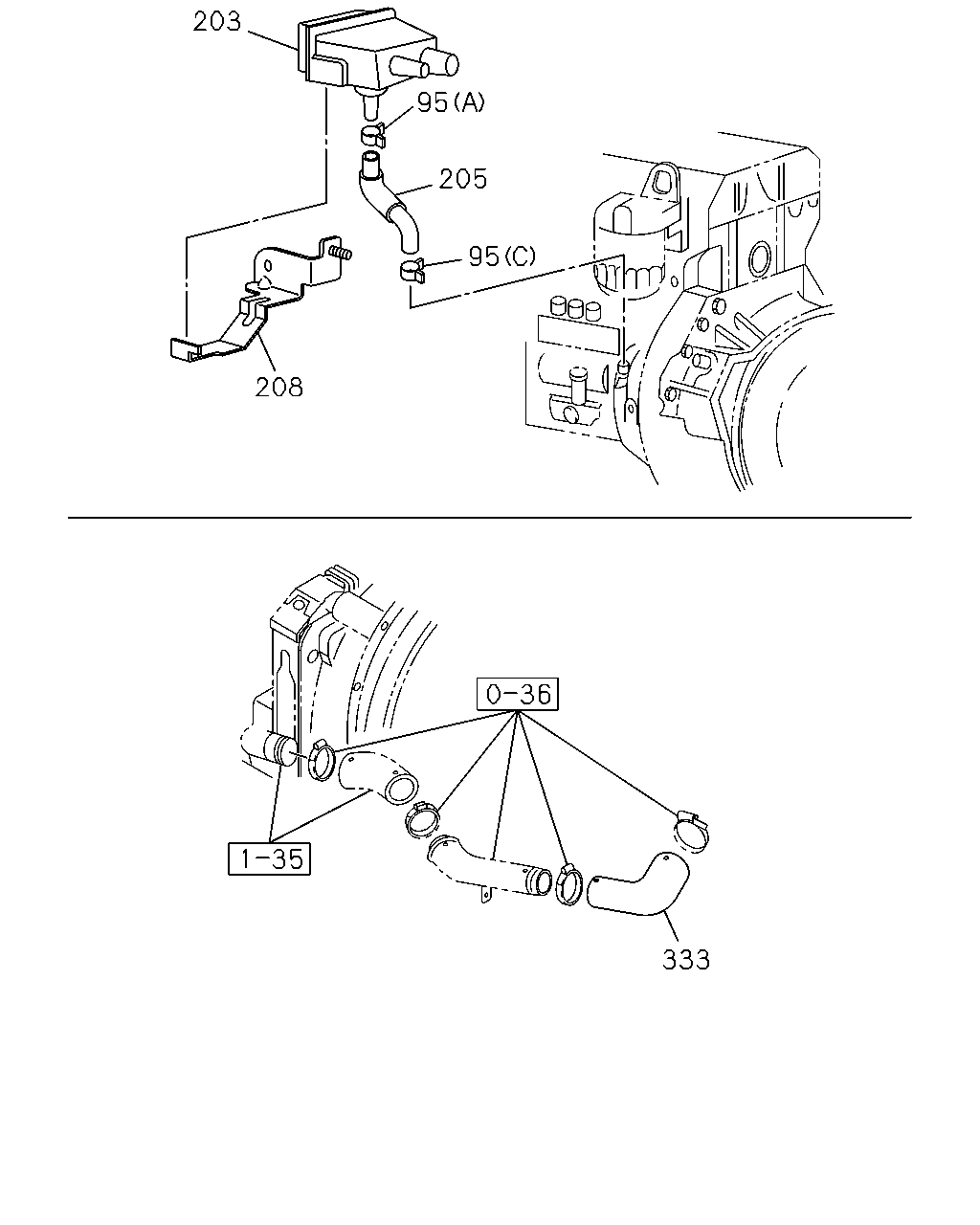

203 95 205 95 208 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
95	03.278 CLIP; RUBBER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0507-0606		●	●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0507-0606		●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0302-0506	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-0606		●	●
205	01.745 HOSE; OIL DRAIN	8-97149-011-1	01	1	0302-0506	●
205	01.745 HOSE; OIL DRAIN	8-97328-223-0	01	1	0507-0606		●	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0302-0506	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-0606		●	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-0	01	1	0302-0506	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0507-0606		●	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0607-0608				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98053-755-0	01	1	0609-				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98018-533-1	01	1	0607-0608					●
333	03.278 HOSE; RUBBER,INL PIPE	8-98056-469-0	01	1	0609-					●

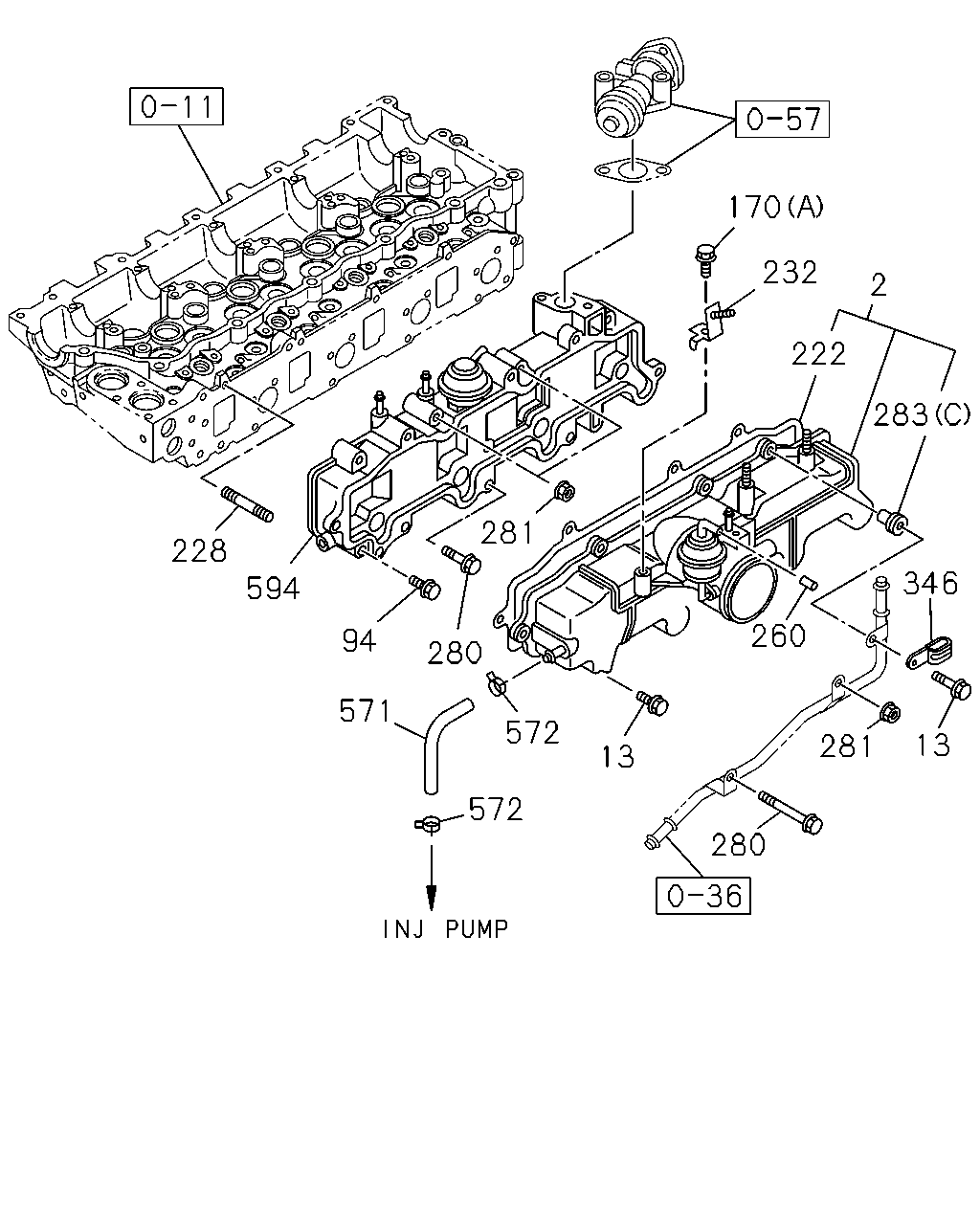

170 232 2 222 283 281 228 346 594 260 94 280 571 572 13 281 13 572 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97219-653-1	01	1	0302-0506	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-0606		●	●
2	03.407 COVER; INL	8-97387-038-0	01	1	0607-				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0302-0506	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0601-0606		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0607-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-					●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506						●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-					●
13	03.275 BOLT; INL MANIF 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0607-				●
94	02.559 BOLT 01.540 M8X45 FLANGE	0-28080-845-0	04	1	0302-0506	●
94	02.559 BOLT 01.780 M8X50 FLANGE	0-28080-850-0	02	1	0302-0506	●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0302-0506	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97219-649-0	01	1	0302-0506	●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0302-0506	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-0606		●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0607-				●
232	03.407 BRACKET; INJ PIPE	8-97190-249-0	01	1	0302-0506	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0302-0506	●
280	03.403 BOLT; INL COVER 09.171 M8X80 FLANGE	0-28080-880-0	01	1	0302-0506	●
281	03.407 NUT; INL COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
283	03.265 RUBBER (C) L=18	8-97219-650-0	09	1	0302-0506	●
283	03.265 RUBBER (B) L=18	8-97219-650-0	02	1	0607-				●
283	03.265 RUBBER (A) L=58	8-97387-995-1	02	1	0607-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0302-0506	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0606		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0607-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-				●
571	03.265 HOSE; AIR BOOST L=350	8-97304-609-1	01	1	0302-0506	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0302-0506	●
594	03.278 CASE	8-97230-991-0	01	1	0302-0503	●
594	03.278 CASE	8-98011-006-0	01	1	0504-0506	●

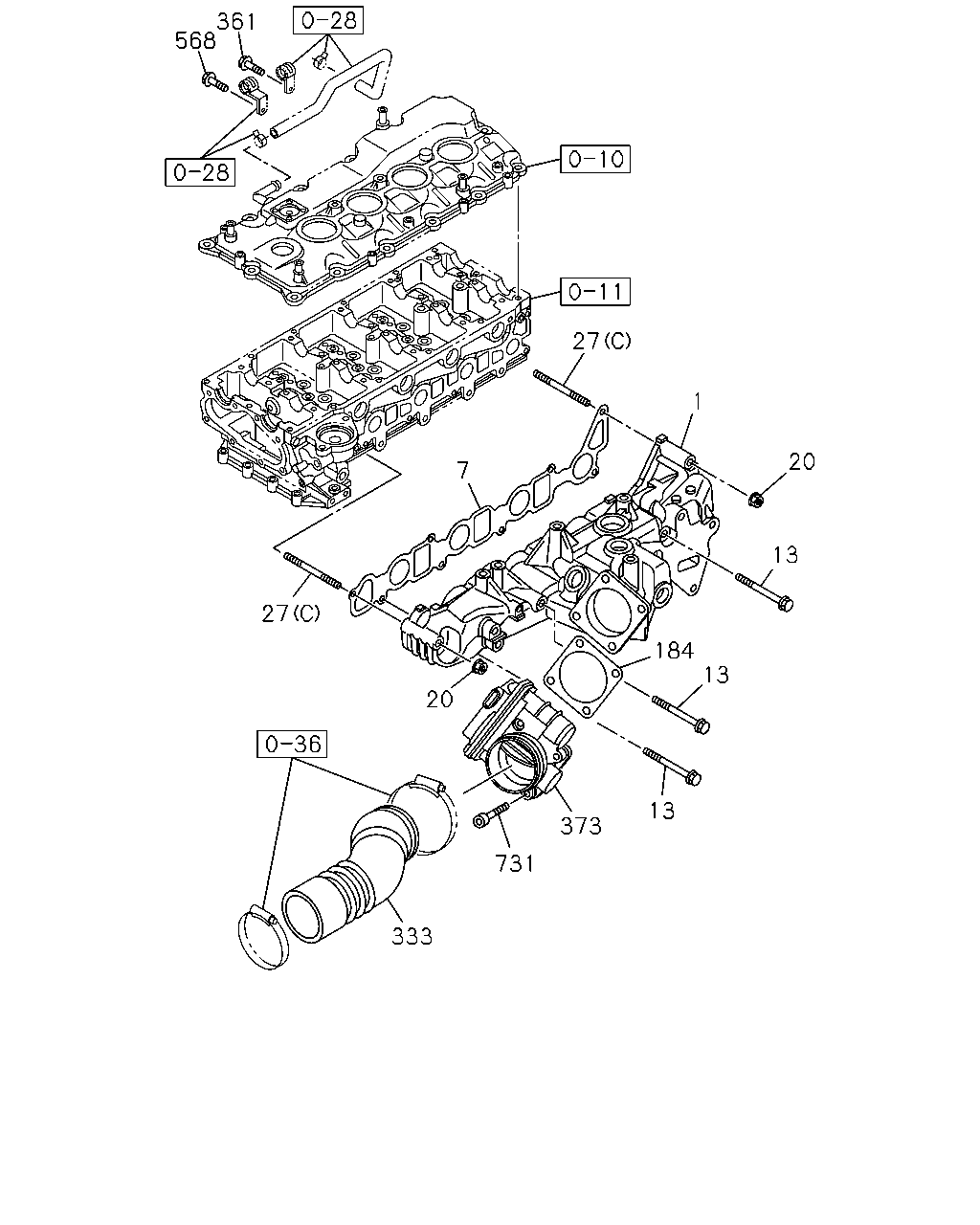

361 568 27 1 20 7 13 27 184 13 20 13 373 731 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0302-0506						●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0507-0606							●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0607-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97301-838-0	01	1	0302-0506						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97301-838-1	01	1	0507-0606							●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97312-067-1	01	1	0607-0902					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98063-396-0	01	1	0903-1211					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98212-999-0	01	1	1212-					●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0302-0506	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0601-0606		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0607-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-					●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506						●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-					●
13	03.275 BOLT; INL MANIF 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0607-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606							●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0302-0506						●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0507-0604							●
27	03.275 STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0606							●
27	03.275 STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0607-					●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0302-0506						●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0507-0606							●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.406	8-97035-883-1	01	1	0302-0506						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.406	8-97035-883-1	01	1	0507-0606							●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97366-784-1	01	1	0607-0902					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98096-968-0	01	1	0903-					●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-0	01	1	0302-0506	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0507-0606		●	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0607-0608				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98053-755-0	01	1	0609-				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98018-533-1	01	1	0607-0608					●
333	03.278 HOSE; RUBBER,INL PIPE	8-98056-469-0	01	1	0609-					●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
361	03.278 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0607-					●
373	03.265 THROTTLE ASM; INT 03.440	8-97312-210-2	01	1	0607-0608					●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	0609-					●
568	03.330 BOLT; PIPE M8X12 HEX SOCKET	0-58330-812-0	01	1	0607-					●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0607-					●

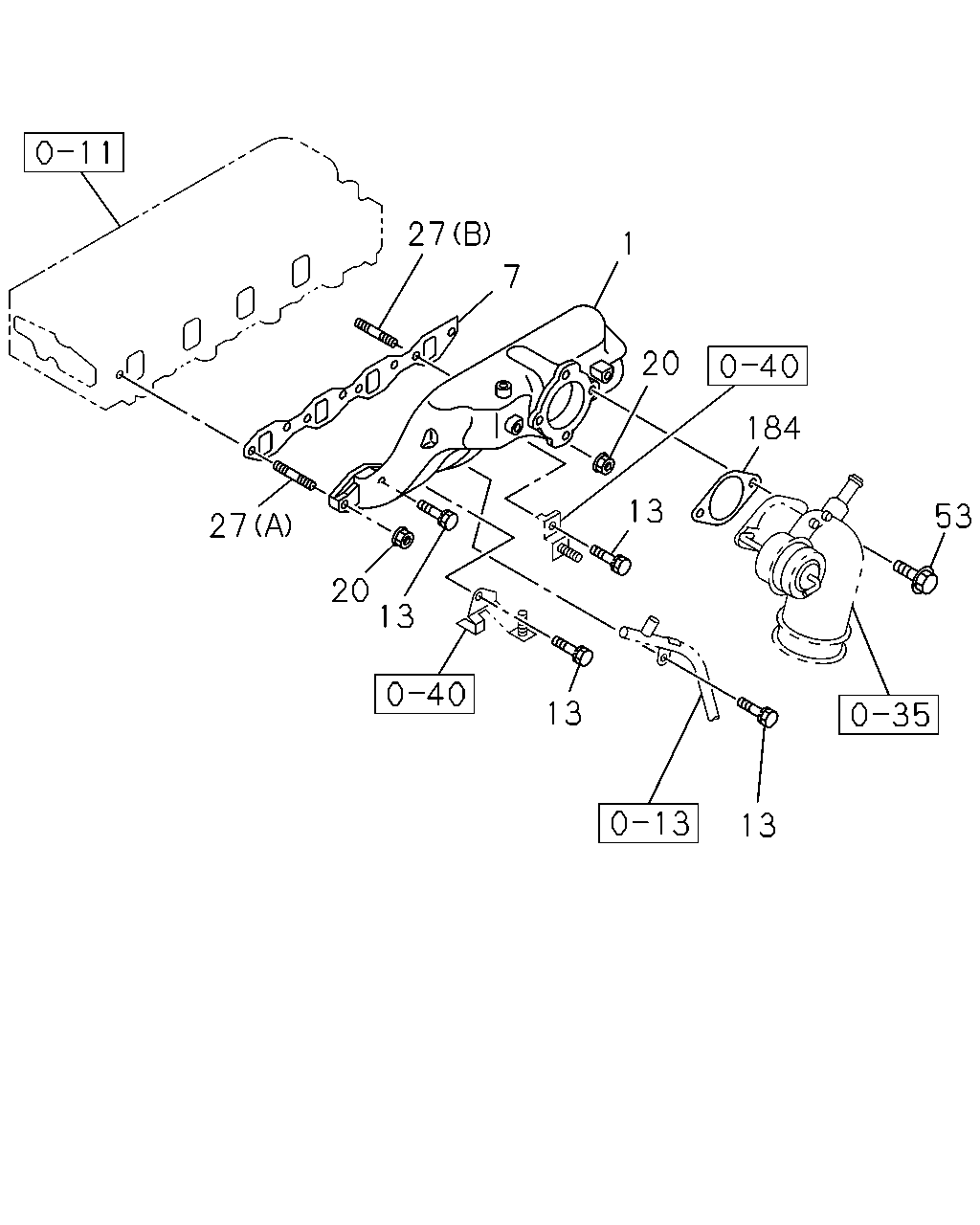

27 1 7 20 184 13 53 27 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0302-0506						●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0507-0606							●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0607-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97301-838-0	01	1	0302-0506						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97301-838-1	01	1	0507-0606							●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97312-067-1	01	1	0607-0902					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98063-396-0	01	1	0903-1211					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98212-999-0	01	1	1212-					●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0302-0506	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0601-0606		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0607-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-					●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506						●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-					●
13	03.275 BOLT; INL MANIF 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0607-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606							●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0302-0506						●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0507-0604							●
27	03.275 STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0606							●
27	03.275 STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0607-					●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0302-0506						●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0507-0606							●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0302-0506						●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0507-0512							●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-0606							●
53	03.602 BOLT; INL PIPE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 00.206 M8X70 FLANGE	0-28050-870-0	01	1	0607-				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.406	8-97035-883-1	01	1	0302-0506						●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.406	8-97035-883-1	01	1	0507-0606							●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97366-784-1	01	1	0607-0902					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-98096-968-0	01	1	0903-					●

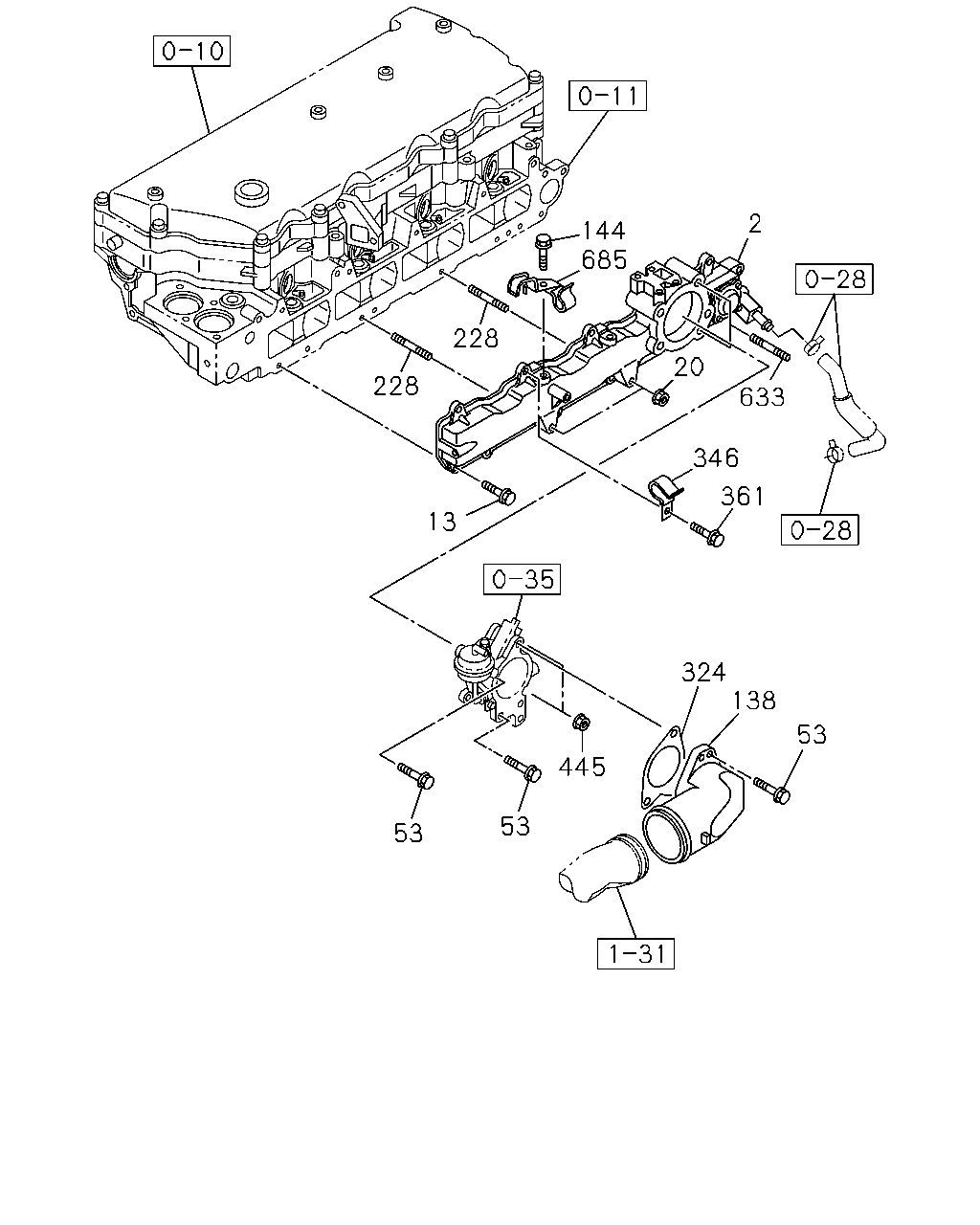

2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97219-653-1	01	1	0302-0506	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-0606		●	●
2	03.407 COVER; INL	8-97387-038-0	01	1	0607-				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0302-0506	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0601-0606		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0607-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-					●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506						●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-					●
13	03.275 BOLT; INL MANIF 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0607-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606							●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0302-0506						●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0507-0512							●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-0606							●
53	03.602 BOLT; INL PIPE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 00.206 M8X70 FLANGE	0-28050-870-0	01	1	0607-				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-				●
138	03.265 PIPE; INL	8-98001-263-0	01	1	0507-0606		●	●
144	03.275 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0302-0506	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-0606		●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0607-				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97306-025-0	01	1	0507-0606		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0302-0506	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0606		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0607-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-				●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
361	03.278 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0607-					●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●
633	03.275 STUD; THROTTLE BODY 03.901 M8X25 L=37	9-04110-825-0	01	1	0507-0604		●	●
633	03.275 STUD; THROTTLE BODY M8X25 L=37	0-41010-825-0	01	1	0605-0606		●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0607-				●
633	03.275 STUD; THROTTLE BODY 00.413 M8X55 L=67	9-04110-855-0	01	1	0507-0604		●	●
633	03.275 STUD; THROTTLE BODY 01.097 M8X55 L=67	0-41010-855-0	01	1	0605-0606		●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0507-0606		●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0607-				●

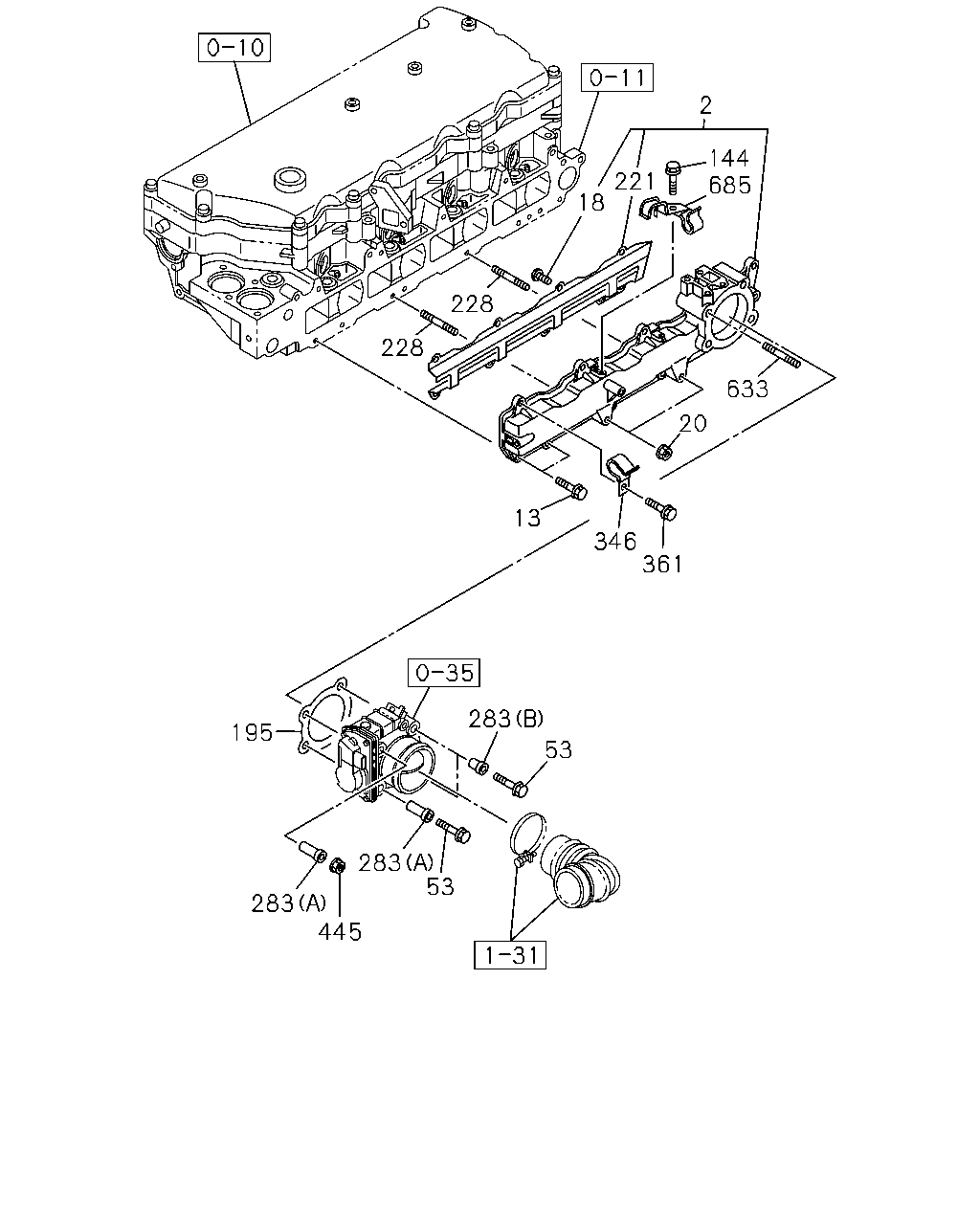

2 144 685 221 18 228 228 633 20 13 346 361 283 195 53 283 53 283 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97219-653-1	01	1	0302-0506	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-0606		●	●
2	03.407 COVER; INL	8-97387-038-0	01	1	0607-				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	06	1	0302-0506	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0601-0606		●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE	0-28050-830-0	09	1	0607-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-					●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506						●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512							●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606							●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-					●
13	03.275 BOLT; INL MANIF 01.252 M8X80 FLANGE	0-28050-880-0	01	1	0607-				●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	0607-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606							●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-					●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0302-0506						●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0507-0512							●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-0606							●
53	03.602 BOLT; INL PIPE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 00.206 M8X70 FLANGE	0-28050-870-0	01	1	0607-				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0601-0606		●	●
53	03.602 BOLT; INL PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-				●
144	03.275 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
195	03.729 GASKET; THROTTLE BODY INJECTOR	8-97387-009-0	01	1	0607-				●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	0607-				●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0302-0506	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-0606		●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0607-				●
283	03.265 RUBBER (C) L=18	8-97219-650-0	09	1	0302-0506	●
283	03.265 RUBBER (B) L=18	8-97219-650-0	02	1	0607-				●
283	03.265 RUBBER (A) L=58	8-97387-995-1	02	1	0607-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0302-0506	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0606		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0607-0801				●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-				●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-				●
361	03.278 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0607-					●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●
633	03.275 STUD; THROTTLE BODY 03.901 M8X25 L=37	9-04110-825-0	01	1	0507-0604		●	●
633	03.275 STUD; THROTTLE BODY M8X25 L=37	0-41010-825-0	01	1	0605-0606		●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0607-				●
633	03.275 STUD; THROTTLE BODY 00.413 M8X55 L=67	9-04110-855-0	01	1	0507-0604		●	●
633	03.275 STUD; THROTTLE BODY 01.097 M8X55 L=67	0-41010-855-0	01	1	0605-0606		●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0507-0606		●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0607-				●

95 203 95 170 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
95	03.278 CLIP; RUBBER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0507-0606		●	●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0302-0506	●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0507-0606		●	●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0302-0506	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0302-0506	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-0606		●	●
205	01.745 HOSE; OIL DRAIN	8-97149-011-1	01	1	0302-0506	●
205	01.745 HOSE; OIL DRAIN	8-97328-223-0	01	1	0507-0606		●	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0302-0506	●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-0606		●	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-0	01	1	0302-0506	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0507-0606		●	●
333	03.278 HOSE; RUBBER,INL PIPE	8-97189-631-1	01	1	0607-0608				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98053-755-0	01	1	0609-				●
333	03.278 HOSE; RUBBER,INL PIPE	8-98018-533-1	01	1	0607-0608					●
333	03.278 HOSE; RUBBER,INL PIPE	8-98056-469-0	01	1	0609-					●
349	03.417 BOLT; BRKT,INL PIPE 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0302-0506	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
