◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#46630) — 739 parça

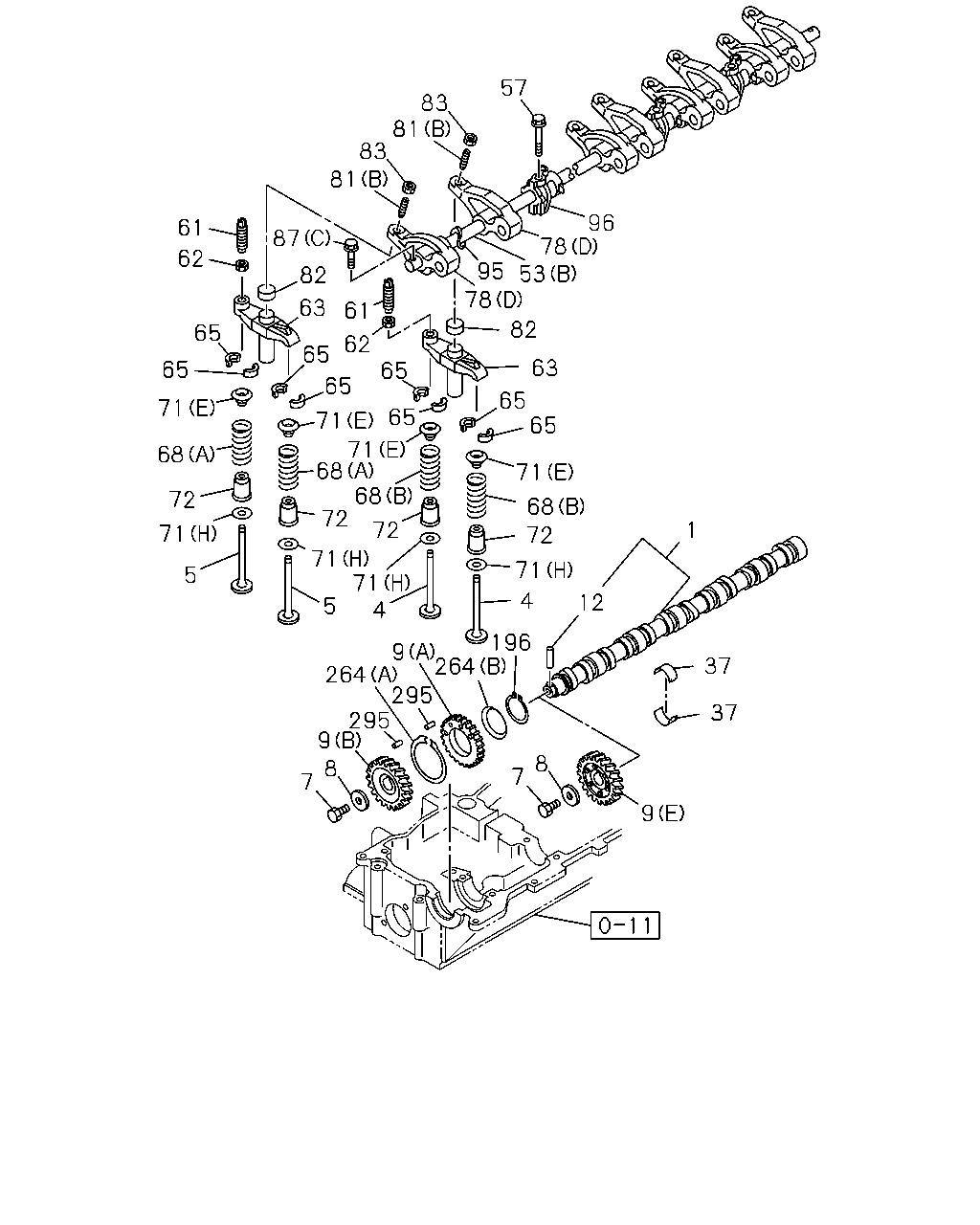

çizim 13367
57 83 81 83 81 96 78 53 78 87 61 62 95 82 63 61 82 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 72 68 71 72 68 72 1 71 72 71 71 4 71 5 4 12 5 196 264 9 295 295 9 8 37 264 37 8 7 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.519 CAMSHAFT 8-97077-830-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0507-0606 ● ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0607- ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97287-657-1 01 1 0507-0606 ●
4 00.296 VALVE; INL 8-97033-864-2 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-94395-882-0 08 1 0507-0606 ● ●
4 00.296 VALVE; INL 8-94395-882-2 08 1 0607- ●
4 00.296 VALVE; INL 8-97131-729-0 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-97131-729-2 04 1 0507-0606 ●
4 00.296 VALVE; INL 8-98016-973-0 08 1 0607- ●
5 00.297 VALVE; EXH 8-97219-509-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97209-876-2 08 1 0507-0606 ● ●
5 00.297 VALVE; EXH 8-97209-876-3 08 1 0607- ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0507-0606 ●
5 00.297 VALVE; EXH 8-98016-974-1 08 1 0607- ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0302-0506 ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0507-0606 ● ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0607- ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0302-0506 ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0507-0606 ● ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0607- ●
9 00.736 GEAR; CM/SHF
(C) Z=35 		8-97094-440-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(A) SUB Z=35 		8-97300-972-2 01 1 0507-0606 ● ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0507-0606 ●
9 00.736 GEAR; CM/SHF
(E) Z=35 		8-98018-935-3 01 1 0607- ●
9 00.736 GEAR; CM/SHF
(B) MAIN Z=35 		8-97309-327-2 01 1 0507-0606 ● ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 02 1 0607- ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 01 1 0302-0506 ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 01 1 0507-0606 ● ●
37 00.539 METAL; CM/SHF
B=16 		8-97356-939-0 10 1 0302-0506 ●
37 00.539 METAL; CM/SHF
B=16 		8-97356-939-0 10 1 0507-0606 ● ●
37 00.539 METAL; CM/SHF
B=16 		8-97386-189-0 10 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(E) INLET 		8-97364-809-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(E) EXHAUST 		8-97364-811-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(A) JBK 		8-97074-617-1 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97306-426-2 01 1 0507-0606 ● ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-918-0 01 1 0607-0610 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-921-0 01 1 0611- ●
53 00.353 SHAFT; ROCKER ARM
(A) KEIHIN SEIMITSU 		8-97174-567-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0507-0606 ●
53 00.353 SHAFT; ROCKER ARM
(D) INLET 		8-98025-071-1 04 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(D) EXHAUST 		8-98025-074-1 04 1 0607- ●
57 00.349 BOLT; ROCKER ARM BRKT
M10X62 FLANGE 		8-94393-131-0 03 1 0507-0606 ● ●
57 00.349 BOLT; ROCKER ARM BRKT
M10X62 FLANGE 		8-94393-131-0 03 1 0607- ●
61 00.349 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 08 1 0507-0606 ● ●
61 00.349 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 08 1 0607- ●
62 00.349 NUT; ADJ SCREW LK BRIDGE
00.429 M8 FLANGE 		9-09844-574-0 08 1 0507-0606 ● ●
62 00.349 NUT; ADJ SCREW LK BRIDGE
00.429 M8 FLANGE 		9-09844-574-0 08 1 0607- ●
63 00.349 BRIDGE 8-94392-002-3 08 1 0507-0606 ● ●
63 00.349 BRIDGE 8-94392-002-3 08 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-006-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0507-0606 ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0507-0606 ●
65 00.310 COLLAR; SPLIT 8-94239-501-0 32 1 0607- ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0302-0506 ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0507-0606 ●
68 00.303 SPRING; VLV
(D) INLET H=49 NATURAL 		8-97311-669-0 08 1 0607- ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0607- ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0607- ●
68 00.303 SPRING; VLV
(D) EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 0607- ●
71 00.309 SEAT; SPR
(H) ID=14.3 T=1.0 		8-94391-468-0 16 1 0708- ●
71 00.309 SEAT; SPR
(A) OD=38 		8-94385-029-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0507-0606 ● ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0607- ●
71 00.309 SEAT; SPR
(B) ID=14.3 OD=40 		8-94399-526-1 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(F) 		8-97144-584-0 16 1 0607- ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(G) 		8-98017-067-0 16 1 0607- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94396-609-2 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0507-0606 ● ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0607-0707 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97376-720-0 16 1 0708- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0507-0606 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97328-647-0 16 1 0607- ●
78 00.333 ARM; ROCKER
(F) OTICS 		8-98029-537-5 16 1 1001- ●
78 00.333 ARM; ROCKER
(B) JBK 		8-97014-258-2 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(A) JBK 		8-97074-614-1 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(A) KEIHIN SEIMITSU 		8-97174-562-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(B) KEIHIN SEIMITSU 		8-97174-565-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0507-0606 ●
78 00.333 ARM; ROCKER
00.353 (E) JBK 		8-98025-059-3 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(E) M8 L=22 		8-98029-893-0 16 1 1001- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(D) M8 L=22 		8-98025-497-0 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(A) 		8-94367-526-2 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0507-0606 ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0507-0606 ●
82 00.356 CAP; ROCKER SHAFT
00.303 		8-94396-015-2 08 1 0507-0606 ● ●
82 00.356 CAP; ROCKER SHAFT
00.303 		8-94396-015-2 08 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0507-0512 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0601-0606 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0507-0512 ●
83 00.787 NUT; ADJ SCREW,LK
00.777 M8 		0-91111-508-0 08 1 0601-0606 ●
87 00.349 BOLT; ROCKER SHAFT
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 02 1 0507-0512 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0606 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
(E) M8X25 HEX SOCKET 		0-58330-825-0 08 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(D) M8X40 HEX SOCKET 		0-58330-840-0 08 1 0607- ●
95 00.376 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0507-0606 ● ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0607- ●
95 00.376 SPRING; ROCKER SHAFT
KEIHIN SEIMITSU 		8-97174-654-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0507-0606 ●
96 00.349 BRACKET; ROCKER ARM SHAFT 8-97334-414-0 03 1 0507-0606 ● ●
96 00.349 BRACKET; ROCKER ARM SHAFT 8-97334-414-0 03 1 0607- ●
196 00.724 RING; SNAP 8-97245-684-1 02 1 0302-0506 ●
196 00.724 RING; SNAP 8-97245-684-1 02 1 0507-0606 ●
196 00.724 RING; SNAP
04.545 ID=50.8 		9-09180-055-0 01 1 0507-0606 ● ●
264 00.349 SPRING; GEAR
(A) 		8-97190-117-1 01 1 0507-0606 ● ●
264 00.349 SPRING; GEAR
(B) 		8-97190-118-1 01 1 0507-0606 ● ●
295 00.533 PIN; CM/SHF GEAR
OD=4 L=8.0 		8-97213-454-0 02 1 0507-0606 ● ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●

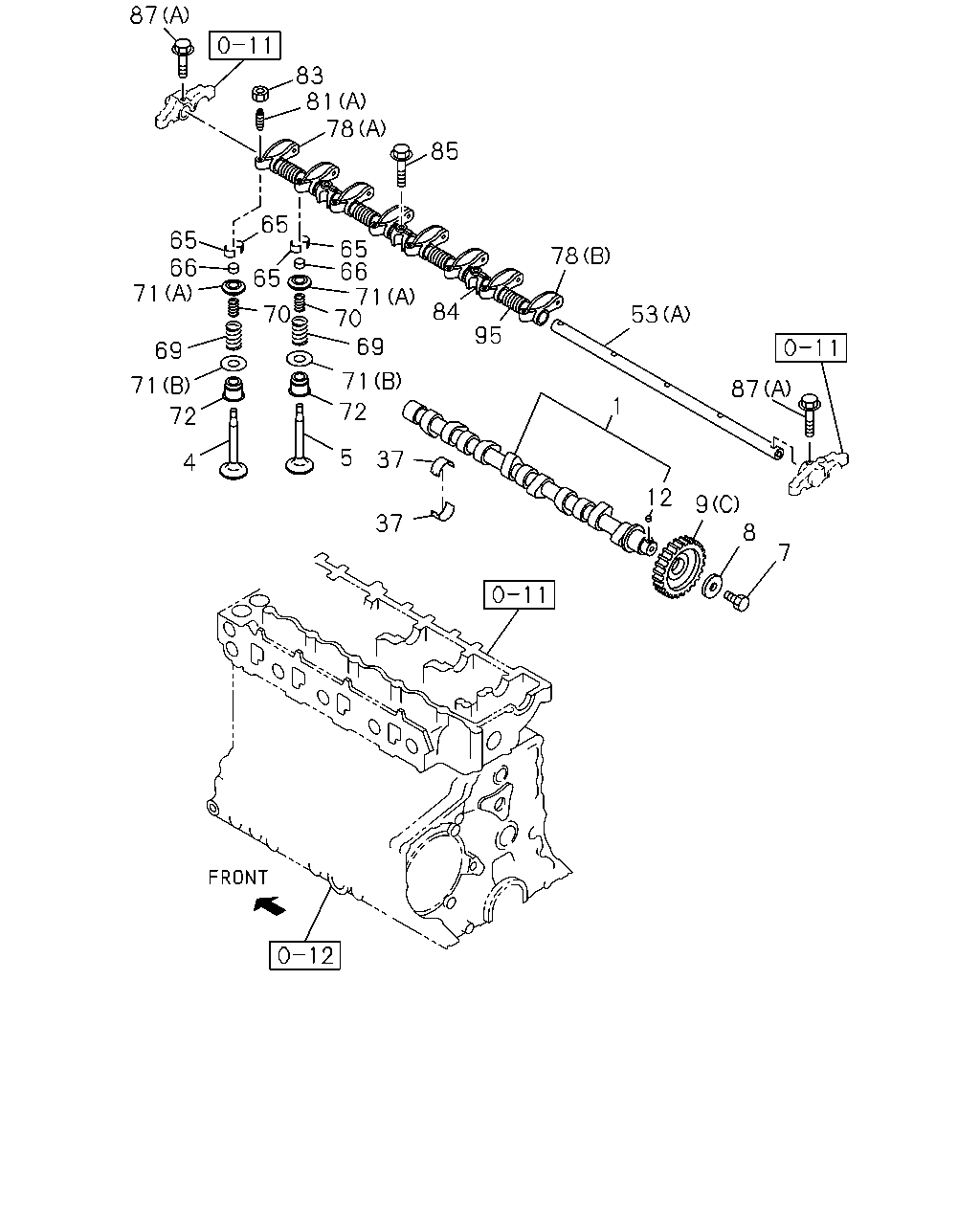

çizim 13769
87 83 81 78 85 65 65 66 71 65 66 71 70 69 78 65 70 84 53 95 69 71 71 87 1 72 72 5 37 4 12 9 8 37 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.519 CAMSHAFT 8-97077-830-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0507-0606 ● ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0607- ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97287-657-1 01 1 0507-0606 ●
4 00.296 VALVE; INL 8-97033-864-2 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-94395-882-0 08 1 0507-0606 ● ●
4 00.296 VALVE; INL 8-94395-882-2 08 1 0607- ●
4 00.296 VALVE; INL 8-97131-729-0 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-97131-729-2 04 1 0507-0606 ●
4 00.296 VALVE; INL 8-98016-973-0 08 1 0607- ●
5 00.297 VALVE; EXH 8-97219-509-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97209-876-2 08 1 0507-0606 ● ●
5 00.297 VALVE; EXH 8-97209-876-3 08 1 0607- ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0507-0606 ●
5 00.297 VALVE; EXH 8-98016-974-1 08 1 0607- ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0302-0506 ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0507-0606 ● ●
7 00.738 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0607- ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0302-0506 ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0507-0606 ● ●
8 00.738 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0607- ●
9 00.736 GEAR; CM/SHF
(C) Z=35 		8-97094-440-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(A) SUB Z=35 		8-97300-972-2 01 1 0507-0606 ● ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0507-0606 ●
9 00.736 GEAR; CM/SHF
(E) Z=35 		8-98018-935-3 01 1 0607- ●
9 00.736 GEAR; CM/SHF
(B) MAIN Z=35 		8-97309-327-2 01 1 0507-0606 ● ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 02 1 0607- ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 01 1 0302-0506 ●
12 00.738 KEY; CAM GEAR SET 8-94399-487-0 01 1 0507-0606 ● ●
37 00.539 METAL; CM/SHF
B=16 		8-97356-939-0 10 1 0302-0506 ●
37 00.539 METAL; CM/SHF
B=16 		8-97356-939-0 10 1 0507-0606 ● ●
37 00.539 METAL; CM/SHF
B=16 		8-97386-189-0 10 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(E) INLET 		8-97364-809-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(E) EXHAUST 		8-97364-811-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(A) JBK 		8-97074-617-1 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97306-426-2 01 1 0507-0606 ● ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-918-0 01 1 0607-0610 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-921-0 01 1 0611- ●
53 00.353 SHAFT; ROCKER ARM
(A) KEIHIN SEIMITSU 		8-97174-567-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0507-0606 ●
53 00.353 SHAFT; ROCKER ARM
(D) INLET 		8-98025-071-1 04 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(D) EXHAUST 		8-98025-074-1 04 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-006-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0507-0606 ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0507-0606 ●
65 00.310 COLLAR; SPLIT 8-94239-501-0 32 1 0607- ●
66 00.303 CAP; VLV STEM END 8-94396-015-2 08 1 0302-0506 ●
66 00.303 CAP; VLV STEM END 8-98029-870-1 16 1 0607-0910 ●
66 00.303 CAP; VLV STEM END 8-98147-945-0 16 1 0911- ●
69 00.303 SPRING; VLV,OUTER
EXHAUST MARK GREEN 		8-97120-905-0 04 1 0302-0506 ●
69 00.303 SPRING; VLV,OUTER
INLET MARK PINK 		8-97120-912-0 04 1 0302-0506 ●
70 00.303 SPRING; VLV,INNER
EXHAUST MARK GREEN 		8-97120-899-0 04 1 0302-0506 ●
70 00.303 SPRING; VLV,INNER
INLET MARK PINK 		8-97120-911-0 04 1 0302-0506 ●
71 00.309 SEAT; SPR
(H) ID=14.3 T=1.0 		8-94391-468-0 16 1 0708- ●
71 00.309 SEAT; SPR
(A) OD=38 		8-94385-029-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0507-0606 ● ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0607- ●
71 00.309 SEAT; SPR
(B) ID=14.3 OD=40 		8-94399-526-1 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(F) 		8-97144-584-0 16 1 0607- ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(G) 		8-98017-067-0 16 1 0607- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94396-609-2 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0507-0606 ● ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0607-0707 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97376-720-0 16 1 0708- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0507-0606 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97328-647-0 16 1 0607- ●
78 00.333 ARM; ROCKER
(F) OTICS 		8-98029-537-5 16 1 1001- ●
78 00.333 ARM; ROCKER
(B) JBK 		8-97014-258-2 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(A) JBK 		8-97074-614-1 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(A) KEIHIN SEIMITSU 		8-97174-562-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(B) KEIHIN SEIMITSU 		8-97174-565-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0507-0606 ●
78 00.333 ARM; ROCKER
00.353 (E) JBK 		8-98025-059-3 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(E) M8 L=22 		8-98029-893-0 16 1 1001- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(D) M8 L=22 		8-98025-497-0 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(A) 		8-94367-526-2 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0507-0606 ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0507-0606 ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0507-0512 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0601-0606 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0507-0512 ●
83 00.787 NUT; ADJ SCREW,LK
00.777 M8 		0-91111-508-0 08 1 0601-0606 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 03 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU 		8-97174-568-0 03 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 0507-0606 ●
85 00.349 BOLT; BRKT
JBK M10X62 FLANGE 		8-94393-131-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
KEIHIN SEIMITSU M10X62 FLANGE 		8-97174-650-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
M8X15,M10X60 L=82 		8-94433-304-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
M8X15,M10X60 L=82 		8-94433-304-0 03 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 02 1 0507-0512 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0606 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
(E) M8X25 HEX SOCKET 		0-58330-825-0 08 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(D) M8X40 HEX SOCKET 		0-58330-840-0 08 1 0607- ●
95 00.376 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0507-0606 ● ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0607- ●
95 00.376 SPRING; ROCKER SHAFT
KEIHIN SEIMITSU 		8-97174-654-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0507-0606 ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●

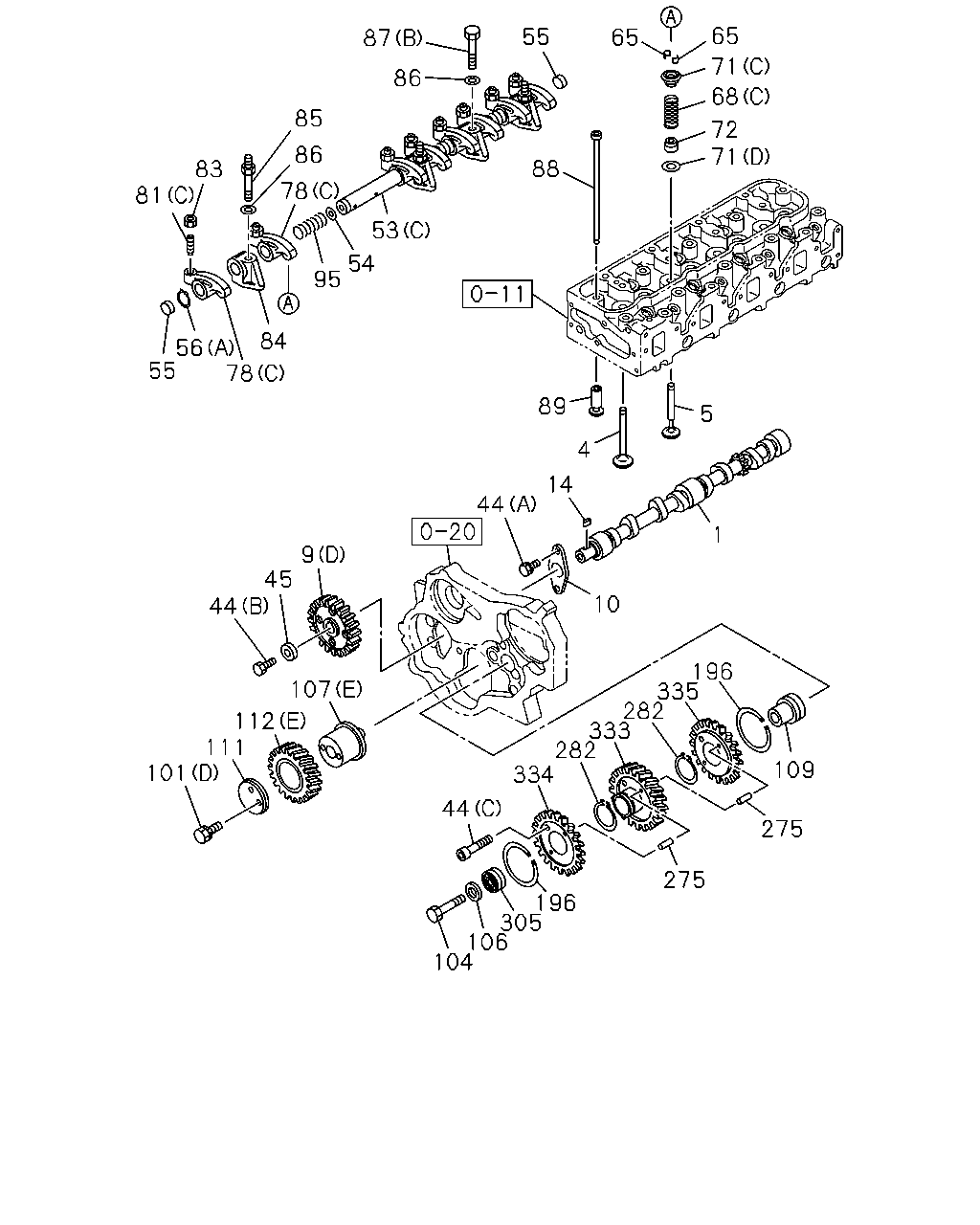

çizim 14095
65 55 65 87 71 86 68 85 72 71 86 88 83 81 78 53 54 95 84 56 55 78 89 5 4 14 44 1 9 45 44 10 196 335 282 333 282 334 107 112 111 101 109 44 275 275 196 305 106 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.519 CAMSHAFT 8-97077-830-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0507-0606 ● ●
1 00.519 CAMSHAFT 8-97262-166-0 01 1 0607- ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0302-0506 ●
1 00.519 CAMSHAFT 8-97287-657-1 01 1 0507-0606 ●
4 00.296 VALVE; INL 8-97033-864-2 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-94395-882-0 08 1 0507-0606 ● ●
4 00.296 VALVE; INL 8-94395-882-2 08 1 0607- ●
4 00.296 VALVE; INL 8-97131-729-0 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-97131-729-2 04 1 0507-0606 ●
4 00.296 VALVE; INL 8-98016-973-0 08 1 0607- ●
5 00.297 VALVE; EXH 8-97219-509-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97209-876-2 08 1 0507-0606 ● ●
5 00.297 VALVE; EXH 8-97209-876-3 08 1 0607- ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0507-0606 ●
5 00.297 VALVE; EXH 8-98016-974-1 08 1 0607- ●
9 00.736 GEAR; CM/SHF
(C) Z=35 		8-97094-440-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(A) SUB Z=35 		8-97300-972-2 01 1 0507-0606 ● ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0302-0506 ●
9 00.736 GEAR; CM/SHF
(D) Z=60 		8-97240-012-2 01 1 0507-0606 ●
9 00.736 GEAR; CM/SHF
(E) Z=35 		8-98018-935-3 01 1 0607- ●
9 00.736 GEAR; CM/SHF
(B) MAIN Z=35 		8-97309-327-2 01 1 0507-0606 ● ●
10 00.533 PLATE; THRUST 8-94110-480-1 01 1 0302-0506 ●
10 00.533 PLATE; THRUST 8-94110-480-1 01 1 0507-0606 ●
14 00.738 KEY; CM/SHF
08.960 		9-08000-718-0 01 1 0302-0506 ●
14 00.738 KEY; CM/SHF
08.960 		9-08000-718-0 01 1 0507-0606 ●
44 00.738 BOLT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0302-0506 ●
44 00.738 BOLT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ●
44 00.738 BOLT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
44 00.738 BOLT
00.533 (B) M12X47 		8-94433-407-0 01 1 0302-0506 ●
44 00.738 BOLT
00.533 (B) M12X47 		8-94433-407-0 01 1 0507-0606 ●
44 00.738 BOLT
(C) M6X30 HEX SOCKET 		9-05820-630-0 01 1 0302-0506 ●
44 00.738 BOLT
(C) M6X30 HEX SOCKET 		9-05820-630-0 01 1 0507-0606 ●
45 00.738 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 0302-0506 ●
45 00.738 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 0507-0606 ●
53 00.353 SHAFT; ROCKER ARM
(E) INLET 		8-97364-809-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(E) EXHAUST 		8-97364-811-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(A) JBK 		8-97074-617-1 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97306-426-2 01 1 0507-0606 ● ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-918-0 01 1 0607-0610 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-921-0 01 1 0611- ●
53 00.353 SHAFT; ROCKER ARM
(A) KEIHIN SEIMITSU 		8-97174-567-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0507-0606 ●
53 00.353 SHAFT; ROCKER ARM
(D) INLET 		8-98025-071-1 04 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(D) EXHAUST 		8-98025-074-1 04 1 0607- ●
54 00.349 WASHER; ROCKER SPR
ID=19.1 OD=23 		8-94341-906-0 06 1 0302-0506 ●
54 00.349 WASHER; ROCKER SPR
ID=19.1 OD=23 		8-94341-906-0 06 1 0507-0606 ●
55 00.356 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 0302-0506 ●
55 00.356 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 0507-0606 ●
56 00.349 RING; SNAP,ROCKER ARM
(C) 		8-98109-470-0 16 1 1001- ●
56 00.349 RING; SNAP,ROCKER ARM
(A) ID=17.5 		9-09180-019-0 02 1 0302-0506 ●
56 00.349 RING; SNAP,ROCKER ARM
(A) ID=17.5 		9-09180-019-0 02 1 0507-0606 ●
56 00.349 RING; SNAP,ROCKER ARM
00.353 (B) 		8-98025-496-0 16 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-006-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0507-0606 ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0507-0606 ●
65 00.310 COLLAR; SPLIT 8-94239-501-0 32 1 0607- ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0302-0506 ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0507-0606 ●
68 00.303 SPRING; VLV
(D) INLET H=49 NATURAL 		8-97311-669-0 08 1 0607- ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0607- ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0607- ●
68 00.303 SPRING; VLV
(D) EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 0607- ●
71 00.309 SEAT; SPR
(H) ID=14.3 T=1.0 		8-94391-468-0 16 1 0708- ●
71 00.309 SEAT; SPR
(A) OD=38 		8-94385-029-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0507-0606 ● ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0607- ●
71 00.309 SEAT; SPR
(B) ID=14.3 OD=40 		8-94399-526-1 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(F) 		8-97144-584-0 16 1 0607- ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(G) 		8-98017-067-0 16 1 0607- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94396-609-2 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0507-0606 ● ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0607-0707 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97376-720-0 16 1 0708- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0507-0606 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97328-647-0 16 1 0607- ●

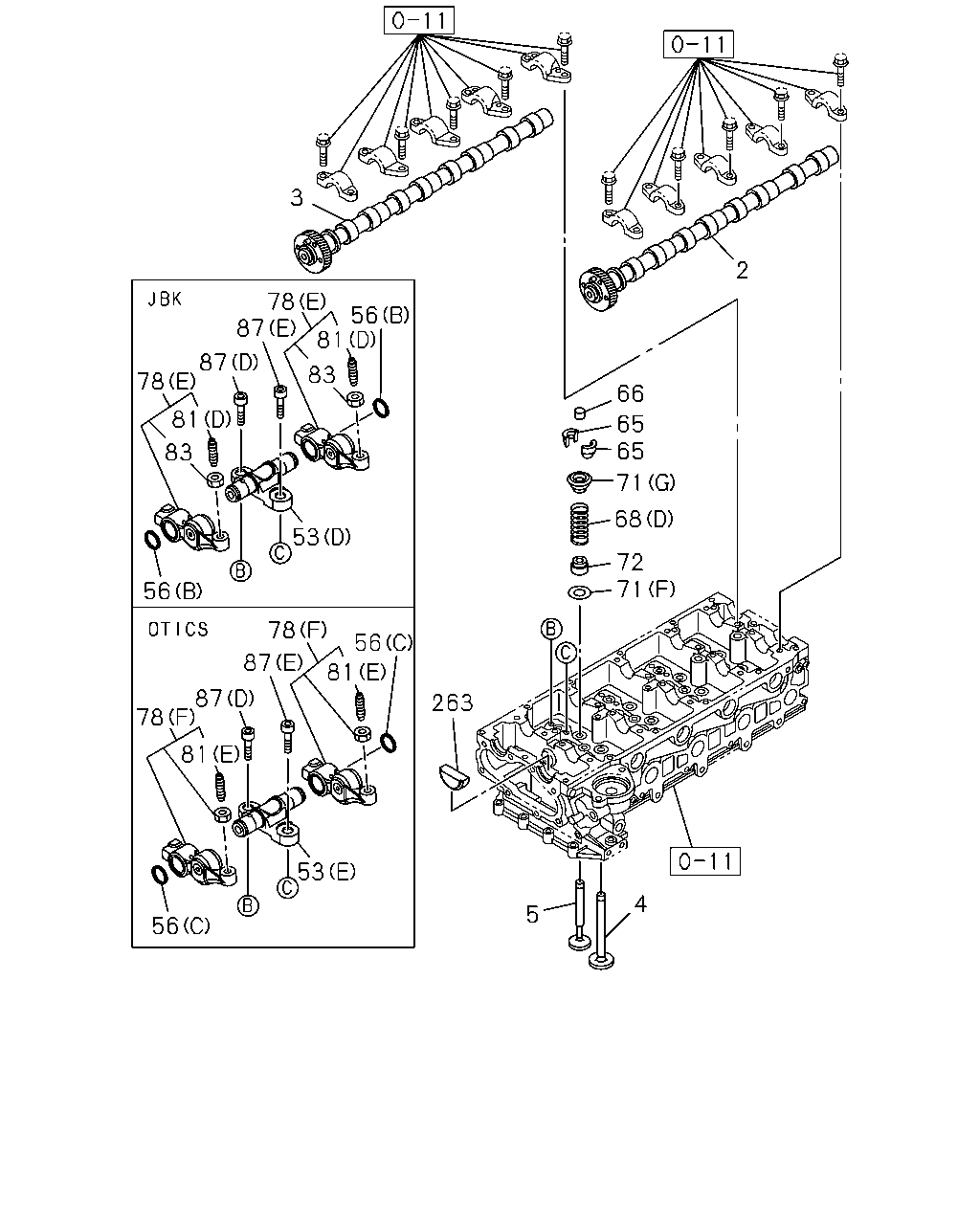

78 00.333 ARM; ROCKER
(F) OTICS 		8-98029-537-5 16 1 1001- ●
78 00.333 ARM; ROCKER
(B) JBK 		8-97014-258-2 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(A) JBK 		8-97074-614-1 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(A) KEIHIN SEIMITSU 		8-97174-562-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(B) KEIHIN SEIMITSU 		8-97174-565-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0507-0606 ●
78 00.333 ARM; ROCKER
00.353 (E) JBK 		8-98025-059-3 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(E) M8 L=22 		8-98029-893-0 16 1 1001- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(D) M8 L=22 		8-98025-497-0 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(A) 		8-94367-526-2 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0507-0606 ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0507-0606 ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0507-0512 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0601-0606 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0507-0512 ●
83 00.787 NUT; ADJ SCREW,LK
00.777 M8 		0-91111-508-0 08 1 0601-0606 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 03 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU 		8-97174-568-0 03 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 0302-0506 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 0507-0606 ●
85 00.349 BOLT; BRKT
JBK M10X62 FLANGE 		8-94393-131-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
KEIHIN SEIMITSU M10X62 FLANGE 		8-97174-650-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
M8X15,M10X60 L=82 		8-94433-304-0 03 1 0302-0506 ●
85 00.349 BOLT; BRKT
M8X15,M10X60 L=82 		8-94433-304-0 03 1 0507-0606 ●
86 00.349 WASHER; ROCKER ARM FIX
ID=10.5 		9-09164-010-0 04 1 0302-0506 ●
86 00.349 WASHER; ROCKER ARM FIX
ID=10.5 		9-09164-010-0 04 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 02 1 0507-0512 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0606 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
(E) M8X25 HEX SOCKET 		0-58330-825-0 08 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(D) M8X40 HEX SOCKET 		0-58330-840-0 08 1 0607- ●
88 00.426 ROD; PUSH 8-97071-673-0 08 1 0302-0506 ●
88 00.426 ROD; PUSH 8-97071-673-0 08 1 0507-0606 ●
89 00.459 TAPPET; VLV 8-94438-305-1 08 1 0302-0506 ●
89 00.459 TAPPET; VLV 8-94438-305-1 08 1 0507-0606 ●
95 00.376 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0507-0606 ● ●
95 00.376 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 0607- ●
95 00.376 SPRING; ROCKER SHAFT
KEIHIN SEIMITSU 		8-97174-654-0 04 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0302-0506 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 0507-0606 ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0507-0512 ● ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0507-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0507-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(D) M8X53 FLANGE 		8-97223-999-0 02 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(D) M8X53 FLANGE 		8-97223-999-0 02 1 0507-0606 ●

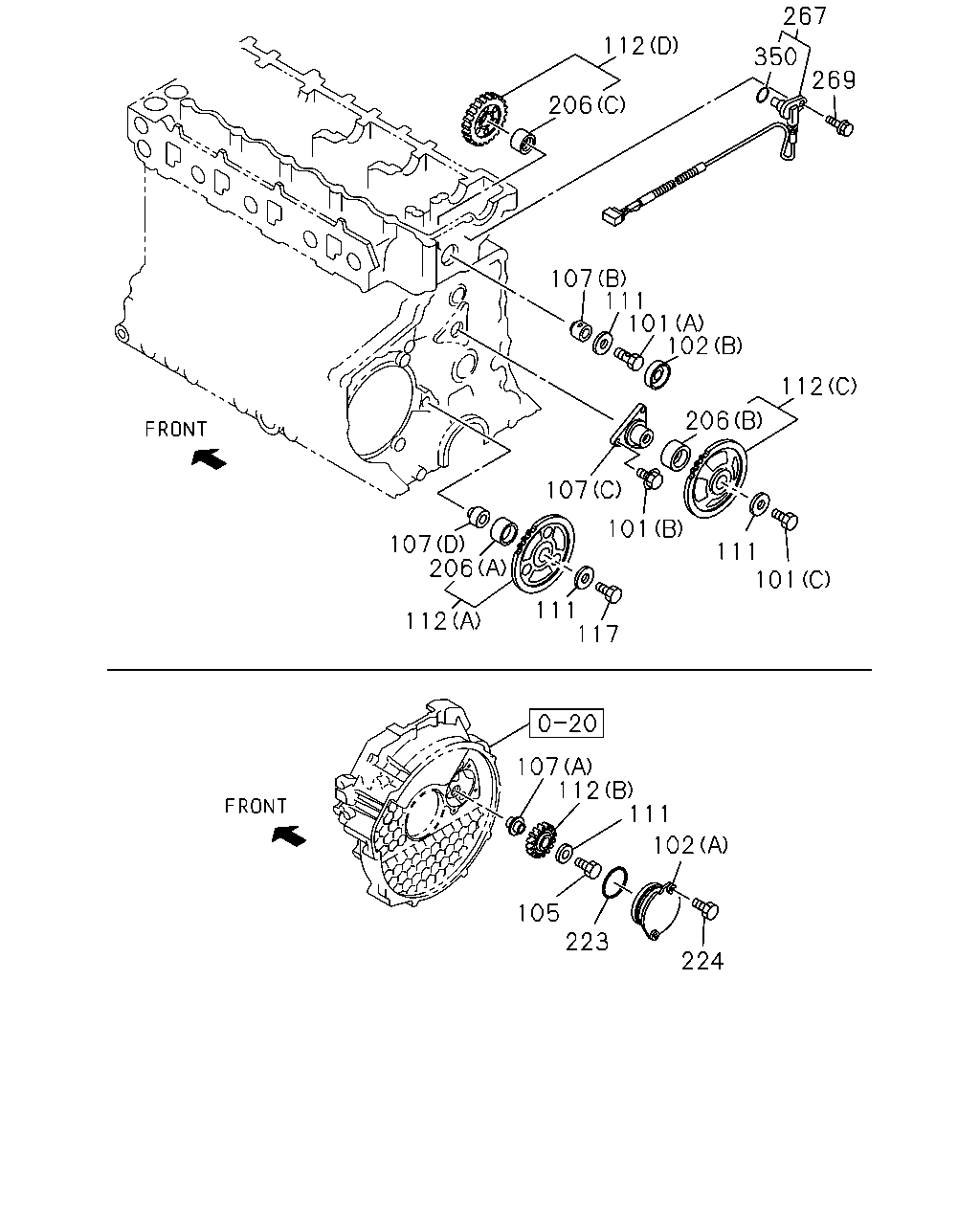

104 00.724 BOLT; SHAFT IDLE
M12X77 		8-94129-384-1 01 1 0302-0506 ●
104 00.724 BOLT; SHAFT IDLE
M12X77 		8-94129-384-1 01 1 0507-0606 ●
106 00.724 WASHER; IDLE GEAR SHAFT
00.738 ID=13 OD=36 		5-12519-002-1 01 1 0302-0506 ●
106 00.724 WASHER; IDLE GEAR SHAFT
00.738 ID=13 OD=36 		5-12519-002-1 01 1 0507-0606 ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0607-0609 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-98060-780-0 01 1 0610- ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97606-990-1 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97240-021-0 01 1 0302-0309 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0310-0506 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0507-0606 ●

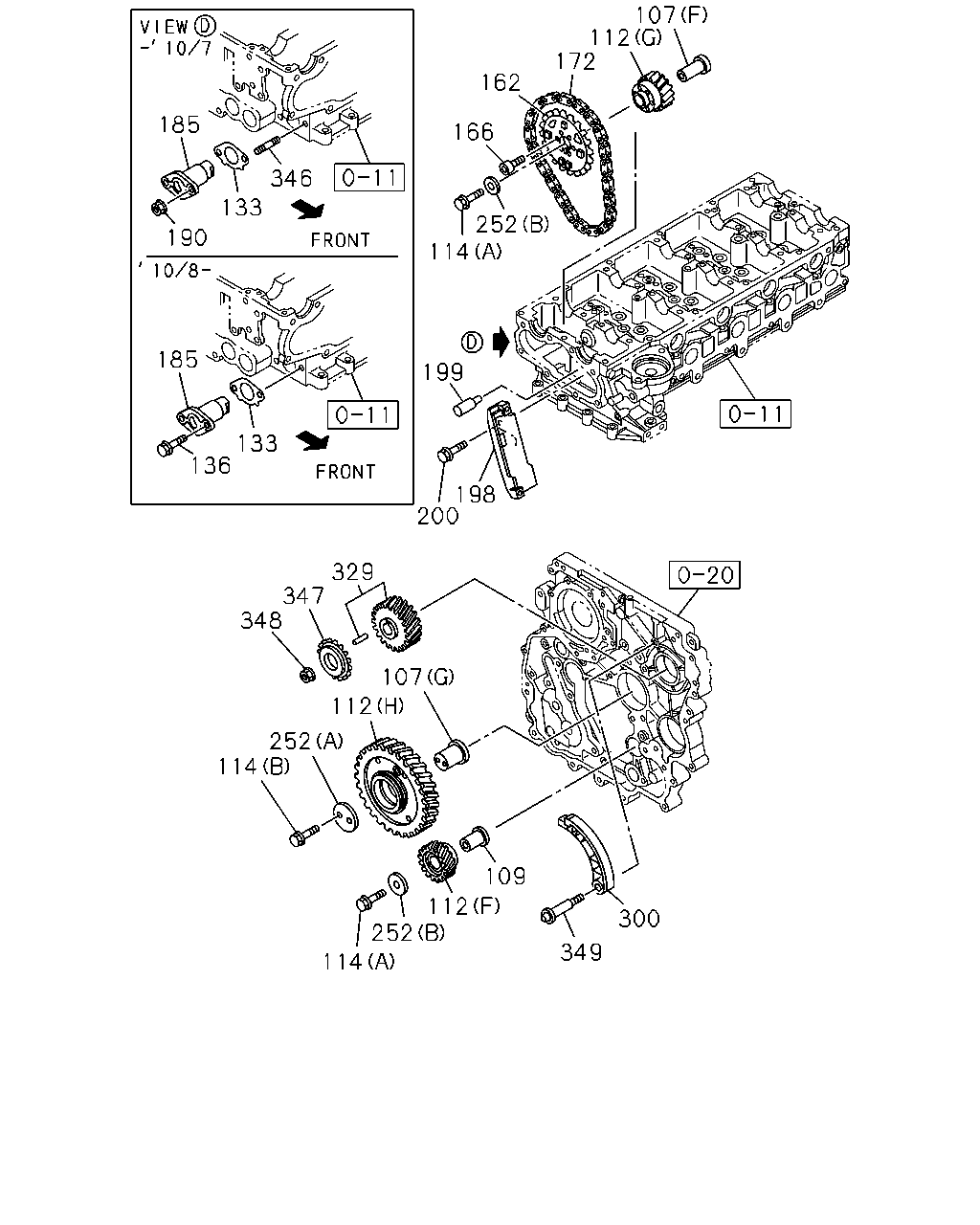

107 00.724 SHAFT; IDLE GEAR
(G) 		8-97312-315-2 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(F) 		8-97312-322-1 01 1 0607- ●
109 00.724 SHAFT; IDLE GEAR 8-97240-023-1 01 1 0302-0308 ●
109 00.724 SHAFT; IDLE GEAR 8-97943-225-0 01 1 0309-0506 ●
109 00.724 SHAFT; IDLE GEAR 8-97943-225-0 01 1 0507-0606 ●
109 00.724 SHAFT; IDLE GEAR 8-97312-319-1 01 1 0607- ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0302-0506 ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0507-0606 ● ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0607- ●
111 00.724 COLLAR; THRUST,IDLE GEAR 8-94171-289-0 01 1 0302-0506 ●
111 00.724 COLLAR; THRUST,IDLE GEAR 8-94171-289-0 01 1 0507-0606 ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-94393-439-3 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97600-590-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97606-769-3 01 1 0607-0801 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-98058-320-1 01 1 0802- ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97112-607-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97300-448-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97606-767-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(A) Z=72-30 		8-97223-189-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0507-0606 ●
112 00.724 GEAR; IDLE
(H) Z=80 		8-97381-516-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(F) Z=34 		8-97381-518-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(G) Z=35 		8-97381-520-3 01 1 0607- ●
196 00.724 RING; SNAP 8-97245-684-1 02 1 0302-0506 ●
196 00.724 RING; SNAP 8-97245-684-1 02 1 0507-0606 ●
196 00.724 RING; SNAP
04.545 ID=50.8 		9-09180-055-0 01 1 0507-0606 ● ●
275 00.724 PIN; IDLE GEAR
OD=5 L=7.5 		8-97245-683-0 04 1 0302-0506 ●
275 00.724 PIN; IDLE GEAR
OD=5 L=7.5 		8-97245-683-0 04 1 0507-0606 ●
282 00.738 SPRING; GEAR 8-97245-337-0 02 1 0302-0506 ●
282 00.738 SPRING; GEAR 8-97245-337-0 02 1 0507-0606 ●
305 00.724 BEARING; IDLE GEAR 8-97240-019-1 01 1 0302-0506 ●
305 00.724 BEARING; IDLE GEAR 8-97240-019-1 01 1 0507-0606 ●
333 00.724 GEAR; IDLE,MAIN
Z=52 		8-97240-018-2 01 1 0302-0506 ●
333 00.724 GEAR; IDLE,MAIN
Z=52 		8-97240-018-2 01 1 0507-0606 ●
334 00.724 GEAR; IDLE,FRT
Z=52 		8-97245-232-2 01 1 0302-0506 ●
334 00.724 GEAR; IDLE,FRT
Z=52 		8-97245-232-2 01 1 0507-0606 ●
335 00.724 GEAR; IDLE,RR
Z=52 		8-97245-231-1 01 1 0302-0506 ●
335 00.724 GEAR; IDLE,RR
Z=52 		8-97245-231-1 01 1 0507-0606 ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●
çizim 55744
267 112 350 269 206 107 111 101 102 112 206 107 101 107 206 111 101 111 117 112 107 112 111 102 105 223 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0507-0512 ● ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0507-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0507-0606 ● ●
101 00.724 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 0607- ●
101 00.724 BOLT; THRUST COLLAR
(D) M8X53 FLANGE 		8-97223-999-0 02 1 0302-0506 ●
101 00.724 BOLT; THRUST COLLAR
(D) M8X53 FLANGE 		8-97223-999-0 02 1 0507-0606 ●
102 00.724 COVER; IDLE GEAR
(A) 		8-94334-681-1 01 1 0302-0506 ●
102 00.724 COVER; IDLE GEAR
(A) 		8-94334-681-1 01 1 0507-0606 ● ●
102 00.724 COVER; IDLE GEAR
(A) 		8-94334-681-1 01 1 0607- ●
102 00.724 COVER; IDLE GEAR
(B) OD=51 		8-97096-826-0 01 1 0302-0506 ●
102 00.724 COVER; IDLE GEAR
(B) OD=51 		8-97096-826-0 01 1 0507-0606 ● ●
102 00.724 COVER; IDLE GEAR
(B) OD=51 		8-97096-826-0 01 1 0607- ●
105 00.724 BOLT; IDLE GEAR SHAFT
08.900 M14X60 		9-91666-460-0 01 1 0302-0506 ●
105 00.724 BOLT; IDLE GEAR SHAFT
08.900 M14X60 		9-91666-460-0 01 1 0507-0512 ● ●
105 00.724 BOLT; IDLE GEAR SHAFT
M14X60 		0-16956-460-0 01 1 0601-0606 ● ●
105 00.724 BOLT; IDLE GEAR SHAFT
M14X60 		0-16956-460-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0607-0609 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-98060-780-0 01 1 0610- ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97606-990-1 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97240-021-0 01 1 0302-0309 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0310-0506 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0507-0606 ●
107 00.724 SHAFT; IDLE GEAR
(G) 		8-97312-315-2 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(F) 		8-97312-322-1 01 1 0607- ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0302-0506 ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0507-0606 ● ●
111 00.724 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 0607- ●
111 00.724 COLLAR; THRUST,IDLE GEAR 8-94171-289-0 01 1 0302-0506 ●
111 00.724 COLLAR; THRUST,IDLE GEAR 8-94171-289-0 01 1 0507-0606 ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-94393-439-3 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97600-590-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97606-769-3 01 1 0607-0801 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-98058-320-1 01 1 0802- ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97112-607-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97300-448-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97606-767-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(A) Z=72-30 		8-97223-189-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0507-0606 ●
112 00.724 GEAR; IDLE
(H) Z=80 		8-97381-516-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(F) Z=34 		8-97381-518-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(G) Z=35 		8-97381-520-3 01 1 0607- ●
117 00.662 BOLT; FLANGE
M14X65 FLANGE 		8-97113-167-0 01 1 0302-0506 ●
117 00.662 BOLT; FLANGE
M14X65 FLANGE 		8-97113-167-0 01 1 0507-0606 ● ●
117 00.662 BOLT; FLANGE
M14X65 FLANGE 		8-97113-167-0 01 1 0607- ●
206 00.724 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-12528-028-0 01 1 0607- ●
206 00.724 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-97606-768-0 01 1 0607- ●
206 00.724 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-12528-006-0 01 1 0302-0506 ●
206 00.724 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-12528-028-0 01 1 0507-0606 ● ●
206 00.724 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-94369-340-0 01 1 0302-0506 ●
206 00.724 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-94369-340-0 01 1 0507-0606 ● ●
206 00.724 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		8-97112-608-0 01 1 0302-0506 ●
206 00.724 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		8-97112-608-0 01 1 0507-0606 ● ●
206 00.724 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		8-97606-770-0 01 1 0607- ●
223 00.724 GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 0302-0506 ●
223 00.724 GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 0507-0606 ● ●
223 00.724 GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 0607- ●
224 00.724 BOLT; COVER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0302-0506 ●
224 00.724 BOLT; COVER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
224 00.724 BOLT; COVER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ● ●
224 00.724 BOLT; COVER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0607- ●
267 00.724 SENSOR; CAM ANGLE
09.761 (A) 		8-97329-775-1 01 1 0507-0606 ● ●
267 00.724 SENSOR; CAM ANGLE
(B) 		8-98019-024-0 01 1 0607- ●
269 00.685 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0507-0512 ● ●
269 00.685 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606 ● ●
269 00.685 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0607- ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●
350 00.724 GASKET; SENSOR,CAM ANGLE 8-97387-194-0 01 1 0507-0606 ● ●
350 00.724 GASKET; SENSOR,CAM ANGLE
ID=14.2 OD=18.8 		8-97369-404-0 01 1 0607- ●
çizim 55792
107 112 172 162 185 166 346 133 252 114 190 185 199 133 136 198 200 329 347 348 107 112 252 114 109 112 252 300 349 114
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(A) 		8-94334-682-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-97104-380-0 01 1 0607-0609 ●
107 00.724 SHAFT; IDLE GEAR
(D) 		8-98060-780-0 01 1 0610- ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(B) 		8-97606-990-1 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0302-0506 ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0507-0606 ● ●
107 00.724 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97240-021-0 01 1 0302-0309 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0310-0506 ●
107 00.724 SHAFT; IDLE GEAR
(E) 		8-97943-224-0 01 1 0507-0606 ●
107 00.724 SHAFT; IDLE GEAR
(G) 		8-97312-315-2 01 1 0607- ●
107 00.724 SHAFT; IDLE GEAR
(F) 		8-97312-322-1 01 1 0607- ●
109 00.724 SHAFT; IDLE GEAR 8-97240-023-1 01 1 0302-0308 ●
109 00.724 SHAFT; IDLE GEAR 8-97943-225-0 01 1 0309-0506 ●
109 00.724 SHAFT; IDLE GEAR 8-97943-225-0 01 1 0507-0606 ●
109 00.724 SHAFT; IDLE GEAR 8-97312-319-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-94393-439-3 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97600-590-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97606-769-3 01 1 0607-0801 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-98058-320-1 01 1 0802- ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97112-607-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(D) Z=41 		8-97300-448-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(C) Z=61 		8-97606-767-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-0 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(B) Z=34 		8-97120-005-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(A) Z=72-30 		8-97223-189-0 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0507-0606 ● ●
112 00.724 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0302-0506 ●
112 00.724 GEAR; IDLE
(E) Z=43 		8-97240-014-1 01 1 0507-0606 ●
112 00.724 GEAR; IDLE
(H) Z=80 		8-97381-516-1 01 1 0607- ●
112 00.724 GEAR; IDLE
(F) Z=34 		8-97381-518-0 01 1 0607- ●
112 00.724 GEAR; IDLE
(G) Z=35 		8-97381-520-3 01 1 0607- ●
114 00.724 BOLT; IDLE GEAR
(B) M10X60 FLANGE 		0-28061-060-0 02 1 0607- ●
114 00.724 BOLT; IDLE GEAR
(A) M12X60 FLANGE 		0-28161-260-0 02 1 0607- ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97312-336-0 01 1 0607- ●
136 00.724 BOLT; TENSIONER
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1008- ●
162 00.736 SPROCKET; IDLE 8-97312-331-1 01 1 0607-1109 ●
162 00.736 SPROCKET; IDLE 8-98193-179-0 01 1 1110- ●
166 00.724 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET 		0-58330-616-0 06 1 0607- ●
172 00.724 CHAIN; TIMING,CM/SHF 8-97945-067-0 01 1 0607- ●
185 00.724 TENSIONER; CHAIN 8-98039-754-1 01 1 0607- ●
190 00.724 NUT; CHAIN TENSIONER
01.540 M6 FLANGE 		0-91180-206-0 02 1 0607-1007 ●
198 00.724 GUIDE; TIMING CHAIN 8-97945-069-0 01 1 0607- ●
199 00.724 JET; OIL,TIMING CHAIN 8-97356-061-1 01 1 0607- ●
200 00.724 BOLT; CHAIN GUIDE,LWR
01.064 M8X20 		1-09070-120-1 02 1 0607- ●
252 00.724 FLANGE; IDLE SHAFT
(A) 		8-98016-892-0 01 1 0607- ●
252 00.724 FLANGE; IDLE SHAFT
(B) 		8-98016-893-0 02 1 0607- ●
300 00.724 LEVER; TENSION,TIMING CHAIN 8-97945-070-0 01 1 0607- ●
329 00.724 GEAR; INJ PUMP
Z=44 		8-98017-539-1 01 1 0607- ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●
346 00.429 STUD; CHAIN
01.062 M6X18 L=27 		0-41010-618-0 02 1 0607-1007 ●
347 00.429 SPROCKET; I/PUMP 8-97312-330-1 01 1 0607-1207 ●
347 00.429 SPROCKET; I/PUMP 8-98210-266-0 01 1 1208- ●
348 00.429 NUT; SPROCKET
M14 FLANGE 		8-97312-423-2 01 1 0607- ●
349 00.429 PIVOT; CHAIN LEVER 8-97312-328-0 01 1 0607- ●
çizim 57042
3 2 78 87 56 81 87 78 83 66 81 65 65 83 71 68 53 72 71 56 78 56 87 81 87 78 263 81 53 4 5 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.519 CAMSHAFT; INL 8-98003-129-3 01 1 0607- ●
3 00.519 CAMSHAFT; EXH 8-98003-130-3 01 1 0607- ●
4 00.296 VALVE; INL 8-97033-864-2 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-94395-882-0 08 1 0507-0606 ● ●
4 00.296 VALVE; INL 8-94395-882-2 08 1 0607- ●
4 00.296 VALVE; INL 8-97131-729-0 04 1 0302-0506 ●
4 00.296 VALVE; INL 8-97131-729-2 04 1 0507-0606 ●
4 00.296 VALVE; INL 8-98016-973-0 08 1 0607- ●
5 00.297 VALVE; EXH 8-97219-509-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97209-876-2 08 1 0507-0606 ● ●
5 00.297 VALVE; EXH 8-97209-876-3 08 1 0607- ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0302-0506 ●
5 00.297 VALVE; EXH 8-97043-861-2 04 1 0507-0606 ●
5 00.297 VALVE; EXH 8-98016-974-1 08 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(E) INLET 		8-97364-809-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(E) EXHAUST 		8-97364-811-2 04 1 1001- ●
53 00.353 SHAFT; ROCKER ARM
(A) JBK 		8-97074-617-1 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97306-426-2 01 1 0507-0606 ● ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-918-0 01 1 0607-0610 ●
53 00.353 SHAFT; ROCKER ARM
(B) 		8-97389-921-0 01 1 0611- ●
53 00.353 SHAFT; ROCKER ARM
(A) KEIHIN SEIMITSU 		8-97174-567-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0302-0506 ●
53 00.353 SHAFT; ROCKER ARM
(C) 		8-97036-197-0 01 1 0507-0606 ●
53 00.353 SHAFT; ROCKER ARM
(D) INLET 		8-98025-071-1 04 1 0607- ●
53 00.353 SHAFT; ROCKER ARM
(D) EXHAUST 		8-98025-074-1 04 1 0607- ●
56 00.349 RING; SNAP,ROCKER ARM
(C) 		8-98109-470-0 16 1 1001- ●
56 00.349 RING; SNAP,ROCKER ARM
(A) ID=17.5 		9-09180-019-0 02 1 0302-0506 ●
56 00.349 RING; SNAP,ROCKER ARM
(A) ID=17.5 		9-09180-019-0 02 1 0507-0606 ●
56 00.349 RING; SNAP,ROCKER ARM
00.353 (B) 		8-98025-496-0 16 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-006-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0507-0606 ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 32 1 0607- ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0302-0506 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 0507-0606 ●
65 00.310 COLLAR; SPLIT 8-94239-501-0 32 1 0607- ●
66 00.303 CAP; VLV STEM END 8-94396-015-2 08 1 0302-0506 ●
66 00.303 CAP; VLV STEM END 8-98029-870-1 16 1 0607-0910 ●
66 00.303 CAP; VLV STEM END 8-98147-945-0 16 1 0911- ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0302-0506 ●
68 00.303 SPRING; VLV
(C) ID=26.25 		8-94433-247-0 08 1 0507-0606 ●
68 00.303 SPRING; VLV
(D) INLET H=49 NATURAL 		8-97311-669-0 08 1 0607- ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 0607- ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0507-0606 ● ●
68 00.303 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 0607- ●
68 00.303 SPRING; VLV
(D) EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 0607- ●
71 00.309 SEAT; SPR
(H) ID=14.3 T=1.0 		8-94391-468-0 16 1 0708- ●
71 00.309 SEAT; SPR
(A) OD=38 		8-94385-029-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0507-0606 ● ●
71 00.309 SEAT; SPR
(E) OD=32.8 T=12.75 		8-94390-783-2 16 1 0607- ●
71 00.309 SEAT; SPR
(B) ID=14.3 OD=40 		8-94399-526-1 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(D) OD=34 		5-12563-001-0 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(F) 		8-97144-584-0 16 1 0607- ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0302-0506 ●
71 00.309 SEAT; SPR
(C) OD=32.8 		8-94133-731-2 08 1 0507-0606 ●
71 00.309 SEAT; SPR
(G) 		8-98017-067-0 16 1 0607- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94396-609-2 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0507-0606 ● ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97210-702-0 16 1 0607-0707 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97376-720-0 16 1 0708- ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0302-0506 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97120-307-0 08 1 0507-0606 ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97328-647-0 16 1 0607- ●
78 00.333 ARM; ROCKER
(F) OTICS 		8-98029-537-5 16 1 1001- ●
78 00.333 ARM; ROCKER
(B) JBK 		8-97014-258-2 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) INLET 		8-97306-421-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(A) JBK 		8-97074-614-1 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(A) KEIHIN SEIMITSU 		8-97174-562-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-2 04 1 0507-0606 ● ●
78 00.333 ARM; ROCKER
(D) EXHAUST 		8-97306-424-3 04 1 0607- ●
78 00.333 ARM; ROCKER
(B) KEIHIN SEIMITSU 		8-97174-565-0 04 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0302-0506 ●
78 00.333 ARM; ROCKER
(C) 		8-94152-344-0 08 1 0507-0606 ●
78 00.333 ARM; ROCKER
00.353 (E) JBK 		8-98025-059-3 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(E) M8 L=22 		8-98029-893-0 16 1 1001- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(D) M8 L=22 		8-98025-497-0 16 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(A) 		8-94367-526-2 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0507-0606 ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
(B) M10 L=32 		8-94395-024-0 08 1 0607- ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0302-0506 ●
81 00.429 SCREW; ADJ,ROCKER ARM
(C) M8X30 		8-94152-283-1 08 1 0507-0606 ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
06.822 M10 		9-09111-410-0 08 1 0507-0512 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0601-0606 ● ●
83 00.787 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 0607- ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0302-0506 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 0507-0512 ●
83 00.787 NUT; ADJ SCREW,LK
00.777 M8 		0-91111-508-0 08 1 0601-0606 ●
87 00.349 BOLT; ROCKER SHAFT
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
01.271 (C) M8X40 FLANGE 		0-28080-840-0 02 1 0507-0512 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0606 ● ●
87 00.349 BOLT; ROCKER SHAFT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0302-0506 ●
87 00.349 BOLT; ROCKER SHAFT
(B) M10X60 		8-94433-302-0 01 1 0507-0606 ●
87 00.349 BOLT; ROCKER SHAFT
(E) M8X25 HEX SOCKET 		0-58330-825-0 08 1 0607- ●
87 00.349 BOLT; ROCKER SHAFT
(D) M8X40 HEX SOCKET 		0-58330-840-0 08 1 0607- ●
263 00.529 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-98101-472-0 04 1 0607-1204 ●
263 00.529 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-98216-269-0 04 1 1205- ●
337 02.183 CLIP; SENSOR
03.162 L=170 		5-09707-054-0 02 1 0607-0804 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
