Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#46629) — 202 parça

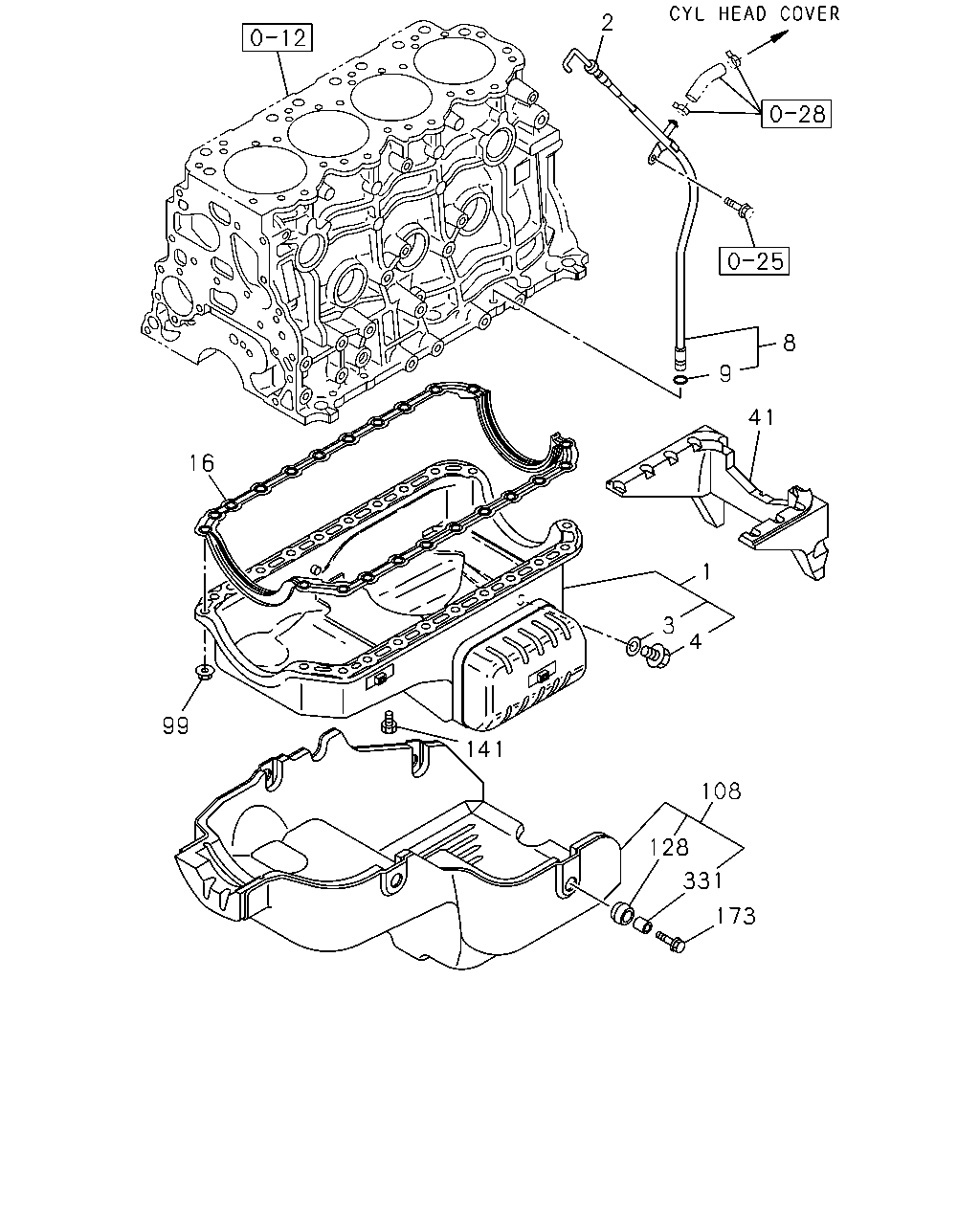

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-97209-847-2	01	1	0302-0405	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0406-0506	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0507-0606		●	●
1	01.426 PAN ASM; OIL	8-97385-243-1	01	1	0607-				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0302-0411					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0506					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0507-0606						●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	0607-							●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0302-0506	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0507-0606		●	●
2	01.516 GAUGE; OIL LEVEL	8-98034-388-0	01	1	0607-1011				●
2	01.516 GAUGE; OIL LEVEL	8-98183-141-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0302-0506					●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0507-0606						●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98017-398-3	01	1	0607-0607							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98054-701-0	01	1	0607-0608							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98058-659-0	01	1	0609-0801							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98112-777-1	01	1	0802-							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98039-900-0	01	1	0607-1109							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98194-669-1	01	1	1110-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0302-0506	●				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0507-0606		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-				●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0302-0506	●				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0507-0606		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0607-0806				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0807-				●			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0607-0806							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0302-0506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97357-173-1	01	1	0507-0606		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98039-161-0	01	1	0607-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0302-0506					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0507-0606						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	0607-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0607-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0302-0506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0507-0606		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0302-0506					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0507-0606						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0607-							●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0302-0506					●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0507-0606						●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0302-0506					●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0507-0606						●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0302-0506					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0507-0606						●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0302-0305					●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0306-0506					●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0507-0606						●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0302-0506					●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0507-0606						●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0302-0506					●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0507-0606						●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0302-0506					●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0507-0606						●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0302-0506					●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0507-0606						●

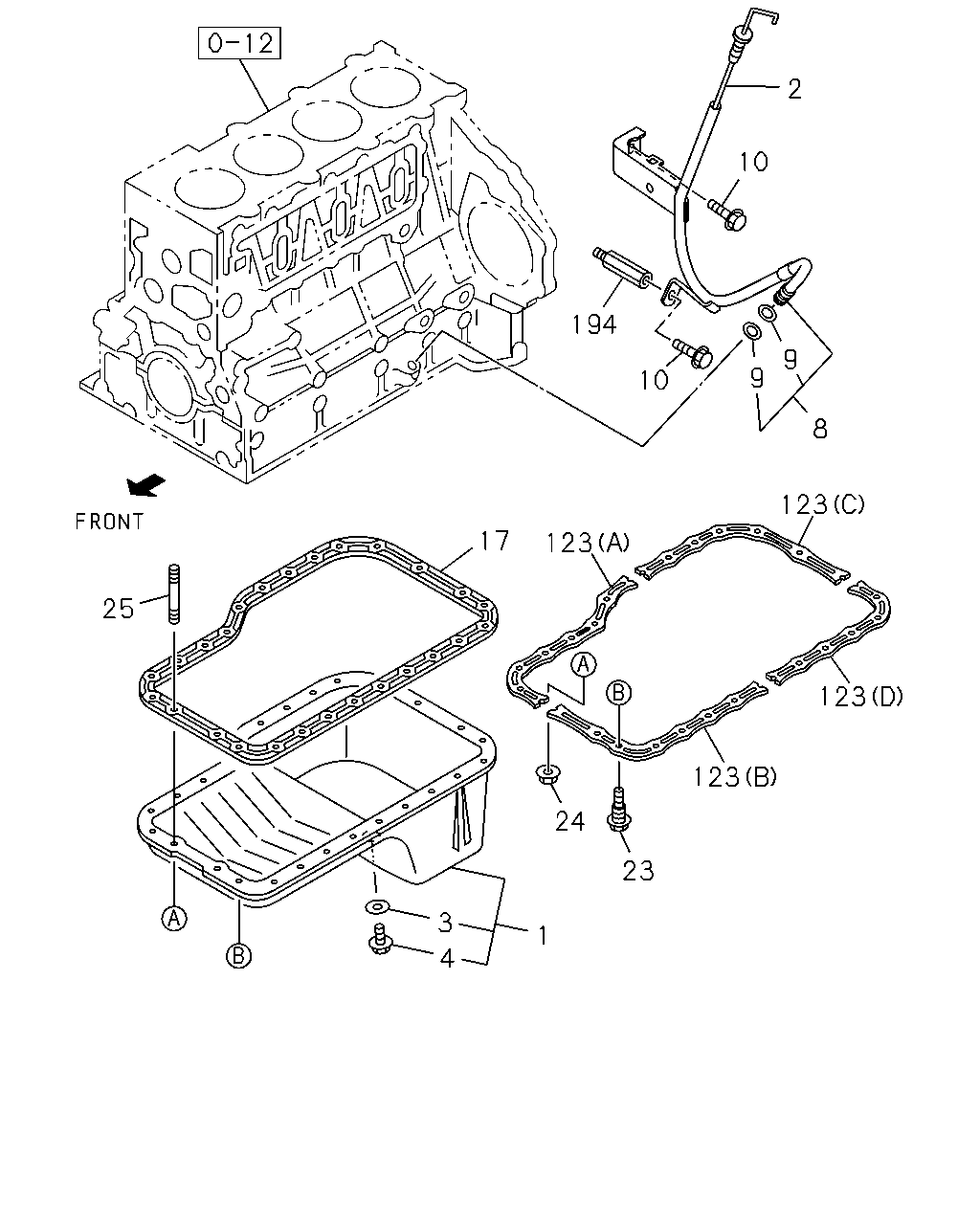

2 10 194 9 9 10 8 123 17 123 25 123 123 24 23 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-97209-847-2	01	1	0302-0405	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0406-0506	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0507-0606		●	●
1	01.426 PAN ASM; OIL	8-97385-243-1	01	1	0607-				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0302-0411					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0506					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0507-0606						●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	0607-							●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0302-0506	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0507-0606		●	●
2	01.516 GAUGE; OIL LEVEL	8-98034-388-0	01	1	0607-1011				●
2	01.516 GAUGE; OIL LEVEL	8-98183-141-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0302-0506					●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0507-0606						●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98017-398-3	01	1	0607-0607							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98054-701-0	01	1	0607-0608							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98058-659-0	01	1	0609-0801							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98112-777-1	01	1	0802-							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98039-900-0	01	1	0607-1109							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98194-669-1	01	1	1110-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0302-0506	●				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0507-0606		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-				●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0302-0506	●				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0507-0606		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0607-0806				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0807-				●			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0607-0806							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0302-0506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97357-173-1	01	1	0507-0606		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98039-161-0	01	1	0607-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0302-0506					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0507-0606						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	0607-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0607-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0302-0506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0507-0606		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0302-0506					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0507-0606						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0607-							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0302-0402	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0403-0506	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0507-0606		●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0607-				●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0302-0506	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0507-0606		●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0607-				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0302-0506	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0507-0602		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0606		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0607-				●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0302-0506	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0507-0606		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0607-				●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0302-0506	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0507-0606		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0607-				●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0607-							●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0302-0506	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0507-0606		●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0607-				●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0302-0506	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0507-0606		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0607-				●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0302-0506	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0507-0606		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0607-				●
123	01.516 RUBBER; SEAL OIL (D)	8-97212-596-0	01	1	0302-0506	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0507-0606		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0607-				●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0302-0506	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0507-0606		●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0607-				●

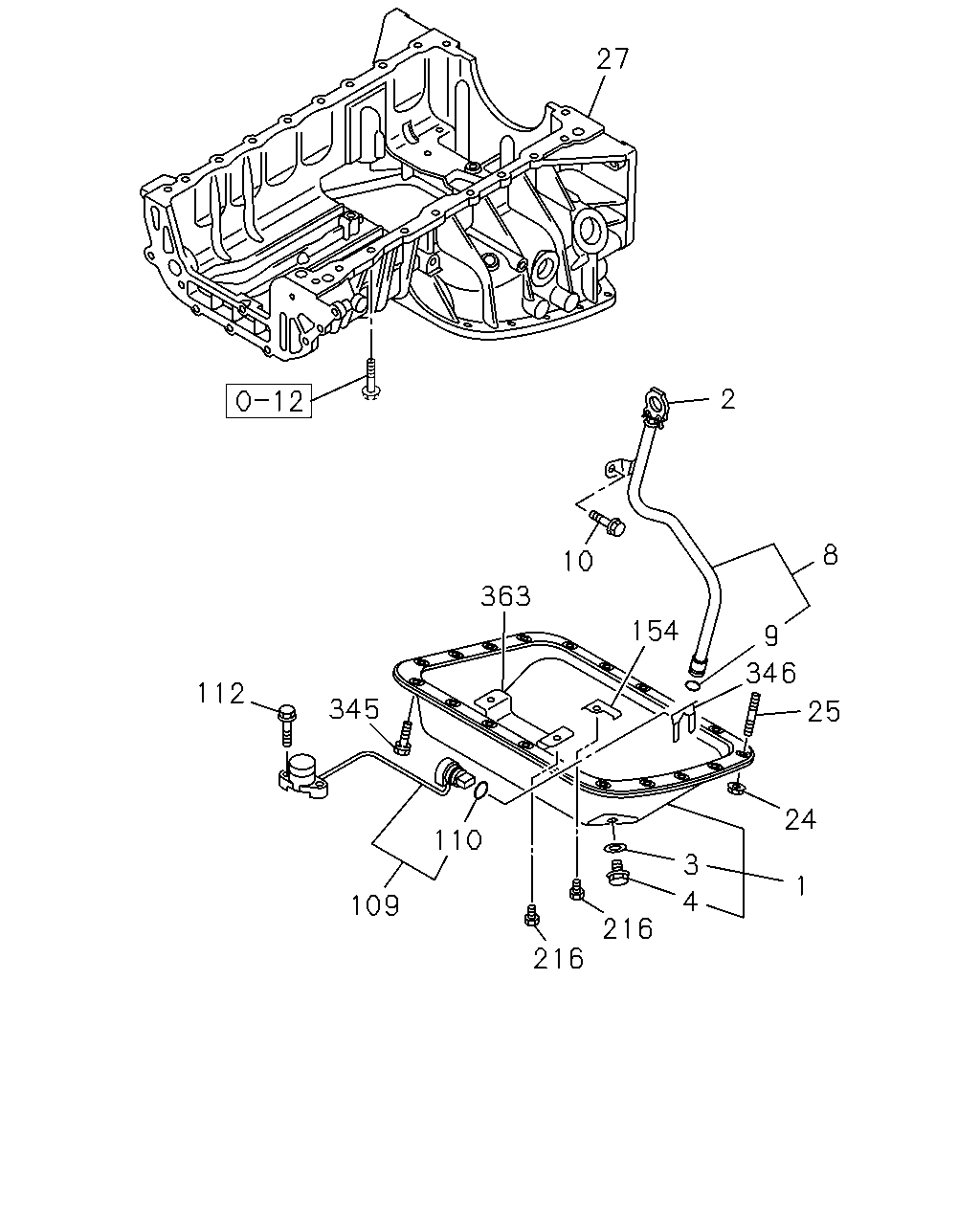

27 2 8 10 363 154 9 346 112 345 25 24 110 3 1 4 109 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-97209-847-2	01	1	0302-0405	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0406-0506	●
1	01.426 PAN ASM; OIL	8-97385-243-0	01	1	0507-0606		●	●
1	01.426 PAN ASM; OIL	8-97385-243-1	01	1	0607-				●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0302-0411					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0506					●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0507-0606						●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	0607-							●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0302-0506	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	0507-0606		●	●
2	01.516 GAUGE; OIL LEVEL	8-98034-388-0	01	1	0607-1011				●
2	01.516 GAUGE; OIL LEVEL	8-98183-141-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0302-0506					●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0507-0606						●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98017-398-3	01	1	0607-0607							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98054-701-0	01	1	0607-0608							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98058-659-0	01	1	0609-0801							●
2	01.516 GAUGE; OIL LEVEL NPR/NQR SGL CAB(NP*S)	8-98112-777-1	01	1	0802-							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98039-900-0	01	1	0607-1109							●
2	01.516 GAUGE; OIL LEVEL NPR DBL CAB&MIDDLE(NP**WF)	8-98194-669-1	01	1	1110-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0302-0506	●				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0507-0606		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-				●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0302-0506	●				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0507-0606		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0607-0806				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0807-				●			●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0607-0806							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97354-831-0	01	1	0302-0506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97357-173-1	01	1	0507-0606		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98039-161-0	01	1	0607-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0302-0506					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0507-0606						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	0607-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0607-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0302-0506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0507-0606		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0302-0506					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0507-0606						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0607-							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0302-0506	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0507-0602		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0606		●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0607-				●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0302-0506	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0507-0606		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0607-				●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0302-0506	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0507-0606		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0607-				●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0607-							●
27	01.426 CRANKCASE	8-97381-483-7	01	1	0607-							●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	0607-							●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0607-							●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0607-							●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	0607-							●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0607-							●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0607-							●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	0607-							●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	0607-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
