Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#46626) — 213 parça

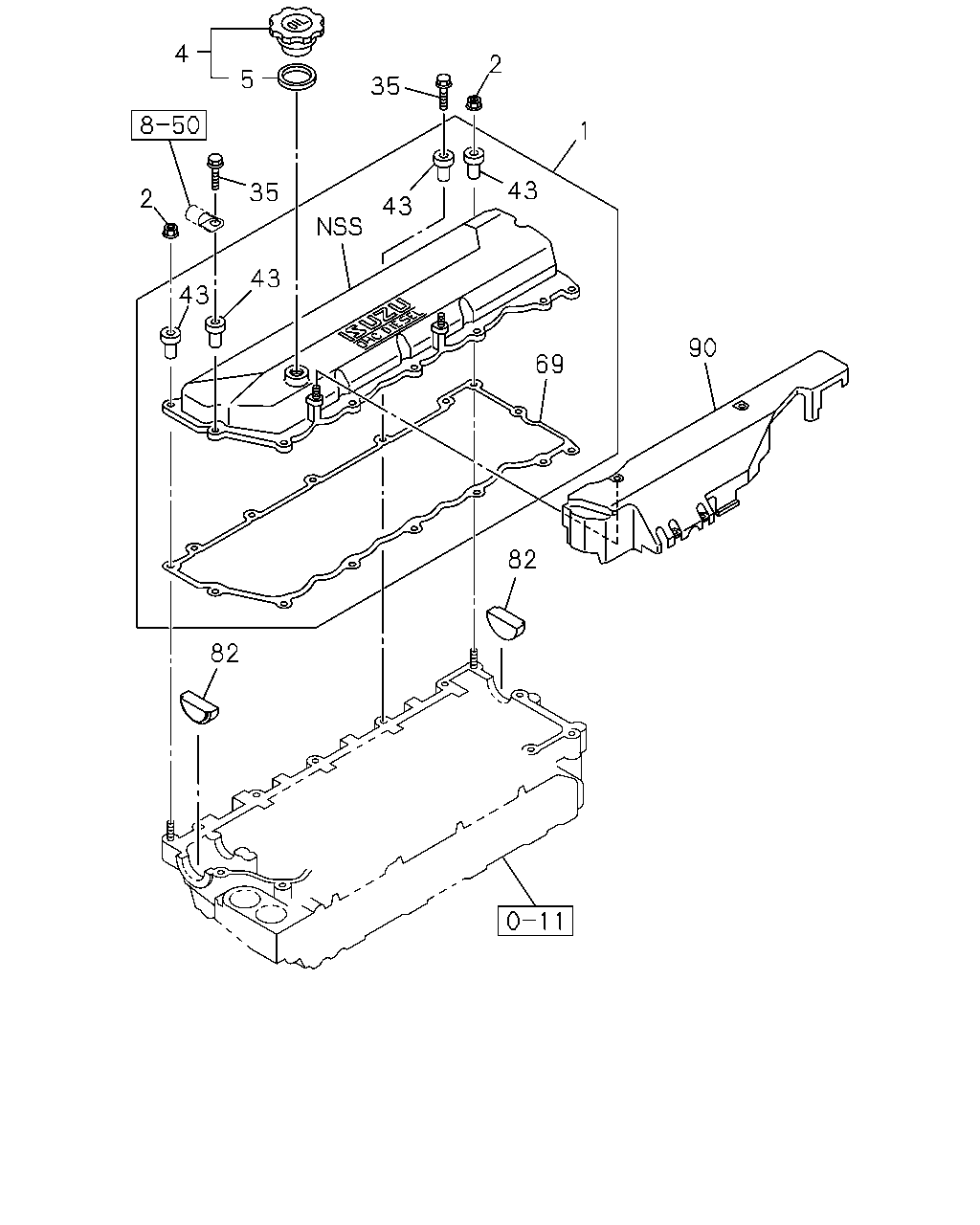

4 2 5 35 1 43 35 2 43 43 43 90 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0302-0506	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0507-0606		●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0607-				●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0302-0506					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0507-0606						●
1	00.386 COVER; CYL HD	8-98035-663-0	01	1	0607-0609							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0610-1204							●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1302							●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1303-							●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0607-							●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-0904				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0302-0506	●				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606		●	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-				●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0302-0506	●				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606		●	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-				●			●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	0302-0506	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0302-0506	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0507-0606		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0302-0506	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0507-0606		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	0302-0302					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0302-0506					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0507-0606						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97945-338-0	01	1	0607-							●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0302-0506	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0507-0606		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0607-1005				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-				●
90	00.386 COVER; NOZZLE,INJ	8-97175-141-0	01	1	0302-0506	●

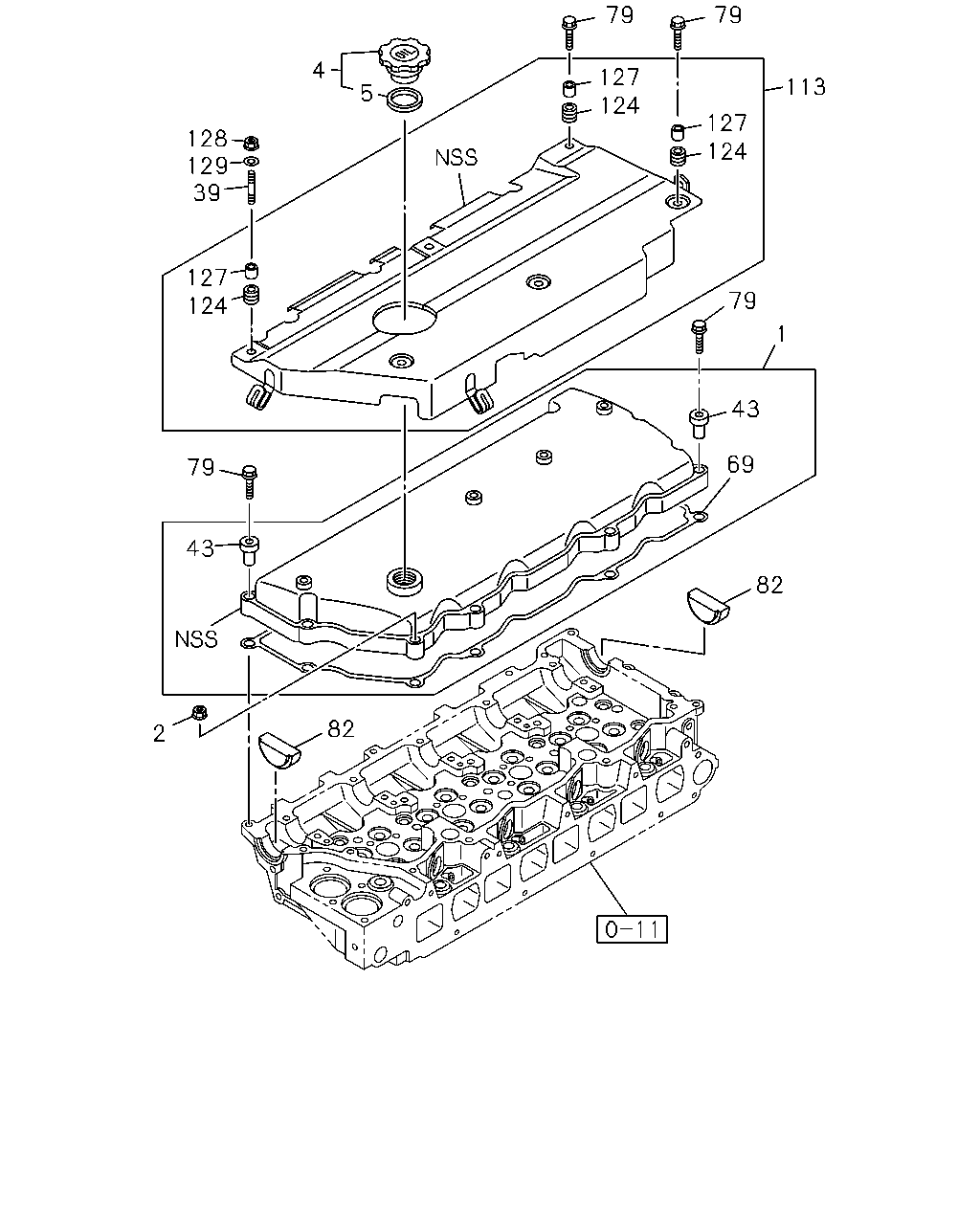

79 79 4 127 124 113 5 127 124 128 129 39 127 124 79 1 43 69 79 43 82 82 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0302-0506	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0507-0606		●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0607-				●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0302-0506					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0507-0606						●
1	00.386 COVER; CYL HD	8-98035-663-0	01	1	0607-0609							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0610-1204							●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1302							●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1303-							●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0607-							●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-0904				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0302-0506	●				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606		●	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-				●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0302-0506	●				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606		●	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-				●			●
39	00.413 STUD; COVER,HD 01.062 M6X25 L=34	9-04110-625-0	02	1	0507-0604		●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	0605-0606		●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	0607-				●
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	0607-							●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0302-0506	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0507-0606		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0302-0506	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0507-0606		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	0302-0302					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0302-0506					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0507-0606						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97945-338-0	01	1	0607-							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506					●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512						●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606						●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	0607-							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506					●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606						●
79	00.293 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0507-0512		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0601-0606		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0607-				●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0507-0606		●	●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0607-				●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0507-0606		●	●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0607-				●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0302-0506	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0507-0606		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0607-1005				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-				●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0507-0606		●	●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0607-				●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	0607-1104							●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-							●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0507-0606		●	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0607-				●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0607-							●
127	00.386 RETAINER; COVER	8-97092-314-0	06	1	0507-0606		●	●
127	00.386 RETAINER; COVER	8-97092-314-0	06	1	0607-				●
128	00.413 NUT; COVER,CYL HEAD COVER 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0606		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 M6 FLANGE	0-91180-106-0	02	1	0607-				●
128	00.413 NUT; COVER,CYL HEAD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
129	00.413 WASHER; COVER,CYL HEAD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	0507-0605		●	●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	0606-0606		●	●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	0607-				●

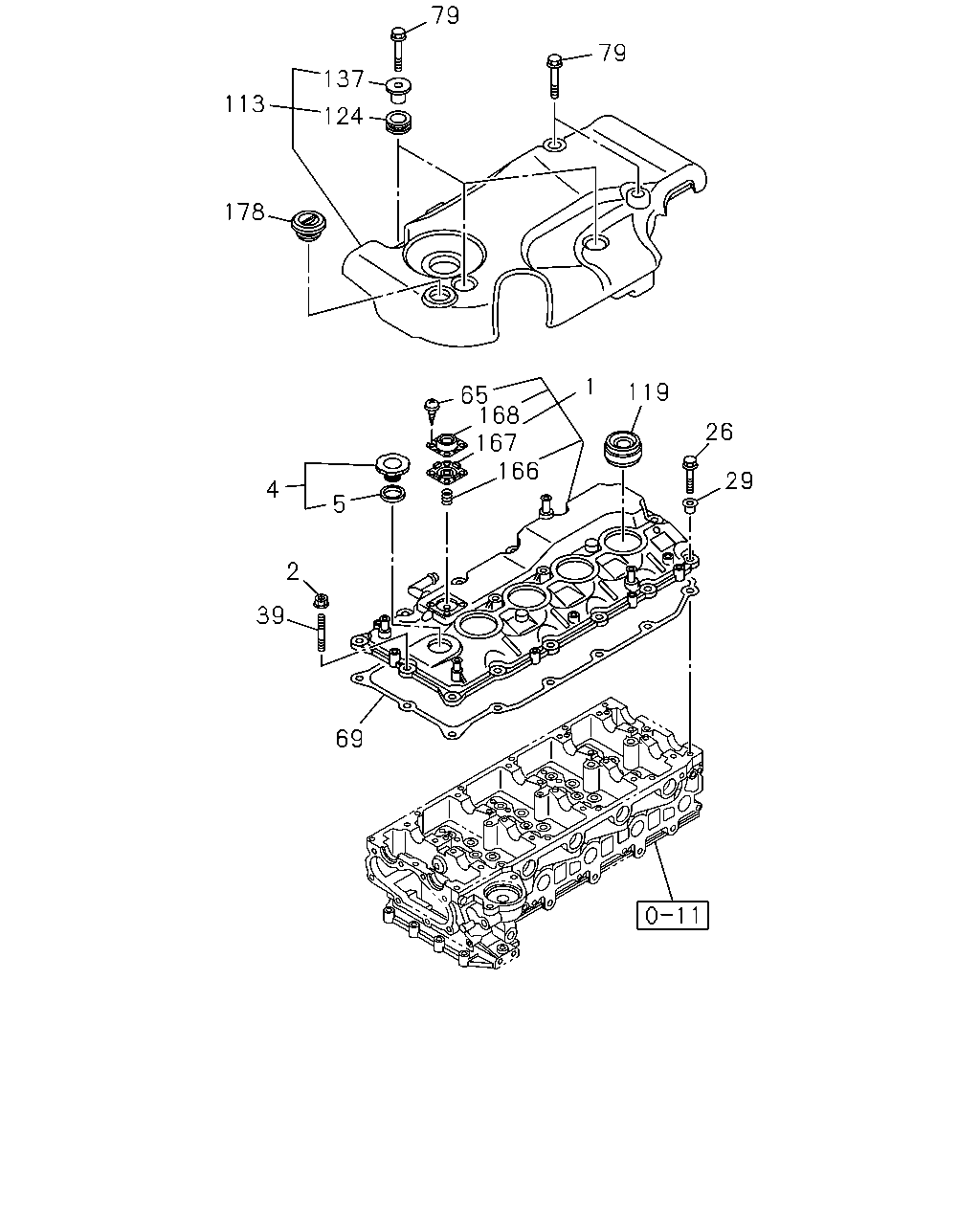

79 79 137 113 124 178 1 119 65 168 167 166 26 29 4 5 2 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0302-0506	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0507-0606		●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0607-				●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0302-0506					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0507-0606						●
1	00.386 COVER; CYL HD	8-98035-663-0	01	1	0607-0609							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0610-1204							●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1302							●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1303-							●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0607-							●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-0904				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0302-0506	●				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606		●	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-				●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0302-0506	●				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606		●	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-				●			●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0607-							●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	0607-							●
39	00.413 STUD; COVER,HD 01.062 M6X25 L=34	9-04110-625-0	02	1	0507-0604		●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	0605-0606		●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	0607-				●
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	0607-							●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0607-							●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0302-0506	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0507-0606		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	0302-0302					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0302-0506					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0507-0606						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97945-338-0	01	1	0607-							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506					●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512						●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606						●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	0607-							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506					●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606						●
79	00.293 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0507-0512		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0601-0606		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0607-				●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0507-0606		●	●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0607-				●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0507-0606		●	●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0607-				●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0507-0606		●	●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0607-				●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	0607-1104							●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-							●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0607-							●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0507-0606		●	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0607-				●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0607-							●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	0607-							●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0607-1204							●
166	00.283 SPRING; VENTILATOR	8-98209-384-0	01	1	1205-1205							●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1205-							●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0607-1302							●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1303-							●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0607-							●
178	01.758 CAP; COVER	8-98036-117-0	01	1	0607-0907							●

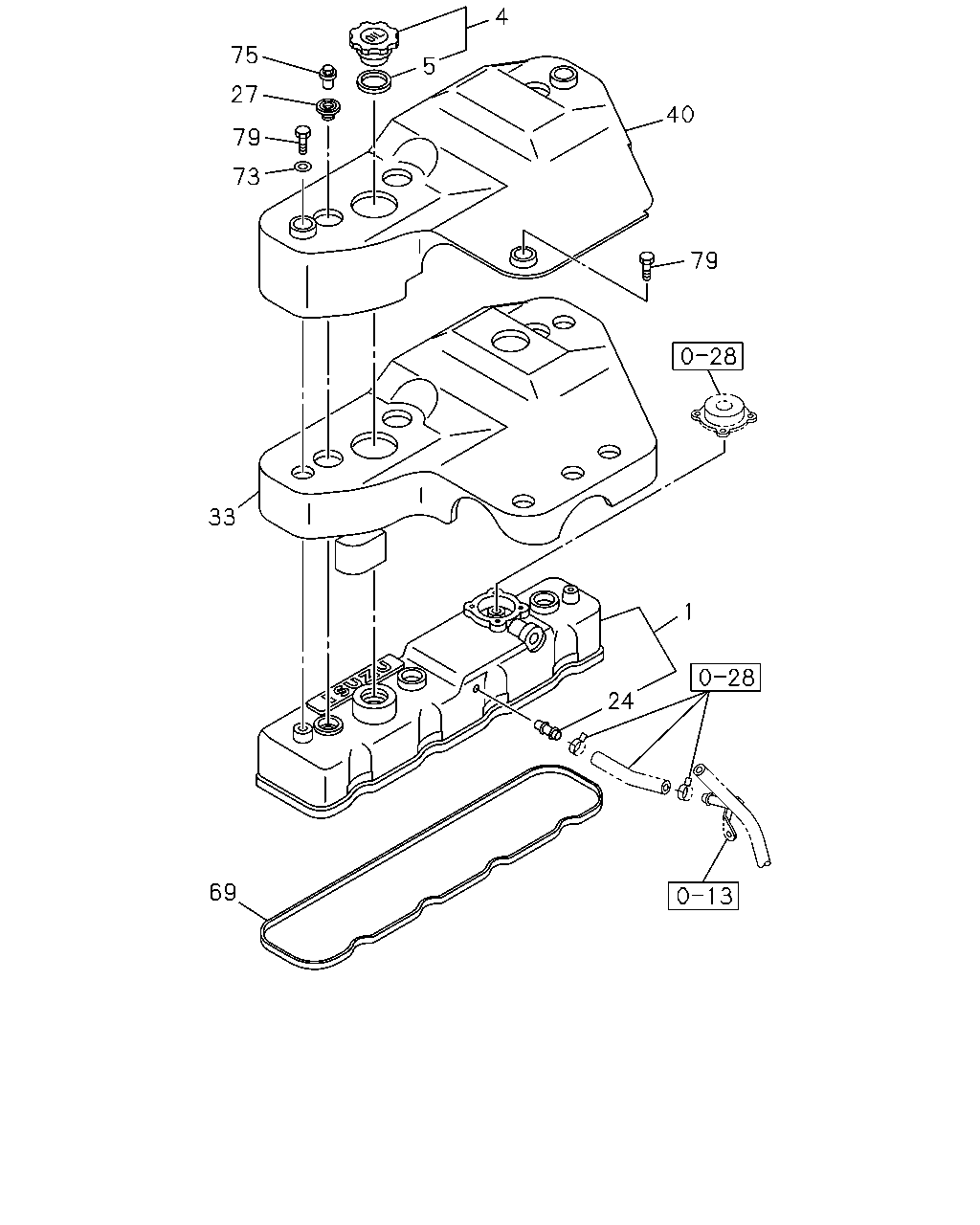

4 75 5 27 40 79 73 79 33 1 24 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0302-0506	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0507-0606		●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0607-				●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0302-0506					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0507-0606						●
1	00.386 COVER; CYL HD	8-98035-663-0	01	1	0607-0609							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0610-1204							●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205							●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1302							●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1303-							●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0302-0506	●				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606		●	●			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-				●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0302-0506	●				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606		●	●			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-				●			●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0302-0506					●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0507-0606						●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=19.5	8-97263-801-1	03	1	0302-0506					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=19.5	8-97263-801-1	03	1	0507-0606						●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0302-0506					●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0507-0606						●
40	00.386 COVER	8-97240-037-0	01	1	0302-0506					●
40	00.386 COVER	8-97240-037-0	01	1	0507-0606						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0302-0506	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0507-0606		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97331-359-1	01	1	0607-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	0302-0302					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0302-0506					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97349-416-0	01	1	0507-0606						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97945-338-0	01	1	0607-							●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0302-0506					●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0507-0606						●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0302-0506					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0507-0606						●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506					●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512						●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606						●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	0607-							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506					●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606						●
79	00.293 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0507-0512		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0601-0606		●	●
79	00.293 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0607-				●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0507-0606		●	●
79	00.293 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	07	1	0607-				●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0507-0606		●	●
79	00.293 BOLT; COVER 00.413 M6X20	8-97127-607-0	04	1	0607-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
