9-01 — TOOLS (#46623) — 137 parça

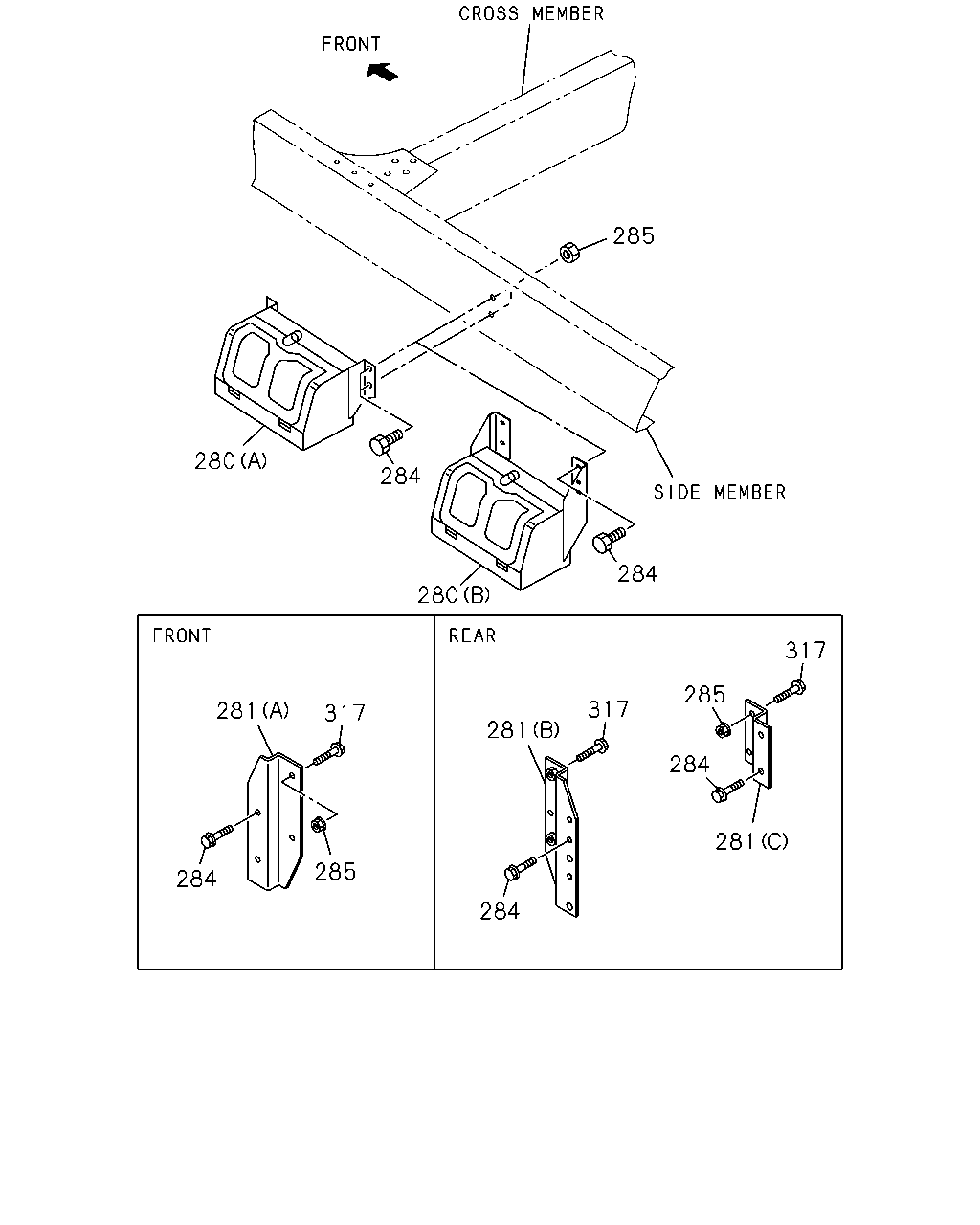

285 280 284 284 280 317 285 317 281 317 281 284 281 285 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97222-496-0	01	1	0302-0506	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0302-0506		●	●	●	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0507-		●	●		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94123-034-1	01	1	0302-0506	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (B)	8-94123-034-1	01	1	0507-	●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97095-539-0	01	1	0302-0506						●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (B) REAR	8-97095-539-0	01	1	0302-0506							●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97095-539-0	01	1	0507-0606						●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> (B) REAR	8-97095-539-0	01	1	0507-0606							●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B) REAR	8-97095-539-0	01	1	0607-							●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97209-719-0	01	1	0302-0506						●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (A) FRONT	8-97209-719-0	01	1	0302-0506							●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> (A) FRONT	8-97209-719-0	01	1	0507-0606						●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> (A) FRONT	8-97209-719-0	01	1	0507-0606							●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A) FRONT	8-97209-719-0	01	1	0607-							●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (C) REAR	8-97248-971-0	01	1	0302-0506						●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> (C) REAR	8-97248-971-0	01	1	0507-0606						●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0302-0506	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0302-0506		●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●		●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●	●		●	●	●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0302-0512	●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-0606	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●	●		●	●	●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-						●
285	08.821 NUT; TOOL BOX 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-							●
285	08.821 NUT; TOOL BOX 4JH1 ENG(RJX) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0506		●				●
285	08.821 NUT; TOOL BOX 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0506						●
285	08.821 NUT; TOOL BOX 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0506							●
285	08.821 NUT; TOOL BOX 4JH1-TC ENG(RDM) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602		●				●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602						●
285	08.821 NUT; TOOL BOX 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602							●
285	08.821 NUT; TOOL BOX 4JH1-TC ENG(RDM) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606		●				●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606						●
285	08.821 NUT; TOOL BOX 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606							●
285	08.821 NUT; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0506						●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	04	1	0507-0602						●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0606						●
317	08.821 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0302-0506						●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512						●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606						●
317	08.821 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0302-0506						●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0507-0512						●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE	0-28650-835-0	03	1	0601-0606						●
317	08.821 BOLT; BRKT TO FRAME TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0607-							●
317	08.821 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE	0-28680-835-0	04	1	0302-0506							●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE	0-28680-835-0	04	1	0507-0512							●
317	08.821 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0601-0606							●

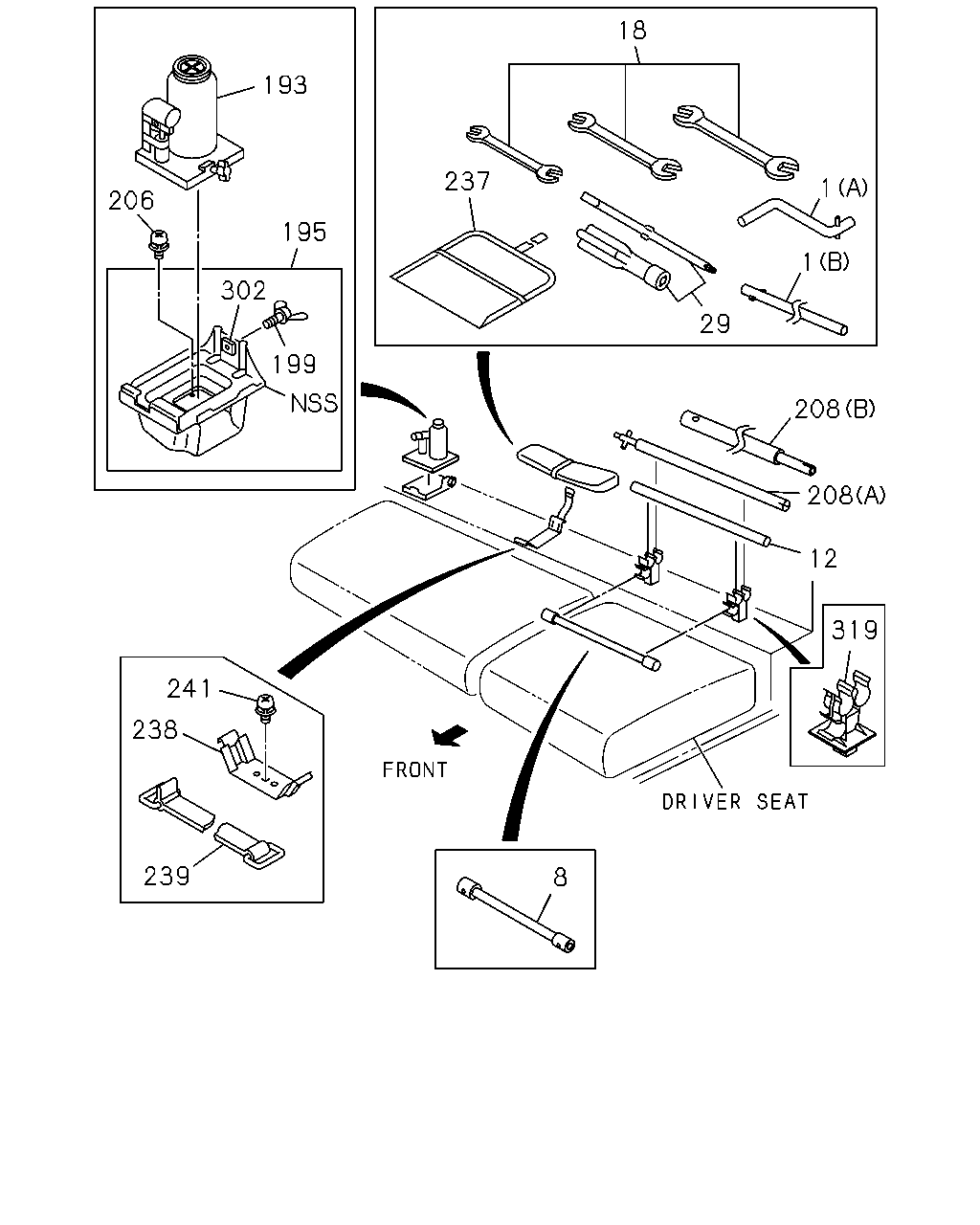

193 206 195 302 199 241 238 239 8 319 12 208 208 29 1 1 18 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0302-0506	●	●				●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0302-0506			●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0507-0606		●				●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0507-0606			●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0607-		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0302-0506	●	●				●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0302-0506				●	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0507-0606	●				●		●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0507-0606		●				●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0607-	●				●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0607-		●	●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-1	01	1	0302-0506	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-1	01	1	0507-		●	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0507-					●		●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440	1-85113-015-1	01	1	0507-						●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330	8-94386-490-1	01	1	0302-0506	●	●				●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	0507-	●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330	8-94386-490-1	01	1	0507-		●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ) B=41X19 L=330	8-94386-490-1	01	1	0507-						●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0302-0506	●	●				●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0302-0506				●	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0507-0606	●				●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0507-0606		●				●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0607-1001	●				●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0607-1001		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-	●				●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-		●	●
18	08.821 WRENCH KIT	9-85161-902-0	01	1	0607-	●	●	●		●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0302-0506	●	●	●	●	●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0507-	●	●	●		●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(AYS),(BQU),(BQV), (BRT),(9HY) 4TON	8-97131-075-2	01	1	0302-0302	●	●	●	●	●	●	●
193	08.820 JACK ASM (AUS),(AVK),(AYS),(BQU),(BQV),(BRT), (CQT),(CQU),(9HY) 4TON	8-97131-075-2	01	1	0303-0305	●	●	●	●	●	●	●
193	08.820 JACK ASM (AUS),(AVK),(AYS),(BQU),(BQV),(BRT), (CQT),(CQU),(9HY) 4TON	8-97371-123-0	01	1	0306-0501	●	●	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AYS),(BQU),(BQV),(BRT),(CQT), (CRU),(CRV),(CRW),(9HY) 4TON	8-97371-123-0	01	1	0502-0504	●	●				●
193	08.820 JACK ASM (AUJ),(AYS),(BRT),(CQT),(CRU),(CRV), (CRW) 4TON	8-97371-123-0	01	1	0502-0504			●
193	08.820 JACK ASM (AUJ),(CRU),(CRV),(CRW) 4TON	8-97371-123-0	01	1	0502-0504				●	●		●
193	08.820 JACK ASM (AUJ),(AYS),(BQU),(BQV),(BRT),(CQT), (CRU),(CRV),(CRW),(9HY) 4TON	8-98012-285-0	01	1	0505-0506	●	●				●
193	08.820 JACK ASM (AUJ),(AYS),(BRT),(CQT),(CRU),(CRV), (CRW) 4TON	8-98012-285-0	01	1	0505-0506			●
193	08.820 JACK ASM (AUJ),(CRU),(CRV),(CRW) 4TON	8-98012-285-0	01	1	0505-0506				●	●		●
193	08.820 JACK ASM (BQU),(BQV),(9HY) 4TON	8-98012-285-0	01	1	0507-0606	●
193	08.820 JACK ASM (AUJ),(AYS),(BQU),(BQV),(CQT),(CRU), (CRV),(CRW),(9HY) 4TON	8-98012-285-0	01	1	0507-0606		●				●
193	08.820 JACK ASM (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) 4TON	8-98012-285-0	01	1	0507-0606			●
193	08.820 JACK ASM (AUJ),(CRU),(CRV),(CRW) 4TON	8-98012-285-0	01	1	0507-0606					●		●
193	08.820 JACK ASM (BQU),(BQV),(9HY) 4TON	8-98012-285-0	01	1	0607-	●
193	08.820 JACK ASM (AUJ),(AYS),(BQU),(BQV),(CQT),(CRU), (CRV),(CRW),(9HY) 4TON	8-98012-285-0	01	1	0607-		●
193	08.820 JACK ASM (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) 4TON	8-98012-285-0	01	1	0607-			●
193	08.820 JACK ASM (AUJ),(CRU),(CRV),(CRW) 4TON	8-98012-285-0	01	1	0607-					●		●
193	08.820 JACK ASM (AUJ),(AYS),(BQU),(BQV),(CQT),(CRV), (9HY) 4TON	8-98012-285-0	01	1	0607-						●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0302-0506	●	●	●	●	●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0507-0805	●	●	●		●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0806-	●	●	●		●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0302-0805						●	●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0806-						●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0302-0506	●	●	●	●	●	●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0507-0805	●	●	●		●	●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0806-	●	●	●		●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0302-0506	●	●	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0507-0612	●	●	●		●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●		●	●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0302-0506	●	●				●
208	08.820 HANDLE; JACK (B) L=580	1-85515-005-1	01	1	0302-0506			●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0507-0606		●				●
208	08.820 HANDLE; JACK (B) L=580	1-85515-005-1	01	1	0507-0606			●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0607-		●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0302-0506	●	●				●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0302-0506				●	●		●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0507-0606	●				●		●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0507-0606		●				●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0607-	●				●	●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0607-		●	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0302-0506	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0507-	●	●	●		●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0302-0506	●	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0507-	●	●	●		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0302-0506	●	●	●	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0507-	●	●	●		●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0302-0506	●	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0507-0612	●	●	●		●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●		●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0302-0506	●	●	●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0507-0805	●	●	●		●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0806-	●	●	●		●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0302-0506	●	●	●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0507-	●	●	●		●	●	●
