8-90 — RADIO AND TV (#46622) — 48 parça

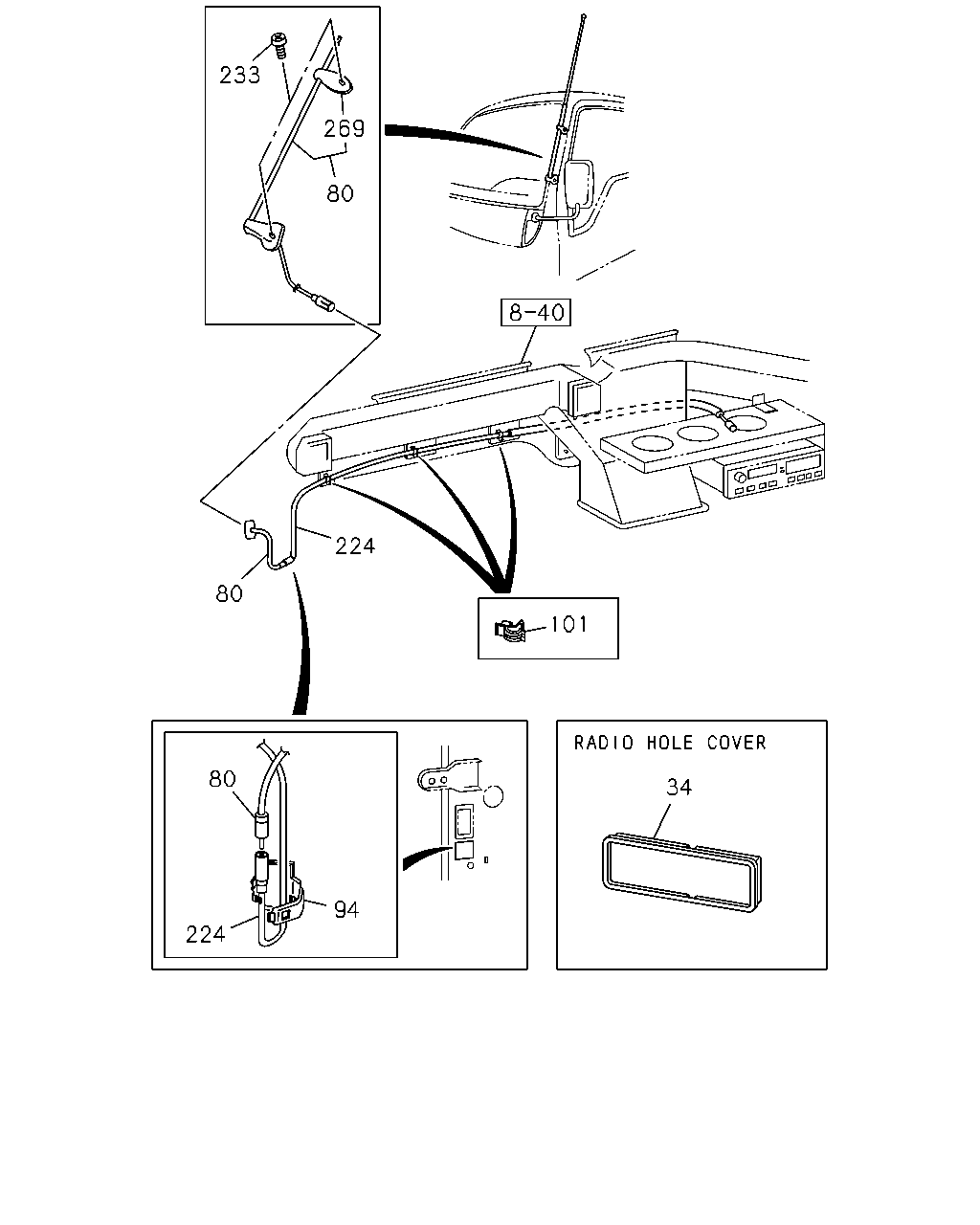

çizim 12401
233 269 80 224 80 101 80 34 94 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 0302-0506 ● ● ● ● ● ● ●
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 0507- ● ● ● ● ● ●
80 09.645 ANTENNA 8-97210-547-0 01 1 0302-0405 ● ● ● ● ● ● ●
80 09.645 ANTENNA 8-97211-565-0 01 1 0406-0506 ● ● ● ● ● ● ●
80 09.645 ANTENNA 8-97211-565-0 01 1 0507- ● ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER 1-09987-155-2 01 1 0302-0506 ● ● ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER 1-09987-155-3 01 1 0507- ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=7 		5-09707-053-0 03 1 0302-0506 ● ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=7 		5-09707-053-0 03 1 0507- ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-97213-766-0 01 1 0302-0506 ● ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-97213-766-0 01 1 0507- ● ● ● ● ● ●
233 09.647 SCREW
M6X20 		8-97120-686-0 01 1 0302-0506 ● ● ● ● ● ● ●
233 09.647 SCREW
M6X20 		8-97120-686-0 01 1 0507- ● ● ● ● ● ●
233 09.647 SCREW
M6X16 		8-97123-696-0 01 1 0302-0506 ● ● ● ● ● ● ●
233 09.647 SCREW
M6X16 		8-97123-696-0 01 1 0507- ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97108-184-0 01 1 0302-0405 ● ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97219-080-0 01 1 0406-0506 ● ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97219-080-0 01 1 0507- ● ● ● ● ● ●

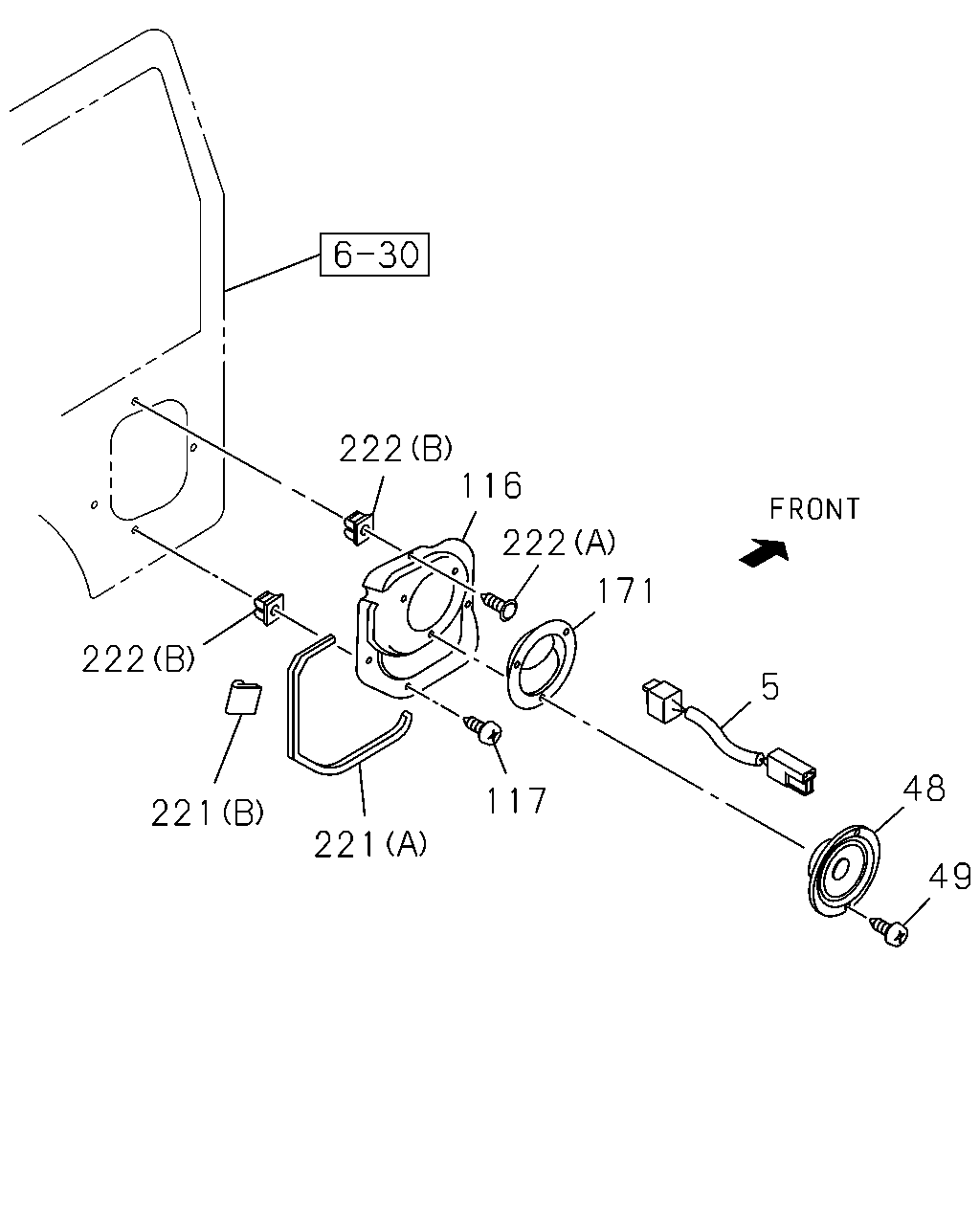

çizim 51628
222 116 222 171 222 5 48 117 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 09.647 HARNESS; EXT 8-97131-327-0 02 1 0302-0506 ● ● ● ● ● ● ●
5 09.647 HARNESS; EXT 8-97131-327-0 02 1 0507- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 24V<7AE> 		8-97317-001-0 02 1 0302-0506 ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-0 02 1 0302-0506 ● ● ● ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 24V<7AE> 		8-97317-001-0 02 1 0507-0606 ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-0 02 1 0507-0606 ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 0607- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
EXC. VOLTAGE 24V<7AE> 		8-97317-000-0 02 1 0302-0506 ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-000-0 02 1 0507-0606 ●
48 09.650 SPEAKER; AUDIO
EXC. VOLTAGE 24V<7AE> 		8-97317-000-0 02 1 0507-0606 ● ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 0302-0506 ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 0507-0612 ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0701- ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0302-0506 ● ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0507- ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0302-0506 ● ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0507- ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.067 M5X14 		8-94279-325-0 06 1 0302-0506 ● ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.067 M5X14 		8-94279-325-0 06 1 0507-0612 ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0701- ● ● ● ● ● ●
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 0302-0506 ● ● ● ● ● ● ●
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 0507- ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0302-0506 ● ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0507- ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0302-0506 ● ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0507- ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 0302-0506 ● ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 0507- ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0302-0506 ● ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0507- ● ● ● ● ● ●
