8-80 — WINDSHIELD WIPER AND WASHER (#46621) — 153 parça

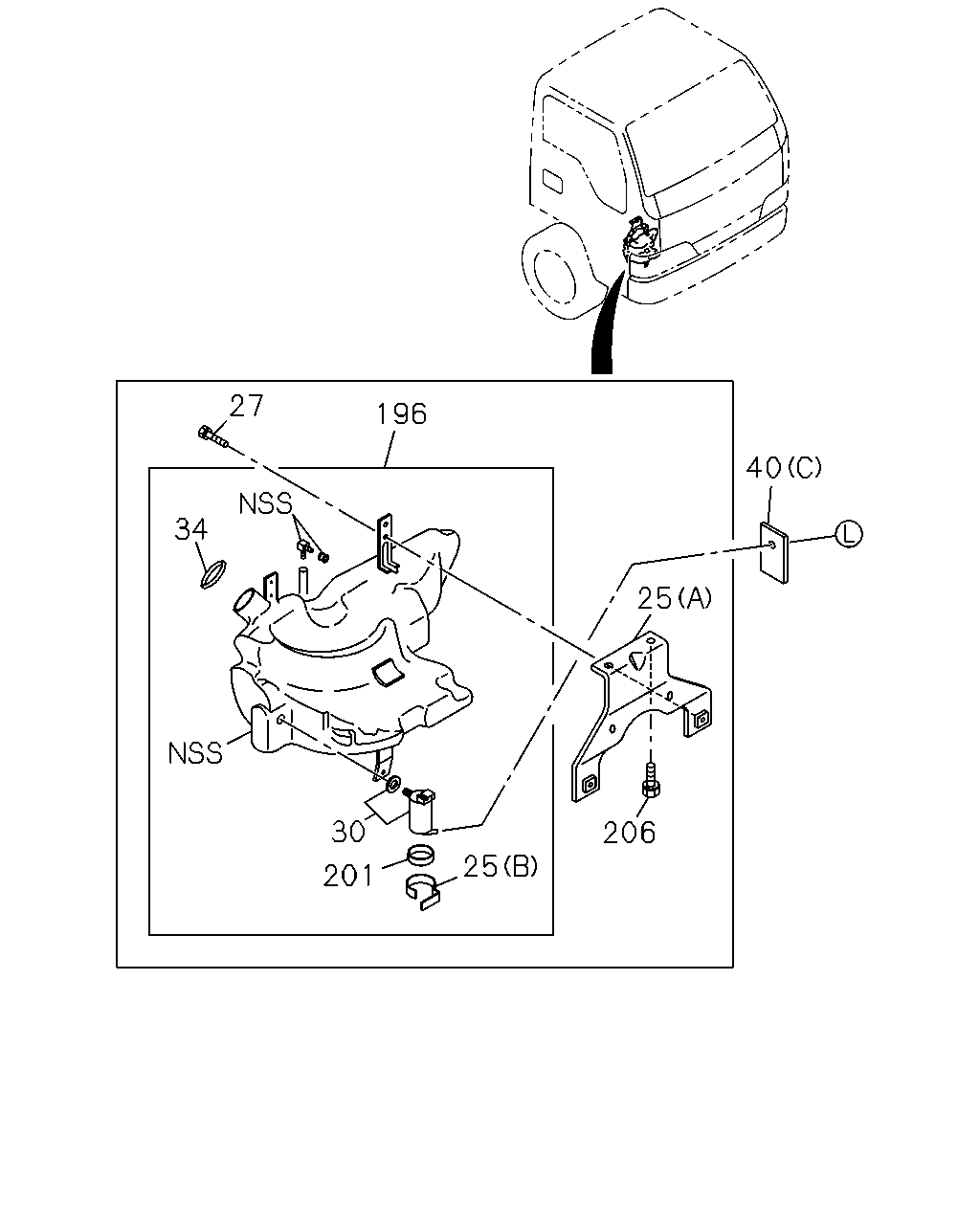

27 196 40 34 25 30 206 25 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	0507-	●	●	●		●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	0507-	●	●	●		●	●	●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0302-0506	●	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0507-	●	●	●		●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK VOLTAGE 24V<7AE>	8-97855-139-0	01	1	0302-0506	●	●				●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-139-0	01	1	0302-0506			●	●	●		●
30	16.065 MOTOR ASM; FRT WASHER TANK VOLTAGE 24V<7AE>	8-97855-139-0	01	1	0507-0606		●				●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-139-0	01	1	0507-0606			●		●		●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-139-0	01	1	0607-	●	●	●		●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK EXC. VOLTAGE 24V<7AE>	8-97855-138-0	01	1	0302-0506	●	●				●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-138-0	01	1	0507-0606	●
30	16.065 MOTOR ASM; FRT WASHER TANK EXC. VOLTAGE 24V<7AE>	8-97855-138-0	01	1	0507-0606		●				●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	0302-0506	●	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0507-	●	●	●		●	●	●
196	16.065 TANK; WASHER VOLTAGE 24V<7AE>	8-97855-066-6	01	1	0302-0506	●	●				●
196	16.065 TANK; WASHER	8-97855-066-6	01	1	0302-0506			●	●	●		●
196	16.065 TANK; WASHER VOLTAGE 24V<7AE>	8-97855-066-6	01	1	0507-0606		●				●
196	16.065 TANK; WASHER	8-97855-066-6	01	1	0507-0606			●		●		●
196	16.065 TANK; WASHER	8-97855-066-6	01	1	0607-	●	●	●		●	●	●
196	16.065 TANK; WASHER EXC. VOLTAGE 24V<7AE>	8-97855-065-6	01	1	0302-0506	●	●				●
196	16.065 TANK; WASHER	8-97855-065-6	01	1	0507-0606	●
196	16.065 TANK; WASHER EXC. VOLTAGE 24V<7AE>	8-97855-065-6	01	1	0507-0606		●				●
201	16.064 LINING; WIPER MOTOR	8-97352-826-0	01	1	0302-0506	●	●	●	●	●	●	●
201	16.064 LINING; WIPER MOTOR	8-97352-826-0	01	1	0507-	●	●	●		●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0302-0506	●	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●		●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●		●	●	●

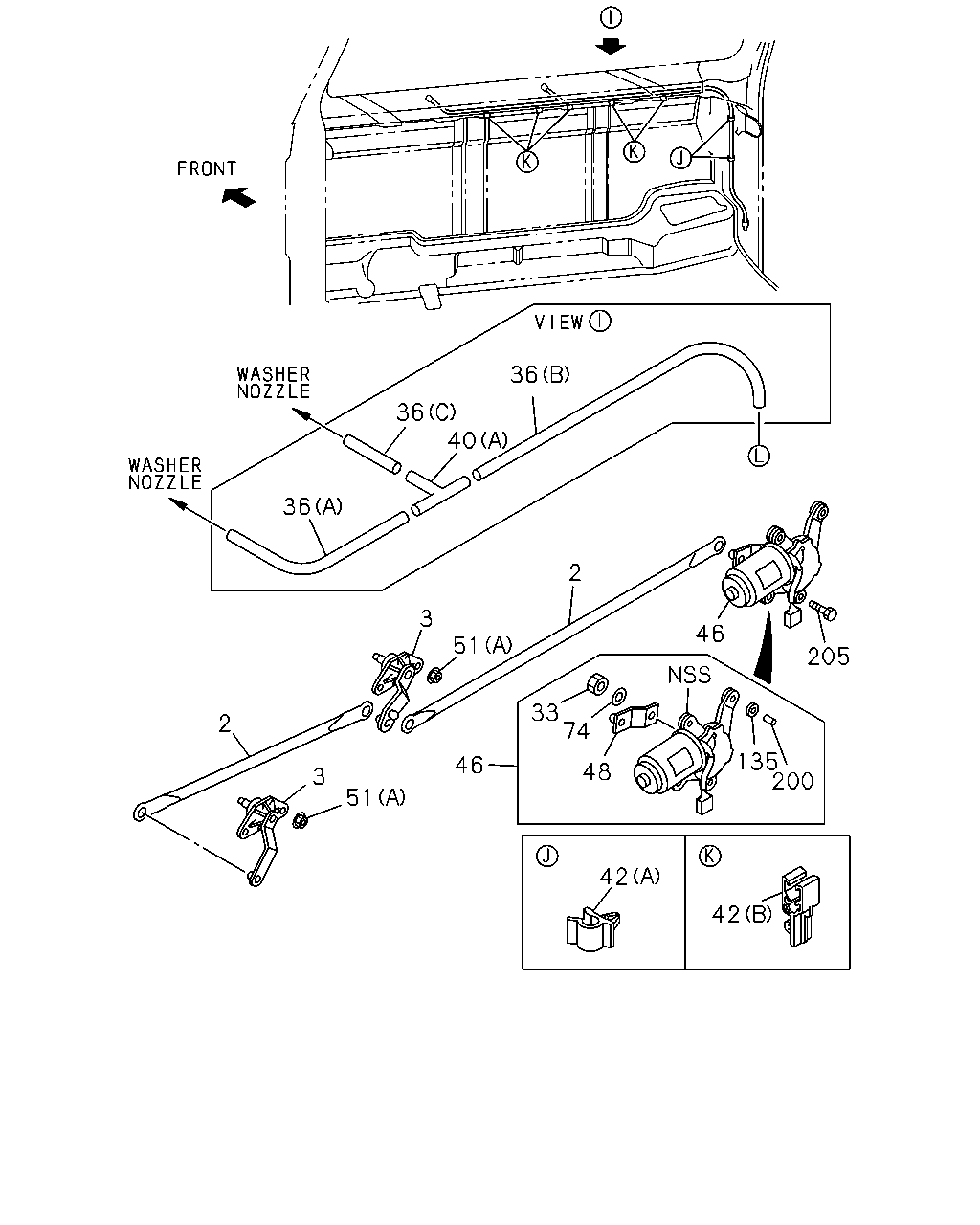

36 36 40 36 2 3 46 51 205 33 74 2 135 200 46 48 3 51 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT	8-97855-152-0	01	1	0302-0506	●	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT	8-97855-152-0	01	1	0507-	●	●	●		●	●	●
2	16.063 LINK; FRT WIPER PIVOT TO PIVOT L=791 W/CAP	8-97855-154-0	01	1	0302-0506	●	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER PIVOT TO PIVOT L=791 W/CAP	8-97855-154-0	01	1	0507-	●	●	●		●	●	●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-147-1	01	1	0302-0506	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-147-1	01	1	0507-	●	●	●		●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-0	01	1	0302-0407	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-98003-074-0	01	1	0408-0506	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-98003-074-0	01	1	0507-1103	●	●	●		●	●	●
3	16.063 PIVOT ASM; FRT WIPER	8-97855-148-2	01	1	1104-	●	●	●		●	●	●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	0302-0506	●	●	●	●	●	●	●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	0507-	●	●	●		●	●	●
36	16.065 HOSE; WASHER 10.155 (A)=1100 (C)=320 SERVICED BY L=10000	8-94389-303-0	01	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A)=1100 (C)=320 SERVICED BY L=10000	8-94389-303-0	01	1	0507-	●	●	●		●	●	●
36	16.065 HOSE; WASHER (D)	8-97216-112-0	02	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)=810 SERVICED BY L=10000	9-09914-906-0	01	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)=810 SERVICED BY L=10000	9-09914-906-0	01	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0302-0506	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	07	1	0302-0506	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0302-0506	●	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER VOLTAGE 24V<7AE>	8-97361-376-1	01	1	0302-0506	●	●				●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-376-1	01	1	0302-0506			●	●	●		●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER VOLTAGE 24V<7AE>	8-97361-376-1	01	1	0507-0606		●				●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-376-1	01	1	0507-0606			●		●		●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-376-1	01	1	0607-	●	●	●		●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER EXC. VOLTAGE 24V<7AE>	8-97361-375-1	01	1	0302-0506	●	●				●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-375-1	01	1	0507-0606	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER EXC. VOLTAGE 24V<7AE>	8-97361-375-1	01	1	0507-0606		●				●
48	16.063 ARM; WIPER MOTOR	8-97218-924-0	01	1	0302-0506	●	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97218-924-0	01	1	0507-	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0507-0611	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (A) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0507-	●	●	●		●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	0302-0506	●	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	0507-	●	●	●		●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	0302-0506	●	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	0507-	●	●	●		●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	0302-0506	●	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	0507-	●	●	●		●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	0302-0506	●	●	●	●	●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	0507-	●	●	●		●	●	●

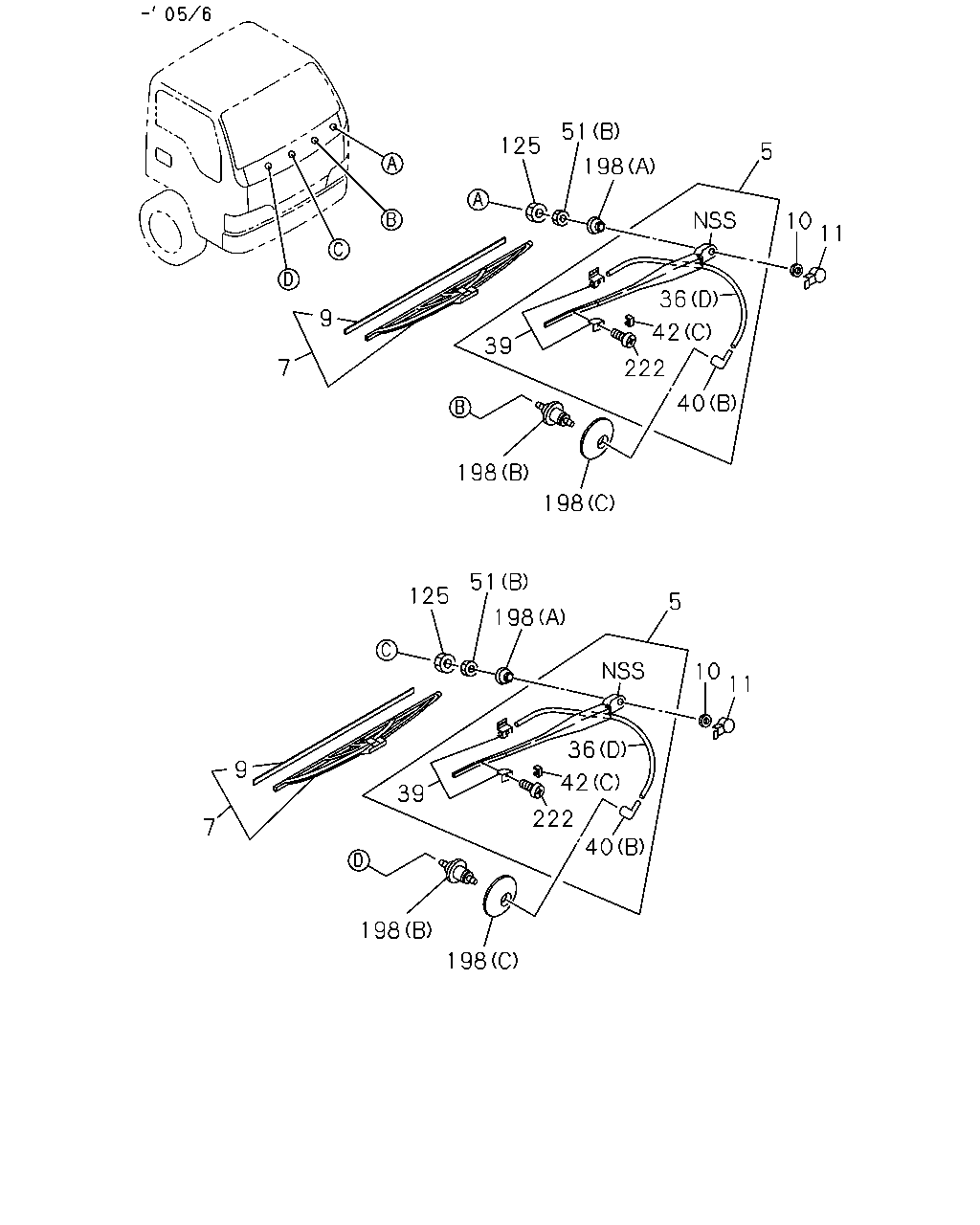

51 125 5 198 10 11 36 9 42 39 7 222 40 198 198 51 125 5 198 10 11 36 9 42 39 222 40 7 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	16.063 ARM; WIPER DRIVER SIDE	8-97223-546-1	02	1	0302-0506	●	●	●	●	●	●	●
5	16.063 ARM; WIPER DRIVER SIDE	8-97226-887-0	01	1	0507-	●	●	●		●	●	●
5	16.063 ARM; WIPER PASSENGER SIDE	8-97226-888-0	01	1	0507-	●	●	●		●	●	●
7	16.062 BLADE; WIPER L=500	8-97134-561-2	02	1	0302-0506	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=500	8-97134-561-2	02	1	0507-	●	●	●		●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97804-040-1	02	1	0302-0506	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97804-040-1	02	1	0507-	●	●	●		●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0302-0506	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0507-0512	●	●	●		●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.334 M8	0-91110-508-0	02	1	0601-	●	●	●		●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0302-0506	●	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0507-	●	●	●		●	●	●
36	16.065 HOSE; WASHER 10.155 (A)=1100 (C)=320 SERVICED BY L=10000	8-94389-303-0	01	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A)=1100 (C)=320 SERVICED BY L=10000	8-94389-303-0	01	1	0507-	●	●	●		●	●	●
36	16.065 HOSE; WASHER (D)	8-97216-112-0	02	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)=810 SERVICED BY L=10000	9-09914-906-0	01	1	0302-0506	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)=810 SERVICED BY L=10000	9-09914-906-0	01	1	0507-	●	●	●		●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-1	02	1	0302-0506	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98010-172-0	02	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	0507-	●	●	●		●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0302-0506	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0302-0506	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	07	1	0302-0506	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	0507-	●	●	●		●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0507-0611	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (A) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0507-	●	●	●		●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0302-0506	●	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0507-	●	●	●		●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	0302-0305	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0306-0506	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0507-	●	●	●		●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-1	02	1	0302-0506	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	0302-0506	●	●	●	●	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	04	1	0302-0506	●	●	●	●	●	●	●

51 125 198 10 11 5 9 7 39 199 51 125 198 10 11 5 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	16.063 ARM; WIPER DRIVER SIDE	8-97223-546-1	02	1	0302-0506	●	●	●	●	●	●	●
5	16.063 ARM; WIPER DRIVER SIDE	8-97226-887-0	01	1	0507-	●	●	●		●	●	●
5	16.063 ARM; WIPER PASSENGER SIDE	8-97226-888-0	01	1	0507-	●	●	●		●	●	●
7	16.062 BLADE; WIPER L=500	8-97134-561-2	02	1	0302-0506	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=500	8-97134-561-2	02	1	0507-	●	●	●		●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97804-040-1	02	1	0302-0506	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97804-040-1	02	1	0507-	●	●	●		●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0302-0506	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0507-0512	●	●	●		●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.334 M8	0-91110-508-0	02	1	0601-	●	●	●		●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0302-0506	●	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0507-	●	●	●		●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-1	02	1	0302-0506	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98010-172-0	02	1	0507-	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0507-0611	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (A) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●		●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0302-0506	●	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	0507-	●	●	●		●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0302-0506	●	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0507-	●	●	●		●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	0302-0305	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0306-0506	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0507-	●	●	●		●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-1	02	1	0302-0506	●	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	0302-0506	●	●	●	●	●	●	●
199	16.063 COVER; NOZZLE,WIPER	8-97855-022-1	02	1	0507-	●	●	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
